Effects of differential pressure and pumping fertilization devices on cotton yield and nitrogen utilization

doi:10.6048/j.issn.1001-4330.2024.02.002

Abstract

Abstract:

【Objective】 To explore the effects of two fertilization devices, differential pressure fertilization and pumping fertilization, on nitrogen absorption, cotton yield and nitrogen use efficiency in drip irrigation cotton fields so as to provide theoretical basis for the development of water and fertilizer integration technology in drip irrigation cotton fields in arid areas of Xinjiang.【Methods】 The three treatments were set up in the experiment:no nitrogen application(N₀), differential pressure fertilization device(N₃₀₀-differential pressure type)and pump-suction fertilization device(N₃₀₀-pump-suction type), in which the nitrogen fertilizer was ammonium sulfate, and the dosage was 300 kg/hm².【Results】 Compared with N₀ treatment, N₃₀₀-differential pressure treatment and N₃₀₀-pumping treatment significantly increased cotton total biomass, nitrogen absorption and seed cotton yield.Compared with N₃₀₀-differential pressure treatment, N₃₀₀-pumping treatment had a more uniform distribution of ammonium nitrogen in emitter fertilizer solution, and the cotton biomass, nitrogen absorption, seed cotton yield and nitrogen utilization rate increased by 15.94%, 31.50%, 7.32% and 52.98%, respectively.【Conclusion】 Under the same fertilization amount, the variation range of ammonium nitrogen concentration in emitter fertilizer solution of pump-suction fertilization device with time is smaller than that of differential pressure fertilization device.Therefore, the uniformity of fertilization of pump-suction fertilization device is better than that of differential pressure fertilization device, and the pump-suction fertilization device promotes cotton growth and significantly improves nitrogen absorption, thus increasing seed cotton yield and nitrogen utilization rate.

Key words: cotton; differential pressure fertilization device; pump-suction fertilization device; yield; nitrogen use efficiency

摘要：

【目的】研究压差式施肥和泵吸式施肥两种施肥装置对滴灌棉田氮素吸收、棉花产量及氮肥利用率的影响,为新疆干旱区滴灌棉田水肥一体化技术提供理论依据。【方法】设置3个处理:不施氮(N₀)、压差式施肥装置(N₃₀₀-压差式)、泵吸式施肥装置(N₃₀₀-泵吸式),其中氮肥为硫酸铵,用量为300 kg/hm²。【结果】与N₀处理相比,N₃₀₀-压差式和N₃₀₀-泵吸式处理显著增加棉花总生物量、氮素吸收量和籽棉产量;与N₃₀₀-压差式处理相比,N₃₀₀-泵吸式处理滴头肥液铵态氮浓度分布更加均匀,且N₃₀₀-泵吸式处理棉花生物量、氮素吸收量、籽棉产量和氮肥利用率显著增加15.94%、31.50%、7.32%和52.98%。【结论】同一施肥量的条件下,泵吸式施肥装置滴头肥液铵态氮浓度随时间变化幅度比压差式施肥装置小,泵吸式施肥装置施肥均匀性优于压差式施肥装置,泵吸式施肥装置较压差式施肥装置促进棉花生长,且显著提高氮素吸收量及籽棉产量和氮肥利用率。

关键词: 棉花, 压差式施肥装置, 泵吸式施肥装置, 产量, 氮肥利用率

CLC Number:

S562
S14

YANG Maoqi, HOU Zhenan, MIN Wei. Effects of differential pressure and pumping fertilization devices on cotton yield and nitrogen utilization[J]. Xinjiang Agricultural Sciences, 2024, 61(2): 271-278.

杨茂琪, 侯振安, 闵伟. 压差式和泵吸式施肥装置对棉花产量和氮肥利用率的影响[J]. 新疆农业科学, 2024, 61(2): 271-278.

Figures/Tables 6

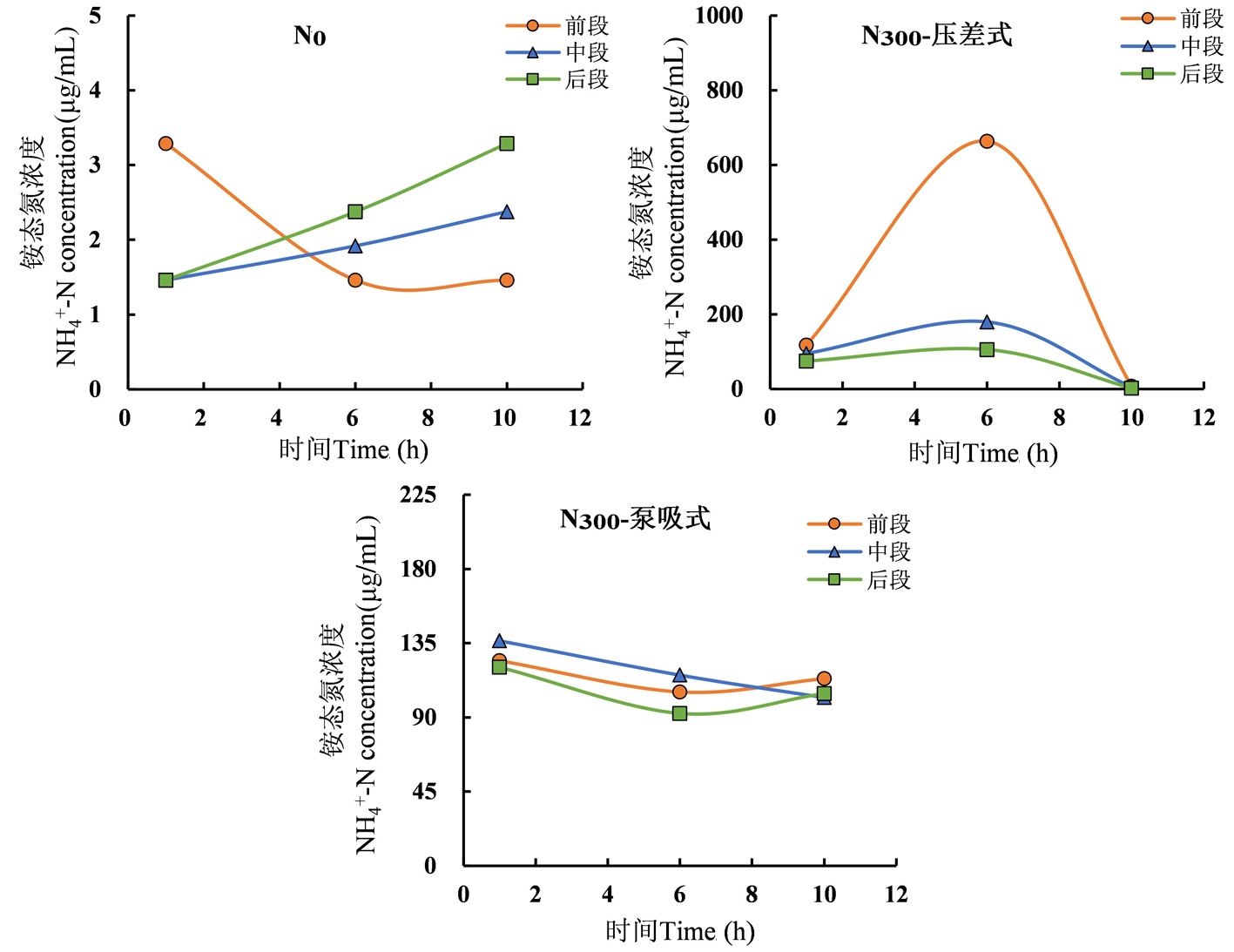

Fig.1 The change of ammonium nitrogen concentration in emitter fertilizer solution with time under different fertilization devices and different positions

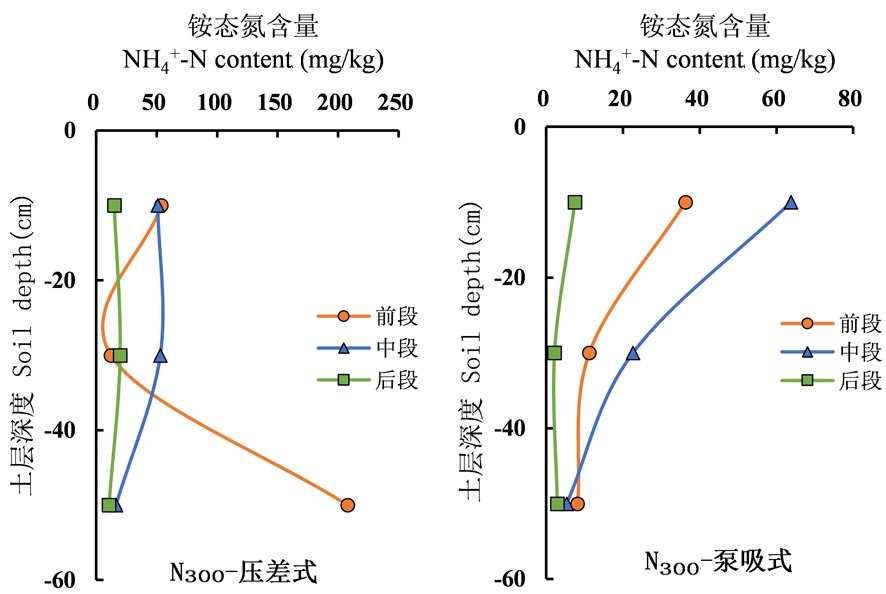

Fig.2 The change of soil ammonium nitrogen content with soil depth under different fertilization devices and different positions

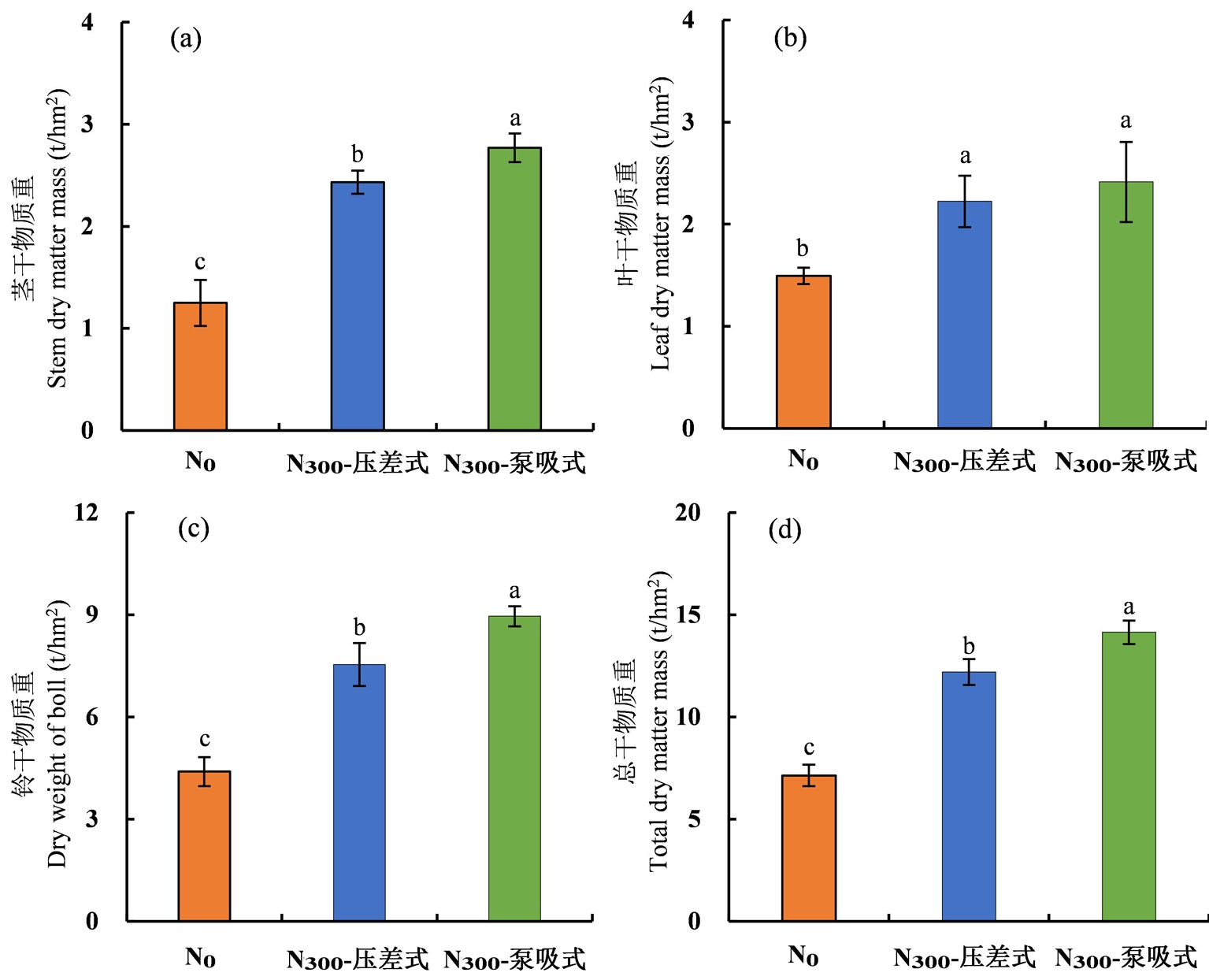

Fig.3 Effects of different fertilization devices on biomass of cotton organs

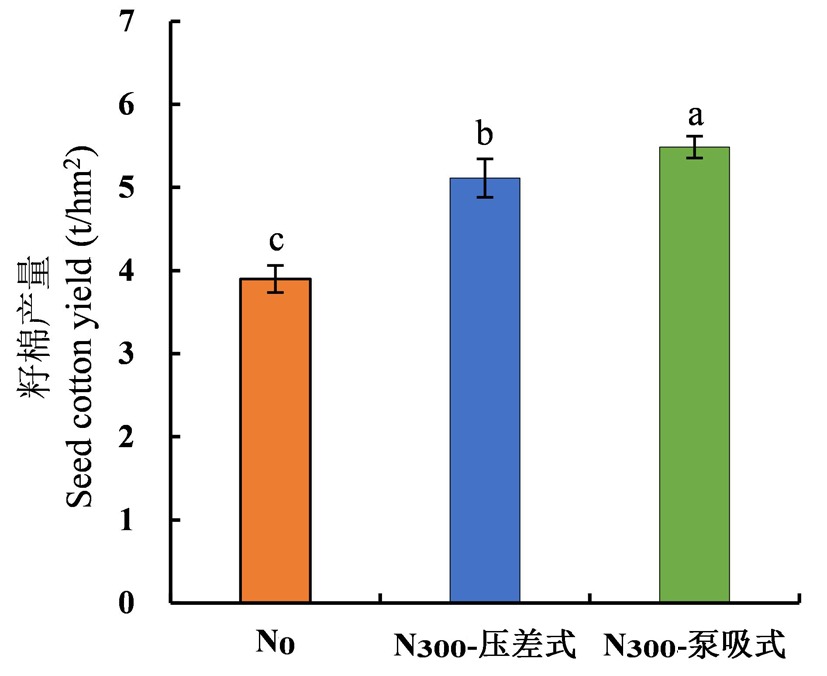

Fig.4 Effects of different fertilization devices on seed cotton yield

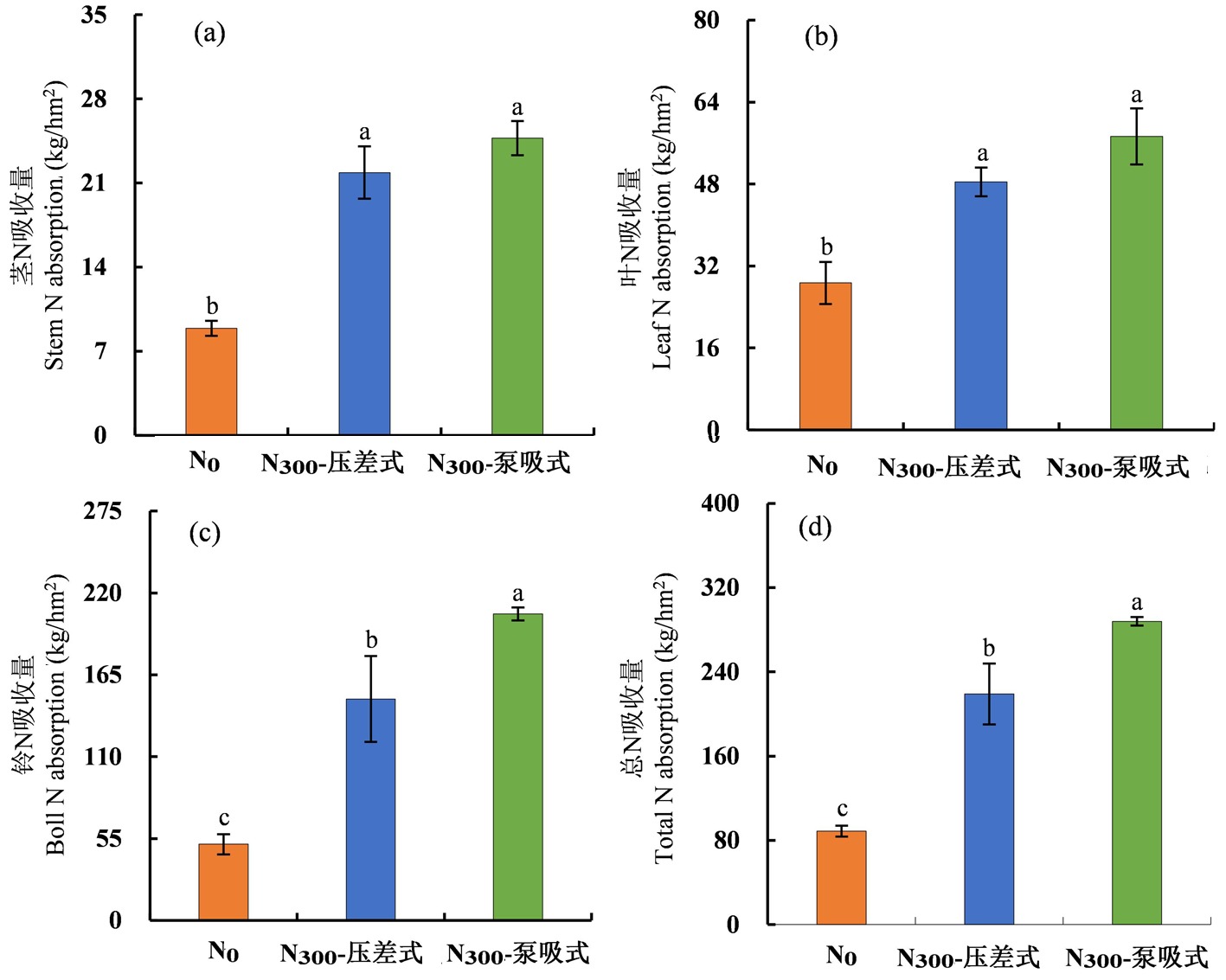

Fig.5 Effects of different fertilization devices on nitrogen uptake of cotton organs

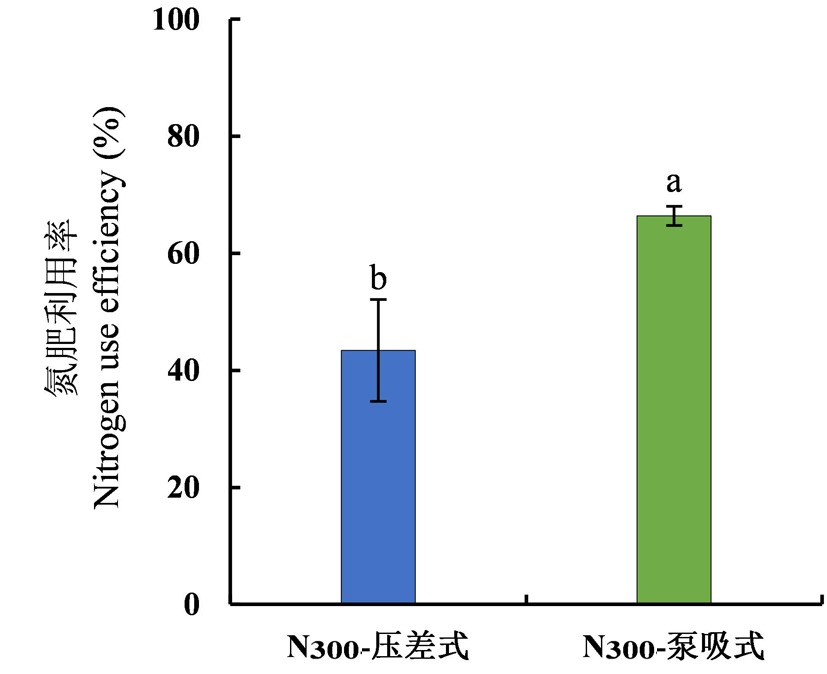

Fig.6 Effects of different fertilization devices on nitrogen utilization rate

References 23

[1]	国家统计局. 中国统计年鉴2020[M]. 北京: 中国统计出版社, 2020.
	National Bureau of Statistics. China statistical yearbook 2020[M]. Beijing: China Statistics Press, 2020.
[2]	王子胜, 徐敏, 刘瑞显, 等. 施氮量对不同熟期棉花品种的生物量和氮素累积的影响[J]. 棉花学报, 2011, 23(6):537-544. DOI
	WANG Zisheng, XU Min, LIU Ruixian, et al. Effects of Nitrogen Rates on Biomass and Nitrogen Accumulation of Cotton with Different Varieties in Growth Duration[J]. Cotton Science, 2011, 23(6):537-544.
[3]	汤明尧, 沈重阳, 张炎, 等. 新疆棉花化肥利用效率研究[J]. 中国土壤与肥料, 2022,(4):161-168.
	TANG Mingyao, SHEN Chongyang, ZHANG Yan, et al. Investigation of fertilizer use efficiency for cotton in Xinjiang[J]. Soil and Fertilizer Sciences in China, 2022,(4):161-168.
[4]	吴锡凯, 王文娥, 胡笑涛, 等. 水力驱动式比例施肥器性能影响因素试验研究[J]. 中国农村水利水电, 2018,(4):6-9.
	WU Xikai, WANG Wen’e, HU Xiaotao, et al. Experimental Research on the Influencing Factors of Performance of Hydraulic Driven Proportional Fertilizer[J]. China Rural Water and Hydropower, 2018,(4):6-9.
[5]	陈剑, 吕新, 吴志勇, 等. 膜下滴灌施肥装置应用与探索[J]. 新疆农业科学, 2010, 47(2):312-315.
	CHEN Jian, LYU Xin, WU Zhiyong, et al. Exploration and Application of Fertilization Devices for Drip Irrigation under Film Mulch[J]. Xinjiang Agricultural Sciences, 2010, 47(2):312-315.
[6]	江景涛, 杨然兵, 鲍余峰, 等. 水肥一体化技术的研究进展与发展趋势[J]. 农机化研究, 2021, 43(5):1-9.
	JIANG Jingtao, YANG Ranbing, BAO Yufeng, et al. Research Progress and Development Trend of Water and Fertilizer Integration[J]. Journal of Agricultural Mechanization Research, 2021, 43(5):1-9.
[7]	孟一斌, 李久生, 李蓓. 微灌系统压差式施肥罐施肥性能试验研究[J]. 农业工程学报, 2007,(3):41-45.
	MENG Yibin, LI Jiusheng, LI Bei. Fertilization performance of the pressure differential tank in micro-irrigation system[J]. Transactions of the Chinese Society of Agricultural Engineering, 2007,(3):41-45.
[8]	杨欣, 王文娥, 胡笑涛, 等. 滴灌系统压差式施肥罐施肥性能研究[J]. 节水灌溉, 2017,(10):79-83.
	YANG Xin WANG Wen’e, HU Xiaotao, et al. Study on Fertilization Performance of Drip lrrigation System with Pressure Differential Tank[J]. Water Saving Irrigation, 2017,(10):79-83.
[9]	陈剑, 吕新. 滴灌棉田压差式施肥罐注肥均匀度研究与分析[J]. 节水灌溉, 2011,(1):62-64.
	CHEN Jian, LYU Xin. Study on Fertilization Uniformity of Pressure Differential Tank in Drip Irrigation Cotton Field[J]. Water Saving Irrigation, 2011,(1):62-64.
[10]	霍倩, 吴亮亮, 檀海斌. 泵吸式施肥系统水力性能数值模拟与分析[J]. 节水灌溉, 2020,(8):59-62,71.
	HUO Qian, WU Liangliang, TAN Haibin. Numerical Simulation and Analysis on Hydraulic Performance of Pump Suction Fertilization System[J]. Water Saving Irrigation, 2020,(8):59-62,71.
[11]	董环, 娄春荣, 王秀娟, 等. 设施果菜水肥一体化材料装备选型分析[J]. 辽宁农业科学, 2017,(5):54-58.
	DONG Huan, LOU Chunrong, WANG Xiujuan. et al. Analysis on selection of materials and equipment for water and fertilizer integration of protected fruits and vegetables[J]. Liaoning Agricultural Sciences, 2017,(5):54-58.
[12]	李中华, 涂攀峰, 严程明, 等. 柑橘水肥一体化技术规程[J]. 安徽农业科学, 2018, 46(24):105-107,110.
	LI Zhonghua, TU Panfeng, YAN Chengming. et al. Technological Rules of Fertigation for Citrus Cultivation[J]. Journal of Anhui Agricultural Sciences, 2018, 46(24):105-107,110.
[13]	Li F, Liang J, Kang S, et al. Benefits of alternate partial root-zone irrigation on growth, water and nitrogen use efficiencies modified by fertilization and soil water status in maize[J]. Plant Soil, 2007, 295(1):279-291. DOI URL
[14]	徐茹, 王文娥, 胡笑涛. 水肥一体微喷带沿程压力及肥液浓度分布规律试验研究[J]. 节水灌溉, 2019,(9):1-5.
	XU Ru, WANG Wen’e, HU Xiaotao. An Experimental Study on Pressure and Fertilizer Solution Concentration Distribution of Water and Fertilizer Integrated Micro Spray Belt[J]. Water Saving Irrigation, 2019,(9):1-5.
[15]	李永梅, 陈学东, 李锋, 等. 我国水肥一体化技术发展研究[J]. 宁夏农林科技, 2018, 59(9):51-53.
	Ll Yongmei, CHEN Xuedong, LI Feng, et al. Development of Water and Fertilizer Integration Technology in China[J]. Journal of Ningxia Agriculture and Forestry Science and Technology, 2018, 59(9):51-53.
[16]	王睿. 石羊河流域滴灌系统施肥过滤设备配置模式研究[D]. 杨凌: 西北农林科技大学, 2018.
	WANG Rui. Study on Distribution Mode of Fertilizer And Filtration Equipment for Drip Irrigation System in Shiyang River Basin[D]. Yangling: Northwest A&F University, 2018.
[17]	孔庆波, 张青, 栗方亮. 福建省果园水肥一体化配置和使用现状调查[J]. 中国果树, 2021,(3):85-90.
	KONG Qingbo, ZHANG Qing, LI Fangliang. Investigation on water and fertilizer integrated allocation and utilization of orchards in Fujian Province[J]. China Fruits, 2021,(3):85-90.
[18]	李久生, 杜珍华, 栗岩峰. 地下滴灌系统施肥灌溉均匀性的田间试验评估[J]. 农业工程学报, 2008,(4):83-87.
	LI Jiusheng, DU Zhenhua, LI Yanfeng. Field evaluation of fertigation uniformity for subsurface drip irrigation systems[J]. Transactions of the Chinese Society of Agricultural Engineering, 2008,(4):83-87.
[19]	厍润祥, 田立文, 娄善伟, 等. 氮肥用量对棉花生长发育及产量的影响[J]. 新疆农业大学学报, 2019, 42(6):385-391.
	SHE Runxiang, TIAN Liwen, LOU Shanwei. Effects of Nitrogen Fertilizer Amount on Cotton Growth and Economic Benefits[J]. Journal of Xinjiang Agricultural University, 2019, 42(6):385-391.
[20]	朱鹏, 王飞, 温鹏飞, 等. 不同滴灌施肥装置施肥对棉花植株生长及产量的影响[J]. 节水灌溉, 2016,(1):27-29,33.
	ZHU Peng, WANG Fei, WEN Pengfei, et al. Effects of Different Drip lrrigation Fertilization Device on Plant Growth and Yield of Cotton[J]. Water Saving Irrigation, 2016,(1):27-29,33.
[21]	李久生, 杜珍华, 栗岩峰, 等. 壤土特性空间变异对地下滴灌水氮分布及夏玉米生长的影响[J]. 中国农业科学, 2008, 41(6):1717-1726.
	LI Jiusheng, DU Zhenhua, LI Yanfeng, et al. Water and Nitrogen Distribution and Summer Maize Growth in Subsurface Drip lrrigation System as Affected by Spatial Variations of Soil Properties[J]. Scientia Agricultura Sinica, 2008, 41(6):1717-1726.
[22]	陈琼贤, 张白鸽, 曹健, 等. 南方蔬菜水肥一体化高效生产技术[J]. 中国蔬菜, 2011,(17):51-54.
	CHEN Qiongxian, ZHANG Baige, CAO Jian, et al. Efficient production technology of water and fertilizer integration for vegetables in South China[J]. China Vegetables, 2011,(17):51-54.
[23]	陶垿. 不同滴灌施肥方式下土壤硝态氮分布及棉株氮素利用率的研究[D]. 石河子: 石河子大学, 2015.
	TAO Xu. Study on Distribution of Soil NO₃^-1-N and Utilization Rate of Cotton by Different Ways of Fertigation[D]. Shihezi: Shihezi University, 2015.
