Spatiotemporal Variation of Vegetation Coverage of Natural Grassland in Northern Xinjiang in Recent 20 Years and Its Relationship with Meteorological Factors

doi:10.6048/j.issn.1001-4330.2023.02.025

Abstract

Abstract:

【Objective】 To explore the temporal and spatial changes of natural grassland vegetation coverage and its relationship with meteorological factors in northern Xinjiang from 1998 to 2018, so as to provide technical support for the ecological restoration of degraded grassland. 【Methods】 Based on the MODIS-NDVI product data and meteorological data for many years, the pixel dichotomy model was used to retrieve the natural grassland coverage in northern Xinjiang in recent 20 years and reveal the temporal and spatial changes of grassland vegetation coverage in this region, and correlation analysis was performed on temperature and precipitation, to discuss the relationship between natural grassland vegetation coverage and meteorological factors in northern Xinjiang. 【Results】 (1) During the study period, the vegetation coverage of natural grassland in Northern Xinjiang was generally smaller in the middle and East, and larger in the north, West and south.(2) From the state of grassland change in recent 20 years in northern Xinjiang, it could be seen that 57.51% of the grassland change rate showed an increasing trend, and 42.49% of the grassland change rate showed a decreasing trend.(3) During the study period, the proportion of negative correlation between vegetation coverage and annual precipitation was 18.73%, and the proportion of positive correlation was 81.27%; There was a negative correlation between grassland vegetation coverage and annual average temperature in northern Xinjiang, accounting for 39.48% and a positive correlation of 60.52%. 【Conclusion】 The results showed that the correlation between vegetation coverage and annual precipitation was higher than that of annual temperature.

Key words: grassland vegetation coverage; spatiotemporal change; grassland change rate; meteorological factors; correlation analysis

摘要：

【目的】 研究新疆北疆1998~2018年天然草地植被覆盖度时空变化及其与气象因子的关系,为退化草地的生态修复提供技术支持。【方法】 基于多年连续的MODIS-NDVI产品数据和气象数据,利用像元二分模型对近20 a新疆北疆天然草地覆盖度进行反演,分析该区域草地植被覆盖度的时空变化及与温度、降水相关性,研究北疆天然草地植被覆盖度与气象因子的关系。【结果】 (1)近20 a来,北疆天然草地植被覆盖度总体上呈现为中部和东部较低,北部、西部和南部较高的空间分布趋势。(2)天然草地变化率呈增加趋势的占比为57.51%,天然草地变化率呈降低趋势的占比为42.49%。(3)近20 a来,北疆天然草地植被覆盖度与年均降水量呈正相关的比例为81.27%,呈负相关的比例为18.73%;北疆天然草地植被覆盖度与年均气温呈负相关性所占比例为39.48%,呈正相关的比例为60.52%。【结论】 新疆北疆天然草地植被覆盖度与年均降水量的相关性高于年均气温。

关键词: 草地植被覆盖度, 时空变化, 草地变化率, 气象因子, 相关性

CLC Number:

S812

HOU Zhixiong, JING Changqing, CHEN Chen, WANG Gongxin, GUO Wenzhang, ZHAO Weikang. Spatiotemporal Variation of Vegetation Coverage of Natural Grassland in Northern Xinjiang in Recent 20 Years and Its Relationship with Meteorological Factors[J]. Xinjiang Agricultural Sciences, 2023, 60(2): 464-471.

侯志雄, 井长青, 陈宸, 王公鑫, 郭文章, 赵苇康. 近20 a新疆北疆天然草地植被覆盖度时空变化及其与气象因子的关系[J]. 新疆农业科学, 2023, 60(2): 464-471.

Figures/Tables 5

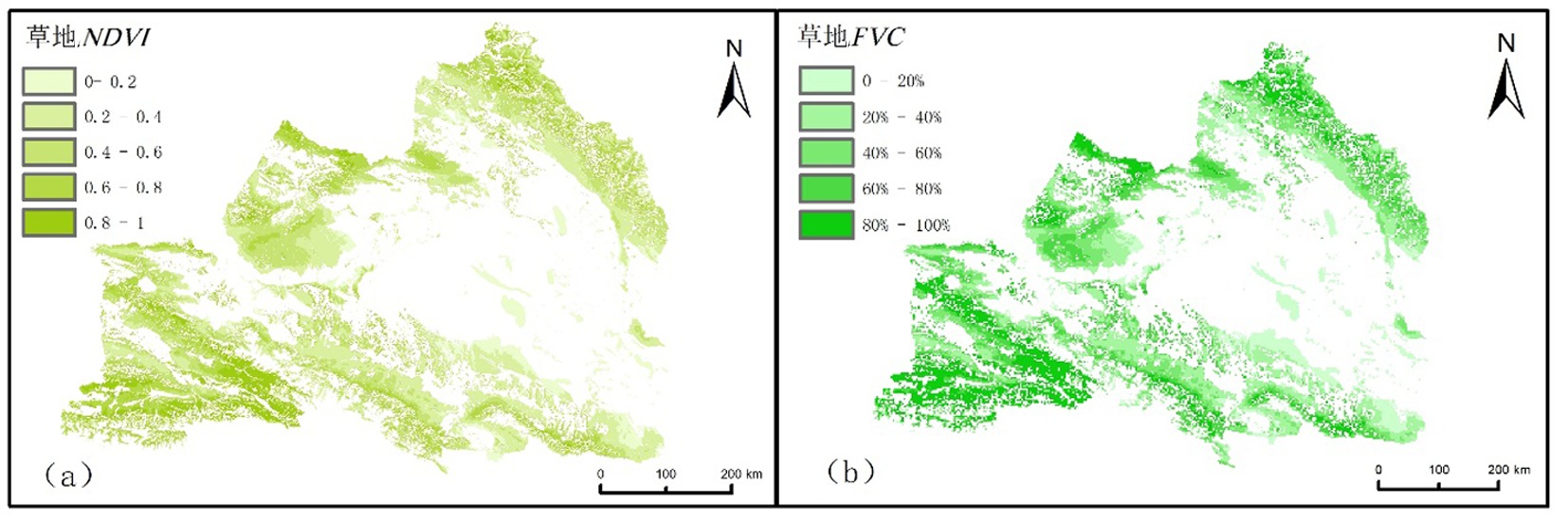

Fig.1 Distribution of NDVI and FVC of grassland in Northern Xinjiang from 1998 to 2018 Note: The map is based on the standard map with drawing review No. GS (2019) 3333 downloaded from the standard map service website of China Society of Surveying and mapping, and the base map is not modified,the same as below

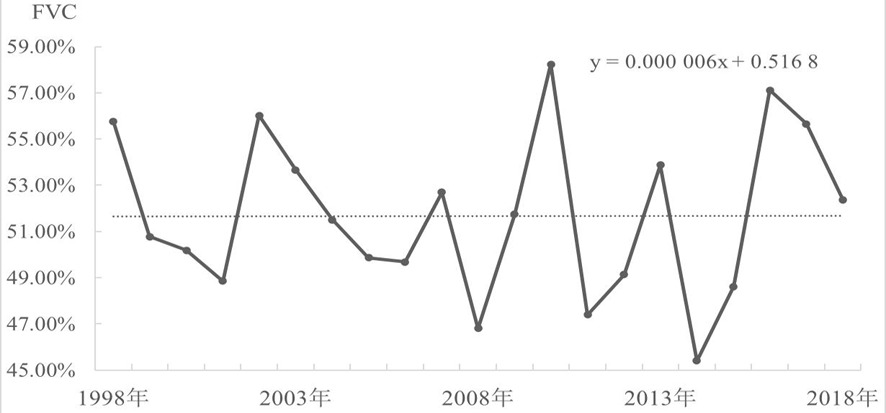

Fig. 2 Temporal change of vegetation coverage of natural grassland in Northern Xinjiang from 1998 to 2018

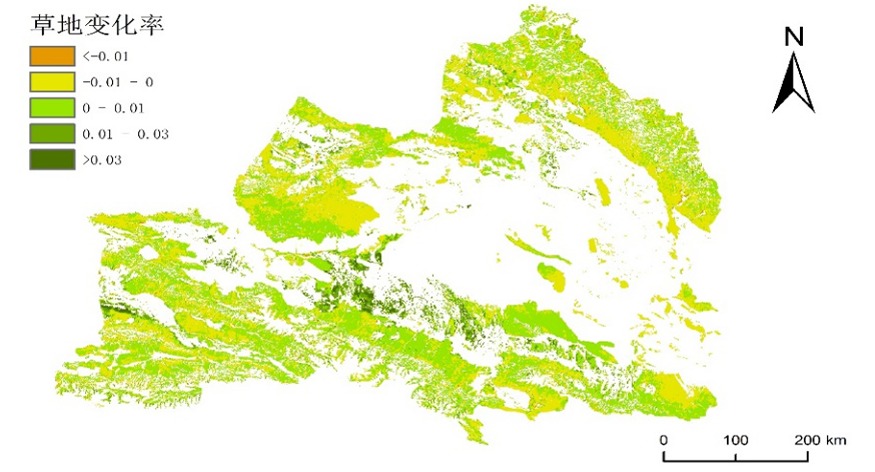

Fig.3 Grassland change rate in Northern Xinjiang from 1998 to 2018

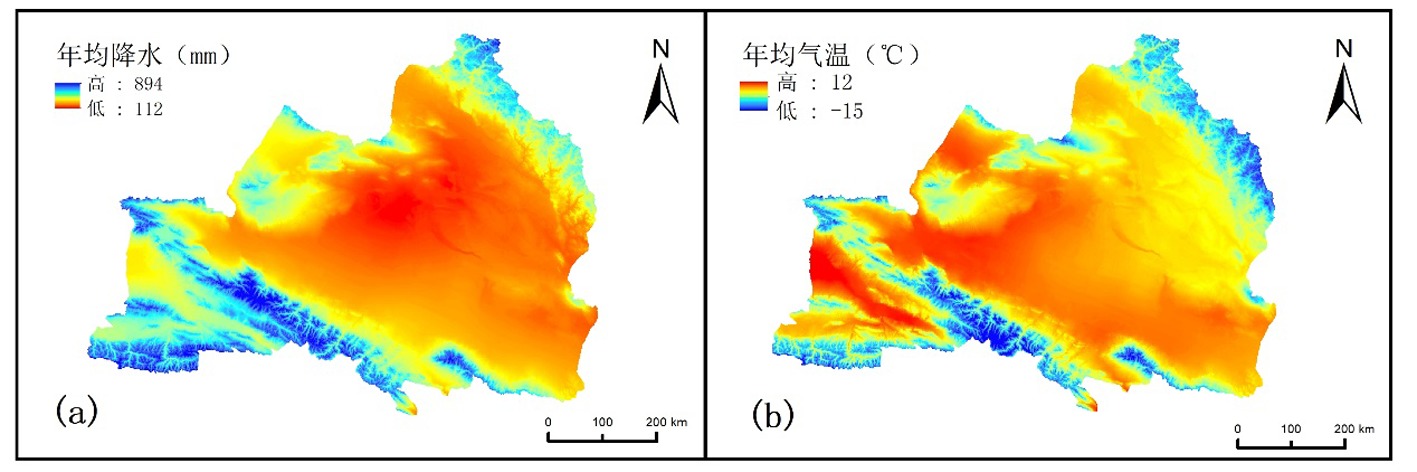

Fig.4 Spatial distribution of meteorological factors in Northern Xinjiang

Fig.5 Correlation analysis of vegetation coverage with annual average precipitation in Northern Xinjiang

References 30

[1]	刘志峰, 南颖, 胡浩, 等. 2000-2008年长白山地区植被覆盖变化特征[J]. 西北植物学报, 2010, 30(2):391-398.
	LIU Zhifeng, NAN Ying, HU Hao, et al. Vegetation cover changes in Changbai Mountain from 2000 to 2008[J]. Acta Botanica Boreali-Occidentalia Sinica, 2010, 30(2):391-398.
[2]	蔡朝朝, 安沙舟, 蒲智, 等. 基于TM NDVI的库尔勒市域植被覆盖度动态变化[J]. 草业科学, 2015, 32(7):1069-1078.
	CAI Zhaozhao, AN Shazhou, PU Zhi, et al. A study on vegetation coverage change in Korla City based on the TM NDVI[J]. Pratacultural Science, 2015, 32(7):1069-1078.
[3]	Xu Y F, Yang J, Chen Y N. NDVI-based vegetation responses to climate change in an arid area of China[J]. Theoretical and Applied Climatology, 2016, 126(1/2):213-222. DOI URL
[4]	樊自立. 新疆土地开发对生态与环境的影响及对策研究[M]. 北京: 气象出版社, 1996.
	FAN Zili. The impact of land development on ecology and environment in Xinjiang and the Countermeasures[M]. Beijing: Meteorological Press, 1996.
[5]	张斯琦. 2000-2015年柴达木盆地植被覆盖度时空变化及其与环境因子的关系[D]. 石家庄: 河北师范大学, 2019.
	ZHANG Siqi. Spatial and temporal variation of fractional vegetation coverand its relationship with environmental factors in the Qaidam Basin during 2000-2015[D]. Shijiazhuang: Hebei Normal University, 2019.
[6]	吴云. 基于RS和GIS的植被覆盖度估算及动态变化分析-以三北防护林工程区和海河流域为例[D]. 葫芦岛: 辽宁工程技术大学, 2009.
	WU Yun. Estimation and dynamic variations for vegetation fractional cover in the Three-North region of China and the Hai River Basin based on RS and GIS[D]. Huludao: Liaoning Technical University, 2009.
[7]	李苗苗. 植被覆盖度的遥感估算方法研究[D]. 北京: 中国科学院研究生院, 2003.
	LI Miaomiao. The methodof vegetation fraction estimationby remote sensing[D]. Beijing: Graduate School of Chinese Academy of Sciences, 2003.
[8]	杨瑞瑞. 2000-2017年黄河源区植被覆盖度时空变化及其与气候变化响应分析[D]. 成都: 成都理工大学, 2019.
	YANG Ruirui. Spatio-temporal Variation of Vegetation Coverage and Its Response to climate change in the Source Region of the Yellow River from 2000 to 2017[D]. Chengdu: Chengdu University of Technology, 2019.
[9]	陈昀琳. 基于Landsat和MODIS NDVI时序数据的青海湖流域植被覆盖度提取及其变化分析[D]. 北京: 中国地质大学, 2019.
	CHEN Yunlin. Fractional Vegetation Cover in Qinghai Lake Watershed Extraction and Change Analysis Based on Time-series NDVI data of Landsat and MODIS[D]. Beijing: China University of Geosciences, 2019.
[10]	苗正红, 刘志明, 王宗明, 等. 基于MODIS NDVI的吉林省植被覆盖度动态遥感监测[J]. 遥感技术与应用, 2010, 25(3):387-393.
	MIAO Zhenghong, LIU Zhiming, WANG Zongming, et al. Dynamic monitoring of vegetation fraction change in Jilin Province based on MODIS NDVI[J]. Remote Sensing Technology and Application, 2010, 25(3):387-393.
[11]	刘超. 内蒙古阿拉善东南部地区近二十年来植被覆盖度及生态环境研究[D]. 北京: 中国地质大学, 2013.
	LIU Chao. Vegetation Coverage and Ecological Environment Study of Alxa in the Past Two Decades[D]. Beijing: China University of Geosciences, 2013.
[12]	李同艳. 西南地区植被覆盖度时空变化特征及其影响因素研究[D]. 昆明: 云南大学, 2019.
	LI Yantong. Spatio-temporal characteristics and influence factors of vegetation coverage in the Southwest China[D]. Kunming: Yunnan University, 2019.
[13]	朱林富. 基于MODIS数据的植被覆盖度时空变化及石漠化监测研究[D]. 重庆: 西南大学, 2018.
	ZHU Linfu. Study on the spatial-temporal variation of vegetation coverage and Karst Rocky desertification based on MODIS data[D]. Chongqing: Southwest University, 2018.
[14]	刘家琰, 谢宗强, 申国珍, 等. 基于SPOT-VEGETATION数据的神农架林区1998-2013年植被覆盖度格局变化[J]. 生态学报, 2018, 38(11):3961-3969.
	LIU Jiayan, XIE Zongqiang, SHEN Guozhen, et al. Dynamics and analysis of vegetation fraction changes in Shennongjia Forest District during 1998 to 2013 by using SPOT-VEGETATION NDVI data[J]. Acta Ecologica Sinica, 2018, 38(11):3961-3969.
[15]	常慧. 基于多源遥感的植被覆盖度反演研究-以青海湖流域为例[D]. 西宁: 青海师范大学, 2015.
	CHANG Hui. Retrieval of vegetation coverage based on multi-source remote sensing-Taking Qinghai Lake Basin as an example[D]. Xining: Qinghai Normal University, 2015.
[16]	杨凯军. 基于像元二分模型的石羊河流域植被覆盖度分异特征研究[D]. 兰州: 西北师范大学, 2015.
	YANG Kaijun. Study on the differentiation characteristics of vegetation coverage in Shiyang River Basin based on Dimidiate Pixel Model[D]. Lanzhou: Northwest Normal University, 2015.
[17]	拉巴, 拉巴卓玛, 德吉央宗, 等. 1982-2014年藏北地区植被NDVI变化特征及驱动因素[J]. 草业科学, 2018, 35(4):726-736.
	Lhaba, Lhaba Droma, DekeyYangzom, et al. Change in NDVI of northern Tibet and root cause analysis from 1982 to 2014[J]. Pratacultural Science, 2018, 35(4): 726-736.
[18]	陈效逑, 王恒. 1982-2003年内蒙古植被带和植被覆盖度的时空变化[J]. 地理学报, 2009, 64(1):84-94.
	CHEN Xiaoqiu, WANG Heng. Spatial and temporal variations of vegetation belts and vegetation cover degrees in Inner Mongolia from 1982 to 2003[J]. Acta Geographica Sinica, 2009, 64(1):84-94. DOI
[19]	陈雪华. 北疆区域植被覆盖变化及其与气象因子的关系[D]. 乌鲁木齐: 新疆师范大学, 2012.
	CHEN Xuehua. Vegetation cover variation and its relation with meteorological factors in Northern part of Xinjiang[D]. Urumqi: Xinjiang Normal University, 2012.
[20]	王智. 新疆地区植被覆盖变化与气候、人文因子的相关性探讨[D]. 乌鲁木齐: 新疆大学, 2011.
	WANG Zhi. Discussion on correlation between vegetation cover change and climate and human factor in Xinjiang area[D]. Urumqi: Xinjiang University, 2011.
[21]	郭超, 楚新正, 张扬, 等. 新疆北疆地区旱涝灾害对气候变化的响应[J]. 西南农业学报, 2019, 32(4):929-935.
	GUO Chao, CHU Xinzheng, ZHANG Yang, et al. Climate change and response to drought and flood disasters in Northern Xinjiang[J]. Southwest China Journal of Agricultural Sciences, 2019, 32(4): 929-935.
[22]	吴燕锋. 北疆近52年气象干旱时空演变特征[D]. 乌鲁木齐: 新疆农业大学, 2016.
	WU Yanfeng. Spatiotemporal variation of meteorological drought in North Xinjiang Province from 1961 to 2012[D]. Urumqi: Xinjiang Agricultural University, 2016.
[23]	卢响军. 北疆典型残余盐土土壤特征及其影响因素研究[D]. 乌鲁木齐: 新疆农业大学, 2012.
	LU Xiangjun. Research on residual solonchak soil properties and its influencing factors in the North of Xinjiang[D]. Urumqi: Xinjiang Agricultural University, 2012.
[24]	徐新良. 中国年度植被指数(NDVI)空间分布数据集[OL]. 中国科学院资源环境科学数据中心数据注册与出版系统 (http://www.resdc.cn/DOI), 2018. DOI:10.12078/2018060601. DOI URL
	XU Xinliang. Spatial distribution data set of annual vegetation index (NDVI) in China.Data registration and publishing system of data center of resources and environment science[OL]. Chinese Academy of Sciences (http://www.resdc.cn/DOI), 2018. DOI:10.12078/2018060601. DOI URL
[25]	Hutchinson M F. Interpolation of rainfall data with thin plate smoothing splines - Part I: Two dimensional smoothing of data with short range correlation[J]. Journal of Geographic Information and Decision Analysis, 1998, 2 (2): 139-151.
[26]	陈宸, 井长青, 邢文渊, 等. 近20年新疆荒漠草地动态变化及其对气候变化的响应[J]. 草业学报, 2021, 30(3):1-14.
	CHEN Chen, JING Changqing, XING Wenyuan, et al. Desert grassland dynamics in the last 20 years and its response to climate change in Xinjiang[J]. ActaPrataculturaeSinica, 2021, 30(3):1-14.
[27]	吴昌广, 周志翔, 肖文发, 等. 基于MODIS NDVI的三峡库区植被覆盖度动态监测[J]. 林业科学, 2012, 48(1):22-28.
	WU Changguang, ZHOU Zhixiang, XIAO Wenfa, et al. Dynamic monitoring of vegetation coverage in Three Gorges Reservoir Area based on MODIS NDVI[J]. Forestry Science, 2012, 48(1):22-28.
[28]	于秀娟, 燕琴, 刘正军, 等. 三江源区植被覆盖度的定量估算与动态变化研究[J]. 长江流域资源与环境, 2013, 22(1):66-74.
	YU Xiujuan, YAN Qin, LIU Zhengjun, et al. Quantitative estimation and dynamic changes of vegetation fractional coverage in the Sanjiangyuan region[J]. Resources and Environment in the Yangtze Basin, 2013, 22(1):66-74.
[29]	韩兰英, 王宝鉴, 张正偲, 等. 基于RS的石羊河流域植被覆盖度动态监测[J]. 草业科学, 2008, 25(2):11-15.
	HAN Lanying, WANG Baojian, ZHANG Zhengcai, et al. Remote sensing based dynamic monitoring on change of vegetation cover in Shiyanghe River watershed[J]. Pratacultural Science, 2008, 25(2):11-15.
[30]	陈骏, 史正涛, 陈严武, 等. 基于RS和GIS的松华坝水源区植被覆盖度动态变化研究[J]. 海南师范大学学报(自然科学版), 2013, 26(3):303-306.
	CHEN Jun, SHI Zhengtao, CHEN Yanwu, et al. Study of dynamic changes of vegetation coverage in Songhuaba River Basin based on RS and GIS[J]. Journal of Hainan Normal University (Natural Science Ed.), 2013, 26(3):303-306.
