Sulfur sensitivity of melon at different times

doi:10.6048/j.issn.1001-4330.2025.03.015

Abstract

Abstract:

【Objective】In order to investigate the degree of differences in sulfur sensitivity of melons in different periods, M446 (a high-generation self-compatible line) and DM18 (a high-generation self-compatible line) were used as experimental materials, and a preliminary study was carried out to investigate the influence of the growth effect of melons by spraying sulfur suspension 250 times at different periods of the melons plants. 【Methods】ANOVA, correlation analysis, principal component analysis and subordinate function analysis were used to determine the growth indexes and to evaluate melon materials M446 and DM18 comprehensively. 【Results】Sulfur spraying at different times had different degrees of inhibition on the growth indexes of melons, and the degree of sulfur sensitivity of different melon materials varied to a certain extent; all growth indexes showed a decreasing trend with the increase of the growth period, and the rate of diseased leaves and the sulfur damage index showed an increasing trend with the increase of the growth period. 【Conclusion】The degree of sulfur sensitivity of melon is summarized as fruiting period > vining period > seedling period.

Key words: melon; different periods; sulfur sensitivity

摘要：

【目的】探究甜瓜不同时期对硫敏感性的差异程度,以M446(高代自交系)和DM18(高代自交系)为材料,研究在甜瓜植株的不同时期喷施硫磺悬浮剂250倍液对甜瓜生长效应的影响。【方法】采用方差、相关性、主成分和隶属函数分析方法,测定甜瓜材料M446和DM18进行生长指标并进行综合评价。【结果】不同时期喷施硫制剂对甜瓜的各个生长指标均有不同程度的抑制作用,不同甜瓜材料对硫敏感的程度有一定差异,各生长指标均随着生长时期的增大呈下降趋势,病叶率和硫害指数随生长时期的增大呈上升趋势。【结论】甜瓜对硫敏感程度为结果期>伸蔓期>幼苗期。

关键词: 甜瓜, 不同时期, 硫敏感性

CLC Number:

S652

WANG Jing, WANG Huilin, XU Baolin, WANG Zikun, YIN Jie. Sulfur sensitivity of melon at different times[J]. Xinjiang Agricultural Sciences, 2025, 62(3): 660-668.

王靖, 王惠林, 徐宝林, 王子琨, 尹杰. 甜瓜不同时期硫敏感性的差异分析[J]. 新疆农业科学, 2025, 62(3): 660-668.

Figures/Tables 13

Tab.1 Sulfur hazard classification criteria

病级 Patient's grade	病状描述 Description of the disease
0	整个叶片无褐色枯死
1	褐色枯死面积约占叶片面积的25%以下
2	褐色枯死面积约占叶片面积的25%~50%
3	褐色枯死面积约占叶片面积的50%~75%
4	褐色枯死面积约占叶片面积的75%以上

Tab.2 Evaluation criteria for melon resistance

相对抗性指数 Adversarial index (%)	抗性评价 Resistance assessment
100	免疫(I)
79~99	高抗(HR)
59~79	中抗(R)
39~59	中感(MS)
<39	高感(HS)

Tab.3 Changes influence of sulfur preparation on the growth effect of melon under different periods

材料 Materials	处理 Treatments	主蔓长 Main vine length (m)	茎粗 Stem thickness (mm)	最大功能叶叶面积 Maximum functional leaf area (cm²)	最大功能叶叶节位 Maximum functional leaf node position (节)
M446	CK	2.78±0.05^a	15.02±0.13^a	276.37±2.79^a	11.2±0.23^a
	幼苗期	2.69±0.03^a	14.85±0.12^a	262.94±8.46^ab	11±0.35^a
	伸蔓期	2.73±0.03^a	14.14±0.25^b	249.01±2.93^bc	10±0.42^a
	结果期	2.27±0.07^b	13.83±0.12^b	238.06±3.93^c	8.13±0.13^b
DM18	CK	2.64±0.02^a	15.16±0.09^a	367.62±3.36^a	16.6±0.35^a
	幼苗期	2.55±0.05^ab	15.34±0.11^a	354.31±12.03^a	13.67±0.18^b
	伸蔓期	2.43±0.06^ab	14.43±0.45^a	303.64±8.72^b	12.8±0.00^c
	结果期	2.21±0.05^b	14.47±0.11^a	272.26±2.92^c	10.53±0.07^d

Fig.1 Changes of sulfur preparation on relative chlorophyll content SPAD value of melon leaves under different periods of time

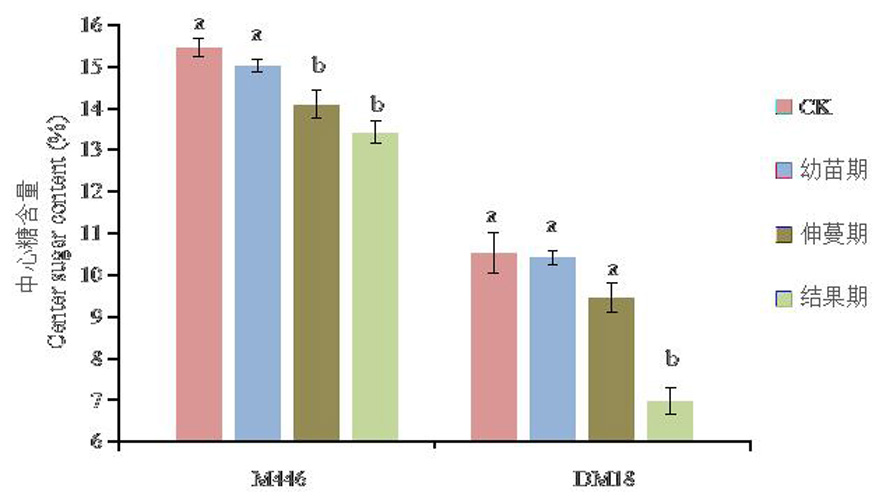

Fig.2 Changes of sulfur preparation on central sugar content of melons under different time periods

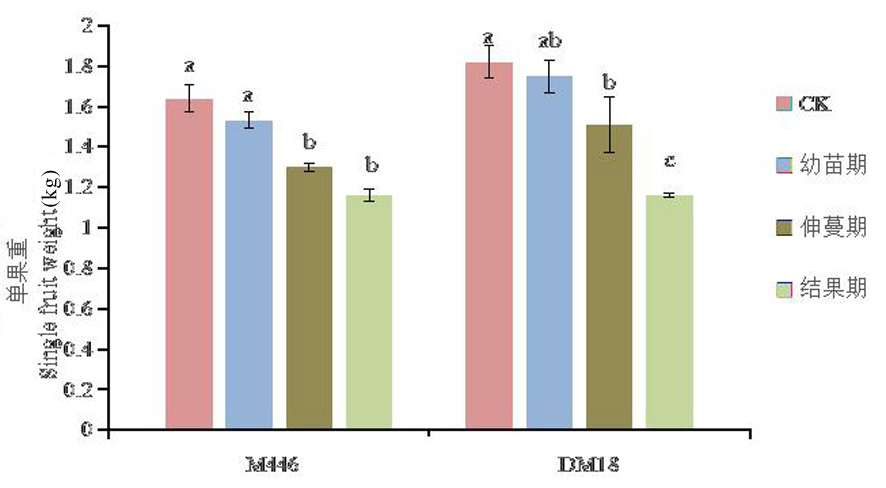

Fig.3 Changes of sulfur formulation on single fruit weight of melons under different time periods

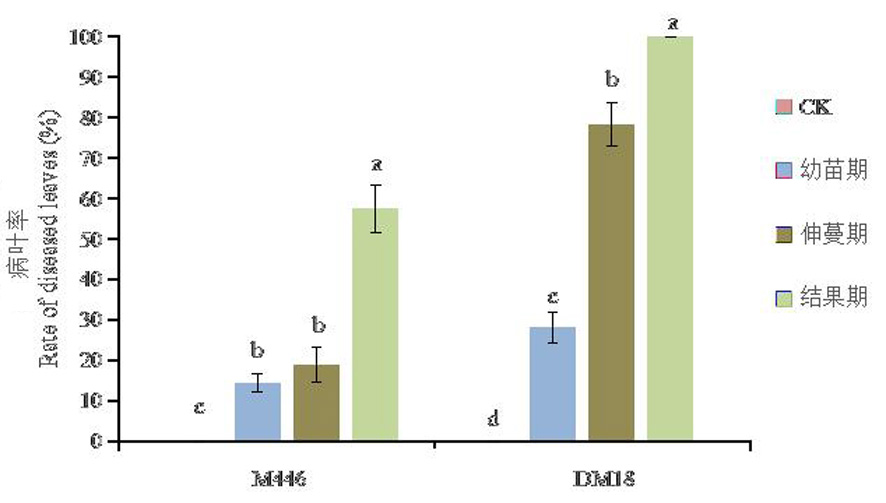

Fig.4 Changes of sulfur formulation on the rate of diseased leaves of melon plantsunder different time periods

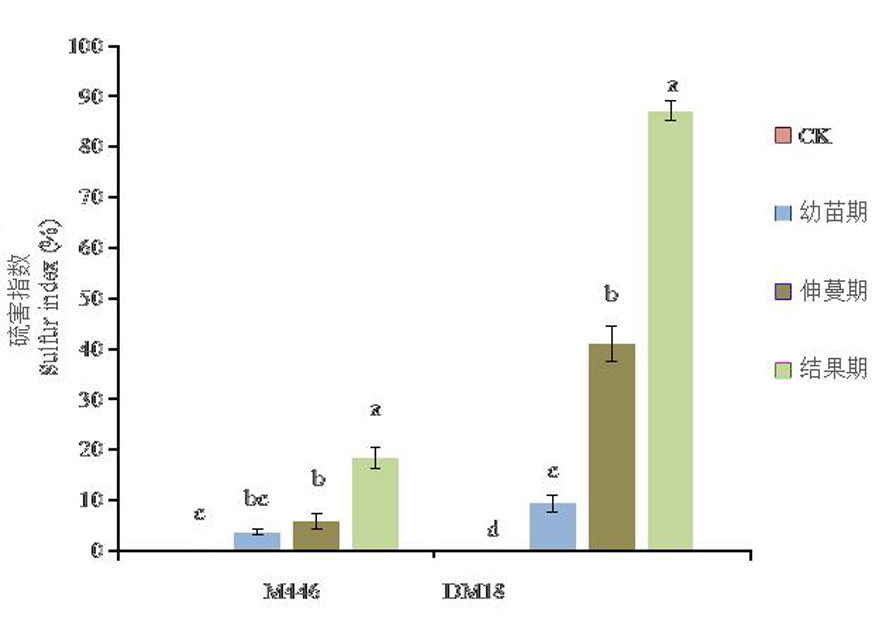

Fig.5 Changes of sulfur formulation on sulfur damage index of melon plantsunder different time periods

Tab.4 Correlation coefficient matrix for growth indicators of M446

指标 Norm	a	b	c	d	e	f	g	h
a
b	0.757
c	0.79	0.976^*
d	0.929	0.938	0.923
e	0.82	0.944	0.875	0.966^*
f	0.81	0.99 ${4^{**}}^{}$	0.99 ${0^{**}}^{}$	0.956^*	0.934
g	0.788	0.99 ${5^{**}}^{}$	0.99 ${2^{**}}^{}$	0.944	0.925	0.99 ${9^{**}}^{}$
h	-0.971^*	-0.879	-0.913	-0.973^*	-0.88	-0.921	-0.907
i	-0.973^*	-0.887	-0.908	-0.983^*	-0.902	-0.924	-0.909	0.99 ${8^{**}}^{}$

Tab.4 Correlation coefficient matrix for growth indicators of M446

指标 Norm	a	b	c	d	e	f	g	h
a
b	0.757
c	0.79	0.976^*
d	0.929	0.938	0.923
e	0.82	0.944	0.875	0.966^*
f	0.81	0.99 ${4^{**}}^{}$	0.99 ${0^{**}}^{}$	0.956^*	0.934
g	0.788	0.99 ${5^{**}}^{}$	0.99 ${2^{**}}^{}$	0.944	0.925	0.99 ${9^{**}}^{}$
h	-0.971^*	-0.879	-0.913	-0.973^*	-0.88	-0.921	-0.907
i	-0.973^*	-0.887	-0.908	-0.983^*	-0.902	-0.924	-0.909	0.99 ${8^{**}}^{}$

Tab.5 Correlation coefficient matrix for growth indicators of DM18

指标 Norm	a	b	c	d	e	f	g	h
a
b	0.794
c	0.974^*	0.908
d	0.953^*	0.7	0.923
e	0.983^*	0.817	0.961^*	0.881
f	0.974^*	0.752	0.928	0.867	0.99 ${4^{**}}^{}$
g	0.99 ${5^{**}}^{}$	0.829	0.978^*	0.919	0.99 ${6^{**}}^{}$	0.985^*
h	-0.952^*	-0.89	-0.987^*	-0.948	-0.911	-0.872	-0.944
i	-0.99 ${5^{**}}^{}$	-0.829	-0.978^*	-0.919	-0.99 ${5^{**}}^{}$	-0.984^*	-1.00 ${0^{**}}^{}$	0.944

Tab.5 Correlation coefficient matrix for growth indicators of DM18

指标 Norm	a	b	c	d	e	f	g	h
a
b	0.794
c	0.974^*	0.908
d	0.953^*	0.7	0.923
e	0.983^*	0.817	0.961^*	0.881
f	0.974^*	0.752	0.928	0.867	0.99 ${4^{**}}^{}$
g	0.99 ${5^{**}}^{}$	0.829	0.978^*	0.919	0.99 ${6^{**}}^{}$	0.985^*
h	-0.952^*	-0.89	-0.987^*	-0.948	-0.911	-0.872	-0.944
i	-0.99 ${5^{**}}^{}$	-0.829	-0.978^*	-0.919	-0.99 ${5^{**}}^{}$	-0.984^*	-1.00 ${0^{**}}^{}$	0.944

Tab.6 Eigenvalues and Contributions of Melon Plant Growth Indicators

材料 Mate- rials	成分 Ingredient	特征值 Eigen values	贡献率 Contribution rate (%)	累计贡献率 Cumulative contribution rate(%)
M446	1	8.376	93.064	93.064
	2	0.472	5.249	98.313
	3	0.152	1.687	100
DM18	1	8.415	93.499	93.499
	2	0.367	4.08	97.579
	3	0.218	2.421	100

Tab.7 Principal component matrix for melon plant growth index extraction

材料 Materials	成分 Ingredient	1	2	3
M446	主蔓长	0.902	0.431	-0.015
	茎粗	0.964	-0.263	0.029
	最大功能叶叶面积	0.965	-0.187	-0.182
	最大功能叶叶节位	0.992	0.084	0.094
	叶绿素相对含量	0.949	-0.075	0.307
	单果重	0.983	-0.177	-0.049
	中心糖	0.975	-0.216	-0.058
	病叶率	0.972	0.219	-0.086
	硫害指数	0.977	0.211	-0.034
DM18	主蔓长	0.993	-0.119	0.019
	茎粗	0.863	0.5	-0.068
	最大功能叶叶面积	0.993	0.107	0.041
	最大功能叶叶节位	0.935	-0.163	0.313
	叶绿素相对含量	0.984	-0.078	-0.162
	单果重	0.963	-0.181	-0.198
	中心糖	0.995	-0.07	-0.068
	病叶率	0.972	0.127	0.196
	硫害指数	0.995	-0.07	-0.068

Tab.8 Analysis of the affiliation function of each growth index of melon plants

材料 Materials	处理 Treatments	隶属函数值 Value of the affiliation function									隶属平均值 AMF	排名 Ranking
材料 Materials	处理 Treatments	a	b	c	d	e	f	g	h	i	隶属平均值 AMF	排名 Ranking
M446	CK	1.00	1.00	1.00	1.00	0.83	1.00	1.00	1.00	1.00	0.98	1
	幼苗期	0.82	0.86	0.65	0.93	1.00	0.78	0.77	0.75	0.80	0.82	2
	伸蔓期	0.90	0.26	0.29	0.61	0.44	0.33	0.29	0.67	0.68	0.50	3
	结果期	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	4
DM18	CK	1.00	0.80	1.00	1.00	1.00	1.00	1.00	1.00	1.00	0.98	1
	幼苗期	0.79	1.00	0.86	0.52	0.98	0.97	0.89	0.72	0.89	0.85	2
	伸蔓期	0.51	0.00	0.33	0.37	0.60	0.70	0.53	0.22	0.53	0.42	3
	结果期	0.00	0.04	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	4

References 26

[1]	孟令波, 褚向明, 秦智伟, 等. 关于甜瓜起源与分类的探讨[J]. 北方园艺, 2001,(4): 20-21.
	MENG Lingbo, CHU Xiangming, QIN Zhiwei, et al. The Re search of origin and clossificatiol on musk melon[J]. Northern Horticulture, 2001,(4): 20-21.
[2]	Pech J C, Bouzayen M, Latché A. Climacteric fruit ripening: Ethylene-dependent and independent regulation of ripening pathways in melon fruit[J]. Plant Science, 2008, 175(1/2): 114-120.
[3]	翟明昌, 李震烁. 香瓜冰淇淋的研制[J]. 江苏食品与发酵, 2007,(3): 33-35.
	ZHAI Mingchang, LI Zhenshuo. Development of melon ice cream[J]. Jiangsu Food & Fermentation, 2007,(3): 33-35.
[4]	宋正峰, 刘树森, 夏连芹, 等. 甜瓜育种技术与方法研究进展[J]. 中国瓜菜, 2022, 35(6): 1-8.
	SONG Zhengfeng, LIU Shusen, XIA Lianqin, et al. Advances of melon breeding technology and method[J]. China Cucurbits and Vegetables, 2022, 35(6): 1-8.
[5]	王志丹. 中国甜瓜产业经济发展研究[C]. 北京: 中国农业科学院, 2014.
	WANG Zhidan. Research on the economic development of melon industry in China[C]. Beijing: Chinese Academy of Agricultural Sciences, 2014.
[6]	王志丹, 赵姜, 毛世平, 等. 中国甜瓜产业区域优势布局研究[J]. 中国农业资源与区划, 2014, 35(1): 128-133.
	WANG Zhidan, ZHAO Jiang, MAO Shiping, et al. Study on the regional advantage layout of Chinese muskmelon industry[J]. Chinese Journal of Agricultural Resources and Regional Planning, 2014, 35(1): 128-133.
[7]	杨念. 我国西瓜甜瓜生产及全要素生产率研究[D]. 北京: 中国农业科学院, 2016.
	YANG Nian. Research on watermelon and melon production and total factor productivity in China[D]. Beijing: Chinese Academy of Agricultural Sciences, 2016.
[8]	Burger Y, Sa’ar U, Paris H, et al. Genetic variability for valuable fruit quality traits in Cucumis melo[J]. Israel Journal of Plant Sciences, 2006, 54(3): 233-242.
[9]	何晓庆, 许利婷, 李琥成, 等. 设施甜瓜白粉病综合防治技术研究[J]. 粮食科技与经济, 2020, 45(9): 109-110.
	HE Xiaoqing, XU Liting, LI Hucheng, et al. Research on comprehensive control technology of powdery mildew in facility melons[J]. Grain Science and Technology and Economy, 2020, 45(9): 109-110.
[10]	靳改龙, 周成松, 张以和, 等. 新型杀菌剂防治设施甜瓜白粉病药效评价[J]. 新疆农业大学学报, 2017, 40(4): 278-282.
	JIN Gailong, ZHOU Chengsong, ZHANG Yihe, et al. Evaluation of control effects of neotype fungicide against cucumismelo L. powdery mildew from greenhouses[J]. Journal of Xinjiang Agricultural University, 2017, 40(4): 278-282.
[11]	王恒玺, 李丽霞, 魏萍. 园林植物药害发生与防治[J]. 科技信息, 2013(25): 462, 455.
	WANG Hengxi, LI Lixia, WEI Ping. Occurrence and control of pharmaceutical pests in garden crops[J]. Science & Technology Information, 2013(25): 462, 455.
[12]	郑芳, 邵明丽, 黄红云, 等. 果园药害研究[J]. 安徽农业科学, 2007, 35(4): 1063-1064.
	ZHENG Fang, SHAO Mingli, HUANG Hongyun, et al. Study on pesticide toxicity in orchard[J]. Journal of Anhui Agricultural Sciences, 2007, 35(4): 1063-1064.
[13]	文惠阁. 甜瓜药害的发生原因及防止措施[J]. 农业科技与信息, 2020(2): 23-24.
	WEN Huige. Causes and preventive measures of drug damage in melon[J]. Agricultural Science-Technology and Information, 2020(2): 23-24.
[14]	李博光. 农作物药害的产生原因、症状及补救措施[J]. 农家参谋, 2021, (6): 54-55.
	LI Boguang. Causes symptoms and remedial measures of crop drug damage[J]. The Farmers Consultant, 2021, (6): 54-55.
[15]	雷志强. 用作果园清除的几种农药[J]. 果农之友, 2005, (3): 47.
	LEI Zhiqiang. Several pesticides used for orchard cleanup[J]. Fruit Growers’ Friend, 2005, (3): 47.
[16]	张国奇. 农作物药害的产生原因及防治措施[J]. 农民致富之友, 2017, (13): 58.
	ZHANG Guoqi. Causes of crop drug damage and preventive measures[J]. Nongmin Zhifuzhiyou Yuekan, 2017, (13): 58.
[17]	Sunarpi, Anderson J W. Effect of sulfur nutrition on the redistribution of sulfur in vegetative soybean plants[J]. Plant Physiology, 1996, 112(2): 623-631. PMID
[18]	郁梦德. 植物叶片中氯、硫含量与叶龄和季节关系的初步分析[J]. 环境科学, 1980, 1(2): 38-43.
	YU Mengde. Preliminary analysis of chlorine and sulfur contents in crop leaves in relation to leaf age and season[J]. Environmental Science, 1980, 1(2): 38-43.
[19]	孟赐福, 姜培坤, 曹志洪, 等. 植物硫素营养诊断技术的研究进展[J]. 土壤, 2007, 39(5): 713-717.
	MENG Cifu, JIANG Peikun, CAO Zhihong, et al. Progress of the study on plant sulfur nutrition diagnosis techniques[J]. Soils, 2007, 39(5): 713-717.
[20]	高登涛, 李秋利, 魏志峰, 等. 植物对二氧化硫胁迫反应与应答机制研究进展[J]. 广东农业科学, 2016, 43(11): 27-35.
	GAO Dengtao, LI Qiuli, WEI Zhifeng, et al. Research progress on damage reaction and response mechanism of plants to sulfur dioxide stress[J]. Guangdong Agricultural Sciences, 2016, 43(11): 27-35.
[21]	杨志毅, 王惠林, 王瑞, 等. 不同甜瓜种质资源田间抗铜性鉴定[J/OL]. 分子植物育种, 2022: 1-36. (2022-03-20). http://kns.cnki.net/KCMS/detail/detail.aspx?filename=FZZW2022031600J&dbname=CJFD&dbcode=CJFQ.
	YANG Zhiyi, WANG Huilin, WANG Rui, et al. Identification of copper resistance of different melon germplasm resources in the field[J/OL]. China Industrial Economics, 2022: 1-36. (2022-03-20). http://kns.cnki.net/KCMS/detail/detail.aspx?filename=FZZW2022031600J&dbname=CJFD&dbcode=CJFQ.
[22]	李进. 影响植物药害的因素[J]. 昆虫知识, 1958,(5): 241-244.
	LI Jin. Factors affecting crop pests[J]. Entomological Knowledge, 1958,(5): 241-244.
[23]	蔡健, 梁文斌, 张蕾. 不同杀菌剂致甜瓜药害发生程度研究[J]. 上海蔬菜, 2021,(2): 56-58.
	CAI Jian, LIANG Wenbin, ZHANG Lei. Study on the degree of occurrence of different fungicides in melon[J]. Shanghai Vegetables, 2021,(2): 56-58.
[24]	Perchepied L, Périn C, Giovinazzo N, et al. Susceptibility to sulfur dusting and inheritance in melon[C]// European Association for Research on Plant Breeding Meeting on Cucurbit Genetics and Breeding, 2004
[25]	Matheron M E, Porchas M. Comparative performance and preservation of chemical management tools for powdery mildew on muskmelon[J]. Acta Horticulturae, 2007(731): 357-363.
[26]	Branham S E, Daley J, Levi A, et al. QTL mapping and marker development for tolerance to sulfur phytotoxicity in melon (Cucumis melo)[J]. Frontiers in Plant Science, 2020, 11: 1097. DOI PMID
