Effects of ethylene response factor on the fruit softening of melon during storage

doi:10.6048/j.issn.1001-4330.2025.03.014

Abstract

Abstract:

【Objective】To investigate the effect of ethylene factor (ERF) on the softening process of melon pulp during storage,this findings has provided reference for post-harvest storage and fresh-keeping of melon.【Methods】The effect of ethrel and 1-methylcyclopropene (1-MCP) on the hardness, protopectin (PP), and water soluble pectin (WSP), cellulose content, enzyme activity related to cell wall metabolism, and the correlation between hardness and cell wall metabolic index of ‘Xizhoumi 25’ melon fruits during postharvest storage were studied. 【Results】Melon was sensitive to both ethephon and 1-MCP treatments. The results showed that 1-MCP treatment slowed down the decrease in fruit firmness, protopectin and cellulose content, and retarded the increase in soluble pectin content. The result of ethephon treatment was opposite to that of-MCP treatment. There was a negative correlation between fruit hardness and PG and Cx activities during storage and the hardness was negatively correlated with PP and cellulose, but positively correlated with WSP.【Conclusion】1-MCP treatment can delay the post-ripening and softening of melon fruit by regulating cell wall metabolism, prolong storage time and reduce economic loss caused by softening.

Key words: muskmelon; ethylene; fruit softening; cell wall fraction

摘要：

【目的】探究乙烯因子(ERF)对甜瓜贮藏期果肉软化进程的影响,为甜瓜采后贮藏保鲜提供参考。【方法】以西州密25号为试验材料,分析乙烯利和1-甲基环丙烯(1-methylcyclopropene,1-MCP)处理的甜瓜果实硬度、原果胶(protopectin,PP)、水溶性果胶(water soluble pectin,WSP)、纤维素含量、细胞壁代谢相关酶的活性以及硬度与细胞壁代谢指数的相关性。【结果】甜瓜对乙烯利和1-MCP处理均敏感,1-MCP能有效延缓果实硬度、PP和纤维素含量的下降,抑制WSP含量的增加;减缓β-半乳糖苷酶(β-galactosidase,β-Gal)、多聚半乳糖醛酸酶(polygalacturonase,PG)、纤维素酶(cellulase,Cx)等酶活的上升速率,乙烯利处理则相反;甜瓜贮藏期果实硬度与PG、Cx活性呈负相关,与PP和纤维素呈负相关,与WSP呈正相关。【结论】1-MCP处理可以通过调节细胞壁代谢途径延缓甜瓜果实的后熟软化,延长贮藏时间,减少因软化造成的经济损失。

关键词: 甜瓜, 乙烯因子, 果实软化, 细胞壁组分

CLC Number:

S652

ZHENG Heyun, YAO Jun, ZHANG Cuihuan, WANG Zhiwei, GENG Xinli. Effects of ethylene response factor on the fruit softening of melon during storage[J]. Xinjiang Agricultural Sciences, 2025, 62(3): 652-659.

郑贺云, 姚军, 张翠环, 汪志伟, 耿新丽. 乙烯因子对甜瓜采后果实软化的影响[J]. 新疆农业科学, 2025, 62(3): 652-659.

Figures/Tables 5

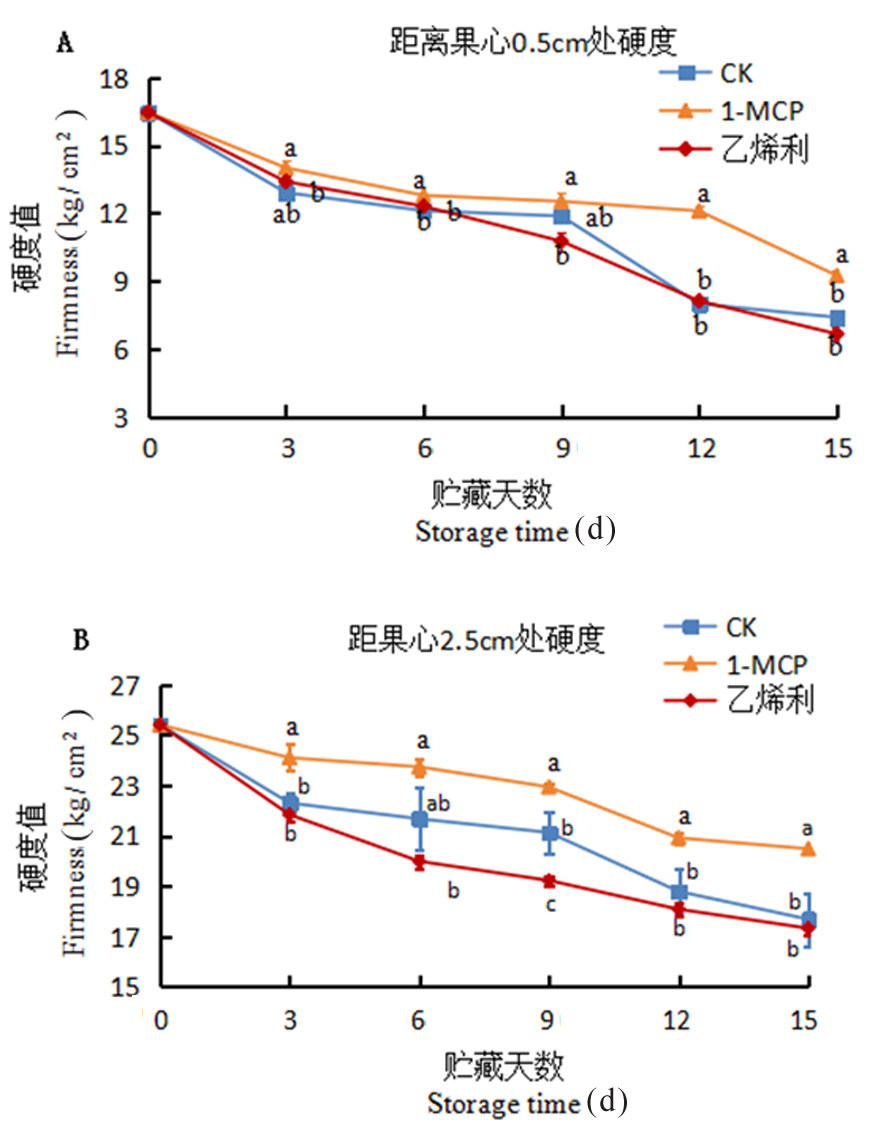

Fig.1 Changes of ERF treatment on firmness of Melon fruits Notes:Different letters in different groups with the same processing time indicate significant differences,the same as below

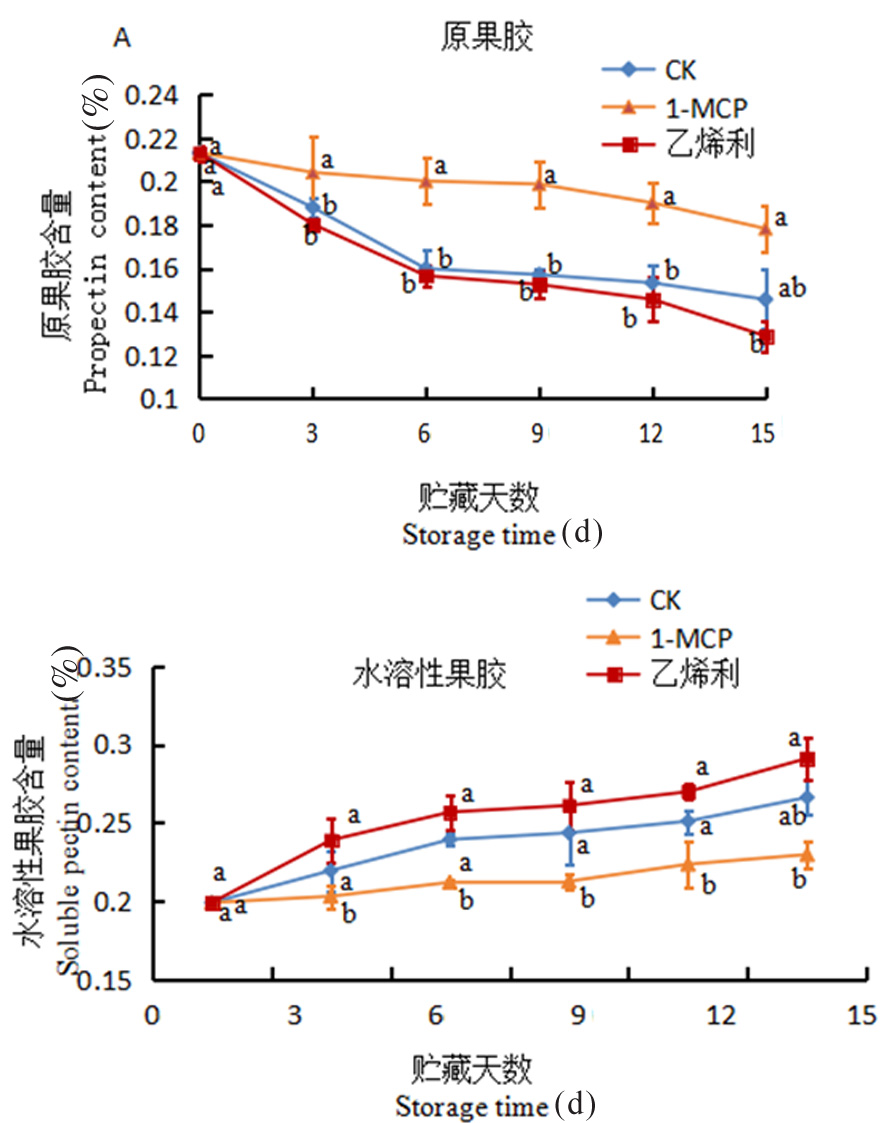

Fig.2 Changes of ERFtreatment on protopectin (A) and soluble pectin (B) contents of Melon fruits

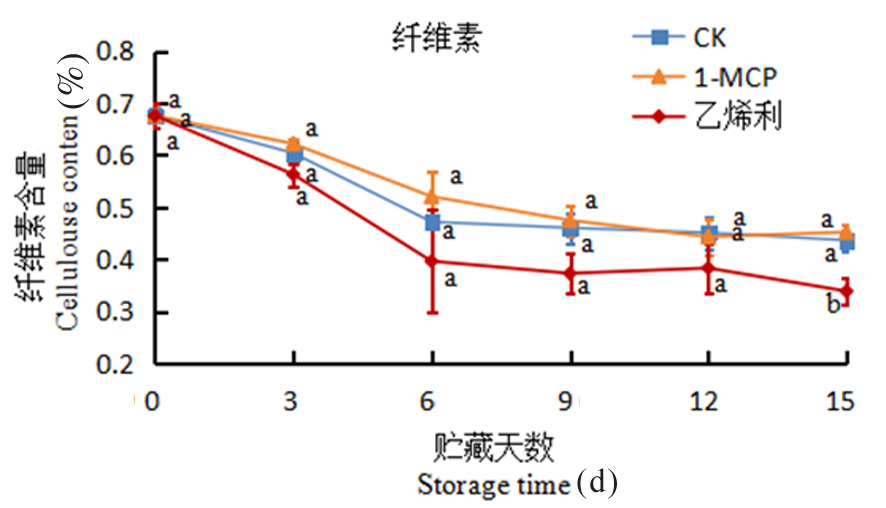

Fig.3 Changes of ERFtreatment on cellulose content of Melon fruits

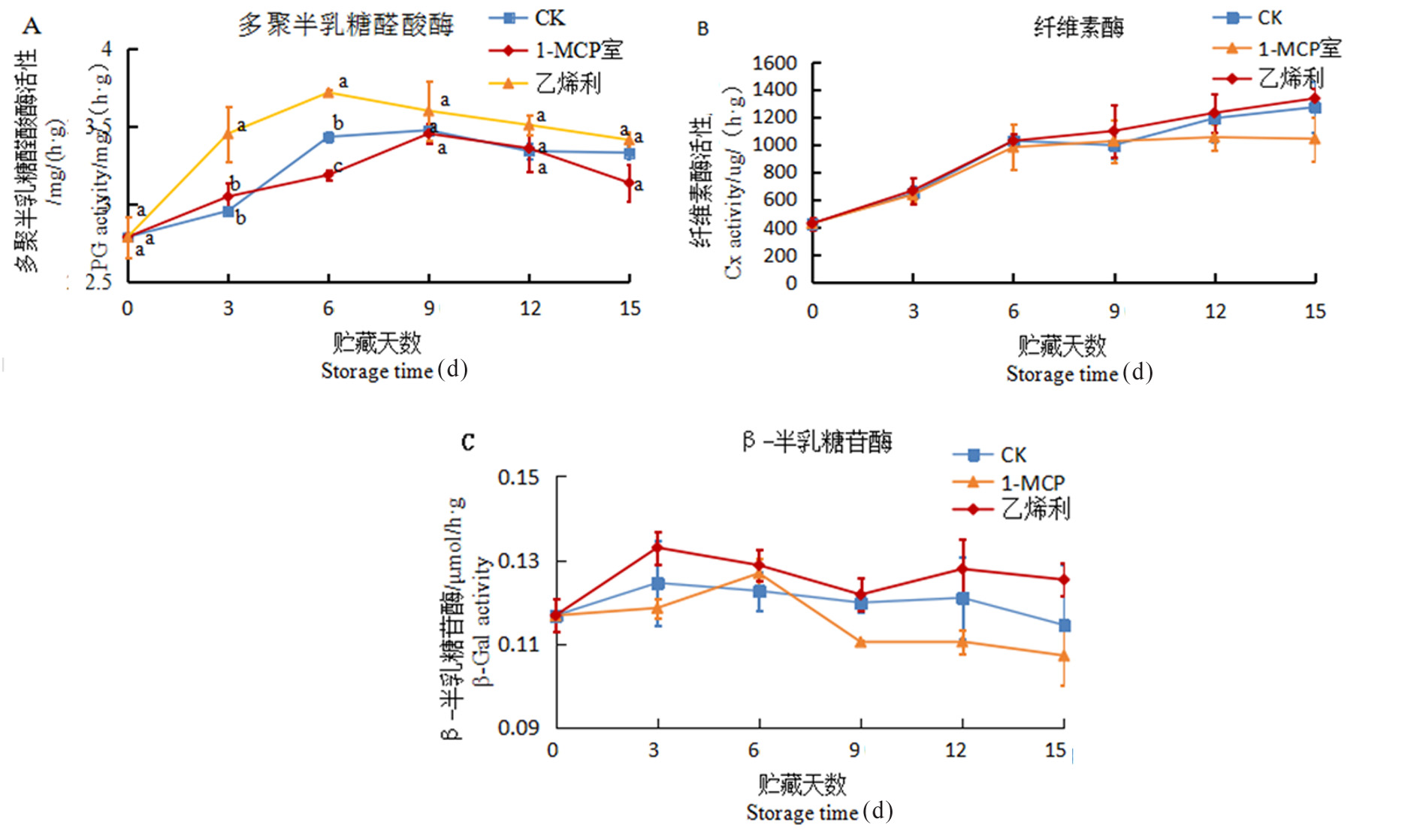

Fig.4 Changes of ERFtreatment on PG (A) 、Cx (B) and β-Gal(C)activity of Melon fruits

Tab.1 Correlation(R) matrix between fruit firmness and enzymes activities of cell wall

相关性 Correlation	CK		1-MCP		乙烯利Ethrel
	硬度Hardness
	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(2.5 cm)	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(0.5 cm)	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(0.5 cm)
水溶性果胶 water soluble pectin	-0.96 ${7^{}}^{}$	-0.97 ${7^{}}^{}$	-0.93 ${8^{}}^{}$	-0.97 ${8^{}}^{}$	-0.96 ${0^{}}^{}$	-0.98 ${9^{}}^{}$
原果胶 protopectin	0.937^*	0.943^*	0.97 ${3^{}}^{}$	0.96 ${5^{}}^{}$	0.95 ${4^{}}^{}$	0.99 ${3^{}}^{}$
纤维素 Cellulose	0.913^*	0.915^*	0.874^*	0.899^*	0.887^*	0.967^*
多聚半乳糖醛酸酶 Polygalacturonase	-0.673	-0.706	-0.586	-0.611	-0.557	-0.759
纤维素酶 Cellulase	-0.93 ${7^{}}^{}$	-0.94 ${6^{}}^{}$	-0.857^*	-0.820^*	-0.95 ${8^{}}^{}$	-0.98 ${4^{}}^{}$
β-半乳糖苷酶 β-galactosidase	0.178	0.191	0.503	0.674	-0.302	-0.414

Tab.1 Correlation(R) matrix between fruit firmness and enzymes activities of cell wall

相关性 Correlation	CK		1-MCP		乙烯利Ethrel
	硬度Hardness
	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(2.5 cm)	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(0.5 cm)	距果心0.5 cm Distance from the core(0.5 cm)	距果心2.5 cm Distance from the core(0.5 cm)
水溶性果胶 water soluble pectin	-0.96 ${7^{}}^{}$	-0.97 ${7^{}}^{}$	-0.93 ${8^{}}^{}$	-0.97 ${8^{}}^{}$	-0.96 ${0^{}}^{}$	-0.98 ${9^{}}^{}$
原果胶 protopectin	0.937^*	0.943^*	0.97 ${3^{}}^{}$	0.96 ${5^{}}^{}$	0.95 ${4^{}}^{}$	0.99 ${3^{}}^{}$
纤维素 Cellulose	0.913^*	0.915^*	0.874^*	0.899^*	0.887^*	0.967^*
多聚半乳糖醛酸酶 Polygalacturonase	-0.673	-0.706	-0.586	-0.611	-0.557	-0.759
纤维素酶 Cellulase	-0.93 ${7^{}}^{}$	-0.94 ${6^{}}^{}$	-0.857^*	-0.820^*	-0.95 ${8^{}}^{}$	-0.98 ${4^{}}^{}$
β-半乳糖苷酶 β-galactosidase	0.178	0.191	0.503	0.674	-0.302	-0.414

References 25

[1]	张瑞, 廖新福, 杨军, 等. 优质哈密瓜新品种西州密25号的选育[J]. 中国瓜菜, 2012, 25(3): 20-23.
	ZHANG Rui, LIAO Xinfu, YANG Jun, et al. Breeding of a new Hami melon variety “xizhoumi No. 25”[J]. China Cucurbits and Vegetables, 2012, 25(3): 20-23.
[2]	赵云峰, 林瑜, 林河通. 细胞壁组分变化与果实成熟软化的关系研究进展[J]. 食品科技, 2012, 37(12): 29-33.
	ZHAO Yunfeng, LIN Yu, LIN Hetong. Change of cell wall component in fruit ripening and softening[J]. Food Science and Technology, 2012, 37(12): 29-33.
[3]	Brummell D A, Harpster M H. Cell wall metabolism in fruit softening and quality and its manipulation in transgenic plants[J]. Plant Molecular Biology, 2001, 47(1/2): 311-340.
[4]	王新胜, 张书凝, 柯甫志, 等. 乙烯和1-甲基环丙烯对椪柑采后浮皮及白皮层细胞壁代谢的影响[J]. 浙江农林大学学报, 2024, 41(2): 234-242.
	WANG Xinsheng, ZHANG Shuning, KE Fuzhi, et al. Effects of ethylene and 1-MCP treatment on puffiness and albedo cell wall metabolism of post-harvest Citrus reticulata ‘Ponkan’ fruit[J]. Journal of Zhejiang A & F University, 2024, 41(2): 234-242.
[5]	Kou J J, Wei C Q, Zhao Z H, et al. Effects of ethylene and 1-methylcyclopropene treatments on physiological changes and ripening-related gene expression of ‘Mopan’ persimmon fruit during storage[J]. Postharvest Biology and Technology, 2020, 166: 111185.
[6]	陈洪彬, 王慧玲, 蒋璇靓, 等. 1-MCP对采后‘红心’番石榴果实软化的影响[J]. 中国农学通报, 2021, 37(18): 51-56. DOI
	CHEN Hongbin, WANG Huiling, JIANG Xuanjing, et al. 1-methylcyclopropene: effect on the postharvest softening of ‘Hongxin' guava fruits[J]. Chinese Agricultural Science Bulletin, 2021, 37(18): 51-56. DOI
[7]	魏建梅, 马锋旺, 关军锋, 等. 京白梨果实后熟软化过程中细胞壁代谢及其调控[J]. 中国农业科学, 2009, 42(8): 2987-2996.
	WEI Jianmei, MA Fengwang, GUAN Junfeng, et al. Cell wall metabolism and its regulation in harvested Pyrus ussuriensis maxin.cv. jingbaili fruit during ripening[J]. Scientia Agricultura Sinica, 2009, 42(8): 2987-2996.
[8]	董晓庆, 刘洪滩, 朱守亮, 等. 1-MCP结合自发气调包装对‘空心李’果实软化和细胞壁代谢的影响[J]. 中国农学通报, 2020, 36(22): 129-135. DOI
	DONG Xiaoqing, LIU Hongtan, ZHU Shouliang, et al. Effects of 1-MCP combined with MAP on softening and cell wall metabolism of ‘Kongxin’ plum[J]. Chinese Agricultural Science Bulletin, 2020, 36(22): 129-135. DOI
[9]	Yoo J, Kim S H, Kwon J G, et al. Effects of 1-methylcyclopropene treatments on fruit quality attributes and cell wall metabolism in cold stored ‘summer prince’ and ‘summer king’ apples[J]. Horticultural Science and Technology, 2020, 38(5): 660-674.
[10]	Le Nguyen L P, Zsom T, Dam M S, et al. Evaluation of the 1-MCP microbubbles treatment for shelf-life extension for melons[J]. Postharvest Biology and Technology, 2019, 150: 89-94.
[11]	张梦媛, 白琳, 吕静祎, 等. 1-甲基环丙烯对采后南果梨果实软化的影响[J]. 食品科学, 2018, 39(17): 206-211. DOI
	ZHANG Mengyuan, BAI Lin, LYU Jingyi, et al. Effect of 1-methylcyclopropene on the postharvest softening of Nanguo pear fruits[J]. Food Science, 2018, 39(17): 206-211. DOI
[12]	王静怡, 佐长赓, 牛新湘, 等. 贝莱斯芽孢杆菌处理对厚皮甜瓜保鲜效果及保护酶活性的影响[J]. 食品工业科技, 2022, 43(17): 355-362.
	WANG Jingyi, ZUO Changgeng, NIU Xinxiang, et al. Effect of Bacillus velezensis treatment on the preservation effect of muskmelon and protective enzyme activity[J]. Science and Technology of Food Industry, 2022, 43(17): 355-362.
[13]	刘同业, 张婷, 车凤斌, 等. 不同贮藏温度下西州密25号哈密瓜果实冷害生理的研究[J]. 新疆农业科学, 2015, 52(1): 26-32.
	LIU Tongye, ZHANG Ting, CHE Fengbin, et al. Studies on chilling injury physiology of xizhoumi No.25 Hami melon fruits at different storage temperatures[J]. Xinjiang Agricultural Sciences, 2015, 52(1): 26-32.
[14]	姚军, 郑贺云, 张翠环, 等. LED持续光照处理对甜瓜贮藏特性及糖代谢的影响[J]. 新疆农业科学, 2023, 60(7): 1689-1697. DOI
	YAO Jun, ZHENG Heyun, ZHANG Cuihuan, et al. Effects of continuous illumination with LED on storage characteristics and sugar metabolism of muskmelon[J]. Xinjiang Agricultural Sciences, 2023, 60(7): 1689-1697. DOI
[15]	耿新丽, 郑贺云, 姚军. 不同臭氧处理对西州密25号哈密瓜果实贮藏品质的影响[J]. 安徽农学通报, 2023, 29(6): 77-80.
	GENG Xinli, ZHENG Heyun, YAO Jun. Effect of different ozone treatment on storage quality of Xishouzhoumi No. 25 Hami melon[J]. Anhui Agricultural Science Bulletin, 2023, 29(6): 77-80.
[16]	曹建康, 姜微波, 赵玉梅. 果蔬采后生理生化实验指导[M]. 北京: 中国轻工业出版社, 2007.
	CAO Jiankang, JIANG Weibo, ZHAO Yumei. Guidance of postharvest physiological and biochemical experiments of fruits and vegetables[M]. Beijing: China Light Industry Press, 2007.
[17]	牛森. 作物品质分析[M]. 北京: 农业出版社, 1992.
	NIU Sen. Crop Quality Analysis[M]. Beijing: Agriculture Press, 1992.
[18]	Sirisomboon P, Tanaka M, Fujita S, et al. Relationship between the texture and pectin constituents of Japanese pear[J]. Journal of Texture Studies, 2000, 31(6): 679-690.
[19]	李欢. 枣果实成熟软化的细胞壁物质代谢及其基因表达研究[D]. 杨凌: 西北农林科技大学, 2017.
	LI Huan. The metabolish of cell wall materials and gene expression during fruit ripening and softening in ziziphus jujubamill[D]. Yangling: Northwest A & F University, 2017.
[20]	高华奇, 王立芹, 孙翠, 等. 采后跃变型果实软化与果胶降解的研究进展[J]. 果树学报, 2022, 39(10): 1922-1934.
	GAO Huaqi, WANG Liqin, SUN Cui, et al. Research progress on postharvest fruit softening and pectin degradation in climacteric fruits[J]. Journal of Fruit Science, 2022, 39(10): 1922-1934.
[21]	Yapo B M. Rhamnogalacturonan-I: a structurally puzzling and functionally versatile polysaccharide from plant cell walls and mucilages[J]. Polymer Reviews, 2011, 51(4): 391-413.
[22]	郑永华, 李三玉, 席玙芳. 枇杷冷藏过程中果肉木质化与细胞壁物质变化的关系[J]. 植物生理学报, 2000, 26(4): 306-310.
	ZHENG Yonghua, LI Sanyu, XI Yufang. Changes of cell wall substances in relation to flesh woodiness in cold stored loquat fruits[J]. Acta Photophysiologica Sinica, 2000, 26(4): 306-310.
[23]	Palma J M, Corpas F J, del Río L A. Proteomics as an approach to the understanding of the molecular physiology of fruit development and ripening[J]. Journal of Proteomics, 2011, 74(8): 1230-1243. DOI PMID
[24]	Wang H, Qian Z J, Ma S M, et al. Energy status of ripening and postharvest senescent fruit of Litchi (Litchi chinensis Sonn.)[J]. BMC Plant Biology, 2013, 13: 55. DOI PMID
[25]	Steelheart C, Alegre M L, Vera Bahima J, et al. Nitric oxide improves the effect of 1-methylcyclopropene extending the tomato (Lycopersicum esculentum L.) fruit postharvest life[J]. Scientia Horticulturae, 2019, 255: 193-201.
