Effects of Different Light Quality Ratios on the Growth of Hydroponic Forage Barley

doi:10.6048/j.issn.1001-4330.2022.08.007

Abstract

Abstract:

【Objective】 To study the effects of different red and blue light ratios on the growth of hydroponic barley and determine the appropriate photoplasm. 【Methods】 Hydroponic forage barley was taken as the research object, the plant height, root length, fresh grass yield and dry grass yield of barley in one growth cycle were measured by LED white light, LED blue light and LED red blue light.【Result】The results showed that there were significant differences in the growth of barley under different light conditions. Under the condition of white light, the plant height of barley was 8.92 cm, which was significantly higher than those of the other two treatments. The plant height of blue light treatment was the lowest, 6.62 cm, which was significantly lower than those of the other two treatments; the root length of blue light treatment was the longest, 10.42cm, which was significantly higher than those of the other two treatments. There was no significant difference in the biomass of fresh grass and hay between blue light and red blue light, which was significantly higher than that of white light.【Conclusion】Under the condition of artificial light hydroponics, LED white light promotes the stem elongation and plant height of the upper part of barley plant, while the fresh weight, dry weight and root growth of the lower part are inhibited. Led blue light can promote the growth and biomass accumulation of barley roots, but plant height elongation is limited. The combination of red and blue LED can promote the increase of barley biomass, which is the recommended light quality for hydroponic cultivation of barley forage.

Key words: barley; hydroponics; LED light source; light quality; biomass

摘要：

【目的】研究不同红蓝光配比对水培大麦生长的影响,分析合适的光质。【方法】以水培牧草大麦为研究对象,分别用LED白光、LED蓝光及LED红蓝光配合进行处理,测定一个生长周期下大麦的株高、根长、鲜草产量、干草产量。【结果】不同光照条件下,大麦的生长表现出显著差异。在白光照射条件下,大麦株高为8.92 cm,显著高于其他2个处理。蓝光处理的大麦株高最低,为6.62 cm,显著低于其他两个处理;蓝光照射下,大麦的根长最长,为10.42 cm,显著高于其他两个处理。蓝光和红蓝光配合处理间的鲜草、干草生物量差异不显著,显著高于白光处理的生物量。【结论】人工光水培条件下,LED白光促进大麦植株上部分茎的伸长,株高增大,而鲜重和干重及下部分的根系生长受抑制。LED蓝光可促进大麦下部分根的生长发育和生物量的累积,株高伸长受限。红蓝光LED组合处理可促进大麦生物量的增加,是水培方式下培育大麦牧草采用的光质。

关键词: 大麦, 水培, LED光源, 光质, 生物量

CLC Number:

S512.3

YANG Jinyu, SUN Jiusheng, QIAO Xiaoyan, HUAI Guolong. Effects of Different Light Quality Ratios on the Growth of Hydroponic Forage Barley[J]. Xinjiang Agricultural Sciences, 2022, 59(8): 1871-1876.

杨金钰, 孙九胜, 乔小燕, 槐国龙. 不同光质配比对水培牧草大麦生长的影响[J]. 新疆农业科学, 2022, 59(8): 1871-1876.

Figures/Tables 4

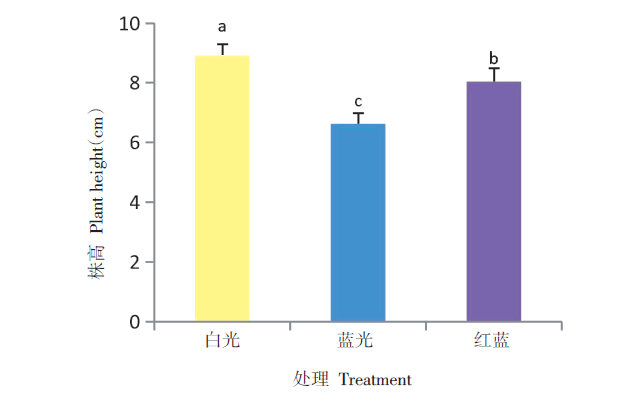

Fig. 1 Plant height of barly under different light qualities Note：The significant differences were showed by different lower-case letters with various treatments at 5% level of probability. The same as below.

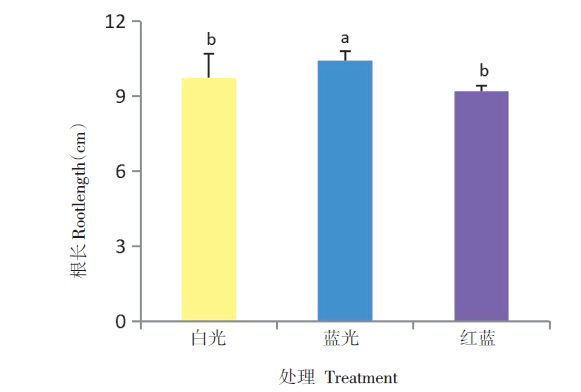

Fig. 2 Root length of barly under different light qualities

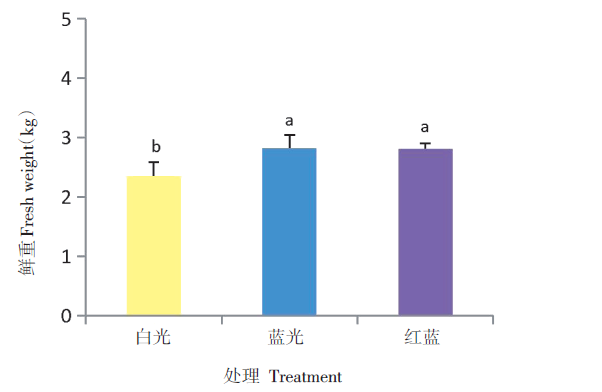

Fig. 3 Fresh weight of barly under different light qualities

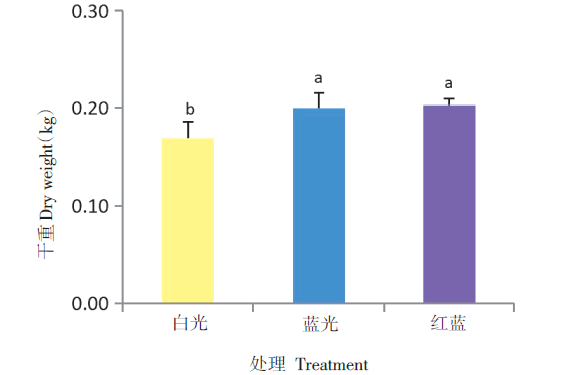

Fig. 4 Dry weight of barly under different light qualities

References 21

[1]	Pfündel E, Baake E. A quantitative description of fluorescence excitation spectra in intact bean leaves greened under intermittent light[J]. Photosynthesis Research, 1990, 26(1):19-28. DOI PMID
[2]	Terashima I, Fujita T, Inoue T, et al. Green light drives leaf photosynthesis more efficiently than red light in strong white light: revisiting the enigmatic question of why leaves are green[J]. Plant Cell Physiolgy, 2009, 50(4):684-697.
[3]	Hogewoning S. W, Trouwborst G, Maljaars H, et al. Blue light dose-responses of leaf photosynthesis, morphology, and chemical composition of Cucumis sativus grown under different combinations of red and blue light[J]. Journal Of Experimental Botany, 2010, 61: 3107-3117. DOI PMID
[4]	Nhut D T, Takamura T, Watanabe H, et al. Responses of strawberry plantlets cultured in vitro under superbright red and blue light-emitting diodes(LEDs)[J]. Plant Cell Tissue Organ Culture, 2003, 73(1): 43-52. DOI URL
[5]	Li H, Tang C, Xu Z. The effects of different light qualities on rapeseed(Brassica napus L.) plantlet growth and morphogenesis in vitro[J]. Scientia Horticulturae, 2013, 150:117-124. DOI URL
[6]	Hernández R, Kubota C. Physiological responses of cucumber seedlings under different blue and red photon flux ratios using LEDs[J]. Environmental and Experimental Botany, 2016, 29(1):66-74.
[7]	Brown C S, Schuerger A C, Sager J C. Growth and photomorphogenesis of pepper plants under red light-emitting diodes with supplemental blue or far-red lighting[J]. Journal of the American Society for Horticultural Science, 1995, 120(5):808-813. PMID
[8]	Goins G D, Yorio N C, Sanwo M M, et al. Photomorphogenesis, photosynthesis, and seed yield of wheat plant grown under red light-emitting diodes(LED) with and without supplemental blue lighting[J]. Journal of Experimental Botany, 1997, 48(7): 1407-1413 DOI URL
[9]	Hogewoning S W, Douwstra P, Trouwborst G, et al. An artificial solar spectrum substantially alters plant development compared with usual climate room irradiance spectra[J]. Journal of Experimental Botany, 2010, 61(5):1267-1276. DOI PMID
[10]	Nanya K, Ishigami Y, Hikosaka S, et al. Effects of blue and red light on stem elongation and flowering of tomato seedlings[J]. Acta Horticulturae, 2012, 956,261-266.
[11]	Ohashi-Kaneko K, Matsuda R, Goto E, et al. Growth of rice plants under red light with or without supplemental blue light[J]. Soil Science & Plant Nutrition, 2006, 52(04):444-452.
[12]	Causin H F, Jauregui R N, Barneix A J. The effect of light spectral quality on leaf senescence and oxidative stress in wheat[J]. Plant Science, 2006, 171(1): 24-33. DOI URL
[13]	黄万里, 王建平, 刘宁, 等. 不同水培时间下大麦苗的营养价值及CNCPS组分[J]. 草业科学, 2019, 36(7):1811-1818.
	HUANG Wanli, WANG Jianping, LIU Ning, et al. Determination of nutritive value and analysis of the CNCPS contents in barley grass cultivated using a hydroponic system[J]. Pratacultural Science, 2019, 36(7):1811-1818.
[14]	刘明, 赵琦, 王小菁, 等. 植物的光受体及其调控机制的研究[J]. 生物学通报, 2005, 40(5):10-12.
	LIU Ming, ZHAO Qi, WANG Xiaojing, et al. Studies on photoreceptors and their regulatory mechanisms in plants[J]. Biology Bulletin, 2005, 40(5): 10-12.
[15]	王挺进, 杨洋, 杨榭崧, 等. LED 光质对上海青与樱桃萝卜早期生长的影响[J]. 黑龙江农业科学, 2019,( 10) : 75-79.
	WANG Tingjin, YANG Yang, YANG Shesong, et al. Effect of LED light quality on early growth of Shanghai green radish and Cherry Radish[J]. Heilongjiang Agricultural Sciences, 2019,(10): 75-79.
[16]	李雯琳. LED光源不同光质对叶用莴苣种子发芽及幼苗生理生化特性的影响[D]. 兰州: 甘肃农业大学, 2009:29-30.
	LI Wenlin. Effect of different light qualities on seed germination and physiological and biochemical characteristics of lettuce(Lactuca sativa L.) seedlings by using the LED light[D]. Lanzhou: Gansu Agricultural University, 2009:29-30.
[17]	李思静, 易晓瞳, 李有芳, 等. 不同LED 光质对枳壳幼苗生长发育的影响[J]. 光谱学与光谱分析, 2018, 38(3) : 708-714.
	LI Sijing, YI Xiaotong, LI Youfang, et al. Effects of different LED light quality on the growth and development of trifoliate orange seedlings[J]. Spectroscopy and Spectral Analysis, 2018, 38(3): 708-714.
[18]	Nhut D T, Don N T, Tanaka M. Light-Emitting Diodes as an Effective Lighting Source for In Vitro Banana Culture[M]. Springer Netherlands, 2007, 527-541.
[19]	郭银生, 谷艾素, 崔瑾. 光质对水稻幼苗生长及生理特性的影响[J]. 应用生态学报, 2011, 22(6):1485-1492.
	GUO Yinsheng, GU Aisu, CUI Jin. Effects of light quality on growth and physiological characteristics of rice seedlings[J]. Acta Ecologica Sinica, 2011, 22(6): 1485-1492.
[20]	Matsuda R., Ohashi K. K., Fujiwara K., et al. Photosynthetic characteristics of rice leaves grown under red light with or without supplemental blue light[J]. Plant Cell Physiology, 2004, 45:1870-1874. DOI URL
[21]	刘文科, 查凌雁. 植物工厂植物光质生理及其调控[M]. 北京: 中国农业科学技术出版社. 2019,215-220.
	LIU Wenke, ZHA Lingyan. Light quality physiology and its regulation in plant factory[M]. Beijing: China Agricultural Science and Technology Press, 2019, 215-220.
