Differences in carbon sink estimation between photosynthetic and biomass methods in the Tarim Desert Highway shelterbelt

doi:10.6048/j.issn.1001-4330.2024.08.022

Abstract

Abstract:

【Objective】 Desert highway shelterbelts play a major role in wind prevention and sand fixation, as well as oxygen release and carbon fixation. By investigating vegetation along the Tarim Desert Highway and obtaining corresponding measured data, this study aims to further reveal the ecological and environmental effects and artificial ecosystem service functions of desert highway shelterbelts, providing a scientific basis for artificial forest management and carbon storage assessment in arid desert areas. 【Methods】 In this study, we compared the photosynthetic rate model with the biomass model to estimate the photosynthetic rate and the optimal biomass model of each of the three main forest-building plants in the shelterbelt, and then estimated their carbon sinksink capacity and carbon storage, taking the planted shelterbelt along the highway in the Tarim Desert as an object of study. 【Results】 There were significant differences in carbon fixation per unit leaf area among the three plants in the photosynthetic carbon fixation model, which were in the order of Haloxylon ammodendron > Calligonum mongolicum > Tamarix ramosissima. The optimal biomass models of the three plants were all power functions. The validation results showed that the regression determination coefficients between the predicted and measured values exceeded 90%, indicating high precision and reliability of the models. The total carbon sfixation of the desert highway shelterbelt estimated by the photosynthetic method was 567,431.68 tons, and the value estimated by the biomass method was 565,083.75 tons, indicating that the carbon sink estimated by the two methods was comparable. 【Conclusion】 There were significant differences in nitrogen fixation among the 3 species(Haloxylon ammodendron > Calligonum mongolicum > Tamarix ramosissima),indicating high precision and reliability of the models.

Key words: carbon sink estimation; photosynthetic sink method; biomass method; prediction models

摘要：

【目的】研究基于光合法和生物量法分析塔里木沙漠公路防护林带碳汇估算差异性,为干旱荒漠区人工林管护和碳储量的评估提供科学依据。【方法】以新疆塔克拉玛干沙漠公路沿线人工防护林为研究对象,对比光合速率模型和生物量模型,估算防护林带3种主要建林植物各自光合速率及筛选最优生物量模型,进而估算其固碳能力及碳储量。【结果】3种植物在光合固碳模型中,单位叶面积固碳量差异显著,表现为梭梭 > 沙拐枣 > 柽柳;3种植物生物量最优模型均为幂函数,预测值与实测值回归决定系数在90%以上。光合固碳法估算得到的沙漠公路防护林带总固碳量为567 431.68 t,生物量法估算的值为565 083.75 t,2种方法估算得到的固碳量相当。【结论】3种植物固氮量差异显著(梭梭 > 沙拐枣 > 柽柳),模型效果精确可靠。

关键词: 光合固碳法, 生物量固碳法, 碳汇估算, 预测模型

CLC Number:

S718

LI Ruyong, REN Jiuming, LEI Ting, WANG Kelin, LIU Pengcheng, LI Jiangtao. Differences in carbon sink estimation between photosynthetic and biomass methods in the Tarim Desert Highway shelterbelt[J]. Xinjiang Agricultural Sciences, 2024, 61(8): 2014-2022.

李汝勇, 任久明, 雷霆, 王克林, 刘鹏程, 李江涛. 基于光合法和生物量法分析塔里木沙漠公路防护林带碳汇估算差异性[J]. 新疆农业科学, 2024, 61(8): 2014-2022.

Figures/Tables 8

References 26

[1]	蒋蕾. 基于GIS大兴安岭过伐林多功能评价体系[D]. 哈尔滨: 东北林业大学, 2016.
	JIANG Lei. Multifunction Evaluation System of Overcutting Forest in Daxing’an Mountains Based on GIS Technique[D]. Harbin: Northeast Forestry University, 2016.
[2]	刘彦青. 发挥森林固碳功能减缓全球气候变暖[J]. 中国林业, 2011,(20): 55.
	LIU Yanqing. Give full play to the function of forest carbon fixation and slow down global warming[J]. Forestry of China, 2011,(20): 55.
[3]	贾存, 郭明明, 王倩, 等. 华北落叶松人工林和天然林径向生长对气候变化的响应[J]. 中南林业科技大学学报, 2022, 42(1): 120-128.
	JIA Cun, GUO Mingming, WANG Qian, et al. Response of the radial growth of Larix principis-rupprechtii plantations and natural forests to climate change[J]. Journal of Central South University of Forestry & Technology, 2022, 42(1): 120-128.
[4]	陈广生, 曾德慧, 陈伏生, 等. 干旱和半干旱地区灌木下土壤 “肥岛”研究进展[J]. 应用生态学报, 2003, 14(12): 2295-2300.
	CHEN Guangsheng, ZENG Dehui, CHEN Fusheng, et al. A research review on “fertile islands” of soils under shrub canopy in arid and semi-arid regions[J]. Chinese Journal of Applied Ecology, 2003, 14(12): 2295-2300. PMID
[5]	国家林业局. 第八次全国森林资源清查结果[J]. 林业资源管理, 2014,(1): 1-2.
	State Forestry Administration. The eighth national forest resources inventory results[J]. Forest Resources Management, 2014,(1): 1-2.
[6]	陈敏利, 王旭荣. 重视森林资源保护强化森林资源管理[J]. 花卉, 2018,(6): 210-211.
	CHEN Minli, WANG Xurong. Attach importance to forest resources protection and strengthen forest resources management[J]. Flowers, 2018,(6): 210-211.
[7]	胡三. 加强森林资源管理不断提升森林质量[J]. 绿色中国, 2019,(24): 22-25.
	HU San. Strengthen management of forest resources and improve the quality of forests[J]. Green China, 2019,(24): 22-25.
[8]	邓乾星, 耿海龙, 赵冬立, 等. 塔中沙漠公路零碳示范工程案例研究[J]. 石油石化节能, 2023, 13(5): 15-21.
	DENG Qianxing, GENG Hailong, ZHAO Dongli, et al. Research on the case of zero carbon demonstrate project in Tazhong Desert highway[J]. Energy Conservation in Petroleum & Petrochemical Industry, 2023, 13(5): 15-21.
[9]	杜虎林, 王涛, 肖洪浪, 等. 塔里木沙漠公路防护林带根灌节水试验研究[J]. 中国沙漠, 2010, 30(3): 522-527.
	DU Hulin, WANG Tao, XIAO Honglang, et al. Root irrigation experiments used in the protective forest belt along the Tarim Desert highway[J]. Journal of Desert Research, 2010, 30(3): 522-527.
[10]	雷加强, 王雪芹, 王德. 塔里木沙漠公路风沙危害形成研究[J]. 干旱区研究, 2003, 20(1): 1-6.
	LEI Jiaqiang, WANG Xueqin, WANG De. The formation of the blown sand disaster to the Tarim Desert highway, Xinjiang, China[J]. Arid Zone Research, 2003, 20(1): 1-6.
[11]	单立山, 张希明, 王有科, 等. 水分条件对塔里木沙漠公路防护林植物幼苗生长及生物量分配的影响[J]. 科学通报, 2008, 53(S2): 82-88.
	SHAN Lishan, ZHANG Ximing, WANG Youke, et al. Effects of water conditions on seedling growth and biomass distribution of shelterbelt in Tarim Desert highway[J]. Chinese Science Bulletin, 2008, 53(S2): 82-88.
[12]	李涛, 姬学龙, 许浩, 等. 塔里木沙漠公路防护林造林树种生长动态研究[J]. 内蒙古林业科技, 2006, 32(3): 8-11.
	LI Tao, JI Xuelong, XU Hao, et al. Study on dynamic growth of forestation trees on talimu desert highway[J]. Inner Mongolia Forestry Science and Technology, 2006, 32(3): 8-11.
[13]	刘静, 王连喜, 戴小笠, 等. 枸杞叶片净光合速率与其它生理参数及环境微气象因子的关系[J]. 干旱地区农业研究, 2003, 21(2): 95-98.
	LIU Jing, WANG Lianxi, DAI Xiaoli, et al. Relationship between leaf net photosynthesis rate of Lyciumbarbarum L. and it’s environmental micrometeorological factors[J]. Agricultural Research in the Arid Areas, 2003, 21(2): 95-98.
[14]	马媛, 李钢铁, 潘羿壅, 等. 浑善达克沙地3种灌木生物量的预测模型[J]. 干旱区资源与环境, 2017, 31(6): 198-201.
	MA Yuan, LI Gangtie, PAN Yiyong, et al. Prediction model for biomass of 3 shrubs in Hunshandake sandy land[J]. Journal of Arid Land Resources and Environment, 2017, 31(6): 198-201.
[15]	黄劲松, 邸雪颖. 帽儿山地区6种灌木地上生物量估算模型[J]. 东北林业大学学报, 2011, 39(5): 54-57.
	HUANG Jinsong, DI Xueying. Estimation model for biomass of typical shrubs in Maoershan Area, Heilongjiang[J]. Journal of Northeast Forestry University, 2011, 39(5): 54-57.
[16]	陶冶, 张元明. 荒漠灌木生物量多尺度估测——以梭梭为例[J]. 草业学报, 2013, 22(6): 1-10. DOI
	TAO Ye, ZHANG Yuanming. Multi-scale biomass estimation of desert shrubs: a case study of Haloxylonammodendron in the Gurbantunggut Desert, China[J]. Acta PrataculturaeSinica, 2013, 22(6): 1-10.
[17]	郑雪婷, 仪律北, 李强峰, 等. 青藏高原典型人工林幼树生物量模型构建[J]. 应用生态学报, 2022, 33(11): 2923-2935. DOI
	ZHENG Xueting, YI Lyubei, LI Qiangfeng, et al. Developing biomass estimation models of young trees in typical plantation on the Qinghai-Tibet Plateau, China[J]. Chinese Journal of Applied Ecology, 2022, 33(11): 2923-2935. DOI
[18]	IPCC. 2006 IPCC guidelines for national greenhouse gas inventories[M]. UK: Cambridge University Press, 2006.
[19]	李峰, 刘桂英, 王力刚. 黑龙江省森林碳汇价值评价及碳汇潜力分析[J]. 防护林科技, 2011,(1): 87-88.
	LI Feng, LIU Guiying, WANG Ligang. Evaluation of forest carbon sink value and analysis of carbon sink potential in Heilongjiang Province[J]. Protection Forest Science and Technology, 2011,(1): 87-88.
[20]	贾宏涛, 赵成义, 盛钰, 等. 干旱区退耕还林高固碳效率树种筛选[J]. 新疆农业大学学报, 2009, 32(3): 29-31.
	JIA Hongtao, ZHAO Chengyi, SHENG Yu, et al. Screening of tree species with high-efficiency carbon sequestration for returning cultivated land to forest in arid area[J]. Journal of Xinjiang Agricultural University, 2009, 32(3): 29-31.
[21]	徐玮玮, 李晓储, 汪成忠, 等. 扬州古运河风光带绿地树种固碳释氧效应初步研究[J]. 浙江林学院学报, 2007, 24(5): 575-580.
	XU Weiwei, LI Xiaochu, WANG Chengzhong, et al. Carbon fixation and oxygen release of landscaping trees along the Grand Canal in Yangzhou[J]. Journal of Zhejiang Forestry College, 2007, 24(5): 575-580.
[22]	赵成义, 宋郁东, 王玉潮, 等. 几种荒漠植物地上生物量估算的初步研究[J]. 应用生态学报, 2004, 15(1): 49-52.
	ZHAO Chengyi, SONG Yudong, WANG Yuchao, et al. Estimation of aboveground biomass of desert plants[J]. Chinese Journal of Applied Ecology, 2004, 15(1): 49-52. PMID
[23]	赵梦颖, 孙威, 罗永开, 等. 内蒙古26种常见温带灌木的生物量模型[J]. 干旱区研究, 2019, 36(5): 1219-1228.
	ZHAO Mengying, SUN Wei, LUO Yongkai, et al. Models for estimating the biomass of 26 temperate shrub species in Inner Mongolia, China[J]. Arid Zone Research, 2019, 36(5): 1219-1228.
[24]	杨昊天, 李新荣, 王增如, 等. 腾格里沙漠东南缘4种灌木的生物量预测模型[J]. 中国沙漠, 2013, 33(6): 1699-1704. DOI
	YANG Haotian, LI Xinrong, WANG Zengru, et al. Biomass estimation models of four shrub species at southeastern edge of the tengger desert[J]. Journal of Desert Research, 2013, 33(6): 1699-1704. DOI
[25]	党晓宏, 高永, 虞毅, 等. 库布其沙漠北缘8种荒漠灌丛生物量预测模型研究[J]. 干旱区资源与环境, 2016, 30(5): 168-174.
	DANG Xiaohong, GAO Yong, YU Yi, et al. The biomass estimation models for eight desert shrub species in northern edge of the Hobq Desert[J]. Journal of Arid Land Resources and Environment, 2016, 30(5): 168-174.
[26]	WEI Xiaoping, ZHAO Changming, WANG Genxuan, et al. Estimation of above-and below-ground biomass of dominant desert plant species in an oasis-desert ecotone of Minqin, China[J]. Chinese Journal of Plant Ecology, 2005, 29(6): 878-883. DOI

样方编号 Sample number	植被频度 Vegetation frequency(%)			平均株高 Average plant height (m)	平均冠幅 Average crown width (m)		平均胸径 Average breast diameter (cm)	坐标 Coordinate		海拔 Altitude (m)
样方编号 Sample number	梭梭 Haloxylon ammod- endron	沙拐枣 Calligonum mongolicum	柽柳 Tamarix chinensis	平均株高 Average plant height (m)	东西 East and West	南北 South and North	平均胸径 Average breast diameter (cm)	经度 E Longitude	纬度 N Latitude	海拔 Altitude (m)
S₁	54.85	10.30	34.85	1.47	2.01	1.96	4.29	84°18'2.41″	40°45'15.64″	932
S₂	60.54	37.90	1.56	1.93	2.04	2.05	5.77	84°20'11.11″	40°10'40.40″	951
S₃	78.66	19.00	2.34	1.84	2.31	1.94	3.28	83°59'58.32″	39°35'13.45″	1 020
S₄	76.56	13.68	9.76	1.79	1.89	1.96	2.74	83°43'55.20″	39°14'27.94″	1 066
S₅	62.43	35.50	2.07	2.04	2.05	1.88	3.23	83°35'29.07″	39°0'41.45″	1 096
S₆	75.65	18.81	5.54	1.15	1.78	1.56	1.92	83°26'41.32″	38°47'27.80″	1 142
S₇	70.60	22.00	7.40	1.19	1.35	1.54	2.56	83°16'35.85″	38°32'41.31″	1 164
S₈	67.85	30.95	1.20	1.67	2.02	1.84	2.77	83°8'27.49″	38°10'50.59″	1 217
S₉	72.50	24.22	3.28	1.16	1.24	1.30	1.82	83°1'20.77″	37°49'52.84″	1 269
S₁₀	72.68	14.50	12.82	1.99	2.05	1.70	4.31	82°54'17.15″	37°39'24.41″	1 314

样方编号 Sample number	植被频度 Vegetation frequency(%)			平均株高 Average plant height (m)	平均冠幅 Average crown width (m)		平均胸径 Average breast diameter (cm)	坐标 Coordinate		海拔 Altitude (m)
样方编号 Sample number	梭梭 Haloxylon ammod- endron	沙拐枣 Calligonum mongolicum	柽柳 Tamarix chinensis	平均株高 Average plant height (m)	东西 East and West	南北 South and North	平均胸径 Average breast diameter (cm)	经度 E Longitude	纬度 N Latitude	海拔 Altitude (m)
S₁	54.85	10.30	34.85	1.47	2.01	1.96	4.29	84°18'2.41″	40°45'15.64″	932
S₂	60.54	37.90	1.56	1.93	2.04	2.05	5.77	84°20'11.11″	40°10'40.40″	951
S₃	78.66	19.00	2.34	1.84	2.31	1.94	3.28	83°59'58.32″	39°35'13.45″	1 020
S₄	76.56	13.68	9.76	1.79	1.89	1.96	2.74	83°43'55.20″	39°14'27.94″	1 066
S₅	62.43	35.50	2.07	2.04	2.05	1.88	3.23	83°35'29.07″	39°0'41.45″	1 096
S₆	75.65	18.81	5.54	1.15	1.78	1.56	1.92	83°26'41.32″	38°47'27.80″	1 142
S₇	70.60	22.00	7.40	1.19	1.35	1.54	2.56	83°16'35.85″	38°32'41.31″	1 164
S₈	67.85	30.95	1.20	1.67	2.02	1.84	2.77	83°8'27.49″	38°10'50.59″	1 217
S₉	72.50	24.22	3.28	1.16	1.24	1.30	1.82	83°1'20.77″	37°49'52.84″	1 269
S₁₀	72.68	14.50	12.82	1.99	2.05	1.70	4.31	82°54'17.15″	37°39'24.41″	1 314

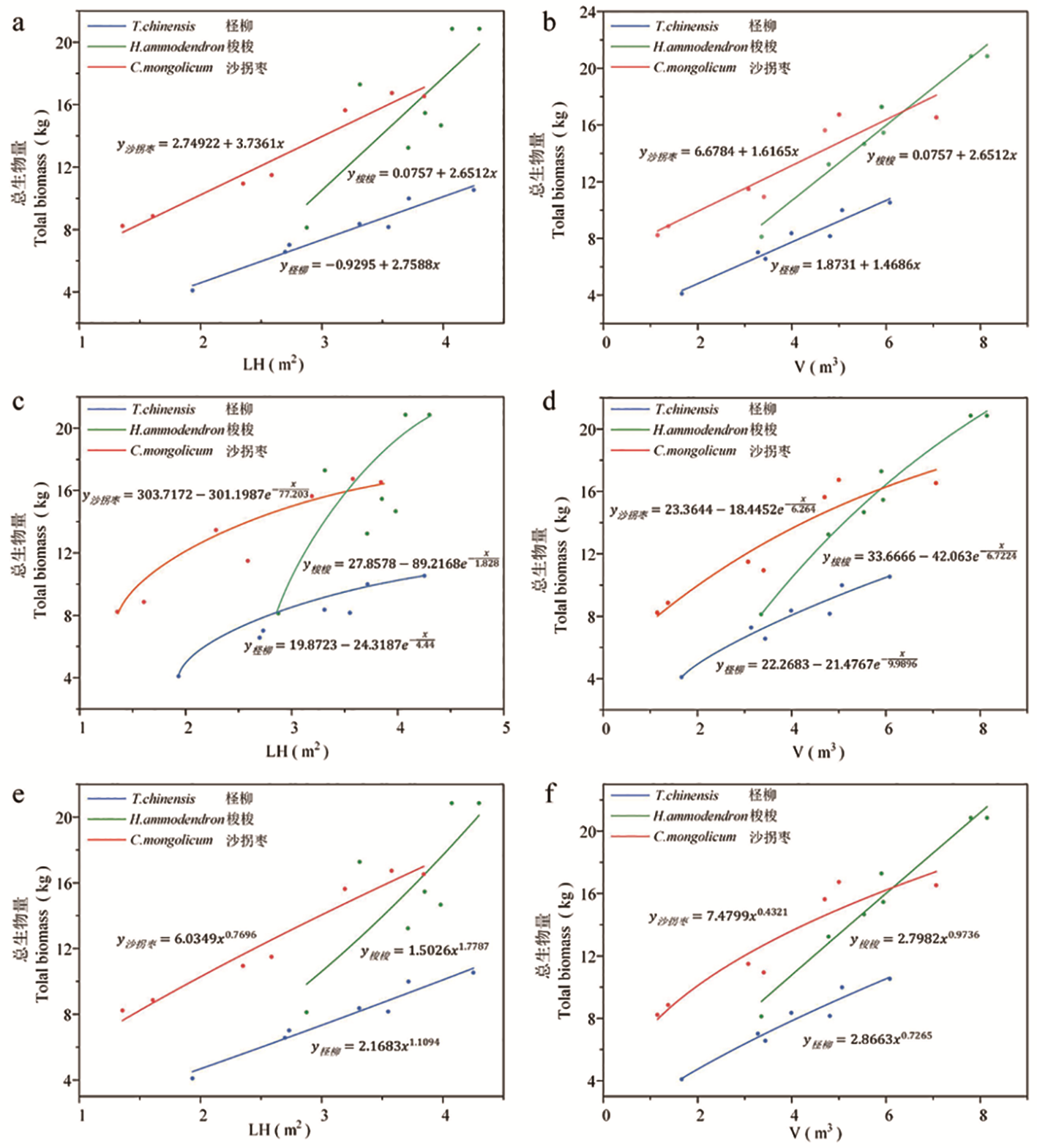

模型 Model	树种 Tree species	自变量 Independent variable	R²	SEE	P
一次函数 W=a+bX	柽柳	LH	0.934	0.270	<0.001
	梭梭		0.617	2.543	<0.001
	沙拐枣		0.912	0.333	0.036
	柽柳	V	0.937	0.170	<0.001
	梭梭		0.925	0.225	<0.001
	沙拐枣		0.875	0.273	0.002
指数函数 W=ae^bX	柽柳	LH	0.661	3.753	0.002
	梭梭		0.610	2.732	0.1518
	沙拐枣		0.861	1.200	<0.001
	柽柳	V	0.902	1.155	<0.001
	梭梭		0.880	2.719	0.003
	沙拐枣		0.899	2.231	0.011
幂函数 W=aX^b	柽柳	LH	0.931	0.862	<0.001
	梭梭		0.898	0.833	<0.001
	沙拐枣		0.956	0.742	<0.001
	柽柳	V	0.941	0.634	<0.001
	梭梭		0.965	0.929	<0.001
	沙拐枣		0.799	0.923	<0.001

模型 Model	树种 Tree species	自变量 Independent variable	R²	SEE	P
一次函数 W=a+bX	柽柳	LH	0.934	0.270	<0.001
	梭梭		0.617	2.543	<0.001
	沙拐枣		0.912	0.333	0.036
	柽柳	V	0.937	0.170	<0.001
	梭梭		0.925	0.225	<0.001
	沙拐枣		0.875	0.273	0.002
指数函数 W=ae^bX	柽柳	LH	0.661	3.753	0.002
	梭梭		0.610	2.732	0.1518
	沙拐枣		0.861	1.200	<0.001
	柽柳	V	0.902	1.155	<0.001
	梭梭		0.880	2.719	0.003
	沙拐枣		0.899	2.231	0.011
幂函数 W=aX^b	柽柳	LH	0.931	0.862	<0.001
	梭梭		0.898	0.833	<0.001
	沙拐枣		0.956	0.742	<0.001
	柽柳	V	0.941	0.634	<0.001
	梭梭		0.965	0.929	<0.001
	沙拐枣		0.799	0.923	<0.001

树种 Tree species	单位叶面积年固碳量 Carbon sequestration per unit area per year ( kg/(m²·a))	植被覆盖面积 The area covered by vegetation (hm²)	种植时长 Planting duration (a)	年均固碳量 Average annual carbon sequestration ( t/a)	总固碳量 Total carbon sequestration (t)
柽柳Tamarix chinensis	2.20	166.06	16	3 653.32	58 453.12
梭梭Haloxylon ammodendron	1.95	1291.36	16	25 181.52	402 904.32
沙拐枣Calligonum mongolicum	2.02	328.20	16	6 629.64	106 074.24
合计Total				35 464.48	567 431.68
