Estimation of above ground biomass of drone Diarthron tianschanicum based on multi feature fusion

doi:10.6048/j.issn.1001-4330.2024.10.020

Abstract

Abstract:

【Objective】 This project aims to explore the ability of UAV multi feature to construct D. tianschanicum aboveground biomass (AGB) estimation model.The finding has provided a reference for the grading basis for the classification of grassland degradation degree. 【Methods】 Diarthron tianschanicum is one of the degradation indicator plants, and its growth status can reflect the degree of grassland degradation. and to extract the spectral features, texture features and D. tianschanicum coverage from visible high spatial resolution remote sensing images, and the three were used as inputs to establish a univariate linear model. The three types of features were fused to construct multiple stepwise regression and artificial neural network models, and the effect of multi feature fusion to estimate AGB was analyzed. 【Results】 (1) The best coverage extraction window period of D. tianschanicum was in full bloom, and the effect of D. tianschanicum extraction model constructed by RF algorithm was ideal, and the overall accuracy was more than 81%. (2) Spectral features, texture features and coverage were all correlated with AGB, and the texture feature G had the highest correlation, which was 0.784. (3) Compared with single vegetation index, texture feature, coverage and any two feature combinations as input amount, the accuracy of AGB was the highest, with R² and RMSE of 0.870 and 15.383, respectively. 【Conclusion】 It is verified by artificial neural network mode that the fusion of spectral features, texture index and coverage can effectively improve the accuracy of AGB estimation.

Key words: drone; Diarthron tianschanicum biomass; visible light; coverage; texture features

摘要：

【目的】 研究无人机多特征构建天山假狼毒地上生物量(AGB)估算模型的能力,为草地退化程度的分级提供参考依据。【方法】 天山假狼毒(Diarthron tianschanicum)作为退化指示植物之一,其生长状况可反映草地退化程度。通过可见光高空间分辨率遥感影像提取光谱特征、纹理特征和天山假狼毒覆盖度,将三者分别作为输入量建立一元线性模型,三类特征融合构建多元逐步回归与人工神经网络模型,分析多特征融合估算天山假狼毒AGB的效果。【结果】 (1)盛花期为天山假狼毒最佳覆盖度提取窗口期,利用RF算法构建的天山假狼毒提取模型效果较为理想,总体精度在81%以上。(2)光谱特征、纹理特征、覆盖度均与天山假狼毒AGB具有相关性,其中纹理特征cor_G相关性最高,达0.784。(3)对比单一植被指数、纹理特征、覆盖度及任意两种特征组合作为输入量,多特征融合估算天山假狼毒AGB的精度最高,R²、RMSE为0.870、15.383,并利用人工神经网络模型对此结论进行验证。【结论】 融合光谱特征、纹理指数、覆盖度能有效提高天山假狼毒AGB估算精度。

关键词: 无人机, 天山假狼毒生物量, 可见光, 覆盖度, 纹理特征

CLC Number:

S812

HOU Zhengqing, YAN An, XIE Kaiyun, YUAN Yilin, XIA Wenqiu, XIAO Shuting, ZHANG Zhenfei, SUN Zhe. Estimation of above ground biomass of drone Diarthron tianschanicum based on multi feature fusion[J]. Xinjiang Agricultural Sciences, 2024, 61(10): 2527-2536.

侯正清, 颜安, 谢开云, 袁以琳, 夏雯秋, 肖淑婷, 张振飞, 孙哲. 基于多特征融合的无人机天山假狼毒地上生物量估算[J]. 新疆农业科学, 2024, 61(10): 2527-2536.

Figures/Tables 10

Tab.1 Quantitative characteristics of main plants in the study area community

物种 Species	高度 Height(cm)	盖度 Coverage(%)	密度 Density/plant(m²)	重要值 Important value
天山假狼毒 Stelleropsis tianschanica	30.188±5.522	27.999±14.224	3.125±0.976	0.205
紫苞鸢尾 Iris ruthenica	18.086±2.854	28.046±10.126	16.556±5.577	0.159
无芒雀麦 Smooth bromegrass	25.233±14.769	15.569±8.164	48.183±52.220	0.159
夏至草 Horehound	13.511±3.483	15.008±8.780	70.348±54.406	0.157
百里香 Thyme	11.387±1.697	10.889±5.271	15.048±13.048	0.157
车前 Snokeweed	14.237±13.342	13.567±4.375	15.500±8.635	0.141

Tab.2 Visible light vegetation index and calculation formula

植被指数 Vegetation Indexes	计算公式 Formula
归一化绿红差异指数 Normalized green-red difference index,NGRDI	(G-R)/(G+R)^[13]
归一化绿蓝差异指数 Normalized green and blue disparity index,NGBDI	(G-B)/(G+B)^[13]
绿蓝比值指数Green-blue ratio index,GBRI	G/B^[13]
红光标准化值Normalized redness intensity,NRI	R/(R+B+G)^[19]
绿光标准化值Normalized greenness intensity,NGI	G/(R+B+G)^[19]
蓝光标准化值Normalized blueness intensity,NBI	B/(R+B+G)^[19]
红绿比值指数Red-green ratio index,RGRI	R/G^[19]
过红指数Excess red index,ExR	1.4R-G^[19]

Tab.3 Texture features and its formulas

纹理特征 Texture feature	公式 Formula
均值 Mean	$m e a n = \sum_{i, j}^{N - 1} i P_{i, j}$
方差 Variance	$v a r = \sum_{i, j = 0}^{N - 1} i P_{i, j} {(i - m e a n)}^{2}$
同质性 Homogeneity	$h o m = \sum_{i, j = 0}^{N - 1} i \frac{P_{i, j}}{1 + {(i - j)}^{2}}$
对比度 Contrast	$c o n = \sum_{i, j = 0}^{N - 1} i P_{i, j} {(i - j)}^{2}$
差异性 Dissimilarity	$d i s = \sum_{i, j = 0}^{N - 1} i P_{i, j} \|i - j\|$
熵 Entropy	$e n t = \sum_{i, j = 0}^{N - 1} i P_{i, j} (- l n P_{i, j})$
二阶距 Second Moment	$s m = \sum_{i, j = 0}^{N - 1} i {P_{i, j}}^{2}$
相关性 Correlation	$c o r = \sum_{i, j = 0}^{N - 1} i P_{i, j} [\frac{(i - m e a n) (j - m e a n)}{\sqrt{v a r_{i} \times v a r_{j}}}]$

Tab.3 Texture features and its formulas

纹理特征 Texture feature	公式 Formula
均值 Mean	$m e a n = \sum_{i, j}^{N - 1} i P_{i, j}$
方差 Variance	$v a r = \sum_{i, j = 0}^{N - 1} i P_{i, j} {(i - m e a n)}^{2}$
同质性 Homogeneity	$h o m = \sum_{i, j = 0}^{N - 1} i \frac{P_{i, j}}{1 + {(i - j)}^{2}}$
对比度 Contrast	$c o n = \sum_{i, j = 0}^{N - 1} i P_{i, j} {(i - j)}^{2}$
差异性 Dissimilarity	$d i s = \sum_{i, j = 0}^{N - 1} i P_{i, j} \|i - j\|$
熵 Entropy	$e n t = \sum_{i, j = 0}^{N - 1} i P_{i, j} (- l n P_{i, j})$
二阶距 Second Moment	$s m = \sum_{i, j = 0}^{N - 1} i {P_{i, j}}^{2}$
相关性 Correlation	$c o r = \sum_{i, j = 0}^{N - 1} i P_{i, j} [\frac{(i - m e a n) (j - m e a n)}{\sqrt{v a r_{i} \times v a r_{j}}}]$

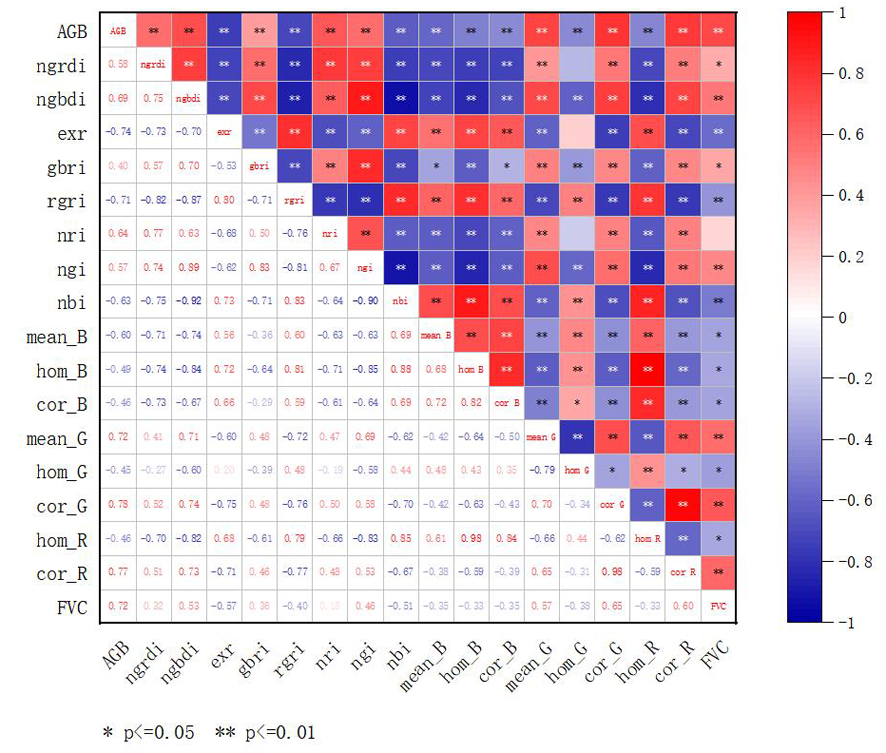

Fig. 1 Correlation between spectral, texture features, and coverage with AGB of Diarthron tianschanicum

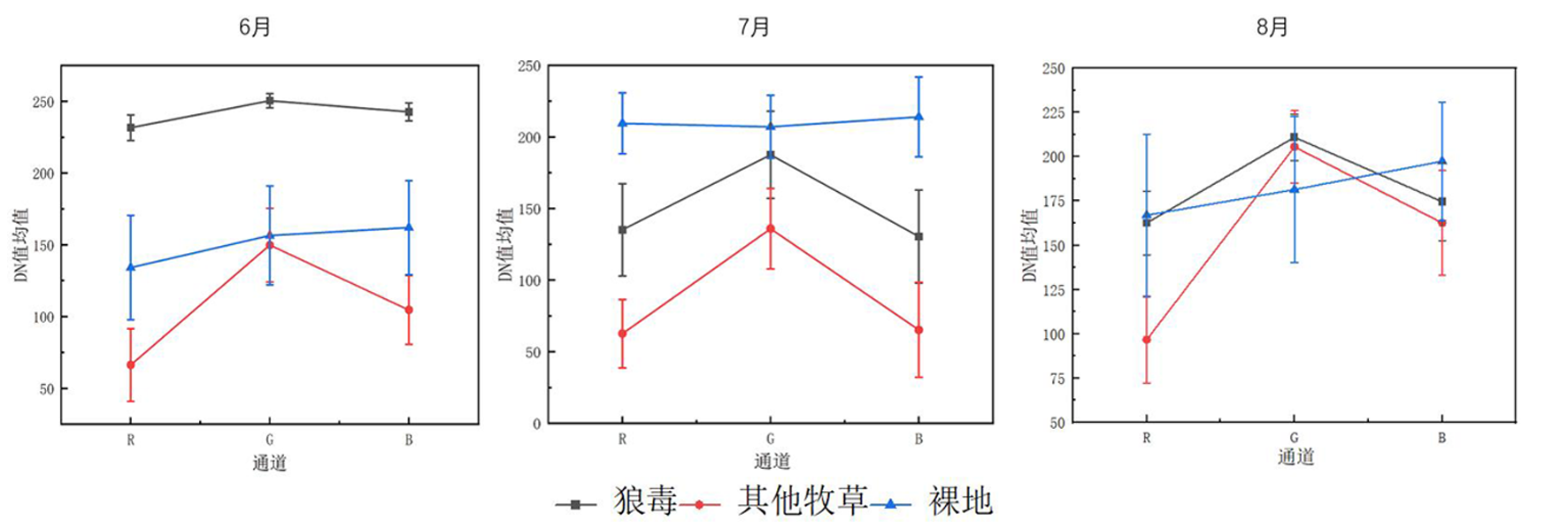

Fig. 2 Spectral differences between Diarthron tianschanicum and other vegetation in late June

Fig.3 Orthorectified image of the experimental area captured by the UAV

Fig. 4 Distribution map of Diarthron tianschanicum (after merging small patches)

Tab.4 Univariate linear estimation models and accuracy evaluation for AGB of Diarthron tianschanicum

模型输入 Model input	模型公式 Model formula	决定系数 R²	均方根误差 RMSE (g/m²)
ExR	Y=26.173-2.028X	0.544	29.315
NRI	Y=-188.86+919.344X	0.400	33.623
NBI	Y=628.877-1 971.515X	0.381	34.166
NGRDI	Y=-65.082+582.556X	0.318	35.860
NGBDI	Y=--166.357+1 080.686X	0.467	35.741
NGI	Y=-843.908+2 060.782X	0.308	36.122
GBRI	Y=-24.727+59.308X	0.137	40.334
RGRI	Y=485.473-664.829X	0.492	30.934
mean_B	Y=280.073-8.103 624X	0.345	35.144
hom_B	Y=229.254-947.174X	0.220	38.294
cor_B	Y=145.009-217.139X	0.193	38.999
mean_G	Y=-52.137+3.867X	0.511	30.360
hom_G	Y=93.821-0.692X	0.186	39.164
cor_G	Y=-68.339+369.227X	0.606	27.237
hom_R	Y=-225.691-914.770 713X	0.195	38.940
cor_R	Y=-62.148+355.199 683X	0.576	28.251
FVC	Y=-15.636+161.079X	0.501	30.664

Tab.5 Multivariate linear stepwise regression estimation models and accuracy evaluation for AGB of Diarthron tianschanicum

模型输入量 Model input	模型公式 Model formula	因子 Factor	决定系数 R²	均方根误差 RMSE (g/m²)
VIs+FVC	Y=-0.888-1.907exr+93.623FVC	exr,FVC	0.712	23.281
TIs+FVC	Y=-160.891+7.335mean_G-9.285mean_B+1.439hom_G+994.878hom_B+60.704FVC	mean_G,mean_B,hom_G,hom_B,FVC	0.830	17.398
VIs+TIs	Y=-400.961+6.644mean_G+1 487.090hom_R-7.485mean_B+1.138hom_G+728.831ngbdi	mean_G,hom_R,mean_B,hom_G,ngbdi	0.850	16.739
VIS+TIS+FVC	Y=778.539-1.141exr+53.348FVC+1445.883hom_B+641.677nri+2.519mean_G-2152.134nbi	Exr,FVC,hom_B,nri,mean_G,nbi,ngi	0.870	15.383

Tab.6 Artificial neural network forecast model and accuracy evaluation of AGB

模型输入 Model input	决定系数 R²	均方根误差 RMSE (g/m²)
VIs	0.648	24.060
TIs	0.680	18.249
FVC	0.562	17.261
VIs+TIs	0.785	20.345
VIs+FVC	0.726	23.987
TIs+FVC	0.787	22.511
VIs+TIs+FVC	0.806	22.685
