Response of Root Growth and Water Use Efficiency to Drought in Different Drought Tolerant Cotton Varieties

doi:10.6048/j.issn.1001-4330.2022.01.003

Abstract

Abstract:

【Objective】 To clarify the response mechanism of root growth and water use efficiency of cotton varieties with different drought resistance to drought, and provide a theoretical basis for cotton stress-resistant cultivation and drought-tolerant varieties selection. 【Method】 Under soil column cultivation conditions, the not drought-tolerant variety Xinluzao 17 and the drought-tolerant variety Xinluzao 22 were taken as the test materials, with conventional irrigation (CK), mild drought (W₁) and moderate drought (W₂) treatments set to study the effects of drought stress on root length density, root length density distribution ratio, root volume density, root weight density, water consumption and water use efficiency of different drought-tolerant cotton varieties. 【Result】 Under drought treatment, the root weight density, root volume density and root length density of the two varieties in the 0-20 cm soil layer were significantly lower than those of CK; The distribution ratio of Xinluzao 22 root length density in 40-80 cm soil layer was significantly higher than that in Xinluzao 17 soil layer, while the distribution ratio of Xinluzao 17 decreased. Compared with CK, the water use efficiency of W₁ and W₂treatments increased by 15.18% and 21.91%, respectively. Among cultivars, the distribution ratio of root length density of Xinluzao 22 in the 40-80 cm soil layer was significantly higher than that of Xinluzao 17, and the distribution ratio of the 80-120 cm soil layer was significantly lower than that of Xinluzao 17. The water consumption of Xinluzao 22 was 6.30% lower than that of Xinluzao 17, but the water use efficiency was 40.95% higher than that of Xinluzao 17, which was a significant difference. Correlation analysis showed that the root bulk density of Xinluzao 22 in the 80-120 cm soil layer was significantly positively correlated with biological water use efficiency.【Conclusion】 Drought-tolerant cotton varieties extend their water absorption space under drought by increasing the distribution ratio of roots in deep soil layers to ensure the growth of the above ground and achieve efficient absorption and utilization of limited water.

Key words: cotton; drought tolerance; root morphology; water use efficiency

摘要：

【目的】研究耐旱性不同的棉花品种根系生长及水分利用效率对干旱的响应机制,为棉花抗逆栽培和耐旱性品种选育提供理论依据。【方法】以不耐旱性品种新陆早17号和耐旱型品种新陆早22号为试材,设常规灌溉(CK)、轻度干旱(W₁)和中度干旱(W₂)处理,测定不同处理下棉花产量形成期0~120 cm 土层根长密度、根体积密度、根重密度及水分利用效率。【结果】干旱处理下,0~20 cm土层内,2品种根重密度、根体积密度、根长密度均显著低于CK;80~120 cm土层内,新陆早22号随干旱胁迫程度的增强而增加,新陆早17号则降低。W₁、W₂处理的水分利用效率分别比CK高15.18%、21.91%。品种间,新陆早22号根长密度在40~80 cm土层的分布比例显著高于新陆早17号,80~120 cm土层的分布比例显著低于新陆早17号。新陆早22号耗水量比新陆早17号低6.30%,但水分利用效率比新陆早17号高40.95%,差异显著。新陆早22号在80~120 cm 土层根体积密度与生物学水分利用效率呈显著正相关。【结论】耐旱型棉花品种通过增加深土层根系分布比例延伸其在干旱下汲取水分空间,保证地上部生长,实现有限水分高效吸收与利用。

关键词: 棉花, 耐旱性, 根系形态, 水分利用效率

CLC Number:

S562.1

LI Junhong, LI Wenjing, WANG Yuanyuan, SHI Xiaojuan, HAO Xianzhe, LIU Ping. Response of Root Growth and Water Use Efficiency to Drought in Different Drought Tolerant Cotton Varieties[J]. Xinjiang Agricultural Sciences, 2022, 59(1): 20-29.

李军宏, 李文静, 王远远, 时晓娟, 郝先哲, 刘萍. 不同耐旱性棉花品种根系生长及水分利用效率对干旱的响应机制[J]. 新疆农业科学, 2022, 59(1): 20-29.

Figures/Tables 7

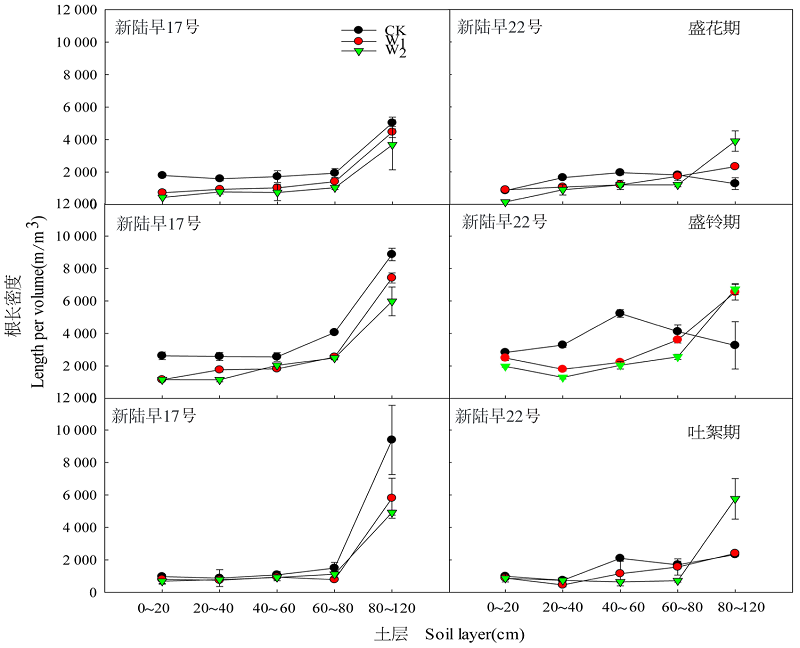

Fig.1 Change of root length density of cotton varieties with different drought-tolerance

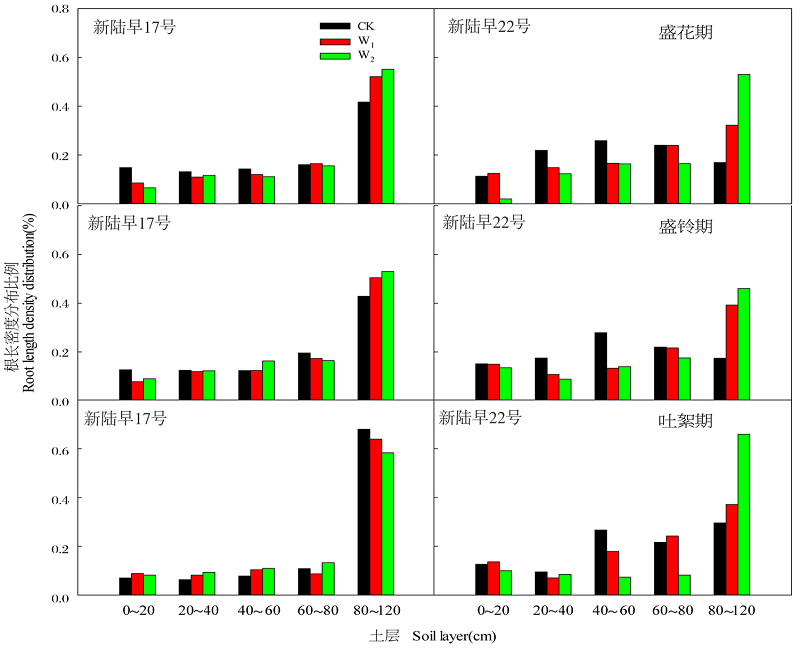

Fig.2 Change of root length density distribution of cotton varieties with different drought-tolerance

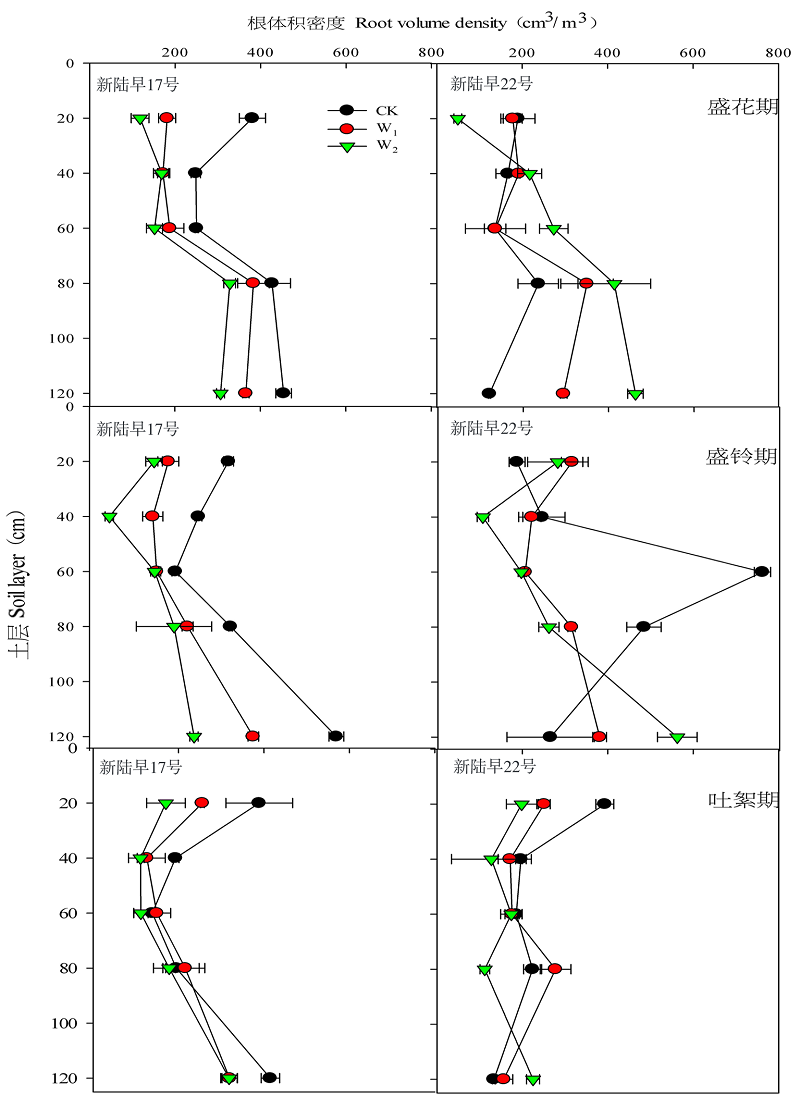

Fig.3 Change of root volume density of cotton varieties with different drought-tolerance

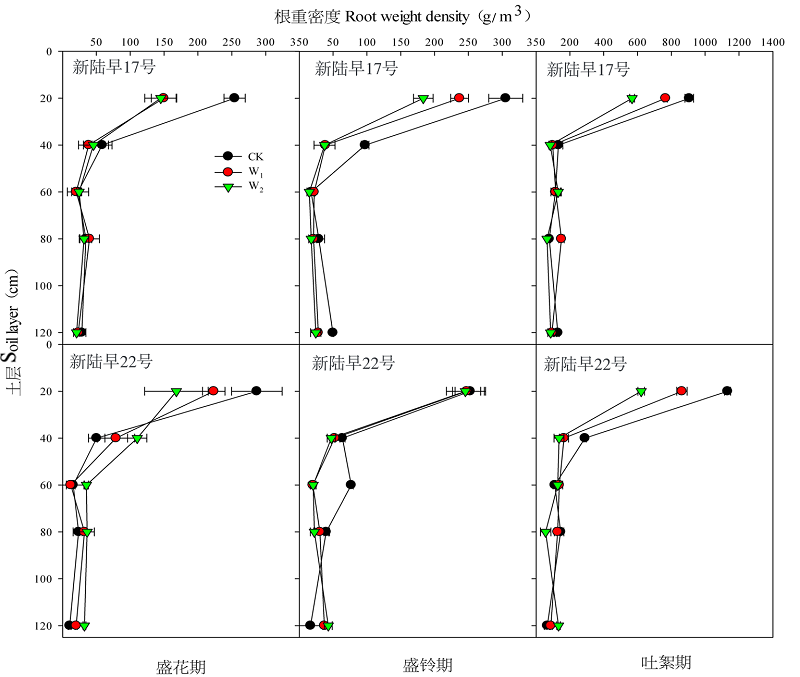

Fig.4 Change of root weight density of cotton varieties with different drought-tolerance

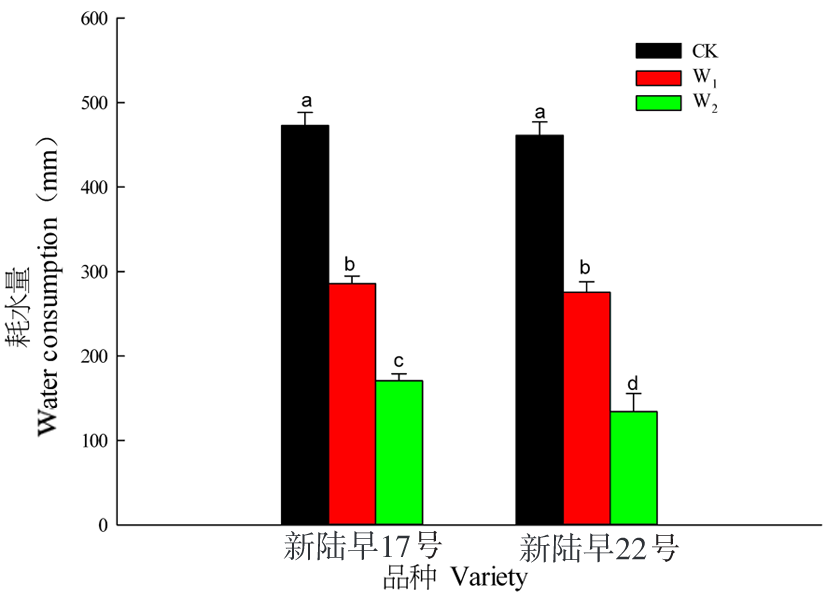

Fig.5 Change of water consumption of cotton varieties with different drought-tolerance

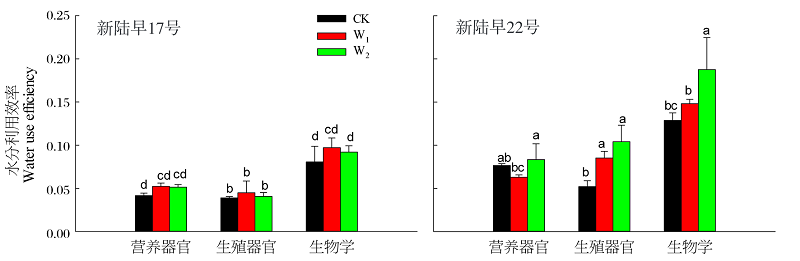

Fig.6 Change of water use efficiency of cotton varieties with different drought-tolerance

Table 1 Correlation coefficients between root morphology and water use efficiency of cotton

水分利用效率 Water use efficiency	品种 Variety	土层Layer (cm)
		0~20	20~40	40~60	60~80	80~120
		根长密度 Root lengthdensity(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.888	-0.977	-0.983	-0.916	-0.966
营养器官 Vegetative organs	新陆早22号	0.132	0.938	-0.163	-0.664	0.743
生殖器官 Reproductive organs	新陆早17号	-0.392	-0.890	-0.640	-0.962	-0.581
生殖器官 Reproductive organs	新陆早22号	-0.953	-0.176	-1. ${0^{}}^{}$	-0.853	0.789
生物学 Total	新陆早17号	-0.757	-1. ${0^{}}^{}$	-0.913	-0.984	-0.88
生物学 Total	新陆早22号	-0.791	0.172	-0.935	-0.980	0.952
根重密度 Root weight density(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.768	-0.935	0.521	0.440	-0.970
营养器官 Vegetative organs	新陆早22号	-0.296	0.009	-0.522	-0.618	0.518
生殖器官 Reproductive organs	新陆早17号	-0.186	-0.496	-0.141	0.911	-0.594
生殖器官 Reproductive organs	新陆早22号	-0.992^*	-0.983	0.748	-0.882	0.933
生物学 Total	新陆早17号	-0.600	-0.828	0.309	0.636	-0.888
生物学 Total	新陆早22号	-0.975	-0.86	0.476	-0.990^*	1.000
根体积密度 Root volume density(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.891	-0.971	-0.17	0.145	-0.997^*
营养器官 Vegetative organs	新陆早22号	-0.074	-0.47	0.064	-0.925	0.575
生殖器官 Reproductive organs	新陆早17号	-0.400	-0.596	0.496	0.741	-0.716
生殖器官 Reproductive organs	新陆早22号	-0.995^*	-0.951	-0.971	-0.536	0.906
生物学 Total	新陆早17号	-0.763	-0.889	0.062	0.369	-0.95
生物学 Total	新陆早22号	-0.900	-0.999^*	-0.831	-0.793	0.996^*

Table 1 Correlation coefficients between root morphology and water use efficiency of cotton

水分利用效率 Water use efficiency	品种 Variety	土层Layer (cm)
		0~20	20~40	40~60	60~80	80~120
		根长密度 Root lengthdensity(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.888	-0.977	-0.983	-0.916	-0.966
营养器官 Vegetative organs	新陆早22号	0.132	0.938	-0.163	-0.664	0.743
生殖器官 Reproductive organs	新陆早17号	-0.392	-0.890	-0.640	-0.962	-0.581
生殖器官 Reproductive organs	新陆早22号	-0.953	-0.176	-1. ${0^{}}^{}$	-0.853	0.789
生物学 Total	新陆早17号	-0.757	-1. ${0^{}}^{}$	-0.913	-0.984	-0.88
生物学 Total	新陆早22号	-0.791	0.172	-0.935	-0.980	0.952
根重密度 Root weight density(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.768	-0.935	0.521	0.440	-0.970
营养器官 Vegetative organs	新陆早22号	-0.296	0.009	-0.522	-0.618	0.518
生殖器官 Reproductive organs	新陆早17号	-0.186	-0.496	-0.141	0.911	-0.594
生殖器官 Reproductive organs	新陆早22号	-0.992^*	-0.983	0.748	-0.882	0.933
生物学 Total	新陆早17号	-0.600	-0.828	0.309	0.636	-0.888
生物学 Total	新陆早22号	-0.975	-0.86	0.476	-0.990^*	1.000
根体积密度 Root volume density(m/m³)
营养器官 Vegetative organs	新陆早17号	-0.891	-0.971	-0.17	0.145	-0.997^*
营养器官 Vegetative organs	新陆早22号	-0.074	-0.47	0.064	-0.925	0.575
生殖器官 Reproductive organs	新陆早17号	-0.400	-0.596	0.496	0.741	-0.716
生殖器官 Reproductive organs	新陆早22号	-0.995^*	-0.951	-0.971	-0.536	0.906
生物学 Total	新陆早17号	-0.763	-0.889	0.062	0.369	-0.95
生物学 Total	新陆早22号	-0.900	-0.999^*	-0.831	-0.793	0.996^*

References 33

[1]	李腾宇, 汤孟玲, 曹跃芬, 等. 棉花抗旱研究进展[J]. 江苏农业科学, 2019, 47(20):64-69.
	LI Tengyu, TANG Mengling, CAO Yuefen, et al. Research progress of cotton drought resistance[J]. Jiangsu Agricultural Sciences, 2019, 47(20):64-69.
[2]	王凯丽, 高彦钊, 李姗, 等. 短期干旱胁迫下棉花气孔表现及光合特征研究[J]. 中国生态农业学报(中英文), 2019, 27(6):901-907.
	WANG Kaili, GAO Yanzhao, LI Shan, et al. Response of leaf stomata and photosynthetic parameters to short-term drought stress in cotton (Gossypium hirsutum L.)[J]. Chinese Journal of Eco-Agriculture, 2019, 27(6):901-907.
[3]	陈民志, 杨延龙, 王宇轩, 等. 新疆早熟陆地棉品种更替过程中的株型特征及主要经济性状的演变[J]. 中国农业科学, 2019, 52(19):3279-3290.
	CHEN Minzhi, YANG Yanlong, WANG Yuxuan, et al. Plant type characteristics and evolution of main economic characters in early maturing upland cotton cultivar replacement in Xinjiang[J]. Scientia Agricultura Sinica, 2019, 52(19):3279-3290.
[4]	汪恕诚. 人与自然和谐相处—中国水资源问题及对策[J]. 北京师范大学学报(自然科学版), 2009, 45(Z1):441-445.
	WANG Shucheng. Man and nature in harmony—China's water resources problems and countermeasures[J]. Journal of Beijing Normal University (Natural Science Ed.), 2009, 45(Z1):441-445.
[5]	段爱旺, 张寄阳. 中国灌溉农田粮食作物水分利用效率的研究[J]. 农业工程学报, 2000,(4):41-44.
	DUAN Aiwang, ZHANG Jiyang. Water use efficiency of grain crops in irrigated farmland in China[J]. Transactions of the CSAE, 2000,(4):41-44.
[6]	潘晓迪, 张颖, 邵萌, 等. 作物根系结构对干旱胁迫的适应性研究进展[J]. 中国农业科技导报, 2017, 19(2):51-58.
	PAN Xiaodi, ZHANG Ying, SHAO Meng, et al. Research progress on adaptive responses of crop root structure to drought stress[J]. Journal of Agricultural Science and Technology, 2017, 19(2):51-58.
[7]	张均, 梁振凯, 王学平, 等. 锌肥对干旱胁迫下冬小麦根系生长发育及产量的影响[J]. 华北农学报, 2019, 34(5):126-136.
	ZHANG Jun, LIANG Zhenkai, WANG Xueping, et al. Effects of zinc fertilizer on root growth and yield of winter wheat under drought stress[J]. Acta Agriculturae Boreali-Sinica, 2019, 34(5):126-136.
[8]	Blum A, Sullivan C Y. The effect of plant size on wheat response to agents of drought stress.Ⅰ. Root drying[J]. Australian Journal of Plant Physiology, 1997, 24(1):35-41.
[9]	Songsri P, Jogloy S, Vorasoot N, et al. Root distribution of drought-resistant peanut genotypes in response to drought[J]. Journal of Agronomy and Crop Science, 2008, 194(2):92-103. DOI URL
[10]	Henry A, Gowda V R, Torres R O, et al. Variation in root system architecture and drought response in rice (Oryzasativa):Phenotyping of the Oryza SNP panel in rainfed lowland fields[J]. Field Crops Res, 2011, 120(2):205-214. DOI URL
[11]	Pantalone V R, Rebetzke G J, Burton J W, et al. Soybean PI416937 root system contributes to biomass accumulation in reciprocal grafts[J]. Agronomy Journal, 1999, 91(5):840-844. DOI URL
[12]	Henry A, Cal A J, Batoto T C, et al. Root attributes affecting water uptake of rice (Oryza sativa) under drought[J]. Journal of Experimental Botany, 2012, 63(13):4751-4763. DOI URL
[13]	张翠梅, 师尚礼, 吴芳. 干旱胁迫对不同抗旱性苜蓿品种根系生长及生理特性影响[J]. 中国农业科学, 2018, 51(5):868-882.
	ZHANG Cuimei, SHI Shangli, WU Fang. Effects of drought stress on root and physiological responses of different drought-tolerant alfalfa varieties[J]. Scientia Agricultura Sinica, 2018, 51(5):868-882.
[14]	何飞, 雍晓宇, 高宏云, 等. 不同抗旱性棉花品种蜡质含量与水分利用效率的关系[J]. 新疆农业科学, 2018, 55(8):1392-1399. DOI
	HE Fei, YONG Xiaoyu, GAO Hongyun, et al. Changes in epicuticular wax content of cotton cultivars with different drought-resistances and its relationship with water use efficiency[J]. Xinjiang Agricultural Sciences, 2018, 55(8):1392-1399. DOI
[15]	王远远. 不同耐旱性棉花品种根系生物学特性对干旱的响应[D]. 石河子:石河子大学, 2019.
	WANG Yuanyuan. Response of root biological characteristics of different drought tolerant cotton varieties to water stress[D]. Shihezi: Shihezi University, 2019.
[16]	Luo H H, Tao X P, Hu Y Y, et al. Response of cotton root growth and yield to root restriction under various water and nitrogen regimes[J]. Journal of Plant Nutrition and Soil Science, 2015, 178:384-392. DOI URL
[17]	陈宗奎. 水肥调控棉花根系生长提高水分养分利用效率的研究[D]. 石河子:石河子大学, 2017.
	CHEN Zongkui, Research on regulation of various water-nutrients on root system of cotton to promote water-nutrient use efficiency[D]. Shihezi: Shihezi University, 2017.
[18]	Luo H, Zhang H Z, Han H Y, et al. Effect of water storage in deeper soil layers on growth yield and water productivity of cotton(Gossypium hirsutun L.)in arid areas of northwestern China[J]. Irrigation and Drainage, 2014, 63(1):59-70. DOI URL
[19]	Lynch J P. Root architecture and plant productivity[J]. Plant Physiology, 1995, 109(1):7-13. PMID
[20]	Yang L W, Zhang Y Q. Developing patterns of root systems of four cereal crops planted in dryland areas[J]. Scientia Agricultura Sinica, 2011, 44(11):2244-2251.
[21]	Li J F, Huo H Z, Wan C Y, et al. Study on root system morphology of different Chinese pear varieties[J]. Acta Agriculturae Jiangxi, 2010, 22(10):33-35.
[22]	Songsri P, Jogloy S, Vorasoot N, et al. Root distribution of drought-resistant peanut genotypes in response to drought[J]. Journal of Agronomy and Crop Science, 2008, 194(2):92-103. DOI URL
[23]	Kato Y, Okami M. Root growth dynamics and stomatal behaviour of rice (Oryza sativa L.) grown under aerobic and flooded conditions[J]. Field Crops Research, 2010, 117(1):9-17. DOI URL
[24]	丁红, 张智猛, 戴良香, 等. 干旱胁迫对花生生育中后期根系生长特征的影响[J]. 中国生态农业学报, 2013, 21(12):1477-1483.
	DING Hong, ZHANG Zhimeng, DAI Liangxiang, et al. Effects of drought stress on root growth characteristics of peanut during mid-to-late growth stages[J]. Chinese Journal of Eco-Agriculture, 2013, 21(12):1477-1483.
[25]	Ray I M, Townsend M S, Muncy C M. Heritabilities and interrelationships of water-use efficiency and agronomic traits in irrigated alfalfa[J]. Crop Science, 1999, 39(4):1088-1092. DOI URL
[26]	孙学凯, 范志平, 王红, 等. 科尔沁沙地复叶槭等 3 个阔叶树种的光合特性及其水分利用效率[J]. 干旱区资源与环境, 2008, 22(10):188-194.
	SUN Xuekai, FAN Zhipin, WANG Hong, et al. Photosynthetic characteristics and water use efficiency of three broad-leaved tree species in the horqin sandland[J]. Journal of Arid Land Resources and Environment, 2008, 22(10):188-194.
[27]	Jaleel C A, Gopi R, Sankar B, et al. Differential responses in water use efficiency in two varieties of catharanthus roseus under drought stress[J]. Comptes Rendus Biologies, 2008, 331(1):42-47. DOI URL
[28]	张海燕, 解备涛, 段文学, 等. 不同时期干旱胁迫对甘薯光合效率和耗水特性的影响[J]. 应用生态学报, 2018, 29(6):1943-1950.
	ZHANG Haiyan, XIE Beitao, DUAN Wenxue, et al. Effects of drought stress at different growth stages on photosynthetic efficiency and water consumption characteristics in sweet potato[J]. Chinese Journal of Applied Ecology, 2018, 29(6):1943-1950.
[29]	Hund A, Ruta N, Liedgens M. Rooting depth and water use efficiency of tropical maize inbred lines differing in drought tolerance[J]. Plant and Soil, 2009,(318):311-325.
[30]	Luo Y Y, Zhao X Y, Huang Y X, et al. Research progress on plant water use efficiency and its measuring methods[J]. Journal of Desert Research, 2009, 29(4):648-655.
[31]	王一, 曹敏建, 李春红, 等. 模拟干旱对不同耐性玉米自交系幼苗根系和水分利用效率的影响[J]. 作物杂志, 2011(6):50-52.
	WANG Yi, CAO Mingjian, LI Chunhong, et al. Effects of simulated drought on root and WUE of maize inbred lines with different tolerance[J]. Crops, 2011(6):50-52.
[32]	Mu Z X, Zhang S Q, Hao W F, et al. The effect of root morphological traits and spatial distribution on WUE in maize[J]. Acta Ecologica Sinica, 2005, 25(11):2895-2900.
[33]	李文娆, 张岁岐, 丁圣彦, 等. 干旱胁迫下紫花苜蓿根系形态变化及与水分利用的关系[J]. 生态学报, 2010, 30(19):5140-5150.
	LI Wenxiao, ZHANG Suiqi, DING Shengyan, et al. Root morphological variation and water use in alfalfa under drought stress[J]. Acta Ecologica Sinica, 2010, 30(19):5140-5150.
