Degradation Characteristics of Biodegradable Plastic Film and Its Effect on Maize Yield

doi:10.6048/j.issn.1001-4330.2021.10.002

Abstract

Abstract:

【Objective】 The degradation performance, soil moisture content, maize growth and development, yield of biodegradable film were discussed.【Methods】 Tianye (Whole Biodegradable Film) and Hongrui (Whole Biodegradable Film), PED (Polyethylene Blown Agricultural Ground Cover Film) were applied and recorded as TZ, TY, HR and CK film to perform maize comparative experiments. 【Results】 The results showed that HR degradable film had advantages over other two kinds of degradable film in terms of explaining intensity. HR degradable film and TY degraded film entered the second degradable stage 10 days earlier than TZ treatment and eventually entered the disintegration stage in the maize harvest period. Compared with CK treatment, the yields of TY and TZ treatment were significantly reduced by 7.1% and 12.44%. There was no significant difference in yield between HR treatment and CK treatment. 【Conclusion】 HR degradable plastic film is more suitable for maize growth characteristics in northern Xinjiang.

Key words: maize; degradable plastic film; yield; degradation characteristics

摘要：

【目的】研究可降解地膜的降解性能及其对玉米生长发育、土壤温度、干物质积累与产量的影响。【方法】采用不同可降解膜天壮(氧化-生物双降解生态地膜)、天野(全生物降解地膜)、弘睿(全生物降解地膜)、PED(聚乙烯吹塑农用地面覆盖薄膜)和CK,进行地膜栽培玉米对比试验。【结果】弘睿降解地膜的降解强度较其它2种降解地膜有优势,弘睿降解地膜和天野处理比天壮处理早10 d进入了2级降解并最终在玉米收获期都进入了崩裂期;天野和天壮处理与CK处理相比减产7.1%和12.44%,弘睿处理与CK处理在产量方面无明显差异。【结论】弘睿可降解地膜较适宜新疆北疆地区玉米生长需求。

关键词: 玉米, 降解地膜, 产量, 降解特性

CLC Number:

S513

Dilimaimaiti Dilibaier, Qiuxiang TANG, Lei LEI, Lili SU. Degradation Characteristics of Biodegradable Plastic Film and Its Effect on Maize Yield[J]. Xinjiang Agricultural Sciences, 2021, 58(10): 1775-1783.

迪丽拜尔·迪力买买提, 汤秋香, 雷蕾, 苏丽丽. 生物降解地膜降解特性及其对玉米产量的影响[J]. 新疆农业科学, 2021, 58(10): 1775-1783.

Figures/Tables 11

Table 1 Irrigation and fertilization scheme

灌水日期	灌水量 (m³/hm²)	施尿素量 (kg/hm²)
5月6日	450.00	/
6月12日	257.00	/
6月30日	610.00	75.00
7月9日	450.00	75.00
7月19日	771.00	90.00

Table 2 Weight loss rate of different degradable films

处理	腹膜前地膜质量 (g)	收获后地膜质量 (g)	失重率
天壮 Tianzhuang	0.412 6±0.02^b	0.412 6±0.02^b	3.06%±0.01^b
弘睿 Hongrui	0.482 2±0.03^ab	0.482 2±0.02^ab	2.96%±0.03^ab
天野 Tianye	0.594 3±0.00^a	0.594 3±0.17^a	1.56%±0.02^a

Table 3 Degradation rate of different degradable films

处理 Treatment	6月28日	7月2日	7月18日	7月22日	8月13日	8月23日	9月4日
天壮Tianzhuang	000⁺	000⁺	000⁺	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$
弘睿Hongrui	0000	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	${0^{+}}^{+}^{+}$	-
天野Tianye	000⁺	000⁺	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	${0^{+}}^{+}^{+}$	-
CK	0000	0000	0000	0000	0000	0000	0000

Table 3 Degradation rate of different degradable films

处理 Treatment	6月28日	7月2日	7月18日	7月22日	8月13日	8月23日	9月4日
天壮Tianzhuang	000⁺	000⁺	000⁺	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$
弘睿Hongrui	0000	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	${0^{+}}^{+}^{+}$	-
天野Tianye	000⁺	000⁺	000⁺	0 ${0^{+}}^{+}$	0 ${0^{+}}^{+}$	${0^{+}}^{+}^{+}$	-
CK	0000	0000	0000	0000	0000	0000	0000

Table 4 Effects of different degradable films on agronomic characters of maize

生育时期 Growth period	处理 Treament	株高 Plant height	叶片数 Leaves	茎粗 Stem diameter
苗期 Seedling stage	田野	8.19±0.51^a	4±0.00^a	2.47±0.05^a
	弘睿	8.46±0.16^a	3.83±0.03^a	2.55±0.11^a
	天壮	7.78±0.88^a	3.87±0.2^a	2.57±0.10^a
	CK	6.1±0.44^b	3.4±0.00^b	2.63±0.06^a
拔节期 Joingting stage	田野	105.2±2.36^a	11.47±0.12^bc	2.35±0.03^b
	弘睿	102.1±3.23^a	12±0. ${1^{a}}^{b}$	2.51±0.05^b
	天壮	111.67±1.95^a	12.37±0.28^a	2.44±0.06^b
	CK	88.8±2.19^b	11.17±0.19^c	2.71±0.04^a
大喇叭口期 Big trumpet stage	田野	166.82±0.85^a	15.2±0.21^a	2.48±0.03^b
	弘睿	165.15±3.73^a	15.17±0.03^a	2.54±0.06^b
	天壮	163.96±3.73^a	15.17±0.19^a	2.57±0.15^b
	CK	154.27±2.44^b	15.3±0.06^a	2.76±0.07^a
抽雄期 Pumping male stage	田野	202.47±6.8 ${3^{a}}^{b}$	18.33±0.07^a	2.51±0.1^b
	弘睿	206.37±4.69^a	18.3±0.3^a	2.58±0.1 ${1^{a}}^{b}$
	天壮	202.02±3.1 ${4^{a}}^{b}$	17.53±0.0 ${9^{a}}^{b}$	2.65±0.0 ${6^{a}}^{b}$
	CK	186.27±3.19^a	18.73±0.03^a	2.83±0.02^a
吐丝期 Silking stage	田野	226.56±2.99^a	18.33±0.07^b	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.1^a	2.73±0.02^a
乳熟期 Milk ripening stage	田野	226.56±2.99^a	18.33±0.07^b	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.10^a	2.73±0.02^a
成熟期 Malure stage	田野	226.56±2.99^a	18.33±0.07^a	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.10^a	2.73±0.02^a

Table 4 Effects of different degradable films on agronomic characters of maize

生育时期 Growth period	处理 Treament	株高 Plant height	叶片数 Leaves	茎粗 Stem diameter
苗期 Seedling stage	田野	8.19±0.51^a	4±0.00^a	2.47±0.05^a
	弘睿	8.46±0.16^a	3.83±0.03^a	2.55±0.11^a
	天壮	7.78±0.88^a	3.87±0.2^a	2.57±0.10^a
	CK	6.1±0.44^b	3.4±0.00^b	2.63±0.06^a
拔节期 Joingting stage	田野	105.2±2.36^a	11.47±0.12^bc	2.35±0.03^b
	弘睿	102.1±3.23^a	12±0. ${1^{a}}^{b}$	2.51±0.05^b
	天壮	111.67±1.95^a	12.37±0.28^a	2.44±0.06^b
	CK	88.8±2.19^b	11.17±0.19^c	2.71±0.04^a
大喇叭口期 Big trumpet stage	田野	166.82±0.85^a	15.2±0.21^a	2.48±0.03^b
	弘睿	165.15±3.73^a	15.17±0.03^a	2.54±0.06^b
	天壮	163.96±3.73^a	15.17±0.19^a	2.57±0.15^b
	CK	154.27±2.44^b	15.3±0.06^a	2.76±0.07^a
抽雄期 Pumping male stage	田野	202.47±6.8 ${3^{a}}^{b}$	18.33±0.07^a	2.51±0.1^b
	弘睿	206.37±4.69^a	18.3±0.3^a	2.58±0.1 ${1^{a}}^{b}$
	天壮	202.02±3.1 ${4^{a}}^{b}$	17.53±0.0 ${9^{a}}^{b}$	2.65±0.0 ${6^{a}}^{b}$
	CK	186.27±3.19^a	18.73±0.03^a	2.83±0.02^a
吐丝期 Silking stage	田野	226.56±2.99^a	18.33±0.07^b	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.1^a	2.73±0.02^a
乳熟期 Milk ripening stage	田野	226.56±2.99^a	18.33±0.07^b	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.10^a	2.73±0.02^a
成熟期 Malure stage	田野	226.56±2.99^a	18.33±0.07^a	2.52±0.05^b
	弘睿	224.52±2.55^a	18.27±0.28^b	2.63±0.0 ${4^{a}}^{b}$
	天壮	212.67±1.70^b	17.53±0.09^c	2.65±0.0 ${2^{a}}^{b}$
	CK	209.06±1.23^b	18.8±0.10^a	2.73±0.02^a

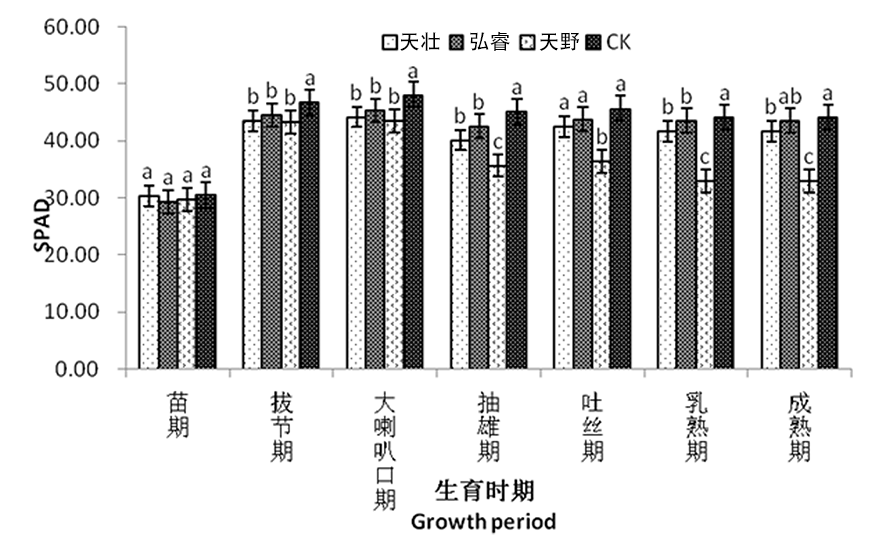

Fig.1 Effects of different degradable films on the process of SPAD in maize Note: Different lowercase letters indicate a significant difference of 5% between treatments

Table 5 Effects of different degradable films on maize growth process (days after sowing /d)

处理 Treatment	出苗期 Emerging	拔节期 Jointing	抽雄期 Heading	乳熟期 Filling	成熟期 Maturing
天壮Tianzhuang	9.0±0.58^b	47.0±0.58^b	68.0±0.58^b	85.0±0.58^b	135.0±0.58^b
弘睿Hongrui	9.0±0.58^b	47.0±0.58^b	66.0±0.58^b	82.0±0.58c	131.0±0.5 ${8^{c}}^{a}$
天野Tianye	9.0±0.58^b	47.0±0.58^b	66.0±0.58^b	82.0±0.5 ${8^{c}}^{a}$	131.0±0.5 ${8^{c}}^{a}$
CK	13.0±0.58^a	50.0±0.58.^a	73.0±0.58^a	89.0±0.88^a	139.0±0.58^a

Table 5 Effects of different degradable films on maize growth process (days after sowing /d)

处理 Treatment	出苗期 Emerging	拔节期 Jointing	抽雄期 Heading	乳熟期 Filling	成熟期 Maturing
天壮Tianzhuang	9.0±0.58^b	47.0±0.58^b	68.0±0.58^b	85.0±0.58^b	135.0±0.58^b
弘睿Hongrui	9.0±0.58^b	47.0±0.58^b	66.0±0.58^b	82.0±0.58c	131.0±0.5 ${8^{c}}^{a}$
天野Tianye	9.0±0.58^b	47.0±0.58^b	66.0±0.58^b	82.0±0.5 ${8^{c}}^{a}$	131.0±0.5 ${8^{c}}^{a}$
CK	13.0±0.58^a	50.0±0.58.^a	73.0±0.58^a	89.0±0.88^a	139.0±0.58^a

Table 6 Logistic function growth model and relevant parameters of maize dry matter accumulation

处理 Treatment	Logistic 函数生长模型 Logistic growth model	t₀				Vm (g/ (plant/d))	GT (g/plant)	R²
处理 Treatment	Logistic 函数生长模型 Logistic growth model	(d)				Vm (g/ (plant/d))	GT (g/plant)	R²
天壮 Tianzhuang	Y=448.186 2/^{[1+e(5.3764-0.060 686}^X¹⁾]	88.57	67.18	116.01	48.83	6.56	320.13	0.989 5
弘睿 Hongrui	X₂=502.671 3/^{[1+e(4.892 9-0.050 911}^X¹⁾]	96.13	70.24	121.98	51.74	6.40	331.011	0.993 6
天野 Tianye	X₂=476.555 7/^{[1+e(5.013 7-0.055 025}^X¹⁾]	91.16	66.89	110.30	43.40	9.80	295.13	0.959 1
CK	X₂=545.134 7/^{[1+e(8.104 3-0.091 148}^X¹⁾]	88.96	74.46	103.36	28.90	12.42	358.98	0.982 2

Fig.2 Effects of different degradable films on the accumulation of maize dry matter Note:Lowercase letters indicate difference significance test (P<0.05 ) among mulching period treatments.The same as below

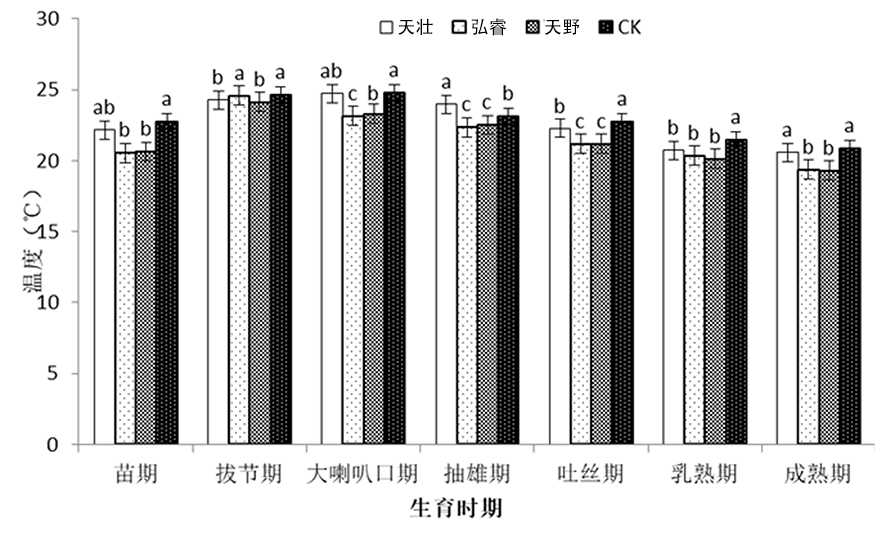

Fig.3 Changes of temperature at 10 cm under the biodegradable plastic film

Table 7 Dynamic changes of soil growth days in different processes and different growth stages

生育时期 Growth period	天壮	弘睿	天野	CK
苗期 Seedlingstage	154.06±1.24^a	132.96±1.33^b	134.05±1.62^b	135.19±0.47^c
拔节期 Jointing stage	371.68±5.54^a	317.65±4.31	322.16±1.73^c	336.70±3.89^b
大喇叭口期 Megatrumpet stage	255.04±4.99^a	226.31±2.33^a	162.16±9.82^c	247.37±2.24^a
抽雄期 Tasselstage	112.68±3.04^a	99.12±1.61^c	100.32±1.6 ${0^{b}}^{c}$	103.16±2.38^b
吐丝期 Silking stage	152.61±3.04	133.81±1.61^c	134.12±1.59^c	140.51±2.38^b
乳熟期 Milky stage	232.87±0.27^a	193.75±2.53^c	195.58±3.28^c	207.80±2.96^b
成熟期 Matureperiod	322.87±4.14^a	269.02±4.02^c	272.30±5.45^c	287.02±5.44^b

Table 7 Dynamic changes of soil growth days in different processes and different growth stages

生育时期 Growth period	天壮	弘睿	天野	CK
苗期 Seedlingstage	154.06±1.24^a	132.96±1.33^b	134.05±1.62^b	135.19±0.47^c
拔节期 Jointing stage	371.68±5.54^a	317.65±4.31	322.16±1.73^c	336.70±3.89^b
大喇叭口期 Megatrumpet stage	255.04±4.99^a	226.31±2.33^a	162.16±9.82^c	247.37±2.24^a
抽雄期 Tasselstage	112.68±3.04^a	99.12±1.61^c	100.32±1.6 ${0^{b}}^{c}$	103.16±2.38^b
吐丝期 Silking stage	152.61±3.04	133.81±1.61^c	134.12±1.59^c	140.51±2.38^b
乳熟期 Milky stage	232.87±0.27^a	193.75±2.53^c	195.58±3.28^c	207.80±2.96^b
成熟期 Matureperiod	322.87±4.14^a	269.02±4.02^c	272.30±5.45^c	287.02±5.44^b

Table 8 Effects of different degradable films on maize yield

处理 Treatment	株数(个/hm²) Number of plants	单株结粒数 Number of seeds (个)	千粒重 1,000 grain (g)	产量 Yield (kg/hm²)
天壮Tianzhuang	94 528.57±2 348.49^a	237.24±4.28^a	492.8±1.64^c	11 057.72±429.15^b
弘睿Hongrui	94 322.36±491.65^a	240.92±2.45^a	550.53±3.15^b	12 508.70±80.42^a
天野Tianye	97 989.76±214.65^a	239.95±3.14^a	498.75±4.12^c	11 727.83±204.1 ${0^{a}}^{b}$
CK	85 858.59±0.0^b	242.39±4.71^a	606.8±6.63^a	12 629.75±310.38^a

Table 8 Effects of different degradable films on maize yield

处理 Treatment	株数(个/hm²) Number of plants	单株结粒数 Number of seeds (个)	千粒重 1,000 grain (g)	产量 Yield (kg/hm²)
天壮Tianzhuang	94 528.57±2 348.49^a	237.24±4.28^a	492.8±1.64^c	11 057.72±429.15^b
弘睿Hongrui	94 322.36±491.65^a	240.92±2.45^a	550.53±3.15^b	12 508.70±80.42^a
天野Tianye	97 989.76±214.65^a	239.95±3.14^a	498.75±4.12^c	11 727.83±204.1 ${0^{a}}^{b}$
CK	85 858.59±0.0^b	242.39±4.71^a	606.8±6.63^a	12 629.75±310.38^a

References 22

[1]	王晓方, 申茂向. 塑料农膜:中国农业发展的希望和曙光[M]. 北京: 1998.
	WANG Xiaofang, SHEN Maoxiang. Plastic Agricultural Film: Hope and Dawn of Agricultural Development in China [M]. Beijing: 出版社查不到 1998.
[2]	杨丽, 张东兴, 侯书林, 等. 玉米苗期地膜回收机结构参数分析与试验[J]. 农业机械学报, 2010, 41(12) : 29-34.
	YANG Li, ZHANG Dongxing, HOU Shuling. Analysis of Structural Parameters and Experiment of Plastic Film Collector for Corn Fields During Seedling Period[J]. Transactions Of The Chinese Society For Agricultural Machinery, 2010, 41(12) : 29-34.
[3]	严昌荣, 梅旭荣, 何文清, 等. 农用地膜残留污染的现状与防治[J]. 农业工程学报, 2006, 22(11) : 269-272.
	YAN Changrong, MEI Xurong, HE Wenqing, et al. Present situation of residue pollution of mulching plastic film and controlling measures[J]. Transactions of the Chinese Society of Agricultural Engineering, 2006, 22(11):269-272.
[4]	毕继业, 王秀芬, 朱道林. 地膜覆盖对农作物产量的影响[J]. 农业工程学报, 2008, 24(11) : 172-175.
	BI Jiye, WANG Xiufeng, ZHU Daoling. Effect of plastic-film mulch on crop yield[J]. Transactions of the Chinese Society of Agricultural Engineering, 2008, 24(11):172-175.
[5]	王敬国. 农用化学物质的利用与污染控制[M]. 北京: 北京出版社, 2001: 73.
	WANG Jinguo. Utilization and pollution control of agrochemicals [J]. Beijing: Beijing Press, 2001: 73
[6]	南殿杰, 解红娥, 李燕娥, 等. 覆盖光降解地膜对土壤污染及棉花生育影响的研究[J]. 棉花学报, 1994, 6(2):103-108.
	NAN Dianjie, XIE Honge, LI Yane, et al. Study of the Effect of Photodegradable Plastic Film Mulching on Soilcontamination and Cotton Growth[J]. Acta Gossypii Sinica, 1994, 6(2):103-108.
[7]	姜益娟, 郑德明, 朱朝阳. 残膜对棉花生长发育及产量的影响[J]. 农业环境保护, 2001, 20(3):177-179.
	JIANG Yijuan, ZHENG Deming, ZHU Chaoyang. Effects of Remnant Plastic Film in Soil on Growth and Yield of Cotton[J]. Journal of Agro-Environment Science, 2001, 20(3):177-179.
[8]	张保民, 王兰芝, 潘同霞, 等. 残膜土壤对小麦生长发育的影响[J]. 河南农业科学, 1996, 15(2):9-10.
	ZHANG Baoming, WANG Lanzhi, PAN Tongxia, et al. Effects of residual membrane soil on growth and development of wheat[J]. Journal of Henan Agricultural Sciences, 1996, 15(2):9-10.
[9]	张文群, 金维续, 孙昭荣, 等. 降解膜残片与土壤耕层水分运动[J]. 土壤肥料, 1994,(3):12-15.
	ZHANG Wenqun, JIN Weixu, SUN Zhaorong, et al. Degradation membrane residue and soil tiller water movement[J]. Soil and Fertilizer, 1994,(3):12-15.
[10]	王星, 吕家珑, 孙本华. 覆盖可降解地膜对玉米生长和土壤环境的影响[J]. 农业环境科学学报, 2003, 22(4):397-401.
	WANG Xin, LÜ Jialong, SUN Benhua. Effects of Covering Degradable Films on Corn Growth and Soil Environment[J]. Journal of Agro-Environment Science, 2003, 22(4):397-401.
[11]	胡敏, 苗庆丰, 史海滨, 等. 不同地膜覆盖对春玉米生长发育及水分利用效率的影响[J]. 干旱区资源与环境, 2017, 31(2):173-177.
	HU Min, MIAO Qingfeng, SHI Haibin, et al. Effects of different film mulching on growth traits and water use efficiency for spring maize[J]. Journal of Arid Land Resources and Environment, 2017, 31(2):173-177.
[12]	霍轶珍, 郭彦芬, 韩翠莲, 等. 不同覆膜处理对土壤水热效应及春玉米产量的影响[J]. 水土保持研究, 2016, 23(5):124-128.
	HUO Yizhen, GUO Yanfen, HAN Cuilian, et al. Effects of Different Film Mulching Treatments on Soil Moisture, Heat and Spring Maize Yield[J]. Research of Soil and Water Conservation, 2016, 23(5):124-128.
[13]	申丽霞, 兰印超, 李若帆. 不同降解膜覆盖对土壤水热与玉米生长的影响[J]. 干旱地区农业研究, 2018, 36(1):200-206.
	SHEN Lixia, LAN Yinchao, LI Ruofan. Effects of different degradable films on soil moisture, temperature and growth of maize[J]. Agricultural Research in the Arid Area, 2018, 36(1):200-206.
[14]	唐文雪, 马忠明. 地膜降解特征对土壤水热效应和玉米产量的影响[J]. 农业环境科学学报, 2018, 37(1):114-123.
	TANG Wenxue, MA Zhongming. Effects of degradable film degradation properties on soil temperature, moisture, and maize yield[J]. Journal of Agro-Environment Science, 2018, 37(1):114-123.
[15]	肖玲, 李岗, 王箐霞. 可降解地膜的实用性能研究初报[J]. 干旱地区农业研究, 2000, 18(专辑):47-49.
	XIAO Ling, LI Gang, WANG Qingxia. Preliminary report on practical properties of degradable plastic film[J]. Agricultural Research in the Arid Area, 2000, 18(album):47-49.
[16]	马生发. 马铃薯不同覆盖栽培方式对土壤环境和产量的影响[J]. 陇东学院学报, 2013,(3) : 48-51.
	MA Shengfa. On the Effect of Different Mulching Cultivation Methods on Soil Environment and Yield of Potato[J]. Journai of Longdong University, 2013, 24(3):48-51.
[17]	刘青云, 席天元. 旱地小麦地膜覆盖效应研究[J]. 耕作与栽培, 2002,(5) : 15-16.
	LIU Qinyun, XI Tianyuan. Study on the effect of mulching on dryland wheat[J]. Culture with Planting, 2002,(5):15-16.
[18]	赵爱琴, 李子忠, 龚元石. 生物降解地膜对玉米生长的影响及其田间降解状况[J]. 中国农业大学学报, 2005,(2):74-78.
	ZHAO Aiqin, LI Zizhong, GONG Yuanshi. Effects of biodegradable mulch film on corn growth and its degradation in field[J]. Journal of China Agricultural University, 2005, 10(2):74-78.
[19]	董立国, 蔡进军, 张源润, 等. 降解地膜过早破裂对玉米地土壤水分温度及产量的影响[J]. 农学学报, 2016, 6(4):66-69.
	DONG Liguo, CAI Jinjun, ZHANG Yuanrun, et al. Premature Fracture of Degradable Mulch on Soil Temperature, Moisture and Corn Yield[J]. Journal of Agriculture, 2016, 6(4):66-69.
[20]	张淑敏, 宁堂原, 刘振, 等. 不同类型地膜覆盖的抑草与水热效应及其对马铃薯产量和品质的影响[J]. 作物学报, 2017, 43(4):571-580.
	ZHANG Shumin, NING Tangyuan, LIU Zhen, et al. Weed Infestation, Soil Moisture, and Temperature under Mulching Cultivation with Different Films and the Effects on Yield and Quality of Potato[J]. Acta Agronomica Sinica, 2017, 43(4):571-580. DOI URL
[21]	杨玉姣, 黄占斌, 闫玉敏, 等. 可降解地膜覆盖对土壤水温和玉米成苗的影响[J]. 农业环境科学学报, 2010, 29(S1):10-14.
	YANG Yujiao, HUANG Zhangbin, YAN Yuming, et al. Effects on Temperature and Moisture of Soil and Seeding of Maize to Biodegradable Film Coverage[J]. Journal of Agro-Environment Science, 2010, 29(S1):10-14. DOI URL
[22]	申丽霞, 王璞, 张丽丽. 可降解地膜的降解性能及对土壤温度水分和玉米生长的影响[J]. 农业工程学报, 2012, 28(4):111-116.
	SHEN Lixia, WANG Pu, ZHANG Lili. Degradation property of degradable film and its effect on soil temperature and moisture and maize growth[J]. Transactions of the Chinese Society of Agricultural Engineering, 2012, 28(4):111-116.
