Effects of Different Film Mulching Width on Cotton Farmland Environment

doi:10.6048/j.issn.1001-4330.2023.08.003

Abstract

Abstract:

【Objective】 To further study the effects of different film mulching width on soil moisture content and soil temperature at 0 ~ 60 cm soil depth during the whole growth period of cotton.【Methods】 The soil moisture monitor was used to monitor the real-time situation of soil moisture and temperature.At the same time, the soil volume and water content of six consecutive soil layer depths (one layer per 10 cm) and the soil temperature of six consecutive soil layer depths (one layer per 10 cm) were monitored simultaneously.According to the cotton fertility stage, the daily ground temperature and water changes of the cotton seedling period, bud period, flower bell period and spitting catkins period were read, respectively.Through information monitoring, the effects of 4.4 m ultra wide film and 2.05 m wide film on soil moisture and temperature were analyzed.【Results】 The diurnal variation trend of ground temperature of 4.4 m ultra wide film was consistent with that of 2.05 m wide film at the depth of 0 ~ 60 cm soil layer.The soil temperature was mainly affected by the atmospheric temperature at the surface and 10 cm underground.At this time, the surface temperature was also high due to the high solar radiation intensity.At the later stage of cotton growth, the temperature of different soil layers gradually decreased, and the soil temperature of 4.4 m ultra wide film lagged behind that of 2.05 m wide film.From cotton seedling stage to flowering and bolling stage, the average temperature below the middle soil depth was negatively correlated with the average water content.【Conclusion】 Ultra wide film has the ability of increasing temperature and water retention, can improve soil hydrothermal conditions, accelerate cotton growth and development, and has remarkable yield increasing effect.It can be used for popularization and trial in northern Xinjiang.

Key words: cotton; soil moisture content; soil temperature; ultra wide film

摘要：

【目的】研究不同覆膜宽度对棉花全生育期内0~60 cm土层深度下土壤含水率及土壤温度的影响。【方法】采用土壤墒情监测仪,实时监测土壤中水分、温度实时状况。同位监测连续6个土层深度(每10 cm一层)的土壤体积含水量以及连续6个土层深度(每10 cm一层)的土壤温度。根据棉花生育阶段,分别读取棉花苗期、蕾期、花铃期、吐絮期等每天地温以及水分变化,分析4.4 m超宽膜与2.05 m宽膜对土壤水分及温度的影响。【结果】4.4 m超宽膜与2.05 m宽膜在0~60 cm土层深度下的地温日变化趋势一致,土壤温度在地面表层和地下10 cm处主要受大气温度的影响。棉花生育后期时,不同土层的温度逐渐下降,4.4 m超宽膜的土壤温度较2.05 m宽膜滞后。从棉花苗期到花铃期,中层土壤深度以下的平均温度与平均含水率呈负相关的关系。【结论】超宽膜有增温保水的能力,可以改善土壤的水热条件,加快棉花的生长发育,增产效果显著,可用于新疆北疆地区推广试用。

关键词: 棉花, 土壤含水率, 土壤温度, 超宽膜

CLC Number:

LI Xueling, GUO Junxian, CHEN Li, SONG Heling, ZHANG Zhong. Effects of Different Film Mulching Width on Cotton Farmland Environment[J]. Xinjiang Agricultural Sciences, 2023, 60(8): 1840-1847.

李雪玲, 郭俊先, 陈莉, 宋鹤岭, 张众. 不同覆膜宽度对棉花农田环境的影响[J]. 新疆农业科学, 2023, 60(8): 1840-1847.

Figures/Tables 4

Tab.1 Soil physical conditions in the test area

项目 Items	土层深度 Depth of soil layer(cm)							平均值 Average value
项目 Items	0~10	10~20	20~30	40~50	50~60	60~70	70~100	平均值 Average value
土壤干容重 Dry bulk density of soil(g/cm³)	1.47	1.49	1.52	1.56	1.59	1.68	1.64	1.56
田间质量含水率 Field mass moisture content(%)	22.91	20.62	20.86	20.75	20.84	21.59	21.69	21.32

Fig.1 Variation law of ground temperature in different growth stages of cotton under different film mulching width

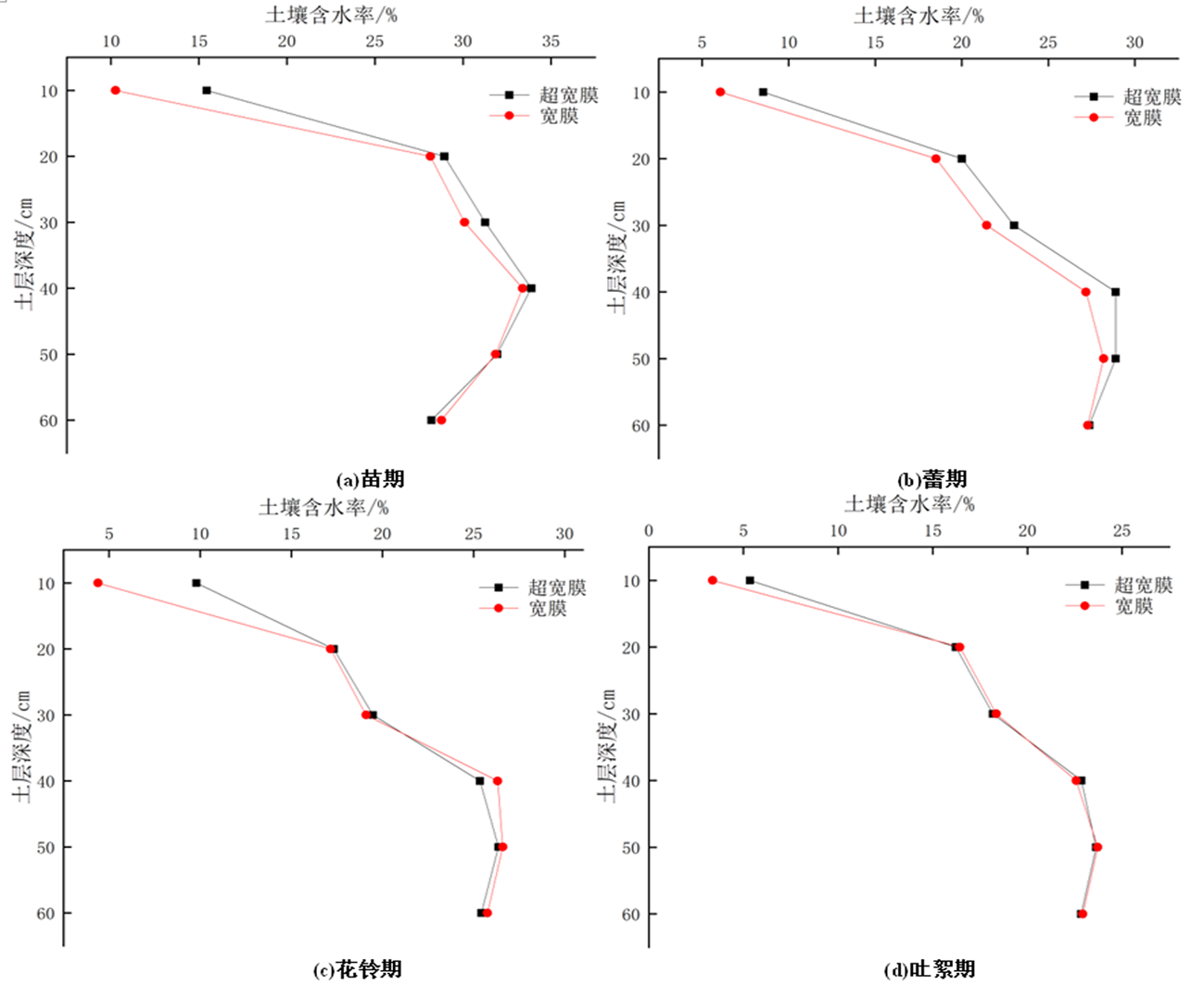

Fig.2 Variation law of soil moisture content in 0 ~ 60 cm of cotton in each growth period under different film mulching width

Fig.3 Average soil moisture content and average soil temperature at 10, 30 and 60 cm in each growth period ofcotton under different film mulching width

References 26

[1]	李淦. 膜下滴灌水分调控对机采棉光合特性及产量形成机制的研究[D]. 乌鲁木齐: 新疆农业大学, 2017.
	LI Gan. Effects of water regulation of drip irrigation under film on Photosynthetic Characteristics and yield formation mechanism of mechanically harvested cotton[D] Urumqi: Xinjiang Agricultural University Science, 2017.
[2]	王东旺, 吕廷波, 何新林, 等. 不同覆膜宽度对棉花土壤水分及地温的影响研究[J]. 节水灌溉, 2018,(12):33-37,43.
	WANG Dongwang, LYU Tingbo, HE Xinlin, et al. Effects of different film width on soil moisture and soil temperature of cotton[J]. Water Saving Irrigation, 2018,(12): 33-37,43.
[3]	宁松瑞, 左强, 石建初, 等. 新疆典型膜下滴灌棉花种植模式的用水效率与效益[J]. 农业工程学报, 2013, 29(22):90-99.
	NING Songrui, ZUO Qiang, SHI Jianchu, et al. Water use efficiency and of typical cotton planting patterns under mulch drip irrigation in Xinjiang Benefit[J]. Transactions of the Chinese Society of Agricultural Engineering, 2013, 29 (22): 90-99.
[4]	赵秀金. 玉米膜下滴灌农田环境及作物生长规律的试验研究[D]. 淄博: 山东理工大学, 2016.
	ZHAO Xiujin. Experimental study on farmland environment and crop growth law of drip irrigation under corn film[D]. Zibo: Shandong University of Technology, 2016.
[5]	罗宏海. 土壤水分变化对膜下滴灌棉花叶片光合作用及根系生理的影响[D]. 石河子: 石河子大学, 2008.
	LUO Honghai. Effects of soil water changes on leaf photosynthesis and root physiology of cotton under drip irrigation under film[D]. Shihezi: Shihezi University, 2008.
[6]	罗上轲. 覆膜方式与施氮量对土壤水分、温度和养分状况及玉米根系生长的影响[D]. 贵阳: 贵州大学, 2020.
	LUO Shangke. Effects of film mulching method and nitrogen application rate on soil water, temperature, nutrient status and maize root growth[D] Guiyang: Guizhou University, 2020.
[7]	Cui Z, Yue S, Wang G, et al. Closing the yield gap could reduce projected greenhouse gas emissions: a case study of maize production in China[J]. Global Change Biology, 2013, 19:2467-2477. DOI PMID
[8]	李爽, 孙占祥, 张莹, 等. 不同覆盖方式对春玉米土壤水分及生长发育的影响[J]. 辽宁农业科学, 2010,(1):1-4.
	LI Shuang, SUN Zhanxiang, ZHANG Ying, et al. Effects of different mulching methods on soil moisture and growth and development of spring maize[J]. Liaoning Agricultural Sciences, 2010, (1): 1-4.
[9]	张雷, 牛芬菊, 李小燕, 等. 旱地全膜双垄沟播秋覆膜对玉米产量和水分利用率的影响[J]. 中国农学通报, 2010, 26(22):142-145.
	ZHANG Lei, NIU Fenju, LI Xiaoyan, et al. Effects of full film double ridge and furrow sowing and autumn film mulching on Maize Yield and water use efficiency in Dryland[J]. Chinese Agricultural Science Bulletin, 2010, 26(22): 142-145.
[10]	王秀康, 李占斌, 邢英英. 覆膜和施肥对玉米产量和土壤温度、硝态氮分布的影响[J]. 植物营养与肥料学报, 2015, 21(4):884-897.
	WANG Xiukang, LI Zhanbin, XING Yingying. Effects of film mulching and Fertilization on maize yield, soil temperature and nitrate nitrogen distribution[J]. Journal of Plant Nutrition and Fertilizers, 2015, 21(4): 884-897.
[11]	李维敏, 周国兴, 李媛媛, 等. 不同覆膜方式对春玉米土壤温度和水分效应影响[J]. 北方农业学报, 2017, 45(2):46-53.
	LI Weimin, ZHOU Guoxing, LI Yuanyuan, et al. Effects of different film mulching methods on soil temperature and water content of spring maize[J] Journal of Northern Agriculture, 2017, 45(2): 46-53.
[12]	王秀领, 阎旭东, 徐玉鹏, 等. 不同耕作方式对春玉米土壤水分、温度及产量的影响[J]. 玉米科学, 2017, 25(3):87-93.
	WANG Xiuling, YAN Xudong, XU Yupeng, et al. Effects of different tillage methods on soil moisture, temperature and yield of spring maize[J]. Journal of Maize Science, 2017, 25(3): 87-93.
[13]	Zhang S L, Lovdahl L, Grip H, et al. Effects of mulching and catch cropping on soil temperature, soil moisture and wheat yield on the Loess Plateau of China[J]. Soil & Tillage Research, 2009, 102(1): 78-86.
[14]	Wang X, Li Z, Xing Y, et al. Effects of mulching and nitrogen on soil temperature, water content, nitrate-N content and maize yield in the Loess Plateau of China[J]. Agricultural Water Management, 2015, 161(1): 53-64. DOI URL
[15]	孙肇君, 张伟, 李鲁华, 等. 新疆膜下滴灌棉田盐分运移规律研究[J]. 新疆农业科学, 2009, 46(1): 133-137.
	SUN Zhaojun, ZHANG Wei, LI Luhua, et al. Study on salt} transport in cotton field under drip irrigation under plastic film in Xinjiang[J]. Xinjiang Agricultural Sciences, 2009, 46(1): 133-137.
[16]	袁晶晶, 汪丙国. 膜下滴灌棉田土壤温度分布特征[J]. 中国农村水利水电, 2014, (9) :16-22.
	YUAN Jingjing, WANG Bingguo. Characteristics of soil temperature distribution in cotton field under drip irrigation under film[J]. China rural Water Resources and Hydropower, 2014, (9):16-22.
[17]	曹黎. 土壤水分含量与棉花各生育期灌水和棉花产量的关系探讨[J]. 农业与技术, 2020, 40(18):38-40.
	CAO Li. Discussion on the relationship between soil water content and irrigation and cotton yield in each growth period of cotton[J]. Agriculture and Technology, 2020, 40(18): 38-40.
[18]	周昌明. 地膜覆盖及种植方式对土壤水氮利用及夏玉米生长、产量的影响[D]. 杨凌: 西北农林科技大学, 2016.
	ZHOU Changming. Effects of plastic film mulching and planting methods on soil water and nitrogen utilization, growth and yield of summer maize[D]. Yangling: Northwest A & F University, 2016.
[19]	申丽霞, 王璞, 张丽丽, 等. 可降解地膜对土壤、温度水分及玉米生长发育的影响[J]. 农业工程学报, 2011, 27(6):25-30.
	SHEN Lixia, WANG Pu, ZHANG Lili, et al. Effects of degradable plastic film on soil temperature, moisture and maize growth and development[J]. Transactions of the Chinese Society of Agricultural Engineering, 2011, 27(6): 25-30.
[20]	韩胜强. 蒸发条件下降解膜覆盖对土壤水盐温的影响及其降解性能研究[D]. 石河子: 石河子大学, 2019.
	HAN Shengqiang. Effect of film mulching on soil water and salt temperature and its degradation performance under falling evaporation conditions[D]. Shihezi: Shihezi University Science, 2019.
[21]	韩凡香. 旱地覆盖种植对夏秋作物土壤水热环境及生长的影响[D]. 兰州: 甘肃农业大学, 2018.
	HAN Fanxiang. Effects of dry land mulching on Soil Hydrothermal Environment and growth of summer and autumn crops[D]. Lanzhou: Gansu Agricultural University, 2018.
[22]	邵春琴. 不同覆膜条件下膜下滴灌棉田土壤水盐运移规律研究[D]. 石河子: 石河子大学, 2013.
	SHAO Chunqin. Study on soil water and salt transport in cotton field under drip irrigation under different film mulching conditions[D]. Shihezi: Shihezi University, 2013.
[23]	高琳, 潘志华, 杨书运, 等. 覆膜对旱地马铃薯田土壤温湿度及温室气体排放的影响[J]. 干旱区资源与环境, 2017, 31(6):136-141.
	GAO Lin, PAN Zhihua, YANG Shuyun, et al. Effects of film mulching on soil temperature, humidity and greenhouse gas emission in Dryland potato field[J]. Journal of Arid Land Resources and Environment, 2017, 31(6): 136-141.
[24]	江燕, 史春余, 王振振, 等. 地膜覆盖对耕层土壤温度水分和甘薯产量的影响[J]. 中国生态农业学报, 2014, (6) :627-634.
	JIANG Yan, SHI Chunyu, WANG Zhenzhen, et al. Effects of plastic film mulching on topsoil soil temperature, moisture and sweet potato yield[J]. Chinese Journal of Eco-Agriculture, 2014(6): 627-634.
[25]	郑和祥, 郭克贞, 郝万龙, 等. 作物生长指标与土壤水分状况及地温关系研究[J]. 水土保持研究, 2011, 18(3):210-212,216.
	ZHENG Hexiang, GUO Kezhen, HAO Wanlong, et al. Study on the relationship between crop growth index, soil water status and ground temperature[J]. Research of Soil and Water Conservation, 2011, 18(3): 210-212,216.
[26]	张建兵, 熊黑钢, 李宝富, 等. 干旱区农田土壤水分地温变化规律及其相互关系[J]. 干旱地区农业研究, 2013, 31(2):127-133.
	ZHANG Jianbing, XIONG Heigang, LI Baofu, et al. Variation law of farmland soil moisture and ground temperature in arid area and their relationship[J]. Agricultural Research in the Arid Areas 2013, 31(2): 127-133.
