Evaluation on Effects of Herbicide Sprayed on Cotton Fields before Sowing by UAV

doi:10.6048/j.issn.1001-4330.2022.12.018

Abstract

Abstract:

【Objective】 To analyze the effects of spraying 33% dimethylpropyl on weed control and cotton growth in cotton field under different spraying treatments and provide a theoretical basis for spraying herbicide in cotton field before UAV sowing.【Methods】 In this study, under the planting mode of mechanically harvested cotton in Xinjiang, the soil sealant dimetalin was selected as the test herbicide, and 5 treatments with different concentrations were designed before sowing by unmanned aerial vehicle (UAV) spraying, and 5 treatments with locomotive spraying and 5 treatments without spraying to analyze the effects of different treatments on weed control efficiency and cotton growth and development in cotton fields.【Results】 In the soil treatment of cotton field before sowing, the grass control effect of treatment 2 (at the dosage of 3,450 mL/hm²) was similar to that of locomotive spraying, and the control effect reached 94.00%, which was significantly better than that of treatment without application, and the seedling emergence rate reached 59.71%, which was not significantly different from that of treatment without application. Increasing the concentration of 1,200mL /hm² had an effect on cotton seedling emergence, and the seedling emergence rate was decreased by 7.54%, but the difference was not significant. Secondly, there were no significant differences in plant height, leaf age, aboveground dry matter weight, leaf area index (LAI) between UAV spraying treatment and locomotive spraying treatment, but significantly higher than that without spraying treatment.【Conclusion】 When the concentration of dimetalin was 3,450 mL/hm² before spraying with UAV, it has the same effect on weed control as the growth and development of cotton, so it could be recommended to be used in the field in the future.

Key words: cotton; plant-protection UAV; herbicides; control of weed; effect evaluation; growth characters

摘要： 【目的】 分析不同喷药处理喷施33%二甲戊灵乳油对棉田杂草防效及棉花生长发育的影响,为棉田无人机播前喷施除草剂提供理论依据。【方法】 在新疆机采棉种植模式下,选择土壤封闭剂二甲戊灵为供试除草剂,设计播前无人机3个不同浓度喷药,车载喷药机喷药和不喷药5个处理,分析不同处理对棉田杂草防效及棉花生长发育的影响。【结果】 无人机喷施二甲戊灵进行棉田播前土壤处理,处理2(3 450 mL/hm²时)控草效果与车载喷药机处理相当,防治效果均达到94.00%,且显著好于不施药效果,出苗率均达59.71%,与不施药处理差异不显著。增加药剂浓度1 200 mL/hm²对棉花出苗有影响,出苗率降低7.54%,但差异不显著。无人机喷药处理株高、叶龄、地上部干物质重、叶面积指数与车载喷药机喷药处理间差异不显著,显著高于不喷药处理。【结论】 无人机喷施播前二甲戊灵浓度3 450 mL/hm²时与车载喷药机喷施浓度3 450 mL/hm²防草效果和棉花生长发育相当,可在大田推广使用。

关键词: 棉田, 植保无人机, 除草剂, 防除杂草, 效果评价, 生长发育

CLC Number:

S562
S475

ZHANG Donghai, WEI Junmei, CHEN Bing, JI Guangpeng, WANG Fan, NIU Linglei. Evaluation on Effects of Herbicide Sprayed on Cotton Fields before Sowing by UAV[J]. Xinjiang Agricultural Sciences, 2022, 59(12): 3022-3029.

张栋海, 魏俊梅, 陈兵, 吉光鹏, 王凡, 牛蛉磊. 无人机播前喷施除草剂防除棉田杂草效果评价[J]. 新疆农业科学, 2022, 59(12): 3022-3029.

Figures/Tables 4

Table 1 Test design

处理 Reatment	药药剂 Erbicide	用药量 Osage (ml/hm²)	喷药液量 Prayvoiume (L/hm²)	喷施药机械 Pray achinery	面积 Area(hm²)
1	33%二甲戊灵乳油	2 250	18	无人机	0.1
2	33%二甲戊灵乳油	3 450	18	无人机	0.1
3	33%二甲戊灵乳油	4 650	18	无人机	0.1
4	33%二甲戊灵乳油	3 450	18	车载喷药机	0.1
5	清水	0	18	无人机	0.1

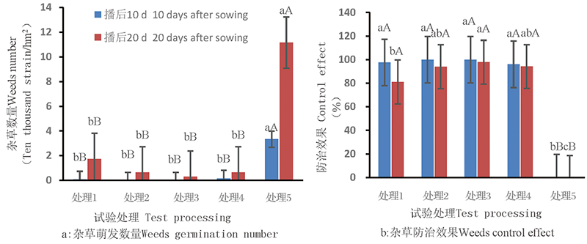

Fig 1 The germination number and control effect of weeds treated by spraying at 10 d and 20 d after sowing Note:In the figure and table, different lowercaseletters indicate that the difference treatmeansatP<0.05 is significant, different uppercaseletters indicate that the difference treatmeans at P<0.01 is significant.The same as below

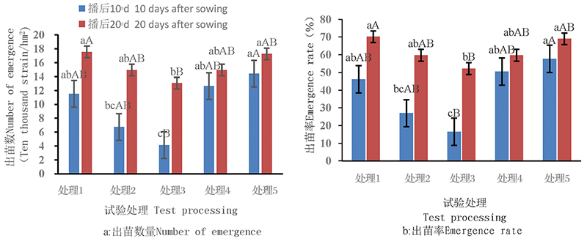

Fig 2 The number and rate of emergence of cotton seedlings of each spray treatment 10 d and 20 d after sowing

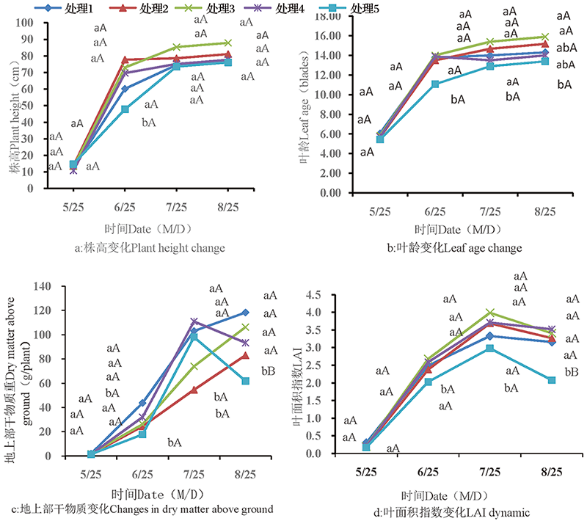

Fig.3 Changes of cotton growth index in each spray treatment

References 33

[1]	柴文杰. 影响土壤处理除草剂二甲戊灵药效的因素[D]. 石河子: 石河子大学, 2018.
	CHAI Wenjie. Affecting factors of the efficacy of Soil treatment herbicide pendimethalim[D]. Shihezi: Shihezi University, 2018.
[2]	郝彦俊, 李广阔, 王剑, 等. 新疆棉田杂草调查[J]. 植物保护. 2003, 29(4):42-44.
	HAO Yanjun, LI Guangkuo, WANG Jian, et al. Investigation on weeds in cotton field in Xinjiang[J]. Plant Protection, 2003, 29(4):42-44.
[3]	冯宏祖, 王兰. 新疆南部棉区棉田杂草调查[J]. 安徽农业科学. 2008, 36(7):2819-2820.
	FENG Hongzu, WANG Lan. Weed Survey in Cotton Field in Southern Xinjiang[J]. Journal of Anhui Agricultural Sciences, 2008, 36(7):2819-2820.
[4]	刘毓湘. 当代世界棉业[M]. 北京: 中国农业出版社,1995.
	LIU Yuxiang. Contemporary World Cotton Industry[M]. Beijing: China Agriculture Press, 1995.
[5]	魏建华, 张建云, 马冬梅. 新疆昌吉州棉田杂草发生演替规律调查研究[J]. 中国棉花, 2016, 43(1):31-33.
	WEI Jianhua, ZHANG Jianyun, MA Dongmei. Investigation on the law of weed succession in cotton field in Changji Prefecture Xinjiang[J]. China Cotton, 2016, 43(1):31-33.
[6]	高英, 蔡香英, 王东. 喀什地区农田杂草危害及化学除草应用[J]. 新疆农业科学, 2004, 41(5):375-377.
	GAO Ying, CAI Xiangying, WANG Dong. Weed hazard and chemical weeding application in Kashi area[J]. Xinjiang Agricultural Sciences, 2004, 41(5):375-377.
[7]	李欢欢, 马小艳, 姜伟丽, 等. 棉田化学除草现状及对策[J]. 中国棉花, 2019, 46(5):1-7,10.
	LI Huanhuan, MA Xiaoyan, JIANG Weili, et al. Current situation and countermeasure of chemical weed control in cotton field[J]. China Cotton, 2019, 46(5):1-7,10.
[8]	彭军, 马燕. 棉田杂草发生危害及防除技术概述[J]. 中国棉花. 2008, 35(10):7-9.
	PENG Jun, MA Yan. Overview of the hazards and control techniques of weeds in cotton fields[J]. China Cotton, 2008, 35(10):7-9.
[9]	刘振华, 杨春燕, 贠清峰, 等. 棉田除草剂种类及其使用技术[J]. 中国棉花, 2010, 37(2):4-6.
	LIU Zhenhua, YANG Chunyan, YUAN Qingfeng, et al. Species and application techniques of herbicides in cotton field[J]. China Cotton, 2010, 37(2):4-6.
[10]	刘生荣, 张俊杰, 李葆来, 等. 我国棉田化学除草应用研究现状及展望[J]. 西北农业学报, 2003, 12(3):106-110.
	LIU Shengrong, ZHANG Junjie, LI Baolai, et al. Research status and prospect of chemical weed control in cotton field in China[J]. Acta Agriculturae Boreali-occidentalis, 2003, 12(3):106-110.
[11]	连英惠. 棉花田杂草化学防除现状及趋势[J]. 农药市场信息, 2011,(25):44-45.
	LIAN Yinghui. Current situation and trend of chemical control of weeds in cotton field[J]. Pesticide Market Information, 2011,(25):44-45.
[12]	郝彦俊, 李广阔, 王剑, 等. 新疆棉田杂草发生与防治[J]. 新疆农业科学. 2003, 40(1):24-25.
	HAO Yanjun, LI Guangkuo, WANG Jian, et al. Occurrence and control of weed in cotton fields in Xinjiang[J]. Xinjiang Agricultural Sciences, 2003, 40(1):24-25.
[13]	张艳丽. 二甲戊灵对南疆滴灌棉花杂草防控和养分吸收的影响[D]. 阿拉尔: 塔里木大学, 2016.
	ZHAGN Yanli. Effect of Pendimethalin on weed control and nutrient absorption of cotton under drip irrigation in the south of Xinjiang[D]. Aral: Tarim University, 2016.
[14]	娄尚易, 薛新宇, 顾伟, 等. 农用植保无人机的研究现状及趋势[J]. 农机化研究, 2017,(12):1-6.
	LOU Shangyi, XUE Xingyu, GU Wei, et al. Current status and trends of agricultural plant protection unmanned aerial vehicle[J]. Agricultural Mechanization Research, 2017,(12):1-6.
[15]	赵冰梅, 丁丽丽, 张强, 等. 电动多旋翼植保无人机低容量喷雾防治玉米三点斑叶蝉的应用研究[J]. 植物保护, 2018, 44(1):186-189.
	ZHAO Bingmei, DING Lili, ZHANG Qian, et al. Control effects of low volume spraying using unmanned aerial vehicle(UAV)against Zygina salina Mit[J]. Plant Protection, 2018, 44(1):186-189.
[16]	张东彦, 兰玉彬, 陈立平, 等. 中国农业航空施药技术研究进展与展望[J]. 农业机械学报, 2014, 45(10):53-58.
	ZHANG Dongyan, LAN Yubin, CHEN Liping, et al. Current status and future trends of Agricultural Aerial Spraying Technology in China[J]. Transactions of the Chinese Society for Agricultural Machinery, 2014, 45(10):53-58.
[17]	薛新宇, 兰玉彬. 美国农业航空技术现状和发展趋势分析[J]. 农业机械学报, 2013, 44(5):194-201.
	XUE Xinyu, LAN Yubin. Agricultural aviation applications in USA[J]. Transactions of the Chinese Society for Agricultural Machinery, 2013, 44(5):194-201.
[18]	亓文哲, 王菲, 孟臻, 等. 我国植保无人机应用现状[J]. 农药, 2018, 57(4): 247-254.
	QI Wenzhe, WANG Fei, MENG Zhen, et al. Application status of unmanned aerial vehicle for plant protection in China[J]. Agrochemicals, 2018, 57(4): 247-254.
[19]	蒙艳华, 周国强, 吴春波, 等. 我国农用植保无人机的应用与推广探讨[J]. 中国植保导刊, 2014,(S1):33-39.
	MENG Yanhua, ZHOU Guoqiang, WU Chunbo, et al. Discussion on application and promotion of agricultura plant protection UAV in my country[J]. China Plant Protection, 2014,(S1):33-39.
[20]	马小艳, 王志国, 等. 无人机飞防技术现状及在我国棉田应用前景分析[J]. 中国棉花, 2016, 43(6):7-11.
	MA Xiaoyan, WANG Zhiguo, et al. The current status of UAV flying defense technology and its application prospect in cotton fields in China[J]. China Cotton, 2016, 43(6) :7-11.
[21]	张小秋, 宋修鹏, 梁永检, 等. 植保无人机在蔗田化学除草上的应用效果[J]. 中国糖业, 2020, 42(1):61-65.
	ZHANG Xiaoqiu, SONG Xiupeng, LIANG Yongjian, et al. Application effects of unmanned aerial vehicle on chemical weed control in sugarcane field[J]. Sugar Crops of China, 2020, 42(1):61-65.
[22]	岳德成, 姜延军, 李青梅, 等. 植保无人机喷施对玉米田土壤处理除草剂的减量效应[J]. 植物保护, 2019, 45(2):193-198.
	YUE Decheng, JIANG Yanjun, LI Qingmei, et al. Decrement effect of plant-protection UAV spraying on oil-applied herbicides in maize field[J]. Plant Protection, 2019, 45(2):193-198.
[23]	娄朝霞, 温浩军, 张斌, 等. 多旋翼植保无人机棉花飞防作业效果[J]. 新疆农业科学, 2019, 56(3):537-543. DOI
	LOU Zhaoxia, WEN Haojun, ZHANG Bin, et al. Study on the effect of cotton fly prevention operation of Multi- rotor plant protection UAV[J]. Xinjiang Agricultural Sciences, 2019, 56(3):537-543. DOI
[24]	吴金龙, 冯宏祖, 马小艳, 等. 棉田棉蚜飞防药剂筛选及农药减量增效药效分析[J]. 新疆农业科学, 2020, 57(1):167-172. DOI
	WU Jinlong, FENG Hongzu, MA Xiaoyan, et al. Screening of fly control agents for cotton aphid in cottonfields in Xinjiang and preliminary report of pesticide reduction and efficiency improvement[J]. Xinjiang Agricultural Sciences, 2020, 57(1):537-543.
[25]	沙帅帅, 王喆, 肖海兵, 等. P20植保无人机作业参数优化及其施药对棉蚜防效评价[J]. 中国棉花, 2018, 45(1):6-8.
	SHA Shuaishuai, WANG Zhe, XIAO Haibing, et al. Optimizing operation parameters of an unmanned aerial vehicle P20 and Its application effects for spaying insecticides to control cotton aphid[J]. China Cotton, 2018, 45(1):6-8.
[26]	蒙艳华, 兰玉彬, 梁自静, 等. 无人机施药液量对棉花脱叶效果的影响[J]. 中国棉花, 2019, 46(6):10-15.
	MENG Yanhua, LAN Yubin, LIANG Zijing, et al. Impact of spraying volume on defoliation efficacy by unmanned aerial vehicle[J]. China Cotton, 2019, 46(6):10-15.
[27]	王潭刚, 马丽, 李克富, 等. 不同密度下封顶方式对南疆棉花生长及产量性状的影响[J]. 中国农业科技导报, 2019, 21(6): 110-116. DOI
	WANG Tangang, MA Li, et al. Influences of different topping methods on cotton growth and yield traits under different plant densities in southern Xinjiang[J]. Journal of Agricultural Science and Technology, 2019, 21(6): 110-116. DOI
[28]	梁友, 贾会娟, 董雪, 等. 4种土壤处理除草剂对龙葵的防除效果及安全性评价[J]. 江西农业大学报, 2014,(1):102-108.
	LIANG You, JIA Huijuan, DONG Xue, et al. Evaluation of the control effects and safety of four soil treatment herbicides on selenium[J]. Journal of Jiangxi Agricultural University, 2014,(1):102-108.
[29]	马小艳, 马艳, 彭军, 等. 土壤处理除草剂对棉花杂草的防效及安全性[J]. 农药, 2010, 49(11):850-853.
	MA Xiaoyan, MA Yan, PENG Jun, et al. Control effect and safety of soil treatment herbicides on cotton weeds[J]. Agrochemicals, 2010, 49(11):850-853.
[30]	黄玉范, 张凤阁. 影响大豆繁种田土壤封闭化学除草效果的因素[J]. 种子世界, 2006,(3):44.
	HUANG Yufan, ZHANG Fengge. Factors affecting the effect of soil sealing chemical weeding in soybean field[J]. Seed World, 2006,(3):44.
[31]	何玲, 王国宾, 胡韬, 等. 喷雾助剂及施液量对植保无人机喷雾雾滴在水稻冠层沉积分布的影响[J]. 植物保护学报, 2017, 44(6):1046-1052.
	HE Ling, WANG Guobin, HU Tao, et al. Influences of spray adjuvants and spray volume on the droplet deposition distribution with unmanned aerial vehicle (UAV) spraying on rice[J]. Journal of Plant Protection, 2017, 44(6):1046-1052.
[32]	张莉, 李国清, 娄兵, 等. 极飞P20植保无人机防治稻飞虱田间药效试验[J]. 湖北植保, 2018,(2):9-10.
	ZHANG Li, LI Guoqing, LOU Bing, et al. Field test on the control of rice plant hopper by Jifei P20 UAV[J]. Hubei Plant Protection, 2018,(2):9-10.
[33]	张占英, 张莉, 刘卫国, 等. 两种喷雾助剂对防治水稻纹枯病药剂减量增效评价[J]. 湖北植保, 2017,(5):20-21.
	ZHANG ZHanying, ZHANG Li, LIU Weiguo, et al. Evaluation of two spray auxiliary agents on decreasing and Increasing effect of controlling rice sheath blight[J]. Hubei Plant Protection, 2017,(5):20-21.
