Effects of Three Methanol Extracts from Plant on Stem Properties,Photosynthetic Characteristics and Yield of Wheat

doi:10.6048/j.issn.1001-4330.2022.05.004

Abstract

Abstract:

【Objective】 To evaluate the growth regulating activities of methanol extracts from Sophraalopecuroides, Cuminum cyminum and Vallisneria natans on wheat so as to provide experimental and theoretical basis for the development of new plant-derived growth regulators. 【Methods】 Spring wheat variety Xinchun 44 was used as experimental material with water treatment as control; The wheat was sprayed three times in the early stage of wheat jointing by the methanol extracts from Sophraalopecuroides, Cuminum cyminum and Vallisneria natans and prepared into three different solutions with concentrations (1%, 0.1% and 0.01%), respectively. After that, the effects of higher stem properties, photosynthetic characteristics and yield of wheat were analyzed and the extracts with good effect were screened and evaluated by principal component analysis. 【Results】 Compared with the control, after treatment with 0.01% methanol extracts from Vallisneria natans, the length of the 1st, 2nd and 3rd internodes in the base of wheat were decreased by 27.80%, 13.40% and 4.50%, respectively; The stem diameter were increased by 10.30%, 16.10% and 14.30% respectively; The content of IAA in basal 3 sections was increased by 16.16%; The content of ABA in basal 3section was decreased by 7.89%; Plant height was decreased by 5.60%; The net photosynthetic rate of flag leaves was increased by 3.90%; The SPAD value of flag leaves was increased by 6.20%; 1,000-grain weight, grain weight and bulk density were increased by 2.82%, 24.69% and 3.64%, respectively. Principal component analysis showed that the effect of the treatment with 0.01% methanol extracts from Vallisneria natans was significantly better than those of other treatment groups. 【Conclusion】 Three low concentration methanol extracts from Sophraalopecuroides, Cuminum cyminum and Vallisneria natans have different growth regulation effects on wheat, which can shorten the internode length and increase the stem diameter, can enhance the lodging resistance of wheat, can also reduce the plant height of wheat, and can improve the ventilation and light transmission conditions in the field thus improving the photosynthesis of flag leaves, the utilization rate of light energy as well as the yield of crops. Among them, the treatment effect of 0.01% methanol extracts from Vallisneria natans is the best.

Key words: methanol extract; wheat; analysis of the main ingredients; plant on stem properties; photosynthetic characteristics

摘要：

【目的】研究苦豆子(Sophraalopecuroides)、孜然(Cuminum cyminum)、苦草(Vallisneria natans)3种植物甲醇提取物对小麦的生长调节作用,为新型植物源生长调节剂的研制提供依据。【方法】选用春小麦品种新春44号为材料,以清水处理为对照,将苦豆子、孜然和苦草甲醇提取物浸膏分别制备成3种不同浓度(1%、0.1%、0.01%)的溶液,于小麦拔节前期连续喷施3次,分析小麦株高等茎秆性状、光合特性及产量等相关指标的影响;采用主成分分析法,筛选并评价植物提取物的生物活性。【结果】0.01%苦豆子甲醇提取物处理后,小麦基部第1、2、3节间长度分别降低27.8%、13.4%、4.5%;茎粗分别增加9.4%、16.1%、14.3%;基部3节IAA含量提高16.2%;基部3节ABA含量降低7.9%;株高降低5.6%;旗叶净光合速率增加3.9%;旗叶SPAD值增加6.2%;千粒重、籽粒重量、容重分别增加2.8%、24.7%和3.6%。0.01%苦豆子处理效果显著优于其他处理组。【结论】苦豆子、孜然和苦草3种低浓度甲醇提取物对小麦均具有不同程度的生长调控作用,能缩短节间长度和增加茎粗,增强小麦抗倒伏能力,降低小麦株高的作用,改善田间的通风透光条件,提高旗叶光合作用,提高光能利用率和作物产量。0.01%苦豆子处理效果最优,0.01%孜然甲醇提取物次之。

关键词: 甲醇提取物, 小麦, 茎秆性状, 光合特性, 主成分

CLC Number:

S513

ZHENG Ruiming, ZHOU Xiaoyun, LI Jin, ZHANG Jungao, CHENG Yong, MA Deying, LIANG Jing, GONG Jingyun, LEI Bin. Effects of Three Methanol Extracts from Plant on Stem Properties,Photosynthetic Characteristics and Yield of Wheat[J]. Xinjiang Agricultural Sciences, 2022, 59(5): 1068-1076.

郑瑞明, 周小云, 李进, 张军高, 陈勇, 马德英, 梁晶, 龚静云, 雷斌. 3种植物提取物对小麦茎秆性状、光合特性及产量的影响[J]. 新疆农业科学, 2022, 59(5): 1068-1076.

Figures/Tables 7

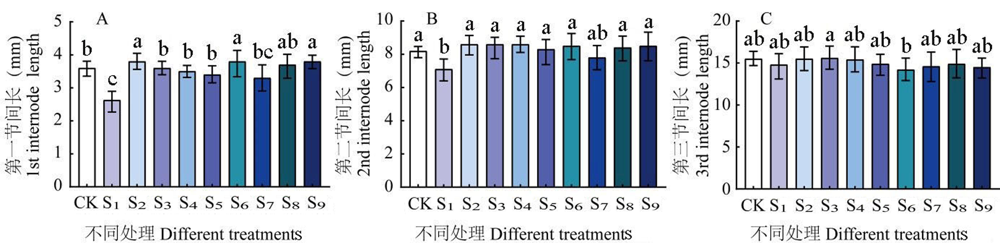

Fig.1 Comparison of basal internode length in Wheat Note: Different lowercase letters in the picture indicate that there is significant difference between treatments at P<0.05. CK: water as a control group; S1: 0.01% methanol extraction from Sophra alopecuroides; S2: 0.1% methanol extraction from Sophra alopecuroides; S3: 1% methanol extraction from Sophra alopecuroides; S4: 0.01% methanol extraction from Cuminum cyminum; S5: 0.1% methanol extraction from Cuminum cyminum; S6: 1% methanol extraction from Cuminum cyminum; S7: 0.01% methanol extraction from Vallisneria natans; S8: 0.1% methanol extraction from Vallisneria natans; S9: 1% methanol extraction from Vallisneria natans. The same as below

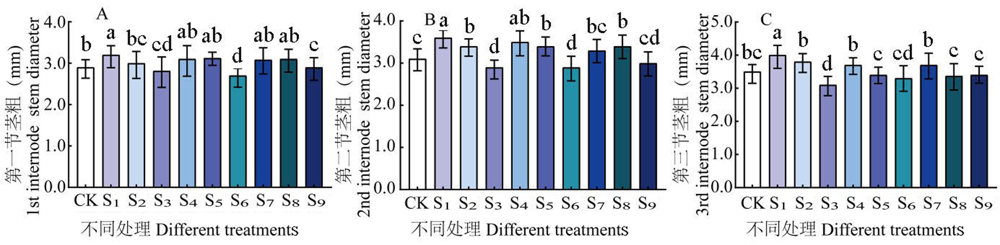

Fig.2 Comparison of stem diameter of basal internodes in Wheat

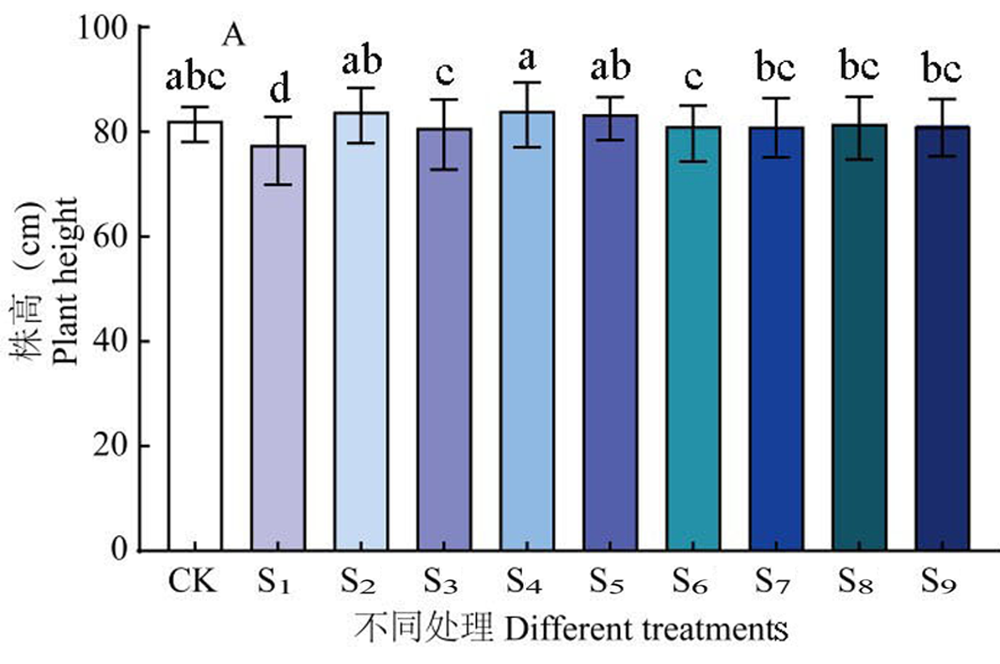

Fig.3 Comparison of height of the strains in Wheat

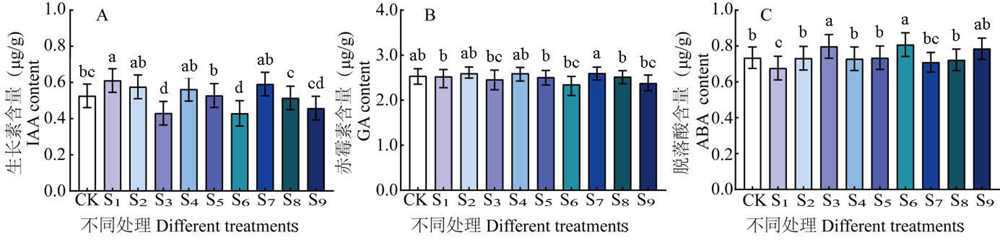

Fig.4 Comparison of endogenous hormone contents in basal internodes in Wheat

Table 1 Comparison of photosynthetic characteristics of flag leaves in Wheat

处理 Treatment	净光合速率 Pn (μmol/(m²·S))	蒸腾速率 Tr (mmol/(m²·S))	气孔导度 Gs (mol/(m²·S))	胞间二氧化碳浓度 Ci (μmol/L)	气孔限制值 Stomatal limiation	SPAD值 SPAD value
CK	14.9±1.2^a	9.3±0.7^a	19.4±2.3^a	315.7±15.7^a	0.2^a	50.7±0.6^a
S₁	15.5±1.1a	9.7±0.8^a	21.9±3.0^a	322.3±30.0^a	0.2^a	54.1±1.8^a
S₂	14.9±1.1^b	9.0±0.7^a	19.3±3.5^b	310.3±25.0^c	0.2^a	49.9±1.0^b
S₃	13.2±1.2^c	9.0±0.9^a	18.3±3.2^c	310.5±23.8^c	0.2^a	48.2±1.0^b
S₄	15.0±1.1^b	9.3±0.7^a	20.7±3.6^b	316.2±18.6^b	0.2^a	48.0±1.5^b
S₅	14.8±1.2^b	9.1±0.7^a	19.6±3.0^b	314.6±10.8^b	0.2^a	49.9±0.9^b
S₆	14.0±1.1^c	9.2±0.7^a	18.5±4.1^c	310.6±23.6^b	0.2^a	48.9±1.9^b
S₇	15.0±1.1^b	9.7±0.7^a	20.3±4.3^b	318.8±17.0^b	0.2^a	48.6±1.5^b
S₈	14.9±1.1^b	9.3±0.8^a	19.6±3.4^b	314.3±16.9^b	0.2^a	47.6±1.4^b
S₉	14.3±1.1^c	9.4±0.7^a	18.8±2.5^c	314.5±28.6^b	0.2^a	47.8±1.5^b

Table 2 Comparison of yield and yield components in Wheat

处理 Treatment	穗粒数 Grain number (粒)	籽粒重量 Seed weight (g)	千粒重 1,000 -grain weight (g)	容重 Density (g/L)	理论产量 Theoretical yield (kg/hm²)
CK	31.3±2.6^b	32.0±0.1^b	49.6±1.3^b	810.3±5.5^b	5 449.9±13.4^b
S₁	34.5±2.6^a	39.9±1.4^a	51.0±1.4^a	839.8±6.5^a	6 204.8±13.6^a
S₂	33.5±2.9^b	34.3±1.4^b	49.9±1.8^b	821.8±6. ${8^{a}}^{b}$	5 895.1±25.2^b
S₃	29.0±2. ${1^{b}}^{c}$	28.9±0.8^b	49.7±1.3^b	812.2±6. ${9^{a}}^{b}$	5 082.2±22.7^b
S₄	34.00±2. ${8^{a}}^{b}$	35.5±1.5^a	50.4±1. ${7^{a}}^{b}$	837.0±4. ${3^{a}}^{b}$	6 042.9±24.8^ab
S₅	33.00±2.4^b	34.6±0. ${2^{a}}^{b}$	50.0±1. ${2^{a}}^{b}$	812.3±1. ${6^{a}}^{b}$	5 818.3±12.9^b
S₆	27.0±2.3^d	26.0±0.2^c	49.1±1.2^b	818.0±8. ${1^{a}}^{b}$	4 674.8±22.8^d
S₇	30.7±2. ${3^{b}}^{c}$	31.5±1.2^b	49.6±1.4^b	809.8±2. ${8^{a}}^{b}$	5 345.3±33.2^bc
S₈	32.5±2.4^b	30.9±0. ${5^{b}}^{c}$	50.0±1. ${2^{a}}^{b}$	817.8±5. ${0^{a}}^{b}$	5 730.4±22.9^b
S₉	29.0±2.2^bc	26.8±1.7^c	49.0±1.3^b	814.5±5. ${1^{a}}^{b}$	5 010.8±12.9^bc

Table 2 Comparison of yield and yield components in Wheat

处理 Treatment	穗粒数 Grain number (粒)	籽粒重量 Seed weight (g)	千粒重 1,000 -grain weight (g)	容重 Density (g/L)	理论产量 Theoretical yield (kg/hm²)
CK	31.3±2.6^b	32.0±0.1^b	49.6±1.3^b	810.3±5.5^b	5 449.9±13.4^b
S₁	34.5±2.6^a	39.9±1.4^a	51.0±1.4^a	839.8±6.5^a	6 204.8±13.6^a
S₂	33.5±2.9^b	34.3±1.4^b	49.9±1.8^b	821.8±6. ${8^{a}}^{b}$	5 895.1±25.2^b
S₃	29.0±2. ${1^{b}}^{c}$	28.9±0.8^b	49.7±1.3^b	812.2±6. ${9^{a}}^{b}$	5 082.2±22.7^b
S₄	34.00±2. ${8^{a}}^{b}$	35.5±1.5^a	50.4±1. ${7^{a}}^{b}$	837.0±4. ${3^{a}}^{b}$	6 042.9±24.8^ab
S₅	33.00±2.4^b	34.6±0. ${2^{a}}^{b}$	50.0±1. ${2^{a}}^{b}$	812.3±1. ${6^{a}}^{b}$	5 818.3±12.9^b
S₆	27.0±2.3^d	26.0±0.2^c	49.1±1.2^b	818.0±8. ${1^{a}}^{b}$	4 674.8±22.8^d
S₇	30.7±2. ${3^{b}}^{c}$	31.5±1.2^b	49.6±1.4^b	809.8±2. ${8^{a}}^{b}$	5 345.3±33.2^bc
S₈	32.5±2.4^b	30.9±0. ${5^{b}}^{c}$	50.0±1. ${2^{a}}^{b}$	817.8±5. ${0^{a}}^{b}$	5 730.4±22.9^b
S₉	29.0±2.2^bc	26.8±1.7^c	49.0±1.3^b	814.5±5. ${1^{a}}^{b}$	5 010.8±12.9^bc

Table 3 Comparison of principal component analysis

处理 Treat ment	因子 Factors		F₁	F₂	F	排序 Order
处理 Treat ment	Factor 1	Factor 2	F₁	F₂	F	排序 Order
CK	-0.46	0.16	-1.52	0.21	-1.26	7
S₁	1.59	-0.35	5.20	-0.48	4.35	1
S₂	-0.01	1.32	-0.02	1.81	0.26	4
S₃	-1.12	-0.52	-3.66	-0.72	-3.22	9
S₄	0.32	1.92	1.06	2.62	1.29	2
S₅	0.07	0.53	0.22	0.72	0.30	3
S₆	-1.14	-1.16	-3.73	-1.58	-3.41	10
S₇	-0.06	-0.52	-0.20	-0.72	-0.28	5
S₈	-0.15	0.52	-0.50	0.71	-0.32	6
S₉	-0.95	-0.61	-3.10	-0.83	-2.76	8

References 32

[1]	马瑞琦. 化控剂对冬小麦植株性状及产量品质的调节效应[J]. 作物杂志, 2018, (1): 133-140.
	MA Ruiqi. The Regulatory Effect of Chemical Control Agent on Plant Traits and Yield Quality of Winter Wheat[J]. Journal of Crops, 2018, (1) : 133-140.
[2]	朱权辉. 生物农药开发与运用的现状及其在西藏的前景和可行性初探[J]. 河南农业, 2021,(23): 42-43.
	ZHU Quanhui. Current situation of development and application of biological pesticides and its prospect and feasibility in Tibet[J]. Henan Agriculture, 2021,(23): 42-43.
[3]	毛亮, 张以和, 潘卫萍. 吐鲁番市绿色植保工作思路探讨[J]. 中国植保导刊, 2021, 41(3): 92-95.
	MAO Liang, ZHANG Yihe, PAN Weiping. Discussion on the working ideas of green plant protection in Turpan[J]. China Plant Protection Guide, 2021, 41 (3): 92-95.
[4]	宋三涛. 提高小麦品质的几种途径[J]. 河南农业, 2021,(22): 52.
	Song Santao. Several ways to improve wheat quality[J]. Henan Agriculture, 2021,(22): 52.
[5]	许学明. 生物源农药的概念及其发展展望[J]. 连云港职业技术学院学报. 2015, 18(2): 40-43.
	XU Xueming. Concept and development prospect of Biogenic Pesticides[J]. Journal of Lianyungang Vocational and Technical College, 2015, 18 (2): 40-43.
[6]	操海群, 岳永德, 化日茂, 等. 植物农药研究与开发进展[J]. 安徽农药大学学报, 2000, 27(1): 40-44.
	CAO Haiqun, YUE Yongde, HUA Rimao, et al. Research and development progress of plant pesticides[J]. Journal of Anhui Pesticide University, 2000, 27 (1): 40-44.
[7]	于忻滢, 张国良, 范松, 等. 植物源农药研究进展[J]. 黑龙江农业科学, 2021,(7): 123-129.
	YU Xinying, ZHANG Guoliang, FAN Song, et al. Research progress of botanical pesticides[J]. Heilongjiang Agricultural Science, 2021,(7): 123-129.
[8]	Geiger Michaela. Synergie zwischen priesterlichem und g ttlichem Handeln im Aaronitischen Segen (Num 6, 22-27)[J]. Vetus Testamentum, 2018, 68(1):51-72. DOI URL
[9]	高玉莲, 常静, 王贻卉, 等. 瑞香狼毒根提取物对3种作物种子萌发和幼苗生长的化感作用[J]. 草业学报, 2021, 30(10): 83-91.
	GAO Yulian, CHANG Jing, WANG Weihui, et al. The chemical effect of The Rhian wolf poison root extract on the germination of seeds and seedling growth of 3 crops[J]. Acta Prataculturae Sinica, 2021, 30(10): 83-91.
[10]	刘建新. 骆驼蓬提取物浸种对小麦幼苗生长及抗氧化酶活性的影响[J]. 西北植物学报, 2005, 25(9): 5.
	LIU Jianxin. Effect of camel poncho extract immersion on wheat seedling growth and antioxidant enzyme activity[J]. Northwestern Journal of Botany, 2005, 25 (9): 5.
[11]	陈向明. 山核桃外果皮几种化学成分及对植物生长影响的研究[D]. 兰州: 甘肃农业大学, 2008.
	CHEN Xiangming. Study on several chemical components of pecan skins and their effects on plant growth[D]. Lanzhou: Gansu Agricultural University, 2008.
[12]	曾坤玉, 胡飞, 陈玉芬, 等. 四种与福寿螺(Ampullaria gigas)同源地入侵植物的杀螺效果[J]. 生态学报, 2008,(1): 260-266.
	ZENG Kunyu, HU Fei, CHEN Yufen, et al. Four homologous invasive plant effects with Ampullaria gigas[J]. Acta Ecologica Sinica, 2008,(1): 260-266.
[13]	周兵, 闫小红, 钟娟, 等. 3种莎草属伴生杂草提取物对水稻种子萌发和幼苗生长的影响[J]. 热带作物学报, 2010, 31(9): 1542-1548.
	ZHOU Bing, YAN Xiaohong, ZHONG Juan, et al. Effects of Extracts from Three Companion Weeds in Cyperus sp.on Rice Seed Germination and Seedling Growth[J]. Chinese Journal of Tropical Crops, 2010, 31 (9): 1542-1548.
[14]	韩丰竹, 姜琳, 李永德, 等. 大黄提取物对小麦种子萌发及幼苗生长的影响[J]. 种子科技, 2016, 34(7): 105-106.
	HAN Fengzhu, JIANG Lin, LI Yongde, et al. Effects of Large Yellow Extract on Wheat Seed Germination and Seedling Growth[J]. Seed Science & Technology, 2016, 34 (7): 105-106.
[15]	孙慧, 王亚玲, 刘易, 等. 新疆地区马铃薯品种抗旱性比较及筛选[J]. 西北农业学报, 2021, 30(12): 1787-1796.
	SUN Hui, WANG Yaling, LIU Yi, et al. Comparison and Screening of Drought Resistance of Potato Varieties in Xinjiang[J]. Northwest Journal of Agricultural Sciences, 2021, 30 (12): 1787-1796.
[16]	郭小强. 苦豆子种子提取物对小麦幼苗生长的影响[J]. 甘肃农业, 2012,(9): 70-71.
	GUO Xiaoqiang. Effect of bitter bean seed extract on Wheat Seedling Growth[J]. Gansu Agriculture, 2012,(9): 70-71.
[17]	赵冬霞, 焦国安, 王璐, 等. 不同化控剂两种剂量对小麦农艺性状及产量的影响初探[J]. 农业科技通讯, 2021,(1): 112-114.
	ZHAO Dongxia, JIAO Guoan, WANG Lu, et al. Preliminary study on the effects of two doses of different chemical control agents on wheat agronomic characters and yield[J]. Bulletin of Agricultural Science and Technology, 2021,(1): 112-114.
[18]	张玉琼, 仲延龙, 高翠云, 等. 高效液相色谱法分离和测定小麦中的5种内源激素[J]. 色谱, 2013, 31(8): 800-803. DOI PMID
	ZHANG Yuqiong, ZHONG Yanlong, GAO Cuiyun, et al. High-efficiency liquid chromatography separation and determination of 5 endogenous hormones in wheat[J]. Chinese Journal of Chromatography, 2013, 31 (8): 800-803. PMID
[19]	吕丽荣. 茶多酚对盐处理下小麦幼苗叶片光合特性及抗氧化反应的影响[D]. 兰州: 西北师范大学, 2018.
	LÜ Lirong. Effects of tea polyphenols on Photosynthetic Characteristics and antioxidant response of Wheat Seedling Leaves under salt treatment[D]. Lanzhou: Northwest Normal University, 2018.
[20]	薛香. 小麦叶片叶绿素含量测定及其与SPAD值的关系[J]. 湖北农业科学, 2010, 49(11): 2701-2702.
	XUE Xiang. Determination of chlorophyll content in wheat leaves and its relationship with SPAD value[J]. Hubei Agricultural Sciences, 2010, 49 (11): 2701-2702.
[21]	杜小凤, 顾大路, 杨文飞, 等. 增产抗倒伏化控剂劲丰谷德对小麦生长发育及产量构成的影响[J]. 农业科技通讯, 2019,(2): 113-115.
	DU Xiaofeng, GU Dalu, YANG Wenfei, et al. Effects of yield increasing and lodging resistant chemical control agent jinfenggude on wheat growth and yield composition[J]. Bulletin of Agricultural Science and Technology, 2019,(2): 113-115.
[22]	洪坡. 小麦TaTOC1s基因调控开花与发育的分子机理研究[D]. 泰安:山东农业大学, 2018.
	HONG Po. Study on the molecular mechanism of wheat tatoc1s gene regulating flowering and development [D]. Tai’an: Shandong Agricultural University, 2018.
[23]	邓霞. 小麦灌浆期SPAD值对产量的影响研究[D]. 乌鲁木齐: 新疆师范大学, 2020.
	DENG Xia. Study on the effect of SPAD value on yield during wheat grouting period[D]. Urumqi: Xinjiang Normal University, 2020.
[24]	王倩, 孙会军, 孙令强, 等. 化感物质及作用机理[J]. 中国蔬菜, 2005, (S1): 70-74.
	WANG Qian, SUN Huijun, SUN Lingqiang, et al. Allelopathic Substances and Mechanisms of Action[J]. Chinese Vegetables, 2005, (S1): 70-74
[25]	朱丽珍. 植物化感作用及其在草地农业生态系统中的应用[J]. 土壤与作物, 2021, 10(1): 1-17.
	ZHU Lizhen. Phytoplasty and Its Application in Grassland Agro-ecosystems[J]. Soil and Crops, 2021, 10(1): 1-17.
[26]	卢辛成. 木醋液对小麦幼苗生长、抗氧化特性及内源激素含量的影响[J]. 中国农学通报, 2021, 37(7): 7-13.
	LU Xincheng. Effects of Wood Vinegar Solution on Growth, Antioxidant Characteristics and Endogenous Hormone content of Wheat Seedlings[J]. Chinese Agricultural Science Bulletin, 2021, 37(7): 7-13.
[27]	罗洁. 基肥与播种密度对冬小麦西农805光合特性及穗部性状的影响[D]. 杨凌:西北农林科技大学, 2021.
	LUO Jie. Effect of base fertilizer and seed density on the photosynthesis characteristics and spike characteristics of winter wheat 805 [D]. Yangling: Northwest A&F University, 2021.
[28]	马雪, 朱忠坤, 郭景丽, 等. 海藻酸复合肥对叶菜类蔬菜产量的影响[J]. 化肥工业, 2019, 46(6): 72-74.
	MA Xue, ZHU Zhongkun, GUO Jingli, et al. Effects of Alginate Compound Fertilizer on Yield of Leafy Vegetables[J]. Chemical Fertilizer Industry, 2019, 46(6) : 72-74.
[29]	任晶. 人参根际有机酸的化感活性及环境行为研究[D]. 长春: 吉林农业大学, 2016.
	REN Jing. Study on The Allelopathic Activity and Environmental Behavior of Rhizosphere Organic Acids of Ginseng[D]. Changchun: Jilin Agricultural University, 2016.
[30]	吴金芝. 干旱对冬小麦旗叶光合参数、产量和水分利用效率的影响[J]. 江苏农业学报, 2021, 37(5): 1108-1118.
	WU Jinzhi. Effects of drought on the photosynthesis parameters, yield and water utilization efficiency of winter wheat flag leaves[J]. Jiangsu Journal of Agricultural Sciences, 2021, 37(5): 1108-1118.
[31]	孙晓, 尹皓婵, 张占田, 等. 海藻提取物对水稻产量及养分利用的影响[J]. 江苏农业科学, 2020, 48(16): 100-103.
	Sun Xiao, Yin Haochan, Zhang Zhantian, et al. Effects of Seaweed Extract on Rice Yield and Nutrient Utilization[J]. Jiangsu Agricultural Sciences, 2020, 48(16): 100-103.
[32]	马德源, 马云飞, 于金慧, 等. 海藻肥在现代农业生产中的研究进展[J]. 山东农业科学, 2020, 52(8): 145-151.
	Ma Deyuan, Ma Yunfei, Yu Jinhui, et al. Research progress of seaweed fertilizer in modern agricultural production[J]. Shandong Agricultural Sciences, 2020, 52(8): 145-151.
