Optimization of Apricot Drying Process Based on Box-Behnken Response Surface Method

doi:10.6048/j.issn.1001-4330.2021.11.017

Abstract

Abstract:

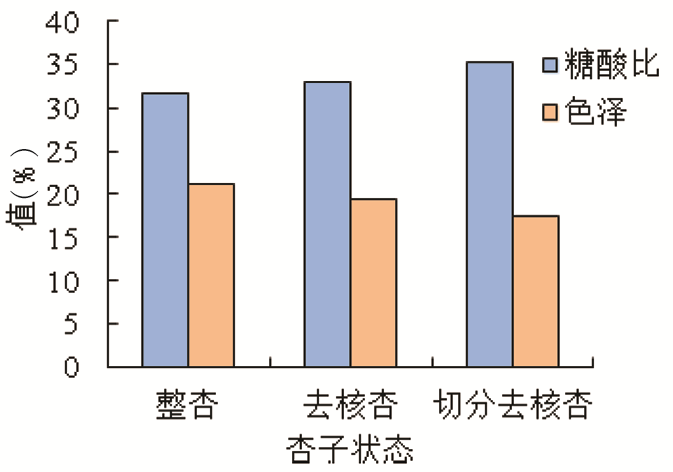

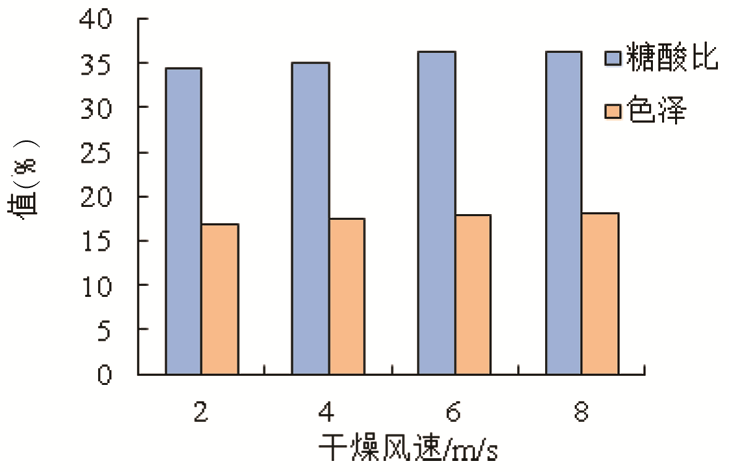

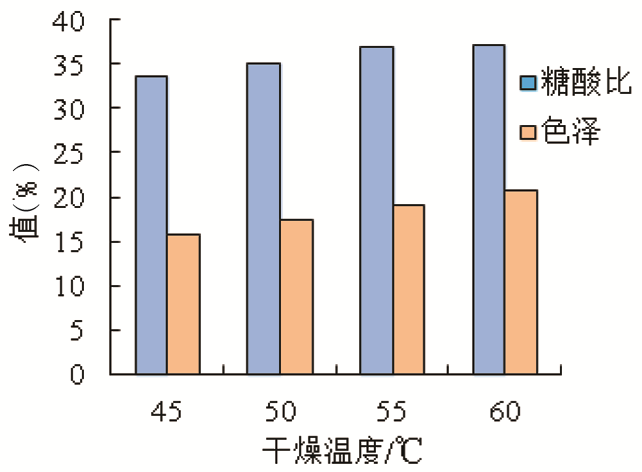

【Objective】 To improve the quality of dried apricot, optimize the drying technology and enhance the market competitiveness of dried apricot products. 【Methods】 Taking the content of sugar-acid ratio and color of dried apricot as evaluation indexes, the optimum drying range of apricot was determined by single factor drying tests under different drying temperatures, air velocities and slitting modes. Box-Behnken center combined test design was carried out,and the response surface optimization analysis was performed to determine the drying process of apricot. 【Results】 With the increase of drying temperature, the sugar-acid ratio in apricot increased gradually, and the color of apricot became worse. With the increase of drying air velocities, the sugar-acid ratio in apricot also increased gradually, but the color of apricot was not different. Compared with whole apricot and de-nuclear apricot, the content of sugar-acid ratio of the apricot treated like this was the highest and the color of apricot was the best. 【Conclusion】 The optimum drying parameters of drying apricot were: drying temperature 50℃, air velocity 4 m/s, cut and stones removed. Under this condition, the average comprehensive score was 95.012 which was close to the result predicted by the model and the optimization result was reliable.

Key words: apricot; drying; response surface; optimization; process

摘要：

【目的】研究提高杏子干制品质与优化干燥工艺,为杏子干燥工艺优化提供依据。【方法】以杏子干制品内酸糖比含量和色泽为评判指标,分别进行不同干燥温度、风速和切分方式条件下单因素干燥试验,分析杏子干燥参数适宜范围,通过Box-Behnken中心组合试验设计,分析响应面优化,确定杏子最优干燥工艺。【结果】随着干燥温度的升高,杏子内糖酸比含量逐渐增加,杏子色泽逐渐变差;随着干燥风速的升高,杏子内糖酸比含量也逐渐增加,但杏子色泽差异不大;与整杏、去核杏相比,切分去核杏内糖酸比含量最高,杏子色泽最好。【结论】杏子最优干燥工艺参数为干燥温度50℃、风速4 m/s,采用切分去核杏的方式,平均综合得分为95.012,与模型预测结果接近,优化结果可靠。

关键词: 杏子, 干燥, 响应面法, 优化, 工艺

CLC Number:

S662.2

WANG Qinghui, YANG Jiapeng, YANG Zhongqiang. Optimization of Apricot Drying Process Based on Box-Behnken Response Surface Method[J]. Xinjiang Agricultural Sciences, 2021, 58(11): 2103-2110.

王庆惠, 杨嘉鹏, 杨忠强. 基于Box-Behnken响应面法优化杏子干燥工艺[J]. 新疆农业科学, 2021, 58(11): 2103-2110.

Figures/Tables 10

References 20

[1]	靳力为, 任广跃, 段续, 等. 超声波协同作用对真空冻干杏脱水及其品质的影响[J]. 食品与发酵工艺, 2020, 46(6):133-139, 147.
	JIN Liwei, REN Guangyue, DUAN Xu, et al. Effect of ultrasonic synergy on the dehydration and quality of vacuumfreeze-dried apricots[J]. Food and Fermentation Industries, 2020, 46(6):133-139, 147.
[2]	新疆维吾尔自治区统计局. 新疆统计年鉴[J]. 北京: 中国统计出版社, 2019.
	Statistics Beaurao of Xinjiang Uygur Autonomous Region. Statistical Yearbook of Xinjiang [J]. Beijing: China Statistics Press, 2019.
[3]	王庆惠, 李忠新, 买合木江, 等. 新疆杏制干设备现状与发展建议[J]. 农产品加工学刊, 2014,(3):77-79.
	WANG Qinghui, LI Zhongxin, Maihebujiang , et al. Current situation and development proposals of apricot drying equipment in Xinjiang[J]. Academic Periodical of Farm Products Processing, 2014,(3):77-79.
[4]	肖红伟, 张世湘, 白竣文, 等. 杏子的气体射流冲击干燥特性[J]. 农业工程学报, 2010, 26(7):318-323.
	XIAO Hongwei, ZHANG Shixiang, BAI Junwen, et al. Air impingement drying characteristics of apricot[J]. Transactions of the Chinese Society of Agricultural Engineering, 2010, 26(7):318-323.
[5]	王庆惠, 闫圣坤, 李忠新, 等. 干燥工艺对杏干燥特性及色泽变化影响[J]. 中国农业科技导报, 2018, 20(1):78-84.
	WANG Qinghui, YAN Shengkun, LI Zhongxin, et al. Effect of Drying Processing on Drying Characteristics and Color Changing of Apricot[J]. Journal of Agricultural Science and Technology, 2018, 20(1):78-84.
[6]	王庆惠, 闫圣坤, 李忠新, 等. 高压静电场对杏子热风干燥特性及色泽影响[J]. 食品与机械, 2016, 32(9):22-27.
	WANG Qinghui, YAN Shengkun, LI Zhongxin, et al. Hot-air drying characteristics and color changing of apricot using high-voltage electric field[J]. Food Machinery, 2016, 32(9):22-27.
[7]	过利敏, 肖波, 孟伊娜, 等. 温度对明星杏干燥动力学及品质影响规律研究[J]. 新疆农业科学, 2018, 55(1): 74-81. DOI
	GUO Limin, XIAO Bo, MENG Yina, et al. Study on the Effect of Temperature on Drying Kineticsand Quality of Star Apricot by the Hot Air Drying[J]. Xinjiang Agricultural Sciences, 2018, 55(1):74-81. DOI
[8]	王宁, 刘文秀, 李凤城, 等. 杏低温薄层干燥试验与建模[J]. 农业机械学报, 2011, 42(1):140-143, 153.
	WANG Ning, LIU Wenxiu, LI Fengcheng, et al. Thin layer drying model of apricot at low temperature[J]. Transactions of the Chinese Society for Agricultural Machinery, 2011, 42(1):140-143.
[9]	李琼. 干制温度对杏果实糖转化及香气成分的影响[D]. 乌鲁木齐:新疆农业大学, 2017.
	LI Qiong. The Effects of Drying Temperature on Sugar Conversion and Aroma Components of Apricot Fruit[D]. Urumqi:Xinjiang Agricultural University, 2017.
[10]	陈雪, 陶永霞, 马钰泰, 等. 不同制干方法对库买提杏香气的影响[J]. 保鲜与加工, 2020, 20(2):186-194.
	CHEN Xue, TAO Yongxia, MA Yutai, et al. Effect of Different Drying Method on the Aroma of Kumaiti Apricot[J]. Storage and Process, 2020, 20(2):186-194.
[11]	王威. 鲜杏干制过程中褐变机理的研究[D]. 乌鲁木齐:新疆农业大学, 2017.
	WANG Wei. Research the mechanisms of browning during dried progress of apricot[D]. Urumqi:Xinjiang Agricultural University, 2017.
[12]	AOAC. Official method of analysis. Association of official analytical chemists(No. 934.06), Arlington, 1990.
[13]	Deng Lizhen, Pang Zhongli, Mujumdar A S, et al. High-humidity hot air impingement blanching (HHAIB) enhances drying quality of apricots by inactivating the enzymes, reducing drying time and altering cellular structure[J]. Food Control, 2019, (96):104-111.
[14]	Deng Lizhen, A.S. Mujumdar A. S., Yang Xuhai, et al. High humidity hot air impingement blanching (HHAIB) enhances drying rate and softens texture of apricot via cell wall pectin polysaccharides degradation and ultrastructure modification[J]. Food Chemistry, 2018,(218):292-300.
[15]	GB 5009. 8-2016,食品中果糖、葡萄糖、蔗糖、麦芽糖乳糖的测定[S].
	GB 5009. 8-2016. Determination of fructose, glucose, sucrose and maltose lactose in food[S].
[16]	GB/T 12456-2008,食品中总酸的测定[S].
	GB/T 12456-2008. Determination of total acid in foods[S].
[17]	高海生. 果蔬加工过程中褐变及其控制措施的研究进展[J]. 河北科技师范学院学报, 2013, 27(4):1-7.
	GAO Haisheng. Research on browning and inhibition in fruits and vegetables processing[J]. Journal of Hebei Normal University of Science & Technology, 2013, 27(4):1-7.
[18]	田呈瑞, 张京芳, 陈锦屏, 等. 杏多酚氧化酶动力学研究[J]. 西北农业学报, 1997, 6(3):78-81.
	TIAN Chengrui, ZHANG Jingfang, CHEN Jinping, et al. Studies on Dynamics of Apricot Polyphenoloxidase[J]. Acta Agriculturae Boreali-occidentalis Sinica, 1997, 6(3):78-81.
[19]	肖红伟. 西洋参片的气体射流冲击干燥特性和色泽变化动力学[D]. 北京:中国农业大学, 2010.
	XIAO Hongwei. The drying characteristics and color change kinetics of American ginseng slices undergoing air impingement drying[D]. Beijing:China Agricultural University, 2010.
[20]	侯爽爽. 金银花热风干燥过程中颜色劣变机理及抑制研究[D]. 洛阳:河南科技大学, 2011.
	HOU Shuangshuang. Researchon mechanism of honeysuckle color degeneration in hot air drying and the rejection[D]. Luoyang:Henan University of Science and Technology, 2011.

编码 Coding	切分方式A Division mode A	温度B Temperature B (℃)	速度C Speed C (m/s)
-1	0	45	2
0	0.5	50	4
1	1	55	6

编码 Coding	切分方式A Division mode A	温度B Temperature B (℃)	速度C Speed C (m/s)
-1	0	45	2
0	0.5	50	4
1	1	55	6

方差来源 Soruce of variation	平方和 Quadratic	自由度 Degree of freedom	方差 Variance	F值 F-value	P	显著性 Significance
回归模型 Regression model	1 155.33	9	128.37	137.19	< 0.000 1	^**
A	0.50	1	0.50	0.53	0.488 5
B	21.13	1	21.13	22.58	0.002 1	^**
C	0.13	1	0.13	0.13	0.725 5
AB	4.00	1	4.00	4.27	0.077 5
AC	9.00	1	9.00	9.62	0.017 3	^*
BC	20.25	1	20.25	21.64	0.002 3	^**
A²	219.79	1	219.79	234.89	< 0.000 1	^**
B²	655.27	1	655.27	700.28	< 0.000 1	^**
C²	126.21	1	126.21	134.88	< 0.000 1	^**
残差 Residual	6.55	7	0.94
失拟项 Loss of quasi item	3.75	3	1.25	1.79	0.289 0
纯误差 Pure error	2.80	4	0.70
合计 Total	1161.88	16

方差来源 Soruce of variation	平方和 Quadratic	自由度 Degree of freedom	方差 Variance	F值 F-value	P	显著性 Significance
回归模型 Regression model	1 155.33	9	128.37	137.19	< 0.000 1	^**
A	0.50	1	0.50	0.53	0.488 5
B	21.13	1	21.13	22.58	0.002 1	^**
C	0.13	1	0.13	0.13	0.725 5
AB	4.00	1	4.00	4.27	0.077 5
AC	9.00	1	9.00	9.62	0.017 3	^*
BC	20.25	1	20.25	21.64	0.002 3	^**
A²	219.79	1	219.79	234.89	< 0.000 1	^**
B²	655.27	1	655.27	700.28	< 0.000 1	^**
C²	126.21	1	126.21	134.88	< 0.000 1	^**
残差 Residual	6.55	7	0.94
失拟项 Loss of quasi item	3.75	3	1.25	1.79	0.289 0
纯误差 Pure error	2.80	4	0.70
合计 Total	1161.88	16
