Changes of pectin components and enzyme activities during the development of apricot fruits

doi:10.6048/j.issn.1001-4330.2024.06.013

Abstract

Abstract:

【Objective】 To explore the changes of pectin components and content in apricot fruit development and the influence on fruit hardness. 【Methods】 In this study, three apricot varieties, 'Kuqa White Apricot', 'Huntai white Apricot' and 'Shushu Dry Apricot', were selected as experimental materials.The relationship between the changes of pectin composition and content and the changes of fruit hardness was analyzed by measuring the growth quality indexes, pectin composition and content and the activity of pectin metabolizing enzyme during the development of apricot fruits. 【Results】 The results showed as follows: Compared with the other 4 growth stages, the fruit hardness of 3 apricot varieties decreased significantly at the ripening stage (P < 0.05).During fruit development and ripening, PME activity of the three apricot varieties showed a decreasing trend, and fruit hardness was significantly positively correlated with PME (P < 0.05), while fruit hardness was significantly negatively correlated with ion-bound pectin content and covalently bound pectin content (P < 0.01). 【Conclusion】 During fruit development, the fruit hardness of the three apricot varieties is negatively correlated with the content of ion-bound pectin and covalently bound pectin (P < 0.01), which has a great influence on the fruit hardness.Ionic pectin (ISP) has a small molecular weight and is easily soluble in water.The larger the ISP proportion in pectin, the softer the fruit texture.The decrease of hardness of ‘Luntai white apricot’ and ‘Shushanggan apricot’ was mainly caused by PG, while that of ‘Kuche white apricot’ was mainly causedy PL.The hardness of ‘Luntai white apricot’ decreased with the increase of PG activity since the hardcore stage.But in ‘Shushanggan apricot’, PG activity even decreases significantly after young fruit stage, increases significantly after turning color stage, and hardness decreases.The PG activity of ‘Luntai white apricot’ should be inhibited after the hardcore stage, and that of ‘Shushanggan apricot’ should be inhibited after the turning stage.The PL activity of ‘Kuche white apricot’ is always higher, and it needs to inhibit PL activity in pectin.

Key words: apricot fruit; growth and development; pectin component; pectin content

摘要：

【目的】研究杏果实发育过程中果胶组分及含量变化规律及其对果实硬度的影响。【方法】以‘库车白杏’、‘轮台白杏’和‘树上干杏’ 3个杏品种果实为材料,测定杏果实发育过程中的生长品质指标、果胶组分与含量和果胶代谢酶活性,分析杏果实果胶组分及含量变化且与果实硬度之间的相关关系。【结果】相较于其他4个生长发育期,3个杏品种果实硬度在完熟期显著下降(P< 0.05)。果实发育成熟过程中,3个杏品种果胶甲酯酶活性(PME)均呈下降趋势,且果实硬度与PME呈显著正相关(P< 0.05),果实硬度与离子结合型果胶含量、共价结合型果胶含量呈显著负相关(P< 0.01)。【结论】果实发育过程中,3个杏品种果实硬度均与离子结合型果胶含量、共价结合型果胶含量呈极显著负相关(P< 0.01),对果实硬度影响较大。其中离子型果胶(ISP)分子量小,易溶于水,在果胶中,ISP占比越大,果实质地越软;‘轮台白杏’与‘树上干杏’硬度下降主要是由多聚半乳糖醛酸酶(PG)引起的,而‘库车白杏’硬度下降主要是由果胶裂解酶(PL)引起的,其中‘轮台白杏’自硬核期开始多聚半乳糖醛酸酶(PG)活性升高,硬度随之下降;但在‘树上干杏’中,多聚半乳糖醛酸酶(PG)活性在幼果期之后甚至显著下降,在转色期之后显著上升,硬度随之下降。对‘轮台白杏’需要在硬核期之后开始抑制多聚半乳糖醛酸酶(PG)活性,对‘树上干杏’需要在转色期后抑制多聚半乳糖醛酸酶(PG)活性。‘库车白杏’果胶裂解酶(PL)活性一直较高,在果胶方面其需要抑制果胶裂解酶(PL)活性。

关键词: 杏果实, 发育, 果胶组分, 果胶含量

CLC Number:

S361

HUANG Jinyue, XU Min, WANG Longfei, LIU Xinyi, GUO Yuqing, WU Xiaolan, WANG Yatong, ZHANG Shikui, FAN Guoquan. Changes of pectin components and enzyme activities during the development of apricot fruits[J]. Xinjiang Agricultural Sciences, 2024, 61(6): 1407-1415.

黄金越, 徐敏, 王龙飞, 刘新意, 郭雨晴, 武晓兰, 王亚铜, 章世奎, 樊国全. 杏果实发育过程中果胶组分及酶活性变化分析[J]. 新疆农业科学, 2024, 61(6): 1407-1415.

Figures/Tables 4

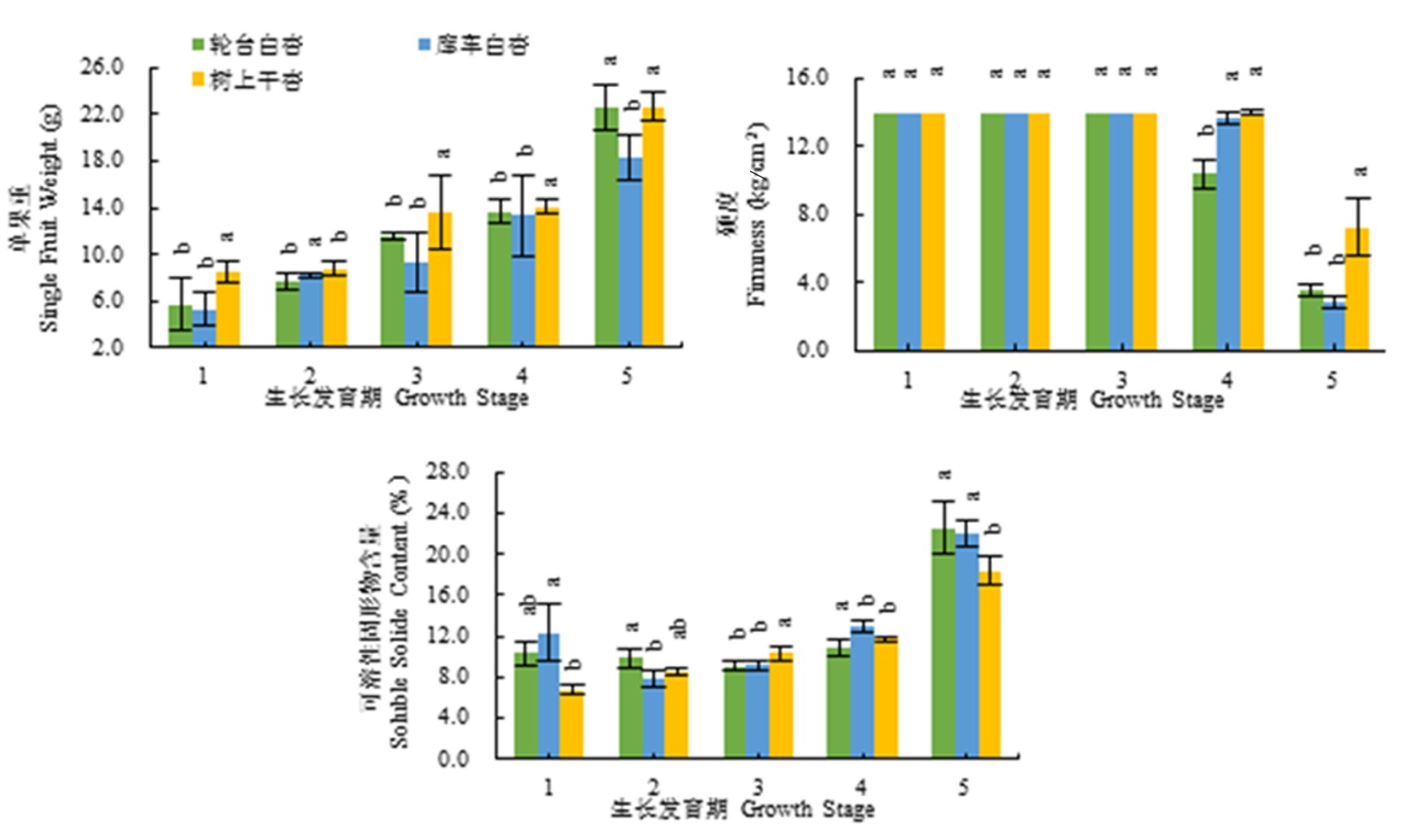

Fig.1 Changes of fruit weight, firmness and soluble solide content of three apricot cultivars Note: A: Single Fruit Weight; B: Firmness; C: Soluble Solide Content.Analysis of variance was performed on the fruits of three apricot varieties in the same period, the same as below

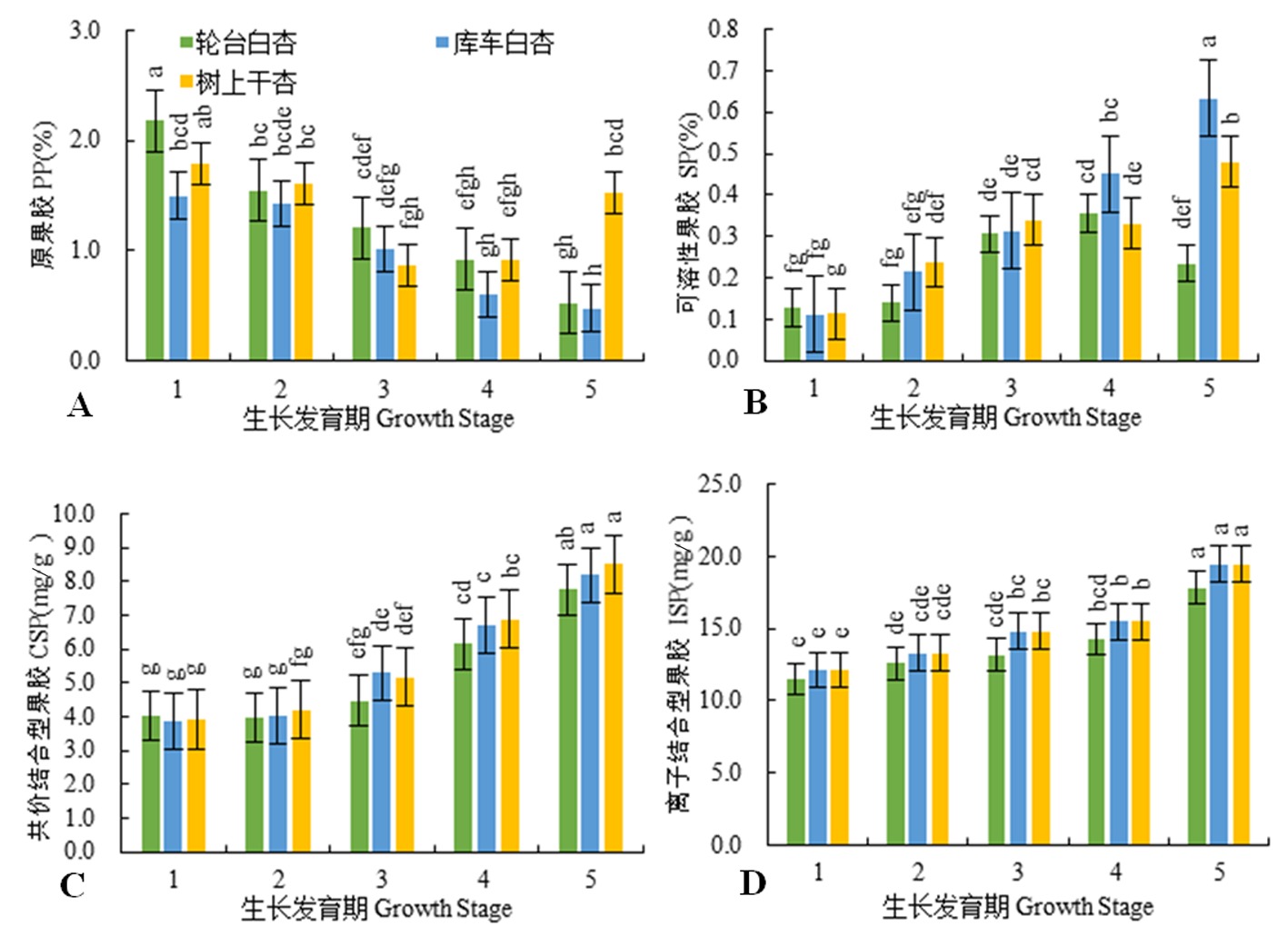

Fig.2 Comparisons of fruit pectin composition and content in three apricot cultivars Note:A: PP; B: SP; C:CSP; D: ISP

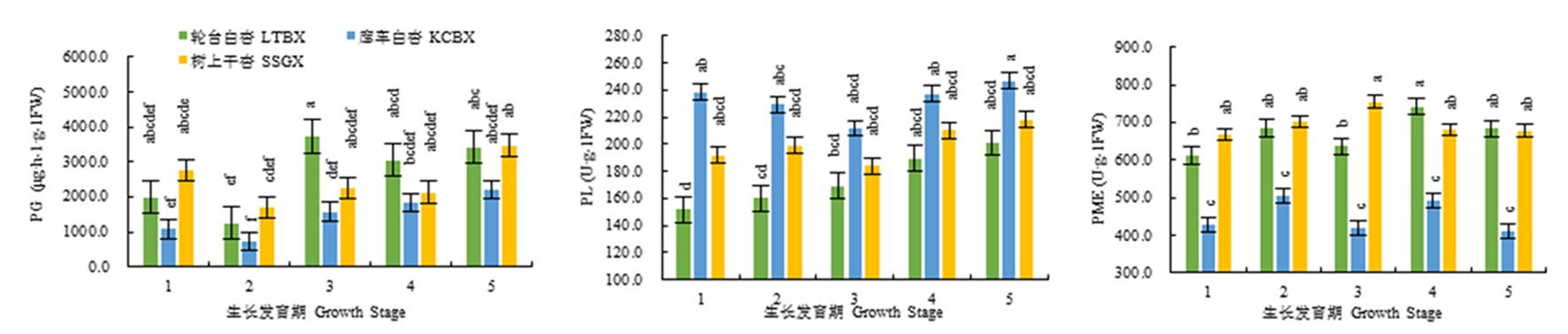

Fig.3 Comparisons of fruit pectinase content in three apricot cultivars Note:A: PG; B: PL; C: PME

Tab.1 Correlation analysis of fruit firmness with pectin components and enzyme activities of three apricot cultivars

品种 Cultivars	指标 Indicators	硬度 Firmness	可溶性果胶 Soluble pectin	原果胶 Protopectin	离子结合型果胶 Ion-bound pectin	共价结合型果胶 Covalently bound pectin	多聚半乳糖醛酸酶 Polygalac turonase	果胶裂解酶 Pectin lyase	果胶甲酯酶 Pectin methyles terase
‘轮台白李’ ‘Luntai baixing’	Firmness	1
	SP	-0.072	1
	PP	0.709^*	-0.644^*	1
	ISP	-0.89 ${2^{}}^{}$	0.362	-0.85 ${0^{}}^{}$	1
	CSP	-0.86 ${6^{}}^{}$	0.436	-0.82 ${9^{}}^{}$	0.92 ${3^{}}^{}$	1
	PG	-0.323	0.625	-0.513	0.445	0.422	1
	PL	-0.631^*	0.527	-0.737^*	0.756^*	0.84 ${1^{}}^{}$	0.242	1
	PME	-0.164	0.499	-0.46	0.283	0.395	0.168	0.597	1
‘库车白杏’ ‘Kuqabaixing’	Firmness	1
	SP	-0.89 ${1^{}}^{}$	1
	PP	-0.78 ${5^{}}^{}$	-0.91 ${2^{}}^{}$	1
	ISP	-0.92 ${5^{}}^{}$	0.96 ${8^{}}^{}$	-0.85 ${1^{}}^{}$	1
	CSP	-0.89 ${5^{}}^{}$	0.98 ${1^{}}^{}$	-0.92 ${4^{}}^{}$	0.95 ${8^{}}^{}$	1
	PG	-0.647^*	0.707^*	-0.656^*	0.698^*	0.78 ${4^{}}^{}$	1
	PL	-0.253	0.131	-0.085	0.109	0.224	0.518	1
	PME	0.286	-0.115	0.122	-0.264	-0.221	-0.528	-0.301	1
‘树上干杏’ ‘Shushang ganxing’	Firmness	1
	SP	-0.703^*	1
	PP	-0.171	-0.434	1
	ISP	-0.87 ${4^{}}^{}$	0.92 ${4^{}}^{}$	-0.216	1
	CSP	-0.79 ${0^{}}^{}$	0.84 ${4^{}}^{}$	-0.216	0.94 ${8^{}}^{}$	1
	PG	-0.639^*	0.209	0.378	0.505	0.525	1
	PL	-0.376	0.42	0.113	0.453	0.387	0.154	1
	PME	0.266	0.141	-0.213	-0.083	-0.16	-0.257	-0.296	1

Tab.1 Correlation analysis of fruit firmness with pectin components and enzyme activities of three apricot cultivars

品种 Cultivars	指标 Indicators	硬度 Firmness	可溶性果胶 Soluble pectin	原果胶 Protopectin	离子结合型果胶 Ion-bound pectin	共价结合型果胶 Covalently bound pectin	多聚半乳糖醛酸酶 Polygalac turonase	果胶裂解酶 Pectin lyase	果胶甲酯酶 Pectin methyles terase
‘轮台白李’ ‘Luntai baixing’	Firmness	1
	SP	-0.072	1
	PP	0.709^*	-0.644^*	1
	ISP	-0.89 ${2^{}}^{}$	0.362	-0.85 ${0^{}}^{}$	1
	CSP	-0.86 ${6^{}}^{}$	0.436	-0.82 ${9^{}}^{}$	0.92 ${3^{}}^{}$	1
	PG	-0.323	0.625	-0.513	0.445	0.422	1
	PL	-0.631^*	0.527	-0.737^*	0.756^*	0.84 ${1^{}}^{}$	0.242	1
	PME	-0.164	0.499	-0.46	0.283	0.395	0.168	0.597	1
‘库车白杏’ ‘Kuqabaixing’	Firmness	1
	SP	-0.89 ${1^{}}^{}$	1
	PP	-0.78 ${5^{}}^{}$	-0.91 ${2^{}}^{}$	1
	ISP	-0.92 ${5^{}}^{}$	0.96 ${8^{}}^{}$	-0.85 ${1^{}}^{}$	1
	CSP	-0.89 ${5^{}}^{}$	0.98 ${1^{}}^{}$	-0.92 ${4^{}}^{}$	0.95 ${8^{}}^{}$	1
	PG	-0.647^*	0.707^*	-0.656^*	0.698^*	0.78 ${4^{}}^{}$	1
	PL	-0.253	0.131	-0.085	0.109	0.224	0.518	1
	PME	0.286	-0.115	0.122	-0.264	-0.221	-0.528	-0.301	1
‘树上干杏’ ‘Shushang ganxing’	Firmness	1
	SP	-0.703^*	1
	PP	-0.171	-0.434	1
	ISP	-0.87 ${4^{}}^{}$	0.92 ${4^{}}^{}$	-0.216	1
	CSP	-0.79 ${0^{}}^{}$	0.84 ${4^{}}^{}$	-0.216	0.94 ${8^{}}^{}$	1
	PG	-0.639^*	0.209	0.378	0.505	0.525	1
	PL	-0.376	0.42	0.113	0.453	0.387	0.154	1
	PME	0.266	0.141	-0.213	-0.083	-0.16	-0.257	-0.296	1

References 37

[1]	张加延, 张钊. 中国果树志-杏卷[M]. 北京: 中国林业出版社, 2003: 12-16.
	ZHANG Jiayan, ZHANG Zhao. China fruit annals-apricot rolls[M]. Beijing: China Forestry Publishing House, 2003: 12-16.
[2]	张志刚, 刘玉芳, 李长城, 等. 不同成熟度对杏果实品质的影响[J]. 浙江农业学报, 2021, 33(8): 1402-1408. DOI
	ZHANG Zhigang, LIU Yufang, LI Changcheng, et al. Effect of different maturity on fruit quality of apricot[J]. Acta Agriculturae Zhejiangensis, 2021, 33(8): 1402-1408. DOI
[3]	郑惠文, 张秋云, 李文慧, 等. 新疆杏果实发育过程中可溶性糖和有机酸的变化[J]. 中国农业科学, 2016, 49(20): 3981-3992. DOI
	ZHENG Huiwen, ZHANG Qiuyun, LI Wenhui, et al. Changes in soluble sugars and organic acids of Xinjiang apricot during fruit development and ripening[J]. Scientia Agricultura Sinica, 2016, 49(20): 3981-3992. DOI
[4]	胡东宇, 黄力平, 高健, 等. 新疆小白杏产业高质量发展对策研究[J]. 中国林业经济, 2021,(6): 76-78.
	HU Dongyu, HUANG Liping, GAO Jian, et al. Research on countermeasures for high-quality development of Xinjiang xiaobai apricot industry[J]. China Forestry Economics, 2021,(6): 76-78.
[5]	杨婷婷, 朱璇, 向玉洁, 等. 采收成熟度对杏果实贮藏品质的影响[J]. 现代食品科技, 2015, 31(7): 277-282.
	YANG Tingting, ZHU Xuan, XIANG Yujie, et al. Impact of harvest maturity on storage quality of apricot fruits[J]. Modern Food Science and Technology, 2015, 31(7): 277-282.
[6]	马琳. 壳寡糖复合其他保鲜剂对杏果贮藏品质的影响[D]. 北京: 中国农业大学, 2015.
	MA Lin. Effects of Chitosan Oligosaccharides in Combined with Other Preservative Agents on Post-harvest Quality of Apricot Fruits(Prunus Armeniaca L. )[D]. Beijing: China Agricultural University, 2015.
[7]	Buren J P. The chemistry of texture in fruits and vegetables[J]. Journal of Texture Studies, 1979, 10(1): 1-23.
[8]	Wang X, Chen Q R, Lü X. Pectin extracted from apple pomace and citrus peel by subcritical water[J]. Food Hydrocolloids, 2014, 38: 129-137.
[9]	Almeida D P F, Huber D J. Polygalacturonase-mediated dissolution and depolymerization of pectins in solutions mimicking the pH and mineral composition of tomato fruit apoplast[J]. Plant Science, 2007, 172(6): 1087-1094.
[10]	Mohnen D. Pectin structure and biosynthesis[J]. Current Opinion in Plant Biology, 2008, 11(3): 266-277. DOI PMID
[11]	阎香言, 张熠可, 李福瑞, 等. 不同质地桃果实软化过程中细胞壁组分变化的差异[J]. 北方园艺, 2017,(20): 60-66.
	YAN Xiangyan, ZHANG Yike, LI Furui, et al. Differences in cell wall composition during softening of peach fruit with different flesh texture[J]. Northern Horticulture, 2017,(20): 60-66.
[12]	范新光. 杏果实采后品质特性及近冰温冷藏技术研究[D]. 北京: 中国农业大学, 2018.
	FAN Xinguang. Analysis of Apricot Postharvest Quality and Study of Near Freezing Temperature Storage on Apricot[D]. Beijing: China Agricultural University, 2018.
[13]	吴芳. 1-MCP和SA处理对杏果实后熟软化的影响及PG和PME基因的克隆与表达[D]. 乌鲁木齐: 新疆农业大学, 2016.
	WU Fang. Effects of SA and 1-MCP Treatment on Ripening and Softening of Apricot Fruit and Cloning, Expression Analysis of PG and PME Genes[D]. Urumqi: Xinjiang Agricultural University, 2016.
[14]	曹建康, 姜微波, 赵玉梅. 果蔬采后生理生化实验指导[M]. 北京: 中国轻工业出版社, 2007.
	CAO Jiankang, JIANG Weibo, ZHAO Yumei. Guidance on postharvest physiological and biochemical experiments of fruits and vegetables[M]. Beijing: China Light Industry Press, 2007.
[15]	韩雅珊. 食品化学实验指导[M]. 北京: 中国农业大学出版社, 1992.
	HAN Yashan. Food chemistry experiment instruction[M]. Beijing: China Agricultural University Press, 1992.
[16]	程杰山, 沈火林, 杨学妍, 等. 不同硬度辣椒品系果实组织结构观察与细胞壁物质含量测定[J]. 西北农业学报, 2008, 17(1): 150-156.
	CHENG Jieshan, SHEN Huolin, YANG Xueyan, et al. Tissue structure observation and cell wall substrates content determination in different fruit firmness of pepper(Capsicum annuum L.) lines[J]. Acta Agriculturae Boreali-Occidentalis Sinica, 2008, 17(1): 150-156.
[17]	汤飞云, 张春红, 胡淑英, 等. 不同品种黑莓果实发育过程中硬度变化规律的调查与分析[J]. 江西农业学报, 2012, 24(10): 9-11, 14.
	TANG Feiyun, ZHANG Chunhong, HU Shuying, et al. Changes in fruit firmness of different blackberry cultivars during development and ripening[J]. Acta Agriculturae Jiangxi, 2012, 24(10): 9-11, 14.
[18]	屈红霞, 唐友林, 谭兴杰, 等. 采后菠萝贮藏品质与果肉细胞超微结构的变化[J]. 果树学报, 2001, 18(3): 164-167.
	QU Hongxia, TANG Youlin, TAN Xingjie, et al. Study on the changing of keeping quality and cell ultrastructure in postharvest pineapples[J]. Journal of Fruit Science, 2001, 18(3): 164-167.
[19]	叶力勤. 枸杞果实发育时期及特性观察[J]. 宁夏农林科技, 2009, 50(2): 18-19.
	YE Liqin. Observation on development period and characteristics of Lycium barbarum fruit[J]. Ningxia Journal of Agriculture and Forestry Science and Technology, 2009, 50(2): 18-19.
[20]	Brady C J, Mcglason W B, Pearson J A, Meldrum, S K, Kopeliovitch E. Interac-tions betwenthe amount and molecular forms of po-lygalacturonase, calcium, and firmnes in tomato fruit[J]. Journal of the American Society for Horticultural Science, 1(10): 254-258.
[21]	Redgwel R J, Melton L D, Brasch D J. Cel wal dis-solution in ripening kiwifruit[J]. Plant Physiology, 1992, 98: 71-81.
[22]	Rose J, Hadfield K, Labavitch J, et al. Temporal sequence of cell wall disassembly in rapidly ripening melon fruit[J]. Plant Physiology, 1998, 117(2): 345-361. PMID
[23]	Car Rington C M S, Greve C L, Labavitch J M. Cel wal metabolism in ripening fruit[J]. Plant Physiology, 1993, 103: 429-434.
[24]	孙英杰. 钙和赤霉素对寒富苹果果实品质发育和贮藏性影响的研究[D]. 沈阳: 沈阳农业大学, 2019.
	SUN Yingjie. Effects of Calcium and Gibberellin on Quality Development and Storability of Hanfu Apple Fruit[D]. Shenyang: Shenyang Agricultural University, 2019.
[25]	Redgwell R J, MacRae E, Hallett I, et al. In vivo and in vitro swelling of cell walls during fruit ripening[J]. Planta, 1997, 203(2): 162-173.
[26]	李萍. 新疆杏果实发育期及采后生理生化机理研究[D]. 乌鲁木齐: 新疆农业大学, 2013.
	LI Ping. Studies on the Physiological and Biochemical Mechanism of Xinjiang Apricot Fruit during the Period of Developmental and Storage[D]. Urumqi: Xinjiang Agricultural University, 2013.
[27]	阚娟, 谢海艳, 金昌海. 桃果实成熟软化过程中生理特性及细胞壁超微结构的变化[J]. 江苏农业学报, 2012, 28(5): 1125-1129.
	KAN Juan, XIE Haiyan, JIN Changhai. Physiological characteristics and cell wall ultrastructure during ripening and softening of peach fruit[J]. Jiangsu Journal of Agricultural Sciences, 2012, 28(5): 1125-1129.
[28]	张永旺. 不同覆盖方式对旱地苹果园土壤水分和树体生长的影响[D]. 杨凌: 西北农林科技大学, 2013.
	ZHANG Yongwang. Effects of Different Mulching Patterns on Soil Moisture and Growth of Trees in Dryland Apple Orchard[D]. Yangling: Northwest A & F University, 2013.
[29]	李萍, 廖康, 赵世荣, 等. 杏果实发育成熟过程中细胞壁组分和水解酶活性的变化[J]. 新疆农业大学学报, 2013, 36(4): 298-303.
	LI Ping, LIAO Kang, ZHAO Shirong, et al. Variation of cell wall and hydrolases in apricot fruit during development and maturing process[J]. Journal of Xinjiang Agricultural University, 2013, 36(4): 298-303.
[30]	海龙飞. 软/硬肉葡萄果实发育中细胞壁变化及VvPME19基因在果实软化中的功能分析[D]. 郑州: 河南农业大学, 2022.
	HAI Longfei. Changes of cell wall during fruit development of soft/hard-fleshed grapes and functional analysis of VvPME19 gene in fruit softening[D]. Zhengzhou: Henan Agricultural University, 2022.
[31]	董晓庆, 刘洪滩, 朱守亮, 等. 1-MCP结合自发气调包装对‘空心李’果实软化和细胞壁代谢的影响[J]. 中国农学通报, 2020, 36(22): 129-135. DOI
	DONG Xiaoqing, LIU Hongtan, ZHU Shouliang, et al. Effects of 1-MCP combined with MAP on softening and cell wall metabolism of ‘Kongxin’ plum[J]. Chinese Agricultural Science Bulletin, 2020, 36(22): 129-135. DOI
[32]	Lin Y F, Lin Y X, Lin H T, et al. Effects of paper containing 1-MCP postharvest treatment on the disassembly of cell wall polysaccharides and softening in Younai plum fruit during storage[J]. Food Chemistry, 2018, 264: 1-8. DOI PMID
[33]	周厚成. 草莓果实成熟软化相关基因的研究[D]. 杨凌: 西北农林科技大学, 2014.
	ZHOU Houcheng. Research on Genes Related to Fruit Ripening and Softening of Strawberry[D]. Yangling: Northwest A & F University, 2014.
[34]	王贵禧, 韩雅珊, 于木梁. 猕猴桃软化过程中阶段性专一酶活性变化的研究[J]. 植物学报, 1995, 37(3): 198-203.
	WANG Guixi, HAN Yashan, YU Muliang. Study on the activities of stage specific enzyme during softening of kiwifruit[J]. Journal of Integrative Plant Biology, 1995, 37(3): 198-203.
[35]	申曙光, 马宝焜, 陈四维. 红富士苹果果实发育期间生理生化变化的研究[J]. 果树科学, 1991, 8(1): 1-6.
	SHEN Shuguang, MA Baokun, CHEN Siwei. Studies on the physiological and biochemical changes during the development of the “fuji” apple fruit[J]. Journal of Fruit Science, 1991, 8(1): 1-6.
[36]	龙鹏, 段铸轩, 朱明涛. 外源钙肥对瑞都早红葡萄裂果和果实品质的影响[J]. 农业科技通讯, 2022,(4): 199-201.
	LONG Peng, DUAN Zhuxuan, ZHU Mingtao. Effects of exogenous calcium fertilizer on fruit cracking and fruit quality of ruidu Zaohong grape[J]. Bulletin of Agricultural Science and Technology, 2022,(4): 199-201.
[37]	周鹤莹, 张玮, 张卿, 等. 森林草莓‘Ruegen’果胶裂解酶基因的克隆及荧光定量表达分析[J]. 园艺学报, 2015, 42(3): 455-461.
	ZHOU Heying, ZHANG Wei, ZHANG Qing, et al. The cloning and quantitative expression analysis of pectate lyase gene in Fragaria vesca[J]. Acta Horticulturae Sinica, 2015, 42(3): 455-461.
