Xinjiang Agricultural Sciences ›› 2021, Vol. 58 ›› Issue (12): 2256-2264.DOI: 10.6048/j.issn.1001-4330.2021.12.013
• Plant Protection· Horticultural Special Local Products· Soil Fertilizer· Water Saving Irrigation Agroecological Environment· Agricultural Equipment Engineering and Mechanization • Previous Articles Next Articles
LIU Haiyang1(), WANG Wei1, ZHANG Renfu1, LEI Bin2, YAO Ju1(
)
Received:
2020-09-24
Online:
2021-12-20
Published:
2021-12-31
Correspondence author:
YAO Ju
Supported by:
通讯作者:
姚举
作者简介:
刘海洋(1982-),男,山东人,副研究员,博士,研究方向为棉花病害综合防控与基础研究,(E-mail) liuhaiyang001@163.com
基金资助:
CLC Number:
LIU Haiyang, WANG Wei, ZHANG Renfu, LEI Bin, YAO Ju. Influence of Biofertilizers on Community Diversity and Population Structure of Soil Bacteria in Cotton Field[J]. Xinjiang Agricultural Sciences, 2021, 58(12): 2256-2264.
刘海洋, 王伟, 张仁福, 雷斌, 姚举. 施用生物菌剂对棉田土壤细菌群落多样性及种群结构的影响[J]. 新疆农业科学, 2021, 58(12): 2256-2264.
处理 Treatment | pH值 pH value | 总盐 Total salt (g/kg) | 全氮 Total nitrogen (g/kg) | 全磷 Total phosphorus (g/kg) | 全钾 Total potassium (g/kg) | 有机质 Organic matter (g/kg) | 速效氮 Available nitrogen (mg/kg) | 速效磷 Available phosphorus (mg/kg) | 速效钾 Available potassium (mg/kg) |
---|---|---|---|---|---|---|---|---|---|
Biofer1 | 8.79 | 2.3 | 0.28 | 0.60 | 14.25 | 5.55 | 27.0 | 9.2 | 65.0 |
CK1 | 8.87 | 2.5 | 0.44 | 0.32 | 14.58 | 8.42 | 24.0 | 9.9 | 117.0 |
Biofer2 | 8.81 | 1.3 | 0.42 | 0.43 | 14.58 | 9.97 | 43.5 | 18.0 | 67.0 |
CK2 | 7.99 | 4.7 | 0.54 | 0.43 | 14.51 | 12.62 | 43.5 | 19.2 | 83.0 |
Table 1 Soil nutrients and physicochemical properties of the experimental plots in 2019
处理 Treatment | pH值 pH value | 总盐 Total salt (g/kg) | 全氮 Total nitrogen (g/kg) | 全磷 Total phosphorus (g/kg) | 全钾 Total potassium (g/kg) | 有机质 Organic matter (g/kg) | 速效氮 Available nitrogen (mg/kg) | 速效磷 Available phosphorus (mg/kg) | 速效钾 Available potassium (mg/kg) |
---|---|---|---|---|---|---|---|---|---|
Biofer1 | 8.79 | 2.3 | 0.28 | 0.60 | 14.25 | 5.55 | 27.0 | 9.2 | 65.0 |
CK1 | 8.87 | 2.5 | 0.44 | 0.32 | 14.58 | 8.42 | 24.0 | 9.9 | 117.0 |
Biofer2 | 8.81 | 1.3 | 0.42 | 0.43 | 14.58 | 9.97 | 43.5 | 18.0 | 67.0 |
CK2 | 7.99 | 4.7 | 0.54 | 0.43 | 14.51 | 12.62 | 43.5 | 19.2 | 83.0 |
取样年度 Sampling year | 处理 Treatment | ACE指数 ACE index | Chao指数 Chao1 index | 香农指数 Shannon index |
---|---|---|---|---|
2017年 | Biofer | 1 704.9±57.9a | 1 728.0±63.2a | 6.34±0.11a |
CK | 1 681.7±67.1a | 1 691.5±72.1a | 6.26±0.12a | |
B-Biofer | 1 695.9±23.6a | 1 699.7±34.1a | 6.20±0.08a | |
B-CK | 1 675.4±29.6a | 1 684.6±34.0a | 6.25±0.08a | |
2018年 | Biofer | 1 667.6±45.7a | 1 686.9±42.0a | 6.33±0.04a |
CK | 1 680.6±34.1a | 1 694.1±46.8a | 6.30±0.06a | |
2019年 | Biofer1 | 970.7±109.5b | 997.9±119.7b | 5.48±2.17a |
CK1 | 1 154.6±36.3a | 1 228.0±57.7a | 5.32±0.49a | |
Biofer2 | 974.6±66.9b | 820.6±106.1b | 4.44±0.66a | |
CK2 | 1 119.9±96.3a | 1 003.6±74.9a | 4.30±0.56a |
Table 2 Diversity index of soil bacteria in cotton field after applying biofilm in different years
取样年度 Sampling year | 处理 Treatment | ACE指数 ACE index | Chao指数 Chao1 index | 香农指数 Shannon index |
---|---|---|---|---|
2017年 | Biofer | 1 704.9±57.9a | 1 728.0±63.2a | 6.34±0.11a |
CK | 1 681.7±67.1a | 1 691.5±72.1a | 6.26±0.12a | |
B-Biofer | 1 695.9±23.6a | 1 699.7±34.1a | 6.20±0.08a | |
B-CK | 1 675.4±29.6a | 1 684.6±34.0a | 6.25±0.08a | |
2018年 | Biofer | 1 667.6±45.7a | 1 686.9±42.0a | 6.33±0.04a |
CK | 1 680.6±34.1a | 1 694.1±46.8a | 6.30±0.06a | |
2019年 | Biofer1 | 970.7±109.5b | 997.9±119.7b | 5.48±2.17a |
CK1 | 1 154.6±36.3a | 1 228.0±57.7a | 5.32±0.49a | |
Biofer2 | 974.6±66.9b | 820.6±106.1b | 4.44±0.66a | |
CK2 | 1 119.9±96.3a | 1 003.6±74.9a | 4.30±0.56a |

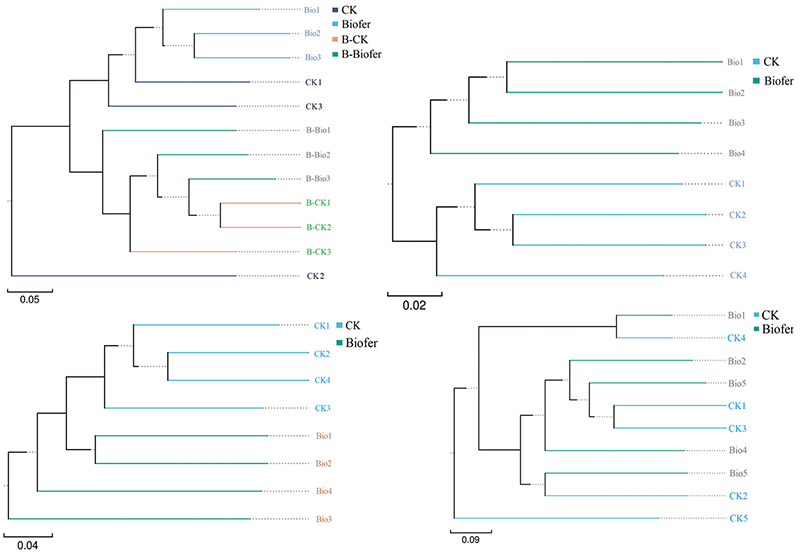

Fig.1 Cluster analysis of soil bacteria in cotton field after applying biofilm in different years Note: a:soilsof different treatment in disease nursery of test station in 2017; b: soils of different treatment of test station in 2018; c: soils of different treatment in No.1 cotton field of test station in 2019; d: soils of different treatment in No.2 cotton field of test station in 2019

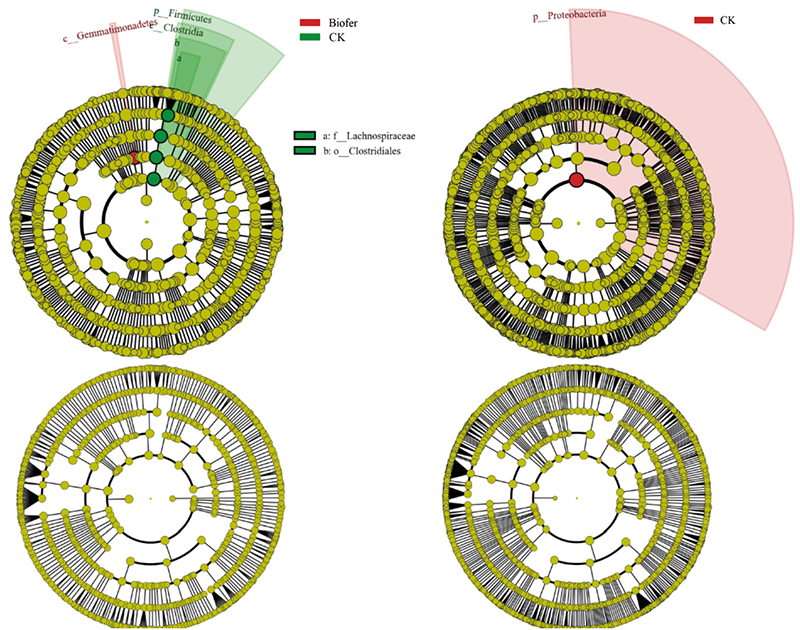

Fig.3 Significant difference analysis of soil bacteria in cotton field after applying biofilm in different years Note: a: soils of different treatment in disease nursery of test station in 2017; b: soils of different treatment of test station in 2018; c: soils of different treatment in No.1 cotton field of test station in 2019; d: soils of different treatment in No.2 cotton field of test station in 2019
取样年度 Samplingyear | 处理 Treatment | 芽孢杆菌属 Bacillus (%) | 链霉菌属 Streptomyces (%) | 溶杆菌属 Lysobacter (%) | 假单胞菌属 Pseudomonas (%) |
---|---|---|---|---|---|
2017年 | Biofer | 0.21 | 0.48 | 0.28 | 0.37 |
CK | 0.15 | 0.44 | 0.27 | 0.40 | |
B-Biofer | 0.10 | 0.75 | 0.66 | 0.57 | |
B-CK | 0.12 | 0.64 | 0.83 | 0.31 | |
2018年 | Biofer | 1.72 | 0.74 | 1.31 | 1.64 |
CK | 1.30 | 1.22 | 1.14 | 2.59 | |
2019年 | Biofer1 | 2.78 | 0.20 | 0.10 | 0.48 |
CK1 | 1.01 | 0.18 | 0.11 | 0.63 | |
Biofer2 | 3.43 | 0.15 | 0.60 | 0.83 | |
CK2 | 2.48 | 0.06 | 0.05 | 0.87 |
Table 3 Abundance values of 4 major bacterial populations in soils of different treatments
取样年度 Samplingyear | 处理 Treatment | 芽孢杆菌属 Bacillus (%) | 链霉菌属 Streptomyces (%) | 溶杆菌属 Lysobacter (%) | 假单胞菌属 Pseudomonas (%) |
---|---|---|---|---|---|
2017年 | Biofer | 0.21 | 0.48 | 0.28 | 0.37 |
CK | 0.15 | 0.44 | 0.27 | 0.40 | |
B-Biofer | 0.10 | 0.75 | 0.66 | 0.57 | |
B-CK | 0.12 | 0.64 | 0.83 | 0.31 | |
2018年 | Biofer | 1.72 | 0.74 | 1.31 | 1.64 |
CK | 1.30 | 1.22 | 1.14 | 2.59 | |
2019年 | Biofer1 | 2.78 | 0.20 | 0.10 | 0.48 |
CK1 | 1.01 | 0.18 | 0.11 | 0.63 | |
Biofer2 | 3.43 | 0.15 | 0.60 | 0.83 | |
CK2 | 2.48 | 0.06 | 0.05 | 0.87 |
[1] | 刘海洋, 姚举, 张仁福, 等. 黄萎病不同发生程度棉田中土壤微生物多样性[J]. 生态学报, 2018,38(5):1619-1629. |
LIU Haiyang, YAO Ju, ZHANG Renfu, et al. Analysis of soil microbial diversity in cotton fields differing in occurrence of cotton Verticillium wilt in Xinjiang[J]. Acta Ecologica Sinica, 2018,38(5):1619-1629. | |
[2] | 鹿秀云, 马平, 李社增. 防治棉花黄萎病的生防细菌NCD-2的田间效果评价及其鉴定[J]. 植物病理学报, 2005,35(5):451-455. |
LU Xiuyun, MA Ping, LI Shezeng. Evaluation of biocontrol potential of a bacterial strain NCD-2 against Cotton Verticillium wilt in field trials[J]. Acta Phytopathologica Sinica, 2005,35(5):451-455. | |
[3] | 李社增, 马平, 刘杏忠, 等. 利用拮抗细菌防治棉花黄萎病[J]. 华中农业大学学报, 2001,20(5):422-425. |
LI Shezeng, MA Ping, LIU Xingzhong, et al. Biological control of cotton Verticillium wilt by antagonistic bacteria[J]. Journal of Huazhong Agricultural University, 2001,20(5):422-425. | |
[4] | 魏娇洋, 冯龙, 陈英化, 等. 解淀粉芽孢杆菌X-278片剂的研制、定殖及田间防效[J]. 农药学学报, 2014,16(3) : 347-353. |
WEI Jiaoyang, FENG Long, CHEN Yinghua, et al. Development, colonization and field control effect of antiamyloidosis Bacillus x-278 tablets[J]. Journal of Pesticide Science, 2014,16(3):347-353. | |
[5] | 曾红, 杨生强. 棉花黄萎病菌拮抗细菌TUBP1 的分离鉴定及其防病作用[J]. 棉花学报, 2014,26(5):445-451. |
ZENG Hong, YANG Shengqiang. Isolation, identification, and antifungal activity of the antagonistic bacterial strain TUBP1 against Verticillium dahliae Kleb[J]. Cotton Science, 2014,26(5):445-451. | |
[6] | 张冬冬, 李术娜, 郭晓军, 等. 一株棉花黄萎病拮抗芽胞细菌的分离鉴定及活性检测[J]. 棉花学报, 2012,24(4):358-362. |
ZHANG Dongdong, LI Shuna, GUO Xiaojun, et al. Isolation, identification and activity of an antagonistic spore bacterium against cotton Verticillium wilt[J]. Cotton Science, 2012,24(4):358-362. | |
[7] | 翟枫, 段军娜, 张鑫, 等. 棉花黄萎病拮抗细菌LW-4的筛选鉴定及其防治效果[J]. 植物保护学报, 2014,41(3):379-380. |
ZHAI Feng, DUAN Junna, ZHANG Xin, et al. Screening, identification and control effects of antagonistic bacterium LW-4 against cotton Verticillium wilt[J]. Acta Phytophylacica Sinica, 2014,41(3):379-380. | |
[8] | 张慧, 杨兴明, 冉炜, 等. 土传棉花黄萎病拮抗菌的筛选及其生物效应[J]. 土壤学报, 2008,45(6):1095-1101. |
ZHANG Hui, YANG Xingming, RAN Wei, et al. Screening of bacteria antagonistic against soil-borne cotton Verticillium wilt and their biological effect onthesoil-cotton system[J]. Acta Pedologica Sinica, 2008,45(6):1095-1101. | |
[9] | 李斌, 谢关林, 陈若霞, 等. 耕作与栽培方式对瓜类土壤细菌数量及枯萎病拮抗细菌分布的影响[J]. 应用生态学报, 2006,17(10):1937-1940. |
LI Bin, XIE Guanlin, CHEN Ruoxia, et al. Effects of cropping system and cultivation pattern on bacterial populations and anti -fusarium wilt bacteria in melon soils[J]. Chinese Journal of Applied Ecology, 2006,17(10):1937-1940. | |
[10] | 李胜华, 谷丽萍, 刘可星. 有机肥配施对番茄土传病害的防治及土壤微生物多样性的调控[J]. 植物营养与肥料学报, 2009,15(4):965-969. |
LI Shenghua, GU Liping, LIU Kexing. Effects of combined application of organic fertilizers on the control of soilborne diseases andthe regulation of soil microbial diversity[J]. Plant Nutrition and Fertilizer Science, 2009,15(4):965-969. | |
[11] | Marschner P, Yang C.H, Lieberei R, et al. Soil and plant specific effects on bacterial community composition in the rhizosphere[J]. Soil Biology and Biochemistry, 2001,33(11):1437-1445. |
[12] | Tóth Z, Táncsics A, Kriszt B, et al. Extreme effects of drought on composition of the soil bacterial community and decomposition of plant tissue[J]. European Journal of Soil Science, 2017,Doi: 10.1111/ejss.12429. |
[13] | Suzuki C, Nagaoka K, Shimada A, et al. Bacterial communities are more dependent on soil type than fertilizer type, but the reverse is true for fungal communities[J]. Soil Science and Plant Nutrition, 2009, (55):80-90. |
[14] | Luo J, Ran W, Hu J, et al. Application of Bio-Organic Fertilizer Significantly Affected Fungal Diversity of Soils[J]. Soil Science Society of America Journal, 2010,74(6):2039. |
[15] | Preem J K, Truu J, Truu M, et al. Bacterial community structure and its relationship to soil physico-chemical characteristics in alder stands with different management histories[J]. Ecological Engineering, 2012, (49):10-17. |
[16] | Yang L, Tan L, Zhang F, et al. Duration of continuous cropping with straw return affects the composition and structure of soil bacterial communities in cotton fields[J]. Canadian Journal of Microbiology, 2017,64(3):167-181. |
[17] | Shen W, Ni Y, Gao N, et al. Bacterial community composition is shaped by soil secondary salinization and acidification brought on by high nitrogen fertilization rates[J]. Applied Soil Ecology, 2016, (108):76-83. |
[18] | Bainard L D, Hamel C, Gan Y. Edaphic properties override the influence of crops on the composition of the soil bacterial community in a semiarid agro ecosystem[J]. Applied Soil Ecology, 2016, (105):160-168. |
[19] | Meng M, Lin J, Guo X, et al. Impacts of forest conversion on soil bacterial community composition and diversity in subtropical forests[J]. Catena, 2019, (175):167-173. |
[20] | Zhao Q, Dong C, Yang X, et al. Biocontrol of Fusarium wilt disease for Cucumis melo melon using bio-organic fertilizer[J]. Applied Soil Ecology, 2011,47(1):67-75. |
[21] | Sui J, Ji C, Wang X, et al. A plant growth-promoting bacterium alters the microbial community of continuous cropping poplar trees' rhizosphere[J]. Journal of Applied Microbiology, 2019,126(4):1209-1220. |
[22] | Li R, Tao R, Ling N, et al. Chemical, organic and bio-fertilizer management practices effect on soil physicochemical property and antagonistic bacteria abundance of a cotton field: Implications for soil biological quality[J]. Soil and Tillage Research, 2017, (167):30-38. |
[23] | Chen D, Wang X, Zhang W, et al. Persistent organic fertilization reinforces soil-borne disease suppressiveness of rhizosphere bacterial community[J]. Plant and Soil, 2020, (452):313-328. |
[24] | Shin K, Van Diepen G, Blok W, et al. Variability of Effective Micro-organisms (EM) in bokashi and soil and effects on soil-borne plant pathogens[J]. Crop Protection, 2017, (99):168-176. |
[25] | Giotis C, Markelou E, Theodoropoulou A, et al. Effect of soil amendments and biological control agents (bcas) on soil-borne root diseases caused by Pyrenochaeta lycopersici and Verticillium albo-atrum in organic greenhouse tomato production systems[J]. European Journal of Plant Pathology, 2009,123(4):387-400. |
[26] | Lihua L, Jincai M, Ibekwe A, et al. Cucumber Rhizosphere Microbial Community Response to Biocontrol Agent Bacillus subtilis B068150[J]. Agriculture, 2015,6(1):2. |
[27] | Larkin R P, Brewer M T. Effects of biological amendments on soil microbiology and soilborne potato diseases in different cropping systems[J]. Phytopathology, 2005,(95):S56. |
