Retrieval of wheat photosynthetic parameters at different growth stages based on UAV multispectral images

doi:10.6048/j.issn.1001-4330.2023.06.002

Xinjiang Agricultural Sciences ›› 2023, Vol. 60 ›› Issue (6): 1308-1318.DOI: 10.6048/j.issn.1001-4330.2023.06.002

• Special volume for green, yield increasing, quality improving and eficiency improving technologies for major grain crops in Xinjiang • Previous Articles Next Articles

Retrieval of wheat photosynthetic parameters at different growth stages based on UAV multispectral images

DONG Deyu¹(), CHENG Yukun¹, WANG Rui¹, LEI Junjie², WANG Wei¹, CHEN Chuanxin², ZHENG Yongqiang², GENG Hongwei¹()

1. High Quality Special Wheat Crops Engineering Technology Research Center/College of Agriculture, Xinjiang Agricultural University, Urumqi 830052, China
2. Key Laboratory of Desert-Oasis Crop Physiology,Ecology and Cultivation,MOARA/ Institute of Food Crops, Xinjiang Academy of Agricultural Sciences,Urumqi 830091,China

Received:2022-10-30 Online:2023-06-20 Published:2023-06-20
Correspondence author: GENG Hongwei(1978-),male,professor,Dr,research direction for crop yield cultivation,(E-mail) hw-geng@163.com
Supported by:
Key R & D Program Project of Xinjiang Uygur Autonomous Region(2021B02002);Key R & D Program Project of Xinjiang Uygur Autonomous Region(2021B02002-1);Candidates for the "Tianshan Cedar Plan" of Xinjiang Autonomous Region (Reserve Candidates for Leading Scientific and Technological Innovation Talents)(2019XS16);Earmarked Fund for CARS(CARS-03-94)

基于无人机多光谱影像反演不同生育期小麦光合参数分析

董德誉¹(), 程宇坤¹, 王睿¹, 雷钧杰², 王伟¹, 陈传信², 张永强², 耿洪伟¹()

1.新疆农业大学农学院/优质专用麦类作物工程技术研究中心,乌鲁木齐 830052
2.新疆农业科学院粮食作物研究所/农业农村部荒漠绿洲作物生理生态与耕作重点实验室,乌鲁木齐 830091

通讯作者: 耿洪伟(1978-),男,新疆库尔勒人,教授,博士,硕士生导师,研究方向为小麦遗传育种,(E-mail) hw-geng@163.com
作者简介:董德誉(1995-),男,广西人,硕士研究生,研究方向为小麦遗传育种,(E-mail)deyudong@sina.com
基金资助:
新疆维吾尔自治区重点研发项目(2021B02002);新疆维吾尔自治区重点研发项目(2021B02002-1);新疆维吾尔自治区“天山雪松计划”人选(科技创新领军人才后备人选)(2019XS16);国家现代农业产业技术体系建设专项(CARS-03-94)

Abstract

Abstract:

【Objective】 To study the feasibility of real-time monitoring of winter wheat photosynthesis based on UAV (unmanned aerial vehicle) multi-spectral image and the influence of winter wheat with different growth status on the estimation model.【Methods】 In this study, 16 winter wheat varieties were selected as experimental materials, based on the UAV multispectral image data obtained at different growth stages under the nitrogen free level of N₀(0 kg N/667m²) and the normal nitrogen application level of N₁(15 kg N/667m²).【Results】 Combined with the measured data of four photosynthetic parameters (intercellular carbon dioxide (Ci), stomatal conductance (Ti), net photosynthetic rate (Pn) and transpiration rate (Gs) in the same period, the estimation models of four photosynthetic parameters under normal nitrogen application were established by gradient enhanced regression and ridge regression, respectively.Then, the estimation model was used to estimate the four photosynthetic parameters of anthesis and whole growth period under nitrogen free treatment.The results showed: that gradient enhanced regression could better predict the net photosynthetic rate (Pn) at flowering stage under nitrogen application, and the determination coefficient (R²) was 0.82.The prediction accuracy of Ci, Gs and Ti were 0.44, 0.64 and 0.48, respectively.In the absence of nitrogen application, the estimation accuracy of Pn, Gs and Ti was greater than 0.5.In ridge regression, Pn, Gs and Ti with R²>0.5 were the four photosynthetic parameters during the whole growth period under normal N application, while Gs and Pn with R²>0.5 were the prediction determination coefficients under no N treatment.【Conclusion】 The real-time monitoring of wheat photosynthetic parameters at different growth stages can be achieved by combining vegetation index obtained from UAV multi-spectral images with gradient enhanced regression and ridge regression.

Key words: wheat; photosynthetic parameters; UAV; data modeling

摘要：

【目的】研究无人机多光谱影像对冬小麦光合作用实时监测的可行性,分析不同长势差异的冬小麦对估算模型的影响。【方法】选用16个冬小麦品种作为材料,在无氮处理N₀(0 kg N/667m²)和正常施氮处理N₁(15 kg N/667m²)下获得孕穗期、开花期和灌浆期无人机蓝(B)、绿(G)、红(R)、红边(RE)和近红外(NIR)5个波段的光谱遥感影像,结合同时期4种光合参数胞间CO₂浓度(Ci)、气孔导度(Gs)、净光合速率(Pn)和蒸腾速率(Ti),采用梯度增强回归和岭回归方法建立正常施氮处理下开花期和全生育期4个光合参数的估算模型,并用该估算模型估算无氮处理下开花期和全生育期4个光合参数。【结果】梯度增强回归可以较好的预测施氮下开花期净光合速率(Pn),决定系数(R²)为0.82,Ci、Gs和Ti的预测反演精度分别为0.44、0.64和0.48,在无氮处理下,该模型估算精度大于0.5的为Pn、Gs和Ti。【结论】岭回归在估算正常施氮下全生育期的4个光合参数时,R²> 0.5的是Pn、Gs和Ti,而在无氮处理水平下,该估算模型的预测决定系数R²> 0.5的是Gs和Pn。对不同生育期的小麦光合参数的实时监测,可以通过无人机多光谱影像获取的植被指数结合梯度增强回归和岭回归方法来实现。

关键词: 小麦, 光合参数, 无人机, 数据建模

CLC Number:

S512.1

DONG Deyu, CHENG Yukun, WANG Rui, LEI Junjie, WANG Wei, CHEN Chuanxin, ZHENG Yongqiang, GENG Hongwei. Retrieval of wheat photosynthetic parameters at different growth stages based on UAV multispectral images[J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1308-1318.

董德誉, 程宇坤, 王睿, 雷钧杰, 王伟, 陈传信, 张永强, 耿洪伟. 基于无人机多光谱影像反演不同生育期小麦光合参数分析[J]. 新疆农业科学, 2023, 60(6): 1308-1318.

Figures/Tables 10

Tab.1 Wheat cultivars used in this study

编号 Number	品种名称 Variety	编号 Number	品种名称 Variety
1	石新633	9	新冬46号
2	新冬17号	10	新冬48号
3	新冬18号	11	新冬50号
4	新冬22号	12	新冬51号
5	新冬36号	13	新冬52号
6	新冬37号	14	新冬53号
7	新冬38号	15	新粮201
8	新冬41号	16	新冬60号

Tab.2 Total nitrogen fertilizer amount and nitrogen application amount at different stages of drip irrigation for wheat (kg/667m2)

施氮时期 N stages	基肥 Basal nutrition	起身期 Rising stage	拔节期 Jointing stage	孕穗期 Booting stage
施肥比例Fertilization ratio(%)	40	10	40	10
施尿素量 Urea application amount(kg/667m²)	13.00	3.26	13.00	3.26

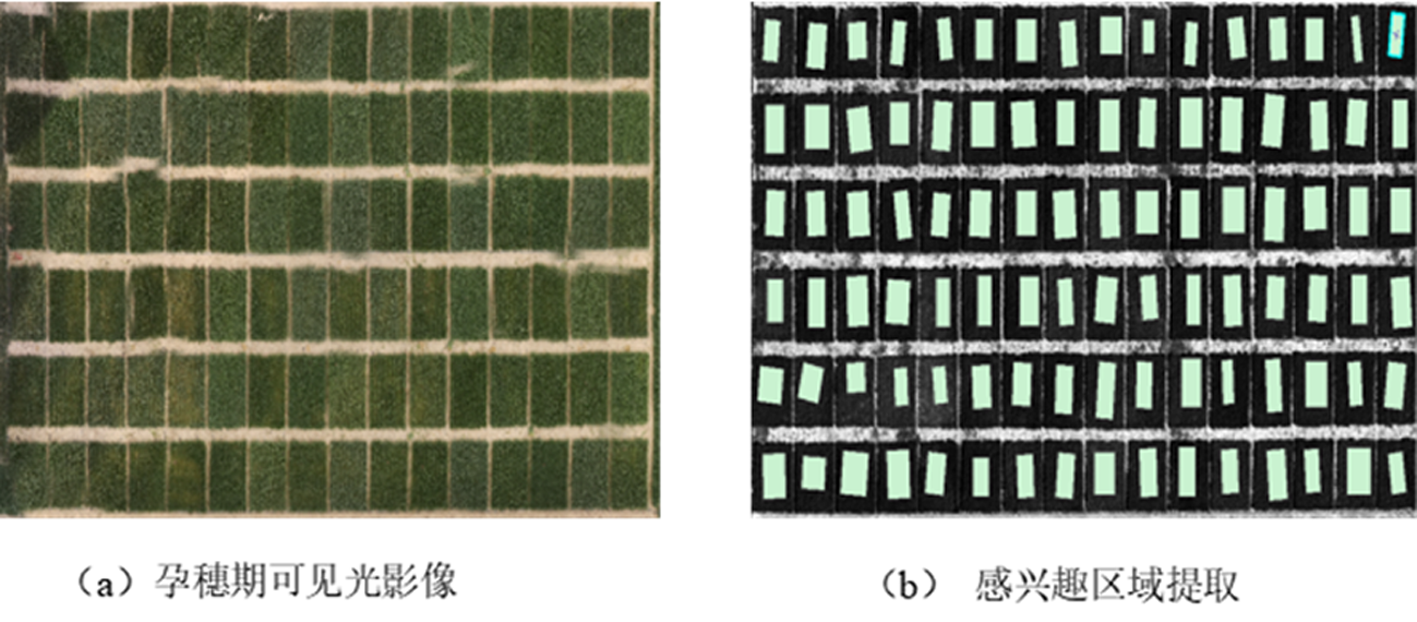

Fig.1 Field test design

Tab.3 Parameters of uav multispectral image acquisition

参数 Parameter	参数值 Parameter values
飞行高度Altitude	12 m
飞行速度Speed	5.4 km/h
航向重叠率Course overlap ratio	75%
旁向重叠率Lateral overlap rate	75%
光谱类型Spectral types	R、G、B、RE、NIR

Tab.4 Vegetation index

植被指数 Vegetation index	计算公式 Formula to calculate
归一化植被指数(NDVI)^[17]	(ρ_NIR-ρ_R)/(ρ_NIR+ρ_R)
绿色归一化植被指数(GNDVI)^[17]	(ρ_NIR-ρ_G)/(ρ_NIR+ρ_G)
归一化绿蓝差指数(NGBDI)^[18]	(ρ_G-ρ_B)/(ρ_G+ρ_B)
归一化绿红差指数(NGRDI)^[18]	(ρ_G-ρ_R)/(ρ_G+ρ_R)
红边重归一化植被指数(RERDVI)^[19]	(ρ_NIR-ρ_RE)/(ρ_NIR+ρ_RE)
土壤调节植被指数(SAVI)^[20]	2.5(ρ_NIR-ρ_R)/(ρ_NIR+ρ_R+0.5)
绿波段优化土壤调节植被指数(GOSAVI)^[20]	1.16[(ρ_NIR-ρ_G)/(ρ_NIR+ρ_G+0.16)]
红边优化土壤调节植被指数(REOSAVI)^[19]	1.16[(ρ_NIR-ρ_R)/(ρ_NIR+ρ_R+0.16)]
优化土壤调节植被指数(OSAVI)^[20]	(ρ_NIR-ρ_R)/(ρ_NIR+ρ_R+0.16)
比值植被指数(RVI)^[21]	ρ_NIR/ρ_R
差值植被指数(DVI)^[21]	ρ_NIR-ρ_R
绿波段比值植被指数(GRVI)^[21]	ρ_NIR/ρ_G
过绿指数(EXG)^[22]	2ρ_G-ρ_R-ρ_B
三角植被指数(TVI)^[23]	0.5[120(ρ_NIR-ρ_G)-200(ρ_R-ρ_G)
叶绿素吸收比值植被指数(CARI)^[20]	(ρ_RE-ρ_R)-0.2(ρ_RE+ρ_R)
绿波段大气阻抗植被指数(VARIgreen)^[21]	(ρ_G-ρ_R)/(ρ_G+ρ_R-ρ_B)
红波段大气阻抗植被指数(VARIred)^[21]	(ρ_RE-1.7ρ_R+0.7ρ_B)/(ρ_RE+2.3ρ_R-1.3ρ_B)
增强型植被指数(EVI)^[23]	2.5(ρ_NIR-ρ_R)/(ρ_NIR+6ρ_R-7.5ρ_B+1)

Fig 2 Changes of four photosynthetic parameters of wheat varieties under different nitrogen treatments Note:N0 and N1 respectively represent nitrogen free treatment levels N0(0 kg N/667m2) and normal nitrogen application level N1(15 kg N/667m2)

Tab.5 Correlation coefficient between vegetation index and photosynthetic parameters at flowering stage

植被指数 Vegetation index	N₁开花期 N₁ Flowering stage				N₀开花期 N₀ Flowering stage
植被指数 Vegetation index	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)
叶绿素吸收比值指数CARI	-0.01	-0.48	-0.56^*	-0.51^*	-0.05	0.16	0.42	-0.14
差值植被指数DVI	0.06	-0.10	-0.13	-0.09	-0.12	0.09	0.51^*	-0.24
增强型植被指数EVI	0.02	-0.23	-0.32	-0.26	0.24	0.06	0.55^*	0.08
过绿指数EXG	0.43	0.29	0.11	0.16	-0.14	0.42	0.39	-0.14
绿色归一化植被指数GNDVI	-0.41	-0.6 $7 * *$	-0.59^*	-0.59^*	0.05	-0.15	0.34	-0.11
绿波段优化土壤调节植被指数GOSAVI	-0.41	-0.68^**	-0.60^*	-0.59^*	0.04	-0.14	0.36	-0.13
绿波段比值植被指数GRVI	-0.33	-0.69^**	-0.64^**	-0.61^*	0.01	-0.07	0.45	-0.05
归一化绿红差异指数NGRGI	0.23	-0.07	-0.23	-0.16	0.14	0.20	0.52^*	0.20
归一化植被指数NDVI	-0.09	-0.41	-0.47	-0.42	0.16	0.01	0.57^*	-0.08
归一化蓝绿差异指数NGBDI	-0.01	-0.52^*	-0.55^*	-0.52^*	-0.33	-0.07	0.28	-0.33
优化土壤调节植被指数OSAVI	0.38	0.85^**	0.79^**	0.80^**	0.04	0.09	-0.27	0.15
绿波段优化土壤调节植被指数REOSAVI	-0.09	-0.39	-0.44	-0.40	0.15	0.02	0.56*	-0.08
红边重归一化植被指数RERDVI	-0.07	0.49	0.59*	0.54*	0.23	-0.14	0.20	-0.10
比值植被指数RVI	0.05	-0.31	-0.41	-0.35	0.10	-0.01	0.63^**	0.09
土壤调节植被指数SAVI	-0.10	-0.40	-0.45	-0.41	0.17	0.01	0.57^*	-0.09
三角植被指数TVI	0.09	-0.10	-0.15	-0.11	-0.09	0.13	0.55^*	-0.23
绿波段大气阻抗植被指数VARIgreen	0.21	-0.04	-0.18	-0.12	0.23	0.16	0.53^*	0.09
红波段大气阻抗植被指数VARIred	-0.03	-0.45	-0.53^*	-0.47	0.11	0.09	0.50	0.06

Tab.5 Correlation coefficient between vegetation index and photosynthetic parameters at flowering stage

植被指数 Vegetation index	N₁开花期 N₁ Flowering stage				N₀开花期 N₀ Flowering stage
植被指数 Vegetation index	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)
叶绿素吸收比值指数CARI	-0.01	-0.48	-0.56^*	-0.51^*	-0.05	0.16	0.42	-0.14
差值植被指数DVI	0.06	-0.10	-0.13	-0.09	-0.12	0.09	0.51^*	-0.24
增强型植被指数EVI	0.02	-0.23	-0.32	-0.26	0.24	0.06	0.55^*	0.08
过绿指数EXG	0.43	0.29	0.11	0.16	-0.14	0.42	0.39	-0.14
绿色归一化植被指数GNDVI	-0.41	-0.6 $7 * *$	-0.59^*	-0.59^*	0.05	-0.15	0.34	-0.11
绿波段优化土壤调节植被指数GOSAVI	-0.41	-0.68^**	-0.60^*	-0.59^*	0.04	-0.14	0.36	-0.13
绿波段比值植被指数GRVI	-0.33	-0.69^**	-0.64^**	-0.61^*	0.01	-0.07	0.45	-0.05
归一化绿红差异指数NGRGI	0.23	-0.07	-0.23	-0.16	0.14	0.20	0.52^*	0.20
归一化植被指数NDVI	-0.09	-0.41	-0.47	-0.42	0.16	0.01	0.57^*	-0.08
归一化蓝绿差异指数NGBDI	-0.01	-0.52^*	-0.55^*	-0.52^*	-0.33	-0.07	0.28	-0.33
优化土壤调节植被指数OSAVI	0.38	0.85^**	0.79^**	0.80^**	0.04	0.09	-0.27	0.15
绿波段优化土壤调节植被指数REOSAVI	-0.09	-0.39	-0.44	-0.40	0.15	0.02	0.56*	-0.08
红边重归一化植被指数RERDVI	-0.07	0.49	0.59*	0.54*	0.23	-0.14	0.20	-0.10
比值植被指数RVI	0.05	-0.31	-0.41	-0.35	0.10	-0.01	0.63^**	0.09
土壤调节植被指数SAVI	-0.10	-0.40	-0.45	-0.41	0.17	0.01	0.57^*	-0.09
三角植被指数TVI	0.09	-0.10	-0.15	-0.11	-0.09	0.13	0.55^*	-0.23
绿波段大气阻抗植被指数VARIgreen	0.21	-0.04	-0.18	-0.12	0.23	0.16	0.53^*	0.09
红波段大气阻抗植被指数VARIred	-0.03	-0.45	-0.53^*	-0.47	0.11	0.09	0.50	0.06

Tab.6 Correlation coefficient between vegetation index and photosynthetic parameters in whole growth period

植被指数 Vegetation index	N₁全生育期 N₁ The whole growth period				N₀全生育期 N₀ The whole growth period
植被指数 Vegetation index	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)
叶绿素吸收比值指数CARI	-0.34^**	-0.05	0.21	0.48^**	-0.37^**	-0.32^**	-0.07	0.23^*
差值植被指数DVI	-0.40^**	0.13	0.41^**	0.62^**	-0.40^**	-0.23^*	0.04	0.24^*
增强型植被指数EVI	-0.37^**	0.16	0.40^**	0.52^**	-0.29^**	-0.14	0.09	0.34^**
过绿指数EXG	0.11	-0.49^**	-0.41^**	-0.02	-0.16	-0.48^**	-0.43^**	0.04
绿色归一化植被指数GNDVI	-0.43^**	0.49^**	0.67^**	0.54^**	-0.18	0.24^*	0.41^**	0.24^*
绿波段优化土壤调节植被指数GOSAVI	-0.43^**	0.48^**	0.66^**	0.54^**	-0.19	0.24^*	0.41^**	0.24^*
绿波段比值植被指数GRVI	-0.42^**	0.39^**	0.59^**	0.51^**	-0.22	0.16	0.35^**	0.24^*
归一化绿红差异指数NGRGI	-0.17	-0.18	0.02	0.28^*	-0.26^*	-0.37^**	-0.21	0.24^*
归一化植被指数NDVI	-0.41^**	0.2	0.45^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
归一化蓝绿差异指数NGBDI	0.28^*	-0.25^*	-0.43^**	-0.55^**	0.19	0.03	-0.17	-0.18
优化土壤调节植被指数OSAVI	-0.41^**	0.2	0.46^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
绿波段优化土壤调节植被指数REOSAVI	-0.41^**	0.2	0.45^**	0.56^**	-0.30^**	-0.09	0.14	0.31^**
红边重归一化植被指数RERDVI	-0.19	0.54^**	0.58^**	0.30^**	0.08	0.52^**	0.54^**	0.16
比值植被指数RVI	-0.33^**	0.13	0.35^**	0.44^**	-0.26^*	-0.13	0.08	0.31^**
土壤调节植被指数SAVI	-0.41^**	0.2	0.45^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
三角植被指数TVI	-0.38^**	0.08	0.36^**	0.59^**	-0.39^**	-0.26^*	0.01	0.25^*
绿波段大气阻抗植被指数VARIgreen	-0.17	-0.17	0.03	0.28^*	-0.25^*	-0.36^**	-0.2	0.25^*
红波段大气阻抗植被指数VARIred	-0.34^**	-0.01	0.25^*	0.46^**	-0.35^**	-0.29^**	-0.05	0.30^**

Tab.6 Correlation coefficient between vegetation index and photosynthetic parameters in whole growth period

植被指数 Vegetation index	N₁全生育期 N₁ The whole growth period				N₀全生育期 N₀ The whole growth period
植被指数 Vegetation index	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)	胞间CO₂ 浓度(Ci)	气孔导度 (Gs)	净光合速率 (Pn)	蒸腾速率 (Ti)
叶绿素吸收比值指数CARI	-0.34^**	-0.05	0.21	0.48^**	-0.37^**	-0.32^**	-0.07	0.23^*
差值植被指数DVI	-0.40^**	0.13	0.41^**	0.62^**	-0.40^**	-0.23^*	0.04	0.24^*
增强型植被指数EVI	-0.37^**	0.16	0.40^**	0.52^**	-0.29^**	-0.14	0.09	0.34^**
过绿指数EXG	0.11	-0.49^**	-0.41^**	-0.02	-0.16	-0.48^**	-0.43^**	0.04
绿色归一化植被指数GNDVI	-0.43^**	0.49^**	0.67^**	0.54^**	-0.18	0.24^*	0.41^**	0.24^*
绿波段优化土壤调节植被指数GOSAVI	-0.43^**	0.48^**	0.66^**	0.54^**	-0.19	0.24^*	0.41^**	0.24^*
绿波段比值植被指数GRVI	-0.42^**	0.39^**	0.59^**	0.51^**	-0.22	0.16	0.35^**	0.24^*
归一化绿红差异指数NGRGI	-0.17	-0.18	0.02	0.28^*	-0.26^*	-0.37^**	-0.21	0.24^*
归一化植被指数NDVI	-0.41^**	0.2	0.45^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
归一化蓝绿差异指数NGBDI	0.28^*	-0.25^*	-0.43^**	-0.55^**	0.19	0.03	-0.17	-0.18
优化土壤调节植被指数OSAVI	-0.41^**	0.2	0.46^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
绿波段优化土壤调节植被指数REOSAVI	-0.41^**	0.2	0.45^**	0.56^**	-0.30^**	-0.09	0.14	0.31^**
红边重归一化植被指数RERDVI	-0.19	0.54^**	0.58^**	0.30^**	0.08	0.52^**	0.54^**	0.16
比值植被指数RVI	-0.33^**	0.13	0.35^**	0.44^**	-0.26^*	-0.13	0.08	0.31^**
土壤调节植被指数SAVI	-0.41^**	0.2	0.45^**	0.56^**	-0.31^**	-0.09	0.14	0.31^**
三角植被指数TVI	-0.38^**	0.08	0.36^**	0.59^**	-0.39^**	-0.26^*	0.01	0.25^*
绿波段大气阻抗植被指数VARIgreen	-0.17	-0.17	0.03	0.28^*	-0.25^*	-0.36^**	-0.2	0.25^*
红波段大气阻抗植被指数VARIred	-0.34^**	-0.01	0.25^*	0.46^**	-0.35^**	-0.29^**	-0.05	0.30^**

Tab.7 Vegetation indices with different photosynthetic parameters for data modeling

开花期Flowering stage				全生育期The whole growth period
Ci	Gs	Pn	Ti	Ci	Gs	Pn	Ti
EVI	CARI	GRVI	CARI	CARI	EXG	EXG	EVI
EXG	EXG	NDVI	GNDVI	DVI	GNDVI	GNDVI	NDVI
NGBDI	GNDVI	REOSAVI	GOSAVI	NDVI	GOSAVI	GOSAVI	OSAVI
NGRDI	GOSAVI	RVI	NGBDI	TVI	GRVI	GRVI	RVI
VARIgreen	VARIgreen	SAVI	OSAVI	VARIred	RERDVI	RERDVI	SAVI

Tab.8 Effects of wheat photosynthetic parameters with different growth potential differences on the model

光合参数 Photosynthetic parameters	N₁开花期 N₁ Flowering stage			N₀开花期 N₀Flowering stage			N₁全生育期 N₁ The whole growth period			N₀全生育期 N₀The whole growth period
光合参数 Photosynthetic parameters	R²	RMSE	RE	R²	RMSE	RE	R²	RMSE	RE	R²	RMSE	RE
Ci (μmol/(m²·s))	0.44	31.87	0.12	0.39	21.933	0.08	0.22	17.3	0.06	0.47	17.85	0.06
Gs (mol/(m²·s))	0.64	55.31	0.26	0.78	80.74	0.3	0.57	61.51	0.24	0.62	70.94	0.29
Pn (mol/(m²·s))	0.82	5.23	0.26	0.78	4.99	0.2	0.74	3.59	0.18	0.54	4.39	0.23
Ti (μmol/(m²·s))	0.48	0.88	0.14	0.8	0.9	0.13	0.54	0.8	0.16	0.16	1.14	0.28

References 34

[1]	Curtis T, Halford N G. Food security: the challenge of increasing wheat yield and the importance of not compromising food safety[J]. Annals of Applied Biology, 2014, 164(3):354-372. PMID
[2]	吴舒, 穆月英, 聂凤英. 中国小麦生产波动成因及产量预测[J]. 农业展望, 2020, 16(6): 40-47,58.
	WU Shu, MU Yueying, NIE Fenying. Influencing Factors and Forecast of China's Wheat Production Fluctuations[J]. Agricultural Outlook, 2020, 16(6): 40-47,58.
[3]	张其德. 光合作用的光反应[J]. 植物杂志, 2000,(5):2.
	ZHANG Qide. The light reaction of photosynthesis[J]. Plants, 2000,(5): 2.
[4]	蒋高明. LI-6400光合作用测定系统: 原理、性能、基本操作与常见故障的排除[J]. 植物学通报, 1996,(S1): 74-78.
	JIANG Gaoming. LI-6400 Portable photosyntheses system: principle, function, basic, operation and main problems and solutions during measurement[J]. Chinese Bulletin of Botany, 1996,(S1): 74-78.
[5]	张雨晴, 于海业, 刘爽, 等. 玉米叶片净光合速率快速检测方法研究[J]. 农机化研究, 2019, 41(4): 182-185.
	ZHANG Yuqing, YU Haiying, LIU Shuan, et al. Study on Rapid Detection Method of Net Photosynthetic Rate of Maize Leaves[J]. Journal of Agricultural Mechanization Research, 2019, 41(4): 182-185.
[6]	Korres N E, Froud-Williams R J, Moss S R. Chlorophyll fluorescence technique as a rapid diagnostic test of the effects of the photosynthetic inhibitor chlorotoluron on two winter wheat cultivars[J]. Annals of Applied Biology, 2003, 143(1): 53-56. DOI URL
[7]	刘慎彬. 基于多角度日光诱导叶绿素荧光估算水稻光能利用率[D]. 南京: 南京信息工程大学, 2020.
	LIU Shenbin. Estimation of light use efficiency of rice based on multi-angle solar-induced chlorophyll fluorescence[D]. Nanjing: Nanjing University of Information Science and Technology, 2020.
[8]	刘玉梅, 王云诚, 于贤昌, 等. 黄瓜单叶净光合速率对二氧化碳浓度、温度和光照强度响应模型[J]. 应用生态学报, 2007,(4): 883-887. PMID
	LIU Yumei, WANG Yunchen, YU Xianchan, et al. Mathematic m ode ls of cucumber net photosynthesis rate respond ing to CO₂ concentration, temperature, and illum ination intensity[J]. Chinese Journal of Applied Ecology, 2007,(4): 883-887. PMID
[9]	Gamon J A, Kovalchuk O, Wong C, et al. Monitoring seasonal and diurnal changes in photosynthetic pigments with automated PRI and NDVI sensors[J]. Biogeosciences, 2015, 12(3): 2947-2978.
[10]	Albert P C, Esa T, Jon A, et al. Linking chlorophyll a fluorescence to photosynthesis for remote sensing applications: mechanisms and challenges[J]. Journal of Experimental Botany, 2014, 65(15): 4065-4095. DOI URL
[11]	Ian B S, Elizabeth P, Clare S, et al. Use of hyperspectral remote sensing to estimate the gross photosynthesis of agricultural fields[J]. Canadian Journal of Remote Sensing, 2014, 34(3): 333-341.
[12]	王娣, 佃袁勇, 乐源, 等. 基于高光谱植被指数的叶片净光合速率Pn反演[J]. 地理与地理信息科学, 2016, 32(4): 42-48.
	WANG Di, DIAN Yuanyong, LE Yuan, et al. Net Photosynthetic Rata Inversion Based on Hyperspectral Vegetation Indices[J]. Geography and Geo-Information Science, 2016, 32(4): 42-48.
[13]	苗梦珂, 王宝山, 李长春, 等. 基于连续小波变换的冬小麦叶片最大净光合速率遥感估算[J]. 江苏农业学报, 2020, 36(3): 544-552.
	MIAO Mengkai, WANG Baoshang, LI Changchun, et al. Remote sensing estimation of maximum net photosynthetic rate of winter wheat leaves based on continuous wavelet transform[J]. Jiangsu Journal of Agricultural Sciences, 2020, 36(3): 544-552.
[14]	Nz A, Mw B, Ning W A. Precision agriculture—a worldwide overview[J]. Computers and Electronics in Agriculture, 2002, 36(2-3): 113-132. DOI URL
[15]	Monika R, Behara S, Viviana O, et al. The advantages of using drones over space-borne imagery in the mapping of mangrove forests[J]. Plos One, 2018, 13(7): e0200288. DOI URL
[16]	陈俊英, 陈硕博, 张智韬, 等. 无人机多光谱遥感反演花蕾期棉花光合参数研究[J]. 农业机械学报, 2018, 49(10): 230-239.
	CHEN Junying, CHEN Shuobo, ZHANG Zhitao. Investigation on Photosynthetic Parameters of Cotton during Budding Period by Multi-spectral Remote Sensing of Unmanned Aerial Vehicle[J]. Transactions of the Chinese Society for Agricultural Machinery, 2018, 49(10): 230-239.
[17]	Rouse J W, Haas R W, Schell J A, et al. Monitoring the vernal advancement and retrogradation (green wave effect) of natural vegetation[J]. Greenbelt, MD: NASA/GSFC Type III, Final Report. 1974.
[18]	Hunt E R, Cavigelli M, Daughtry C, et al. Evaluation of Digital Photography from Model Aircraft for Remote Sensing of Crop Biomass and Nitrogen Status[J]. Precision Agriculture, 2005, 6(4): 359-378. DOI URL
[19]	Kim M S, Daughtry C S T, Chappelle E W, et al. The use of high spectral resolution bands for estimating absorbed photosynthetically active radiation.ISPRS sixth international colloquium on physical measurements and signatures in remote sensing, Val d'Isère, France, 17-21.
[20]	Huete A R. A soil-adjusted vegetation index (SAVI)[J]. Remote Sensing of Environment, 1988,(25): 295-309.
[21]	Pearson R L, Miller L D. Remote Mapping of Standing Crop Biomass for Estimation of Productivity of the Shortgrass Prairie[J]. Remote Sensing of Environment, 1972.
[22]	Torres-Sánchez J, Peña J M, De-Castro A I, et al. Multi-temporal mapping of the vegetation fraction in early-season wheat fields using images from UAV[J]. Computers and Electronics in Agriculture, 2014, 103: 104-113. DOI URL
[23]	Broge N H, Leblanc E. Comparing prediction power and stability of broadband and hyperspectral vegetation indices for estimation of green leaf area index and canopy chlorophyll density[J]. Remote Sensing of Environment, 2001, 76(2): 156-172. DOI URL
[24]	Chen Y Z, Murchie E H, Hubbart S, et al. Effects of season-dependent irradiance levels and nitrogen-deficiency on photosynthesis and photoinhibition in field-grown rice (Oryza sativa)[J]. Physiologia plantarum, 2003, 117(3): 343-351. DOI URL
[25]	张岁岐, 山仑. 土壤干旱条件下氮素营养对玉米内源激素含量影响[J]. 应用生态学报, 2003,(9): 1503-1506.
	ZHANG Shuiqi, SHAN Lun. Effeet of nitrogen nutrition on endogenous hormone content of maize under soil drought conditions[J]. Chinese Journal of Applied Ecology, 2003,(9): 1503-1506.
[26]	Evans J R, Seemann J R. The allocation of protein nitrogen in the photosynthetic apparatus: costs, consequences, and control[J]. Plant Biology, 1989,(1): 183-205.
[27]	Grassi G, Meir P, Cromer R, et al. Photosynthetic parameters in seedlings of Eucalyptus grandis as affected by rate of nitrogen supply[J]. Plant Cell & Environment, 2010, 25(12): 1677-1688.
[28]	孙小妹, 张涛, 陈年来, 等. 土壤水分和氮素对春小麦叶片抗氧化系统的影响[J]. 干旱区研究, 2011, 28(2): 205-214.
	Sun Xiaomei, Zhang Tao, Chen Nianlai, et al. Study on Antioxygenic System in Leaves of Three Spring Wheat Cultivars with Different Drought-resistant Capabilities under Different Soil Moisture Content and Nitrogen Levels[J]. Arid Zone Research, 2011, 28(2): 205-214.
[29]	曹树青, 赵永强, 温家立, 等. 高产小麦旗叶光合作用及与籽粒灌浆进程关系的研究[J]. 中国农业科学, 2000, 33(6):19-25. DOI
	CAO Shuqing, ZHAO Yongqiang, WEN Jiali, et al. Studies on Photosynthesis in Flag Leaves and Its Relation to Grain Filling Course of High-yield Wheat[J]. Scientia Agricultura Sinica, 2000, 33(6): 19-25.
[30]	杨淑巧, 许琦, 刘跃鹏, 等. 冬小麦光合作用和叶绿素荧光特性的研究[J]. 农学学报, 2015, 5(3): 6.
	YANG Shuqiao, XU Qi, LIU Yaopeng, et al. Research on the Photosynthesis and Chlorophyll Fluorspar Characteristic of Winter Wheat[J]. Journal of Agriculture, 2015, 5(3): 6.
[31]	Pallett K E, Sestak Z. Photosynthesis during Leaf Development[J]. Bioscience, 1985, 37(10): 10.
[32]	Hoerl A, Kennard R. Taylor & Francis Online: Ridge Regression: Biased Estimation for Nonorthogonal Problems-Technometrics-Volume 12, Issue 1[J]. Technometrics, 2000, 42(1): 7.
[33]	Fenner H, Andrew R, Adam M, et al. High Throughput Field Phenotyping of Wheat Plant Height and Growth Rate in Field Plot Trials Using UAV Based Remote Sensing[J]. Remote Sensing, 2016, 8(12): 1031. DOI URL
[34]	周敏姑, 邵国敏, 张立元, 等. 无人机多光谱遥感反演冬小麦SPAD值[J]. 农业工程学报, 2020, 36(20): 125-133.
	ZHOU Mingu, SHAO Guomin, ZHANG Liyuan, et al. Inversion of SPAD value of winter wheat by multispectral remote sensing of unmanned aerial vehicles[J]. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(20): 125-133.

Retrieval of wheat photosynthetic parameters at different growth stages based on UAV multispectral images

基于无人机多光谱影像反演不同生育期小麦光合参数分析

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 10

References 34

Related Articles 15

Recommended Articles

Metrics

[1]	CHEN Chuanxin, ZHNAG Yongqiang, NIE Shihui, KONG Depeng, Sailihan Sai, XU Qijiang, LEI Junjie. Effects of biomass charcoal application rate on the growth, development, and yield of winter wheat under drip irrigation [J]. Xinjiang Agricultural Sciences, 2023, 60(9): 2146-2151.
[2]	WANG Lihong, ZHANG Hongzhi, ZHANG Yueqiang, LI Jianfeng, WANG Zhong, GAO Xin, SHI Jia, WANG Chunsheng, XIA Jianqiang, FAN Zheru. Analysis of dry matter production, transport and nitrogen fertilizer utilization caused by yield Gap at different yield levels of winter wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(9): 2152-2162.
[3]	WANG Xiaoyu, WANG Xiaoping, SHI Wenyu, LIU Meiyan, MA Jian, GUO Yunpeng, SONG Ruixin, WANG Qingtao. Responses of photosynthetic characteristics, dry matter accumulation and yield to drought stress in winter wheat at jointing stage [J]. Xinjiang Agricultural Sciences, 2023, 60(9): 2163-2172.
[4]	YANG Hongmei, ZHANG Yueqiang, SHI Yingwu, Omarjan Kurban, LIN Qing, WANG Ning, CHU Min, ZENG Jun. Effects of different types of foliar fertilizers on grain yield and 1uality of winter wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(9): 2182-2188.
[5]	DONG Yanxue, JIA Yonghong, ZHANG Jinshan, LI Dandan, WANG Kai, LUO Siwei, WANG Runqi, SHI Shubing. Effects of different ecological conditions on dry matter accumulation and yield of spring wheat varieties [J]. Xinjiang Agricultural Sciences, 2023, 60(8): 1848-1857.
[6]	FENG Mei, LIU Chaoqin, CHEN Jie, LIU Wenlong, YANG Zhigang, TIAN Jieying, HUANG Xin. Analysis of character variation and heterosis of F₁ generation of different crosses in wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(8): 1858-1865.
[7]	LI Huaisheng, AI Hongyu, MENG Ling, WANG Heya, ZHANG Lei, AI Haifeng. Effects of chasing rate during peak nutrient uptake of transport under n Reduction on spring wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(8): 1866-1872.
[8]	ZHANG Yongqiang, CHEN Chuanxin, NIE Shihui, XU Qijiang, Sailihan Sai, LEI Junjie. Regulation of chlormequat on lodging resistance of winter wheat stem during the period of drip application of CCC [J]. Xinjiang Agricultural Sciences, 2023, 60(8): 1873-1878.
[9]	YANG Jinyu, WANG Xihe, SUN Jiusheng. Effect of hydroponic culture on amino acid composition of whole plant barley and wheat seedlings and comparative analysis [J]. Xinjiang Agricultural Sciences, 2023, 60(7): 1589-1595.
[10]	TIAN Wenqiang, DONG Yanxue, SHI Yongqing, LEI Junjie, SUN Ganggang, WANG Hongyi, NIE Lingfan, GOU Fei, AI Hongyu, SHI Shubing, ZHANG Jinshan. Effects of sowing date on stem traits and population dynamics of ultra late winter wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1301-1307.
[11]	ZHANG Yongqiang, CHEN Chuanxin, XU Qijiang, NIE Shihui, LEI Junjie, LIU Changwen. Effects of combined application of nitrogen enhancer and nitrogen reduction on leaf physiology and yield of winter wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1319-1325.
[12]	LAI Ning, GENG Qinglong, LI Yongfu, LI Na, XIN Huinan, BU Shengbing, CHEN Shuhuang. Effects of organic manure application combined with chemical fertilizer on yield, nitrogen, phosphorus uptake and utilization, and soil fertility of the extremely-late winter sown wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1335-1343.
[13]	LUO Siwei, JIA Yonghong, ZHANG Jinshan, WANG Kai, LI Dandan, WANG Runqi, DONG Yanxue, SHI Shubing. Effects of drip irrigation capillary spacing and emitter spacing on the spatial distribution of soil water, root morphology and yield of uniformly sown winter wheat [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1344-1352.
[14]	WANG Xingzhou, SHI Xiaolei, ZHANG Heng, QU Kejia, GENG Hongwei, DING Sunlei, ZHANG Jinbo, YAN Yongliang. Identification and evaluation of salt tolerance at germination stage of introduced spring wheat varieties [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1353-1362.
[15]	QU Kejia, SHI Xiaolei, ZHANG Heng, WANG Xingzhou, GENG Hongwei, DING Sunlei, ZHANG Jinbo, YAN Yongliang. Evaluation of drought resistance of introduced spring wheat under PEG treatment [J]. Xinjiang Agricultural Sciences, 2023, 60(6): 1363-1371.
