插入式地下滴灌对土壤入渗和水盐分布的影响

doi:10.6048/j.issn.1001-4330.2023.02.022

新疆农业科学 ›› 2023, Vol. 60 ›› Issue (2): 440-447.DOI: 10.6048/j.issn.1001-4330.2023.02.022

• 园艺特产·植物保护·微生物·土壤肥料·节水灌溉 • 上一篇下一篇

插入式地下滴灌对土壤入渗和水盐分布的影响

朱珠¹^,²(), 张旭贤¹^,²(), 王世昌¹, 文豪¹, 蔡桂香¹

1.塔里木大学水利与建筑工程学院,新疆阿拉尔 843300
2.新疆维吾尔自治区教育厅普通高等学校现代农业工程重点实验室,新疆阿拉尔 843300

收稿日期:2022-05-25 出版日期:2023-02-20 发布日期:2023-03-31
通信作者: 张旭贤(1977-),男,甘肃张掖人,副教授,硕士,研究方向为节水灌溉,(E-mail)zhxxwl@sina.com
作者简介:朱珠(1986-),女,新疆博乐人,副教授,博士研究生,研究方向为土壤水盐运移及高效节水灌溉,(E-mail)1293679915@qq.com
基金资助:
国家自然科学基金(51769032);新疆维吾尔自治区教育厅普通高等学校现代农业工程重点实验室开放课题(TDNG20180701)

Effects of Insertion Subsurface Drip Irrigation on Soil Infiltration and Distribution of Water and Salt

ZHU Zhu¹^,²(), ZHANG Xuxian¹^,²(), WANG Shichang¹, WEN Hao¹, CAI Guixiang¹

1. College of Water Resource and Architectural Engineering, Tarim University, Alar Xinjiang 843300, China
2. Modern Agricultural Engineering Key Laboratory at Universities of Education Department of Xinjiang Uygur Autonomous Region, Alar Xinjiang 843300, China

Received:2022-05-25 Online:2023-02-20 Published:2023-03-31
Correspondence author: ZHANG Xuxian (1977 -), male,native of Zhangye, Gansu Province,Associate professor,Master's degree, Research direction:Water-saving irrigation theory and technology, (E-mail) zhxxwl@sina.com
Supported by:
National Natural Science Foundation of China(51769032);Modern Agricultural Engineering Key Laboratory at Universities of Education Department of Xinjiang Uygur Autonomous Region(TDNG20180701)

摘要/Abstract

摘要：

【目的】 研究插入式地下滴灌对盐碱土壤入渗与水盐分布的影响。【方法】 采用室内土柱试验,以阿拉尔灌区春季返盐的盐碱土土壤为研究对象,比较分析不同滴头流量与滴头埋深,对土壤湿润峰运移和湿润体内部水分及盐分的影响规律。【结果】 相同入渗时间和滴头流量条件下,地下滴灌比地表滴灌湿润峰深度、湿润面积、湿润体内土壤平均含水量和脱盐深度增加。与CK处理相比较,T₁处理土壤湿润峰深度和土壤湿润面积分别增加20.89%和18.01%;T₂处理土壤湿润峰深度和土壤湿润面积分别增加45.78%和19.06%。T₁和T₂处理土壤湿润体内含水量平均值分别增加2.48%和1.37%。土壤脱盐深度由10 cm增加至25 cm。增加滴头埋深和流量,能够增加土壤持水效率,T₁~T₄处理0~25 cm土层土壤持水效率分别为2.56%、3.82%、9.81%和13.35%。滴头流量较小,随滴头埋深增加,土壤盐分表聚。T₂处理0~5 cm土层深度土壤积盐率为67.98%。若增加滴头流量,随滴头埋深增加土壤脱盐深度和脱盐率增加,T₄处理0~30 cm土层深度土壤脱盐率最大达79.15%。【结论】 以增大土壤湿润面积、土壤脱盐区和脱盐率为目标,滴头流量0.6 L/h,埋深15 cm处理最优。

关键词: 地下滴灌; 土壤水分; 土壤持水效率; 土壤盐分; 土壤脱盐率

Abstract:

【Objective】 To investigate the effect of insertion subsurface drip irrigation on infiltration and water-salt distribution of saline soils, 【Methods】 To compare and analyze the effect of different drip head flow rates and drip head burial depths on soil wetting peak transport and water and salt distribution inside the wetted body through indoor soil column tests with saline soils that return to salt in spring in the Alar irrigation area. 【Results】 The results showed that under the same infiltration time and drip head flow rate conditions, subsurface drip irrigation increased the wetting peak depth, wetted area, average soil water content and desalination depth inside the wetted body than surface drip irrigation.Compared with CK treatment, soil wetting peak depth and soil wetting area increased by 20.89% and 18.01% in T₁ treatment, respectively; soil wetting peak depth and soil wetting area increased by 45.78% and 19.06% in T₂ treatment, respectively.mean soil water content within the wetted body increased by 2.48% and 1.37% in T₁ and T₂ treatments, respectively.The soil desalination depth increased from 10 cm to 25 cm.increasing the drip head burial depth and flow rate was able to increase the soil water holding efficiency, which was 2.56%, 3.82%, 9.81% and 13.35% for the 0-25 cm soil layer in treatments T₁-T₄, respectively.The drip head flow rate was small, and the soil salt accumulation rate was 67.98% with the increase of drip head burial depth.the soil salt accumulation rate of 0-5 cm soil layer depth in T₂ treatment was 67.98%.If the drip head flow rate was increased, the soil desalination depth and desalination rate increased with the increase of drip head burial depth, and the maximum soil desalination rate reached 79.15% at 0-30 cm soil depth in T₄ treatment. 【Conclusion】 With the goal of increasing soil wetting area, soil desalination area and desalination rate, the drip head flow rate of 0.6 L/h and burial depth of 15 cm were optimal for the treatment.

Key words: insertion subsurface drip irrigation; soil moisture; soil water holding efficiency; soil salinity; soil desalination rate

中图分类号:

S275.6

朱珠, 张旭贤, 王世昌, 文豪, 蔡桂香. 插入式地下滴灌对土壤入渗和水盐分布的影响[J]. 新疆农业科学, 2023, 60(2): 440-447.

ZHU Zhu, ZHANG Xuxian, WANG Shichang, WEN Hao, CAI Guixiang. Effects of Insertion Subsurface Drip Irrigation on Soil Infiltration and Distribution of Water and Salt[J]. Xinjiang Agricultural Sciences, 2023, 60(2): 440-447.

图/表 7

表1 试验方案

Table 1 Experiment treatments

处理 Treatment	滴头流量 Dripper flow (L/h)	埋深 Burial depth (cm)	湿润峰测定时间 Determination time of wet peark (min)
CK	0.3	0	5,10,15,20,25,30,40,50,60,70,90,120,150,180,210,240,270,300,330,360
T₁	0.3	10
T₂	0.3	15
T₃	0.6	10
T₄	0.6	15

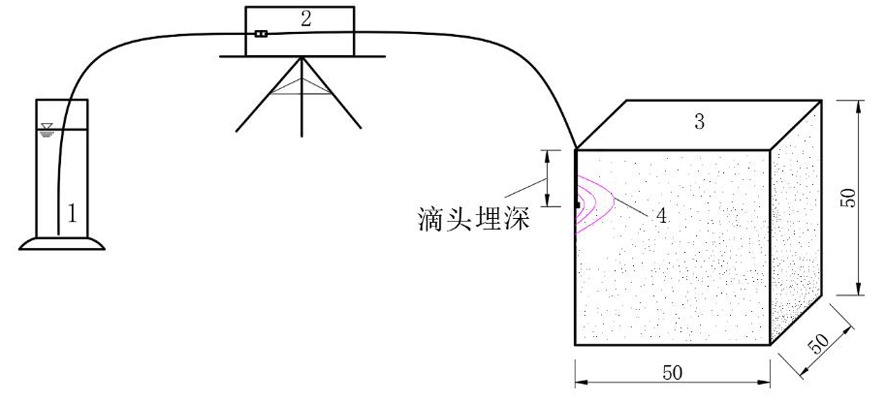

图1 试验装置示意 1.量筒;2.恒流泵;3.土柱;4.湿润锋运移曲线

Fig.1 Equipment for experiment 1.Graduated cylinder;2.Constant flow pump;3.Soil column;4.Moist front migration curve

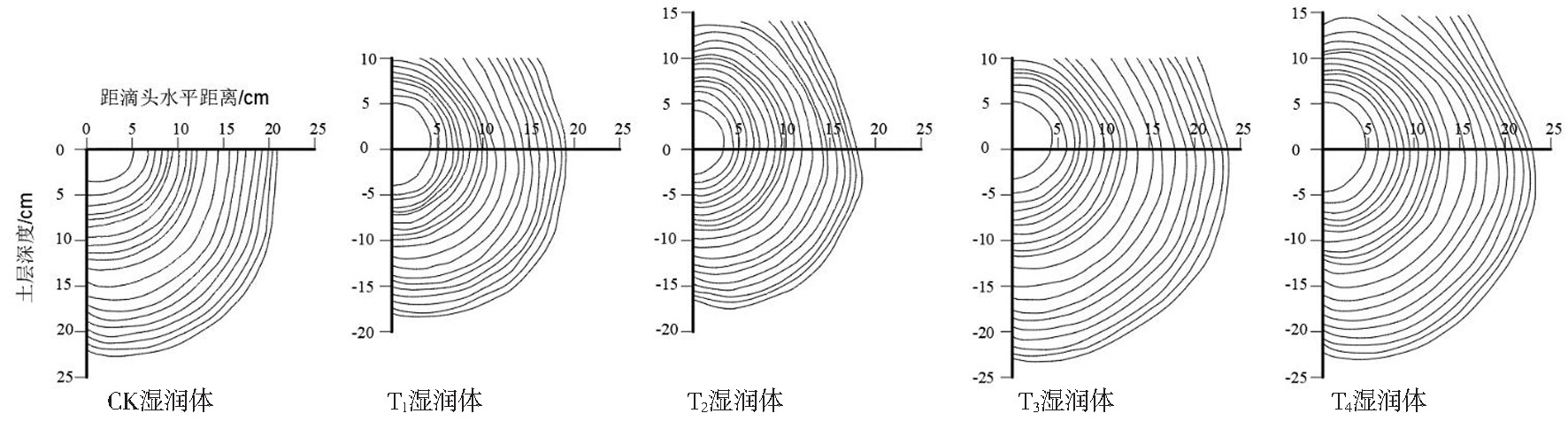

图2 不同滴头流量与埋深处理湿润面变化特征

Fig.2 Characteristics of wetting surface under different emitter discharge and buried depth treatment

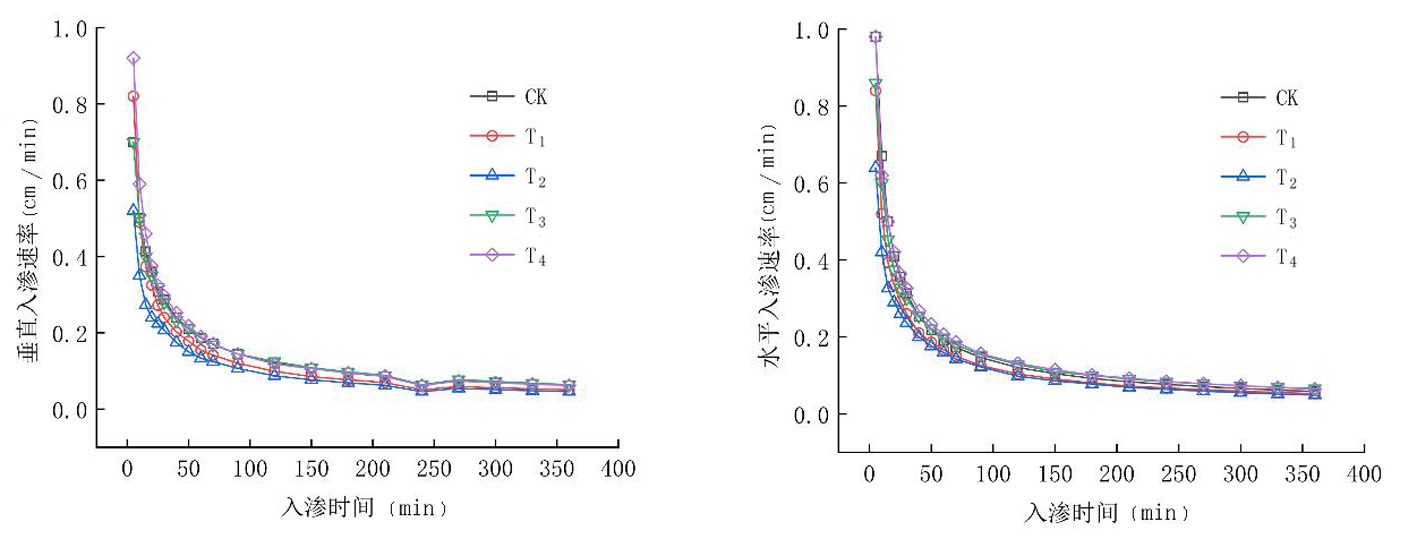

图3 各处理垂直与水平入渗速率随时间变化特征

Fig.3 Characteristics of vertical and horizontal infiltration rates with time for each treatment

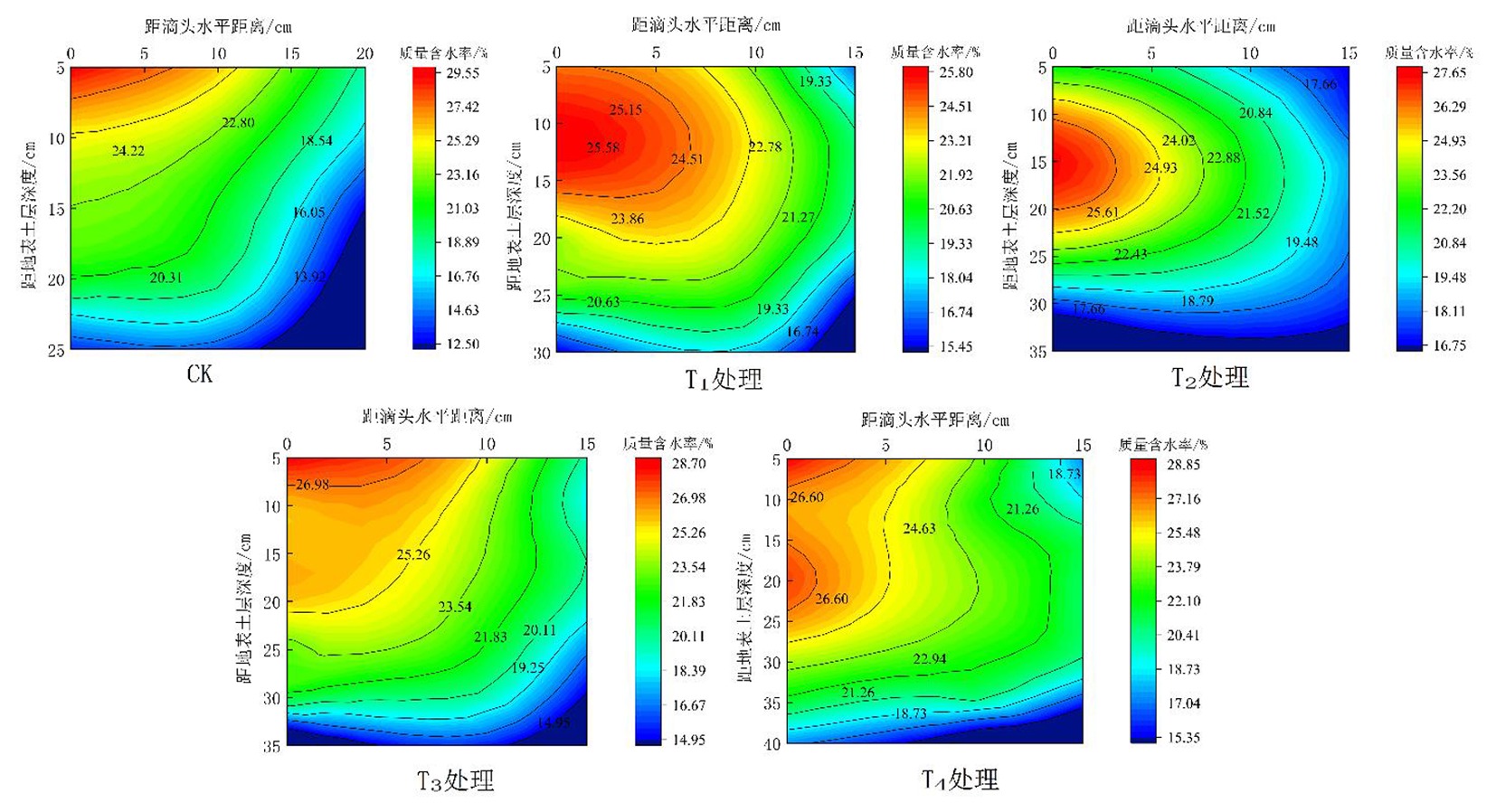

图4 各处理水分空间分布特征

Fig.4 Spatial distribution characteristics of moisture

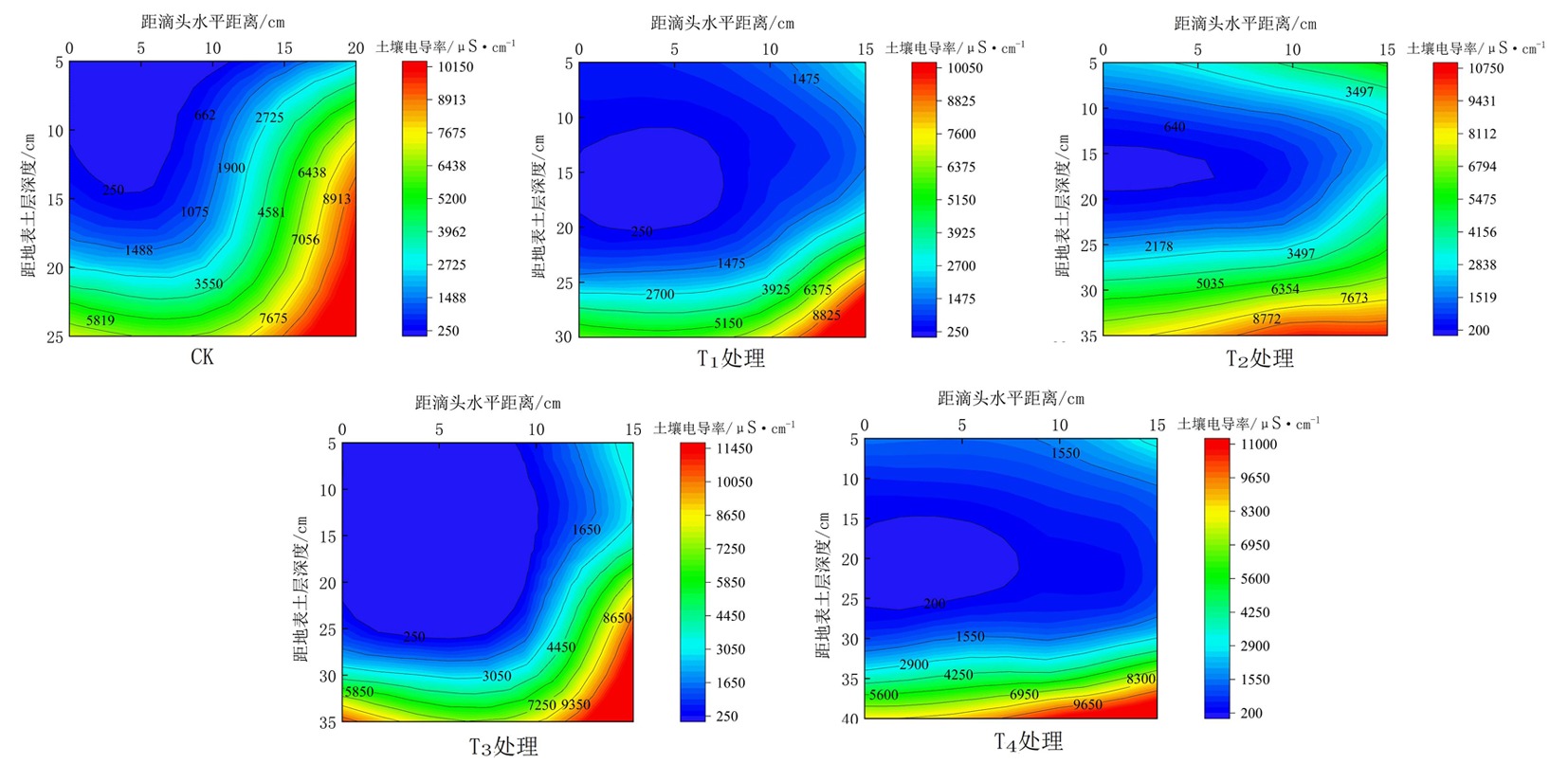

图5 各处理盐分空间分布特征

Fig.5 Spatial distribution characteristics of salinity

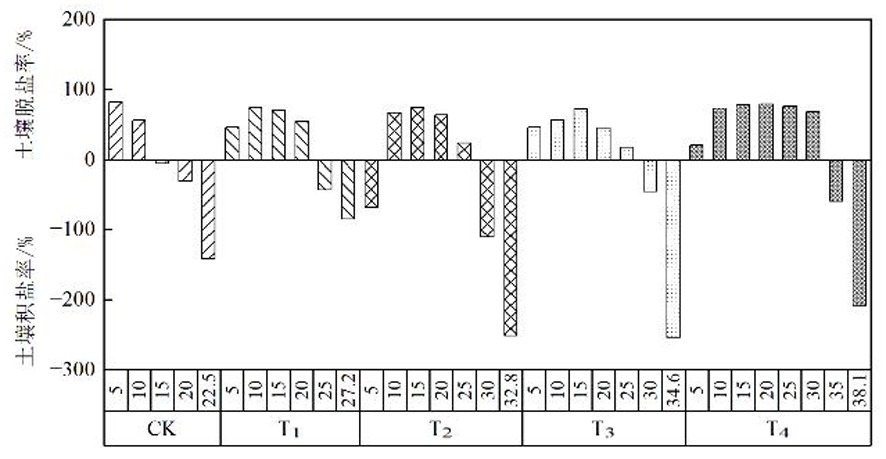

图6 各处理不同土层深度土壤平均脱盐(积盐)率变化

Fig.6 The average soil desalination (salt accumulation) rate of different soil depths

参考文献 23

[1]	Douh B, Boujelben A. Improving water use efficiency for a sustainable productivity of agricultural systems with usingsubsurface drip irrigation for maize (Zea mays L.)[J]. J Agric Sci Technol B1(JAST), 2011:881-8.
[2]	李明思, 康绍忠, 杨海梅. 地膜覆盖对滴灌土壤湿润区及棉花耗水与生长的影响[J]. 农业工程学报, 2007, 23(6):49-54.
	Li Mingsi, Kang Shaozhong, Yang Haimei. Effects of plastic film mulch on the soil wetting pattern,water consumption and growth of cotton under drip irrigation[J]. Transactions of the Chinese Society of Agricultural Engineering, 2007, 23(6): 49-54.
[3]	Selim T, Bouksila F, Berndtsson R, et al. Soil water and salinity distribution under different treatments of drip irrigation[J]. Soil Science Society of America Journal, 2013, 77(4):1144. DOI URL
[4]	Douh B, Didouni O, Mguidiche A, et al. Wetting patterns estimation under subsurface drip irrigation systems for differe-nt discharge rates and soil types[M]Recent Advances in Environmental Science from the Euro-Mediterranean and Surr-ounding Regions, 2018.
[5]	Cote C M, Bristow K L, Charlesworth P B, et al. Analysis of soil wetting and solute transport in subsurface trickle irri-gation[J]. Irrigation Science. 2003, 22(3):143-156. DOI URL
[6]	Saxena C K, Gupta S K, Purohit R C,; Bhakar S R. Salt water dynamics under point source of drip irrigation[J]. IndianJ.Agric.Res. 2015, 19(2):101-113.
[7]	Rodríguez Sinobas, Leonor, Gil Rodríguez, María, Sánchez Calvo, Raúl. Simulation of soil wetting patterns in drip and sd-i irrigation.Effects in design and irrigation management variables[M]. Arab Liberation Front. Betascript Publishing, 2010.
[8]	管瑶, 雷廷武, 刘芳芳, 等. 土壤点源入渗自动测量系统监测滴头下土壤湿润过程[J]. 农业工程学报, 2016, 32(14):1-7.
	Guan Yao, Lei Tingwu, Liu Fangfang, et al. Measurement of wetting process of soil under dripper with autom-atic system for point source infiltration[J]. Transactions of the Chinese Society of Agricultural Engineering, 2016, 32(14):1-7.
[9]	陈小三. 地面滴灌及地下滴灌土壤水分运移规律室内试验研究[D]. 长春: 吉林农业大学, 2011.
	Chen Xiaosan. Laboratory experimental study on soil-water movement of surface drip irrigation and subsurface drip irr-igation[D]. Changchun: Jilin Agricultural University, 2011.
[10]	赵文举, 郁文, 范严伟, 等. 滴灌条件下容重对压砂土壤水分入渗规律的影响[J]. 水土保持通报, 2016, 36(1):169-173,200.
	Zhao Wenju, Fan Yanwei, Tang Xuefen, et al. Influences of soil bulk density on point source infiltration pattern under drip irrigation condition in gravel sand mulch soil[J]. Bulletin of Soil and Water Conservation, 2016, 36(1):169-173,200.
[11]	Selim T, Bouksila F, Berndtsson R, et al. Soil Water and Salinity Distribution under Different Treatments of Drip Irrigation[J]. Soil Science Society of America Journal, 2013, 77(4):1144. DOI URL
[12]	Abou Lila T.S.,R,. Berndtsson M.Persson, et al. Numerical evaluation of subsurface trickle irrigation with brackish water[J]. Irrig.Sci.10.1007/s00271-012-0393-6. DOI
[13]	宁松瑞. 长期膜下滴灌棉田根系层盐分累积效应模拟[D]. 北京: 中国农业大学, 2015.
	Ning Songrui. Numerical simulation on soil salt accumulation in root zone of cotton field under long-term film mulched drip irrigation[D]. Beijing: China Agricultural University, 2015.
[14]	李文昊, 王振华, 郑旭荣, 等. 长期膜下滴灌棉田土壤盐分变化特征[J]. 农业工程学报, 2016, 32(10):67-74.
	Li Wenhao, Wang Zhenhua, Zheng Xurong, et al. Soil salinity variation characteristics of cotton field under long-term mulched drip irrigation[J]. Transactions of the Chinese Society of Agricultural Engineering, 2016, 32(10):67-74.
[15]	王振华, 杨培岭, 郑旭荣, 等. 新疆现行灌溉制度下膜下滴灌棉田土壤盐分分布变化[J]. 农业机械学报, 2014, 45(8):149-159.
	Wang Zhenhua, Yang Peiling, Zheng Xurong, et al. Soil Salt Dynamics in Cotton Fields with Mulched Drip Irrigation under the Existing Irrigation System in Xinjiang[J]. Transactions of the Chinese Society for Agricultural Machinery, 2014, 45(8):149-159.
[16]	姚宝林. 南疆免冬春灌棉田土壤水热盐时空迁移规律与调控研究[D]. 北京: 中国农业大学, 2017.
	Yao Baolin. Study on Spatial and temporal migration of soil water, heat and salt in cotton field of no-winter spring irrigation in southern Xinjiang[D]. Beijing: China Agricultural University, 2017.
[17]	李久生, 杨凤艳, 刘玉春, 等. 土壤层状质地对小流量地下滴灌灌水器特性的影响[J]. 农业工程学报, 2009, 25(4):1-6.
	Li Jiusheng, Yang Fengyan, Liu Yuchun, et al. Effect of layered soil texture on characteristics of small flow subsurfa-ce drip irrigation irrigator[J]. Transactions of the Chinese Society of Agricultural Engineering, 2009, 25(4):1-6.
[18]	冯俊杰, 李明臣, 翟国亮, 等. 移动插入式灌水器的结构研究与抗堵塞试验分析[J]. 中国农村水利水电, 2008,(11):39-42.
	Feng Junjie, Li Mingcheng, Zhai Guoliang, et al. Structural research and anti-clogging test analysis of mobile insertio-n irrigator[J]. China Rural Water and Hydropower, 2008,(11):39-42.
[19]	白丹, 孙淑贞, 任培琦, 等. 地下灌竖管灌水器湿润体时空变化规律[J]. 农业工程学报, 2018, 34(7):107-113.
	Bai Dan, Sun Shuzhen, Ren Peiqi, et al. Temporal and spatial variation of wetting volume under sub-irrigation with vertical emitter[J]. Transactions of the Chinese Society of Agricultural Engineering, 2018, 34(7):107-113.
[20]	Saxena C K, Singh R, Pyasi S K, et al. Evaluation of movement of wetting front under surface point source of drip irri-gation in Vertisols[J]. Journal of Agricultural Engineering, 2018, 55(2):61-67.
[21]	杨明达, 关小康, 白田田, 等. 不同滴灌模式对土壤水分空间变异及夏玉米生长的影响[J]. 河南农业大学学报, 2016, 50(1):1-7.
	Yang Mingda, Guan Xiaokang, Bai Tiantian, et al. Effects of different drip irrigation patterns on spatial variability of soil moisture and growth of summer corn[J]. Journal of Henan Agricultural University, 2016, 50(1):1-7.
[22]	王炳尧, 韦伟, 刘立超, 等. 直插式地下滴灌土壤湿润体特征值变化规律及灌溉效果分析[J]. 灌溉排水学报, 2019, 38(4):1-10.
	WANG Bingyao, WEI Wei, LIU Lichao, et al. Water mvement and its potential for uptake by roots under plug-in subsurface drip irrigation[J]. Journal of Irrigation and Drainage, 2019, 38(4):1-10.
[23]	李显溦, 石建初, 王数, 等. 新疆地下滴灌棉田一次性滴灌带埋深数值模拟与分析[J]. 农业机械学报, 2017, 48(9):191-198,222.
	Li Xianwei, Shi Jianchu, Wang Shu, et al. Numerical simulation and analysis of one-time drip irrigation belt burial depth in underground drip irrigation cotton field in Xinjiang[J]. Transactions of the Chinese Society for Agricultural Machinery, 2017, 48(9):191-198,222.
