Study on the Variation of Greenhouse Temperature and Fruit Quality Difference of Summer Black Grape with Two-Harvests-a-Year in Southern Xinjiang

doi:10.6048/j.issn.1001-4330.2022.08.009

Abstract

Abstract:

【Objective】 To study the temperature variation of Summer black Grape during the first and second ripening periods in Solar Greenhouse in southern Xinjiang,and analyze the difference of fruit yield and quality between the two crops. 【Results】 The results showed that the indoor temperature of ‘Summer black’Grape during the whole growth period was higher than that of the first ripening,and the daily mean temperature of the second ripening was above 10 ℃. The daily variation trend of indoor temperature of the first ripening was similar to that of the second ripening,and the temperature of the first ripening was larger than that of the first ripening before the rapid fruit expansion period,while that of the second ripening was higher than that of the second ripening The diurnal variation range of temperature in the greenhouse was larger after the expansion stage,and the difference of temperature difference between day and night was the most obvious during the flowering stage and fruit color changing stage. In the flowering stage,the average temperature difference between day and night of the first ripening was 58.1% higher than that of the second ripening. During the fruit color changing period,the average temperature difference between day and night of the second harvest was 46.3% higher than that of the first harvest; The single grain weight,single ear weight and yield per mu of the first ripening fruit were higher than those of the second ripening,but the commercial fruit rate was 5% lower than that of the second ripening. 【Conclusion】 Through the analysis and comparison of the indoor temperature of the first and second ripening,there are great differences in the daily average temperature change and the diurnal temperature difference in greenhouse,but the daily temperature change of the indoor temperature in each growth period presents a “single peak” trend. Combined with the temperature demand of grape growth and development,the suitability of greenhouse temperature for fruit growth and quality formation in the second ripening was better than that in the first ripening,and the commercial fruit rate was high. But affected by other factors such as tree nutrition,light and so on,the yield of the first ripe fruit is better.

Key words: solar greenhouse; two harvests a year; summer black grape; temperature; yield and quality

摘要：

【目的】研究新疆南疆日光温室内夏黑葡萄第一熟和第二熟两个时期温度变化规律,分析两茬果的果实产量和品质差异性。【结果】夏黑葡萄整个生育期内,第二熟温室内温度整体上要高于第一熟,而且第二熟整个生育期内温度日均值在10℃以上;第一熟与第二熟温室内温度日变化趋势基本相似,第一熟在果实快速膨大期之前温室内温度日变化幅度大,而第二熟在果实快速膨大期之后温室内温度日变化幅度较大;昼夜温差值在开花期和果实转色期差值最明显,在开花期,第一熟温室内昼夜温差均值比第二熟昼夜温差均值高58.1%。在果实转色期,第二熟温室内昼夜温差均值相较于第一熟昼夜温差均值高46.3%;第一熟果实单粒重、单穗重、单产均高于第二熟,但商品果率较第二熟低5个百分点。【结论】温室内日均温变化和昼夜温差变化存在较大差异,但各生育期温室内温度日变化均呈‘单峰’变化趋势。第二熟时温室内温度对果实生长和品质形成的适宜性要好于第一熟,商品果率高。但受树体营养、光照等其它因素的影响,第一熟果在产量上较好。

关键词: 日光温室, 一年两熟, 夏黑葡萄, 温度, 产量与品质

CLC Number:

S663.1

ZHANG Jinqiang, SU Xuede, LI Pengcheng, YANG Xiang, LI Ming, GUO Shaojie. Study on the Variation of Greenhouse Temperature and Fruit Quality Difference of Summer Black Grape with Two-Harvests-a-Year in Southern Xinjiang[J]. Xinjiang Agricultural Sciences, 2022, 59(8): 1889-1895.

张锦强, 苏学德, 李鹏程, 杨湘, 李铭, 郭绍杰. 一年两熟夏黑葡萄日光温室温度变化与果实品质差异性分析[J]. 新疆农业科学, 2022, 59(8): 1889-1895.

Figures/Tables 6

Table 1 growth period of the first and second harvest of Summer black grape

	生育期 Growth stages	时间 Time
第一熟 Firstharvest	萌芽期	12.06-1.20
	花前期	1.21-2.20
	开花期	2.21-2.29
	幼果膨大期	3.01-3.25
	快速膨大期	3.26-4.10
	着色期	4.11-4.25
	成熟期	4.26-5.15
第二熟 Second harvest	萌芽期	7.11-7.18
	花前期	7.19-8.10
	开花期	8.11-8.20
	幼果膨大期	8.21-9.05
	快速膨大期	9.06-9.20
	着色期	9.21-10.05
	成熟期	10.06-10.26

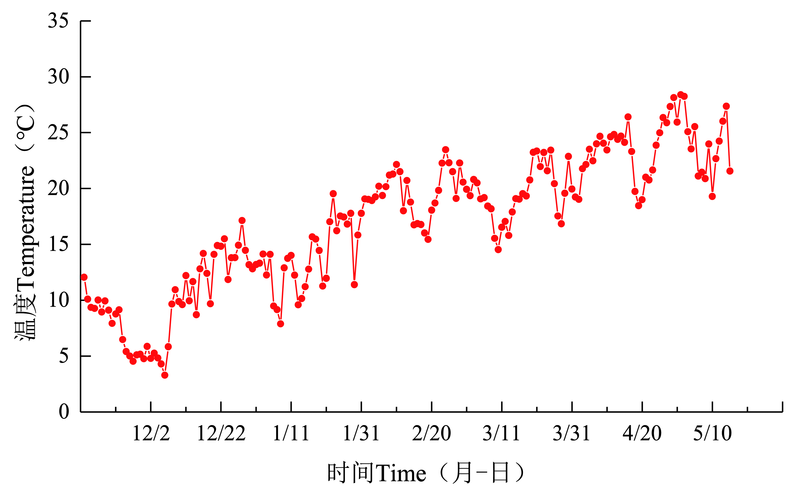

Fig. 1 Daily average temperature change in the greenhouse during the whole growth period of the first harvest

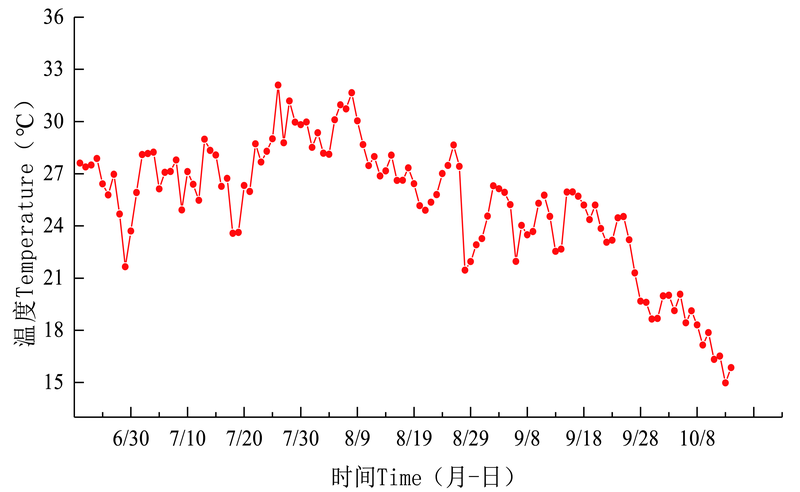

Fig. 2 Daily average temperature change in the greenhouse during the whole growth stages of the second harvest

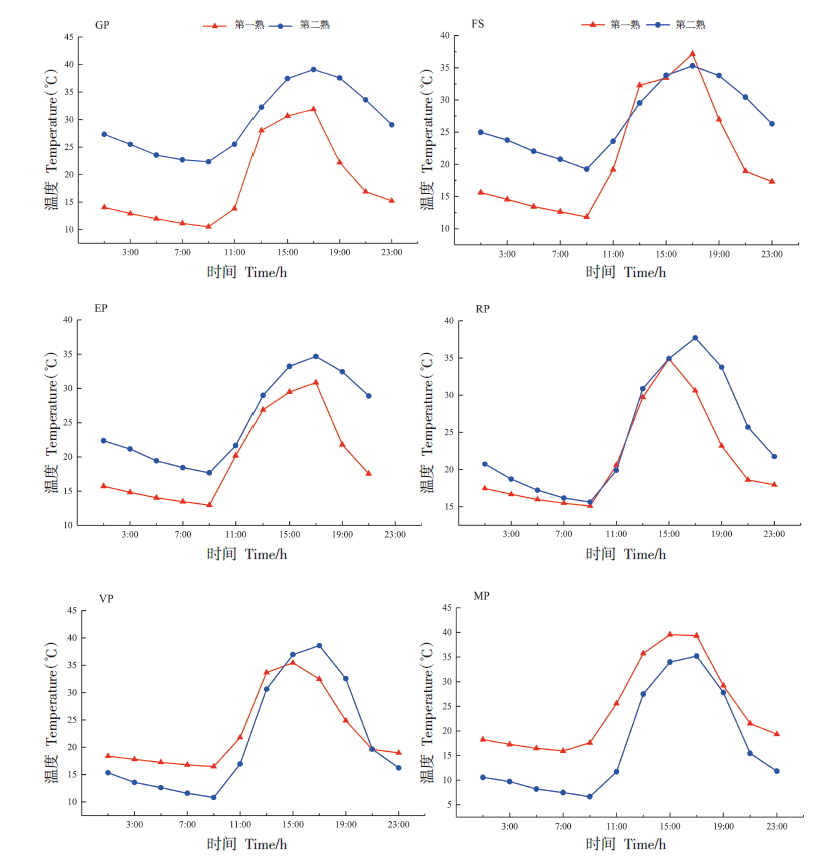

Fig. 3 Daily changesin greenhouse during different growth stages between the first harvest and the second harvest Notes： GP： Growth period of new shoots FS： florescence stage, EP：expansion period of young fruit,RP：Rapid expansion period,VP：veraison period,MP：maturation period.The same as below

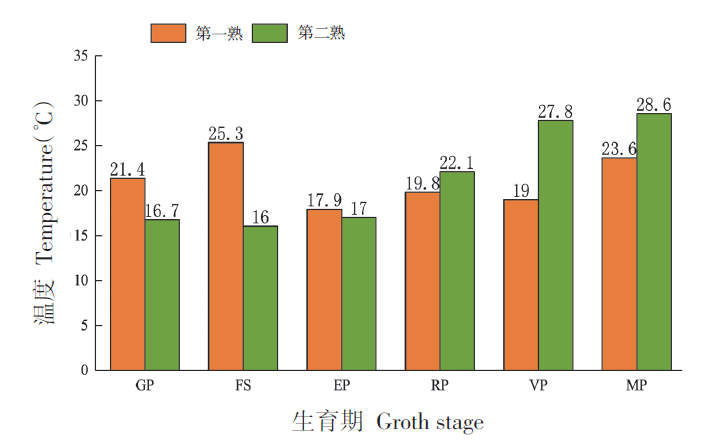

Fig. 4 Average temperature difference between day and night in temperature chamber of the first harvest and the second harvest

Table 2 Yield and quality of the first and second harvest fruits

品种 Varieties	可溶性固形物 Soluble Acid （%）	单粒重 Single grain weight （g）	单穗重 Single ear weight （kg）	产量 Yield （kg/667m²）	商品果率 Commodity fruit rate （%）
夏黑第一熟Summer black First harvest	18.4	8.14	0.72	1 641.6	85
夏黑第二熟 Summer black secongt harvest	19.1	7.01	0.62	1 413.6	90

References 19

[1]	朱学亮, 贾丽. ‘夏黑’葡萄高效栽培技术[J]. 北方果树, 2020(1):34-35.
	ZHU Xueliang, JIA Li. High efficient cultivation techniques of ‘Summer black’ grape[J]. Northern Fruits, 2020,(1):34-35.
[2]	丁之恩, 韦朝领. 南方主要鲜食葡萄生长结实特性与温度关系的研究[J]. 应用生态学报, 2001, 12(2):199-204.
	DING Zhien, WEI Chaoling. Relationship between atmospheric temperature and growth characteristics of main edible grapes in south China[J]. Chinese journal of applied ecology, 2001, 12(2):199-204.
[3]	杜建广. 葡萄设施栽培与其环境因子相关性研究[D]. 南京: 南京农业大学. 2001.
	DU Jianguang. Study on Protected Cultivation and Environmental FactorsCorrelation Analysis in Grapes[D]. Nanjing: Nanjing Agricultural University. 2001.
[4]	王玉香. 智能温室一年两熟葡萄品种筛选[J]. 黑龙江农业科学, 2018,(8):62-64.
	WANG Yuxiang. Selection of Two Ripening Grape Varieties for One Year in Intelligent Greenhouse[J]. Hlongjiang Agricultural ences, 2018(8):62-64.
[5]	龚伟, 杨治明, 郭光爱. 新疆博乐市设施葡萄一年两熟技术初探[J]. 中外葡萄与葡萄酒, 2013,(4):28-30.
	GONG Wei, YANG Zhiming, GUO Guangai. A preliminary study on the technology ofTwo-harvests-a-year of protected grape in Bole City of Xinjiang[J]. Sino-Overseas Grapevine & Wine, 2013(4):28-30.
[6]	杨昌钰, 张芮, 高彦婷, 等. 不同时期水分调控对温室滴灌葡萄土壤温度、糖分积累及产量的影响[J]. 生态科学, 2020, 39(5):48-56.
	YANG Chanyu, ZHANG Rui, GAO Yanting, et al. Effects of water regulation in different periods on soil temperature,sugar accumulation and yield of grape under drip irrigation in greenhouse[J]. Ecological Science, 2020, 39(5):48-56.
[7]	伍新宇, 钟海霞, 潘明启, 等. 高寒区戈壁日光温室最冷月地温与气温变化规律及相关性研究[J]. 新疆农业科学, 2016, 53(7):1329-1336.
	WU Xinyu, ZHONG Haixia, PAN Mingqi, et al. Research of Paramos Region Gobi Sunlight Greenhouse Soil Temperature and the Temperature Change Rule and Correlation Studies in the Coldest Months[J]. Xinjiang Agricultural Sciences, 2016, 53(7):1329-1336.
[8]	郑娇娇, 刘帅. 设施葡萄萌芽期温度与湿度调控[J]. 果树实用技术与信息, 2020,(3):22-23.
	ZHENG Jiaojiao, LIU Shuai. Temperature and Humidity Control of Grape Bud Germination in Greenhouse[J]. Practical techniques and information of fruit trees, 2020,(3):22-23.
[9]	张彦昌, 马骏. 温度对设施果树发育进程影响的研究进展[J]. 山西果树, 2008,(2):40-41.
	ZHANG Yanchang, MA Jun. Research Progress on the effect of temperature on the development of protected fruit trees[J]. Shanxi Fruits, 2008,(2):40-41.
[10]	沈元月, 贾克功. 温度对桃性器官发育的影响[J]. 果树科学, 1999, 16(4):301-303.
	SHEN Yuanyue, JIA Kegong. Effect of temperature on sexual organ development of peach[J]. Journal of Fruit Science, 1999, 16(4):301-303.
[11]	司海娣, 张亚红. 日光温室葡萄促早栽培休眠期和生长期的温度变化[J]. 北方园艺, 2010,(15):177-182.
	SI Haidi, ZHANG Yahong. Temperature Changing in Sunlight Greenhouse During the Grape Dormancy Times and Growth Stage[J]. Northern Horticulture, 2010,(15):177-182.
[12]	李亮. 昌吉地区鲜食葡萄花期管理主要技术要点[J]. 江西农业, 2020,(18):41-41.
	LI Liang. Main technical points of florescence management of fresh grape in Changji area[J]. Jiangxi Agriculture, 2020,(18):41-41.
[13]	刘洪波, 白云岗, 张江辉, 等. 不同微喷弥雾调控方式下微气候因子对极端干旱区葡萄果实生长及糖度的影响[J]. 干旱地区农业研究, 2020, 38(4):159-167.
	LIU Hongbo, BAI Yungang, ZHANG Jianghui, et al. Effects of microclimate factors on grape fruit growth and sugar content in extreme arid regions under different micro spray mist control[J]. Agricultural Research in the Arid Areas, 2020, 38(4):159-167.
[14]	柯燚, 高飞, 金韬, 等. 温度对植物花青素苷合成影响研究进展[J]. 中国农学通报, 2015, 31(19):101-105.
	KE Yi, GAO Fei, JIN Tao, et al. Review of Temperature Effect on Anthocyanin Synthesis[J]. Chinese Agricultural ence Bulletin, 2015., 31(19):101-105.
[15]	Mori K, Sugaya S, Gemma H. Decreased anthocyanin biosynthesis in grape berries grown under elevated night temperature condition[J]. Hort, 2005, 105(3):319-330 DOI URL
[16]	Islam G I, Christie J M, Fuglevand G, et al. Plant responses to UV and blue light:biochemical and genetic approaches[J]. Plant Science, 1995(112):117-138.
[17]	袁小康, 杨再强. 昼夜温差对番茄果实品质动态变化的影响及模拟[J]. 中国农业气象, 2017, 38(6):353-360.
	YUAN Xiaokang, YANG Zaiqiang. Effect of Day and Night Temperature Difference on Fruit Quality of Tomato and its Simulation Models[J]. Chinese Journal of Agrometeorology, 2017, 38(6):353-360.
[18]	张任, 张鹏程, 邬欢欢, 等. 气象因子对南疆地区骏枣果实品质的影响[J]. 中国农业科技导报, 2018, 20(7):113-122. DOI
	ZHANG Ren, ZHANG Pengcheng, WU Huanghuang. Impact of Meteorological Factors on Fruit Quality of Jun Jujube in Southern Xinjiang[J]. Journal of Agricultural Science and Technology, 2018, 20(7):113-122. DOI
[19]	李峰, 赵海, 王强, 等. 温室葡萄一年两熟果实品质差异研究[J]. 北方果树, 2018(2):11-13.
	LI Feng, ZHAO Hai, WANG Qiang, et al. Study on the Difference of Fruit Quality in Two Ripe Greenhouse Grapes A Year[J]. Northern Fruits, 2018,(2):11-13.
