Xinjiang Agricultural Sciences ›› 2021, Vol. 58 ›› Issue (12): 2342-2352.DOI: 10.6048/j.issn.1001-4330.2021.12.022
• A nimal Husbandry Veterinarian · Agricultural Information • Previous Articles
LI Zhi1(), SU Wuzheng1, LI Xinguo2,3(), WANG Yinfang1, MAO Donglei2,3, Mamattursun Eziz2,3
Received:
2021-04-01
Online:
2021-12-20
Published:
2021-12-31
Correspondence author:
LI Xinguo
Supported by:
李志1(), 苏武峥1, 李新国2,3(), 王银方1, 毛东雷2,3, 麦麦提吐尔逊·艾则孜2,3
通讯作者:
李新国
作者简介:
李志(1992-),男,重庆人,助理研究员,硕士,研究方向为农业遥感与信息技术,(E-mail) lizhi2378@163.com
基金资助:
CLC Number:
LI Zhi, SU Wuzheng, LI Xinguo, WANG Yinfang, MAO Donglei, Mamattursun Eziz. Modeling and Verification of Soil Salt Content Based on Hyperspectral Characteristic Parameter Optimization[J]. Xinjiang Agricultural Sciences, 2021, 58(12): 2342-2352.
李志, 苏武峥, 李新国, 王银方, 毛东雷, 麦麦提吐尔逊·艾则孜. 基于高光谱特征参数优选的土壤盐分含量建模及其验证[J]. 新疆农业科学, 2021, 58(12): 2342-2352.
Add to citation manager EndNote|Ris|BibTeX
URL: http://www.xjnykx.com/EN/10.6048/j.issn.1001-4330.2021.12.022

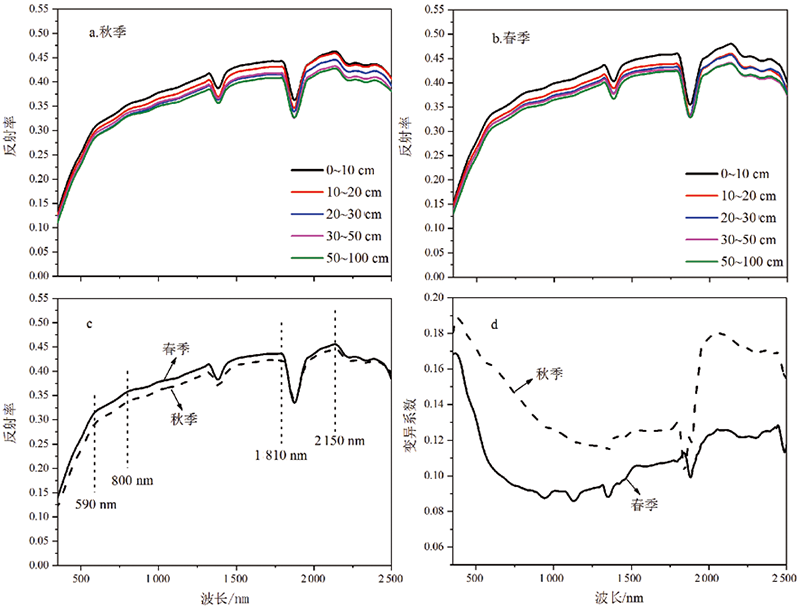

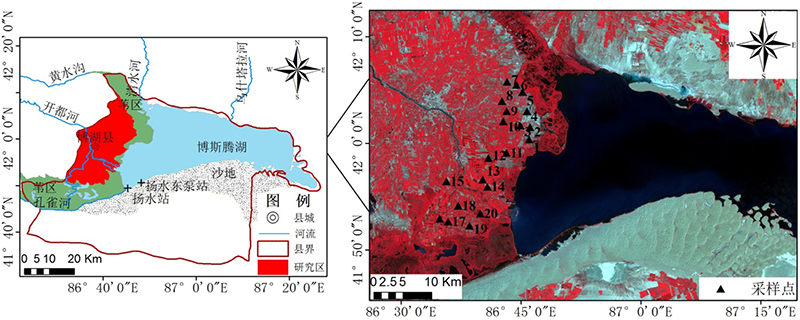

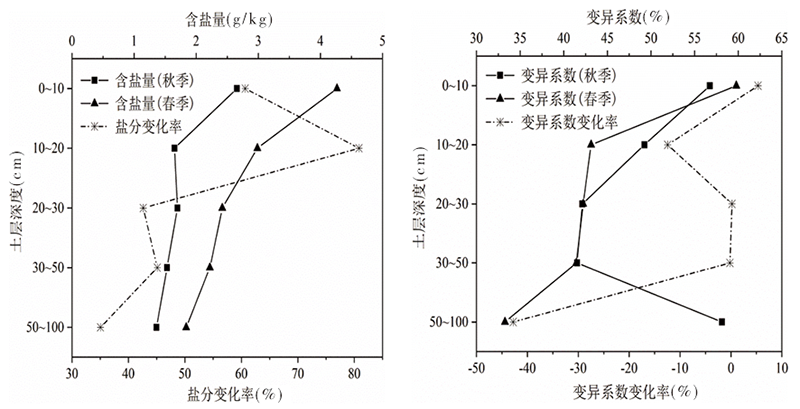

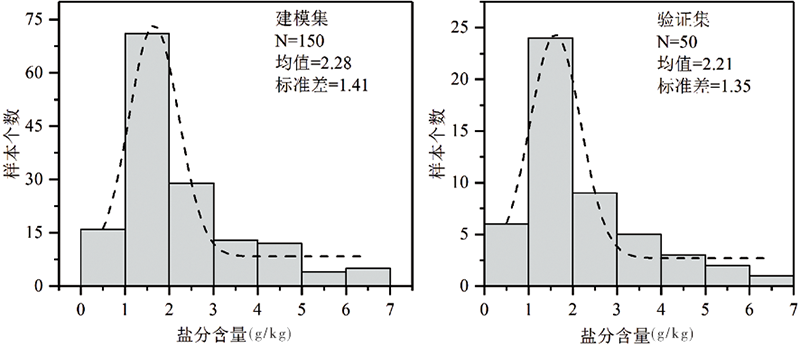

参数Parameter | 定义Definition |
---|---|
Rλ | 在波段λ处的土壤反射光谱 Soil reflectance spectrum at bandλ |
DSI(i,j) | DSI=Rj-Ri |
RSI(i,j) | RSI=Rj/Ri |
NDSI(i,j) | NDSI=(Rj-Ri)/(Rj+Ri) |
Table 1 Definition of parameters
参数Parameter | 定义Definition |
---|---|
Rλ | 在波段λ处的土壤反射光谱 Soil reflectance spectrum at bandλ |
DSI(i,j) | DSI=Rj-Ri |
RSI(i,j) | RSI=Rj/Ri |
NDSI(i,j) | NDSI=(Rj-Ri)/(Rj+Ri) |
参数 Parameter | 简称 Abbreviation | 公式 Formula | 描述 Description | |
---|---|---|---|---|
建模决定系数 Modeling determination factor | $\sum^{N}_{i=1}(x_{i}-\bar{x})(y_{i}-\bar{y})/ \sqrt{\sum^{N}_{i=1}(x_{i}-\bar{x})^{2}+\sum^{N}_{i=1}(y_{i}-\bar{y})^{2}}$ | 当值越接近1,模型越稳定 | ||
预测决定系数 Predictive determination coefficient | ||||
校正均方根误差 Correct the root mean square error | RMSEC | $\sqrt{\sum^{N}_{i=1}(y_{i}-\bar{x})^{2}/N}$ | 当值越接近0,模型精度越高 | |
验证均方根误差 Verify the root mean square error | RMSEV | |||
相对分析误差 Relative prediction deviation | RPD | 0~1.4,差;1.4~2.0,可用;大于2.0,好 |
Table 2 Parameters of model accuracy

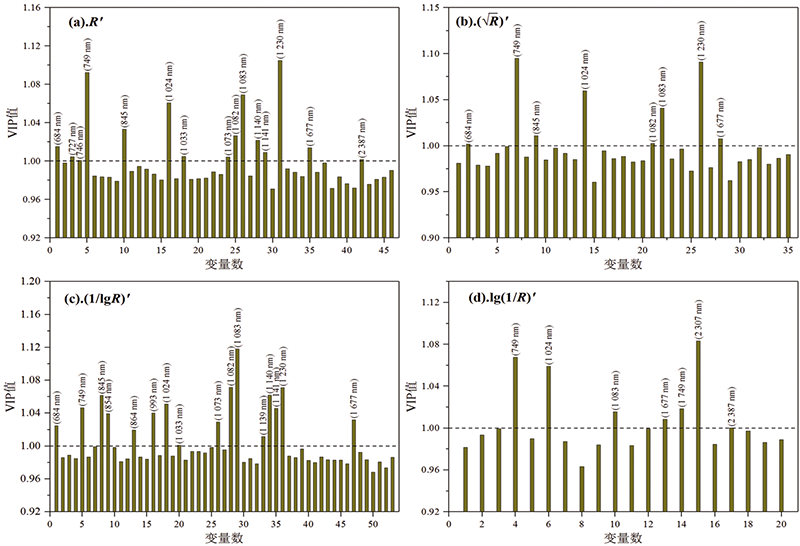

参数 Parameter | 简称 Abbreviation | 公式 Formula | 描述 Description | |
---|---|---|---|---|
建模决定系数 Modeling determination factor | $\sum^{N}_{i=1}(x_{i}-\bar{x})(y_{i}-\bar{y})/ \sqrt{\sum^{N}_{i=1}(x_{i}-\bar{x})^{2}+\sum^{N}_{i=1}(y_{i}-\bar{y})^{2}}$ | 当值越接近1,模型越稳定 | ||
预测决定系数 Predictive determination coefficient | ||||
校正均方根误差 Correct the root mean square error | RMSEC | $\sqrt{\sum^{N}_{i=1}(y_{i}-\bar{x})^{2}/N}$ | 当值越接近0,模型精度越高 | |
验证均方根误差 Verify the root mean square error | RMSEV | |||
相对分析误差 Relative prediction deviation | RPD | 0~1.4,差;1.4~2.0,可用;大于2.0,好 |
光谱变换 Spectrum transform | 极显著相关系数绝对值超出的数量 The number of extremely significant correlation coefficients exceeding the absolute value (|r|≥0.45,P<0.01) | 相关系数 绝对值的最值 (|r|max) | 相关系数绝对值((|r|)的 最值波段位置 The band position of|r|max |
---|---|---|---|
R | 0 | 0.27 | 1 406 nm |
R' | 46 | 0.62 | 1 230 nm |
( | 35 | 0.60 | 1 230 nm |
(1/lgR)' | 53 | 0.63 | 1 083 nm |
lg(1/R)' | 18 | 0.58 | 2 307 nm |
Table 2 Statistical analysis of characteristic bands of soil salinity under different spectral transformation forms

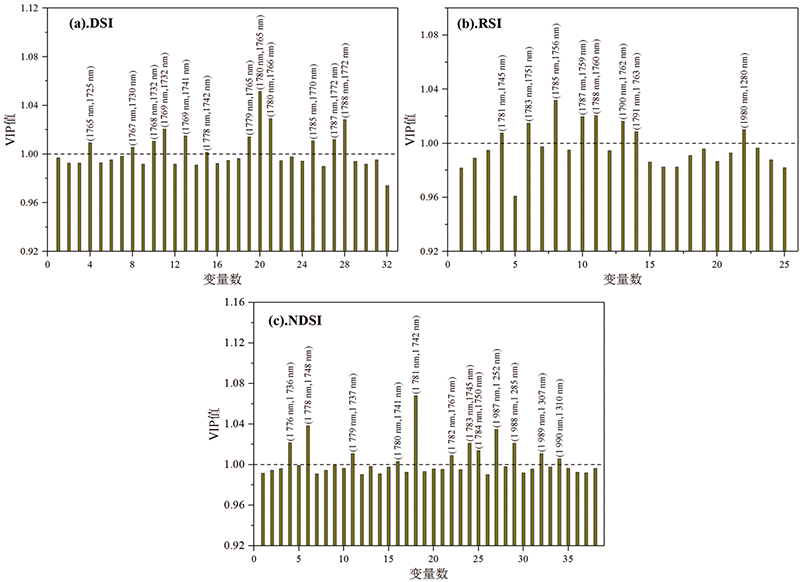

光谱变换 Spectrum transform | 极显著相关系数绝对值超出的数量 The number of extremely significant correlation coefficients exceeding the absolute value (|r|≥0.45,P<0.01) | 相关系数 绝对值的最值 (|r|max) | 相关系数绝对值((|r|)的 最值波段位置 The band position of|r|max |
---|---|---|---|
R | 0 | 0.27 | 1 406 nm |
R' | 46 | 0.62 | 1 230 nm |
( | 35 | 0.60 | 1 230 nm |
(1/lgR)' | 53 | 0.63 | 1 083 nm |
lg(1/R)' | 18 | 0.58 | 2 307 nm |
光谱指数 Spectral indices | R2超出的光谱指数数量(R2≥0.4,P<0.01) The number of spectral indices R2 exceeds 0.4 | R2最大值 | R2最大值的对应波段组合 The band position of |
---|---|---|---|
差值指数(DSI) Differential spectral index | 32 | 0.54 | R1 780-R1 765 |
比值指数(RSI) The ratio of spectral index | 25 | 0.48 | R1 785/R1 756 |
归一化指数(NDSI) Normalized spectral index | 38 | 0.57 | (R1 780-R1 742)/(R1 780+R1 742) |

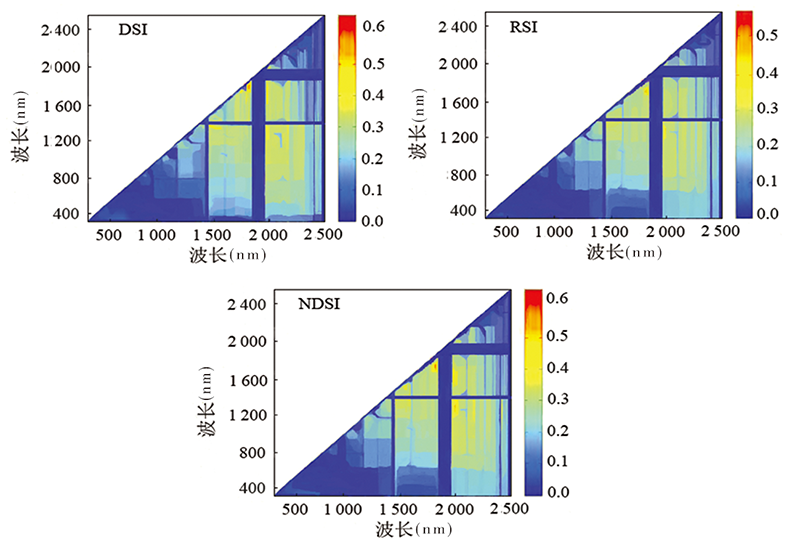

Table 3 Soil salt characteristic band combination based on spectral index
光谱指数 Spectral indices | R2超出的光谱指数数量(R2≥0.4,P<0.01) The number of spectral indices R2 exceeds 0.4 | R2最大值 | R2最大值的对应波段组合 The band position of |
---|---|---|---|
差值指数(DSI) Differential spectral index | 32 | 0.54 | R1 780-R1 765 |
比值指数(RSI) The ratio of spectral index | 25 | 0.48 | R1 785/R1 756 |
归一化指数(NDSI) Normalized spectral index | 38 | 0.57 | (R1 780-R1 742)/(R1 780+R1 742) |
光谱特征参数 Spectral characteristic parameter | 自变量个数 Number of independent variables | 建模集Modeling set | 验证集Validation set | ||||
---|---|---|---|---|---|---|---|
RMSEC | RMSEV | RPD | |||||
R' | 15 | 0.78 | 0.74 | 0.73 | 0.79 | 1.80 | |
( | 8 | 0.74 | 0.79 | 0.66 | 0.82 | 1.68 | |
(1/lgR)' | 16 | 0.82 | 0.61 | 0.77 | 0.69 | 2.01 | |
[lg(1/R)]' | 7 | 0.62 | 0.83 | 0.57 | 0.92 | 1.51 | |
DSI | 12 | 0.81 | 0.51 | 0.72 | 0.73 | 1.88 | |
RSI | 8 | 0.74 | 0.75 | 0.63 | 0.95 | 1.62 | |
NDSI | 12 | 0.86 | 0.46 | 0.77 | 0.64 | 2.11 |
Table 4 Prediction results of soil salt content by PLSR model
光谱特征参数 Spectral characteristic parameter | 自变量个数 Number of independent variables | 建模集Modeling set | 验证集Validation set | ||||
---|---|---|---|---|---|---|---|
RMSEC | RMSEV | RPD | |||||
R' | 15 | 0.78 | 0.74 | 0.73 | 0.79 | 1.80 | |
( | 8 | 0.74 | 0.79 | 0.66 | 0.82 | 1.68 | |
(1/lgR)' | 16 | 0.82 | 0.61 | 0.77 | 0.69 | 2.01 | |
[lg(1/R)]' | 7 | 0.62 | 0.83 | 0.57 | 0.92 | 1.51 | |
DSI | 12 | 0.81 | 0.51 | 0.72 | 0.73 | 1.88 | |
RSI | 8 | 0.74 | 0.75 | 0.63 | 0.95 | 1.62 | |
NDSI | 12 | 0.86 | 0.46 | 0.77 | 0.64 | 2.11 |
