基于高通量测序的甜高粱青贮饲料中微生物群落分析

doi:10.6048/j.issn.1001-4330.2023.11.018

摘要/Abstract

摘要：

【目的】 研究甜高粱青贮饲料的微生物多样性,为青贮饲料的生产和贮藏提供理论基础。【方法】 以甜高粱青贮饲料为研究对象,利用高通量测序技术分析甜高粱青贮饲料中微生物群落结构和多样性,研究添加剂对甜高粱青贮饲料中微生物群落的影响。【结果】 甜高粱青贮饲料中细菌优势菌门为厚壁菌门、变形菌门、拟杆菌门、蓝细菌门、酸杆菌门,优势菌属主要为乳酸杆菌属、肠杆菌属、乳球菌属、棒状杆菌;真菌群落优势菌门为子囊菌门。【结论】 不同处理的甜高粱青贮饲料之间微生物菌群组成相近,但相对丰度存在明显差异,青贮菌剂降低了甜高粱青贮饲料中微生物的相对丰度。

关键词: 甜高粱; 青贮饲料; 微生物多样性; 高通量测序

Abstract:

【Objective】 To clarify the microbial diversity of sweet sorghum silage in the hope of providing a theoretical basis for silage production and storage.【Methods】 In this study, the microbial diversity of silage from two varieties with or without the addition of silage additives were analyzed using high-throughput sequencing.【Results】 The dominant bacterial phyla in sweet sorghum silage were Firmicutes, Proteobacteria, Bacteroidetes, Cyanobacteria and Acidobacteria, and the dominant bacterial genera were Lactobacillus, Enterobacter, Lactococcus and Corynebacterium. Ascomycota was the dominant phylum in fungal community.【Conclusion】 The microbial flora composition of sweet sorghum silage is similar among different treatments, but the relative abundance is significantly different. Silage microbial agent reduces the relative abundance of microbial flora in sweet sorghum silage.

Key words: sweet sorghum; silage; microbial diversity; high throughput sequencing

中图分类号:

S182
S514

岳丽, 王卉, 山其米克, 再吐尼古丽·库尔班, 涂振东. 基于高通量测序的甜高粱青贮饲料中微生物群落分析[J]. 新疆农业科学, 2023, 60(11): 2742-2750.

YUE Li, WANG Hui, Shanqimike , Zaituniguli Kuerban, TU Zhendong. Microbial diversity analysis of sweet sorghum silage using High-Throughput sequencing[J]. Xinjiang Agricultural Sciences, 2023, 60(11): 2742-2750.

图/表 10

表1 青贮饲料样品细菌、真菌测序统计

Tab.1 Statistics of bacterial and fungal sequencing results of silage samples

微生物 Microorganism	样品 Sample	原始序列数 Raw reads	质控序列数 Clean reads	有效序列数 Effective reads	平均长度 Average length(bp)	GC (%)	OTU数量 Feature number
细菌	A	79 998	75 702	74 324	425	52.87	598
Bacteria	B	48 929	45 422	45 019	427	51.68	374
	C	48 228	44 844	44 062	426	52.56	505
	D	79 801	75 536	74 281	427	52.5	386
真菌	A	71 581	64 442	63 916	181	41.22	158
Fungus	B	172 836	49 376	48 549	224	46.55	67
	C	51 480	49 593	49 141	253	40.68	154
	D	79 728	77 351	77 191	178	39.85	29

图1 基于 OTU 水平的甜高粱青贮样品中细菌群落的 Venn 图

Fig.1 Venn plot of bacterial community in sweet sorghum silage samples based on OTU levels

表2 样品细菌的 Alpha 多样性指数

Tab.2 The Alpha diversity index of bacteria in samples

样品 Sample	Ace指数 Ace index	Chao1指数 Chao1 index	Simpson指数 Simpson index	Shannon指数 Shannon index	OTU 数量 Feature number	覆盖度 Coverage
A	629.01	634.25	0.90	5.07	598	0.998 3
B	407.90	425.11	0.73	3.10	374	0.998 5
C	536.29	548.83	0.84	4.56	505	0.998 4
D	470.95	470.73	0.51	2.31	386	0.997 4

图2 基于门水平的细菌组成及物种丰度聚类热图

Fig.2 Heat map of bacterial composition and species abundance clustering at the phylum level

图3 基于属水平的细菌组成及物种丰度聚类热图

Fig.3 Heat map of bacterial composition and species abundance clustering at the genus level

图4 细菌非度量多维尺度(a)和基于Beta多样性距离的样品层级聚类树(b)

Fig.4 Bacterial NMDS diagram (a) and sample hierarchical clustering tree based on Beta diversity distance (b)

图5 基于 OTU 水平的甜高粱青贮饲料中真菌群落的 Venn 图

Fig.5 Venn diagram of fungal community in sweet sorghum silage based on OTU level

表3 甜高粱青贮饲料中真菌的 Alpha 多样性

Tab.3 The Alpha diversity index of fungal in samples

样品 Sample	Ace指数 Ace index	Chao1指数 Chao1 index	Simpson指数 Simpson index	Shannon指数 Shannon index	OTU 数量 Feature number	覆盖度 Coverage
A	119.04	124.18	0.56	0.12	158	0.999 8
B	109.27	120.95	0.70	0.21	67	0.999 4
C	170.43	170.74	3.50	0.83	154	0.999 9
D	42.00	50.04	0.06	0.01	29	0.999 8

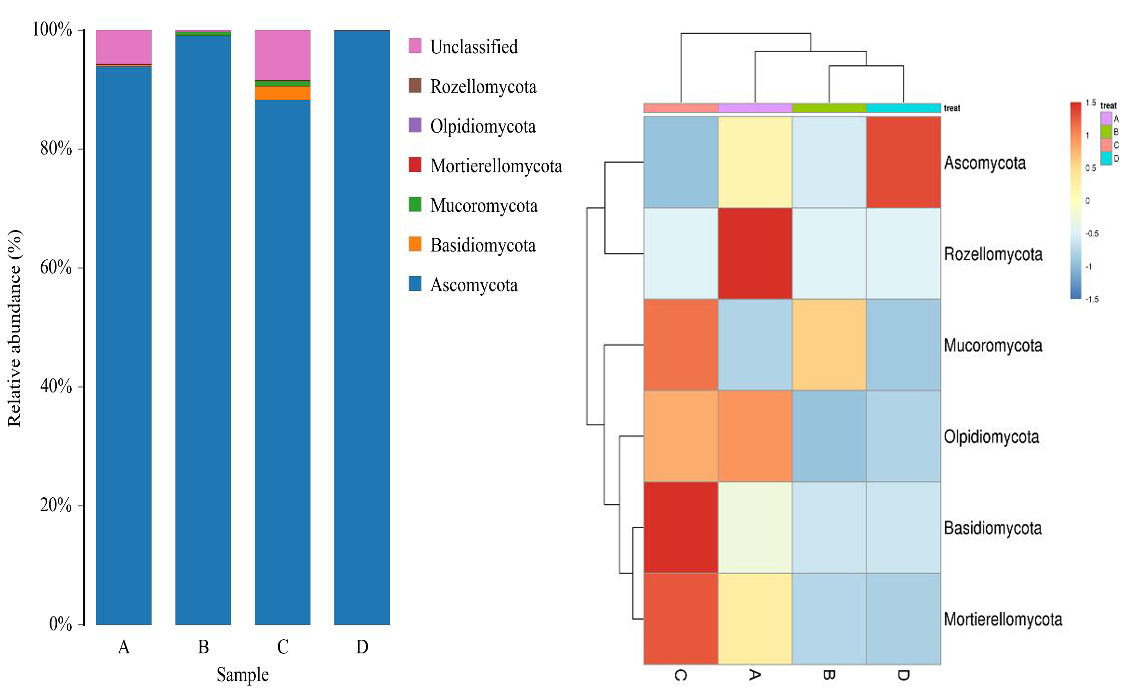

图6 基于门水平的甜高粱青贮饲料真菌组成及物种丰度聚类热图

Fig.6 Heat map of fungal composition and species abundance of sweet sorghum silage based on phylum level

图7 基于属水平的甜高粱青贮饲料真菌组成及物种丰度聚类热图

Fig.7 Heat map of fungal composition and species abundance in sweet sorghum silage based on genus level

参考文献 27

[1]	Gallagher D, Parker D, Allen D J, et al. Dynamic bacterial and fungal microbiomes during sweet sorghum ensiling impact bioethanol production[J]. Bioresource Technology, 2018, 264: 163-173. DOI PMID
[2]	Dar R A, Dar E A, Kaur A, et al. Sweet sorghum-a promising alternative feedstock for biofuel production[J]. Renewable and Sustainable Energy Reviews, 2018, 82: 4070-4090. DOI URL
[3]	Ginwal D S, Kumar R, Ram H, et al. Evaluation of productivity and quality of forage sorghum and legumes crops under varying intercropping combinations[J]. The Indian Journal of Animal Sciences, 2021, 91(9).
[4]	Chiambiro G, Madzimure J, Mpofu I D T. Constraints and opportunities of sweet sorghum (Sorghum bicolor L.) silage production and utilisation by smallholder milk production sector in Zimbabwe[J]. Tropical Animal Health and Production, 2022, 54(2): 1-11. DOI
[5]	Bai Y, Rafiq M K, Li S, et al. Biochar from pyrolyzed Tibetan Yak dung as a novel additive in ensiling sweet sorghum: An alternate to the hazardous use of Yak dung as a fuel in the home[J]. Journal of Hazardous Materials, 2021, 403: 123647. DOI URL
[6]	商振达, 谭占坤, 李家奎, 等. 西藏地区荞麦与玉米混合青贮对发酵品质和微生物多样性的影响[J]. 草业学报, 2019, 28(4):95-105. DOI
	SHANG Zhenda, TAN Zhankun, LI Jiakui, et al. Effects of variation in proportion of maize on the fermentation quality and microbial diversity of mixed buckwheat and maize silage in Tibet[J]. Acta Prataculturae Sinica, 2019, 28(4): 95-105. DOI
[7]	Dong Z, Tao X, Bao Y, et al. Effect of applying different additives on the fermentation characteristics and aerobic stability of total mixed ration silage prepared with local feed resources in Tibet[J]. Grassland Science, 2022, 68(1): 78-87. DOI URL
[8]	Zhao G Q, Ju Z L, Chai J K, et al. Effects of silage additives and varieties on fermentation quality, aerobic stability, and nutritive value of oat silage[J]. Journal of Animal Science, 2018, 96(8): 3151-3160. DOI PMID
[9]	Lee S S, Joo Y H, Choi J S, et al. Effects of Ensiling Period and Bacterial Inoculants on Chemical Compositions and Fermentation Characteristics of Rye Silage[J]. Journal of the Korean Society of Grassland and Forage Science, 2021, 41(4): 259-266. DOI URL
[10]	Usman S, Dele P A, Jimoh S O, et al. Physical, fermentative, and nutritional quality of silages made from three Sorghum bicolor varieties as affected by ensiling duration in South-west Nigeria[J]. Tropical Animal Health and Production, 2021, 53(2): 1-14. DOI
[11]	Santos A P M, Santos E M, Oliveira J S, et al. Effects of urea addition on the fermentation of sorghum (Sorghum bicolor) silage[J]. African Journal of Range & Forage Science, 2018, 35(1): 55-62.
[12]	贾鹏, 王文丹, 吴天佑, 等. 甜高粱青贮加工技术及其在反刍动物中的应用[J]. 家畜生态学报, 2021, 42(2): 86-90.
	JIA Peng, WANG Wendan, WU Tianyou, et al. Sweet Sorghum Silage Processing Technology and its Application in Ruminants[J]. Acta Ecologiae Animalis Domastici, 2021, 42(2): 86-90.
[13]	任海伟, 赵艺, 刘玉龙, 等. 不同添加剂改善甜高粱青贮质量及其降解性能比较[J]. 农业工程学报, 2021, 37(14):283-293.
	REN Haiwei, ZHAO Yi, LIU Yulong, et al. Comparison of the improvement efficacies for ensiling quality and biodegradation performance of sweet sorghum silage by different additives[J]. Transactions of the Chinese Society of Agricultural Engineering, 2021, 37(14):283-293.
[14]	Romero J J, Joo Y, Park J, et al. Bacterial and fungal communities, fermentation, and aerobic stability of conventional hybrids and brown midrib hybrids ensiled at low moisture with or without a homo-and heterofermentative inoculant[J]. Journal of Dairy Science, 2018, 101(4): 3057-3076. DOI PMID
[15]	Wang S, Li J, Zhao J, et al. Dynamics of the bacterial communities and predicted functional profiles in wilted alfalfa silage[J]. Journal of Applied Microbiology, 2022, 132(4): 2613-2624. DOI URL
[16]	Vu V H, Li X, Wang M, et al. Dynamics of fungal community during silage fermentation of elephant grass (Pennisetum purpureum) produced in northern Vietnam[J]. Asian-Australasian Journal of Animal Sciences, 2019, 32(7): 996.
[17]	赵拓. 添加剂对玉米秸秆与白菜混贮品质影响及细菌多样性研究[D]. 兰州: 兰州理工大学, 2016.
	ZHAO Tuo. Effect of microbial additives on the mixed-silage quality for corn s tover and cabbage waste and bacterial diversity[D]. Lanzhou: Lanzhou University of Technology, 2016.
[18]	牛世全, 龙洋, 李海云, 等. 应用IlluminaMiSeq高通量测序技术分析河西走廊地区盐碱土壤微生物多样性[J]. 微生物学通报, 2017, 44(9):2067-2078.
	NIU Shiquan, LONG Yang, LI Haiyun, et al. Microbial diversity in saline alkali soil from Hexi Corridor analyzed by Illumina MiSeq high-throughput sequencing system[J]. Microbiology China, 2017, 44(9):2067-2078.
[19]	张敏, 张艳, 黄丽丽, 等. 基于16S rDNA高通量测序方法比较新疆西北部地区乳品中微生物的多样性[J]. 食品科学, 2017, 38(20): 27-33. DOI
	ZHANG Min, ZHANG Yan, HUANG Lili, et al. Application of 16S rDNA High Throughput Sequencing for Comparative Study of the Microbial Diversity of Dairy Products from Western and Northern Xinjiang, China[J]. Food Science, 2017, 38(20): 27-33. DOI
[20]	唐凯, 贾丽娟, 高晓丹, 等. 浑善达克沙地生物土壤结皮及其下层土壤中好氧不产氧光营养细菌群落结构及多样性[J]. 微生物学报, 2018, 58(2): 228-237.
	TANG Kai, JIA Lijuan, GAO Xiaodan, et al. Community structure and diversity of aerobic anoxygenic phototrophic bacteria in soil crusts and subsoil of Hunshandake deserts[J]. Acta Microbiologica Sinica, 2018, 58(2): 228-237.
[21]	孙志强, 罗撄宁, 熊乙, 等. 甜高粱作为优质饲草在我国草牧业发展中的潜力分析[J]. 中国草地学报, 2021, 43(3):104-112.
	SUN Zhiqiang, LUO Yingning, XIONG Yi, et al. Evaluation of Sweet Sorghum as a High-Quality Forage in Pasture-livestock Industry Development[J]. Chinese Journal of Grassland, 2021, 43(3):104-112.
[22]	Naeini S Z, Khorvash M, Rowghani E, et al. Efects of urea and molasses supplementation on chemical composition, protein fractionation and fermentation characteristics of sweet sorghum and bagasse silages as alternative silage crop compared with maize silage in the arid areas[J]. Research Opinions in Animal & Veterinary Sciences, 2014, 4(6): 343-352.
[23]	Zhou Y, Drouin P, Lafrenière C. Effect of temperature (5-25℃)on epiphytic lactic acid bacteria populations and fermentation of whole-plant corn silage[J]. Journal of Applied Microbiology, 2016, 121(3):657-671. DOI PMID
[24]	Alhaag H, Yuan X, Mala A, et al. Fermentation characteristics of Lactobacillus plantarum and Pediococcus species isolated from sweet sorghum silage and their application as silage inoculants[J]. Applied Sciences, 2019, 9(6): 1247. DOI URL
[25]	张欢, 牟怡晓, 张桂杰. 添加枸杞副产物对紫花苜蓿青贮发酵品质及微生物多样性的影响[J]. 草业学报, 2022, 31(4):136-144. DOI
	ZHANG Huan, MU Yixiao, ZHANG Guijie. Effects of Lycium barbarum by-products on fermentation quality and microbial diversity of alfalfa silage[J]. Acta Prataculturae Sinica, 2022, 31(4): 136-144. DOI
[26]	黄媛, 代胜, 梁龙飞, 等. 不同添加剂对构树青贮饲料发酵品质及微生物多样性的影响[J]. 动物营养学报, 2021, 33(3):1607-1617. DOI
	HUANG Yuan, DAI Sheng, LIANG Longfei, et al. Effects of Different Additives on Fermentation Quality and Microbial Diversity of Paper Mulberry Silage[J]. Chinese Journal of Animal Nutrition, 2021, 33(3):1607-1617.
[27]	杨宝钰. 瘤胃液处理甜高粱秸秆对其发酵品质及微生物多样性的影响[D]. 阿拉尔: 塔里木大学, 2022.
	YANG Baoyu. Effects of rumen fluid treatment on the fermentation quality and microbial diversity of sweet sorghum straw[D]. Aral: Tarim University, 2022.
