塔里木河上游不同生境细菌群落结构及多样性分析

doi:10.6048/j.issn.1001-4330.2024.03.021

新疆农业科学 ›› 2024, Vol. 61 ›› Issue (3): 708-718.DOI: 10.6048/j.issn.1001-4330.2024.03.021

塔里木河上游不同生境细菌群落结构及多样性分析

姚宇翔¹^,²(), 王国强², 王可², 伊莎², 杨欣雅², 罗晓霞¹^,²()

1.塔里木盆地生物资源保护利用兵团重点实验室,新疆阿拉尔 843300
2.塔里木大学生命科学与技术学院,新疆阿拉尔 843300

收稿日期:2023-07-15 出版日期:2024-03-20 发布日期:2024-04-19
通信作者: 罗晓霞(1982-),女,新疆阿拉尔人,教授,博士,硕士生导师,研究方向为微生物资源及其利用,(E-mail)xxluo415@163.com
作者简介:姚宇翔(1999-),女,河南周口人,硕士研究生,研究方向为微生物资源及其利用,(E-mail)1366307897@qq.com
基金资助:
新疆生产建设兵团中青年科技创新领军人才计划(1119119);塔里木放线菌种质资源库建设(TDZKKY202201);塔里木大学自治区研究生科研创新项目(TDGRI202204)

Analysis of the bacterial communities structure and diversty of the Tarim River in different habitats

YAO Yuxiang¹^,²(), WANG Guoqiang², WANG Ke², YI Sha², YANG Xinya², LUO Xioaxia¹^,²()

1. Key Laboratory Biological Resources Conservation and Utilization in Tarim Basin,Xinjiang Production and Construction Corps,Tarim University,Aral Xinjiang 843300,China
2. School of Life Science and Technology,Tarim University,Aral Xinjiang 843300,China

Received:2023-07-15 Online:2024-03-20 Published:2024-04-19
Correspondence author: LUO Xiaoxia(1982-),female,from Aral,Xinjiang,professor,research interests:microbial resources and their utilization,(E-mail) xxluo415@163.com
Supported by:
Young and middle-aged scientific and technological innovation leader program of XPCC(1119119);Construction of the Germplasm Resource Bank of Actinomyces tarimus(TDZKKY202201);Tarim University Autonomous Region Postgraduate Research Innovation Project(TDGRI202204)

摘要/Abstract

摘要：

【目的】 研究新疆塔里木河上游不同生境细菌群落结构及多样性。【方法】 采用免培养和可培养方法,研究塔里木河上游流域原始生境与人工开发后生境细菌群落结构及多样性差异,同时对分离的1株潜在新种进行多相分类鉴定。【结果】 原始生境与人工开发后生境细菌群落结构组成差异明显,人工开发后生境细菌α多样性低于原始生境,不同生境细菌β多样性差异较大。变形菌门和放线菌门为优势菌群,并获1株链霉菌属潜在新物种。【结论】 塔里木河上游不同生境样品中含有丰富的微生物资源,其细菌群落组成受人为活动的影响较大。

关键词: 不同生境; 细菌群落组成; 多样性; 多相分类鉴定

Abstract:

【Objective】 Analysis of the bacterial communities structure and diversty of the Tarim River in different habitats.【Methods】 The culture-free and cultivable methods were used in this study to explore the bacterial community structure and diversity of Tarim River,and also identified a potential new species by using the polyphasic taxonomy method.【Results】 There were significantly difference of bacterial community between the original habitat and the artificially developed habitat.There was lower alpha diversity of the artificially developed habitat than the original habitat,and it had multiple difference of the beta diversity among the different habits.Based on the cultivable methods,the Proteobacteria and Actinomycota were dominant bacterial groups in these habitats.According to the polyphasic taxonomy method,a potential new species was identified.【Conclusion】 There are multiple microbial resources in different habitats of the Tarim River.The bacterial community structure has been affected by human activities.

Key words: different habitats; bacterial community structure; diversity; the polyphasic taxonomy

中图分类号:

S188

姚宇翔, 王国强, 王可, 伊莎, 杨欣雅, 罗晓霞. 塔里木河上游不同生境细菌群落结构及多样性分析[J]. 新疆农业科学, 2024, 61(3): 708-718.

YAO Yuxiang, WANG Guoqiang, WANG Ke, YI Sha, YANG Xinya, LUO Xioaxia. Analysis of the bacterial communities structure and diversty of the Tarim River in different habitats[J]. Xinjiang Agricultural Sciences, 2024, 61(3): 708-718.

图/表 10

表1 各水平微生物分类单元数统计

Tab.1 Statistical table of the number of microbial classification units at all levels

Sample	Phylum	Class	Order	Family	Genus	Species
ZF	19	43	99	143	226	88
EG	26	54	129	160	236	82
TA	21	54	103	142	178	47
BM	22	44	105	156	221	70
S-T	28	67	112	138	112	32
S-M	25	60	89	101	78	13
S-Y	26	55	97	120	95	36
S-m	31	72	107	129	102	27
S4	26	62	116	143	117	30
S3	21	51	91	111	91	19
S2	28	65	110	136	114	33
S1	27	72	114	142	121	30

图1 不同样品间细菌群落结构组成注:A:塔里木河上游不同土样门水平物种组成柱状图,B:塔里木河上游不同水样门水平物种组成柱状图,C:塔里木河上游不同土样属水平物种组成柱状图,D:塔里木河上游不同水样属水平物种组成柱状图

Fig.1 Analysis of bacterial community structure among different samples Note:A:Histogram of horizontal species composition of different soil phylums in the upper reaches of Tarim River,B:Histogram of horizontal species composition of different phylums of the upper reaches of Tarim River,C:Horizontal species composition of different soil genus in the upper reaches of Tarim River,D:Tarim Histogram of horizontal species composition of different water sample genera in the upper reaches of the river

表2 不同样品的alpha多样性指数

Tab.2 Alpha diversity index of different samples

Sample	Chao1	Simpson	Shannon	Observed_species	Faith_pd	Goods_coverage
S1	3 377.93	0.990 888	9.297 34	3 249	306.966	0.994 019
S2	3 922.37	0.997 72	10.315 1	3 782	320.958	0.992 133
S3	2 191.48	0.980 822	8.072 1	2 042	206.968	0.994 716
S4	4 757.41	0.995 194	10.298 6	4 583	375.849	0.989 907
S-M	3 705.76	0.968 635	8.987 97	3 508	281.87	0.991 298
S-m	4 886.6	0.997 765	10.578	4 738	373.577	0.989 555
S-T	5 273.96	0.996 183	10.872 6	5 260	400.71	0.996 595
S-Y	4 452.27	0.998 124	10.712 5	4 230	364.662	0.990 527
BM	3 900.91	0.884 219	7.023 68	3 830	180.009	0.995 676
EG	3 070.09	0.965 024	7.240 96	3 063	178.746	0.998 786
TA	912.77	0.978 809	7.514 6	910	72.96	0.999 898
ZF	5 244.04	0.957 637	8.139 92	5 195	210.571	0.995 141

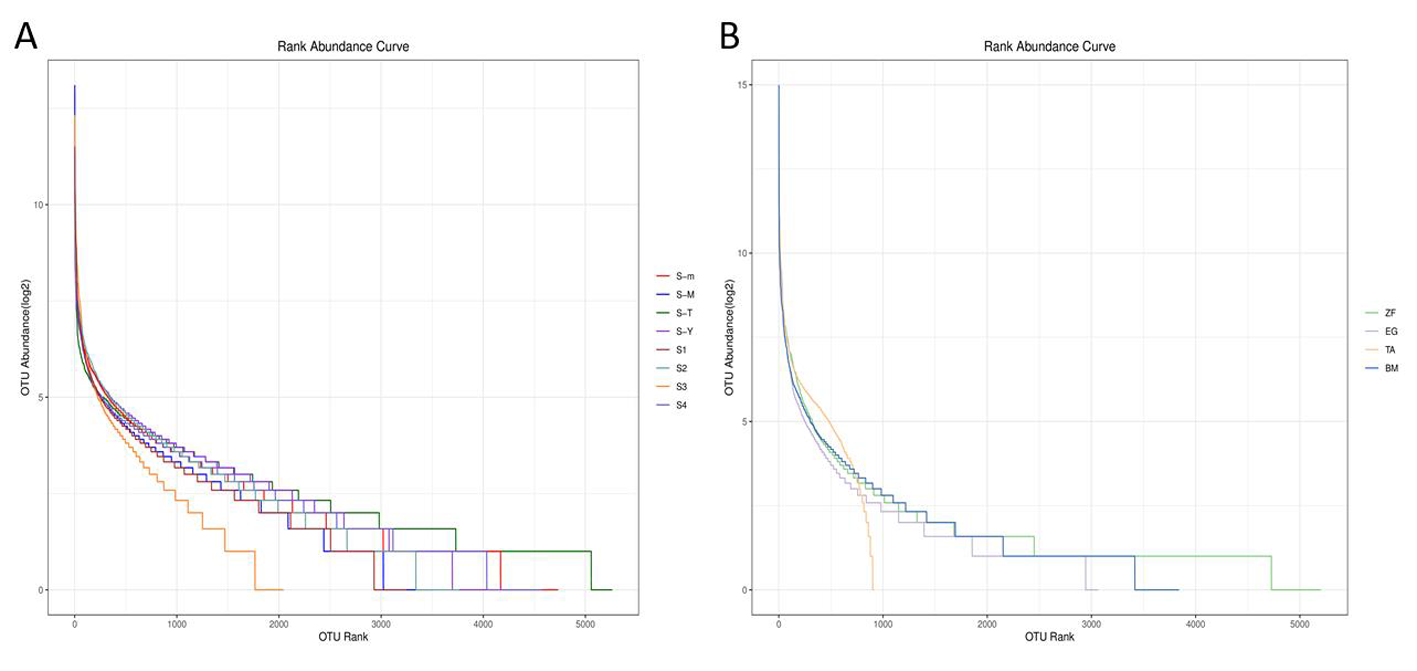

图2 物种的Rank-abundance曲线

Fig.2 The Rank-Abundance curve of the species

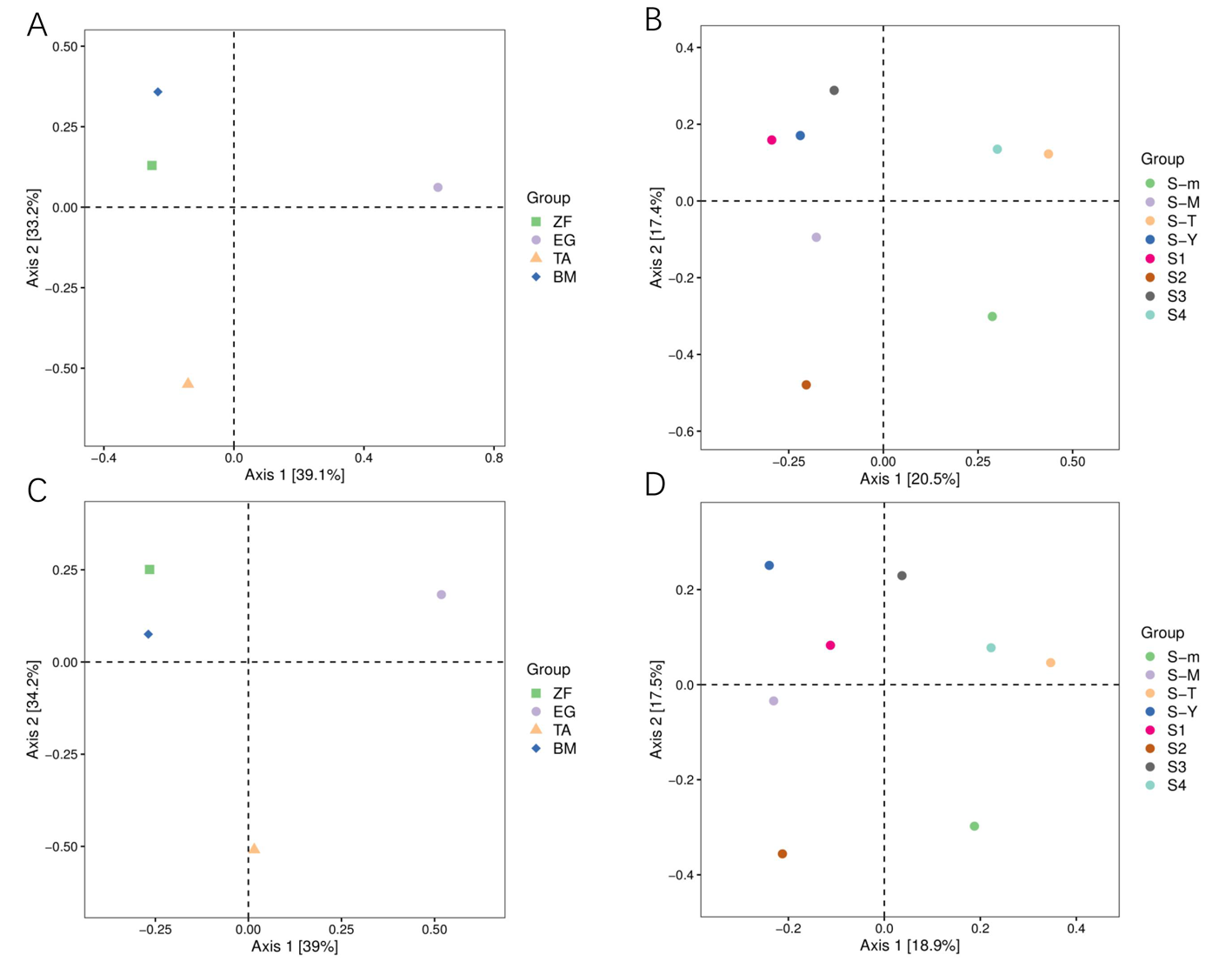

图3 塔里木河上游PCoA分析注:A:基于Bray curtis计算水样的PcoA分析; B:基于Bray Curtis计算土样的PCoA; C:基于非加权UniFrac距离的水样PCoA分析; D:基于非加权UniFrac距离的土样PCoA分析

Fig.3 PCoA analysis of the upper reaches of the Tarim River Note:A:Analysis of PCoA based on Bray-Curtis about Water sample; B:Analysis of PCoA based on Bray-Curtis about Soil sample; C:Analysis of PCoA based on unweighted UniFrac about Water sample; D:Analysis of PCoA based on unweighted UniFrac about soil sample

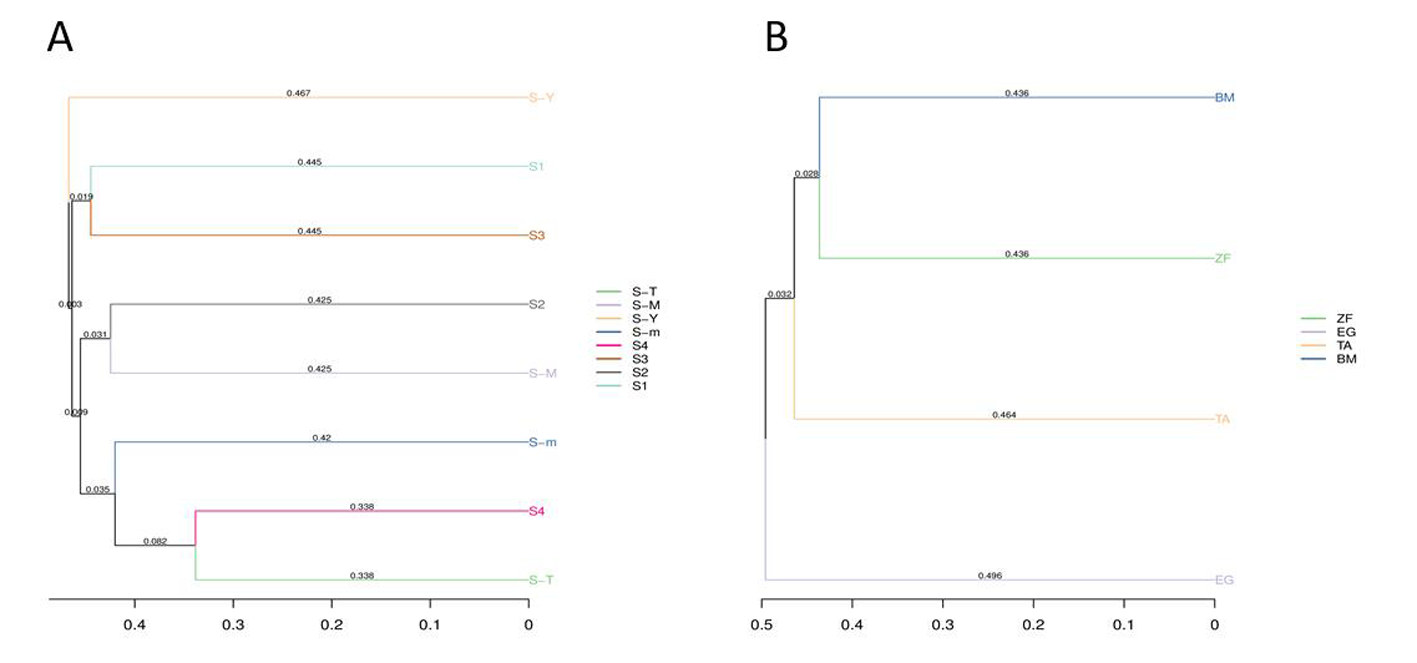

图4 基于UPGMA算法的样本间微生物群落距离矩阵

Fig.4 Based on the UPGMA to construct the distance matrix of bacterial community structure

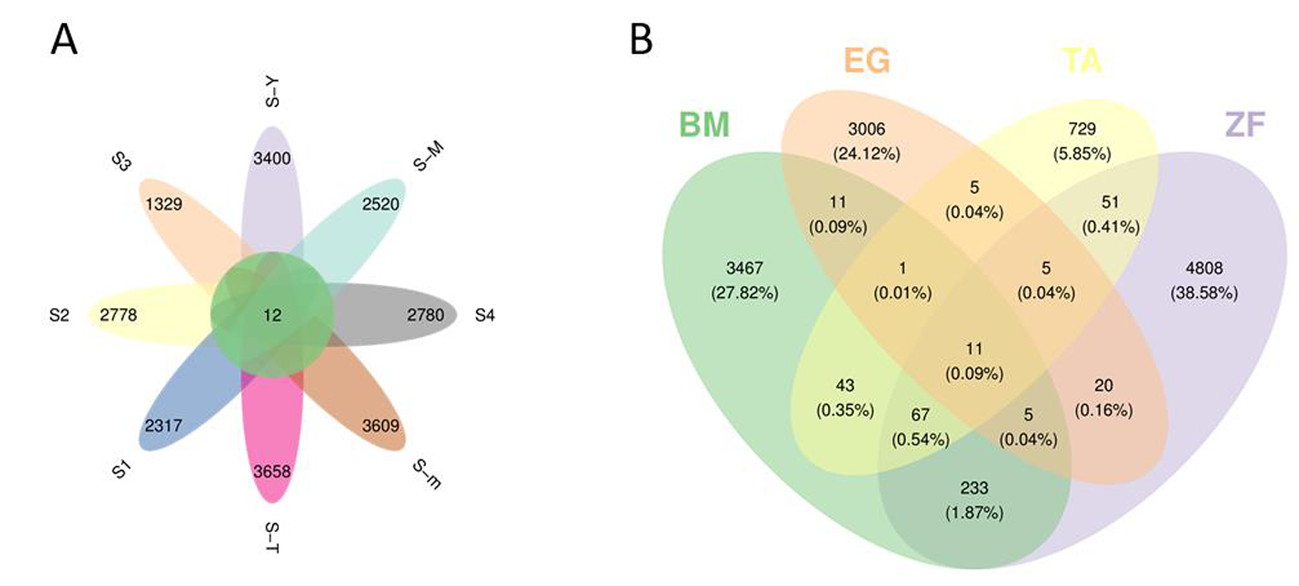

图5 不同样品间属水平上物种韦恩图差异分析

Fig.5 Venn of genus horizontal species among different samples

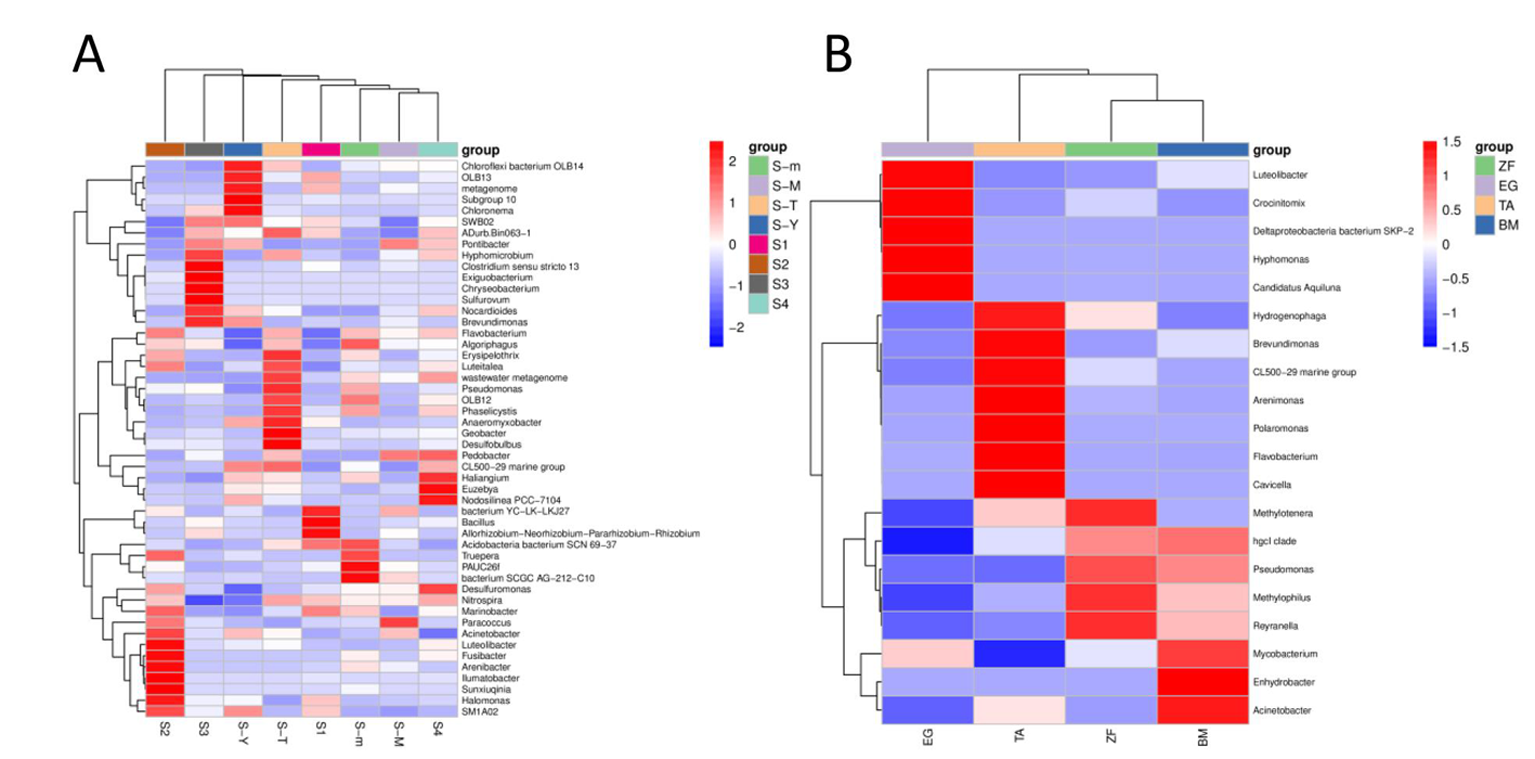

图6 不同样品间属水平上物种差异热图

Fig.6 Heatmap of genus horizontal species among different samples

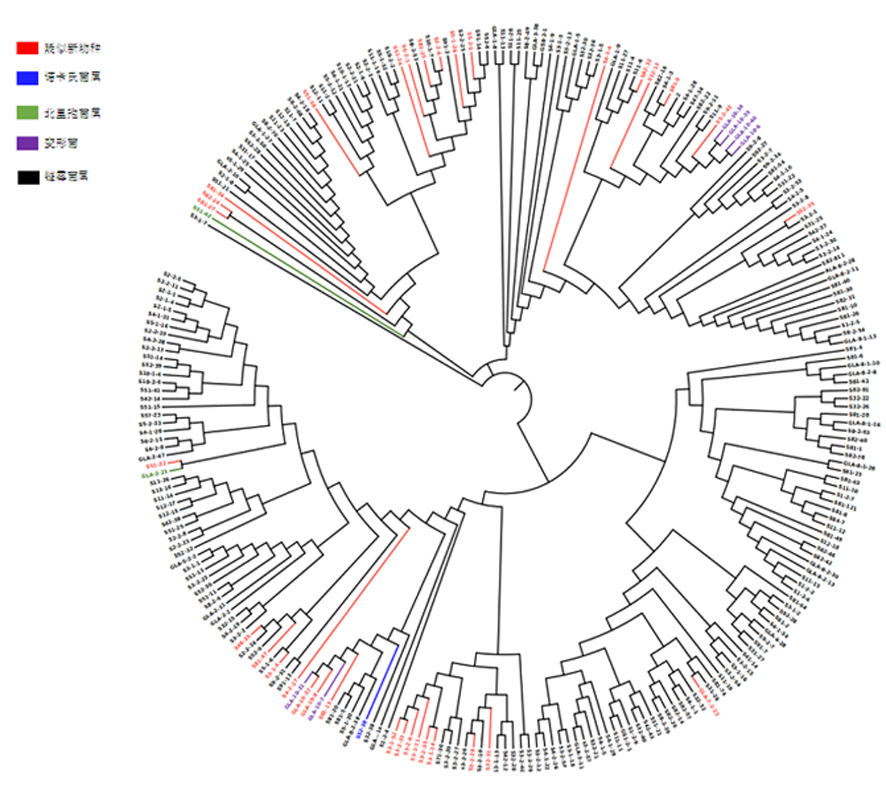

图7 塔里木河上游土样可培养法细菌多样性

Fig.7 Analysis of bacterial diversity in soil samples from the upper reaches of the Tarim River

图8 菌株TRM49032的多相分类鉴定注:A:菌株TRM 49032系统进化分析;B:菌株TRM 49032菌丝体形态;C:菌株TRM 49032细胞壁极性脂分析;D:菌株TRM 49032细胞壁脂肪酸分析;E:菌株TRM 49032细胞壁醌型分析

Fig.8 Multiphase classification and identification of strain TRM49032 Note:A:system evolution relationship of strain TRM49032; B:morphological electron micrograph of strain TRM49032; C:cell wall polar lipid type of strain TRM49032(ninhydrin staining,anisaldehyde staining,molybdenum phosphate staining); D:cell wall fatty acid type table of strain TRM49032; E:Analysis of cell wall quinotype of strain TRM49032

参考文献 29

[1]	刘海燕, 王敬敬, 赵维, 等. 塔里木河中下游流域棉田及胡杨林土壤细菌群落结构及多样性研究[J]. 微生物学通报, 2019, 46(9):2214-2230.
	LIU Haiyan, WANG Jingjing, ZHAO Wei, et al. Structure of soil bacteria community and diversity in cotton field and Euphrates poplar forest in the middle and lower reaches of Tarim river basin[J]. Microbiology China, 2019, 46(9):2214-2230.
[2]	孙晨, 贡璐, 马勇刚, 等. 塔里木河上游典型绿洲土地利用时空格局分析[J]. 西北农林科技大学学报(自然科学版), 2020, 48(7):113-122.
	SUN Chen, GONG Lu, MA Yonggang, et al. Temporal and spatial pattern analysis of land use in typical oasis in the upper reaches of the Tarim River[J]. Journal of Northwest A & F University(Natural Science Edition), 2020, 48(7):113-122.
[3]	罗建桦, 陶晔, 邢鹏. 湖泊微生物宏基因组学研究进展[J]. 湖泊科学, 2020, 32(1):271-280.
	LUO Jianhua, TAO Ye, XING Peng, et al. Mini-review:Advances of metagenomics research for lake microbiomes[J]. Journal of Lake Sciences, 2020, 32(1):271-280. DOI URL
[4]	吴庆龙, 邢鹏, 李化炳, 等. 草藻型稳态转换对湖泊微生物结构及其碳循环功能的影响[J]. 微生物学通报, 2013, 40(1):87-97.
	WU Qinglong, XING Peng, LI Huabing, et al. Impacts of regime shift between phytoplankton and macrophyte on the microbial community structure and its carbon cycling in lakes[J]. Microbiology China, 2013, 40(1):87-97.
[5]	Han D, Ha H K, Hwang C Y, et al. Bacterial communities along stratified water columns at the Chukchi Borderland in the western Arctic Ocean[J]. Deep-Sea Research Part II:Topical Studies in Oceanography, 2015, 120:52-60.
[6]	吴庆龙, 江和龙. 中国湖泊微生物组研究[J]. 中国科学院院刊, 2017, 32(3):273-279.
	WU Qinglong, JIANG Helong. China lake microbiome project[J]. Bulletin of Chinese Academy of Sciences, 2017, 32(3):273-279.
[7]	Ininbergs K, Bergman B, Larsson J, et al. Microbial metagenomics in the Baltic Sea:Recent advancements and prospects for environmental Monitoring[J]. Ambio, 2015, 44(Suppl 3):439-450. DOI URL
[8]	张庆芳, 杨超, 于爽, 等. 黄海海域海洋沉积物细菌多样性分析[J]. 微生物学通报, 2020, 47(2):370-378.
	ZHANG Qingfang, YANG Chao, YU Shuang, et al. Bacterial diversity of marine sediments in the Yellow Sea[J]. Microbiology China, 2020, 47(2):370-378.
[9]	Vavourakis C D, Andrei A S, Mehrshad M, et al. A metagenomics roadmap to the uncultured genome diversity in hypersaline soda lake sediments[J]. Microbiome, 2018, 6(1):168. DOI
[10]	吴悦妮, 冯凯, 厉舒祯. 16S/18S/ITS扩增子高通量测序引物的生物信息学评估和改进[J]. 微生物学通报. 2020, 47(9):2897-2912.
	WU Yueni, FENG Kai, LI Shuzhen, et al. In-silico evaluation and improvement on 16S/18S/ITS primers for amplicon high-throughput sequencing[J]. Microbiology China, 2020, 47(9):2897-2912.
[11]	Fung C, Rusling M, Lampeter T, et al. Automation of QIIME2 Metagenomic Analysis Platform[J]. Current Protocols. 2021. 1(9):e254. DOI URL
[12]	Ling L L, Schneider T, Peoples A J, et al. A new antibiotic kills pathogens without detectable resistance[J]. Nature, 2015, 517(7535):455-459. DOI
[13]	Sherpa R T, Reese C J, Montazeri A H. Application of iChip to Grow "Uncultivable" Microorganisms and its Impact on Antibiotic Discovery[J]. J Pharm Pharm Sci, 2015, 18(3):303. PMID
[14]	Lodhi A F, Zhang Y, Adil M, et al. Antibiotic discovery:combining isolation chip(iChip) technology and co-culture technique.[J]. Appl Microbiol Biotechnol, 2018, 102(17):7333-7341. DOI
[15]	阮继生, 黄英. 放线菌快速鉴定与系统分类[M]. 北京: 科学出版社, 2011.
	RUAN Jisheng, HUANG Ying. Rapid identification and systematic classification of Actinomyces sp[M]. Beijing: Science Press, 2011.
[16]	雷艳娟. 骆驼蓬内生放线菌多样性及其次级代谢产物初探[D]. 阿拉尔: 塔里木大学, 2020.
	LEI Yanjuan. The Diversity of Endophytic Actinobacteria from Peganum harmala and Primary Investigation of Their Secondary Metabolites[D]. Aral: Tarim University, 2020.
[17]	王扬. 一株糖霉菌新物种的多相分类及糖霉菌属CRISPR/Cas系统多样性分析[D]. 阿拉尔: 塔里木大学, 2018.
	WANG Yang. The Polyphasic Taxonomy of a New Species of Glycomyces and Analyses of CRISPR/Cas System Diversity in Glycomyces[D]. Aral: Tarim University, 2018.
[18]	刘峰, 冯民权, 王毅博. 汾河入黄口夏季微生物群落结构分析[J]. 微生物学通报, 2019, 46(1):54-64.
	LIU Feng, FENG Minquan, WANG Yibo. Microbial community structure of estuary of the Fenhe River into the Yellow River in summer[J]. Microbiology China, 2019, 46(1):54-64.
[19]	Kimura Z I, Okabe S. Acetate oxidation by syntrophic association between Geobacter sulfurreducens and a hydrogen-utilizing exoelectrogen[J] .ISME J, 2013, 7(8):1472-1482. DOI URL
[20]	Eyiuche N J, Asakawa S, Yamashita T, et al. Community analysis of biofilms on flame-oxidized stainless steel anodes in microbial fuel cells fed with different substrates[J]. BMC Microbiol, 2017, 17(1):145. DOI PMID
[21]	Ciok A, Budzik K, Zdanowski M K, et al. Plasmids of Psychrotolerant Polaromonas spp.Isolated From Arctic and Antarctic Glaciers - Diversity and Role in Adaptation to Polar Environments[J]. Front Microbiol, 2018, 9:1285. DOI URL
[22]	Gan H M, Lee Y P, Austin C M. Nanopore Long-Read Guided Complete Genome Assembly of Hydrogenophaga intermedia,and Genomic Insights into 4-Aminobenzenesulfonate,p-Aminobenzoic Acid and Hydrogen Metabolism in the Genus Hydrogenophaga[J]. Front Microbiol, 2017, 8:1880. DOI URL
[23]	Mu J, Cui X, Shao M J, et al. Microbial origin of bioflocculation components within a promising natural bioflocculant resource of Ruditapes philippinarum conglutination mud from an aquaculture farm in Zhoushan,China[J]. PLoS One, 2019, 14(6):e0217679. DOI URL
[24]	Vester J K, Glaring M A, Stougaard P. Improved cultivation and metagenomics as new tools for bioprospecting in cold environments[J]. Extremophiles, 2015, 19(1):17-29. DOI PMID
[25]	Yang Q, Cai S, Dong S W, et al. Biodegradation of 3-methyldiphenylether(MDE) by Hydrogenophaga atypical strain QY7-2 and cloning of the methy-oxidation gene mdeABCD[J]. Sci Rep., 2016, 6:39270. DOI
[26]	Zhao T, Hu K, Li J, et al. Current insights into the microbial degradation for pyrethroids:strain safety,biochemical pathway,and genetic engineering[J]. Chemosphere, 2021, 279:130542. DOI URL
[27]	Zhou S L, Sun Y, Yu M H, et al. Linking Shifts in Bacterial Community Composition and Function with Changes in the Dissolved Organic Matter Pool in Ice-Covered Baiyangdian Lake,Northern China[J]. Microorganisms., 2020, 8(6):883. DOI URL
[28]	肖方南, 姜梦, 李媛媛, 等. 塔里木河下游柽柳灌丛土壤真菌群落结构及多样性分析[J]. 干旱区地理, 2021, 44(3):759-768.
	XIAO Fangnan, JIANG Meng, LI Yuanyuan, et al. Community structure and diversity of soil fungi in Tamarix chinensis shrubs in the lower reaches of Tarim River[J]. Arid Land Geography, 2021, 44(3):759-768.
[29]	李媛媛. 塔里木河下游胡杨根际微生物群落结构与土壤理化性质的相关性分析[D]. 石河子: 石河子大学, 2022.
	LI Yuanyuan. Structure of Soil Microbial Community in the Rhizosphere of Populus euphratica in the Lower Reaches of Tarim River and Its Correlation with Soil Physicochemical Properties[D]. Shihezi: Shihezi University, 2022.
