运输过程中振动对哈密瓜的机械损伤和贮藏品质的影响

doi:10.6048/j.issn.1001-4330.2022.02.024

新疆农业科学 ›› 2022, Vol. 59 ›› Issue (2): 458-465.DOI: 10.6048/j.issn.1001-4330.2022.02.024

• 草业·贮藏保鲜加工·微生物 • 上一篇下一篇

运输过程中振动对哈密瓜的机械损伤和贮藏品质的影响

纪锋¹(), 李志元², 尚志勇¹(), 张连文¹

1.新疆工程学院数理学院,乌鲁木齐 830023
2.新疆农业大学林学与园艺学院,乌鲁木齐 830052

收稿日期:2021-01-25 出版日期:2022-02-20 发布日期:2022-03-22
通信作者: 尚志勇
作者简介:纪锋(1993- ),辽宁锦州人,讲师,硕士,研究方向为力学课程和再生混凝土制造与结构强度,(E-mail) 2277321735@qq.com
基金资助:
国家自然科学地区基金(31960490);新疆维吾尔自治区教育厅高校基金(XJEDU2018Y055);新疆工程学院科研育人项目(2019xgy712112)

Effects of Vibration on Mechanical Damage and Storage Quality of Hami Melon during Transportation

JI Feng¹(), LI Zhiyuan², SHANG Zhiyong¹(), ZHANG Lianwen¹

1. College of Mathematics and Physics, Xinjiang Institute of Engineering, Urumqi 830023, China
2. College of Forestry and Horticulture, Xinjiang Agricultural University, Urumqi 830052, China

Received:2021-01-25 Online:2022-02-20 Published:2022-03-22
Correspondence author: SHANG Zhiyong
Supported by:
Regional Fund Project of the National Natural Science Foundation of China(31960490);Education Department University Foundation Project of Xinjiang Uygur Autonomous Region(XJEDU2018Y055);Scientific Research and Education Project of Xinjiang Institute of Engineering(2019xgy712112)

摘要/Abstract

摘要：

【目的】 研究运输过程中不同强度振动对哈密瓜机械损伤及贮藏品质的影响,为寻找减轻运输振动逆境对哈密瓜贮藏品质影响的方法提供理论依据。【方法】 模拟哈密瓜在运输过程中的振动条件,哈密瓜的包装设置为半筐包装方式和全筐包装方式。在经过2、4和6 h的振动处理后分析哈密瓜的机械损伤变化。测定与分析其失重率、可溶性固形物、硬度、果实果胶含量以及相关性水解酶。【结果】 在采收后12 d,半筐处理6 h后(T₃)的商品率下降到最低,为70.00%,腐烂指数为0.96,其硬度相比对照降低了12.64%;采收第9 d时,半筐振动6 h处理(T₃)的失重率较对照增加幅度最大,增加幅度为8.1%。各个处理的哈密瓜的可溶性固形物含量在13.91~16.52%,总体变化趋势较小。此外,半框振动处理时(T₃)的单果平均损伤数最高,可达4.65 g个,损伤面积最大为4.34%。振动还诱导了果胶酯酶(PE)和多聚半乳糖醛酸酶(PG)的大量积累,尤其在采收第9 d,半筐振动6 h 处理(T₃)的PE和PG相对对照分别增加了224.13%和361.29%,使细胞壁主要成分原果胶、总果胶含量快速降低,各个处理的哈密瓜的原果胶含量变化范围在0.62~2.13 mg/g和0.79~2.59 mg/g。相对于半筐的包装方式,全筐的包装方式会减轻果实在贮运中受到的机械损伤。【结论】 运输振动不但造成哈密瓜的机械损伤,还会导致哈密瓜的快速软化,降低其储藏品质。相比于半筐处理方式,全筐方式进行哈密瓜包装会降低哈密瓜因运输振动造成的机械损伤,提高哈密瓜的商品价值。

关键词: 振动; 哈密瓜; 机械损伤; 贮藏品质

Abstract:

【Objective】 To study the effects of vibration of different intensity on mechanical damage and storage quality of Hami melon during transportation with the view of providing some theoretical basis for finding ways to reduce the influence of transportation vibration on storage quality of the fruit. 【Method】 In this study, the vibration conditions of Hami melon during transportation were simulated and the packaging was arranged as half basket packing and whole basket packing.After that, the mechanical damage of cantaloupe was analyzed after 2 h, 4 h and 6 h vibration treatment.The weight loss, soluble solids, hardness, pectin content and related hydrolases were determined and analyzed. 【Result】 On the 12 d after harvesting, the commodity rate of the half-basket treated for 6 h (T₃) dropped to the lowest, at 70.00%, the rot index was 0.96, and its hardness was reduced by 12.64% compared with the control; on the 9 d of harvesting, the half-basket was vibrated for 6h The weight loss rate of the treatment (T₃) increased the most compared with the control, with an increase of 8.1%. The soluble solid content of each treated cantaloupe ranged from 13.91% to 16.52%, and the overall change trend was small. In addition, the average number of damages per fruit was the highest in the half-frame vibration treatment (T₃), reaching 4.65g, and the damage area was 4.34% at most. Vibration also induced a large accumulation of pectin esterase (PE) and polygalacturonase (PG), especially on the 9 d of harvesting, the PE and PG of the half-basket vibrating for 6h treatment (T₃) increased respectively relative to the control. 224.13% and 361.29%, the content of protopectin and total pectin, the main components of the cell wall, decreased rapidly. In addition, the research results also believe that compared with the half-basket packaging method, the full-basket packaging method will reduce the mechanical damage of fruits during storage and transportation. 【Conclusion】 Transportation vibration not only causes mechanical damage of Hami melon, but also causes rapid softening and reduces storage quality.In addition, compared with half-basket treatment, full-basket packaging can reduce the mechanical damage of the melon caused by transportation vibration and improve the commodity value.

Key words: vibration; Hami melon; mechanical injury; storage quality

中图分类号:

S609

纪锋, 李志元, 尚志勇, 张连文. 运输过程中振动对哈密瓜的机械损伤和贮藏品质的影响[J]. 新疆农业科学, 2022, 59(2): 458-465.

JI Feng, LI Zhiyuan, SHANG Zhiyong, ZHANG Lianwen. Effects of Vibration on Mechanical Damage and Storage Quality of Hami Melon during Transportation[J]. Xinjiang Agricultural Sciences, 2022, 59(2): 458-465.

图/表 10

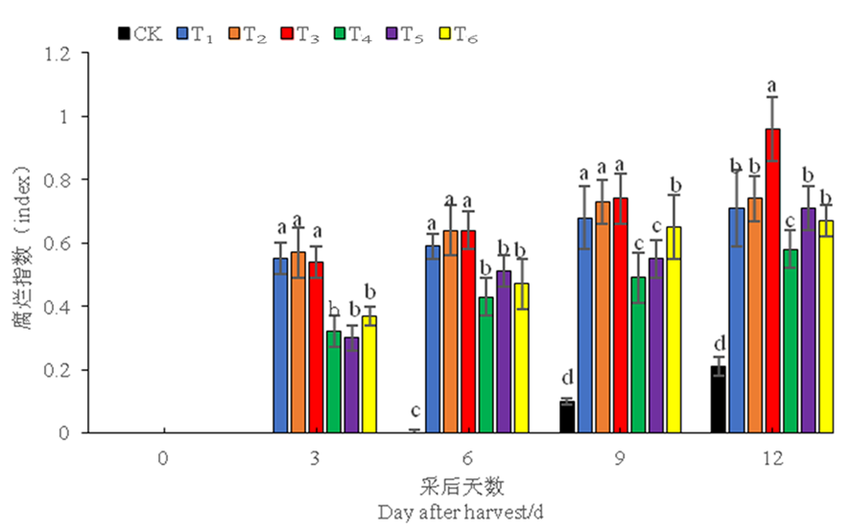

图1 不同振动处理下哈密瓜腐烂指数变化

Fig. 1 The effect of vibration on the decay index of Hami melon

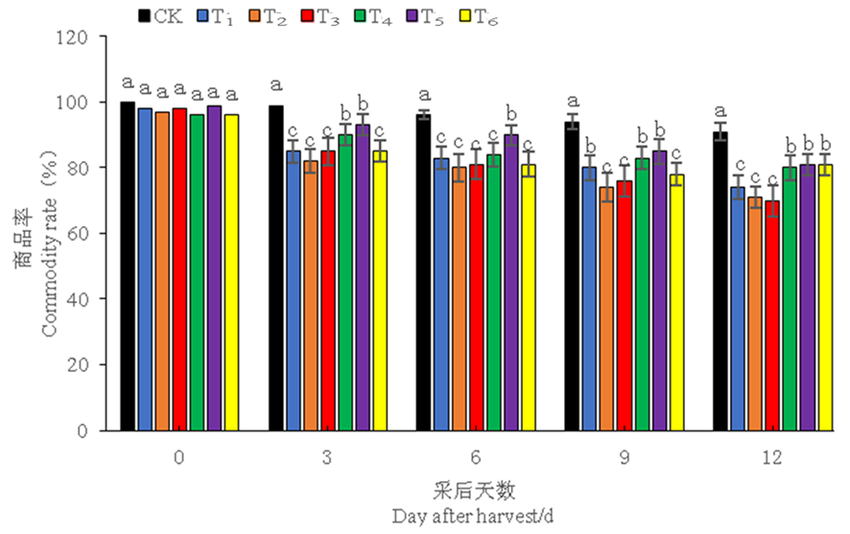

图2 不同振动处理下哈密瓜商品率变化

Fig. 2 The effect of vibration on the commodity rate of Hami melon

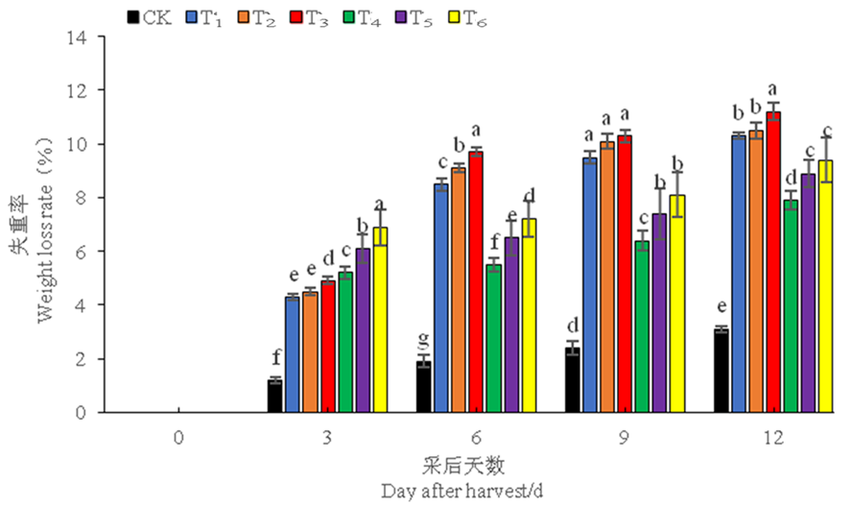

图3 不同振动处理下哈密瓜失重率变化

Fig. 3 The effect of vibration on the weight loss rate of Hami melon

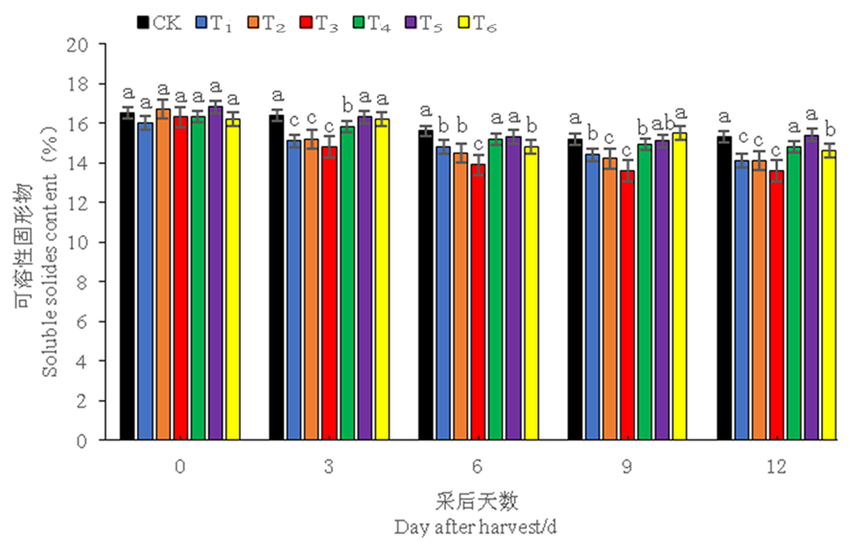

图4 不同振动处理下哈密瓜可溶性固形物变化

Fig. 4 The effect of vibration on the soluble solids of Hami melon

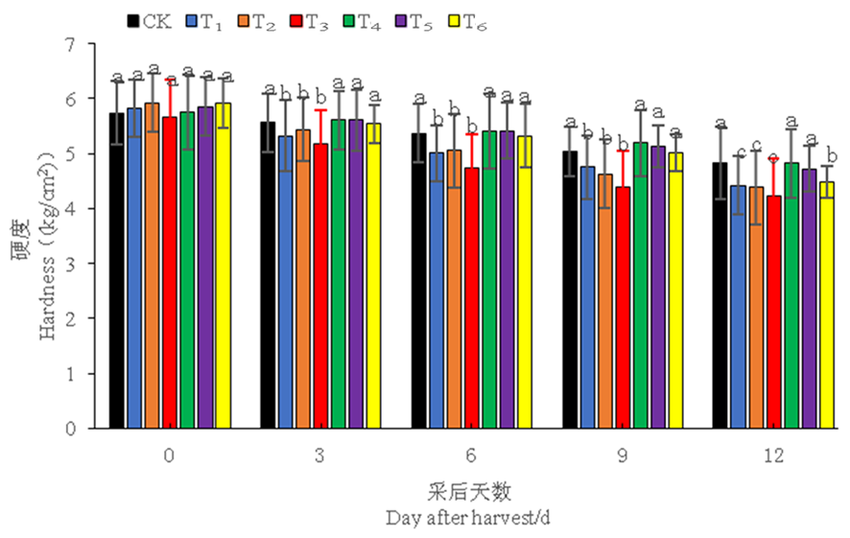

图5 不同振动处理下哈密瓜硬度变化

Fig. 5 The effect of vibration on the hardness of Hami melon

表1 不同振动处理下哈密瓜机械损伤变化

Table 1 The effect of vibration on the mechanical damage of Hami melon.

处理 Treat ment	平均机械损伤数 Average number of injuries per fruit (个)	平均机械损伤面积 Average area of mechanical damage (%)
CK	0±0.00^e	0±0.00^e
T₁	4.04±0.35^b	3.07±0.38^b
T₂	4.54±0.42^a	3.16±0.21^b
T₃	4.65±0.76^a	4.34±0.41^a
T₄	3.12±0.41^d	2.56±0.33^d
T₅	3.16±0.57^d	2.94±0.34^b
T₆	3.63±0.33^c	2.88±0.25^c

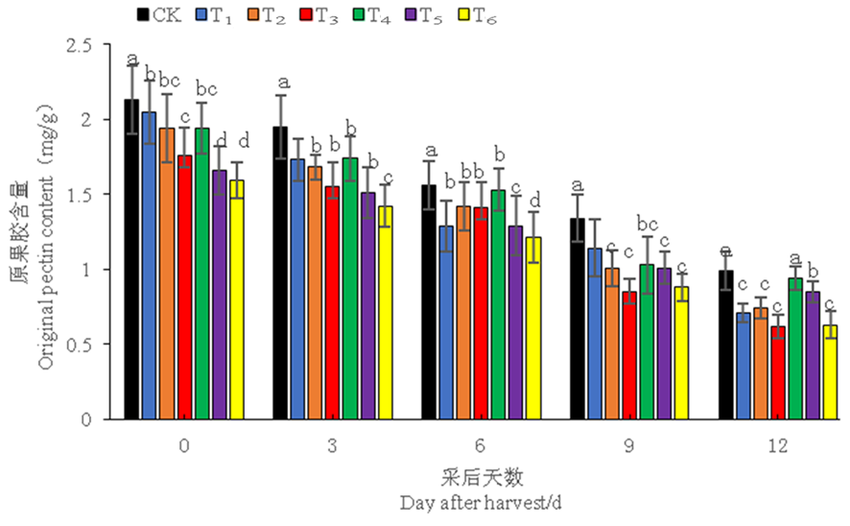

图6 不同振动处理下哈密瓜原果胶含量变化

Fig. 6 The effect of vibration on the raw pectin content of Hami melon

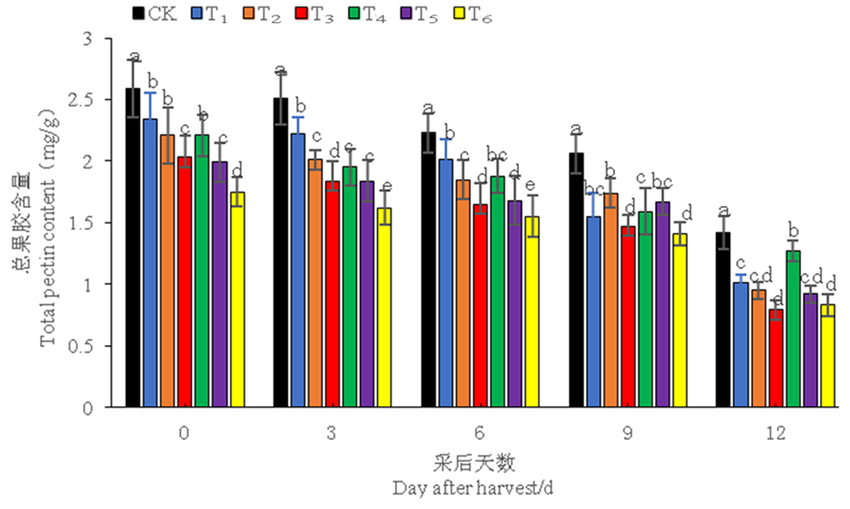

图7 不同振动处理下哈密瓜总果胶含量变化

Fig. 7 The effect of vibration on the total pectin content of Hami melon

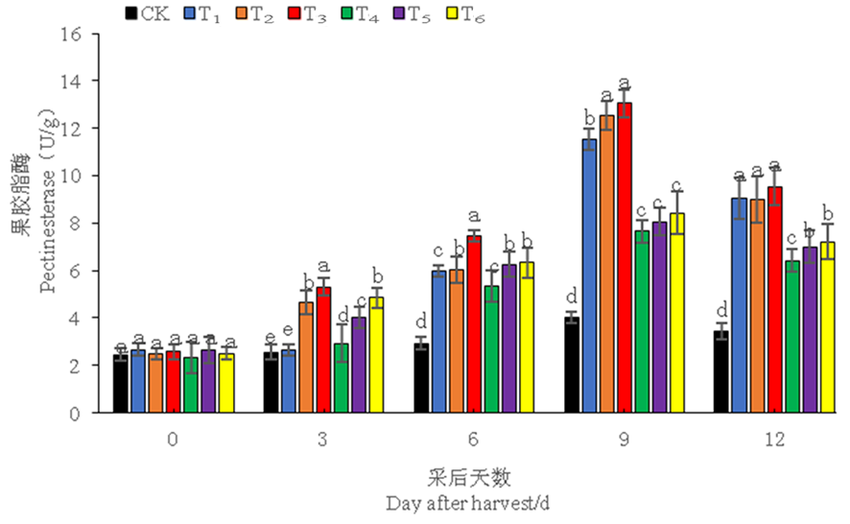

图8 不同振动处理下哈密瓜果胶脂酶变化

Fig. 8 The effect of vibration on Hami melon pectin lipase

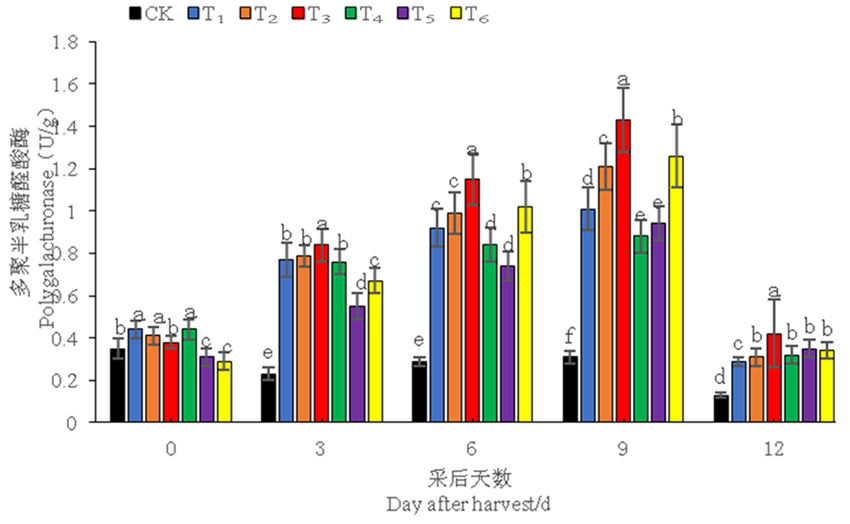

图9 不同振动处理下哈密瓜PG酶变化

Fig. 9 The effect of vibration on Hami melon polygalacturonase

参考文献 26

[1]	Remón S. Burlat Cherry Quality after Long Range Transport Optimisation of Packaging Conditions[J]. Innovative Food Science and Emerging Technologies, 2003, (4):425-434.
[2]	杨军, 廖新福, 沙勇龙, 等. 冷链运输对哈密瓜品质及腐烂率的影响[J]. 新疆农业科学, 2011, 48(7):1277-1282.
	YANG Jun, LIAO Xinfu, SHA Yonglong, et al. Effect of Low Temperature Chain Transportation on Qualities and Decay Rate of Hami Melon Fruit[J]. Xinjiang Agricultural Sciences, 2011, 48(7):1277-1282.
[3]	曾媛媛, 王锡昌, 周然, 宋喆文, 谢晶, 周研. 运输振动对哈密瓜贮藏品质的影响[J]. 食品与机械, 2016, 32(3):141-144,148.
[4]	申琳, 生吉萍, 罗云波. 运输中的机械损伤对贮藏初期苹果活性氧代谢的影响[J]. 中国农业大学学报, 1999, 4(5):107-110.
	SHEN Lin, SHENG Jiping, LUO Yunbo. Effects of Mechanical Damage in Transportation on Reactive Oxygen Metabolism of Apples at the Early Stage of Storage[J]. Journal of China Agricultural University, 1999, 4(5):107-110.
[5]	Slaughter D C, Hinsch R T, Thompson J F. Assessment of Vibration Injury to Bartlett pears[J]. Trans of the ASAE, 1993, 36(4):1043-1047. DOI URL
[6]	Gentry J P, Mitchell F G, Sommer N F. Engineering and Quality Aspects of Deciduous Fruits Packed by Volume-Filling and Hand-placing Methods[J]. Transactions of the ASAE, 1965, 8(4):584-585. DOI URL
[7]	赵芸, 马少博, 胡云峰, 等. 运输过程中振动对蔬菜品质的影响[J]. 天津农业科学, 2018, 24(5):75-79.
	ZHAO Yun, MA Shaobo, HU Yunfeng, et al. Effect of Vibration During Transportation on the Quality of Vegetables[J]. Tianjin Agricultural Sciences, 2018, 24(5):75-79.
[8]	王士奎, 李文香, 王丽娇, 等. 不同温度对PE包装平菇保鲜效果的比较[J]. 包装与食品机械, 2012, 30(5):5-8.
	WANG Shikui, LI Wenxiang, WANG Lijiao, et al. Comparison of Fresh-Keeping Effect of PE-packaged PleurtusOstreatus by Different Storage Temperatures[J]. Packaging and Food Machinery, 2012, 30(5):5-8.
[9]	寇兴凯, 王士奎, 李文香, 等. 微真空贮藏方式对平菇保鲜品质的影响[J]. 食品工业科技, 2014, 35(16):318-322.
	KOU Xingkai, WANG Shikui, LI Wenxiang, et al. Effect of Micro-Vacuum Storage Method on Fresh-Keeping Quality of Pleurtus Ostreatus[J]. Science and Technology of Food Industry, 2014, 35(16):318-322.
[10]	Nagel C W, Patterson M E. Pectin enzymes and development of the pears(Pyrus communis)[J]. Journal of Food Science, 1967, 32:292-329.
[11]	Deng Yun, Wu Ying, Li Yunfei. Changes in Firmness, Cell Wall Composition and Cell Wall Hydrolases of Grapes Stored in High Oxygen Atmospheres[J]. Food Research International, 2005, 38(7):769-776. DOI URL
[12]	方建雄, 华雪增, 刘愚. 储藏温度和气体状况对苹果果胶、多聚半乳糖醛酸酶变化的影响[J]. 植物生理学报, 1991, 17(1):99-104.
	FANG Jianxiong, HUA Xuezeng, LIU Yu. Effect of Storage Temperature and Atmosphere on the Changes in Pectin and Polygalacturonase in Apple Fruits[J]. Plant Physiology Journal, 1991, 17(1):99-104.
[13]	康维民, 肖念新, 蔡金星, 等. 稳定条件下梨的振动损伤研究[J]. 农业机械学报, 2004, 35(3):105-108.
	KANG Weimin, XIAO Nianxin, CAI Jinxing, et al. Study on Vibration Damage of Pear under Stable Vibration Condition[J]. Transactions of the Chinese Society for Agricultural Machinery, 2004, 35(3):105-108.
[14]	孙京超, 杜秉健, 赵伟, 等. 振动防护和涂膜保鲜等不同处理措施对苹果采后贮藏特性的影响[J]. 包装与食品机械, 2019, 37(1):1-5.
	SUN Jingchao, DU Bingjian, ZHAO Wei, et al. Influence of Different Methods such as Vibration Protection and Edible Film Preservation on Post-harvest Storage Characteristics of Apples[J]. Packaging and Food Machinery, 2019, 37(1):1-5.
[15]	刘美爽. 贮运过程中振动损伤对蓝莓品质的影响[J]. 林业科学, 2020, 56(9):40-50.
	LIU Meishuang. Effect of Vibration Damage on Blueberry Quality during Storage and Transportation[J]. Scientia Silvae Sinicae, 2020, 56(9):40-50.
[16]	曾媛媛, 周然, 蒋春啟, 等. 不同等级道路运输振动对哈密瓜品质的影响[J]. 农业工程学报, 2017, 33(9):282-289.
	ZENG Yuanyuan, ZHOU Ran, JIANG Chunqi, et al. Effect of Transport Vibration in Different Levels of Road on Hamimelons(Cucumismelo var.saccharinus) Quality[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(9):282-289.
[17]	周然. 黄花梨运输振动损伤与冷藏品质变化的试验研究[D]. 上海: 上海交通大学, 2007.
	ZHOU Ran. Studies on the Quality Changes of Huanghua Pears during Transport and Storage[D]. Shanghai: Shanghai Jiaotong University, 2007.
[18]	GUO Qin, WU Bin, PENG Xinyuan, et al. Effects of Chlorine Dioxide Treatment on Respiration Rate and Ethylene Synjournal of Postharvest Tomato Fruit[J]. Postharvest Biology and Technology, 2014, 93:9-14. DOI URL
[19]	Water R H. The Chemistry and Technology of Pectin [M]. San Diego: Academic Press, 1991:1-22.
[20]	Redgwell R J, Macrae E, Hallett I, et al. In Vivo and in Vitro Swelling of Cell Walls during Fruit Ripening[J]. Planta, 1997, 203(2):162-173. DOI URL
[21]	Yashoda H M, Prabha T N, Tharanathan R N. Mango Ripening-role of Car-bohydrases in Tissue Softening[J]. Food chemistry, 2007, 102(3):691-698. DOI URL
[22]	Yuan L, Bi Y, Ge Y H, et al. Postharvest Hot Water Dipping Reduces Decay by Inducing Disease Resistance and Maintaining Firmness in Muskmelon (Cucumis melo L.) Fruit[J]. Scientia Horticulturae, 2013, 16(2):101-110. DOI URL
[23]	Fagundes C, Palou L, Monteiro A R, et al. Effect of Antifungal Hydroxypropyl methylcellulose-beeswax Edible Coatings on Gray Mold Development and Quality Attributes of Cold-stored Cherry tomato Fruit[J]. Postharvest Biology and Technology, 2014, 92(2):1-8. DOI URL
[24]	Dong T, Xia R, Wang M, et al. Changes in Dietary Fibre, Polygalacturonase, Cellulase of Navel Orange (Citrus sinensis (L.) Osbeck ‘Cara Cara’) Fruits under Different Storage Conditions[J]. Scientia Horticulturae, 2008, 116(4):414-420. DOI URL
[25]	Lohani S, Trivedi P K, Nath P. Changes in Activities of Cell Wall Hydrolases during Ethylene-induced Ripening in Banana:Effect of 1-MCP, ABA and IAA[J]. Postharvest Biology and Technology, 2004, 31(2):119-126. DOI URL
[26]	Chonhenchob V, Singh S P. Packaging Performance Comparison for Distribution and Export of Papaya Fruit[J]. Packaging Ttechnology and Science, 2005, 18(3):125-131.
