不同品种核桃坚果货架期预测动力学模型构建与应用

doi:10.6048/j.issn.1001-4330.2025.06.019

新疆农业科学 ›› 2025, Vol. 62 ›› Issue (6): 1469-1477.DOI: 10.6048/j.issn.1001-4330.2025.06.019

• 园艺特产·农产品加工工程 • 上一篇下一篇

不同品种核桃坚果货架期预测动力学模型构建与应用

徐斌¹^,²(), 张婷¹^,²(), 刘思格³, 艾比拜·尼亚孜¹, 张平¹^,², 阿丽米热·吐鲁洪³

1.新疆维吾尔自治区农业科学院农产品加工研究所,乌鲁木齐 830091
2.新疆主要农副产品精深加工工程技术研究中心,乌鲁木齐 830091
3.新疆农业大学食品科学与药学学院,乌鲁木齐 830052

收稿日期:2024-11-13 出版日期:2025-06-20 发布日期:2025-07-29
通信作者: 张婷(1980-),女,陕西眉县人,研究员,研究方向为农产品加工与保鲜,(E-mail)605324722@qq.com
作者简介:徐斌(1985-),男,河南南阳人,副研究员,研究方向为农产品加工与保鲜,(E-mail)978142325@qq.com
基金资助:
国家重点研发计划项目“核桃油脂品质代谢机理与检测和调控技术研发与应用(2022YFD1000103);新疆维吾尔自治区乡村振兴产业发展科技行动项目“新疆特色干(坚)果防虫保质关键技术集成与推广”(2022CN181)

Construction and application of dynamic models for predicting shelf life of different varieties of walnut nuts

XU Bin¹^,²(), ZHANG Ting¹^,²(), LIU Sige³, Aibibai Niyazi¹, ZHANG Ping¹^,², Alimire Tulahong³

1. Research Institute of Agro-products Storage and Processing,Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
2. Xinjiang Engineering Research Center for Intensive Processing of Main Agricultural and Sideline Products, Urumqi 830091, China
3. College of Food Sciences and Pharmacy, Xinjiang Agricultural University, Urumqi 830052, China

Received:2024-11-13 Published:2025-06-20 Online:2025-07-29
Supported by:
National key R & D Program Project“Development and Application of Metabolism Mechanism, Detection and Control Technology of walnut oil quality"(2022YFD1000103);The Rural Revitalization and Industrial Development of S & T Action Project of Xinjiang Uygur Autonomous Region“Integration and Popularization of Key Technologies for Pest Control and Quality Preservation of Xinjiang Characteristic Dried(nuts)Fruit”(2022CN181)

摘要/Abstract

摘要：

【目的】构建适用于不同品种核桃坚果货架期预测动力学模型,为生产中核桃坚果贮藏时间的预判和氧化酸败调控技术研发提供理论依据。【方法】以温185、新新2和扎343核桃坚果(带壳和不带壳)为试材,分别将其置于37℃恒温箱中,定期取样进行酸价(AV)、过氧化值(POV)的测定和感官评价,利用化学反应动力学模型,结合阿伦尼乌斯(Arrhenius)方程,分别构建适于不同品种核桃坚果货架期预测模型,并进行应用验证。【结果】随贮藏时间延长,温185、新新2、扎343核桃坚果(带壳和不带壳)AV和 POV均呈上升的趋势,感官评分不断下降。AV的变化符合零级反应动力学模型,POV的变化符合一级反应动力学模型,故三个品种核桃坚果(带壳和不带壳)基于AV的货架期预测动力学模型为:$S L 0=\frac{C \quad C 0}{3128.8 e^{\frac{26009.71}{8.8147}}}$;基于POV的货架期预测动力学模型为:$S L 1=\frac{\ln \frac{C}{C 0}}{3128.8 e^{\frac{26009.71}{8.8147}}}$。【结论】三个品种核桃坚果货架期预测值与实测值间误差均小于10%,模型可较好地预测核桃坚果的货架期。

关键词: 核桃坚果; 货架期; 预测; 动力学模型

Abstract:

【Objective】 The study aims to construct a dynamic model for predicting shelf life of different varieties of walnuts,which provides a theoretical basis for the prediction of storage time and the development of oxidative rancidity control technology of walnut nuts in production. 【Methods】 Wen185,Xinxin 2,Zha 343dried walnut (with shell and without shell) were taken as the test materials, and they were placed in 37℃ incubator respectively. Then the samples were taken regularly to determine acid value(AV), peroxide value(POV) and to make the sensory evaluation. Meanwhile, a chemical reaction kinetic model and Arrhenius equation were employed to construct the model for predicting shelf life of different varieties of walnuts, moreover, and afterwards, the model were applied and verified. 【Results】 The AV and the POV increased and the sensory score decreased in all samples during storage period. The linear fitting function of AV and POV with respect to time was known that the change of AV was consistent with the zero-order reaction kinetic model, the change of POV was consistent with the first-order reaction kinetic model, therefore, the shelf life prediction dynamics model based on AV of the three varieties of walnut nuts(with shell and without shell) was:$S L 0=\frac{C \quad C 0}{3128.8 e^{\frac{26009.71}{8.8147}}}$; The shelf life prediction dynamics model based on POV of the three varieties of walnut nuts(with shell and without shell) was:$S L 1=\frac{\ln \frac{C}{C 0}}{3128.8 e^{\frac{26009.71}{8.8147}}}$. 【Conclusion】 The error between the predicted value and the measured value was less than 10% of the three varieties of walnut nuts by verified.The model can predict the shelf life of walnut nuts well.

Key words: walnut nuts; shelf life; prediction; kinetic model

中图分类号:

S664.1

徐斌, 张婷, 刘思格, 艾比拜·尼亚孜, 张平, 阿丽米热·吐鲁洪. 不同品种核桃坚果货架期预测动力学模型构建与应用[J]. 新疆农业科学, 2025, 62(6): 1469-1477.

XU Bin, ZHANG Ting, LIU Sige, Aibibai Niyazi, ZHANG Ping, Alimire Tulahong. Construction and application of dynamic models for predicting shelf life of different varieties of walnut nuts[J]. Xinjiang Agricultural Sciences, 2025, 62(6): 1469-1477.

图/表 7

表1 核桃坚果感官评分

Tab.1 Scale for sensory evaluation of walnut nuts

描述(壳) Describe(shell)	评分值 Evaluation value	描述(仁) Describe(benevolence)	评分值 Scoring value
壳色自然,黄白色 Natural shell color,Yellow and white	10~8分(好)	种皮色浅黄、种仁色黄、风味浓郁	10~8分(好)
壳色灰白 The shell is gray	7~5分(一般)	种皮色褐黄、种仁色黄、风味淡	7~5分(一般)
壳色黄褐 Shell color is yellow and bran	4~2分(较差)	种皮色深黄或者琥珀色、种仁色褐黄、微有哈喇味	4~2分(较差)
壳色黄褐(暗) Shell color is yellow and bran(Dark)	1~0分(差)	种皮褐色有大量黑斑、种仁黑色、哈喇味重	1~0分(差)

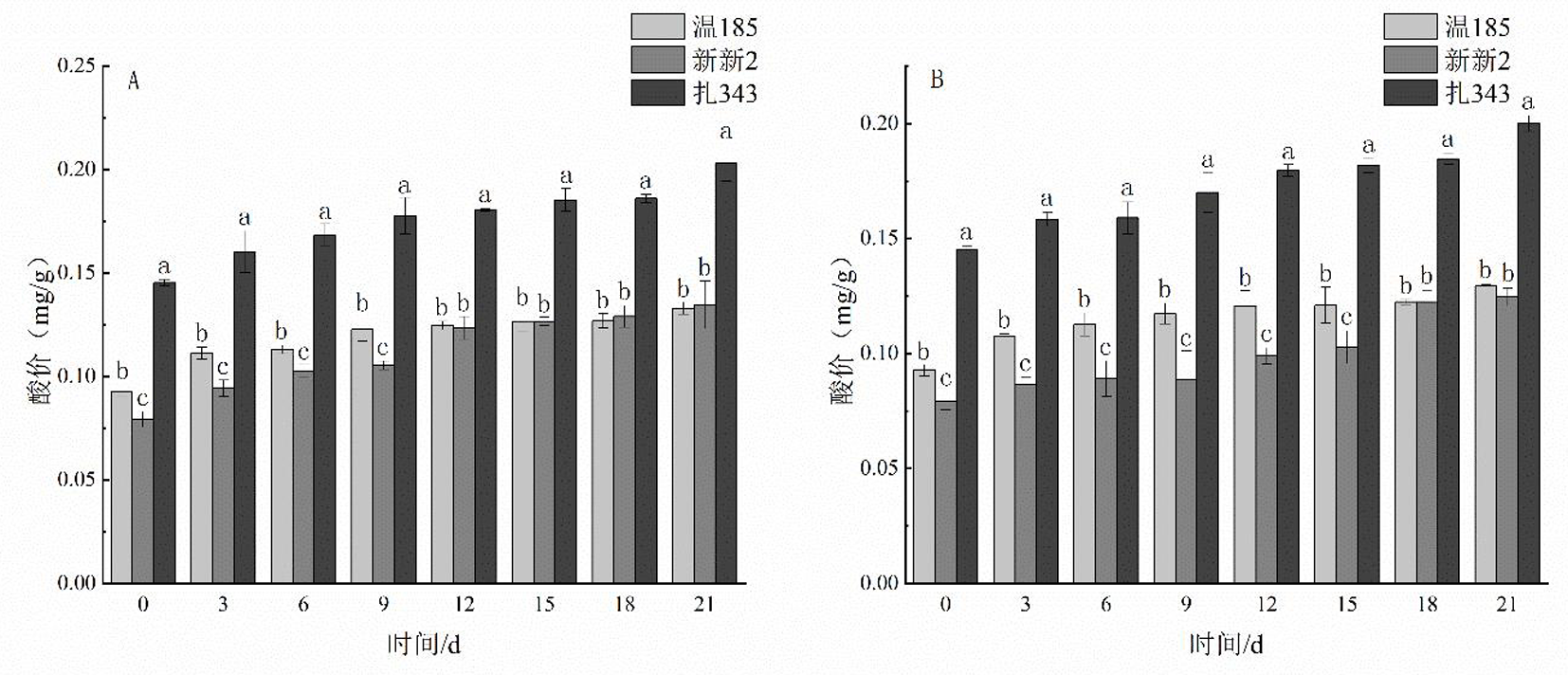

图1 不同品种核桃坚果不带壳(图1A)和带壳(图1B)贮藏期酸价的变化注:不同小写字母表示实验数据间具有显著性差异(P<0.05),下同

Fig.1 Changes of AV for different varieties of walnut nuts without shell(Fig.1A) and with shell(Fig.1B) during storage Notes:The different minuscule expression the experimental data has significant difference (P<0.05),the same as below

图2 不同品种核桃坚果不带壳(图2A)和带壳(图2B)贮藏期过氧化值的变化

Fig.2 Changes of POV for different varieties of walnut nuts without shell(Fig.2A) and with shell(Fig.2B) during storage

图3 不同品种核桃坚果不带壳(图3A)和带壳(图3B)贮藏期感官评分的变化

Fig.3 Changes of sensory scores for different varieties of walnut nuts without shell(Fig.3A) and with shell(Fig.3B) during storage

表2 不同品种核桃坚果AV反应动力学模型参数

Tab.2 Parameter for kinetic models of AV in different varieties of walnut nuts

原料 Raw material	加速实验温度 Accelerated real temperature(℃)	级数 Series	线性回归方程 Equation of linear regression	反应速率常数K Reaction rate constant K	回归系数R² Coefficient of regression R²	R²和 R² sum
温185去壳 Wen185 dehulling	37	0级	y=0.0048x +0.097 3	0.0048	0.8384	2.723
新新2去壳 Xinxin 2 dehulling			y=0.0026x +0.084 8	0.0026	0.9484
扎343去壳 Zha 343 dehulling			y=0.0023x +0.151 4	0.0023	0.9357
温185去壳 Wen185 dehulling	37	1级	y=0.013 9x -2.28	0.013 9	0.787	2.637
新新2去壳 Xinxin 2 dehulling			y=0.024 1x -2.455 8	0.024 1	0.926 3
扎343去壳 Zha 343 dehulling			y=0.013 6x -1.885	0.013 6	0.924
温185带壳 Wen185 with shell	37	0级	y=0.004 3x +0.096 1	0.004 3	0.862 5	2.733
新新2带壳 Xinxin 2 with shell			y=0.002 2x +0.076 3	0.002 2	0.907 7
扎343带壳 Zha 343 with shell			y=0.002 3x +0.147 7	0.002 3	0.962 8
温185带壳 Wen185 with shell	37	1级	y=0.013x -2.297 5	0.013	0.825 7	2.710
新新2带壳 Xinxin 2 with shell			y=0.021 3x -2.546 7	0.021 3	0.925 5
扎343带壳 Zha 343 with shell			y=0.013 7x -1.906 7	0.013 7	0.958 4

表3 不同品种核桃坚果POV反应动力学模型参数

Tab.3 Parameter for kinetic models of POV in different varieties of walnut nuts

原料 Raw material	加速实验温度 Accelerated real temperature(℃)	级数 Series	线性回归方程 Equation of linear regression	反应速率常数K Reaction rate constant K	回归系数R² Coefficient of regression R²	R²和 R² sum
温185去壳 Wen185 dehulling	37	0级	y=0.007 6x +0.011 3	0.007 6	0.910 4	2.626 3
新新2去壳 Xinxin 2 dehulling			y=0.005 4x +0.033 8	0.005 4	0.782 5
扎343去壳 Zha 343 dehulling			y=0.006 4x +0.043 4	0.006 4	0.933 4
温185去壳 Wen185 dehulling	37	1级	y=0.104 6x -3.732 5	0.104 6	0.938 7	2.891 7
新新2去壳 Xinxin 2 dehulling			y=0.069 8x -3.244 2	0.069 8	0.963 8
扎343去壳 Zha 343 dehulling			y=0.075 6x -3.127 5	0.075 6	0.989 2
温185带壳 Wen185 with shell	37	0级	y=0.006 6x +0.009 7	0.006 6	0.911 4	2.694 9
新新2带壳 Xinxin 2 with shell			y=0.005 3x +0.024 4	0.005 3	0.842 4
扎343带壳 Zha 343 with shell			y=0.006 1x +0.036 2	0.006 1	0.941 1
温185带壳 Wen185 with shell	37	1级	y=0.102 6x -3.857 5	0.102 6	0.956 2	2.885 8
新新2带壳 Xinxin 2 with shell			y=0.075 8x -3.440 8	0.075 8	0.957 3
扎343带壳 Zha 343 with shell			y=0.077 6x -3.243 3	0.077 6	0.972 3

表4 不同品种核桃坚果在37℃货架期预测值和实测值

Tab.4 Predicted and actual shelf life of different walnut nuts stored at 37℃

原料 Raw material	试验指标 Experimental indexes	货架期预测模型 Shelf life prediction model	国标限量值 International limit value	37℃货架期预测值 Shelf life prediction at 37℃ (d)	37℃货架期实测值 Measured value of shelf life at 37℃ (d)	相对误差 Relative error value (%)
温185 Wen 185	AV	SL0= $C 0.093 3 128.8 e 26 009.71 8.814 7$	3mg/g	23.2	25	7.2
新新2 Xinxin 2		SL0= $C 0.079 3 128.8 e 26 009.71 8.814 7$		23.3	25	6.8
扎343 Zha 343		SL0= $C 0.145 3 128.8 e 26 009.71 8.814 7$		22.8	24	5.0
温185 Wen 185	POV	SL1= $l n C 0.022 3 128.8 e 26 009.71 8.814 7$	0.08g/100g	10.3	10	3.0
新新2 Xinxin 2		SL1= $l n C 0.029 3 128.8 e 26 009.71 8.814 7$		8.2	9	8.9
扎343 Zha 343		SL1= $l n C 0.025 3 128.8 e 26 009.71 8.814 7$		9.3	9	3.3

表4 不同品种核桃坚果在37℃货架期预测值和实测值

Tab.4 Predicted and actual shelf life of different walnut nuts stored at 37℃

原料 Raw material	试验指标 Experimental indexes	货架期预测模型 Shelf life prediction model	国标限量值 International limit value	37℃货架期预测值 Shelf life prediction at 37℃ (d)	37℃货架期实测值 Measured value of shelf life at 37℃ (d)	相对误差 Relative error value (%)
温185 Wen 185	AV	SL0= $C 0.093 3 128.8 e 26 009.71 8.814 7$	3mg/g	23.2	25	7.2
新新2 Xinxin 2		SL0= $C 0.079 3 128.8 e 26 009.71 8.814 7$		23.3	25	6.8
扎343 Zha 343		SL0= $C 0.145 3 128.8 e 26 009.71 8.814 7$		22.8	24	5.0
温185 Wen 185	POV	SL1= $l n C 0.022 3 128.8 e 26 009.71 8.814 7$	0.08g/100g	10.3	10	3.0
新新2 Xinxin 2		SL1= $l n C 0.029 3 128.8 e 26 009.71 8.814 7$		8.2	9	8.9
扎343 Zha 343		SL1= $l n C 0.025 3 128.8 e 26 009.71 8.814 7$		9.3	9	3.3

参考文献 18

[1]	潘学军, 张文娥, 李琴琴, 等. 核桃感官和营养品质的主成分及聚类分析[J]. 食品科学, 2013, 34(8): 195-198.
	PAN Xuejun, ZHANG Wene, LI Qinqin, et al. Principal component analysis and cluster analysis of sensory and nutritional quality of walnut[J]. Food Science, 2013, 34(8): 195-198.
[2]	王妮. 新疆薄皮核桃仁货架期动力学模型预测的研究[D]. 北京: 北京林业大学, 2016.
	WANG Ni. Study on prediction of shelf-life dynamics model of Xinjiang thin-skinned walnut kernel[D]. Beijing: Beijing Forestry University, 2016.
[3]	Christopoulos M V, Tsantili E. Oil composition in stored walnut cultivars—quality and nutritional value[J]. European Journal of Lipid Science and Technology, 2015, 117(3): 338-348.
[4]	Mexis S F, Badeka A V, Riganakos K A, et al. Effect of packaging and storage conditions on quality of shelled walnuts[J]. Food Control, 2009, 20(8): 743-751.
[5]	张文涛. 气调包装对核桃仁冷藏品质和生理生化影响的研究[D]. 南京: 南京农业大学, 2012.
	ZHANG Wentao. Effects of modified atmosphere packaging on cold storage quality, physiology and biochemistry of walnut kernel[D]. Nanjing: Nanjing Agricultural University, 2012.
[6]	Sabaghi M, Maghsoudlou Y, Khomeiri M, et al. Active edible coating from chitosan incorporating green tea extract as an antioxidant and antifungal on fresh walnut kernel[J]. Postharvest Biology and Technology, 2015, 110: 224-228.
[7]	任斯忱, 李汴生, 申晓曦, 等. 花生仁与核桃仁贮藏货架期预测模型[J]. 食品科学, 2012, 33(14): 290-295.
	REN Sichen, LI Biansheng, SHEN Xiaoxi, et al. Predictive modeling of shelf life of peanut and walnut kernels during storage[J]. Food Science, 2012, 33(14): 290-295.
[8]	陈惠卿, 陈淑兰, 谢三都, 等. 溶剂法提取温宿薄皮核桃油的工艺优化[J]. 现代食品, 2021, 27(14): 104-106.
	CHEN Huiqing, CHEN Shulan, XIE Sandu, et al. Optimization of extracting thin-shell walnut oil in Wensu by solvent[J]. Modern Food, 2021, 27(14): 104-106.
[9]	陶菲, 郜海燕, 葛林梅, 等. 加工工艺对山核桃脂肪氧化的影响[J]. 中国食品学报, 2008, 8(1): 99-102.
	TAO Fei, GAO Haiyan, GE Linmei, et al. The effect of process technology on lipoxygenation of walnut(Carya cathayensis sarg.)[J]. Journal of Chinese Institute of Food Science and Technology, 2008, 8(1): 99-102.
[10]	陶菲, 郜海燕, 陈杭君, 等. 冷藏对山核桃原料脂肪氧化和衰老进程的影响研究[J]. 中国粮油学报, 2009, 24(12): 88-90, 113.
	TAO Fei, GAO Haiyan, Chen Hangjun et al. Lipid peroxidation and aging of walnut(Carya cathayensis sarg.) in refrigerated storage[J]. Journal of the Chinese Cereals and Oils Association, 2009, 24(12): 88-90, 113.
[11]	李文娟, 郜海燕, 陶菲, 等. 贮藏温度和物料初始含水量对山核桃油脂氧化及类脂褐素生成的影响[J]. 林业科学, 2013, 49(5): 62-70.
	LI Wenjuan, GAO Haiyan, TAO Fei, et al. Effects of storage temperature and initial moisture content on oil oxidation and lipofuscin-like pigments accumulation of walnut (Carya cathayensis)[J]. Scientia Silvae Sinicae, 2013, 49(5): 62-70.
[12]	范新光, 张长峰, 肖璐, 等. 减压处理鲜切西兰花的货架期预测模型构建[J]. 现代食品科学与技术, 2013, 29(9):2120-2124.
	FAN Xinguang, ZHANG Changfeng, XIAO Lu, et al. Construction of shelf life prediction model for fresh-cut broccoli treated under reduced pressure[J]. Modern Food Science and Technology, 2013, 29(9):2120-2124.
[13]	谢晶, 张利平, 苏辉, 等. 上海青蔬菜的品质变化动力学模型及货架期预测[J]. 农业工程学报, 2013, 29(15): 271-278.
	XIE Jing, ZHANG Liping, SU Hui, et al. Quality kinetic model and shelf life prediction of green vegetable (Brassica rapa var. chinensis)[J]. Transactions of the Chinese Society of Agricultural Engineering, 2013, 29(15): 271-278.
[14]	史波林, 赵镭, 支瑞聪. 基于品质衰变理论的食品货架期预测模型及其应用研究进展[J]. 食品科学, 2012, 33(21): 345-350.
	SHI Bolin, ZHAO Lei, ZHI Ruicong. Advances in predictive shelf life models based on food quality deterioration theory and their applications[J]. Food Science, 2012, 33(21): 345-350.
[15]	张利平, 谢晶. Arrhenius方程结合特征指标在蔬菜货架期预测中的应用[J]. 食品与机械, 2012, 28(5): 163-168.
	ZHANG Liping, XIE Jing. Application of Arrhenius model combined special quality index in shelf life prediction of vegetable[J]. Food & Machinery, 2012, 28(5): 163-168.
[16]	Manzocco L, Panozzo A, Calligaris S. Accelerated shelf life testing (ASLT) of oils by light and temperature exploitation[J]. Journal of the American Oil Chemists’ Society, 2012, 89(4): 577-583.
[17]	徐文婷, 付镓榕, 马尚玄, 等. 不同包装处理、贮藏温度的澳洲坚果果仁贮藏品质研究及其货架期预测[J]. 食品科学, 2023.
	XU Wenting, FU Jiarong, MA Shangxuan, Storage quality and shelf life prediction of macadamia nut kernel under different packing treatments and storage temperatures[J]. Food Science, 2023.
[18]	马妍, 谢晶, 周然, 等. 暗纹东方鲀在不同冻藏温度下品质变化的动力学研究[J]. 中国农业大学学报, 2012, 17(1): 138-142.
	MA Yan, XIE Jing, ZHOU Ran, et al. Quality degradation kinetics of Takifugu obscures at different storage temperatures[J]. Journal of China Agricultural University, 2012, 17(1): 138-142.
