中度嗜盐菌Halomonas salifodinae N35-6产四氢嘧啶的培养基优化

doi:10.6048/j.issn.1001-4330.2023.12.023

摘要/Abstract

摘要：

【目的】优化从新疆哈密七角井盐湖土壤中分离到一株四氢嘧啶产量较高的中度嗜盐菌N35-6发酵培养基。【方法】以四氢嘧啶产量为指标,采用响应面法优化培养基成分,利用HPLC检测四氢嘧啶产量。【结果】从七角井盐湖土壤中分离获得一株能够产四氢嘧啶的细菌,经16S rDNA 序列分析鉴定为Halomonas salifodinae,并命名为H.salifodinae N35-6,该菌株四氢嘧啶产量能够达到0.83 g/L。【结论】中度嗜盐菌Halomonas salifodinae N35-6具有高产四氢嘧啶的潜力。

关键词: 中度嗜盐菌; 四氢嘧啶; 优化

Abstract:

【Objective】A moderately halophilic bacterium Halomonas salifodinae N35-6 with high ectoine production was isolated from the soil of Qijaojing salt lake in Hami, Xinjiang, and its fermentation medium was optimized.【Methods】The medium composition for producing ectoine was optimized using response surface methodology and the yield of ectoine was determined by HPLC.【Results】A bacterium capable of producing ectoine was isolated from the soil of Qijiaojing Salt Lake and identified as Halomonas salifodinae by 16S rDNA sequence analysis. Production of ectoine was maximized to 0.83 g/L by optimizing the level of nutrients in the medium using response surface methodology.【Conclusion】The moderately halophilic bacterium Halomonas salifodinae N35-6 has the potential of high yield of ectoine.

Key words: moderately halophilic bacteria; ectoine; optimization

中图分类号:

S188

林青, 秦新政, 高雁, 曾军, 娄恺, 时红玲, 霍向东. 中度嗜盐菌Halomonas salifodinae N35-6产四氢嘧啶的培养基优化[J]. 新疆农业科学, 2023, 60(12): 3065-3071.

LIN Qing, Qin Xinzheng, GAO Yan, ZENG Jun, LOU Kai, SHI Hongling, HUO Xiangdong. Optimization of medium for ectoine production by Halomonas salifodinae N35-6, a moderately halophilic bacterium[J]. Xinjiang Agricultural Sciences, 2023, 60(12): 3065-3071.

图/表 5

表1 因子水平编码

Tab.1 Different variables with their levels

变量 Different variables	水平 Levels
变量 Different variables	-1	0	1
X₁:酵母粉(g/L)	5	10	15
X₂:L-谷氨酸钠(g/L)	10	25	40
X₃:NH₄Cl(g/L)	2	11	20
X₄:葡萄糖(g/L)	10	25	40
X₅:NaCl	50	100	150

图1 菌株Halomonas salifodinae N35-6系统进化树

Fig.1 The phylogenetic tree of Halomonas salifodinae N35-6

表2 响应面二次模型的方差

Tab.2 Analysis of variance of response surface quadratic model

来源 Source	自由度 Freedom	Seq SS	分布 Distribution	Adj SS	F 值 F value	P 值 P value
模型 Model	20	0.656 490	83.87%	0.656 490	6.50	0.000
线性 Linear	5	0.539 441	68.91%	0.539 441	21.36	0.000
yeast	1	0.403 437	51.54%	0.403 437	79.86	0.000
MSG	1	0.014 003	1.79%	0.014 003	2.77	0.108
NH₄Cl	1	0.047 560	6.08%	0.047 560	9.41	0.005
NaCl	1	0.067 947	8.68%	0.067 947	13.45	0.001
glucose	1	0.006 494	0.83%	0.006 494	1.29	0.268
平方Square	5	0.033 945	4.34%	0.033 945	1.34	0.279
yeast×yeast	1	0.012 647	1.62%	0.007 807	1.55	0.225
MSG×MSG	1	0.000 217	0.03%	0.000 008	0.00	0.968
NH₄Cl×NH₄Cl	1	0.003 460	0.44%	0.003 851	0.76	0.391
NaCl×NaCl	1	0.013 609	1.74%	0.009 018	1.79	0.194
glucose×glucose	1	0.004 011	0.51%	0.004 011	0.79	0.381
双因子交互作用 Two factor interaction	10	0.083 104	10.62%	0.083 104	1.65	0.151
yeast×MSG	1	0.014 762	1.89%	0.014 762	2.92	0.100
yeast×NH₄Cl	1	0.007 253	0.93%	0.007 253	1.44	0.242
yeast×NaCl	1	0.009 184	1.17%	0.009 184	1.82	0.190
yeast×glucose	1	0.011 413	1.46%	0.011413	2.26	0.145
MSG×NH₄Cl	1	0.016 087	2.06%	0.016 087	3.18	0.086
MSG×NaCl	1	0.008 130	1.04%	0.008 130	1.61	0.216
MSG×glucose	1	0.002 256	0.29%	0.002 256	0.45	0.510
NH₄Cl×NaCl	1	0.010 302	1.32%	0.010 302	2.04	0.166
NH₄Cl×glucose	1	0.000 136	0.02%	0.000 136	0.03	0.871
NaCl×glucose	1	0.003 580	0.46%	0.003 580	0.71	0.408
误差 Error	25	0.126 293	16.13%	0.126 293
失拟 Lacr of fit	20	0.111 613	14.26%	0.111 613	1.90	0.246
纯误差 Pure error	5	0.014 679	1.88%	0.014 679
合计 Total	45	0.782 783	100.00%
R²=0.838 7 $R_{a d j}^{2}$ =0.709 6

表2 响应面二次模型的方差

Tab.2 Analysis of variance of response surface quadratic model

来源 Source	自由度 Freedom	Seq SS	分布 Distribution	Adj SS	F 值 F value	P 值 P value
模型 Model	20	0.656 490	83.87%	0.656 490	6.50	0.000
线性 Linear	5	0.539 441	68.91%	0.539 441	21.36	0.000
yeast	1	0.403 437	51.54%	0.403 437	79.86	0.000
MSG	1	0.014 003	1.79%	0.014 003	2.77	0.108
NH₄Cl	1	0.047 560	6.08%	0.047 560	9.41	0.005
NaCl	1	0.067 947	8.68%	0.067 947	13.45	0.001
glucose	1	0.006 494	0.83%	0.006 494	1.29	0.268
平方Square	5	0.033 945	4.34%	0.033 945	1.34	0.279
yeast×yeast	1	0.012 647	1.62%	0.007 807	1.55	0.225
MSG×MSG	1	0.000 217	0.03%	0.000 008	0.00	0.968
NH₄Cl×NH₄Cl	1	0.003 460	0.44%	0.003 851	0.76	0.391
NaCl×NaCl	1	0.013 609	1.74%	0.009 018	1.79	0.194
glucose×glucose	1	0.004 011	0.51%	0.004 011	0.79	0.381
双因子交互作用 Two factor interaction	10	0.083 104	10.62%	0.083 104	1.65	0.151
yeast×MSG	1	0.014 762	1.89%	0.014 762	2.92	0.100
yeast×NH₄Cl	1	0.007 253	0.93%	0.007 253	1.44	0.242
yeast×NaCl	1	0.009 184	1.17%	0.009 184	1.82	0.190
yeast×glucose	1	0.011 413	1.46%	0.011413	2.26	0.145
MSG×NH₄Cl	1	0.016 087	2.06%	0.016 087	3.18	0.086
MSG×NaCl	1	0.008 130	1.04%	0.008 130	1.61	0.216
MSG×glucose	1	0.002 256	0.29%	0.002 256	0.45	0.510
NH₄Cl×NaCl	1	0.010 302	1.32%	0.010 302	2.04	0.166
NH₄Cl×glucose	1	0.000 136	0.02%	0.000 136	0.03	0.871
NaCl×glucose	1	0.003 580	0.46%	0.003 580	0.71	0.408
误差 Error	25	0.126 293	16.13%	0.126 293
失拟 Lacr of fit	20	0.111 613	14.26%	0.111 613	1.90	0.246
纯误差 Pure error	5	0.014 679	1.88%	0.014 679
合计 Total	45	0.782 783	100.00%
R²=0.838 7 $R_{a d j}^{2}$ =0.709 6

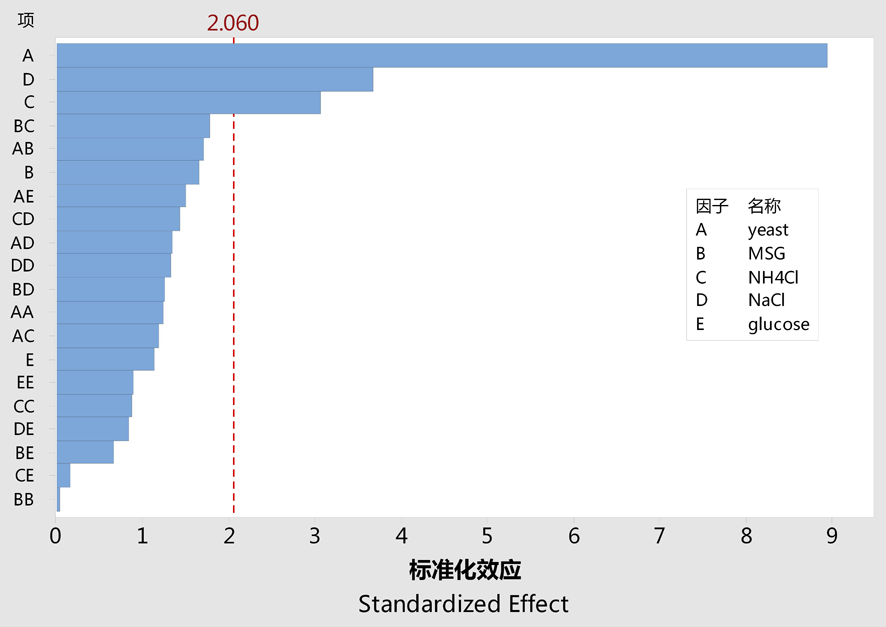

图2 因子影响四氢嘧啶产量的pareto 图

Fig.2 Pareto chart evaluates the variables affecting ectoine production

图3 Ectoine 产量影响因子交互作用曲面图

Fig.3 Interactions plots of variables affecting ectoine production

参考文献 22

[1]	Liu M, Liu H, Shi M, et al. Microbial production of ectoine and hydroxyectoine as high-value chemicals[J]. Microb Cell Fact, 2021, 20:76. DOI PMID
[2]	朱道辰, 刘杏荣. 相容性溶质四氢嘧啶及其羟基化衍生物的研究进展[J]. 中国生物工程杂志, 2011, 31(2):95-101.
	ZHU Daochen, LIU Xingrong. Compatible Solutes Ectoine and Its Derivate Hydroxyectoine[J]. China Biotechnology, 2011, 31(2):95-101.
[3]	Galinski EA, Pfeiffer HP, Truper HG. 1,4,5,6-tetrahydro-2-methyl-4-pyrimidinecarboxylic acid. A novel cyclic amino acid from halophilic phototrophic bacteria of the genus ectothiorhodospira[J]. Eur J Biochem, 1985, 149:135-139. PMID
[4]	Pastor JM, Salvador M, Argandona M, et al. Ectoines in cell stress protection: Uses and biotechnological production[J]. Biotechnol Adv, 2010, 28:782-801. DOI PMID
[5]	Sauer T, Galinski EA. Bacterial milking: A novel bioprocess for production of compatible solutes[J]. Biotechnol Bioeng, 1998, 57:306-313. PMID
[6]	Van-Thuoc D, Guzman H, Quillaguaman J, et al. High productivity of ectoines by halomonas boliviensis using a combined two-step fed-batch culture and milking process[J]. J Biotechnol, 2010, 147:46-51. DOI PMID
[7]	Zhang LH, Lang YJ, Nagata S. Efficient production of ectoine using ectoine-excreting strain[J]. Extremophiles, 2009, 13:717-724. DOI URL
[8]	Chen WC, Hsu CC, Lan JC, et al. Production and characterization of ectoine using a moderately halophilic strain halomonas salina bcrc17875[J]. J Biosci Bioeng, 2018.
[9]	Ning Y, Wu X, Zhang C, et al. Pathway construction and metabolic engineering for fermentative production of ectoine in escherichia coli[J]. Metab Eng, 2016, 36:10-18. DOI PMID
[10]	Perez-Garcia F, Ziert C, Risse JM, et al. Improved fermentative production of the compatible solute ectoine by corynebacterium glutamicum from glucose and alternative carbon sources[J]. J Biotechnol, 2017, 258:59-68. DOI URL
[11]	Li S, Shang Y, Zhao Q, et al. Promoter engineering for high ectoine production in a lower saline medium by halomonas hydrothermalis y2[J]. Biotechnol Lett, 2021.
[12]	Jiang A, Song Y, You J, et al. High-yield ectoine production in engineered corynebacterium glutamicum by fine metabolic regulation via plug-in repressor library[J]. Bioresour Technol, 2022, 362:127802. DOI URL
[13]	Chen J, Chen J, Wang S, et al. Development and validation of polar rp-hplc method for screening for ectoine high-yield strains in marine bacteria with green chemistry[J]. Nat Prod Res, 2019, 33:1122-1126. DOI PMID
[14]	Kunte HJ, Lentzen G, Galinski EA. Industrial production of the cell protectant ectoine: Protection mechanisms, processes, and products[J]. Current Biotechnology, 2014, 3:10-25. DOI URL
[15]	Becker J, Wittmann C. Microbial production of extremolytes - high-value active ingredients for nutrition, health care, and well-being[J]. Curr Opin Biotechnol, 2020, 65:118-128. DOI URL
[16]	Van-Thuoc D, Guzman H, Thi-Hang M, et al. Ectoine production by halomonas boliviensis: Optimization using response surface methodology[J]. Mar Biotechnol (NY), 2010, 12:586-593. DOI PMID
[17]	Chen WC, Yuan FW, Wang LF, et al. Ectoine production with indigenous marinococcus sp. Mar2 isolated from the marine environment[J]. Prep Biochem Biotechnol, 2020, 50:74-81. DOI URL
[18]	Fallet C, Rohe P, Franco-Lara E. Process optimization of the integrated synthesis and secretion of ectoine and hydroxyectoine under hyper/hypo-osmotic stress[J]. Biotechnol Bioeng, 2010, 107:124-133. DOI PMID
[19]	Wei YH, Yuan FW, Chen WC, et al. Production and characterization of ectoine by marinococcus sp. Ect1 isolated from a high-salinity environment[J]. J Biosci Bioeng, 2011, 111:336-342. DOI PMID
[20]	Onraedt AE, Walcarius BA, Soetaert WK, et al. Optimization of ectoine synthesis through fed-batch fermentation of brevibacterium epidermis[J]. Biotechnol Prog, 2005, 21:1206-1212. DOI URL
[21]	Zhang H, Liang Z, Zhao M, et al. Metabolic engineering of escherichia coli for ectoine production with a fermentation strategy of supplementing the amino donor[J]. Front Bioeng Biotechnol, 2022, 10:824859. DOI URL
[22]	Salar-Garcia MJ, Bernal V, Pastor JM, et al. Understanding the interplay of carbon and nitrogen supply for ectoines production and metabolic overflow in high density cultures of chromohalobacter salexigens[J]. Microb Cell Fact, 2017, 16:23. DOI PMID
