Analysis of Components of Cotton Fiber Cell Wall by Chemical Pretreatment and Fourier Transform Infrared Spectroscopy (FTIR)

doi:10.6048/j.issn.1001-4330.2022.02.001

Abstract

Abstract:

【Objective】 To provide a chemical pretreatment method which can be combined with fourier transform infrared spectroscopy (FTIR) to observe the cell wall components of cotton fiber.In the method, the cell wall of cotton fiber can be broken without causing structural damage and the real structural components of cell wall can be analyzed by FTIR. 【Method】 Cotton fiber was pretreated with thioglycolic acid and hydrochloric acid, and the free chemical reagent was washed with deionized water.The cell wall of cotton fiber after chemical pretreatment was observed by FTIR.Using the same treatment of the shoots of Pinus sylvestris L.var.mongolica Litv. with high lignification and hardness as control to verify the treatment method. 【Result】 Cotton fiber was broken at the site where it binds to the sulfhydryl group in thioglycolic acid, which could effectively break the cell wall of cotton fiber and overcome the problem that it was difficult to grind the fiber sample. Then the free chemical reagents were washed with deionized water. The cell wall of cotton fiber after chemical pretreatment was observed by FTIR. It was found that the chemically treated cotton fiber was significantly higher than the original chopped cotton fiber in the spectral range of 1,800-1,650 cm^-1. In the spectral range of 1,800-1,550 cm^-1, there was a very significant difference between chemically treated cotton fiber and chopped fiber, in the spectral range of 1,320-1,200 cm^-1, The FTIR absorbance of treated cotton fiber was significantly higher than that of chopped cotton fiber. 【Conclusion】 The cell wall components of cotton fiber can be correctly evaluated by pretreatment of cotton fiber with thioglycolic acid and hydrochloric acid and then combined with FTIR.

Key words: cotton fiber; cell wall; fourier transform infrared spectroscopy (FTIR); chemical pretreatment

摘要：

【目的】 研究能够与傅里叶变换红外光谱(FTIR)相结合的分析棉花纤维细胞壁组分的化学预处理方法,使棉花纤维细胞壁断裂破碎但不造成其组分结构破坏,为实现应用FTIR分析细胞壁的真实结构组分提供参考。【方法】 采用化学试剂巯基乙酸和盐酸预处理棉花纤维,用去离子水清洗游离的化学试剂,再通过FTIR化学预处理后的棉花纤维细胞壁。利用木质化程度和硬度较高的樟子松枝条进行相同处理作为对照,观察分析。【结果】 采用化学试剂巯基乙酸和盐酸预处理棉花纤维,纤维在其与巯基乙酸中的巯基结合的部位被打碎,可以有效破碎棉花纤维细胞壁,克服了纤维样品难以磨碎的问题,再用去离子水清洗游离的化学试剂,通过FTIR观察化学预处理后的棉花纤维细胞壁,发现化学处理过的棉花纤维在1 800~1 650 cm^-1的波谱区间内显著高于原始切碎棉花纤维,在1 800~1 550 cm^-1的波谱区间内,化学处理棉花纤维和切碎纤维间存在极显著差异,在1 320~1 200 cm^-1波谱内,处理棉花纤维的FTIR光谱吸光度值显著高于切碎棉花纤维。【结论】 化学试剂巯基乙酸和盐酸预处理棉花纤维,再与FTIR相结合可以正确评价棉花纤维细胞壁组分。

关键词: 棉花, 细胞壁, 傅里叶变换红外光谱, 化学预处理

CLC Number:

S562

HU Wenran, YANG Yang, LI Bo, HAO Xiaoyan, ZHAO Zhun, SHAO Wukui, HUANG Quansheng. Analysis of Components of Cotton Fiber Cell Wall by Chemical Pretreatment and Fourier Transform Infrared Spectroscopy (FTIR)[J]. Xinjiang Agricultural Sciences, 2022, 59(2): 261-268.

胡文冉, 杨洋, 李波, 郝晓燕, 赵准, 邵武奎, 黄全生. 化学预处理与傅里叶变换红外光谱相结合分析棉花纤维细胞壁组分[J]. 新疆农业科学, 2022, 59(2): 261-268.

Figures/Tables 6

Fig.1 FTIR spectrum of cotton fiber and Pinus sylvestris var.mongolica Litv. Note:A.SEM image of chopped cotton fiber; B.SEM image of cotton fiber treated by thioglycolic acid and HCl and washed by deionized water; C.SEM image of pulverized powder of Pinus sylvestris L.var.mongolica Litv.; D.SEM image of powder of Pinus sylvestris L.var.mongolica Litv.treated by thioglycolic acid and HCl and washed by deionized water

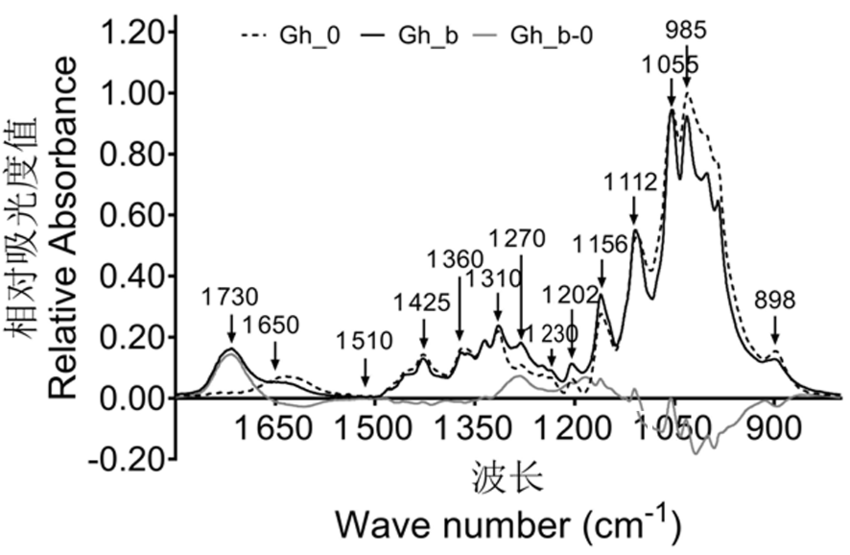

Fig.2 FTIR spectrum of cotton fiber sample Note:Gh_0.The absorption spectrum of chopped cotton fiber; Gh_b.The absorption spectrum of cotton fiber treated with thioglycolic acid and HCl and washed by deionized water; Gh_b-0.The absorption spectrum of thioglycolic acid and HCl treated cotton fibers minus the absorption spectrum of chopped cotton fibers

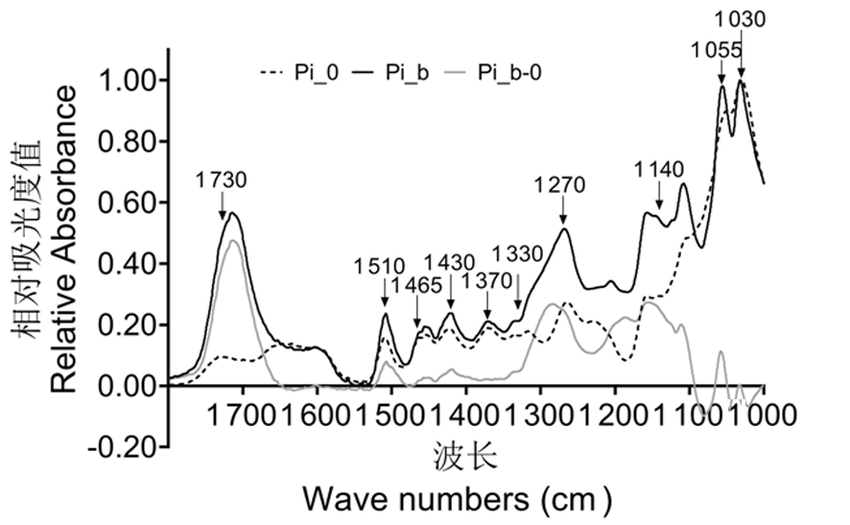

Fig.3 FTIR spectrum of Pinus sylvestris L.var.mongolica Litv. Note:Pi_0.The absorption spectrum of powder of Pinus sylvestris L.var.mongolica Litv.; Pi_b.The absorption spectrum of powder of Pinus sylvestris L.var.mongolica Litv.treated with thioglycolic acid and HCl and washed by deionized water; Pi_b-0.The absorption spectrum of thioglycolic acid and HCl treated powder of Pinus sylvestris L.var.mongolica Litv.minus the absorption spectrum of untreated powder of Pinus sylvestris L.var.mongolica Litv

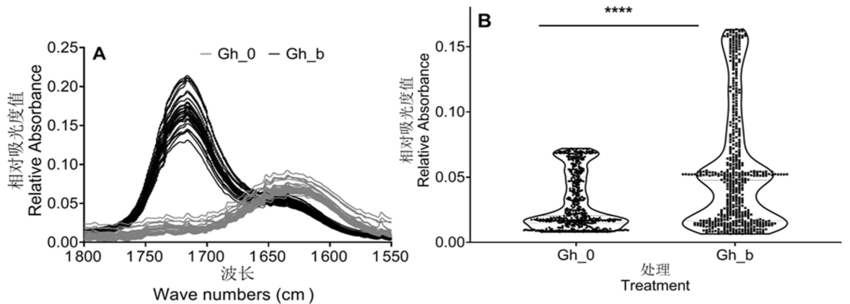

Fig.4 FTIR spectrum, violin plot of spectral values at 1,800-1,550 cm-1 between chopped and thioglycolic acid and HCl treated cotton fiber cell wall Note:A.Spectral (n=30) of chopped cotton fiber (Gh_0) and thioglycolic acid and HCl reated cotton fiber (Gh_b) at 1,800-1,550 cm-1; B.Violin plot of spectral values: showing data distribution, **** indicates extremely significant difference

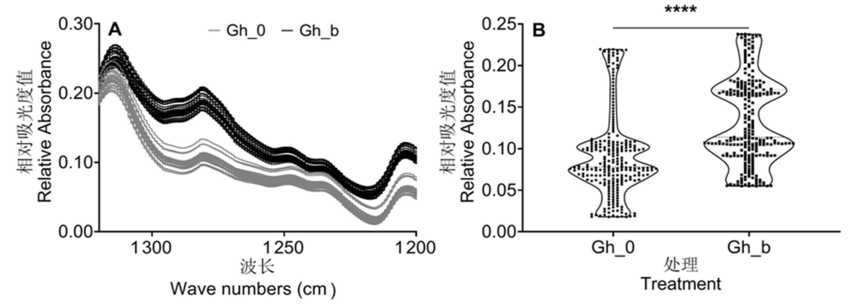

Fig.5 FTIR spectrum, violin plot of spectral values at 1,320-1,200 cm-1 between chopped and thioglycolic acid and HCl treated cotton fiber cell wall A.Spectral (n=30) of chopped (Gh_0) and thioglycolic acid and HCl reated cotton fiber (Gh_b) at 1,320-1,200 cm-1; B.Violin plot of spectral values: showing data distribution, **** indicates extremely significant difference

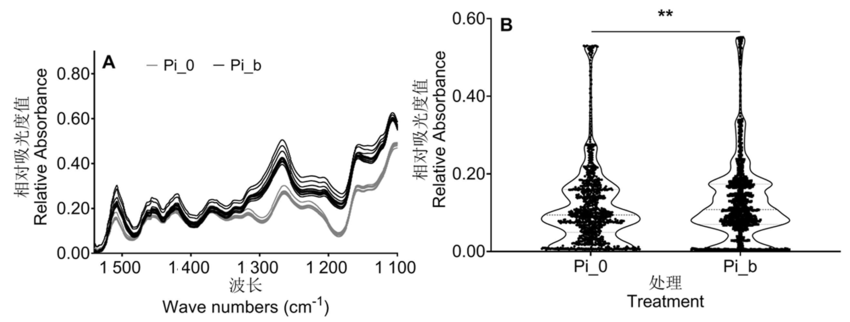

Fig.6 FTIR spectrum, violin plot of spectral values at 1,540-1,100 cm-1 between pulverized and thioglycolic acid and HCl treated Pinus sylvestris L.var.mongolica Litv A.Spectral of pulverized (Pi_0) (n= 12) and thioglycolic acid and HCl reated Pinus sylvestris L.var.mongolica Litv. (Pi_b) (n=9) at 1,540~1,100 cm-1; B.Violin plot of spectral values: showing data distribution, ** indicates significant difference

References 16

[1]	Fan L, Shi W J, Hu W R, et al. Molecular and biochemical evidence for phenylpropanoid synjournal and presence of wall-linked phenolics in cotton fibers[J]. Journal of Integrative Plant Biology, 2009, 51(7):626-637. DOI URL
[2]	Han L B, Liy B, Wang H Y, et al. The dual functions of WLIM1a in cell elongation and secondary wall formation in developing cotton fibers[J]. The Plant Cell, 2013, 25(11):4421-4438. DOI PMID
[3]	Grabber J H. How do lignin composition, structure, and cross-linking affect degradability a review of cell wall model studies A review of cell wall model studies[J]. Crop Science, 2005, 45(3):820-831.doi: 10.2135/cropsci2004.0191. DOI URL
[4]	Boerjan W, Ralph J, Bauvher M. Lignin biosynjournal[J]. Annual Review of Plant Biology, 2003, 54:519-546. PMID
[5]	Bhuiyan N H, Selvaraj G, Wei Y D, et al. Gene expression profiling and silencing reveal that monolignol biosynjournal plays a critical role in penetration defense in wheat against powdery mildew invasion[J]. Journal of Experimental Botany, 2009, 60(2):509-521. DOI PMID
[6]	闫洪颖, 胡文冉, 范玲. 新疆特早熟陆地棉纤维细胞发育过程的超微结构观察[J]. 棉花学报, 2009, 21(6):456-461.
	YAN Hongying, HU Wenran, FAN Ling. Ultra-structural observation on fiber cell development of Xinjiang early-maturing cotton[J]. Cotton Science, 2009, 21(6):456-461.
[7]	胡文冉. 棉花纤维中苯丙烷类化合物的沉积及结构研究[D]. 北京: 中国农业大学, 2016.
	HU Wenran. Study on deposition and structure of phenylpropanoid compounds in cotton fiber[D]. Beijing: China Agricultural University, 2016.
[8]	曹双瑜, 胡文冉, 范玲. 发育中棉纤维硫酸木质素含量的动态变化[J]. 新疆农业科学, 2012, 49(7):1184-1189.
	CAO Shuangyu, HU Wenran, FAN Ling. The dynamic changes of Klason lignin contents during cotton fiber development[J]. Xinjiang Agricultural Sciences, 2012, 49(7):1184-1189.
[9]	吕萌. 苯丙烷代谢及其中间产物阿魏酸对棉纤维发育影响的研究[D]. 乌鲁木齐: 新疆农业大学, 2010.
	LÜ Meng. Effects of phenylpropanoid pathway and its intermediate product FA on cotton fiber development[D]. Urumqi: Xinjiang Agricultural University, 2010.
[10]	胡文冉, 曹双瑜, 范玲, 等. 不同浓度NaOH处理对棉花纤维的影响[J]. 华北农学报, 2011, 26(S1):64-68.
	HU Wenran, CAO Shangyu, FAN Ling, et al. Effects of treatment with different concentrations of NaOH on cotton fibers[J]. Acta Agricultuae Boreali-Simica, 2011, 26(S1):64-68.
[11]	Hatfield R, Fukushima R S. Can lignin be accurately measured[J]. Crop Science, 2005, 45(3):832-839. DOI URL
[12]	Hu W R, Fan L, Tian Xl, et al. Modified methods for the analysis of the lignin-like phenolic polymer contents of cotton fibers[J]. The Journal of Animal and Plant Science, 2015, 25(3)(S1):232-239.
[13]	Mccann M C, Defernez M,., Urbanowicz B R, et al. Neural network analyses of infrared spectra for classifying cell wall architectures[J]. Plant Physiology, 2007, 143:1314-1326. DOI URL
[14]	Alonso-Simón A, García-Angulo P, Mélida H, et al. The use of FTIR spectroscopy to monitor modifications in plant cell wall architecture caused by cellulose biosynjournal inhibitors[J]. Journal Plant Signaling & Behavior, 2011, 6(8):1104-1110.
[15]	Kim H J, Triplett B A. Cotton fiber growth in planta and in vitro.models for plant cell elongation and cell wall biogenesis[J]. Plant Physiology, 2001, 127(4):1361-1366. PMID
[16]	Haigler C H, Betancur L, STIFF M R, et al. Cotton fiber: a powerful single-cell model for cell wall and cellulose research[J]. Plant Physiology, 2012, 3(104):1-7. DOI URL
