香梨黑斑病病原菌分离及拮抗菌筛选鉴定

doi:10.6048/j.issn.1001-4330.2022.10.023

新疆农业科学 ›› 2022, Vol. 59 ›› Issue (10): 2538-2545.DOI: 10.6048/j.issn.1001-4330.2022.10.023

• 植物保护·微生物·农业生态环境·畜牧兽医 • 上一篇下一篇

香梨黑斑病病原菌分离及拮抗菌筛选鉴定

鲁晏宏¹^,²(), 郝金辉¹^,², 詹发强², 王宁², 侯新强², 杨蓉², 包慧芳²(), 龙宣杞²()

1.新疆大学生命科学与技术学院,乌鲁木齐 830046
2..新疆农业科学院微生物应用研究所,乌鲁木齐 830091

收稿日期:2021-12-23 出版日期:2022-10-20 发布日期:2022-12-21
通信作者: 包慧芳,龙宣杞
作者简介:鲁晏宏(1996-),女,黑龙江人,硕士研究生,研究方向为微生物资源与利用,(E-mail)luyanhong@stu.xju.edu.cn
基金资助:
新疆维吾尔自治区天山优秀青年"两种生防菌对链格孢菌抑制机理及协同作用研究"(2020Q027);新疆农业科学院科技创新重点培育专项“库尔勒香梨果园营建关键技术优化集成”(xjkcpy-2020006);新疆人社厅自治区高层次人才引进工程

Isolation of Pathogenic Bacteria and Screening and Identification of Antagonistic Bacteria of Black Spot of Fragrant pear

LU Yanhong¹^,²(), HAO Jinhui¹^,², ZHAN Faqiang², WANG Ning², HOU Xinqiang², YANG Rong², BAO Huifang²(), LONG Xuanqi²()

1. College of Life Science and Technology, Xinjiang University, Urumqi 830046, China
2. Research Institute of Applied Microbiology, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China

Received:2021-12-23 Online:2022-10-20 Published:2022-12-21
Correspondence author: BAO Huifang, LONG Xuanqi
Supported by:
Outstanding Youth Fund of Xinjiang"Study on Inhibition Mechanism and Synergic Effect of Two Biocontrol Bacteria on Alternatia"(2020Q027);Key Cultivation of Science and Technology Innovation of Xinjiang Academy of Agricultural Sciences " Key Technology Optimization Integration of Korla Pear Orchard Construction"(xjkcpy-2020006);High-level Talent Introduction Project of Xinjiang

摘要/Abstract

摘要：

【目的】从香梨树体中筛选出对香梨采后黑斑病病原菌具有拮抗作用的内生菌,为香梨采后生物保鲜奠定基础。【方法】采用组织分离法,对香梨采后黑斑病病原菌及梨树内生菌进行分离,采用ITS基因与16S rRNA基因引物分别对分离出的病原菌和拮抗菌进行测序,采用平板对峙法测定内生菌的拮抗效果,并对拮抗效果优良的拮抗菌采用离体果实进行防效测定。【结果】分离得到香梨采后黑斑病病害病原菌1株,鉴定为Alternatia alternata XL₂。从梨树叶片及枝条中分离出内生菌16株,其中8株对Alternatia alternata XL₂有抑制作用,8株拮抗菌均为芽孢杆菌属,分别为Bacillus velezensis 5株、Bacillus paralicheniformis 、Bacillus siamensis 和Bacillus tequilensis 各1株,牛津杯琼脂扩散实验中Bacillus velezensis NY₂、NY₇抑菌效果最佳,其次为NY₁₅,抑菌圈直径均可达20 mm以上。离体果实抑菌实验中短期效果最佳的为NY₂,使用第4 d时抑菌率可达80%以上,中长期效果较佳的为NY₁₁,使用第7 d天时仍可达20%以上。【结论】筛选获得2株优良的香梨采后黑斑病拮抗菌。

关键词: 黑斑病; 内生菌; 拮抗菌; 应用效果

Abstract:

【Objective】 The purpose of this study is to screen the endophytic bacteria with antibacterial effect from the Korla pear tree with a view to using the endophytic biocontrol agent to keep the pear fresh after harvesting.【Method】 The pathogen of postharvest black spot of fragrant pear and endophytic bacteria were isolated by tissue separation method and then the isolated strains were sequenced by ITS gene and 16S rRNA gene.Also, the plate confrontation method was used to screen the antagonistic bacteria against Alternatia alternata XL₂ from the screened endophytic bacteria, and bacteriostasis experiments of the antagonistic bacteria were conducted in vitro fruits.【Result】 The pathogen of postharvest diseases of Korla pear Alternatia alternata XL₂ was obtained in this experiment, and 16 strains of endophytic bacteria were isolated from the leaves and branches of pear trees, among which 8 strains had inhibitory effect on Alternatia alternata XL₂.They were 1 Bacillus paralicheniformis, 5 Bacillus velezensis, 1 Bacillus siamensis and 1 Bacillus tequilensis.Among them, Bacillus velezensis NY₂, NY₇ and NY₅ had the best antibacterial effect in the Oxford cup experiment, and the diameter of antibacterial zone was more than 20 mm.In the bacteriostatic experiment of Korla pear, NY₂ and NY₁₅ had the best bacteriostatic effect, and the bacteriostatic rate was more than 30%.In the bacteriostatic test in vitro fruits, the bacteriostatic rate of NY₂ reached more than 80% in the fourth day after inoculation, and the bacteriostatic effect of NY₁₁ was more stable than others.【Conclusion】 In this experiment, 2 strains of endophytic bacteria with antibacterial effect are screened.

Key words: black spot; endophytic; antagonistic bacteria; apply effect

中图分类号:

S436.412

鲁晏宏, 郝金辉, 詹发强, 王宁, 侯新强, 杨蓉, 包慧芳, 龙宣杞. 香梨黑斑病病原菌分离及拮抗菌筛选鉴定[J]. 新疆农业科学, 2022, 59(10): 2538-2545.

LU Yanhong, HAO Jinhui, ZHAN Faqiang, WANG Ning, HOU Xinqiang, YANG Rong, BAO Huifang, LONG Xuanqi. Isolation of Pathogenic Bacteria and Screening and Identification of Antagonistic Bacteria of Black Spot of Fragrant pear[J]. Xinjiang Agricultural Sciences, 2022, 59(10): 2538-2545.

图/表 9

图1 病原菌分离及回接注:(a)XL1病原菌菌株平板内形态为(b)XL2病原菌菌株平板内形态(c)XL2回接发病图(d)XL2感染病原菌香梨纵切图(e)XL3病原菌菌株平板内形态为(f)XL3回接发病图 (g)XL3感染病原菌香梨纵切图

Fig.1 Isolation and reinoculated symptoms of pathogenic bacteria Note:(a) the morphology of XL1 pathogen strain in the plate (b) the morphology of XL2 pathogen strain in the plate (c) the incidence diagram of XL2 back-graft (d) the slitting diagram of XL2 infected pathogen fragrant pear(e) The morphology of XL3 pathogen strains in the plate (F) the incidence diagram of XL3 tie-back (G) the slitting diagram of XL3 infection pathogen fragrant pear

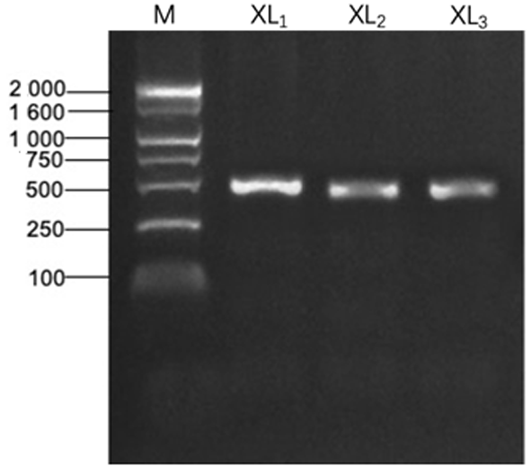

图2 XL2基于rDNA-ITS基因序列的PCR扩增

Fig.2 PCR amplification of strain XL2 based on ITS gene sequences

图3 基于16S rRNA基因序列采用Neighbor-Joining法构建病原菌系统发育树注:分支上的数字为Bootstrap值,表示构建系统进化树时计算1000次时形成该节点的百分比,只显示大于50%的的值;括号内数值为GenBank登录号;标尺0.1代表10%的16S r RNA基因序列的进化差异。

Fig.3 Phylogenetic tree based on Neighbor-Joining of isolated strain XL2 Note:The bootstrap values(%) presented at the branches were calculated from 1000 replications,only showing bootstrap values higher than 50%.Numbers in parentheses are GenBank accession numbers;The scale bar 0.1 represents 100 nucleotide substitutions per 1000 nucleotides.

表1 拮抗菌发酵液对链格孢抑菌效果

Table1 Oxford cup AGAR diffusion inhibition results

菌株编号 Strain No.	抑菌圈直径 Diameter of inhibition zone(mm)
NY₁	10.33±1.53^d
NY₂	23.43±0.51^a
NY₅	14.67±0.58^c
NY₇	23.33±0.58^a
NY₉	13.33±1.15^c
NY₁₀	9.33±0.58^d
NY₁₁	14.33±1.41^c
NY₁₅	21.73±0.25^b

图4 拮抗菌对XL2抑菌作用

Fig.4 Antagonistic activity of antagonist against XL2

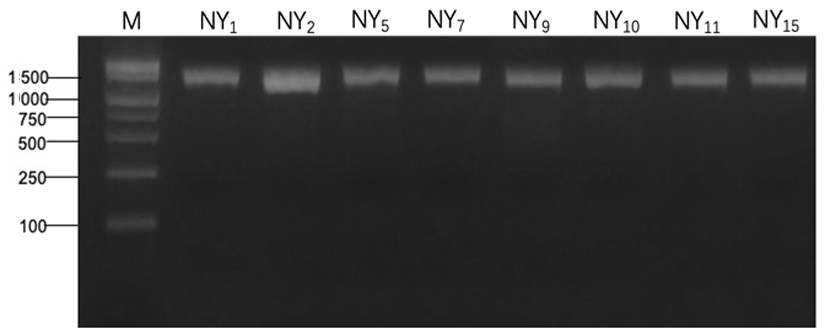

图5 拮抗菌基于16s rRNA基因序列的PCR扩增

Fig.5 PCR amplification of antagonistic bacteria based on 16S rRNA gene sequences

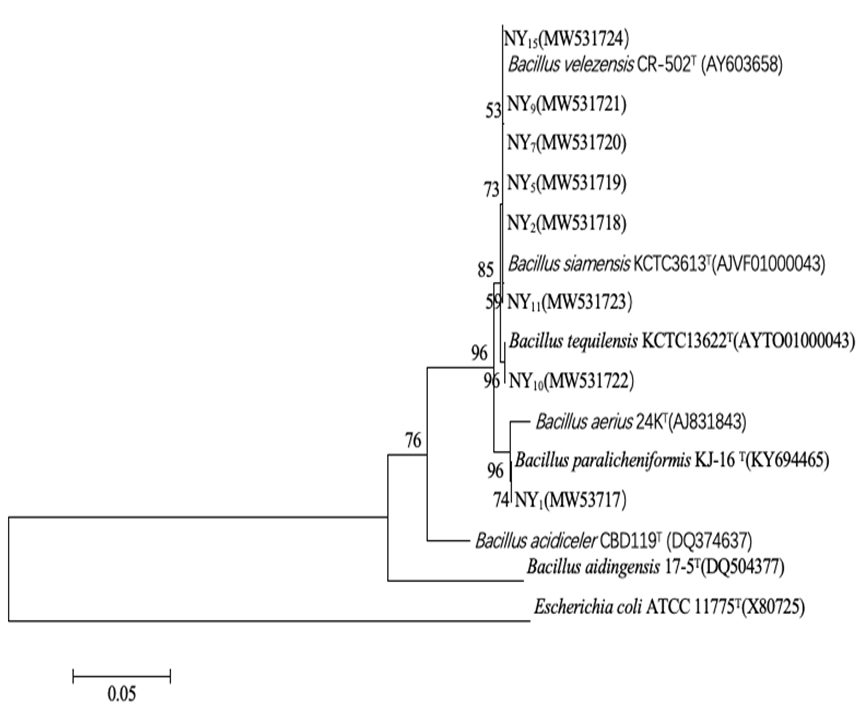

图6 基于16S rRNA基因序列采用Neighbor-joining法构建的拮抗菌系统发育树注:分支上的数字为Bootstrap值,表示构建系统进化树时计算1000次时形成该节点的百分比,只显示大于50%的的值;括号内数值为GenBank登录号;标尺0.1代表10%的16S r RNA基因序列的进化差异。

Fig.6 Phylogenetic tree based on Neighbor-joining of isolated antagonistic bacteria Note:The bootstrap values(%) presented at the branches were calculated from 1000 replications,only showing bootstrap values higher than 50%.Numbers in parentheses are GenBank accession numbers;The scale bar 0.1 represents 100 nucleotide substitutions per 1000 nucleotides.

表2 发酵液在库尔勒香梨对病原菌抑制率

Table 2 Inhibitory rate of pathogenic bacteria in Korla fragrant pear

菌株编号 Strain No.	防效Control effect(%)
NY₁	11.71±0.55^c
NY₂	31.30±1.19^a
NY₅	15.24±2.37^c
NY₇	12.95±2.67^c
NY₉	4.30±0.21^d
NY₁₀	13.52±1.15^c
NY₁₁	21.72±2.98^b
NY₁₅	24.49±2.48^b

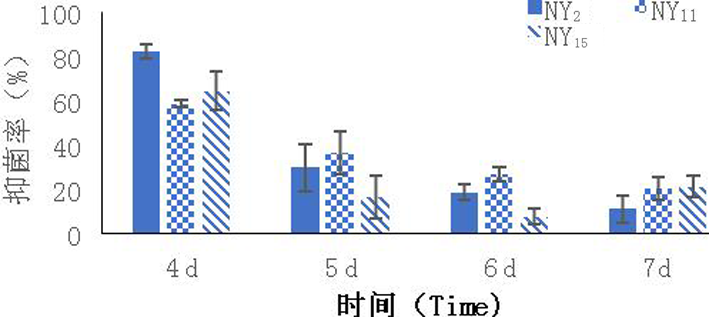

图7 香梨抑菌测定复测注:标有*表示与其余组差异显著(P<0.05)

Fig.7 The bacteriostatic rate of fragrant pear was determined Note:Marked with * indicates significant difference with other groups (P<0.05)

参考文献 23

[1]	木合塔尔·扎热, 阿卜杜许库尔·牙合甫, 玉山·库尔班, 等. 库尔勒香梨幼果不同部位植物内源激素含量对果实萼片脱落的影响[J]. 植物生理学报, 2020, 56(10):2179-2186
	Muhtar Zari, Abduxukur Ykup, Yusan Kurban, et al. Effect of plant endogenous hormone content in different parts of Korla fragrant young fruit on calyx leaving[J]. Plant Physiology Journal, 2020, 56(10):2179-2186
[2]	任美佳, 张华平, 钟聪慧, 等. 库尔勒香梨黑斑病病原鉴定[J]. 石河子大学学报(自然科学版), 2020, 38(5):574-579.
	REN Meijia, ZHANG Huaping, ZHONG Conghui, et al. Identification of the pathogens causing Korla pear black spot in Alar[J]. Journal of Shihezi University (Natural Science Ed.), 2020, 38(5):574-579.
[3]	Kloepper J W, Beauchamp C J. A review of issues related to measuring colonization of plant roots by bacteria[J]. Canadian Journal of Microbiology, 1992, 38(12):1219-1232. DOI URL
[4]	Campisano A, Antonielli L, Pancher M, et al. Bacterial Endophytic Communities in the Grapevine Depend on Pest Management[J]. Plos One, 2014, 9.
[5]	张淑婷, 周利华, 赵文卓. 植物内生细菌对植物健康的作用[J]. 植物医生, 2020, 33(1):6-11.
	ZHANG Shuting, ZHOU Lihua, ZHAO Wenzhuo. The Role of Plant Endophytes in Plant Health[J]. Plant Doctor, 2020, 33(1):6-11.
[6]	何珊, 田志宏. 植物内生细菌生物学效应的研究进展[J]. 安徽农学通报, 2020, 26(4):20-23.
	HE Shan, TIAN Zhihong. Advances in the Study of the Biological Effects of Endophytic Bacteria in Plant[J]. Anhui Agricultural Science Bulletin, 2020, 26(4):20-23.
[7]	周万海, 杨立艳, 李苗, 等. 天然香料植物油樟叶可培养内生细菌群落结构与多样性[J]. 食品与发酵工业, 2019, 45(20):43-51.
	ZHOU Wanhai, YANG Liyan, LI Miao, et al. Structure and diversity of culturable endophytic bacteria in natural spice Cinnamomum longepaniculat (Gamble) N.Chao leaves[J]. Food and Fermentation Industries, 2019, 45(20):43-51.
[8]	王玉芬. 植物内生菌的研究进展[J]. 现代园艺, 2019,(11):23-24.
	WANG Yufeng. Research progress of endophytic bacteria in plants[J]. Xiandai Horticulture, 2019,(11):23-24.
[9]	隆丽林. 虎杖内生菌转化虎杖苷及其发酵液对草莓保鲜作用研究[D]. 长沙: 湖南农业大学, 2015.
	LONG Lilin. Research on transformantion of Polydatin by endophyte isolated from Polygonum cuspidatum and Fermented liquid strawberry preservation[D]. Changsha: Hunan Agricultural University, 2015.
[10]	金卫华, 胡伟, 唐红枫. 樱树内生菌代谢产物的抗氧化活性研究[J]. 化学与生物工程, 2019, 36(10):31-34.
	JIN Weihua, HU Wei, TANG Hongfeng, et al. Antioxidant Activity of Metabolites from Endophytes in Cerasus serrulata[J]. Chemistry & Bioengineering, 2019, 36(10):31-34.
[11]	佘小漫, 于琳, 蓝国兵, 等. 广东省冬枣叶枯病病原菌的分离与鉴定[J]. 植物病理学报, 2021, 51(3):317-324.
	SHE Xiaomei, YU Lin, LAN Guobing, et al. Identification of the pathogen causing Ziziphus jujuba Mill cv.Dongzao leaf necrotic disease in Guangdong Province[J]. Acta Phytopathologica Sinica, 2021, 51(3):317-324.
[12]	杨雅惠, 吴佳英, 任军, 等. 猕猴桃软腐病致病菌的分离与鉴定[J]. 植物医生, 2020, 33(3):67-71
	YANG Yahui, WU Jiaying, REN Jun, et al. Isolation and Identification of the Causal Pathogens of Kiwi Soft Rot[J]. Plant Doctor, 2020, 33(3):67-71
[13]	毕秋艳, 党志红, 朱伟旗, 等. 河北省大豆主要病原真菌鉴定及防治药剂筛选[J]. 中国农业科学, 2021, 54(1):71-85.
	BI Qiuyan, DANG Zhihong, ZHU Weiqi, et al. Identification of Major Pathogenic Fungi of Soybean in Hebei Province and Screening of Control Fungicides[J]. Scientia Agricultura Sinica, 2021, 54(1):71-85.
[14]	石浩, 王仁才, 王芳芳, 等. 猕猴桃软腐病主要病原菌的分离、鉴定及其生长特性研究[J]. 核农学报, 2020, 34(11):2425-2434. DOI
	SHI Hao, WANG Rencau, WANG Fangfang, et al. Isolation, Identification and Growth Characteristics of Main Pathogens of Kiwifruit Soft Rot[J]. Journal of Nuclear Agricultural Sciences, 2020, 34(11):2425-2434.
[15]	李玲玲, 李青爱, 易回香, 等. 银杏内生菌的分离及其抑菌活性筛选[J]. 生物资源, 2019, 41(3):249-254.
	LI Lingling, LI Qingai, YI Huixiang, et al. Isolation of endophytes from Ginkgo biloba and screening of their antimicrobial activity[J]. Biotic Resources, 2019, 41(3):249-254.
[16]	薛应钰, 李兴昱, 李发康, 等. 苹果树腐烂病生防真菌Z-12A的鉴定及其生防效果[J]. 微生物学通报, 2021, 48(1):57-69.
	XUE Yingyu, LI Xinyu, LI Fakang, et al. Identification of Z-12A fungus for biocontrol of apple tree canker[J]. Microbiology China, 2021, 48(1):57-69.
[17]	崔文会, 炊春萌, 孙雪, 等. 贝莱斯芽孢杆菌对果蔬土传病害的抑菌效果研究[J]. 工业微生物, 2020, 50(5):15-20.
	CUI Wenhui, CHUI Chunmeng, SUN Xue, et al.. Bacteriostatic effects of Bacillus velezensis on soil borne diseases of fruits and vegetables[J]. Industrial Microbiology, 2020, 50(5):15-20.
[18]	郝湘妹, 王宇航, 王媛, 等. 几种检测乳酸菌抑制真菌性能的方法比较[J]. 食品研究与开发, 2020, 41(9):45-49.
	HAO Xiangmei, WANG Yuhang, WANG Yuan, et al. Comparison of Several Methods for the Detection of Antifungal Activity of Lactobacillus[J]. Food Research and Development, 2020, 41(9):45-49.
[19]	郝湘妹. 抑制霉菌乳酸菌的筛选、特性及应用研究[D]. 郑州: 郑州大学, 2020.
	HAO Xiangmei. Screening, characteristic and application of Lactobacillus with antifungal activity[D]. Zhengzhou: Zhengzhou University, 2020
[20]	杨迪, 杜婵娟, 张晋, 等. 香蕉枯萎病拮抗菌贝莱斯芽胞杆菌的筛选鉴定及其生物学特性[J]. 中国生物防治学报, 2021, 37(1):165-171.
	YANG Di, DU Chanjuan, ZHANG Jin, et al. Screening, Identification and Biological Characteristic of Bacillus velezensis against Banana Fusarium Wilt[J]. Chinese Journal of Biological Control, 2021, 37(1):165-171.
[21]	李瑾, 彭可为, 潘求一, 等. 解淀粉芽胞杆菌HR-2的分离鉴定及对水稻稻瘟病菌的拮抗效果[J]. 生物技术通报, 2021, 37(3):27-34. DOI
	LI Jin, PENG Kewei, FENG Qiuyi, et al. Isolation and Identification of Bacillus amyloliquefaciens HR-2 and Biological Control of Rice Blast[J]. Biotechnology Bulletin, 2021, 37(3):27-34. DOI
[22]	穆香轶, 张璇, 胡有贞, 等. 库尔勒香梨黑头病拮抗菌的筛选和鉴定[J]. 微生物学通报, 2020, 47(6):1795-1806.
	MU Xiangyi, ZHANG Xuan, HU Youzhen, et al. Screening and identification of an antagonistic bacterium against blackhead disease of Korla fragrant pear[J]. Microbiology China, 2020, 47(6):1795-1806.
[23]	刘燕, 徐志才, 唐立松. 叶圈微生物的群落结构与生态功能研究进展[J]. 干旱区研究, 2018, 35(2):340-345.
	LIU Yan, XU Zhicai, TANG Lisong. Research Progress of Community Structure and Ecological Functions of Phyllosphere Microorganisms[J]. Arid Zone Research, 2018, 35(2):340-345.
