Stu dy on leaf information collection of spring maize under different water nitrogen treatment conditions based on ground-based multispectrum

doi:10.6048/j.issn.1001-4330.2024.10.005

Abstract

Abstract:

【Objective】 To investigate the effects of different water and nitrogen treatments on multispectral collection of leaf information from spring maize. 【Methods】 Three levels of irrigation quotas (75%, 100%, 125% ETc) and four levels of N application (0, 200, 400, 600 kg/hm²) were set, Ground-based multispectral photography was used to obtain spectral information of spring maize leaves, and five vegetation indices were selected to study the effects of different water and nitrogen treatments on multispectral information acquisition. Combined with the measured data, the BP neural network with correlation analysis and particle swarm optimization was used to analyze the trend of the measured values and vegetation index. 【Results】 The results showed that the inversion of vegetation index NDVI was better for SPAD values at the middle of vegetation development, and both irrigation and nitrogen application affected the inversion of vegetation index for SPAD values. The inversions of vegetation indices OSAVI and SAVI for surface soil moisture under medium irrigation treatment (W₂) were superior, and the PSO-BP neural network modeling results of OSAVI with soil moisture data from 0 to 20 cm were better than those of SAVI for soil moisture from 10 to 30 cm. 【Conclusion】 In summary, it is more accurate to use NDVI with SOAVI for inversion of SPAD values and soil moisture at the surface 0-20 cm at 100% ETc irrigation level and above 400 kg/hm² N application level.

Key words: spring maize; multispectral; water nitrogen; neural network

摘要：

【目的】 研究不同水氮处理对多光谱采集春玉米叶片信息的影响。【方法】 设置3个水平灌水定额(75%、100%、125% 作物需水量ETc)和4个水平的施氮量(0、200、400、600 kg/hm²)处理,采用地基多光谱拍摄的方法获取春玉米叶片的光谱信息,选取5个植被指数分析不同水氮处理对多光谱信息采集的影响。结合实测数据处理,分析相关性、粒子群优化的BP神经网络变化,研究实测值与植被指数的变化趋势。【结果】 植被指数NDVI在植株发育中期对SPAD值的反演效果较好,灌水量和施氮量均会影响植被指数对于SPAD值的反演。在中灌水处理(W₂)条件下植被指数OSAVI与SAVI对表层土壤水分的反演较优,且OSAVI与0~20 cm土壤水分数据的PSO-BP神经网络建模优于SAVI对于10~30 cm土壤水分的PSO-BP神经网络建模。【结论】 在100%ETc灌水水平、施氮400 kg/hm²条件下,使用NDVI与SOAVI进行SPAD值和地表0~20 cm的土壤水分的反演较为准确。

关键词: 春玉米, 多光谱, 水氮, 神经网络

CLC Number:

S513

LI Chi, CHEN Gang, YANG Jige, YANG Tingrui, ZHAO Jinghua, MA Mingjie. Stu dy on leaf information collection of spring maize under different water nitrogen treatment conditions based on ground-based multispectrum[J]. Xinjiang Agricultural Sciences, 2024, 61(10): 2374-2387.

李池, 陈刚, 杨继革, 杨庭瑞, 赵经华, 马明杰. 基于地基多光谱的不同水氮处理条件下春玉米叶片信息采集[J]. 新疆农业科学, 2024, 61(10): 2374-2387.

Figures/Tables 18

Tab.1 Soil pH and trace element content

土壤深度 Soil depth (cm)	pH值 pH value	有机质 Organic matter (g/kg)	全氮 Total nitrogen (g/kg)	全磷 Total phosphorus (g/kg)	全钾 Total potassium (g/kg)	碱解氮 Nitrogen alkali digestion (mg/kg)	速效磷 Fast-acting phosphorus (mg/kg)	速效钾 Fast-acting potassium (mg/kg)
0~20	8.30	17.880	0.830	0.890	18.022	62.916	11.810	140.200
20~40	7.88	17.283	0.787	0.879	18.000	60.123	7.540	135.200

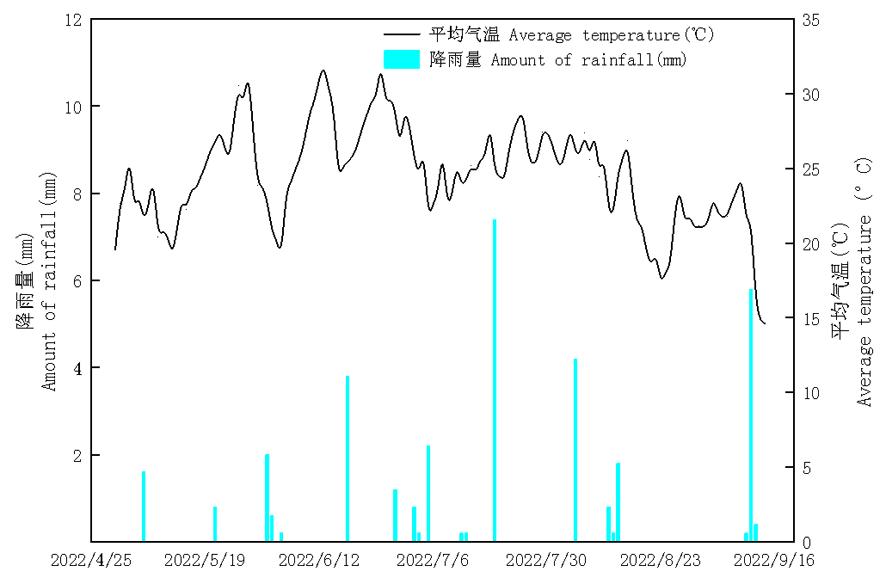

Fig.1 Average temperature and rainfall distribution in 2022

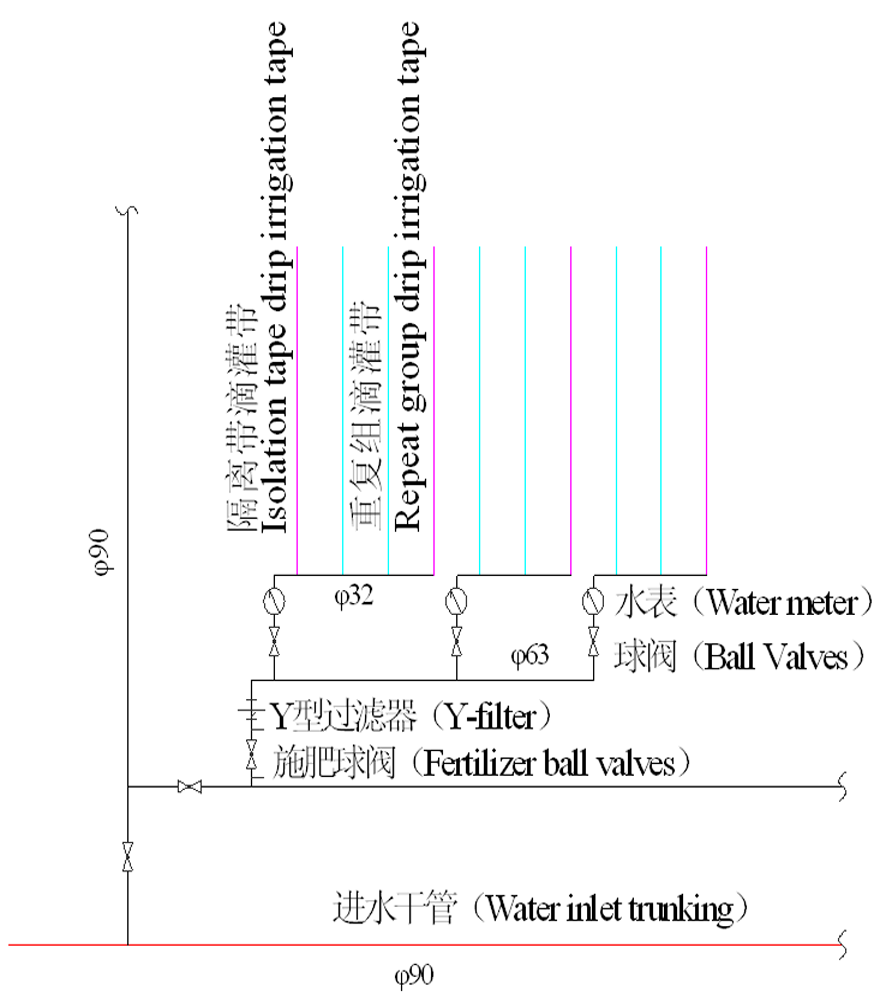

Fig.2 Plan view of the main factors

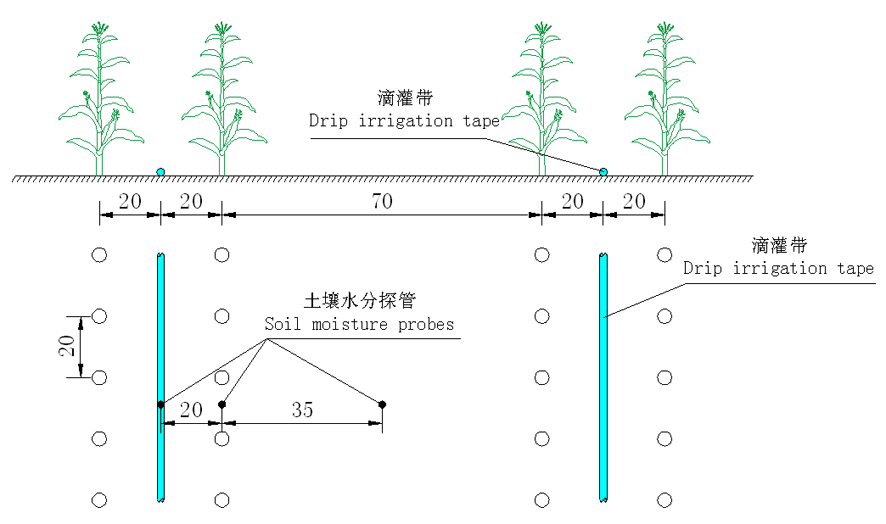

Fig.3 Planting pattern diagram

Tab.2 Test programme

处理名称 Treatments name	灌水定额 Irrigation quota	氮肥施用量 Nitrogen fertilizer application rate (kg/hm²)
W₁N₁	75% ETc	0
W₁N₂	75% ETc	200
W₁N₃	75% ETc	400
W₁N₄	75% ETc	600
W₂N₁	100% ETc	0
W₂N₂	100% ETc	200
W₂N₃	100% ETc	400
W₂N₄	100% ETc	600
W₃N₁	125% ETc	0
W₃N₂	125% ETc	200
W₃N₃	125% ETc	400
W₃N₄	125% ETc	600

Tab.3 Vegetation index calculation method and provenance

植被指数 Vegetation index	全称 Full name	计算公式 Calculation formula
NDVI	归一化植被指数	$(N I R - R) / (N I R + R)$ ^[10]
CCCI	冠层叶绿素含量指数	$(N I R - R_{r e d e d g e}) / (N I R + R_{r e d e d g e})$ ^[11]
GRVI	比值植被指数	$N I R / G$ ^[12]
SAVI	土壤调整植被指数	$1.5 (N I R - R) / (N I R + R + 0.5)$ ^[13]
OSAVI	优化调节土壤植被指数	$(1 + 0.16) (N I R - R) / (N I R + R + 0.6)$ ^[14]

Tab.3 Vegetation index calculation method and provenance

植被指数 Vegetation index	全称 Full name	计算公式 Calculation formula
NDVI	归一化植被指数	$(N I R - R) / (N I R + R)$ ^[10]
CCCI	冠层叶绿素含量指数	$(N I R - R_{r e d e d g e}) / (N I R + R_{r e d e d g e})$ ^[11]
GRVI	比值植被指数	$N I R / G$ ^[12]
SAVI	土壤调整植被指数	$1.5 (N I R - R) / (N I R + R + 0.5)$ ^[13]
OSAVI	优化调节土壤植被指数	$(1 + 0.16) (N I R - R) / (N I R + R + 0.6)$ ^[14]

Tab.4 Correlation between vegetation index and SPAD values

处理名称 Treatments name	归一化植被指数 NDVI	比值植被指数 GRVI	优化调节土壤植被指数 OSAVI	土壤调整植被指数 SAVI	冠层叶绿素含量指数 CCCI
W₁N₁	0.630^*	0.307	0.4	0.4	0.303
W₂N₁	0.646^*	0.194	0.309	0.321	0.331
W₃N₁	0.834^*	0.577^*	0.436	0.453	0.634^*
W₁N₂	0.910^*	0.433	0.173	0.181	0.898^*
W₂N₂	0.655^*	0.195	0.395	0.401	0.267
W₃N₂	0.566	0.605^*	0.534	0.548	0.681^*
W₁N₃	0.636^*	0.077	0.353	0.368	0.584^*
W₂N₃	0.516	0.22	0.416	0.439	0.257
W₃N₃	0.748^*	0.651^*	0.165	0.178	0.706^*
W₁N₄	0.591^*	0.357	0.192	0.2	0.342
W₂N₄	0.816^**	0.609^*	0.232	0.236	0.459
W₃N₄	0.169	0.154	0.343	0.34	-0.069

Tab.5 Correlation between vegetation index and soil moisture from 0 to 20 cm

处理名称 Treatments name	归一化植被指数 NDVI	比值植被指数 GRVI	优化调节土壤植被指数 OSAVI	土壤调整植被指数 SAVI	冠层叶绿素含量指数 CCCI
W₁N₁	0.696	0.614	-0.761^*	-0.740^*	0.578
W₂N₁	0.029	0.214	-0.790^*	-0.795^*	0.076
W₃N₁	-0.214	-0.003	-0.500	-0.501	-0.209
W₁N₂	0.016	-0.391	-0.868^**	-0.880^**	0.227
W₂N₂	-0.106	-0.241	-0.791	-0.695	-0.099
W₃N₂	-0.201	-0.017	-0.752^*	-0.764^*	0.007
W₁N₃	0.046	0.439	-0.529	-0.533	0.067
W₂N₃	-0.059	0.134	-0.746^*	-0.763^*	0.136
W₃N₃	-0.758^*	-0.751	-0.597	-0.605	-0.574
W₁N₄	-0.399	-0.403	-0.677	-0.667	-0.479
W₂N₄	0.283	-0.031	-0.766^*	-0.767^*	0.235
W₃N₄	0.108	-0.704	-0.806^*	-0.815^*	0.085

Tab.6 Correlation between vegetation index and soil moisture from 10 to 30 cm

处理名称 Treatments name	归一化植被指数 NDVI	比值植被指数 GRVI	优化调节土壤植被指数 OSAVI	土壤调整植被指数 SAVI	冠层叶绿素含量指数 CCCI
W₁N₁	-0.256	-0.566	0.259	0.261	-0.268
W₂N₁	-0.129	0.141	-0.689	-0.695	0.058
W₃N₁	-0.307	-0.166	-0.253	-0.256	-0.363
W₁N₂	0.137	-0.105	-0.789^*	-0.782^*	0.196
W₂N₂	0.039	0.18	-0.728	-0.716^*	-0.022
W₃N₂	0.164	0.177	-0.857^**	-0.861^**	0.122
W₁N₃	-0.238	-0.418	-0.829^*	-0.834^*	-0.276
W₂N₃	-0.145	-0.13	-0.901^**	-0.910^**	-0.158
W₃N₃	0.015	-0.486	-0.782	-0.667	-0.403
W₁N₄	-0.026	-0.179	-0.834^*	-0.829^*	-0.221
W₂N₄	-0.483	-0.550	-0.446	-0.448	-0.721
W₃N₄	-0.354	-0.950^**	-0.44	-0.462	-0.472

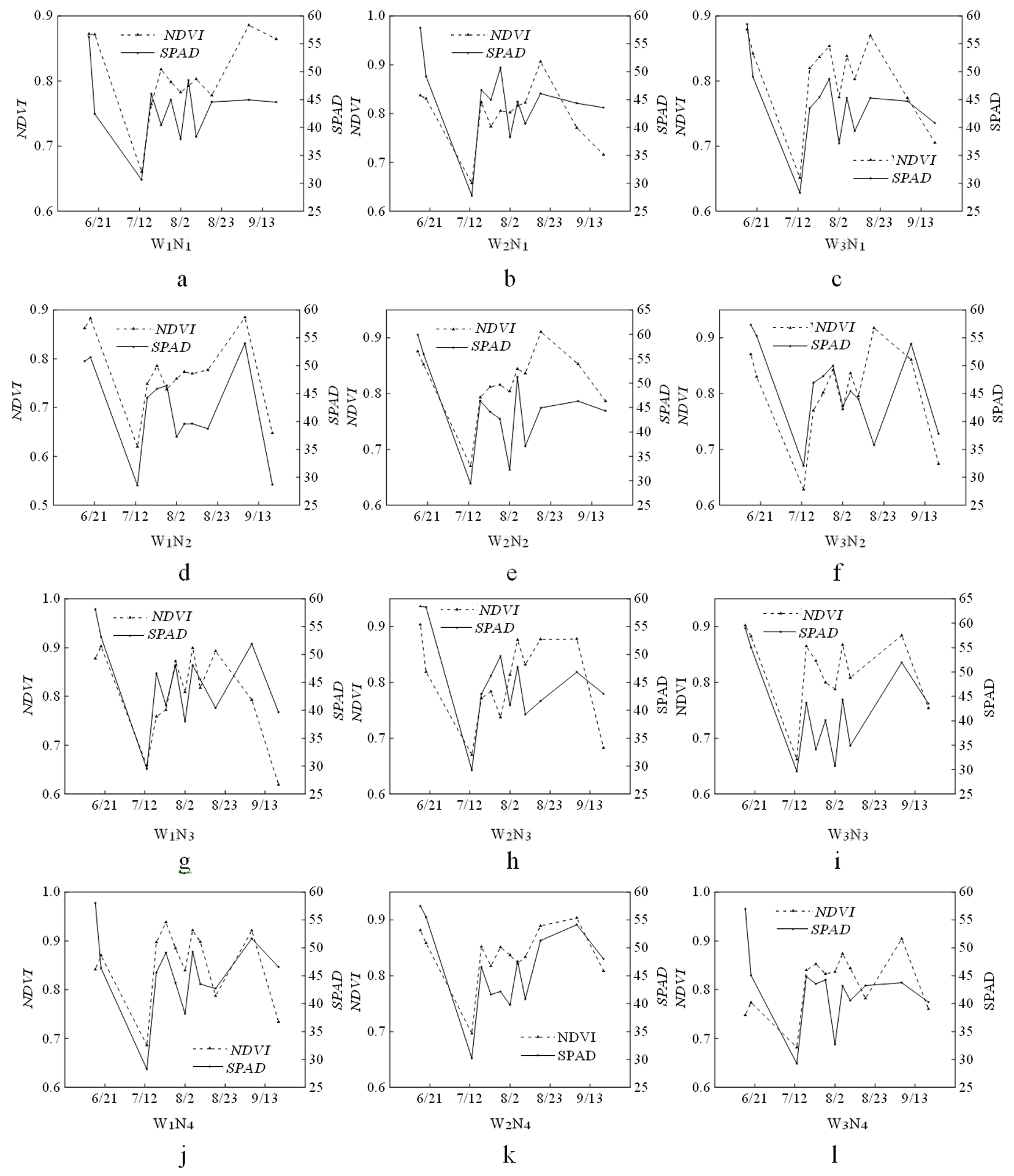

Fig.4 Trend of NDVI SPAD changes by treatment

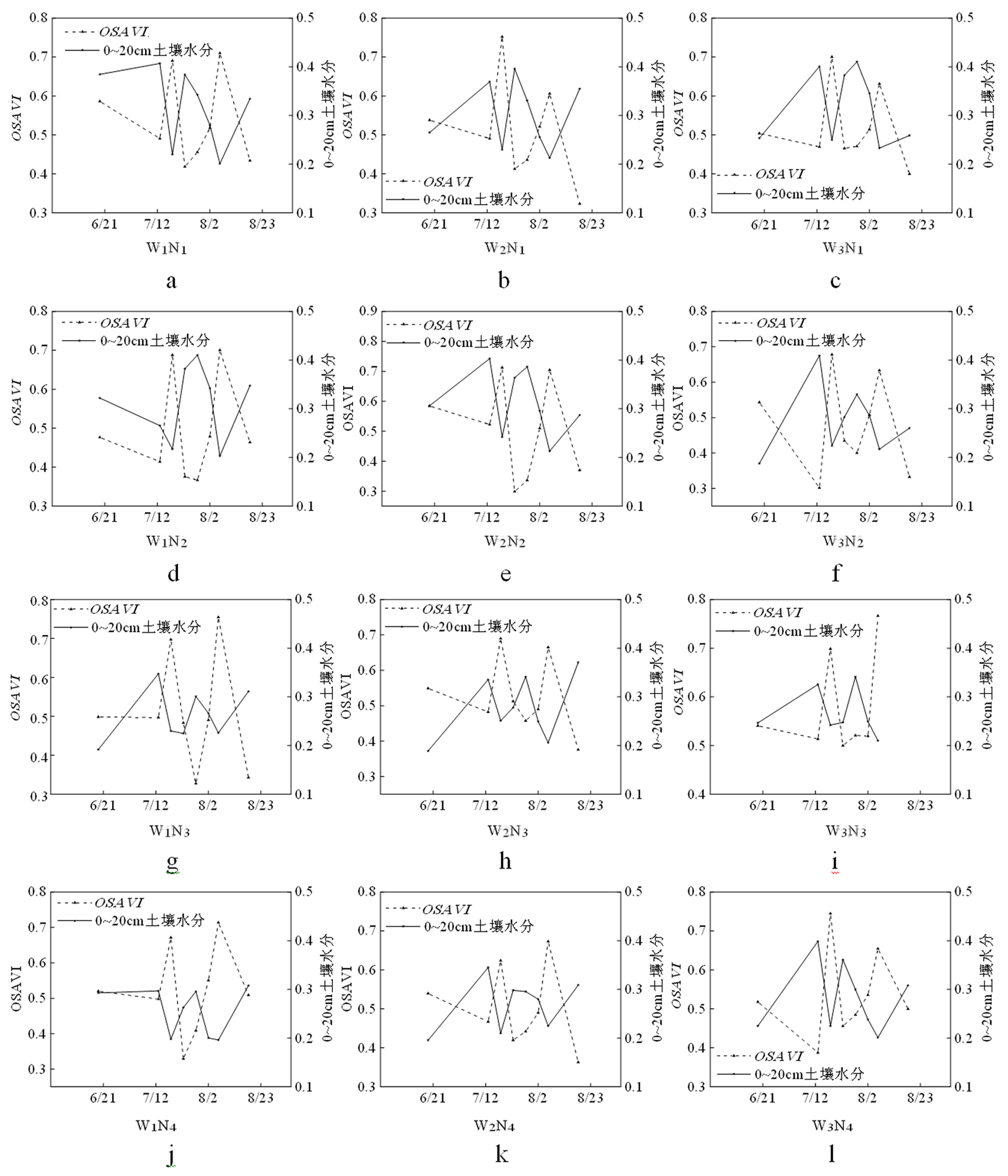

Fig.5 Trend of soil moisture changes in OSAVI 0 to 20 cm by treatment

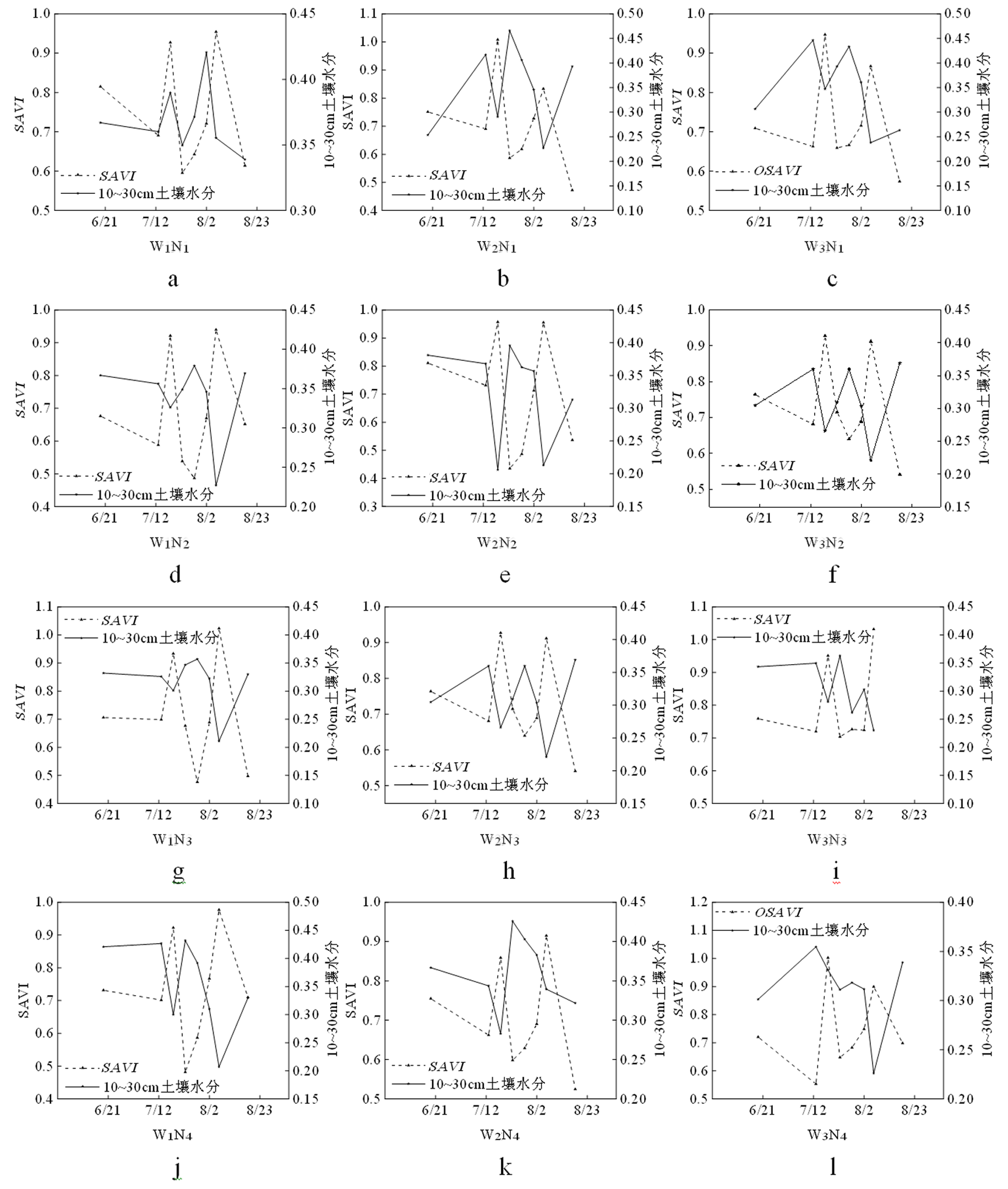

Fig.6 Trend of soil moisture changes in SAVI 10 to 30 cm by treatment

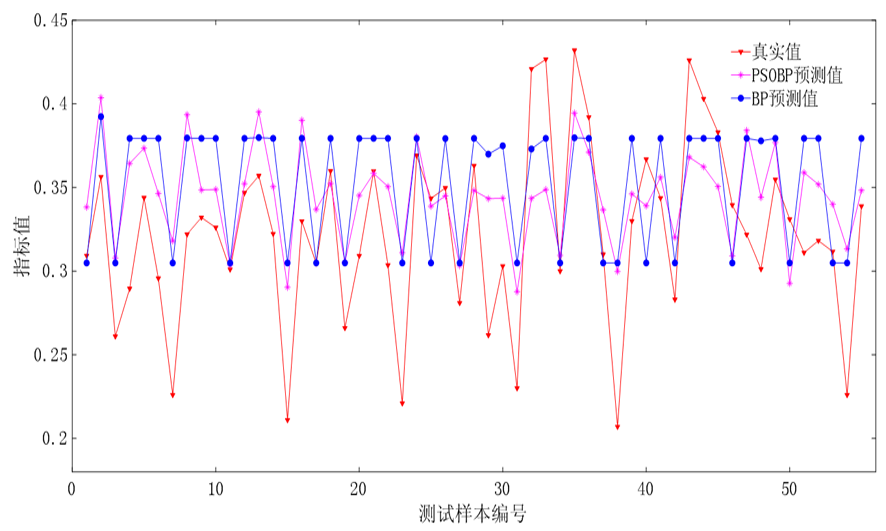

Fig.7 Comparison of the predictions of the BP neural network with the PSO-BP neural network for NDVI-SPAD values

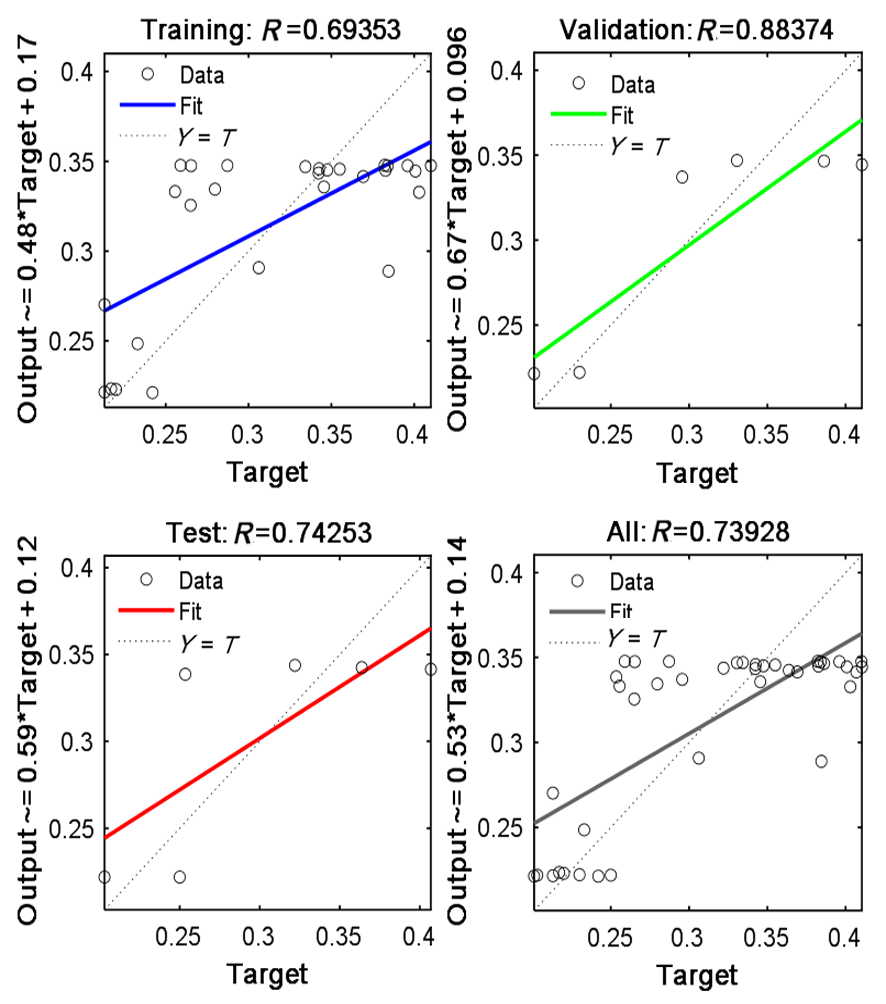

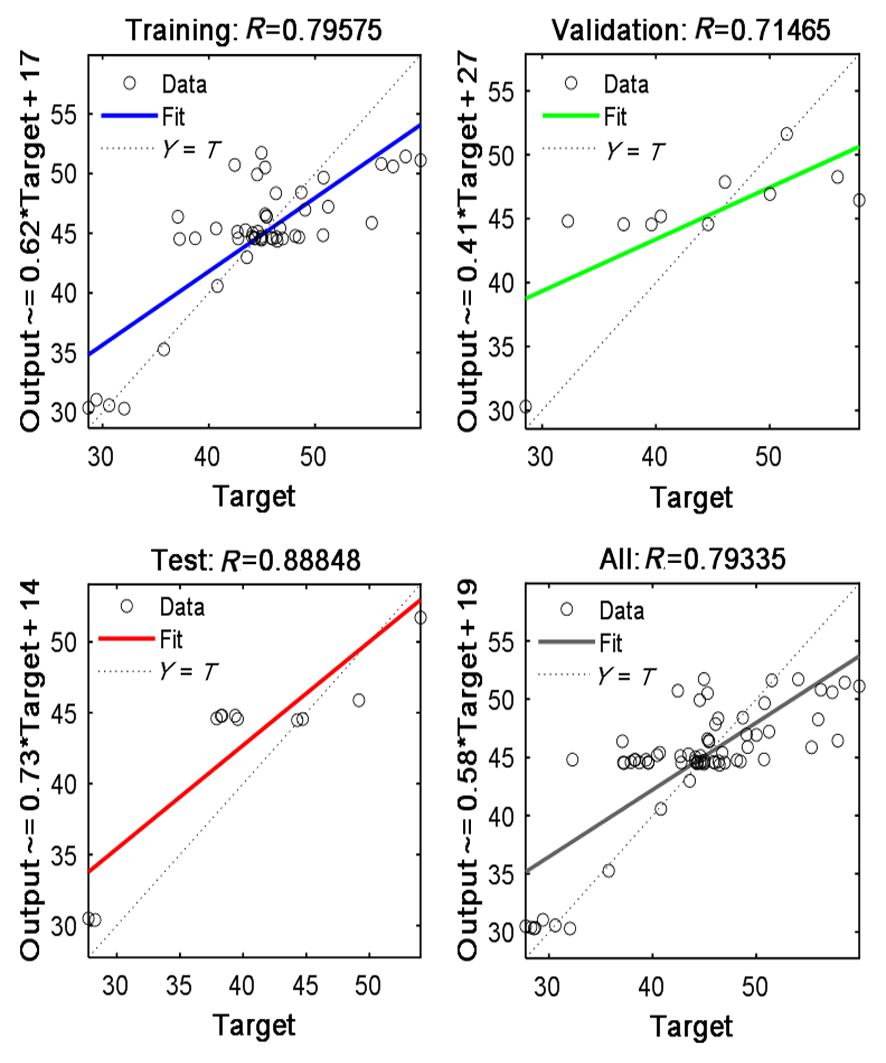

Fig.8 Regression results of PSO-BP neural network

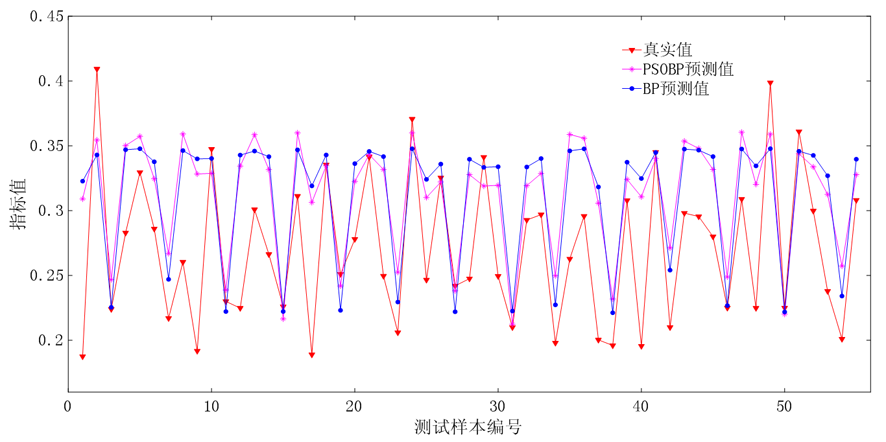

Fig.9 Comparison of the predictions of OSAVI-0-20 cm soil moisture BP neural network and PSO-BP neural network

Fig.10 Regression results of PSO-BP neural network

Fig.11 Comparison of the predictions of SAVI-10~30 cm soil moisture BP neural network and PSO-BP neural network

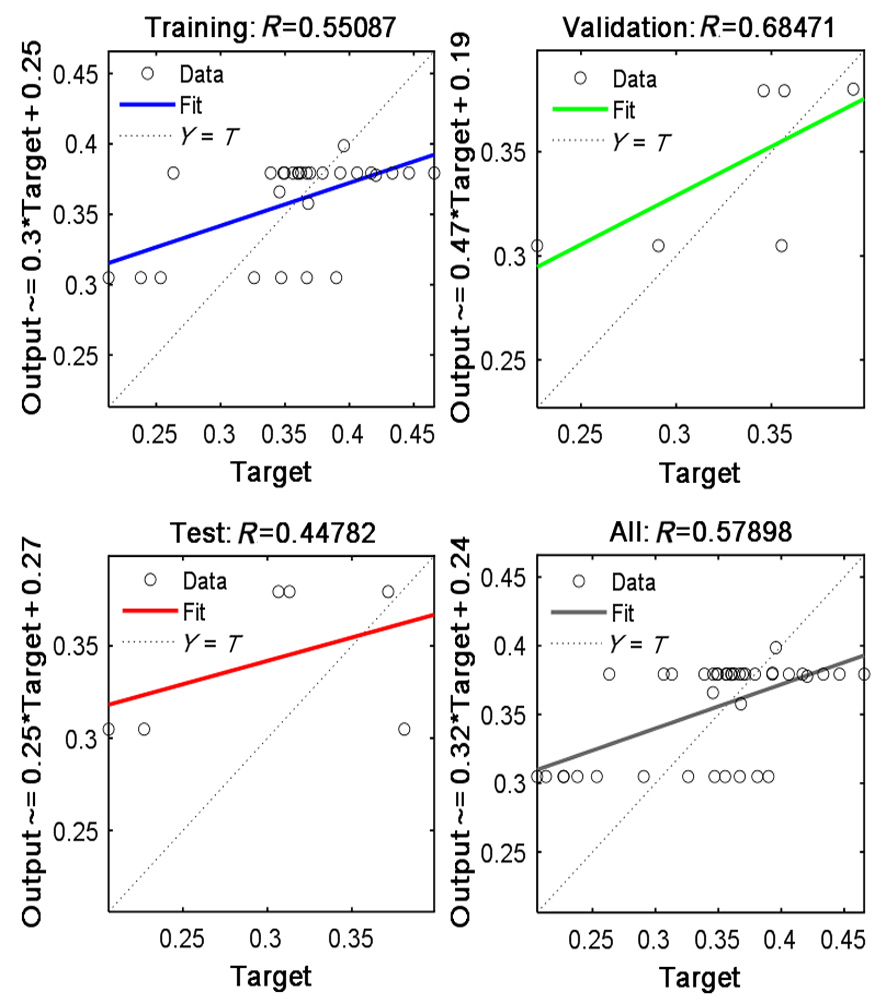

Fig.12 Regression results of PSO-BP neural network

References 31
