Sequence analysis and one-step RT-PCR establishment of VP7 protein coding gene of bluetongue isolated in Xinjiang

doi:10.6048/j.issn.1001-4330.2024.01.027

Abstract

Abstract:

【Objective】 According to conserved sequence of VP7 protein coding S7 gene of bluetongue isolated in Xinjiang,a one-step RT-PCR method was established,the results provides technical support for molecular epidemiological investigation and prevention of BTV in Xinjiang. 【Methods】 The S7 gene sequence which was obtained by second-generation sequencing,were compared the homology by Blast in GenBank,and analyzed the difference by Mega 5.0. Primers were designed according to conserved sequence of S7 gene encoding VP7 protein of bluetongue isolated in Xinjiang by Oligo 6.0. One-step RT-PCR method was established,then specificity and sensitivity was verified. 【Results】 Sequence comparison results showed that S7 gene of bluetongue isolated in Xinjiang has highest homology with BTV isolated fragment reported by Harbin,it was 89.64%.The sequence similarity between S7 gene of bluetongue isolated in Xinjiang and other fragment including BTV-29 reported by Yunnan,BTV isolated from Mongolia and German were87.49%,87.39% and 80.70% respectively.Excpt those squences,there was no more homologous sequences.The results showed that there were 26 nucleotide variation and 9 amino acid variation between the S7 gene fragment sequence of Xinjiang isolate and 4 homologous sequences. 【Conclusion】 One-step RT-PCR was able to specifically detect S7 gene of bluetongue isolated in Xinjiang,simultaneously with the detection limit of 4.0×10³copies/mL. But no genomic RNA or DNA were amplified from BVDV and IBRV.

Key words: bluetongue; VP7 protein; RT-PCR

摘要：

【目的】分析蓝舌病新疆分离株编码VP7蛋白S7基因保守序列,建立蓝舌病新疆分离株一步法RT-PCR方法,为新疆BTV分子流行病学调查及防控提供技术支持。【方法】采用二代测序技术获得新疆分离株S7基因序列,登陆GenBank对序列进行同源性Blast比对,用软件MEGA 5.0分析序列差异,根据蓝舌病新疆分离株编码VP7蛋白S7基因保守序列,运用软件Oligo6.0设计引物,对蓝舌病新疆分离株S7基因进行RT-PCR扩增,并验证该方法的特异性及敏感性。【结果】蓝舌病中国新疆分离株编码VP7蛋白S7基因序列与哈尔滨报道BTV分离株S7基因片段相似度较高为89.64%,与中国云南报道BTV-29型分离株、蒙古国BTV分离株S7基因片段相似度分别为87.49%和87.39%;与德国BTV分离株S7基因片段相似度为80.70%,其余均无同源性序列。中国新疆分离株S7基因片段序列与4条同源序列间存在26处核苷酸差异,9处氨基酸差异。【结论】建立的蓝舌病中国新疆分离株S7基因片段一步法RT-PCR方法具有良好的特异性,仅BTV中国新疆分离株扩增获得目的条带,该方法的敏感性为 4.0×10³copies/mL。

关键词: 蓝舌病, VP7蛋白, RT-PCR

CLC Number:

S188

MA Xiaojing, GU Wenxi, YE Feng, LIU Shuai, LIU Liya, XIE Caiyun, ZHONG Qi, YI Xinping. Sequence analysis and one-step RT-PCR establishment of VP7 protein coding gene of bluetongue isolated in Xinjiang[J]. Xinjiang Agricultural Sciences, 2024, 61(1): 253-259.

马晓菁, 谷文喜, 叶锋, 刘帅, 刘丽娅, 谢彩云, 钟旗, 易新萍. 蓝舌病新疆分离株VP7蛋白编码基因序列分析及一步法RT-PCR方法的建立[J]. 新疆农业科学, 2024, 61(1): 253-259.

Figures/Tables 4

Tab.1 One step RT-PCR amplification of primers

引物名称 Primers	目的基因 Target gene	序列(5’-3’) Sequence(5’-3’)	片段大小(bp) Fragment size(bp)
F-7X	BTV S7	CAGCAAGGGCGCTCACTGTGATG	1010
F-7R	BTV S7	GCGTGTGAGCGGGCCCGGCATAGCATTCACA	1010

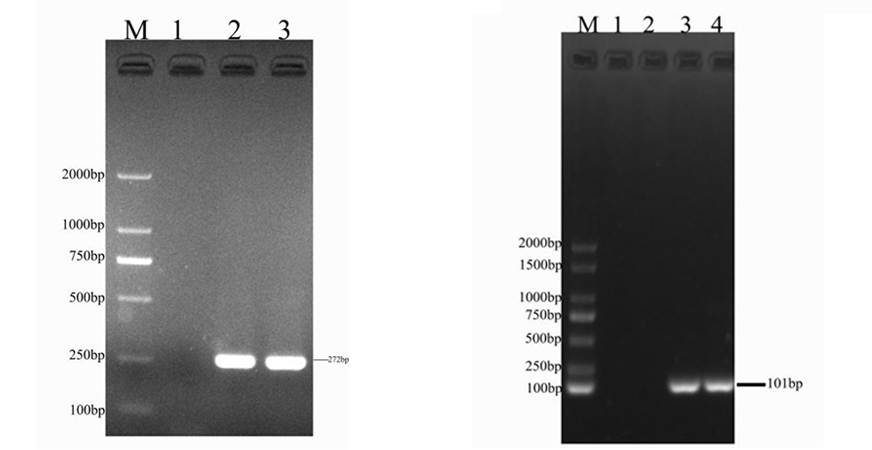

Fig.1 The results of nested PCR amplification of BTV Xinjiang isolates Note:M:DNAMarkerDM2000;1-2:RNA extraction from BHK cells;3-4:RNA extraction from BTV Xinjiang isolate

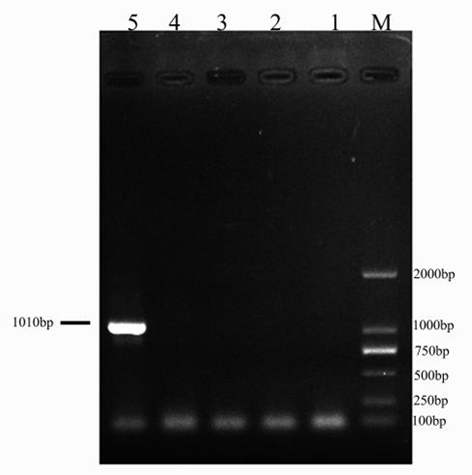

Fig.2 One-step RT-PCR amplification results of BTV Xinjiang isolate Note:M:DNAMarkerDL2000; 1:RNA extraction from BHK cells;2:ddH20 blank control; 3:RNAextraction from Bovine Viral Diarrhoes Mucosal Virus;4:DNA extraction from Infectious Bovine Rhinotracheitis Virus;5:RNA extraction from BTV Xinjiang isolate

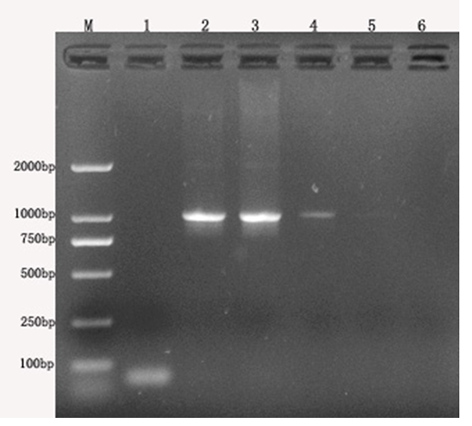

Fig.3 Sensitivity results of one-step RT-PCR for BTV Xinjiang isolate Note:M:DNAMarkerDL2000;1:RNA extraction from BHK cells;2:Standard plasmids 4×106copies/μL;3:Standard plasmids 4×105copies/μL;4:Standard plasmids 4×104copies/μL;5:Standard plasmids 4×103copies/μL;6:Standard plasmids 4×102copies/μL

References 28

[1]	Maan S, Maan N S, Belaganahalli M N, et al. Full- genome sequencing as a basis for molecular epidemiology studies of blueongue virus in India[J]. PLoS One, 2015, 10(6):e013127.
[2]	Maan S, Maan N S, Batra K, et al. Reverse transcription loop-mediated isothermal amplification assays for rapid identification of eastern and western strains of bluetongue virus in India[J]. Virol Methods, 2016, 234:65-74. DOI URL
[3]	Mertens P P, Brown F, Sangar D V. Assignment of the genome segments of bluetongue virus type 1 to the proteins which they encode[J]. Virology, 1984, 135(1):207-217. PMID
[4]	DeMaula C D, Bonneau K R, MacLachlan N J. Changes in the outer capsid proteins of bluetongue virus serotype ten that abrogate neutralization by monoclonalantibodies[J]. Virus Research, 2000, 67(1):59-66. DOI PMID
[5]	ROY P. Bluetongue virus proteins and particles and their role in virus entry,assembly,and release[J]. Adv Virus Res, 2005, 64:69-123.
[6]	Chand K, Biswas S K, Sing B, et al. A sandwich ELISA for the detection of bluetongue virus in cell culture using antiserum against the recombinant VP7 protein[J]. Veterinaria Italiana, 2009, 45(3):443-448. PMID
[7]	殷丽霞. 蓝舌病的研究现状[J]. 吉林畜牧兽医, 2009, 30(5):8-10.
	YIN Lixia. Reaserch Status On Bluetonge Disease[J]. Jilin Animal Husbandry and Veterinary Medicine, 2009, 30(5):8-10.
[8]	李占鸿, 杨振兴, 朱建波, 等. 中国蓝舌病病毒血清15型毒株的全基因组测序与进化分析[J]. 云南农业大学学报(自然科学), 2021, 36(3):446-455.
	LI Zhanhong, YANG Zhenxing, ZHU Jianbo, et al. Complete Genome Characterization of Bluetongue Virus Serotype 15 in China[J]. Journal of Yunnan Agricultural University:Natural Science, 2021, 36(3):446-455.
[9]	Yu Y, Fukusho A, Ritter D G, et al. Complete nucleotide sequence of the group-reactive antigen VP7 gene of bluetongue virus[J]. Nucleic Acids Research. 1988, 16(4):1620-1630. PMID
[10]	马洪超, 苏艳, 孙淑芳, 等. 蓝舌病病毒Z1株VP7基因的克隆及序列分析[J]. 病毒学报, 2000, 16(1):34-37.
	MA Hongchao, SU Yan, SUN Shufang, et al. Molecular Cloning and Sequence Analysis of VP7 Gene of Bluetongue Virus Chinese Isolate Z1 Strain[J]. Chinese Journal of Virology, 2000, 16(1):34-37.
[11]	李文超, 吕茂民, 杨姝, 等. 蓝舌病毒血清5型毒株VP7基因编码区的分子克隆与序列分析[J]. 生物技术通讯, 2007, 18(3):384-387.
	LI Wenchao, LYU Maomin, YANG Shu, et al. Molecular Cloning and Sequence Analysis of the VP7-ORF of Bluetongue Virus 5[J]. Letters In Biotechology, 2007, 18(3):384-387.
[12]	贾赟, 王贞钧, 孙铭英, 等. 蓝舌病病毒VP7蛋白的原核表达及免疫原性鉴定[J]. 中国畜牧兽医, 2015, 42(8):2000-2005. DOI
	JIA Yun, WANG Zhenjun, SUN Mingying, et al. Prokaryotic Expression and Immunogenicity Identification of Bluetongue Virus VP7 Protein[J]. China Animal Husbandry & Veterinary Medicine, 2015, 42(8):2000-2005.
[13]	臧明鑫, 武啸, 李佳璇, 等. 一株25型蓝舌病病毒VP7蛋白单克隆抗体识别表位的鉴定[J]. 中国预防兽医学报, 2017, 39(1):59-62.
	ZANG Mingxin, WU Xiao, LI Jiaxuan, et al. Identification of the epitopes recognized by a monoclonal antibody against the VP7 protein of bluetongue virus[J]. Chinese Journal of Preventive Veterinary Medicine, 2017, 39(1):59-62.
[14]	王慧煜, 刘亚东, 梅琳, 等. 牛蓝舌病病毒VP7抗体胶体金试纸条检测方法的建立[J]. 中国兽医科学, 2019, 49(1):7-12.
	WANG Huiyu, LIU Yadong, MEI Lin, et al. Establishment of colloidal gold strip for the detection of antibodies against bluetongue virus in bovine[J]. Chinese Veterinary Science, 2019, 49(1):7-12.
[15]	孙雯, 张莹辉, 曹雨, 等. 14型蓝舌病病毒VP7蛋白原核表达及间接ELISA抗体检测方法的建立, 中国兽医学报, 2020, 40(1):42-48.
	SUN Wen, ZHANG Yinghui, CAO Yu, et al. Prokaryotic expression of VP7 protein of serotype 14 bluetongue virus and establishment of an indirect ELISA antibody detection method[J]. Chinese Journal of Veterinary Science, 2020, 40(1):42-48.
[16]	王芳, 肖雷, 朱沛, 等, 2018 年我国蓝舌病血清学调查及影响因素分析[J]. 云南畜牧兽医, 2019,(5):1-3.
	WANG Fang, XIAO Lei, ZHU Pei, et al. Serological investigation and analysis of influencing factors of bluetongue disease in China in 2018[J]. Yunnan Journal of Animal Science and Veterinary Medicine, 2019,(5):1-3.
[17]	秦其英, 邰振国, 王力俭, 等. 新疆动物蓝舌病流行病学调查及病毒分离鉴定[J]. 云南畜牧兽医, 1991,(3):79-80,67.
	QIN Qiying, TAI Zhenguo, WANG Lijian, et al. Epidemiological investigation and virus isolation and identification of animal bluetongue disease in Xinjiang[J]. unnan Journal of Animal Science and Veterinary Medicine, 1991,(3):79-80,67.
[18]	王玉, 谷文喜, 石保新, 等. 2012年新疆蓝舌病血清学调查及区间分布[J]. 中国动物检疫, 2014, 31(5):52-55.
	WANG Yu, GU Wenxi, SHI Baoxin, et al. Serological survey and analysis of bluetongue in Xingjian area in 2012[J]. Chinese Journal of Animal Health Inspection, 2014, 31(5):52-55.
[19]	张玲, 宋迎春. 新疆蓝舌病病毒的分离及初步鉴定[J]. 中国兽医报, 2016, 36(6):912-916.
	ZHANG Ling, SONG Yingchun. Isolation and initial identification of bluetongue virus in Xinjiang[J]. Chinese Journal of Veterinary Science, 2016, 36(6):912-916.
[20]	世界动物卫生组织. OIE陆生动物诊断试验与疫苗手册[M]. 北京: 中国农业出版社, 2012.
	World Organization for Animal Health. OIE Diagnostic Test and Vaccine Manual for Terrestrial Animals[M]. Beijing: China Agricultural Publishing House, 2012.
[21]	JG Victoria, A Kapoor, Amit Kapoor, et al. Rapid Identification of Known and New RNA Viruses from Animal Tissues[J]. PLoS Pathogens, 2008, 4(9):e1000163.
[22]	朱沛, 肖雷, 苗海生, 等. 我国牛羊蓝舌病血清学调查[J]. 中国兽医杂志, 2020, 56(7):10-14.
	ZHU Pei, XIAO Lei, MIAO Haisheng, et al. Large-scale Serological Survey of Bluetongue in China[J]. Chinese Journal of Veterinary Medicine, 2020, 56(7):10-14.
[23]	YANG Heng, GU Wenxi, LI Zhanhong, et al. Novel putative bluetongue virus serotype 29 isolated from inapparently infected goat in Xinjiang of China[J]. Transboundary and Emerging Diseases, 2020, 68(4):2543-2555. DOI PMID
[24]	曹雨, 张莹辉, 赵炜, 等. 蓝舌病毒14型的分离与鉴定[J]. 中国兽医科学, 2019, 49(7):855-860.
	CAO Yu, ZHANG Yinghui, ZHAO Wei, et al. Isolation and identification of bluetongue virus serotype 14[J]. Chinese Veterinary Science, 2019, 49(7):855-860.
[25]	李茂林, 张七斤, 徐青元. 蓝舌病在全球的分布概况[J]. 畜牧兽医学报, 2021, 52(4):881-890.
	LI Maolin; ZHANG Qijin; XU Qingyuan. Global Distribution of Bluetongue[J]. Chinese Journal of Animal and Veterinary Sciences, 2021, 52(4):881-890.
[26]	李占鸿, 宋子昂, 廖德芳, 等. 云南省蓝舌病病毒血清7型毒株的分离与基因组序列分析[J]. 畜牧兽医学报, 2021, 52(5):1337-1348.
	LI Zhanhong, SONG Ziang, LIAO Defang, et al. Whole Genome Sequence Analyses of Bluetongue Virus Serotype 7 Strain Isolated from Yunnan Province[J]. Journal of Animal and Veterinary Sciences, 2021, 52(5):1337-1348.
[27]	Maan S, Maan N S, Ross-smith N, et al. Seqence analysis of Bluetongue virus serotype 8 from the Netherlands 2006 and comparison to other European strains[J]. Virology, 2008, 377(2):308-318. DOI URL
[28]	Joweph K K Li, Yang Y Y. Mapping of two immunodominant antigenic epitopes conserved among the major inner capsid protein VP7 of five bluetongue viruses[J]. Virology, 1990, 178(2):552-559. PMID
