Selection and Identification of a Cotton Phenol Degradation Strain and Its Detoxification Effect on Cotton Meal

doi:10.6048/j.issn.1001-4330.2022.12.021

Abstract

Abstract:

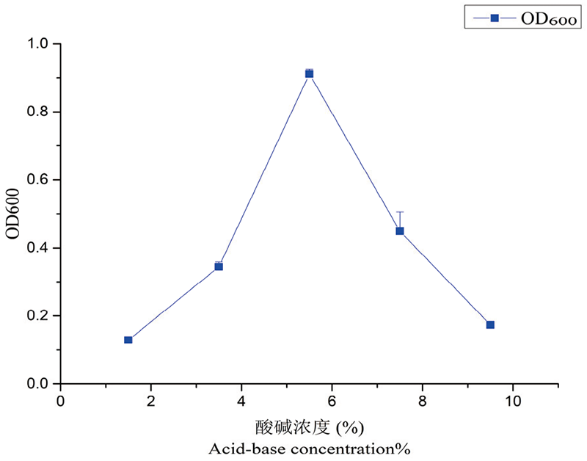

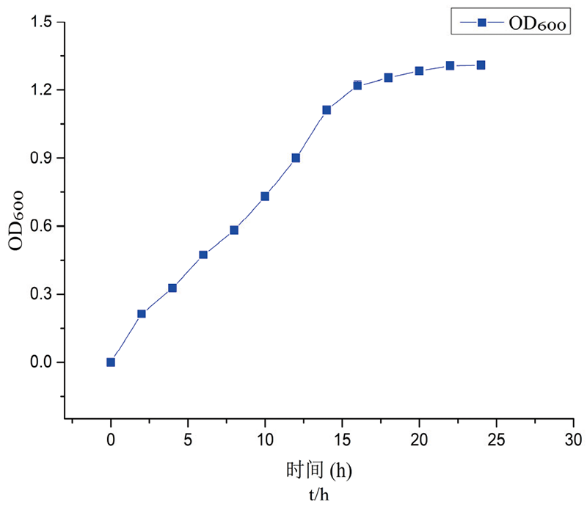

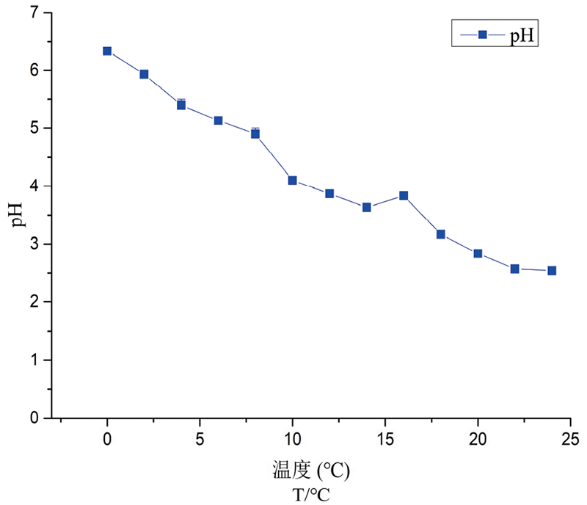

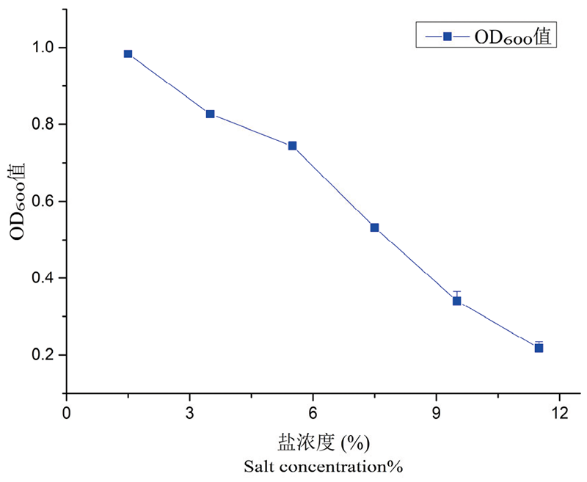

【Objective】 The purpose of this experiment is to isolate and screen strains with the ability to degrade gossypol, and to explore its biological characteristics, fermentation performance and cotton meal detoxification effec in hope of providing reference data for the production and application of cotton meal detoxification.【Methods】 Xinjiang cottonseed meal and gossypol as the sole carbon source was used to isolate and screen strains with high-efficiency degradation of gossypol, and study their biological characteristics, comprehensive morphology and 16SrDNA sequence determination were applied to identify the test strains, and then this strain was employed to ferment cottonseed meal and explore its cotton meal detoxification effect.【Results】 It was found that the optimal temperature of strain JD-1 was 37℃, and with the extension of time, the growth concentration of the strain gradually increased and stabilized in 22-24 h. However, the pH of the JD-1 strain gradually decreased with time, and finally stabilized. With the increase of the salt concentration within 24 h, the growth of the strain gradually slowed down until it finally stabilized, and it had a certain salt tolerance. But too much acid or too much alkali would inhibit its growth. Under optimal conditions, the degradation rate of JD-1 fermented cottonseed meal to reduce gossypol was 40%, and its evolutionary relationship was as high as 99% homology with Pediococcus lactis. It was determined that JD-1 strain was lactic acid Pediococcus.【Conclusion】 In this paper, a strain of Lactococcus lactis with good ability to degrade gossypol was reported with 40% detoxification of cotton phenol from cotton meal, using gossypol as the sole carbon source.

Key words: free gossypol; strain screening; gossypol detoxification; biological characteristics

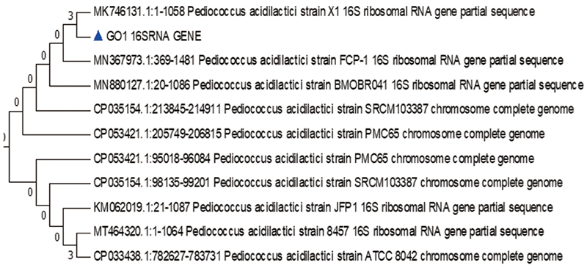

摘要： 【目的】 分离筛选具有降解棉酚能力的菌株,研究其生物学特性及发酵性能及棉粕脱毒效果,为棉粕脱毒生产和应用提供参考数据。【方法】 采用新疆棉籽粕,以棉酚为唯一碳源分离筛选具有高效降解棉酚的菌株,研究其生物学特性,综合形态学和16SrDNA序列测定鉴定试验菌株,应用该菌株发酵棉粕,分析其棉粕脱毒效果。【结果】 菌株JD-1最适温度为37℃、且随着时间的延长,菌株的生长浓度逐渐升高,在22~24 h间趋于平稳。但随时间的延长JD-1菌株的pH逐渐降低,趋于平稳。在24 h内随盐浓度的升高,菌株生长逐渐缓慢到最后趋于平稳,且具有一定的耐盐性。而过酸或过碱都会抑制其生长。在最适条件下,JD-1发酵棉粕降棉棉酚降解率为40%,其在进化关系上与乳酸片球菌属(Pediococcus lactis)同源性高达99%,确定JD-1菌株为乳酸片球菌属。【结论】 本文以棉酚为唯一碳源,报道了一株具有具有较好降解棉酚能力的乳酸片球菌,对棉粕中棉酚的脱毒率达40%。

关键词: 游离棉酚, 菌株筛选, 棉酚脱毒, 生物学特性

CLC Number:

S188

ZHANG Li, YANG Xiaolong, WANG Hailiang, NAN Shanshan, MA Xueer, NIE Cunxi, ZHANG Wenju, CHEN Cheng. Selection and Identification of a Cotton Phenol Degradation Strain and Its Detoxification Effect on Cotton Meal[J]. Xinjiang Agricultural Sciences, 2022, 59(12): 3057-3065.

张莉, 杨晓龙, 王海亮, 南珊珊, 马雪儿, 聂存喜, 张文举, 陈程. 一株棉酚降解菌株的筛选鉴定及对棉粕的脱毒效果[J]. 新疆农业科学, 2022, 59(12): 3057-3065.

Figures/Tables 9

References 31

[1]	亓秀晔, 谢全喜, 于佳民, 等. 高效降解棉籽粕中游离棉酚菌株的筛选及复配发酵方式的优化[J]. 中国粮油学报, 2019, 34(1):99-106.
	QI Xiuye, XIE Quanxi, YU Jiamin, et al. Screening of strains that efficiently degrade free gossypol in cottonseed meal and optimization of compound fermentation methods[J]. Journal of the Chinese Cereals and Oils Association, 2019, 34(1) :99-106.
[2]	王春芳. 固态生料发酵棉粕对游离棉酚含量及猪生产性能的影响[D]. 合肥: 安徽农业大学, 2011.
	WANG Chunfang. Effect of solid-state raw meal fermented cotton meal on free gossypol content and pig performance[D]. Hefei: Anhui Agricultural University, 2011.
[3]	孙中超, 方慧英, 诸葛斌, 等. 高效降解棉酚菌株的分离鉴定及诱变选育[J]. 微生物学通报, 2011, 38(8):1166-1171.
	SUN Zhongchao, FANG Huiying, ZHU Gebin, et al. Isolation and identification of gossypol-degrading strains and mutation breeding[J]. Microbiology Bulletin, 2011, 38(8):1166-1171.
[4]	亓秀晔, 谢全喜, 张志焱, 等. 适宜棉籽粕固态发酵的菌株的筛选[J]. 广东饲料, 2018, 27(11):29-33.
	QI Xiuye, XIE Quanxi, ZHANG Zhiyan, et al. Screening of strains suitable for solid-state fermentation of cottonseed meal[J]. Guangdong Feed, 2018, 27(11):29-33.
[5]	Weng X Y, Sun J Y. Biodegradation of free gossypol by a new strain of Candida tropicalis under solid state fermentation: Effects of fermentation parameters[J]. Process Biochemistry, 2006, 41(7):1663-1668. DOI URL
[6]	Zhang W J, Xu Z R, Sun J Y, et al. Effect of selected fungi on the reduction of gossypol levels and nutritional value during solid substrate fermentation of cottonseed meal[J]. Journal of Zhejiang University Science, 2006, 7(9):690-695.
[7]	Zhang W J, Xu Z R, Zhao S H, et al. Development of a microbial fermentation process for detoxification of gossypol in cottonseed meal[J]. Animal Feed Science & Technology, 2007, 135(1-2):176-186.
[8]	Reiser R, Hc F U. The mechanism of gossypol detoxification by ruminant animals[J]. Journal of Nutrition, 1962, (76): 215-218.
[9]	钟英长, 吴玲娟. 利用微生物将棉籽中游离棉酚脱毒的研究[J]. 中山大学学报(自然科学版), 1989, (3): 67-72.
	ZHONG Yingchang, WU Lingjuan. Research on Detoxification of Free Gossypol in Cotton Seed by Microorganisms[J]. Journal of Sun Yat-sen University (Natural Science Ed.), 1989, (3): 67-72.
[10]	侯敏, 包慧芳, 王宁, 等. 高效降解棉酚菌株的筛选及脱毒条件的研究[J]. 新疆农业科学, 2016, 53(6):1114-1121.
	HOU Min, BAO Huifang, WANG Ning, et al. The screening of high-efficiency gossypol-degrading strains and the study of detoxification conditions[J]. Xinjiang Agricultural Sciences, 2016, 53(6):1114-1121.
[11]	杨建军, 赵红霞. 乳酸菌及其在畜牧生产中的应用[J]. 畜禽业, 2002,(8):36-37.
	YANG Jianjun, ZHAO Hongxia. Lactic acid bacteria and its application in animal husbandry production[J]. Animal and Poultry Industry, 2002,(8):36-37.
[12]	ZHANG W, XU Z, SUN J, et al. A Study on the Reduction of Gossypol Levels by Mixed Culture Solid Substrate Fermentation of Cottonseed Meal[J]. Asian-Australasian Journal of Animal Sciences, 2006, 19(9): 1314-21.
[13]	李慧芬, 王文博, 马成. 一株乳酸片球菌的筛选、鉴定及其固态发酵饲料原料的产酸分析[J]. 中国饲料, 2019,(17):43-47.
	LI Huifen, WANG Wenbo, MA Cheng. The screening and identification of a strain of Pediococcus lactis and the acid production analysis of its solid-state fermentation feed ingredients[J]. China Feed, 2019,(17):43-47.
[14]	陈建军, 赵静, 李保华, 等. 高效降解棉酚菌株的分离、鉴定及发酵条件优化[J]. 饲料研究, 2016,(9):37-42, 46.
	CHEN Jianjun, ZHAO Jing, LI Baohua, et al. Isolation and identification of gossypol-degrading strains and optimization of fermentation conditions[J]. Feed Research, 2016,(9):37-42, 46.
[15]	叶盛, 涂薇, 邓放明. 棉籽饼粕微生物法降棉酚研究[J]. 粮食科技与经济, 2016, 41(1):63-68.
	YE Sheng, TU Wei, DENG Fangming. Research on cottonseed meal microbial method for reducing gossypol[J]. Food Science and Technology and Economy, 2016, 41(1):63-68.
[16]	杨文婷, 陈程, 张文举. 棉酚降解酶及热带假丝酵母ZD-3对棉籽粕脱毒的对比研究[J]. 饲料工业, 2019, 40(24):32-35.
	YANG Wenting, CHEN Cheng, ZHANG Wenju. Comparative study on the detoxification of cottonseed meal by gossypol degrading enzyme and Candida tropicalis ZD-3[J]. Feed Industry, 2019, 40(24):32-35.
[17]	王占军, 李娇娇, 张家效, 等. 黄山木兰叶片基因组DNA提取方法的比较研究[J]. 分子植物育种, 2016, 14(3):660-666.
	WANG Zhanjun, LI Jiaojiao, ZHANG Jiaxiao, et al. Comparative study on extraction methods of genomic DNA from leaves of Magnolia huangshanensis[J]. Molecular Plant Breeding, 2016, 14(3):660-666.
[18]	王磊, 孙培英, 陈再忠, 等. 黑格尔七彩神仙鱼摩氏摩根菌分离鉴定及耐药性分析[J]. 南方农业学报, 2016, 47(10):1772-1777.
	WANG Lei, SUN Peiying, CHEN Zaizhong, et al. Isolation, identification and drug resistance analysis of Morganella Morseella in Hegel's colorful angelfish[J]. Southern Agricultural Journal, 2016, 47(10):1772-1777.
[19]	Zhang Y, Zhang Z, Dai L, Liu Y, Cheng M, Chen L. Isolation and characterization of a novel gossypol-degrading bacteria Bacillus subtilis strain Rumen Bacillus Subtilis. Asian-Australas J Anim Sci. 2018 Jan; 31(1):63-70. doi: 10.5713/ajas.17.0018. Epub 2017 Jun 27. DOI URL
[20]	Khalaf M A, Meleigy S A. Reduction of free gossypol levels in cottonseed meal by microbial treatment[J]. International Journal of Agriculture & Biology, 2008, 10(2):1560-8530.
[21]	GB13078—2001.国家标准饲料卫生标准[S].
	GB13078—2001.Hygienical Standard for Feeds[S].
[22]	张文举. 高效降解棉酚菌种的选育及棉籽饼粕生物发酵的研究[D]. 杭州: 浙江大学, 2006.
	ZHANG Wenju. Breeding of high-efficiency degrading gossypol strains and research on biological fermentation of cottonseed meal[D]. Hangzhou: Zhejiang University, 2006.
[23]	张丛, 李佳, 袁洪水, 等. 高效降解棉酚菌株的筛选鉴定及毒性试验[J]. 中国农学通报, 2012, 28(12):112-117.
	ZHANG Cong, LI Jia, YUAN Hongshui, et al. Screening, identification and toxicity test of strains that efficiently degrade gossypol[J]. Chinese Agricultural Science Bulletin, 2012, 28(12):112-117.
[24]	周慧林. 高效降解棉酚的酵母菌的筛选及其发酵工艺研究[D]. 武汉: 武汉轻工大学, 2015.
	ZHOU Huilin. Screening of yeasts for high-efficiency degradation of gossypol and its fermentation process[D]. Wuhan: Wuhan University of Light Industry, 2015.
[25]	Xia, Yang, Jian-Yi, et al. Identification and proteomic analysis of a novel gossypol-degrading fungal strain[J]. Journal of the Science of Food & Agriculture, 2012, (92): 943-951.
[26]	孙丽萍, 金卫根. 大型野生真菌选育种培养基研究[J]. 江西农业学报, 2007,(4):71-72, 76.
	SUN Liping, JIN Weigen. Study on the breeding medium of large wild fungi[J]. Acta Agriculturae Jiangxi, 2007,(4):71-72, 76.
[28]	张晓羊, 张文举, 王永强, 刘建成, 聂存喜, 杨亮. 嗜酸乳杆菌发酵棉粕对黄羽肉鸡免疫功能和抗氧化性能的影响[J]. 中国畜牧兽医, 2017, 44(8):2311-2318.
	ZHANG Xiaoyang, ZHANG Wenju, WANG Yongqiang, LIU Jiancheng, NIE Cunxi, YANG Liang. Effect of Lactobacillus acidophilus fermented cotton meal on immune function and antioxidant performance of yellow-finned broiler chickens[J]. China Veterinary Animal Husbandry, 2017, 44(8):2311-2318.
[29]	吴妍妍, 张文举, 聂存喜, 孙焕林, 胡猛, 鲍振国. 发酵棉粕对肉鸡生长性能、血液理化和免疫指标的影响[J]. 饲料研究, 2013(8):8-12.
	Wu Yan-Yan, Zhang Wen-Ju, Nie Cun-Xi, Sun Huan-Lin, Hu Meng, Bao Zhen-Guo. Effects of fermented cotton meal on growth performance, blood physicochemical and immune parameters of broiler chickens[J]. Feed Research, 2013(8):8-12.
[30]	黄艳飞, 汪汉成, 吴庆丽, 等. 烟草赤星病菌对嘧菌酯抗性突变体的诱导及其生物学特性[J]. 农药学学报, 2019, 21(4):416-423.
	HUANG Yanfei, WANG Hancheng, WU Qingli, et al. Induction of Tobacco Alternaria alternata resistance mutants to azoxystrobin and its biological characteristics[J]. Chinese Journal of Pesticide Science, 2019, 21(4):416-423.
[31]	樊晓璐, 张苇莉, 吴幼茹, 等. 丁酸梭菌的分离、鉴定与基本特性研究[J]. 酿酒科技, 2017,(11):31-37.
	FAN Xiaolu, ZHANG Weili, WU Youru, et al. Isolation, identification and basic characteristics of Clostridium butyricum[J]. Liquor Science and Technology, 2017,(11):31-37.

项目 Project	温度 Temperature (℃)	时间 Time (h)	添加量 Addition (%)	底物水份 Substrate moisture (%)
乳酸片球菌组Pediococcus lactis	37	48	5	40
热带假丝酵母ZD-3组Candida tropicalis ZD-3 group	30	48	5	40

项目 Project	温度 Temperature (℃)	时间 Time (h)	添加量 Addition (%)	底物水份 Substrate moisture (%)
乳酸片球菌组Pediococcus lactis	37	48	5	40
热带假丝酵母ZD-3组Candida tropicalis ZD-3 group	30	48	5	40

分组 Group	FG含量 FG content (mg/kg)	脱毒率 Detoxification rate (%)
对照组(只高压未发酵) Control group (only high- pressure unfermented)	98.06±1.38^b	79
棉粕原料组(未处理) Cotton meal raw material group (untreated)	485.15±8.93^a	*
乳酸片球菌组 Pediococcus lactis	59.45±1.11^c	40
热带假丝酵母ZD-3组 Candida tropicalis ZD-3 group	50.47±1.30^c	48

分组 Group	FG含量 FG content (mg/kg)	脱毒率 Detoxification rate (%)
对照组(只高压未发酵) Control group (only high- pressure unfermented)	98.06±1.38^b	79
棉粕原料组(未处理) Cotton meal raw material group (untreated)	485.15±8.93^a	*
乳酸片球菌组 Pediococcus lactis	59.45±1.11^c	40
热带假丝酵母ZD-3组 Candida tropicalis ZD-3 group	50.47±1.30^c	48
