Fermentation Technology of G. resinaceum LZ02 Producing Laccase and Partial Enzymatic Properties

doi:10.6048/j.issn.1001-4330.2022.06.020

Abstract

Abstract:

【Objective】 A strain G. resinaceum LZ02 with high-yield laccase was screened from Tianshan Mountains in Xinjiang. This project aims to optimize its fermentation technology and study its partial enzymatic properties.【Method】 The single factor experiment was used to optimize the enzymatic production conditions and study the enzymatic characteristics. In the meanwhile, the protein was detected by two dimensional electrophoresis.【Result】 The optimal carbon was 2.5% wheat bran and 1% glucose, nitrogen sources was 0.5% casein. Adding Cu²⁺, Mg²⁺, Fe²⁺, Zn²⁺and Ca²⁺ could promote the yield of laccase, the effect of Co²⁺ was adverse. Veratryl and Guaiacol delayed enzyme production peak from the second day to the ninth day, Tannic acidhad inhibiting effect to produce enzyme. The study of enzymatic properties showed optimal reaction temperature of laccase was 60℃ and there was still activity at 80℃, optimal reaction pH was 3.0 and enzyme activity was stable when pH was 4.0-5.0 and temperature was under 40℃. In addition, Co²⁺, Cd²⁺, Cr²⁺and Pb²⁺ could damage enzyme stability. Bidirectional electrophoresis was performed on the bacteria and fermentation liquid in which isoelectric point of laccase was determined to be 4.1. A pure enzyme protein sequence was obtained by mass spectrometry that showed the protein to be Laccase (Ganoderma Lucidum).【Conclusion】 The synthesis and secretion of laccase from G. sessinaceum are strictly regulated by nutrient level, culture condition, growth stage and inducers in the medium. Lignin or lignin-related aromatic compounds, N and C sources can also regulate the synthesis of laccase. The response of laccase activity to different kinds and concentrations metal ions and inducers is different, indicating that laccase activity has a more complex physiological function and regulatory mechanism.

Key words: G. resinaceum LZ02; laccase; optimizing fermentation technology; enzymatic properties; mass spectrometry sequencing

摘要：

【目的】 从采自新疆天山的无柄灵芝菌(G.resinaceum)中筛选获得1株高产漆酶的LZ02菌株,对其产酶条件进行优化,研究部分酶学性质。【方法】 采用单因素实验,对其产酶条件优化并研究其酶学特性,采用双向电泳检测酶蛋白。【结果】 LZ02菌株产漆酶的最佳碳源为2.5%麦麸+1%葡萄糖,最佳氮源为干酪素; Cu²⁺、Mg²⁺、Fe²⁺、 Zn²⁺和Ca²⁺的添加对LZ02产漆酶有一定的促进作用,而Co²⁺具有明显的抑制作用;藜芦醇和愈创木酚抑制产酶并使产酶高峰由第3 d推后至第9 d,添加没食子酸和ABTS对产酶影响不大,单宁酸对产酶有抑制作用。LZ02菌漆酶最适反应温度为60℃,且在80℃仍具有漆酶活性;在40℃,pH 4.0~5.0,酶活性最稳定;最适反应pH为3.0,Mn²⁺ 、Zn²⁺、 Cu²⁺ 、Ba²⁺和K⁺对酶稳定性有一定的促进作用,Co²⁺、Cd²⁺、Cr²⁺和Pb²⁺对酶的稳定性具有明显的破坏作用;对菌体及发酵液进行了双向电泳检测,测定其等电点为4.1;获得了1个纯化酶蛋白质谱序列,该蛋白与Ganoderma Lucidum来源的Laccase高度同源。【结论】 无柄灵芝菌(G.resinaceum)漆酶的合成和分泌受到营养水平、培养条件、生长阶段以及培养基中诱导剂的严格调控,木质素或木质素相关的芳香类化合物、N源和C源也能调节漆酶的合成;漆酶活性对不同种类、不同浓度的金属离子以及诱导剂的响应不尽相同,其具有较复杂的生理功能及调控机制。

关键词: 无柄灵芝菌, 漆酶, 产酶条件, 酶学特性, 质谱测序

CLC Number:

Q939.97
S188

YANG Xinping, XIE Yuqing, ZHOU Liuyang, DAI Jinping, WANG Xiaowu, ZHANG Huitao, WANG Zhifang, FENG Lei. Fermentation Technology of G. resinaceum LZ02 Producing Laccase and Partial Enzymatic Properties[J]. Xinjiang Agricultural Sciences, 2022, 59(6): 1482-1490.

杨新平, 谢玉清, 周留艳, 代金平, 王小武, 张慧涛, 王志方, 冯蕾. 无柄灵芝菌LZ02高产漆酶条件及部分酶学性质分析[J]. 新疆农业科学, 2022, 59(6): 1482-1490.

Figures/Tables 12

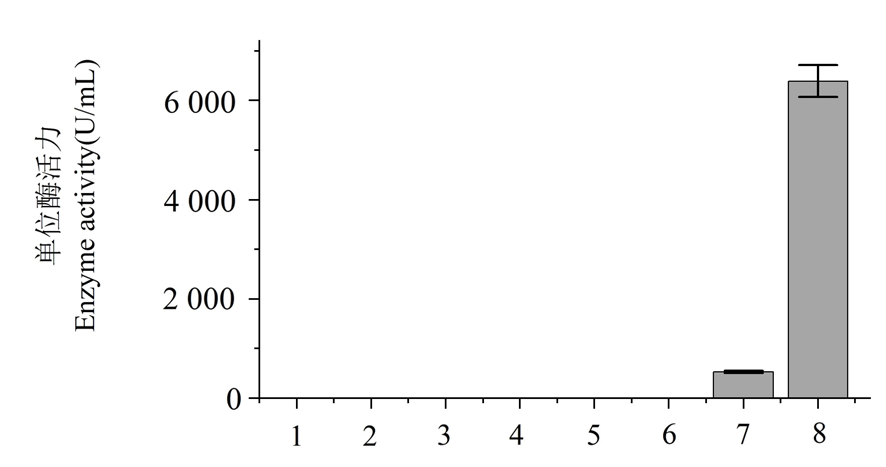

Fig.1 Effect of different carbon sources on the production of LZ02 laccase Note: 1. maltose; 2. sucrose; 3. glycerin; 4. glucose;5. sodium ; 6. 7. bran; 8.CK

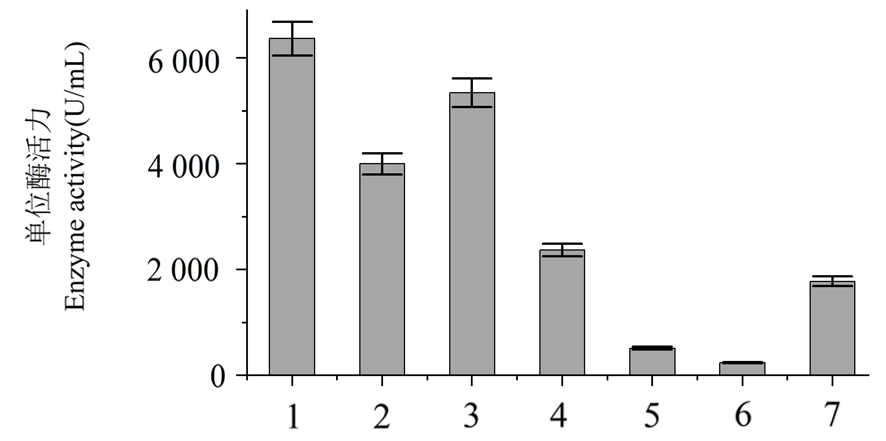

Fig.2 Effect of different nitrogen sources on the production of LZ02 laccase Note: 1.casein; 2.yeast extract powder.pepton; 4.ammonium nitrate; 5.ammonium sulfate; 6.ammonium dihydrogen phosphate; 7.CK

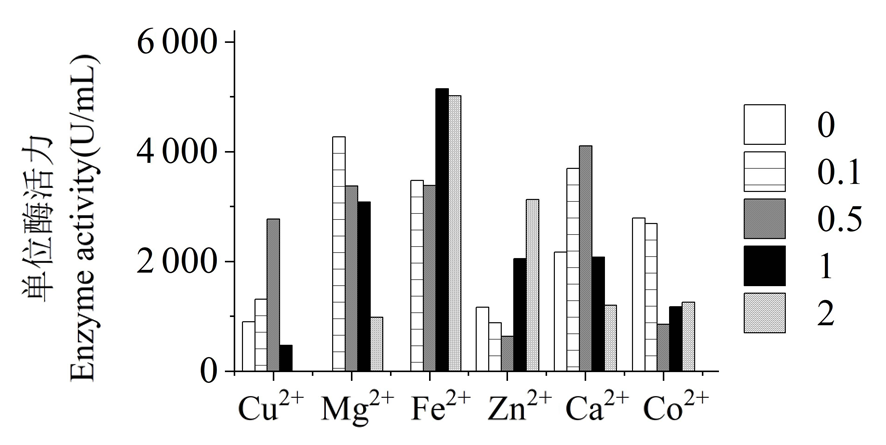

Fig.3 Effect of different metallic ion on the production of LZ02 laccase

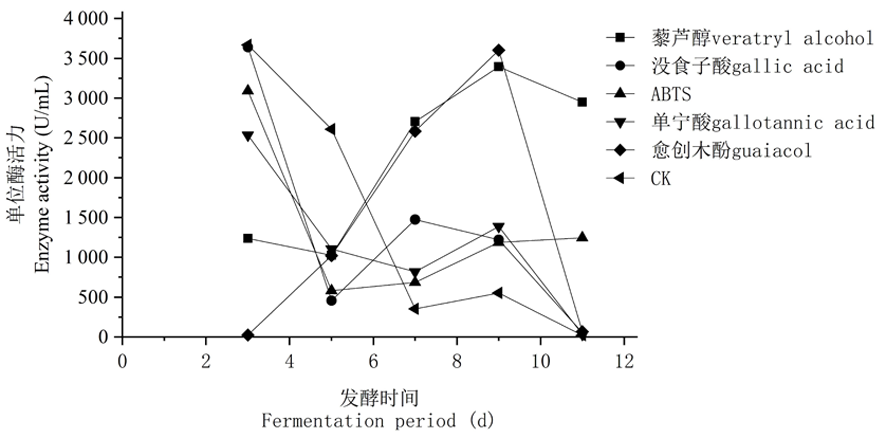

Fig.4 Effect of different inducer on the production of LZ02 laccase

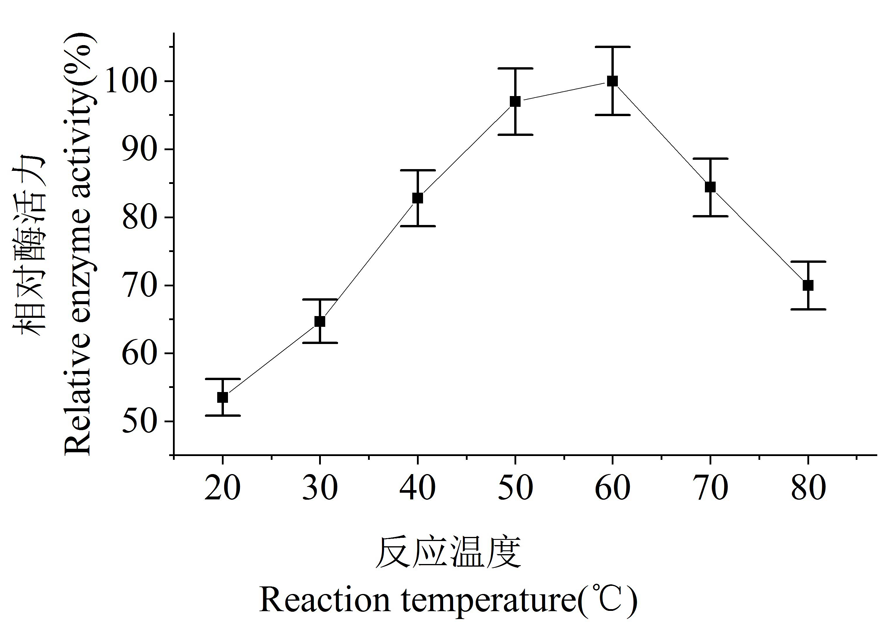

Fig.5 The optimum reaction temperature of laccase

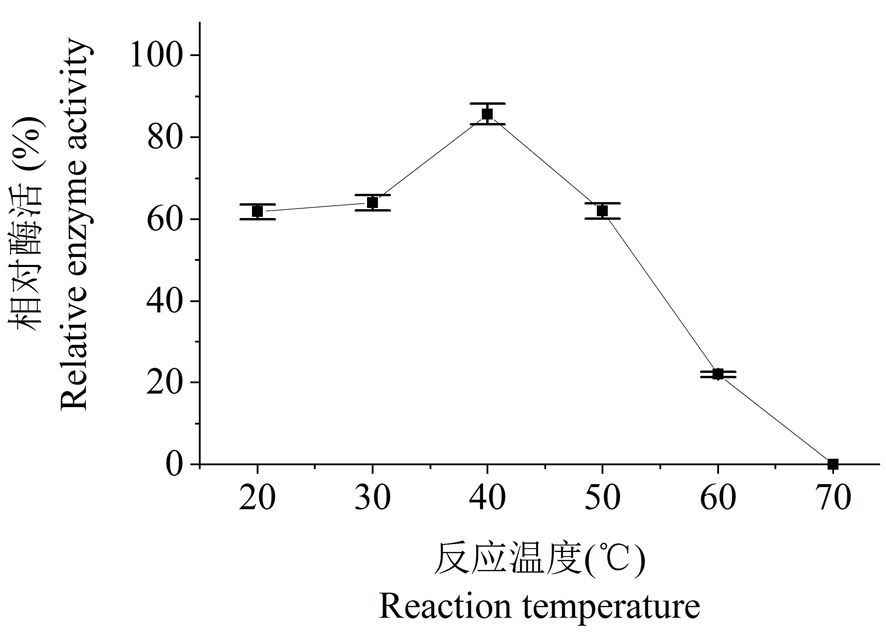

Fig.6 Thermal stability of laccase

Fig.7 Optimal pH of laccase

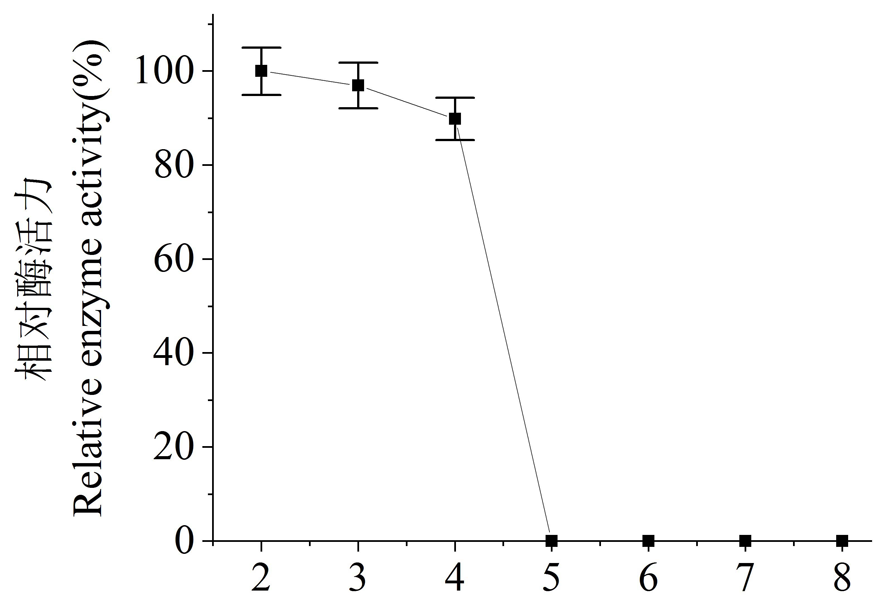

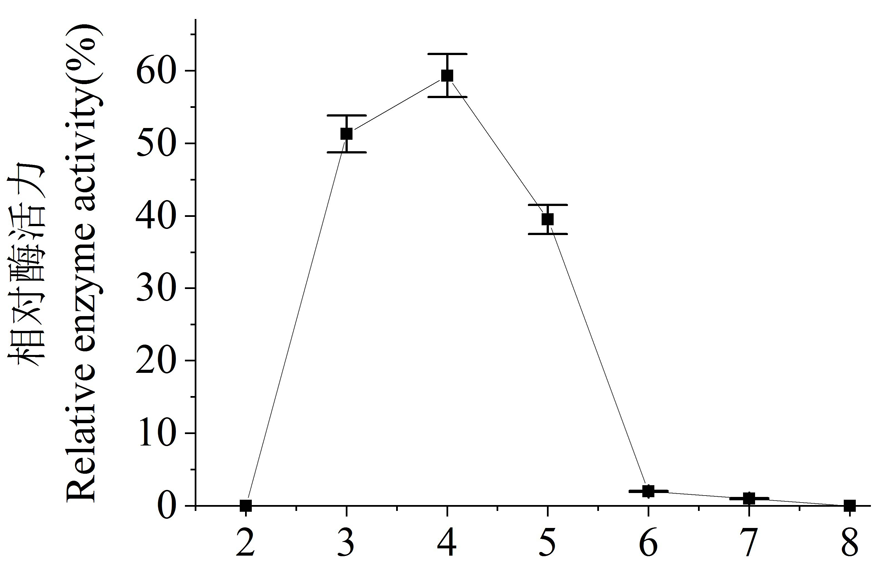

Fig.8 pH on laccase stability

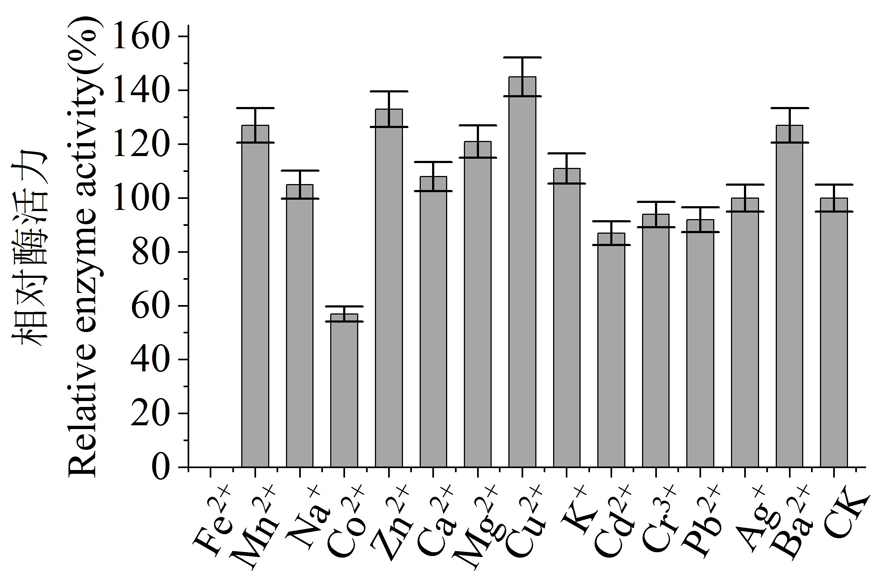

Fig.9 Effect of different metal ion on laccase stability

Fig.10 SDS-PAGE of purification steps of F. fomentarius Note: M.protein markers; 1. ammonium sulfate salting-out(60%); 2. ion- chromatography; 3. ammonium sulfate salting-out(80%); 4. gel filtration chromatography

Fig.11 Protein two-dimensional electrophoresis Note: a. ultrasonic disintegration sample cell; b. upernatant of fermentation liquor

Table 1 The basic information and match peptide sequences in mass spectrometry analysis of the laccase of G.resinaceum LZ02

起始 Start	终止 End	观测值 Observed	分子量实验值 Mr(expt)	分子量计算值 Mr(cale)	得分 Score	氨基酸同源序列 The correspondence sequence of amino acid
36	126	773.92	1 545.82	1 545.82	96	R.FPLGSDSTLINGLGR.S
15	144	864.9	1 727.79	1 727.79	97	R.SAGSTVYNYDNPVWR.D
37	198	1 039.01	2 076.01	2 076.04	104	R.ANPNFGNVGFTDGINSAILR.Y
16	198	1 039.02	2 076.03	2 076.04	64	R.ANPNFGNVGFTDGINSAILR.Y
27	198	693.02	2 076.03	2 076.04	98	R.ANPNFGNVGFTDGINSAILR.Y

References 25

[1]	刘宁, 贾慧, 申珅, 等. 真菌漆酶:多样的生物学功能及复杂的天然底物[J]. 农业生物技术学报, 2020, 28(2):333-341.
	LIU Ning, JIA Hui, SHEN Shen, et al. Fungal Laccase: Multi-biofunction and complicated natural substrates[J]. Journal of Agricultural Biotechnology, 2020, 28(2): 333-341.
[2]	刘恋, 杨清. 漆酶的研究进展及其应用[J]. 山东化工, 2019, 48(3):60-61.
	LIU Lian, YANG Qing. Research progress and application of Laccase[J]. Shandong Chemical Industry, 2019, 48(3):60-61.
[3]	刘宁, 渠清, 李丽娜, 等. 禾谷镰孢漆酶样多铜氧化酶的鉴定及其表达模式[J]. 植物病理学报, 2019, 49(6): 1-15.
	LIU Ning, QU Qing, LI Lina, et al. Identification of laccase-like multicopper oxidases in Fusarium graminearum and expression profiling during maize stalk infection[J]. Acta phytopathologica Sinica, 2019, 49(6): 1-15.
[4]	吴明, 冯启明, 马海茼, 等. 漆酶在制浆造纸中的应用研究进展[J]. 中国造纸学报, 2019, 34(2):66-71.
	WU Ming, FENG Qiming, MA Haitong, et al. Application of Laccase in Pulp and Paper Industry[J]. Transactions of China Pulp and Paper, 2019, 34(2):66-71.
[5]	吴怡, 马鸿飞, 曹永佳, 等. 真菌漆酶的性质、生产、纯化及固定化研究进展[J]. 生物技术通报, 2019, 35(9):1-10. DOI
	WU Yi, MA Hongfei, CAO Yongjia, et al. Advances on Properties,Production,Purification and Immobilization of Fungal Laccase[J]. Biotechnology Bulletin, 2019, 35(9):1-10. DOI
[6]	窦欣. 灵芝漆酶的性质、应用及其基因在毕赤酵母中的表达[D]. 无锡: 江南大学, 2019.
	DOU Xing. Characterization, application of laccase from Ganoderma and the expression of laccase gene in pichia patoris[D] .Wuxi: Jiangnan Universtiy, 2019.
[7]	吴怡, 马鸿飞, 曹永佳, 等. 白腐真菌落叶松锈迷孔菌产漆酶液体培养基的优化及其对染料的脱色作用[J]. 生物技术通报, 2020, 36(1):45-59. DOI
	WU Yi, MA Hongfei, CAO Yongjia, et al. Medium optimization for the Laccase production by white rot fungus porodaedalea laricis and its dye decolorizing capacity[J]. Biotechnology Bulletin, 2020, 36(1):45-59. DOI
[8]	谢玉清, 陈竞, 代金平, 等. 一株木蹄层孔菌SO3高产漆酶发酵工艺及部分酶学特性研究[J]. 天然产物研究与开发, 2020,(32):296-304.
	XIE Yuqing, CHENG Jing, DAI Jingping, et al. Fermentation techonology of Fomes fomentarius SO3 producing laccase and partial enzymatic properties[J]. Natural Products Research and Development, 2020,(32):296-304.
[9]	薛慧婷, 苑红, 扈瑞平, 等. 落叶松附毛孔菌稻草液态发酵产漆酶条件优化[J]. 纤维素科学与技术, 2019, 27(2):52-58.
	XUE Huiting, YUAN Hong, HU Ruiping, et al. Optimization condition on Laccase production by a white rot fungus trichaptum laricinum under submerged fermentation with rice straw[J]. Journal of Cellulose Science and Technology, 2019, 27(2):52-58.
[10]	王雪, 刘太林, 杨焜梅, 等. 产漆酶真菌的筛选及发酵产酶条件的优化[J]. 安徽农学通报, 2019, 25(23):31-33,83.
	WANG Xue, LIU Tailing, YANG Kunmei, et al. Screening of Laccase-producing Fungi and optimization of fermentation conditions for fermentation[J]. Anhui Agricultural Science Bulletin, 2019, 5(23):31-33,83.
[11]	Navada K K, Kulal A. Enhanced production of laccase from gamma irradiated endophytic fungus: A study on biotransformation kinetics of aniline blue and textile effluent decolourisation[J]. Journal of Environmental Chemical Engineering, 2019, 8(2):103550. DOI URL
[12]	马倩倩. 白腐菌Pleurotus ostreatus漆酶纯化和酶学性质研究[D]. 锦州: 辽宁工业大学, 2019.
	MA Qianqian. Purification and property of laccase from white rot fungus pleurotus ostreatus[D]. Jinzhou: Liaoning University of Technology, 2019.
[13]	Sharma K K, Singh D, Rawat S. Molecular dynamics simulation studies suggests unconventional roles of non-secretary laccases from enteropathogenic gut bacteria and Cryptococcus neoformans serotype D[J]. Computational Biology & Chemistry, 2018, 73:41-48.
[14]	郭梁, 徐伟良, 李春冬, 等. 1种野生多孔菌的分离鉴定及其高产漆酶培养基的筛选[J]. 河南农业科学, 2018, 47(11):99-104.
	GUO Liang, XU Weiliang, LI Chundong, et al. Isolation and Classification of a Wild Polypore and Screening the Medium for High-yield of Laccase[J]. Journal of Henan Agricultural Sciences, 2018, 47(11):99-104.
[15]	Zhu X, Williamson P R. Role of laccase in the biology and virulence of Cryptococcus neoformans[J]. Fems Yeast Research, 2010,(1):1-10.
[16]	Wang H, Huang L, Li Y, et al. Characterization and application of a novel laccase derived from Bacillus amyloliquefaciens - science direct[J]. International Journal of Biological Macromolecules, 2020, 150:982-990. DOI URL
[17]	Li T, Huang L, Li Y, et al. The heterologous expression, characterization, and application of a novel laccase from Bacillus velezensis[J]. The Science of the Total Environment, 2020, 713(15):136713. DOI URL
[18]	Sma B, Scs A, Ska B. Isolation and characterization of an alkali and thermostable laccase from a novel Alcaligenes faecalis and its application in decolorization of synthetic dyes - science direct[J]. Biotechnology Reports, 2020:25.
[19]	任红艳, 张瑞琴, 张婷婷, 等. 食用菌漆酶的提取与应用技术研究进展[J]. 中国食用菌, 2018, 37(6):8-14.
	REN Hongyan, ZHANG Ruiqin, ZHANG Tingting, et al. Research on Extraction and Application Technology of Edible Fungi Laccase[J]. Edible Fungi of China, 2018, 37(6):8-14.
[20]	刘晓丹, 王霞, 杨祥波, 等. 一株高漆酶活性树舌灵芝降解木质素条件的优化[J]. 中国食用菌, 2019, 38(9):37-41.
	LIU Xiaodan, WANG Xia, YANG Xiangbo, et al. Research on the lignin-degrading conditions optimization of ganoderma applanatum strain with high laccase activity[J]. Edible Fungi of China, 2019, 38(9):37-41.
[21]	郑耀通, 李文燕. 黄孢原毛平革菌抗营养阻遏产漆酶同工酶动态分析[J]. 微生物学杂志, 2020, 40(6):13-20.
	ZHEN Yaotong, LI Wenyang. Dynamic analysis of laccase isozyme production by phanerochaete chrysosporium resisting nutritional repression[J]. Journal of Microbiology, 2020, 40(6):13-20.
[22]	苑畅, 赵丽婷, 顾正华, 等. 阿魏蘑漆酶同工酶的异源表达及酶学性质研究[J]. 食品与发酵工业, 2020, 46(13)10-17.
	YUAN Chang, ZHAO Liting, GU Zhenghua, et al. Heterologous expression and enzymatic properties of laccase isozymes of Pleurotus eryngii var.ferulaey[J]. Food and Fermentation Industries, 2020, 46(13):10-17.
[23]	郝敬喆. 新疆野生巴尔喀什蘑菇驯化栽培与漆酶活性研究[D]. 北京: 中国农业大学, 2019.
	HAO Jingzhe. Domesticated Cultivation of Xinjiang Wild Mushroom Agaricus balchaschensis and Laccase Activity[D]. Beijing: China Agricultural University, 2019.
[24]	Toker S K, Evlat H, Koyiit A. Screening of newly isolated marine-derived fungi for their laccase production and decolorization of different dye types[J]. Regional Studies in Marine Science, 2021(prepublish).
[25]	邓诗贵, 杨晨军, 冯加洲, 等. 一株木质素降解白腐菌的筛选、鉴定及其产漆酶培养基的优化[J]. 食品研究与开发, 2019, 40(16):178-184.
	DENG Shigui, YANG Chengjun, FENG Jiazhou, et al. Screening and identification of a lignin-degrading wite rot fungi and optimization of its laccase-producing medium[J]. Food Research and Development, 2019, 40(16):178-184.
