酵母菌0939-5产挥发性抑菌物质固态发酵工艺优化

doi:10.6048/j.issn.1001-4330.2023.07.025

摘要/Abstract

摘要：

【目的】研究酵母菌菌株0939-5产挥发性抑菌物质的最佳固态发酵基质及培养条件。【方法】以酵母菌菌株0939-5为材料,采用单因素法,优化该菌株的固体营养成分及培养条件。【结果】酵母菌0939-5的最佳固态发酵基质为玉米粉,最佳碳源及浓度为葡萄糖 2%,最佳无机盐及浓度为MgSO₄0.1%;菌株0939-5固态发酵的最佳条件为接种浓度1×10⁸CFU/mL、接种量10%、初始pH4、初始含水量为40%。【结论】在基础培养基的基础上,利用玉米粉作为固体发酵基质,分别以添加葡萄糖 2%、MgSO₄ 0.1%,培养条件为接种浓度1×10⁸CFU/mL、接种量10%、初始pH4、初始含水量为40%时,25℃培养5 d为最佳。

关键词: 固体发酵; 酵母菌; 挥发性物质

Abstract:

【Objective】 To determine the optimal solid-state fermentation substrate and culture conditions for the production of volatile antibacterial substances by using the yeast strain 0939-5 as the test material.【Methods】 The solid nutrients and culture conditions of the strain were optimized by single factor method.【Results】 The optimum solid-state fermentation substrate of yeast strain 0939-5 was corn meal, the optimum carbon source concentration was glucose 2%, and the optimum inorganic salt concentration was 0.1% MgSO₄.The optimum conditions for solid-state fermentation of yeast strain 0939-5 were inoculation concentration 1×10⁸ CFU/mL, inoculation volume 10%, initial pH 4, and initial water content 40%.【Conclusion】 On the basis of the basal medium, corn meal was used as a solid fermentation substrate, and 2% glucose and 0.1% MgSO₄ were added respectively, and the optimumculture conditions were inoculum concentration of 1×10⁸ CFU/mL, the inoculum volume of 10%, the initial pH of 4, and the initial water content 40% at 25℃ for 5 days.

Key words: solid-state fermentation; yeast; volatile substance

中图分类号:

S188

李华静, 王晓东. 酵母菌0939-5产挥发性抑菌物质固态发酵工艺优化[J]. 新疆农业科学, 2023, 60(7): 1773-1779.

LI Huajing, WANG Xiaodong. Study on the solid-state fermentation technology of yeast 0939-5[J]. Xinjiang Agricultural Sciences, 2023, 60(7): 1773-1779.

图/表 10

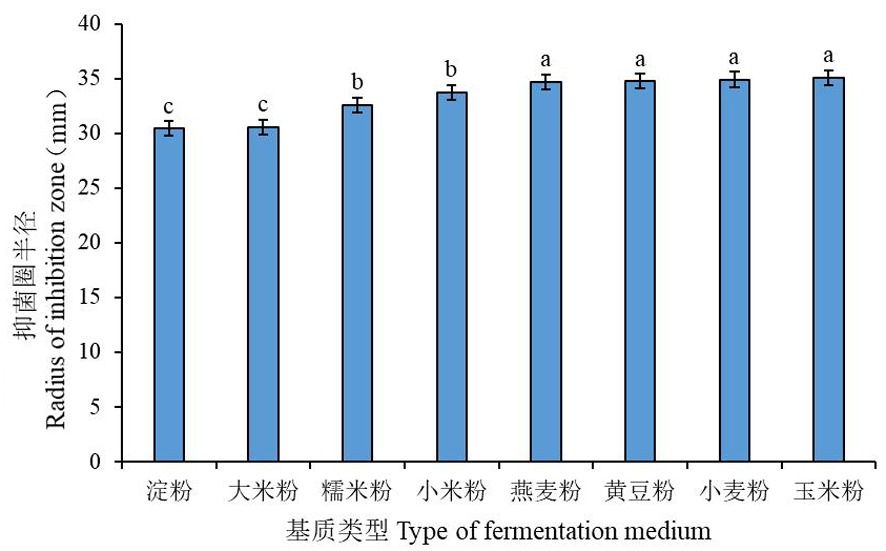

图1 不同基质下酵母菌株0939-5产挥发性物质抑制葡萄灰霉菌活性变化注:图柱上部不同小写字母表示差异显著(P<0.05),以下图相同

Fig.1 Effects of different medium on the activity of yeast strain 0939-5 producing volatile substances to inhibit Botrytis cinerea Note:Different lowercase letters at the top of the column indicate significant differences (P<0.05), the same as below

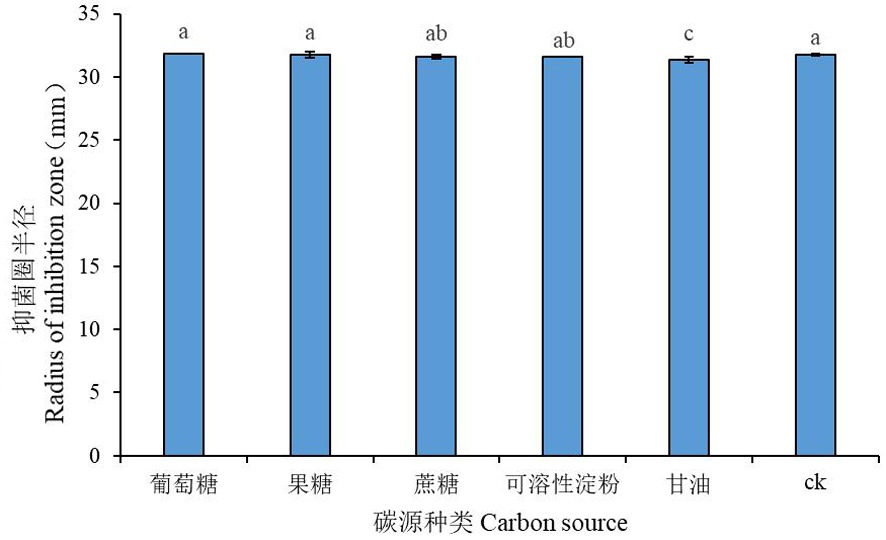

图2 不同碳源下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.2 Effects of carbon sources on the antibacterial activity of volatile substances produced by yeast strain 0939-5

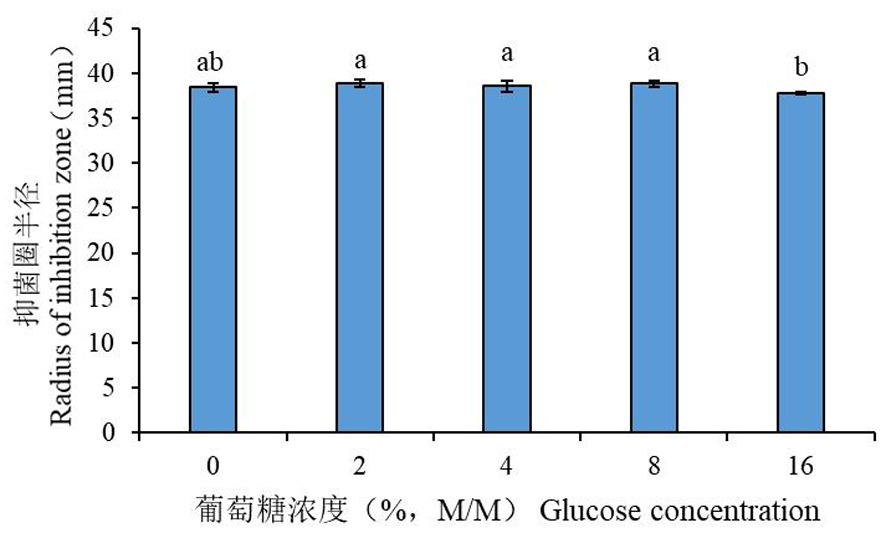

图3 不同葡萄糖浓度下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.3 Effects of glucose concentration on the antibacterial activity of volatile substances produced by yeast strain 0939-5

图4 不同氮源种类下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.4 Effects of nitrogen sources on the antibacterial activity of volatile substances produced by yeast strain 0939-5

图5 不同无机盐种类下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.5 Effects of inorganic salt types on the antibacterial activity of yeast 0939-5 produced by volatile substances

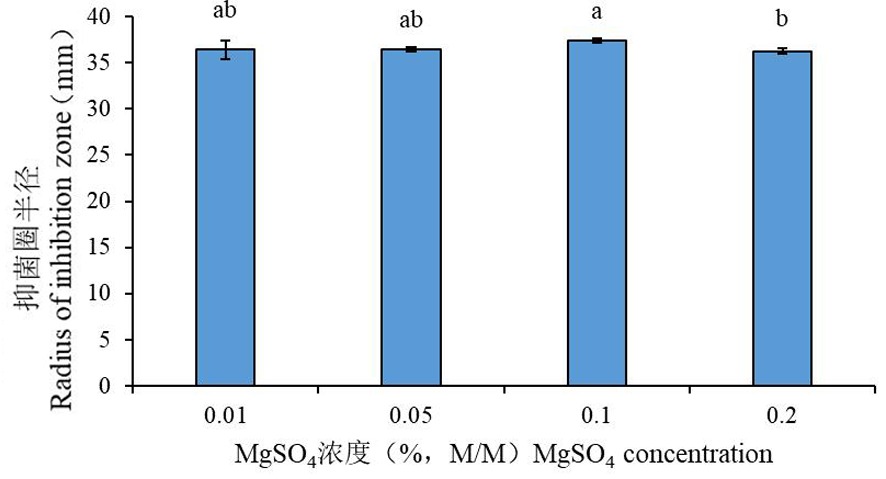

图6 不同硫酸镁浓度下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.6 Effect of magnesium sulfate concentration on the antibacterial activity of volatile substances produced by yeast strain 0939-5

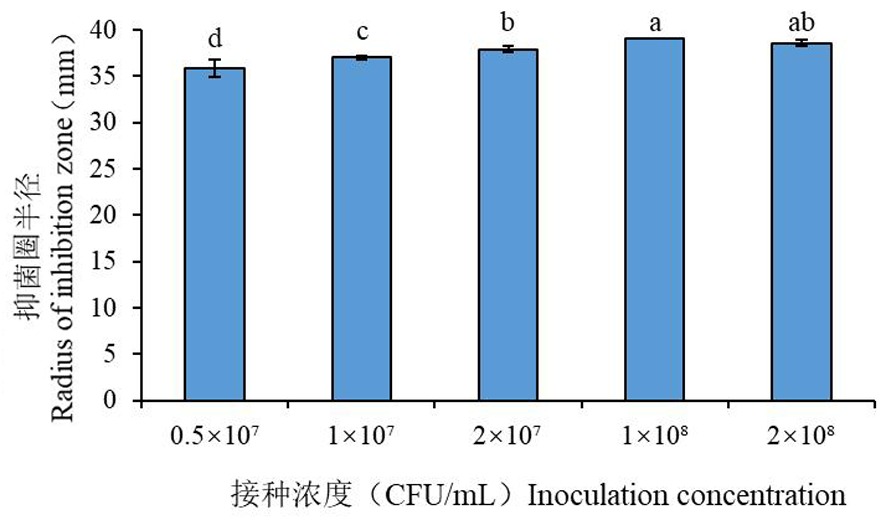

图7 不同接种浓度下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.7 Effects of different inoculation concentrations on the antibacterial activity of yeast strain 0939-5 producing volatile substances

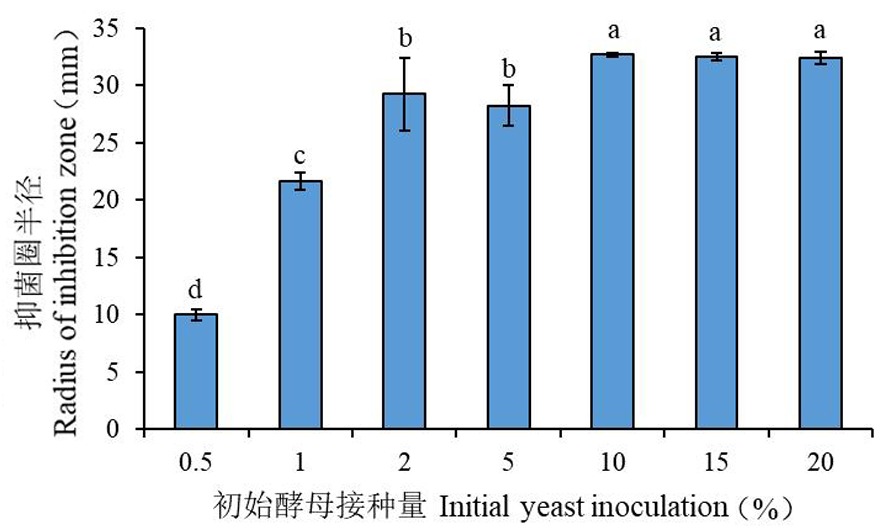

图8 初始酵母接种量下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.8 Effect of initial yeast inoculum on the bacteriostatic activity of yeast 0939-5 producing volatile substances

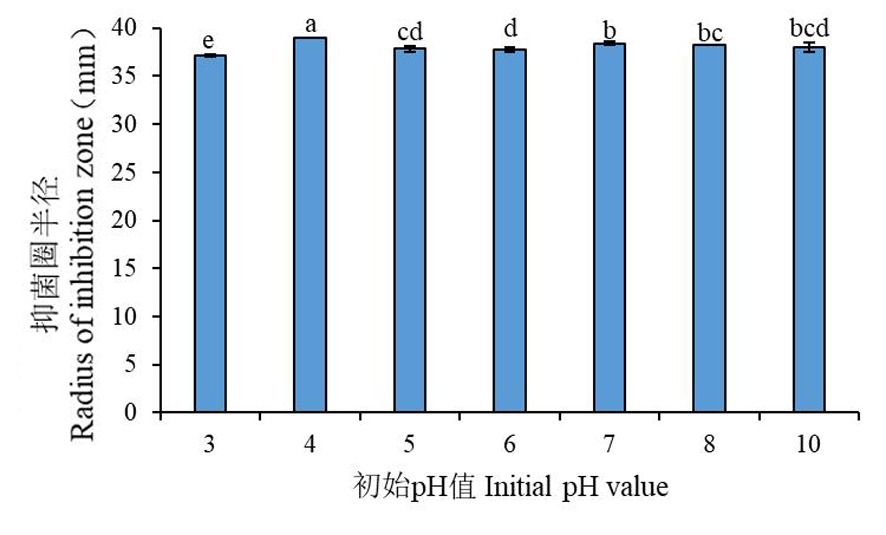

图9 初始pH下酵母菌0939-5产挥发性物质抑菌活性变化

Fig.9 Effect of initial pH on the antibacterial activity of yeast strain 0939-5 producing volatile substances

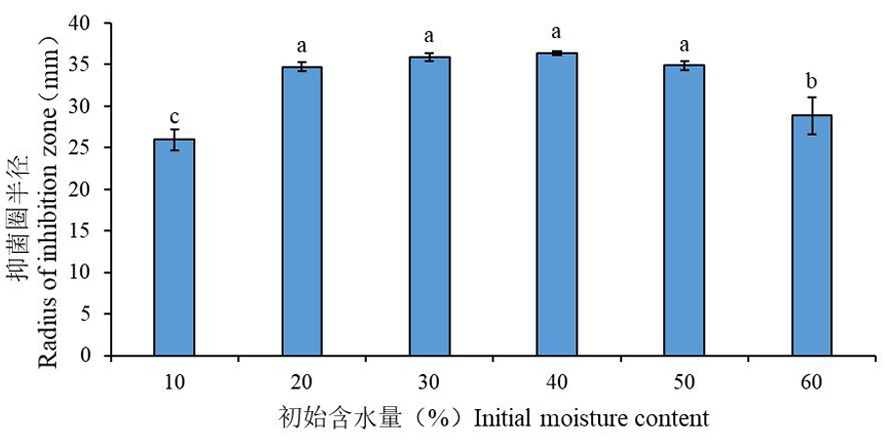

图10 初始含水量下酵母菌株0939-5产挥发性物质抑菌活性变化

Fig.10 Effect of initial water content on the antibacterial activity of yeast strain 0939-5 producing volatile substances

参考文献 25

[1]	陈宇飞, 文景芝, 李立军. 葡萄灰霉病研究进展[J]. 东北农业大学学报, 2006, 37(5):693-699.
	CHEN Yufei, WEN Jingzhi, LI Lijun. Research progress on botrytis cinerea[J]. Journal of Northeast Agricultural University, 2006, 37(5):693-699.
[2]	田世平, 范青. 控制果蔬采后病害的生物学技术[J]. 植物学通报, 2000, 17(3):211-217.
	TIAN Shiping, FAN Qing. Biological techniques for controlling postharvest diseases of fruits and vegetables[J]. Bulletin of Botany, 2000, 17(3):211-217.
[3]	丁中, 刘峰, 王会利, 等. 番茄灰霉病的多重抗药性研究[J]. 山东农业大学学报, 2001, 32(4):452-456.
	DING Zhong, LIU Feng, WANG Huili, et al. Study on multidrug resistance of tomato gray mold[J]. Journal of Shandong Agricultural University, 2001, 32(4):452-456.
[4]	Nunes C A. Biological control of postharvest diseases of fruit[J]. European Journal of Plant Pathology, 2012, 133(1):181-196. DOI URL
[5]	Janisiewicz W J, Tworkoski T J, Kurtzman C P. Biocontrol potential of Metchnikowia pulcherrima strains against blue mold of apple[J]. Phytopathology, 2001, 91(11):1098-1108. DOI PMID
[6]	宋金宇, 刘程惠, 胡文忠, 等. 拮抗酵母菌对果蔬病害防治的研究进展[J]. 保鲜与加工, 2012, 12(5):53-56.
	SONG Jinyu, LIU Chenghui, HU Wenzhong, et al. Research progress on the control of fruit and vegetable diseases by antagonistic yeasts[J]. Preservation and Processing, 2012, 12(5):53-56.
[7]	赵志敏. 固态培养基汽爆灭菌及发酵过程强化[D]. 北京: 中国科学院研究生院(过程工程研究所), 2016.
	ZHAO Zhimin. Steam explosion sterilization of solid medium and intensification of fermentation process[D]. Beijing: Graduate School of Chinese Academy of Sciences (Institute of Process Engineering), 2016.
[8]	Piggot P J, Hilbert D W. Sporulation of Bacillus subtilis[J]. Current Opinion in Microbiology, 2005, 7(6):579-586. DOI URL
[9]	田晓丽, 赵红杰, 唐彩乐, 等. 生防放线菌153固态发酵条件的优化及其耐热力检测[J]. 西北农林科技大学学报(自然科学版), 2010, 38(7):181-186.
	TIAN Xiaoli, ZHAO Hongjie, TANG Caile, et al. Optimization of solid-state fermentation conditions for biocontrol actinomycetes 153 and detection of thermal tolerance[J]. Journal of Northwest A&F University (Natural Science Ed.), 2010, 38(7):181-186.
[10]	俎延喜. 柑橘采后生防菌34-9及γ4-9生防菌固体发酵工艺研究[D]. 武汉: 华中农业大学, 2008.
	ZU Yanxi. Study on solid fermentation process of citrus postharvest biocontrol bacteria 34-9 and γ4-9[D]. Wuhan: Huazhong Agricultural University, 2008.
[11]	Orol, Felizianie, Cianialm, et al. Volatile organic compounds from Wickerhamomyces anomalus, Metschnikowia pulcherrima and Saccharomyce scerevisiae inhibit growth of decay causing fungi and control postharvest diseases of strawberries[J]. International Journal of Food Microbiology, 2018, 265:18-22. DOI URL
[12]	Janisiewicz W J, Korsten L. Biological control of postharvest diseases of fruits[J]. Annual Review of Phytopathology, 2002, 40(1):411-441. DOI URL
[13]	Macías-Rubalcava M L, Sánchez-FernándezetR E, Oque-Flores G, et al. Volatile organic compounds from Hypoxylonanthochroum endophytic strains as postharvest mycofumigation alternative for cherry tomatoes[J]. Food Microbiology, 2018, 76:363-373. DOI PMID
[14]	车建美, 郭慧慧, 刘波, 等. 产挥发性物质芽孢杆菌对枇杷炭疽病菌的抑制作用及其鉴定[J]. 福建农业学报, 2014, 29(5):469-474.
	CHE Jianmei, GUO Huihui, LIU Bo, et al. Inhibitory effect of volatile substance-producing Bacillus on loquat anthracnose and its identification[J]. Fujian Agricultural Journal, 2014, 29(5):469-474.
[15]	Strobel G. Harnessing endophytes for industrial microbiology[J]. Current Opinion in Microbiology, 2006, 9 (3):240-244. PMID
[16]	AL-Taweel A M, EL-Deeb K S, AL-Muhtadi F J. Chemical composition and antimicrobial activity of the essential oil of Kleinia odora[J]. Saudi Pharmaceutical Journal, 2004, 12(1):47-50.
[17]	Gabler F M, Fassel R, Mercier J, et al. Influence of temperature, inoculation interval, and dosage on biofumigation with Muscodoralbus to control postharvest gray mold on grapes[J]. Plant Disease, 2006, 90(8):1019-1025. DOI URL
[18]	黄蓉. 防治草莓灰霉病酵母菌株筛选及防病机制研究[D]. 武汉: 华中农业大学, 2011.
	HUANG Rong. Screening of yeast strains for control of strawberry botrytis cinerea and disease prevention mechanism[D]. Wuhan: Huazhong Agricultural University, 2011.
[19]	Lizardi-Jiménez M A, Hernández-Martínez R. Solid state fermentation (SSF):diversity of applications to valorize waste and biomass[J]. 3 Biotech, 2017, 7(1):1-9.
[20]	Costa J. Current Developments in Biotechnology and Bioengineering \|\| Advances in Solid-State Fermentation[J]. Elsevier, 2018:1-17.
[21]	Sala A, Barrena R, Artola A, et al. Current developments in the production of fungal biological control agents by solid-state fermentation using organic solid waste[J]. Critical Reviews in Environmental Science and Technology, 2019, 49(8):655-694. DOI URL
[22]	卢智琴, 李惠霞, 罗宁, 等. 禾谷孢囊线虫生防真菌AT9的固体发酵条件优化[J]. 草原与草坪, 2020, 40(1):35-40.
	LU Zhiqin, LI Huixia, LUO Ning, et al. Optimization of solid fermentation conditions for the biocontrol fungus AT9 of Cephalosporiumgraminearum[J]. Prairie and Lawn, 2020, 40(1):35-40.
[23]	王春艳, 刘政, 王晓东. 固态发酵条件对拮抗放线菌菌株LG-9产孢的影响[J]. 中国植保导刊, 2021, 41(1):15-23.
	WANG Chunyan, LIU Zheng, WANG Xiaodong. Effects of solid-state fermentation conditions on sporulation of antagonistic actinomycete strain LG-9[J]. China Plant Protection Guide, 2021, 41(1):15-23.
[24]	张怡, 刘敬为, 童应凯. 布拉酵母菌与凝结芽孢杆菌混合固体发酵的培养基优化研究[J]. 饲料工业, 2016, 37(22):50-52.
	ZHANG Yi, LIU Jingwei, TONG Yingkai. Optimization of medium for mixed solid fermentation of Saccharomyces boulardii and Bacillus coagulans[J]. Feed Industry, 2016, 37(22):50-52.
[25]	任加庆. 青霉xfsf-8固体发酵条件优化及其对烟草青枯病防治效果的研究[D]. 武汉: 华中农业大学, 2016.
	REN Jiaqing. Optimization of solid fermentation conditions of Penicillium xfsf-8 and its control effect on tobacco bacterial wilt[D]. Wuhan: Huazhong Agricultural University, 2016.
