Adsorption and immobilization of Cd2+ by cotton straw biochar

doi:10.6048/j.issn.1001-4330.2025.01.026

Abstract

Abstract:

【Objective】 The objective of the study is to investigate the potential of cotton straw biochar for the adsorption and immobilization of heavy metals Cd²⁺. 【Methods】 Cotton straw biochar (BC500, BC600 and BC700) was prepared from cotton straw, a typical agricultural waste in Xinjiang, at pyrolysis temperatures of 500℃(BC500), 600℃(BC600) and 700℃(BC700), respectively. Meanwhile, experiments of adsorption and passivation were carried out. 【Results】 The results showed that at an initial concentration of 100 mg/L Cd²⁺, the adsorption of Cd²⁺by BC500, BC600 and BC700 reached 10.47 mg/g, 9.72mg/g and 11.96mg/g, respectively. The pseudo-second order kinetic was the most suitable model for describing the adsorption of Cd²⁺onto cotton straw biochar. Sequential extraction test results showed that Cd²⁺ was predominantly adsorbed on cotton straw biochar as carbonate-bound fraction (77.74%-82.09%). The exchangeable fraction and unavailable fraction for cotton straw biochar was low (12.14%-14.95% and 5.62%-6.75%, respectively) and the water soluble fraction was negligible (0.15%-0.55%). Compared with the control, applications of cotton straw biochar at different pyrolysis temperatures resulted in an average decrease of 24.29% and 6.52% in the water-soluble and exchangeable fraction of Cd²⁺, respectively, and an average increase of 22.49% and 8.32% in the carbonate-bound and unavailable fractions, respectively. 【Conclusion】 Cotton straw biochar has strong sorption potentials for Cd²⁺ and can be applied to soil remediation to effectively reduce the bioavailability of Cd²⁺.

Key words: cotton straw biochar; Cd²⁺; adsorption; immobilization; heavy metal fractions

摘要：

【目的】 探究棉秆生物炭对重金属Cd²⁺的吸附和固定作用潜力。【方法】 以新疆典型的农业废弃物棉花秸秆为原料,分别在500、600和700℃热解温度下制备棉秆炭(BC500、BC600和BC700),进行吸附和钝化试验。【结果】 Cd²⁺初始浓度为100 mg/L时,BC500、BC600和BC700对Cd²⁺的吸附量分别达到10.47、9.72和11.96 mg/g。不同热解温度棉秆生物炭对Cd²⁺的动力吸附过程符合准二级动力吸附模型。不同热解温度棉秆生物炭中吸附的Cd²⁺主要以碳酸盐结合态存在,比例达到77.74%~82.09%;其次是可交换态和不可利用态,比例分别为12.14%~14.95%和5.62%~6.75%。与对照相比,添加不同热解温度棉秆生物炭使得土壤中Cd²⁺的水溶态和可交换态组分比例分别平均降低24.29%和6.52%;碳酸盐结合态和不可利用态组分比例分别平均增加22.49%和8.32%。【结论】 棉秆生物炭对Cd²⁺具有较强的吸附潜力,施用于土壤中可有效降低土壤中Cd²⁺的生物可利用性。

关键词: 棉秆生物炭, Cd²⁺, 吸附, 固定, 重金属形态

CLC Number:

WEN Fang, LIAO Na, WANG Na, JIN Jing, YAO Yiqiang. Adsorption and immobilization of Cd²⁺ by cotton straw biochar[J]. Xinjiang Agricultural Sciences, 2025, 62(1): 225-233.

文方, 廖娜, 王娜, 靳静, 姚义强. 棉秆生物炭对Cd²⁺的吸附固定作用[J]. 新疆农业科学, 2025, 62(1): 225-233.

Figures/Tables 8

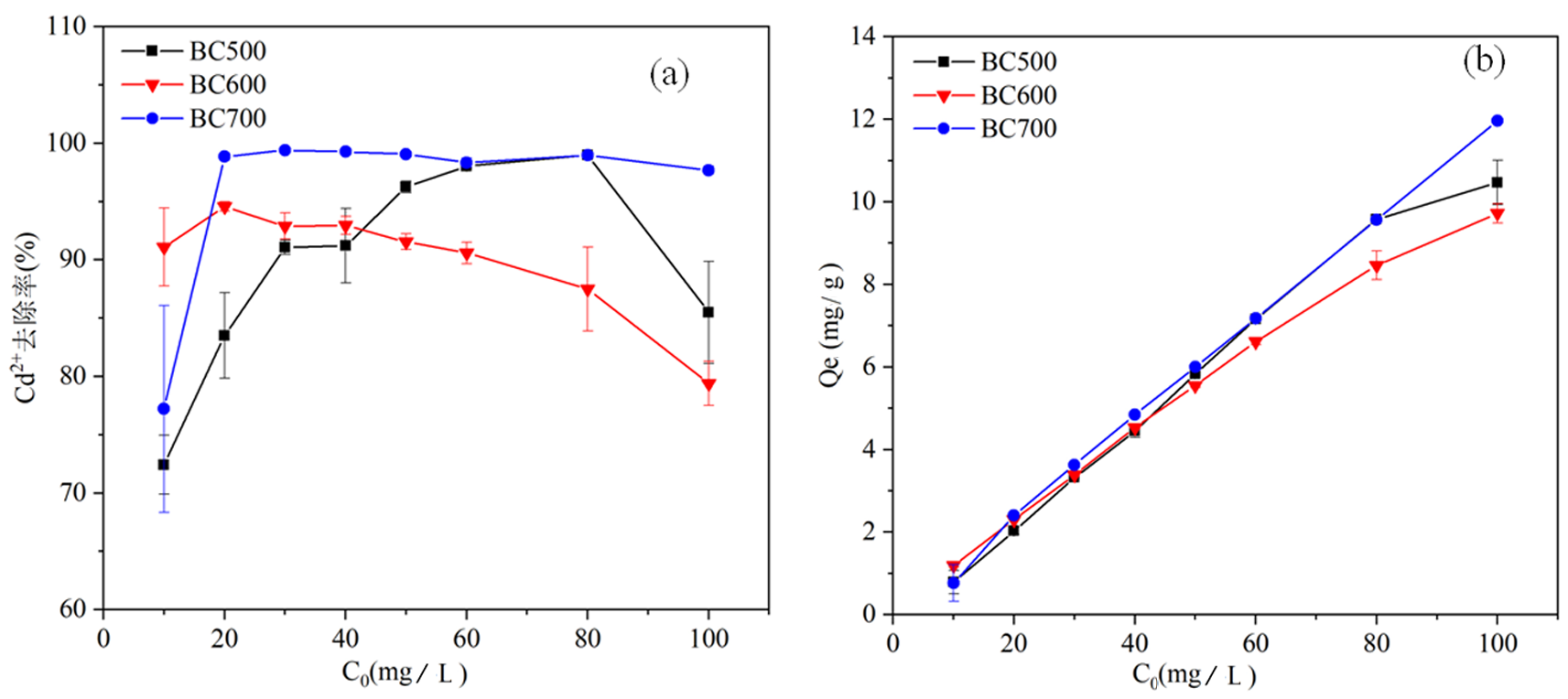

Fig.1 Changes in removal effciency(a) and adsorption capacity(b) of cotton stem biochar Cd2+ at different initial concentrations

Tab.1 Adsorption kinetic parameters of Cd2+ for cotton straw biochar

处理 Treatments	Q_e,exp (mg/g)	准一级动力学方程 Pseudo-first order kinetics			准二级动力学方程 Pseudo-second order kinetics			颗粒内扩散模型 Intramaterial diffusion model
处理 Treatments	Q_e,exp (mg/g)	Q_e,cal (mg/g)	k₁	R²	Q_e,cal (mg/g)	k₂	R²	k_ip	c	R²
BC500	6.50	6.06	0.072	0.949 1	6.41	0.018	0.990 7	0.070	4.51	0.637 6
BC600	6.63	6.00	0.144	0.956 6	6.28	0.044	0.984 7	0.102	3.92	0.360 9
BC700	6.75	6.41	0.171	0.974 7	6.64	0.056	0.993 8	0.095	4.41	0.281 4

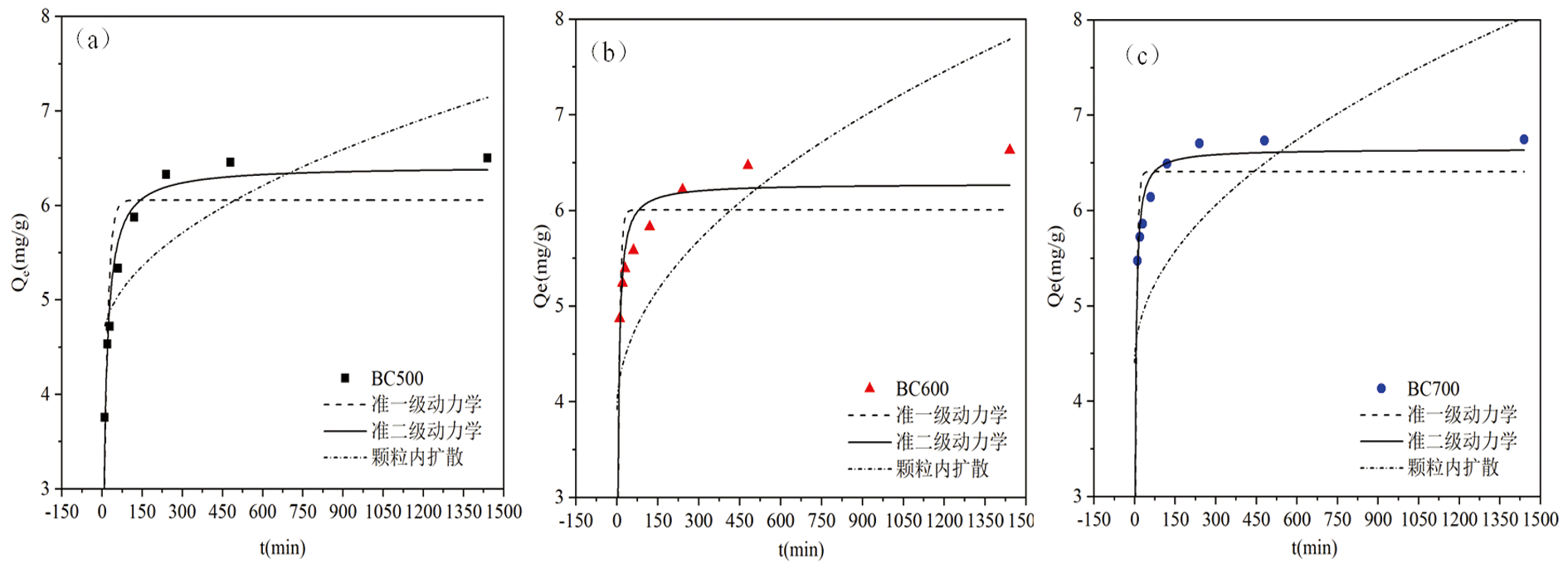

Fig.2 Adsorption kinetics of Cd2+ for cotton straw biochar

Fig.3 SEM images of cotton straw biochar with different pyrolysis temperatures before and after adsorption of Cd2+

Fig.4 SEM-EDS patterns of cotton straw biochar after adsorption of Cd2+

Fig.5 FTIR plots of cotton straw biochar before and after Cd2+ adsorption

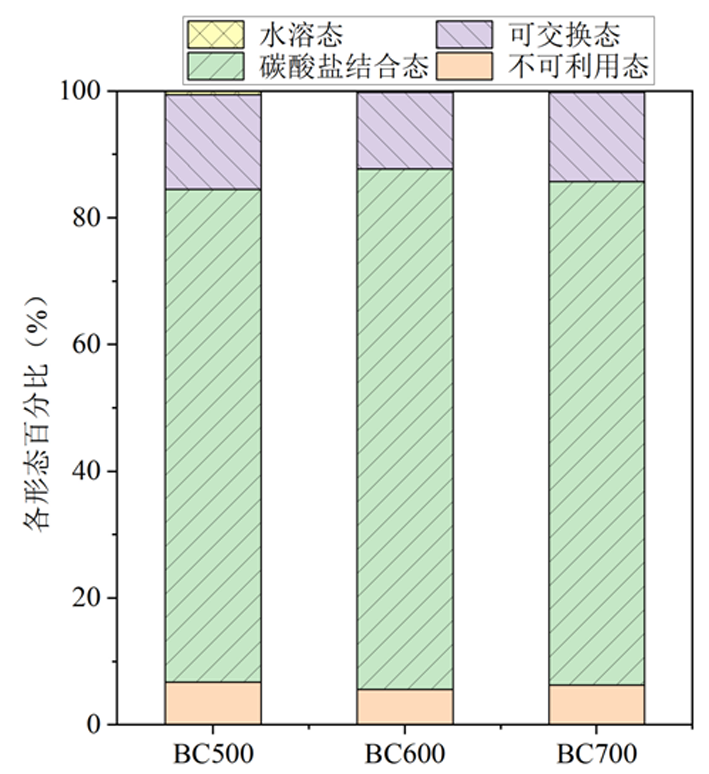

Fig.6 Speciation of Cd2+ on cotton straw biochar after adsorption

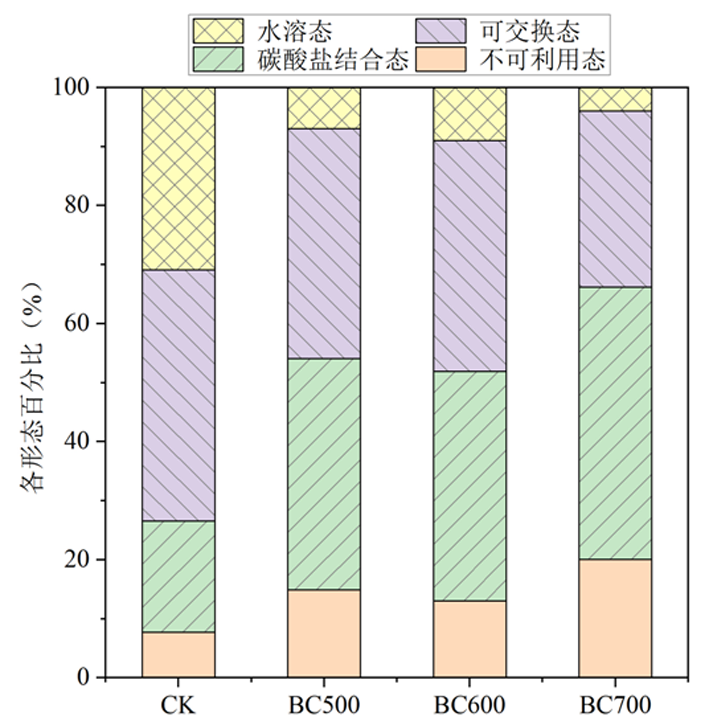

Fig.7 Changes of cotton straw biochar on Speciation of Cd2+ in soil

References 23

[1]	安显金, 李维. 基于CNKI的我国生物炭研究趋势文献计量学分析[J]. 农业资源与环境学报, 2018, 35(6): 483-491.
	AN Xianjin, LI Wei. Bibliometric analysis on research trend of biochar in China based on CNKI[J]. Journal of Agricultural Resources and Environment, 2018, 35(6): 483-491.
[2]	张林, 林庆毅, 张梦阳, 等. 生物炭对不同土壤改良及生态效应影响的研究进展[J]. 中国农学通报, 2019, 35(15): 54-58. DOI
	ZHANG Lin, LIN Qingyi, ZHANG Mengyang, et al. A review on biocar: effect on soil improvement and ecology[J]. Chinese Agricultural Science Bulletin, 2019, 35(15): 54-58. DOI
[3]	金梁, 魏丹, 李玉梅, 等. 生物炭对有机无机污染物的修复作用与机理研究进展[J]. 土壤通报, 2016, 47(2): 505-510.
	JIN Liang, WEI Dan, LI Yumei, et al. Remediation of organic and inorganic pollutants by biochar: a review[J]. Chinese Journal of Soil Science, 2016, 47(2): 505-510.
[4]	Xu X Y, Zhao Y H, Sima J K, et al. Indispensable role of biochar-inherent mineral constituents in its environmental applications: a review[J]. Bioresource Technology, 2017, 241: 887-899. DOI PMID
[5]	计海洋, 汪玉瑛, 吕豪豪, 等. 不同炭化温度制备的蚕丝被废弃物生物炭对重金属Cd²⁺的吸附性能[J]. 应用生态学报, 2018, 29(4): 1328-1338. DOI
	JI Haiyang, WANG Yuying, LYU Haohao, et al. Cadmium adsorption by biochar prepared from pyrolysis of silk waste at different temperatures[J]. Chinese Journal of Applied Ecology, 2018, 29(4): 1328-1338. DOI
[6]	Frišták V, Pipíška M, Lesny J, et al. Utilization of biochar sorbents for Cd²⁺, Zn²⁺, and Cu²⁺ ions separation from aqueous solutions: comparative study[J]. Environmental Monitoring and Assessment, 2014, 187(1): 4093.
[7]	闫翠侠, 贾宏涛, 孙涛, 等. 鸡粪生物炭表征及其对水和土壤镉铅的修复效果[J]. 农业工程学报, 2019, 35(13): 225-233.
	YAN Cuixia, JIA Hongtao, SUN Tao, et al. Characteristics of chicken manure biochars and its effect on Cd and Pb remediation in water and soil[J]. Transactions of the Chinese Society of Agricultural Engineering, 2019, 35(13): 225-233.
[8]	Beesley L, Marmiroli M. The immobilisation and retention of soluble arsenic, cadmium and zinc by biochar[J]. Environmental Pollution, 2011, 159(2): 474-480. DOI PMID
[9]	Beesley L, Moreno-Jiménez E, Gomez-Eyles J L. Effects of biochar and greenwaste compost amendments on mobility, bioavailability and toxicity of inorganic and organic contaminants in a multi-element polluted soil[J]. Environmental Pollution, 2010, 158(6): 2282-2287. DOI PMID
[10]	Van Zwieten L, Kimber S, Morris S, et al. Effects of biochar from slow pyrolysis of papermill waste on agronomic performance and soil fertility[J]. Plant and Soil, 2010, 327(1): 235-246.
[11]	鲁秀国, 过依婷, 奉向东. 生物炭对土壤中重金属作用及影响研究进展[J]. 应用化工, 2018, 47(4): 775-779.
	LU Xiuguo, GUO Yiting, FENG Xiangdong. Research progress of the effects and impacts of biochar on heavy metals in soil[J]. Applied Chemical Industry, 2018, 47(4): 775-779.
[12]	Wei J, Tu C, Yuan G D, et al. Assessing the effect of pyrolysis temperature on the molecular properties and copper sorption capacity of a halophyte biochar[J]. Environmental Pollution, 2019, 251: 56-65. DOI PMID
[13]	Shen Z T, Zhang Y Y, Jin F, et al. Qualitative and quantitative characterisation of adsorption mechanisms of lead on four biochars[J]. Science of the Total Environment, 2017, 609: 1401-1410.
[14]	金冠宇, 李卫华, 杨厚云. 污泥基生物炭对重金属Cd²⁺的吸附性能[J]. 安徽建筑大学学报, 2020, 28(4): 21-27, 116.
	JIN Guanyu, LI Weihua, YANG Houyun. Adsorption of heavy metal Cd²⁺ on sludge based biochar[J]. Journal of Anhui Jianzhu University, 2020, 28(4): 21-27, 116.
[15]	秦凤辉, 王贵胤, 王新月, 等. 4种秸秆类农业废弃物对废水中Pb²⁺去除效率[J]. 环境科学与技术, 2020, 43(S2): 87-94.
	QIN Fenghui, WANG Guiyin, WANG Xinyue, et al. Removal efficiency of Pb²⁺ from wastewater by four straw-based agricultural wastes[J]. Environmental Science & Technology, 2020, 43(S2): 87-94.
[16]	高亮, 李志合, 李玉峰, 等. 棉秆生物炭去除水中Zn(Ⅱ)的试验研究[J]. 中国农机化学报, 2021, 42(2): 197-202. DOI
	GAO Liang, LI Zhihe, LI Yufeng, et al. Experimental study for the removal of Zn(Ⅱ) from aqueous solution by biochar derived from cotton stalk[J]. Journal of Chinese Agricultural Mechanization, 2021, 42(2): 197-202.
[17]	Gu Z G, Wu M, Li K, et al. Variation of heavy metal speciation during the pyrolysis of sediment collected from the Dianchi Lake, China[J]. Arabian Journal of Chemistry, 2017, 10: 2196-2204.
[18]	Inyang M I, Gao B, Yao Y, et al. A review of biochar as a low-cost adsorbent for aqueous heavy metal removal[J]. Critical Reviews in Environmental Science and Technology, 2016, 46(4): 406-433.
[19]	Keiluweit M, Kleber M. Molecular-level interactions in soils and sediments: the role of aromatic pi-systems[J]. Environmental Science & Technology, 2009, 43(10): 3421-3429.
[20]	Wang Z Y, Liu G C, Zheng H, et al. Investigating the mechanisms of biochar’s removal of lead from solution[J]. Bioresource Technology, 2015, 177: 308-317.
[21]	李明遥, 杜立宇, 张妍, 等. 不同裂解温度水稻秸秆生物炭对土壤Cd形态的影响[J]. 水土保持学报, 2013, 27(6): 261-264.
	LI Mingyao, DU Liyu, ZHANG Yan, et al. Influence of pyrolysis temperatures of biochar obtained from the rice straw on cadmium forms[J]. Journal of Soil and Water Conservation, 2013, 27(6): 261-264.
[22]	李洪达, 李艳, 周薇, 等. 稻壳生物炭对矿区重金属复合污染土壤中Cd、Zn形态转化的影响[J]. 农业环境科学学报, 2018, 37(9): 1856-1865.
	LI Hongda, LI Yan, ZHOU Wei, et al. Effects of rice-husk-derived biochar on the morphological transformation of Cd and Zn in mining area soils polluted by heavy metals[J]. Journal of Agro-Environment Science, 2018, 37(9): 1856-1865.
[23]	孟莉蓉, 俞浩丹, 杨婷婷, 等. 2种生物炭对Pb、Cd污染土壤的修复效果[J]. 江苏农业学报, 2018, 34(4): 835-841.
	MENG Lirong, YU Haodan, YANG Tingting, et al. Immobilization of two biochars to Pb, Cd in contaminated soils[J]. Jiangsu Journal of Agricultural Sciences, 2018, 34(4): 835-841.
