Effects of density transformation on microenvironment and spectral characteristics of Fuji orchards in Xinjiang

doi:10.6048/j.issn.1001-4330.2024.07.015

Xinjiang Agricultural Sciences ›› 2024, Vol. 61 ›› Issue (7): 1682-1688.DOI: 10.6048/j.issn.1001-4330.2024.07.015

• Horticultural Special Local Products·Storage and Preservation Processing • Previous Articles Next Articles

Effects of density transformation on microenvironment and spectral characteristics of Fuji orchards in Xinjiang

MEI Chuang¹(), FENG Beibei¹, MA Liya¹, ZHANG Zhenjun², ZHANG Jinshan¹, MA Yanhong¹, WANG Jixun¹(), YAN Peng¹()

1. Research Institute of Horticultural Crops, Xinjiang Academy of Agricultural Sciences/Xinjiang Fruit Tree Science Observation and Experimental Station of the Ministry of Agriculture and Rural Affinistry, Urumqi 830091, China
2. Aksu Agricultural Technology Extension Service Center,Aksu Xinjiang 843000,China

Received:2023-12-07 Online:2024-07-20 Published:2024-09-04
Correspondence author: WANG Jixun, YAN Peng
Supported by:
Xinjiang forest fruit industry technology system project(XJLGCYJSTX04-2024-20);Key R&D Project of Xinjiang Autonomous Region(2023B02018-2);China Agriculture Research System of MOF and MARA(CARS-27);Forestry development subsidy project of Xinjiang Autonomous Region(XJLYKJ-2021-15)

疏密改造对新疆富士苹果果园微环境和光谱特性的影响

梅闯¹(), 冯贝贝¹, 马丽亚¹, 张振军², 张金山¹, 马艳红¹, 王继勋¹(), 闫鹏¹()

1.新疆农业科学院园艺作物研究所/农业农村部新疆地区果树科学观测试验站,乌鲁木齐 830091
2.阿克苏地区林业技术推广服务中心,新疆阿克苏 843000

通讯作者: 王继勋,闫鹏
作者简介:梅闯(1985-),男,四川人,副研究员,研究方向为果树育种与生物技术,(E-mail)meichuangxj@163.com
基金资助:
新疆林果产业技术体系(XJLGCYJSTX04-2024-20);新疆维吾尔自治区重点研发项目(2023B02018-2);国家现代苹果产业技术体系(CARS-27);新疆维吾尔自治区林业发展补助资金项目(XJLYKJ-2021-15)

Abstract

Abstract:

【Objective】To explore the effects of density transformation on canopy temperature, relative humidity, light intensity and canopy reflection spectrum in closed Fuji orchards, so as to solve the problems of reduced orchard productivity, decreased fruit quality and low comparative benefit. 【Methods】The old and inefficient closed Fuji orchards in Akesu, Xinjiang were taken as the test object, the temperature, relative humidity, light intensity and canopy reflectance spectra in the canopy of the fruit trees under density transformation and normal pruning were compared, and the differences were analyzed to explore the effects of density transformation on the microenvironment and spectral characteristics of the Fuji orchards in Xinjiang.【Results】The light intensity of the canopy was higher than that of the control (especially the upper canopy).Compared with the control the apple orchard density transformation had a significant effect on the canopy temperature and humidity(P<0.05).The relative light intensity of the same tree crown was higher than of the control,and the upper relative light intensity difference reached a significant level(P<0.05).The reflectance of different light quality of the canopy reflectance increased in different degree after the tree density reconstruction.【Conclusion】The density transformation significantly reduced the temperature and relative humidity in the canopy, and the light intensity in the four directions, east, west, north and south in the canopy was improved to different degrees compared with the control, and the reflectance of different light qualities in the canopy reflection spectrum was also increased significantly.The density transformation can significantly improve the ventilation and light transmission conditions and the distribution mode and intensity of light quality in orchards.

Key words: Fuji apple; density transformation; microenvironment; closed orchard; spectral characteristic

摘要：

【目的】研究疏密改造对郁闭富士苹果果园树冠内温度、相对湿度、光照强度、冠层反射光谱的影响,为提高果园产能和果实品质提供技术参考。【方法】以新疆阿克苏地区老龄低效的郁闭富士苹果果园为研究对象,比较疏密改造与正常修剪果树冠层内的温度、相对湿度、光照强度、冠层反射光谱,并进行差异性分析,分析疏密改造对新疆富士苹果果园微环境和光谱特性的影响。【结果】疏密改造后冠层的光照强度高于对照(尤其是上部冠层)疏密改造后,苹果园疏密改造与其对照相比对冠层内温度湿度产生显著影响(P<0.05)。疏密改造后相同层次树冠内相对光照强度高于对照组,且在上部相对光照强度差异达显著水平(P<0.05),疏密改造后,树体冠层反射光谱不同光质的反射率均有不同程度的提升。【结论】疏密改造显著降低了富士苹果树冠内的温度和相对湿度,冠层内东西南北4个方位、各时间段的光照强度与对照相比有不同程度的提升,同时冠层反射光谱不同光质的反射率也有显著的提升。疏密改造可以显著改善富士苹果果园通风透光条件和光质分布的方式及强度。

关键词: 富士苹果, 疏密改造, 微环境, 郁闭果园, 光谱特性

CLC Number:

MEI Chuang, FENG Beibei, MA Liya, ZHANG Zhenjun, ZHANG Jinshan, MA Yanhong, WANG Jixun, YAN Peng. Effects of density transformation on microenvironment and spectral characteristics of Fuji orchards in Xinjiang[J]. Xinjiang Agricultural Sciences, 2024, 61(7): 1682-1688.

梅闯, 冯贝贝, 马丽亚, 张振军, 张金山, 马艳红, 王继勋, 闫鹏. 疏密改造对新疆富士苹果果园微环境和光谱特性的影响[J]. 新疆农业科学, 2024, 61(7): 1682-1688.

Figures/Tables 4

References 29

[1]	王轩. 不同产地红富士苹果品质评价及加工适宜性研究[D]. 北京: 中国农业科学院, 2013.
	WANG Xuan. Research on Quality Evaluation and Processing Suitability of Fuji Apple from Different Chinese Origins[D]. Beijing: Chinese Academy of Agricultural Sciences, 2013.
[2]	赵珊珊. 苹果类黄酮在光破坏防御中的作用机制研究[D]. 杨凌: 西北农林科技大学, 2022.
	ZHAO Shanshan. Study on the mechanism of apple flavonoids in light damage defense[D]. Yangling: Northwest A & F University, 2022.
[3]	张秀美, 王宏, 刘志, 等. ‘岳帅’苹果不同负载量光照分布与果实品质的关系[J]. 果树学报, 2017, 34(11):1408-1414.
	ZHANG Xiumei, WANG Hong, LIU Zhi, et al. Relationships between distribution of relative light intensity and quality of ‘Yueshuai’ apple with different fruit loads[J]. Journal of Fruit Science, 2017, 34(11):1,408-1,414.
[4]	何凤梨, 王飞, 魏钦平, 等. 桃树冠层相对光照分布与果实产量品质关系的研究[J]. 中国农业科学, 2008, 41(2): 502-507.
	HE Fengli, WANG Fei, WEI Qinping, et al. Relationship between distribution of relative light intensity in canopy and yield and quality of peach fruit[J]. Scientia Agricultura Sinica, 2008, 41(2): 502-507.
[5]	尚志华, 魏钦平, 孙丽珠, 等. 乔砧富士苹果改良高干开心形树冠郁闭的评判参数[J]. 中国农业科学, 2010, 43(1): 132-139.
	SHANG Zhihua, WEI Qinping, SUN Lizhu, et al. Judgement parameters of canopy overcrowed for reformative high trunk open centre shape of fuji apple with standard rootstock[J]. Scientia Agricultura Sinica, 2010, 43(1): 132-139.
[6]	李保国, 张玉青, 张雪梅, 等. 不同群体结构苹果园光照分布状况研究[J]. 河北林果研究, 2012, 27(03):316-319.
	LI Baoguo, ZHANG Yuqing, ZHANG Xuemei, et al. Studys on light distribution of different group strcture in apple orchards[J]. Heibei Journal of Forestry and Orchard Research, 2012, 27(03):316-319.
[7]	路超, 王金政, 薛晓敏, 等. 苹果树冠不同区位果实产量和品质特征及其与枝叶空间分布关系的研究[J]. 山东农业科学, 2010, 42(11): 28-33.
	LU Chao, WANG Jinzheng, XUE Xiaomin, et al. Fruit yield and quality characters at different locations of apple crown and their relationships with spatial distribution of branches and leaves[J]. Shandong Agricultural Sciences, 2010, 42(11): 28-33.
[8]	孙志鸿, 魏钦平, 杨朝选, 等. 红富士苹果树冠枝(梢)叶分布与温度、湿度的关系[J]. 果树学报, 2008, 25(1):6-11.
	SUN Zhihong, WEI Qinping, YANG Chaoxuan, et al. Relationships between distribution of shoots,leaves and temperature, relative humidity in the canopy of Red Fuji apple trees[J]. Journal of Fruit Science, 2008, 25(1):6-11.
[9]	王建新, 牛自勉. 叶幕结构与光合作用的关系研究[J]. 中国农学通报, 2008, 24(11): 302-306.
	WANG Jianxin, NIU Zimian. The study of relationships between canopy structure and photosynthesis[J]. Chinese Agricultural Science Bulletin, 2008, 24(11): 302-306. DOI
[10]	姜仲书, 张光伦, 江国良, 等. 金冠苹果树冠内光质构成及其与果实品质的相关性[J]. 果树学报, 2008, 25(5): 625-629.
	JIANG Zhongshu, ZHANG Guanglun, JIANG Guoliang, et al. Study on light component and its correlation with fruit quality in canopy of Golden Delicious apple tree[J]. Journal of Fruit Science, 2008, 25(5): 625-629.
[11]	Devlin P F, Christie J M, Terry M J. Many hands make light work[J]. Journal of Experimental Botany, 2007, 58(12): 3071-3077. PMID
[12]	Paradiso R, Proietti S. Light-quality manipulation to control plant growth and photomorphogenesis in greenhouse horticulture: the state of the art and the opportunities of modern LED systems[J]. Journal of Plant Growth Regulation, 2022, 41(2): 742-780.
[13]	Wang X T, Dou Y W, Chen X L, et al. Effects of blue light on anthocyanin biosynthesis in postharvest fruit of purple sweet pepper at different ripening stages[J]. Plant Physiology, 2022, 58(8): 1507-1518.
[14]	Rozendaal D M A, Hurtado V H, Poorter L. Plasticity in leaf traits of 38 tropical tree species in response to light; relationships with light demand and adult stature[J]. Functional Ecology, 2006, 20(2): 207-216.
[15]	李冬林, 金雅琴, 崔梦凡, 等. 遮光对连香树幼苗光合特性及其叶片解剖结构的影响[J]. 西北植物学报, 2019, 39(6): 1053-1063.
	LI Donglin, JIN Yaqin, CUI Mengfan, et al. Photosynthetic characteristics and leaf anatomical structure of Cercidiphyllum japonicum seedlings under shading condition[J]. Acta Botanica Boreali-Occidentalia Sinica, 2019, 39(6): 1053-1063.
[16]	李彬, 赫凤彩, 王泓翔, 等. 不同光照强度对4种禾本科牧草幼苗定居的影响[J]. 草原与草业, 2022, 34(4): 32-37, 52.
	LI Bin, HE Fengcai, WANG Hongxiang, et al. Effects of different light intensities on seedling settlement of 4 gramineous forges[J]. Grassland and Prataculture, 2022, 34(4): 32-37, 52.
[17]	陆秋农. 我国苹果的分布区划与生态因子[J]. 中国农业科学, 1980, 13(1): 46-51.
	LU Qiunong. The distribution and ecologic factors of apples in China[J]. Scientia Agricultura Sinica, 1980, 13(1): 46-51.
[18]	杨振伟, 周延文, 付友, 等. 富士苹果不同冠形微气候特征与果品质量关系的研究[J]. 应用生态学报, 1998, 9(05):86-90.
	YANG zhenwei, ZHOU Yanwen, FU You, et al. Relationship between microclimatic character of different crown types and fruit quality of Fuji apple[J]. Chinese Journal of Applied Ecology, 1998, 9(5):86-90.
[19]	王菱, 倪建华. 黄土高原湿润期特点与农业生产布局[J]. 自然资源学报, 1991,(1):71-79.
	WANG Ling, NI Jianhua. The characteristics of the humid period and the rational layout of the agricultural production in the loess plated[J]. Journal of Natural Resources, 1991,(1):71-79.
[20]	张新亮. 黄瓜高产栽培管理技术要点[J]. 南方农业, 2022, 16(4): 7-9.
	ZHANG Xinliang. Key points of cucumber high-yield cultivation management technology[J]. South China Agriculture, 2022, 16(4): 7-9.
[21]	周鑫, 冯改利, 李治红, 等. 环境条件对黄瓜硅吸收分配和果面蜡粉形成的影响[J]. 应用生态学报, 2020, 31(2): 501-507. DOI
	ZHOU Xin, FENG Gaili, LI Zhihong, et al. Effects of environmental conditions on absorption and distribution of silicon and formation of bloom on fruit surface of cucumber[J]. Chinese Journal of Applied Ecology, 2020, 31(2): 501-507. DOI
[22]	王雨, 斯琴, 马云英, 等. 枣提质增效关键技术一枣园疏密改造和大树移栽[J]. 新疆林业, 2021,(1): 28-29.
	WANG Yu, SI Qin, MA Yunqin, et al. Key techniques for improving quality and increasing efficiency of jujube-dense and dense transformation of jujube orchard and transplanting of big trees[J]. Forestry of Xinjiang, 2021, (1): 28-29.
[23]	曹海汝. 喀什地区红枣秋冬季生产管理要点[J]. 新疆林业, 2020,(1): 38-39.
	CAO Hairu. Key points of jujube production management in autumn and winter in Kashi Area[J]. Forestry of Xinjiang, 2020, (1): 38-39.
[24]	胡文军, 艾麦提·艾麦尔. 若羌县红枣提质增效标准化示范园建设概述[J]. 新疆农业科技, 2018, (2): 51-52.
	HU Wenjun, Aimaiti Aimaier. Overview on the construction of standardized demonstration park for improving quality and increasing efficiency of jujube in Ruoqiang County[J]. Xinjiang Agricultural Science and Technology, 2018, (2): 51-52.
[25]	段晓凤, 李红英, 卫建国, 等. 旱区果园晚霜冻日的温湿度时空分布及变化规律[J]. 陕西农业科学, 2019, 65(11): 73-78, 104.
	DUAN Xiaofeng, LI Hongying, WEI Jianguo, et al. Temporal and spatial distribution and variation law of temperature and humidity in orchard on late frost day in arid area[J]. Shaanxi Journal of Agricultural Sciences, 2019, 65(11): 73-78, 104.
[26]	汤博艺. 光质对植物生长发育的影响[J]. 现代园艺, 2021, 44(8): 10-12.
	TANG Boyi. Effect of light quality on plant growth and development[J]. Contemporary Horticulture, 2021, 44(8): 10-12.
[27]	许大全, 高伟, 阮军. 光质对植物生长发育的影响[J]. 植物生理学报, 2015, 51(8): 1217-1234.
	XU Daquan, GAO Wei, RUAN Jun. Effects of light quality on plant growth and development[J]. Plant Physiology Journal, 2015, 51(8): 1217-1234.
[28]	袁景军, 张林森, 赵政阳, 等. 大改形对富士苹果密植树生长结果和效益的影响[J]. 西北林学院学报, 2003, 18(4): 60-62.
	YUAN Jingjun, ZHANG Linsen, ZHAO Zhengyang, et al. Effect of modifying tree form on growth and fruiting in fuji apple high-density orchards[J]. Journal of Northwest Forestry University, 2003, 18(4): 60-62.
[29]	任毛飞, 毛桂玲, 刘善振, 等. 光质对植物生长发育、光合作用和碳氮代谢影响的研究进展[J]. 植物生理学报, 2023, 59(7):1-18.
	REN Maofei, MAO Guiling, LIU Shanzhen, et al. Research progress on the effects of light quality on plant growth and development, photosynthesis, carbon and nitrogen metabolism[J]. Plant Physiology Journal, 2023, 59(7):1-18.

项目 Items	下部 Underpart (t)	下部 Underpart (CK)	上部 Upside (t)	上部 Upside (CK)

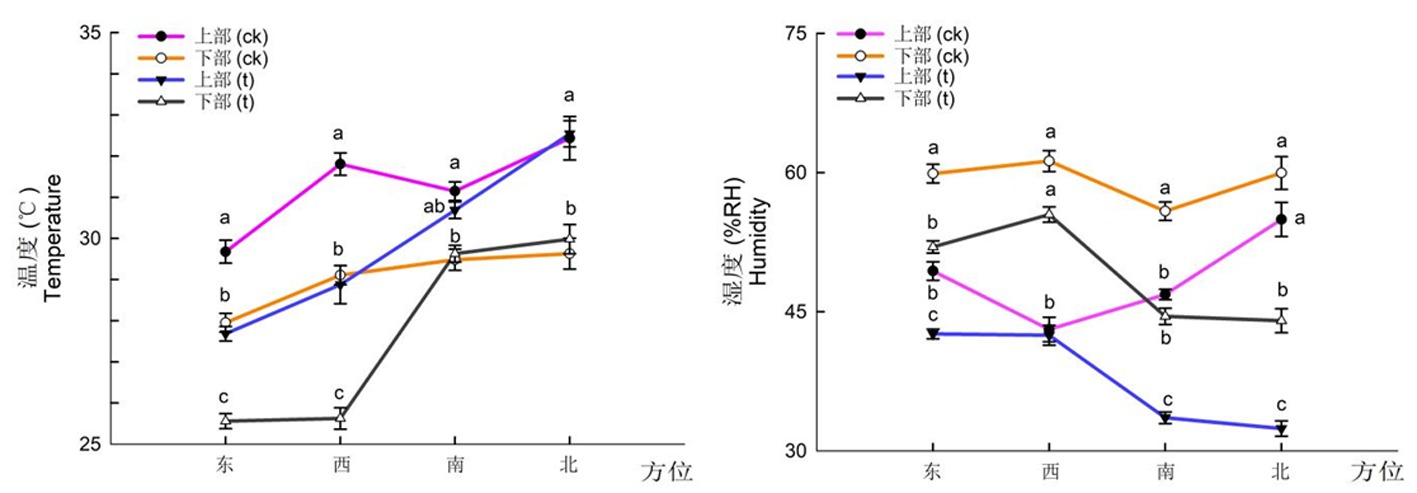

温度 Temperature(℃)	26.63±1.267^c	29.04±0.759^b	29.12±1.210^b	31.27±1.183^a

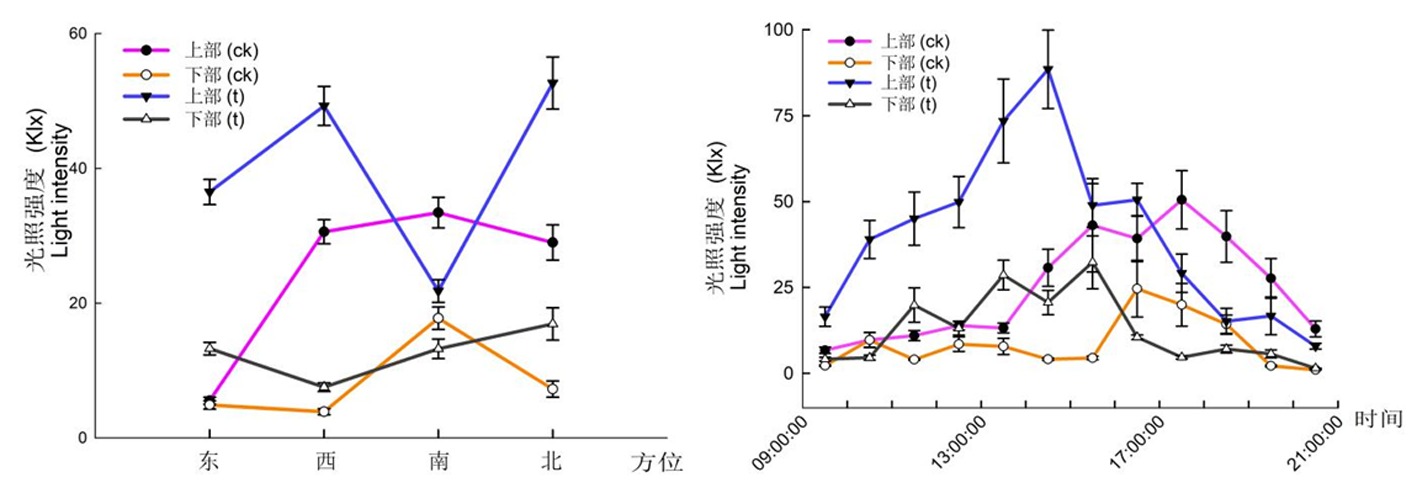

光照强度 Light intensity(klx)	12.52±3.793^ab	7.19±3.967^a	41.74±9.450^a	24.64±12.874^b
湿度 Humidity(%RH)	44.54±1.796^b	58.75±2.367^a	38.26±5.504^c	48.57±4.980^b

项目 Items	下部 Underpart (t)	下部 Underpart (CK)	上部 Upside (t)	上部 Upside (CK)
温度 Temperature(℃)	26.63±1.267^c	29.04±0.759^b	29.12±1.210^b	31.27±1.183^a
光照强度 Light intensity(klx)	12.52±3.793^ab	7.19±3.967^a	41.74±9.450^a	24.64±12.874^b
湿度 Humidity(%RH)	44.54±1.796^b	58.75±2.367^a	38.26±5.504^c	48.57±4.980^b

光质 Light quality	高度 Altitude(m)	处理 Treatments	半径1 m Radius 1m	半径2 m Radius 2m	半径3 m Radius 3m
紫外光 Ultraviolet light (310~400 nm)	1	t	0.24±0.107 3^a	0.28±0.093 2^a	0.3±0.071 4^a
	1	CK	0.15±0.087 3^c	0.13±0.072 4^d	0.12±0.074 3^c
	2	t	0.21±0.080 6^b	0.25±0.075 7^b	0.28±0.080 5^a
	2	CK	0.21±0.065 4^ab	0.18±0.072 5^c	0.16±0.079 7^b
蓝紫光 Blue-violet light (410~510 nm)	1	t	0.18±0.072 4^a	0.23±0.046 7^a	0.25±0.006 6^a
	1	CK	0.11±0.059 8^c	0.09±0.009 3^d	0.08±0.008 6^d
	2	t	0.14±0.006 5^b	0.18±0.005 9^b	0.22±0.060 2^b
	2	CK	0.18±0.006 5^a	0.13±0.021^c	0.11±0.041 6^c
黄绿光 Greenish-yellow light (510~610 nm)	1	t	0.18±0.074 4^a	0.24±0.045 9^a	0.25±0.007^a
	1	CK	0.12±0.061 9^b	0.09±0.010 9^d	0.08±0.009^d
	2	t	0.13±0.007 6^b	0.18±0.005^b	0.22±0.060 7^b
	2	CK	0.18±0.006 8^a	0.13±0.021 2^c	0.12±0.042 3^c
红橙光 Reddish orange light (610~710 nm)	1	t	0.18±0.073 9^a	0.24±0.043 7^a	0.25±0.009 3^a
	1	CK	0.12±0.061 9^b	0.09±0.013 1^d	0.08±0.011 5^d
	2	t	0.13±0.011 6^b	0.18±0.010 4^b	0.22±0.061 7^b
	2	CK	0.18±0.010 1^a	0.13±0.022 4^c	0.12±0.044 8^c
近红外 Near infrared (710~760 nm)	1	t	0.27±0.073 4^a	0.32±0.061 1^a	0.34±0.039 3^a
	1	CK	0.18±0.064 1^b	0.17±0.030 1^c	0.16±0.028 2^c
	2	t	0.24±0.04^a	0.31±0.048 1^a	0.35±0.061 3^a
	2	CK	0.27±0.032 7^a	0.23±0.039 4^b	0.22±0.050 1^b
远红外 Far infrared (760~1130 nm)	1	t	0.37±0.084^a	0.41±0.076 4^a	0.42±0.053 3^a
	1	CK	0.25±0.069 9^d	0.24±0.047 8^c	0.23±0.047 5^c
	2	t	0.33±0.047 2^c	0.4±0.043 9^a	0.42±0.050 6^a
	2	CK	0.34±0.039 1^b	0.31±0.044 7^b	0.29±0.054 7^b

光质 Light quality	高度 Altitude(m)	处理 Treatments	半径1 m Radius 1m	半径2 m Radius 2m	半径3 m Radius 3m
紫外光 Ultraviolet light (310~400 nm)	1	t	0.24±0.107 3^a	0.28±0.093 2^a	0.3±0.071 4^a
	1	CK	0.15±0.087 3^c	0.13±0.072 4^d	0.12±0.074 3^c
	2	t	0.21±0.080 6^b	0.25±0.075 7^b	0.28±0.080 5^a
	2	CK	0.21±0.065 4^ab	0.18±0.072 5^c	0.16±0.079 7^b
蓝紫光 Blue-violet light (410~510 nm)	1	t	0.18±0.072 4^a	0.23±0.046 7^a	0.25±0.006 6^a
	1	CK	0.11±0.059 8^c	0.09±0.009 3^d	0.08±0.008 6^d
	2	t	0.14±0.006 5^b	0.18±0.005 9^b	0.22±0.060 2^b
	2	CK	0.18±0.006 5^a	0.13±0.021^c	0.11±0.041 6^c
黄绿光 Greenish-yellow light (510~610 nm)	1	t	0.18±0.074 4^a	0.24±0.045 9^a	0.25±0.007^a
	1	CK	0.12±0.061 9^b	0.09±0.010 9^d	0.08±0.009^d
	2	t	0.13±0.007 6^b	0.18±0.005^b	0.22±0.060 7^b
	2	CK	0.18±0.006 8^a	0.13±0.021 2^c	0.12±0.042 3^c
红橙光 Reddish orange light (610~710 nm)	1	t	0.18±0.073 9^a	0.24±0.043 7^a	0.25±0.009 3^a
	1	CK	0.12±0.061 9^b	0.09±0.013 1^d	0.08±0.011 5^d
	2	t	0.13±0.011 6^b	0.18±0.010 4^b	0.22±0.061 7^b
	2	CK	0.18±0.010 1^a	0.13±0.022 4^c	0.12±0.044 8^c
近红外 Near infrared (710~760 nm)	1	t	0.27±0.073 4^a	0.32±0.061 1^a	0.34±0.039 3^a
	1	CK	0.18±0.064 1^b	0.17±0.030 1^c	0.16±0.028 2^c
	2	t	0.24±0.04^a	0.31±0.048 1^a	0.35±0.061 3^a
	2	CK	0.27±0.032 7^a	0.23±0.039 4^b	0.22±0.050 1^b
远红外 Far infrared (760~1130 nm)	1	t	0.37±0.084^a	0.41±0.076 4^a	0.42±0.053 3^a
	1	CK	0.25±0.069 9^d	0.24±0.047 8^c	0.23±0.047 5^c
	2	t	0.33±0.047 2^c	0.4±0.043 9^a	0.42±0.050 6^a
	2	CK	0.34±0.039 1^b	0.31±0.044 7^b	0.29±0.054 7^b
