Development and Performance Test of Auto-Control Fertilization Equipment

doi:10.6048/j.issn.1001-4330.2021.12.009

Abstract

Abstract:

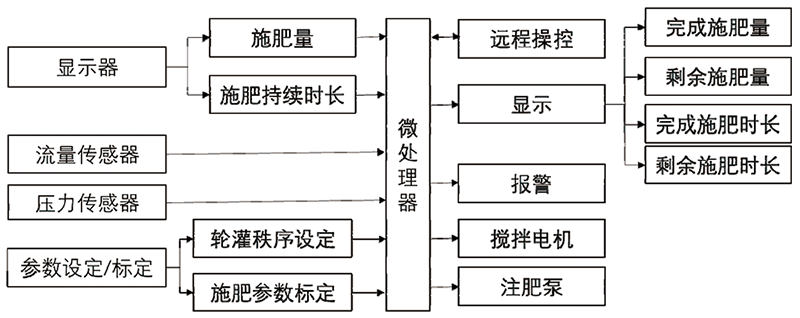

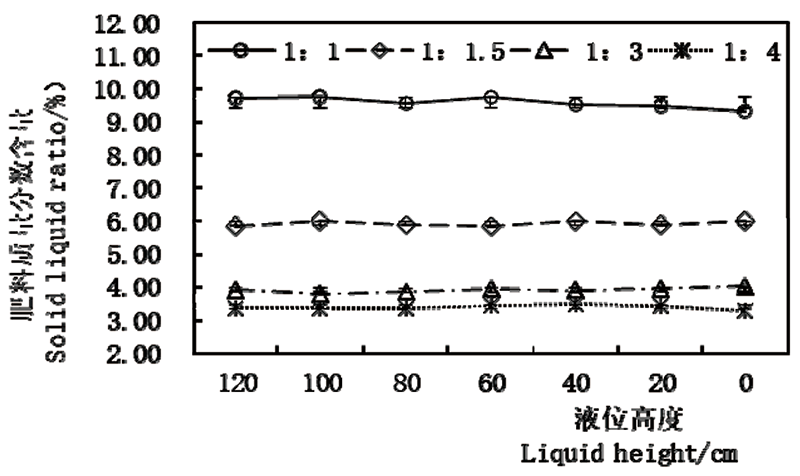

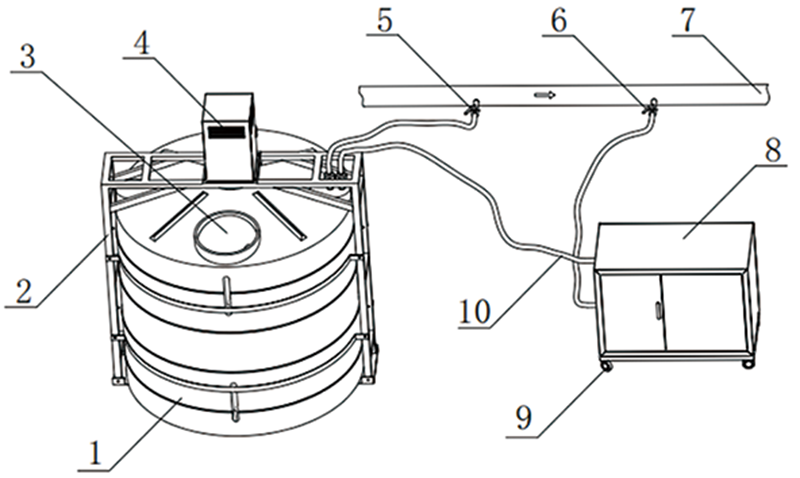

【Objective】 Development and Performance Test of Auto-Control Fertilization Equipment.In this paper, an automatic fertilization system of fertigation for solid soluble fertilizer was developed and its performance was tested. 【Methods】 The system was composed of the mainframe and fertilizer storage mixing assembly. ARM9 circuit control module was used to complete the setting of rotational irrigation grouping, premixing time, beginning and end time of fertilization, duration of fertilization, and fertilizer amount. It was equipped with a screw pump as fertilizer injection device, a transducer control regulating the motor power of fertilizer injection pump, and then the amount of fertilizer application was controlled. This paper mainly designed and tested the main parameters that would affect the performance of the device, such as the measurement method, the mixing parameters of dissolved fertilizer, the discharging speed of fertilizer and the ratio of liquid to solid. 【Results】 The results showed that among the three alternative metering methods (timing metering, flowmeter metering and pulse metering), the standard error of inductive pulse metering method was the lowest, which was ±0.83L/50L, and met the control requirements of error design. Therefore, it was determined as the metering method adopted by this device. By the stirring system with 38 r/min, the concentration of fertilizer solution with 1.1-1.3 g/mL, and the premixing time with 30 min, there was no significant difference (P < 0.05) of the concentration of fertilizer solution at each liquid level in the tank. 【Conclusion】 Therefore, the machine designed in this paper can greatly improve the automation level for fertigation and reduce the labor intensity of fertilization in field crop. It has broad applicability and popularity in our facility crop production.

Key words: automatic fertilization system; fertilization precision; fertilizer concentration; churning time; speed of agitator

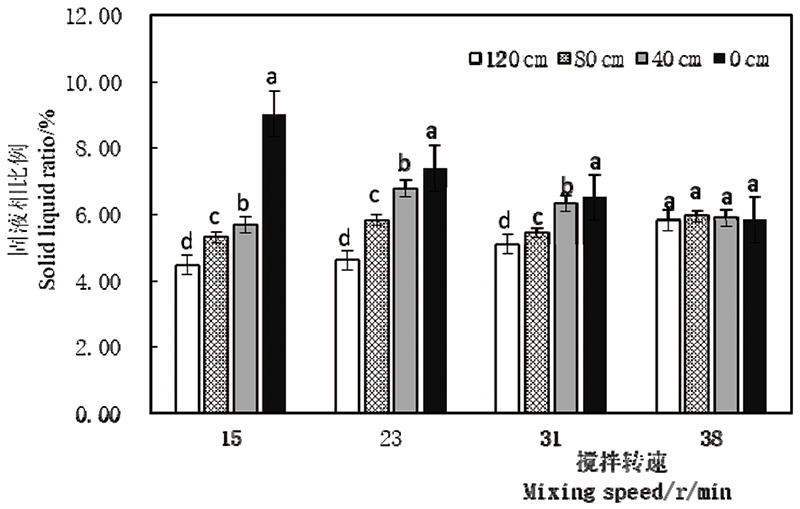

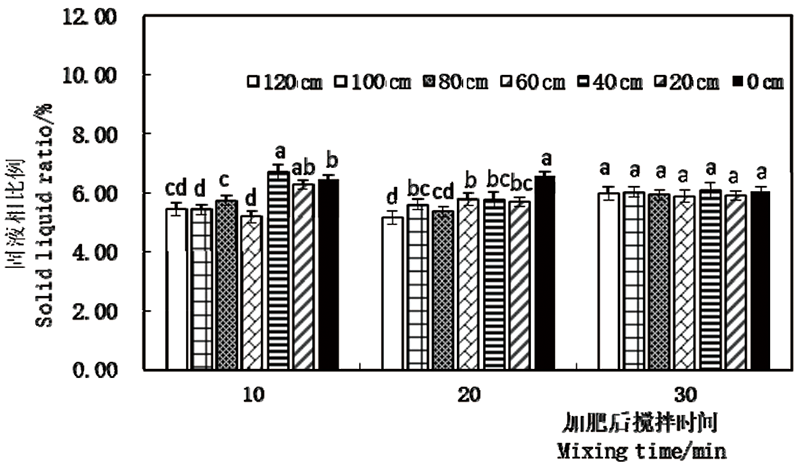

摘要： 目的开发一种适应于以固态水溶肥为原料的自动施肥系统,测试分析自动施肥系统性能。方法主控机采用ARM9电路控制模块可实现对轮灌编组、预搅拌时长、施肥开始与结束时间、施肥持续时长、施肥量等参数的设置;选择以蠕动泵为注肥装置,通过变频器控制注肥泵电机功率的方式控制注肥速率,控制施肥量。对装置核心部件搅拌器额定功率、计量方式、溶肥搅拌参数、排肥速度及固液相比例等主要参数等进行设计与测试。结果电感脉冲计量方式标准误差最大值1.26%,误差小、性价比好,确定其为本装置采用的计量方式;搅拌器以1.5 Kw额定功率、38 r/min转速搅拌、肥液浓度在1.1~1.3 g/mL、预搅拌时间30 min时,罐内各液位输出肥液浓度值差异不显著(P< 0.05),达到对肥料浓度均匀性的设计要求。结论将施肥开始前的预搅拌时间设为30 min、搅拌转速设为38 r/min、肥液浓度不高于1.3 g/mL,输出肥液浓度有较好的均匀性,实现精准施肥。

关键词: 自动施肥系统, 施肥精度, 肥液浓度, 搅拌时间, 搅拌转速

CLC Number:

S224

LI Mingren, LU Yang, LI Dongyan, ZHANG Wangang, MA Qingan, HE Zheng, LIU Yang, MA Fuyu. Development and Performance Test of Auto-Control Fertilization Equipment[J]. Xinjiang Agricultural Sciences, 2021, 58(12): 2228-2235.

李明仁, 芦阳, 李东燕, 张万罡, 马庆安, 贺正, 刘扬, 马富裕. 自动施肥系统开发与性能测试[J]. 新疆农业科学, 2021, 58(12): 2228-2235.

Figures/Tables 10

References 23

[1]	李道亮. 系统布局无人农场推进我国现代农业发展[J]. 人民论坛·学术前沿, 2020,(24):56-61.
	LI Daoliang. Unmanned farm system layout promotes the development of modern agriculture in China[J]. People's Forum · Academic Frontiers, 2020, (24):56-61.
[2]	中国农资刊讯. 农业部:2020年实现农药化肥用量零增长[J]. 中国农资, 2014,(44):3.
	Ministry of agriculture: Zero growth in the use of pesticides and fertilizers will be achieved by 2020[J]. China Agricultural Materials Bulletin, 2014,(44):3.
[3]	郑阔实. 智慧农业驱动农业现代化创新发展思考[J]. 合作经济与科技, 2021,(6):30-31.
	ZHENG Kuoshi. Smart agriculture drives innovation and development of agricultural modernization.[J]. Cooperative economy and science & technology, 2021, (6):30-31.
[4]	许文其, 宋时雨, 杨昊霖, 等. 滴灌水肥一体化技术研究进展[J]. 现代农业科技, 2018,(3):196-197.
	XU Wenqi, SONG Shiyu, YANG Haoling, et al. Research progress of drip fertigation technology[J]. Modern agricultural science and technology, 2018,(3):196-197.
[5]	李寒松, 贾振超, 张锋, 等. 国内外水肥一体化技术发展现状与趋势[J]. 农业装备与车辆工程, 2018,56(6):13-16.
	LI Hansong, JIA Zhenchao, ZHANG Feng, et al. Current development status and trend of fertigation technology at Home and abroad[J]. Nonye Zhuangbei Yu Cheliang Gongcheng, 2018,56(6):13-16.
[6]	马富裕, 刘扬, 崔静, 等. 水肥一体化研究进展[J]. 新疆农业科学, 2019,56(1):183-192.
	MA Fuyu, LIU Yang, CUI Jing, FAN Hua, et al. Review on the research Progress of Water and Fertilizer Integration[J]. Xinjiang Agricultural Sciences, 2019,56(1):183-192.
[7]	Kumar D S, Sharma R, Brar A S. Optimising drip irrigation and fertigation schedules for higher crop and water productivity of oilseed rape (Brassica napus L.)[J]. Irrigation Science, 2021: 714-727.
[8]	陈静, 王迎春, 李虎, 等. 滴灌施肥对免耕冬小麦水分利用及产量的影响[J]. 中国农业科学, 2014,47(10):1966-1975.
	CHEN Jing, WANG Yingchun, LI Hu, et al. Effects of Drip Fertigation with No-Tillage on Water Use Efficiency and Yield of Winter Wheat[J]. Scientia Agricultura Sinica, 2014,47(10), 1966-1975 .
[9]	邢英英, 张富仓, 张燕, 等. 膜下滴灌水肥耦合促进番茄养分吸收及生长[J]. 农业工程学报, 2014,30(21):70-80.
	XING Yingying, ZHANG Fucang, ZHANG Yan, et al. Irrigation and fertilization coupling of drip irrigation under plastic film promotes tomato’s nutrient uptake and growth[J]. Transactions of the Chinese Society of Agricultural Engineering, 2014,30(21):70-80.
[10]	HOU Zhenan, LI Pinfang, LI Baoguo, et al. Effects of fertigation scheme on N uptake and N use efficiency in cotton[J]. Plant and Soil, 2007,290(1-2):2342-2352.
[11]	韩启彪, 冯绍元, 黄修桥, 等. 滴灌压差施肥技术研究概况与发展趋势[J]. 中国农村水利水电, 2014,(9):1-4.
	HAN Qibiao, FENG Shaoyuan, HUANG Xiuqiao, et al. Research on the pressure differential fertilization of drip irrigation[J]. China Rural Water and Hydropower, 2014,(9):1-4.
[12]	陈剑, 吕新. 滴灌棉田压差式施肥罐注肥均匀度研究与分析[J]. 节水灌溉, 2011,(1):62-64.
	CHEN Jian, LÜ Xin. Study on fertilization uniformity of pressure differential tank in drip irrigation cotton field[J]. Water-saving Irrigation, 2011,(1):62-64.
[13]	Mohseni A, Hosseini H M, Fariborz A. Evaluation of furrow fertigation on Nitrogen supply and losses as a function of maize growth stages[J]. SN Applied Sciences, 2021,3(1):1-13.
[14]	Divya S K, Sharma R, Brar A S. Optimising drip irrigation and fertigation schedules for higher crop and water productivity of oilseed rape ( Brassica napus L.)[J]. Irrigation Science, 2021.
[15]	Nasrin A, Javad B, Vahid R, et al. Evaluation of fertigation management impacts of surface drip irrigation on reducing nitrate leaching using numerical modeling[J]. Environmental Science and Pollution Research International, 2019,26(36):1234-1245.
[16]	王毅, 邓波, 张丽. 施肥机在水肥一体化系统中的研究现状及发展前景分析[J]. 灌溉排水学报, 2016,35(S1):34-36.
	WANG Yi, DENG Bo, ZHANG Li. Present situation and development prospect analysis of fertilizer distributor in fertigation system[J]. Journal of Irrigation and Drainage, 2016,35(S1):34-36.
[17]	李寒松, 贾振超, 张锋, 等. [J]. 农业装备与车辆工程, 2018,56(6):13-16.
[18]	Nkoa R, Desjardins Y, Tremblay N, et al. A mathematical model for Nitrogen demand quantification and a Link to broccoli (Brassica oleracea var. italica) glutamine synthetase activity[J]. Plant Science, 2003,165(3):483-496.
[20]	陈志希, 谢明辉, 周国忠, 等. 24种搅拌器的功率曲线[J]. 化学工程, 2010,38(3):38-43.
	CHEN Zhixi, XIE Minghui, ZHOU Guozhong, et al. Power curves of 24 types of mixers[J]. Chemical Engineering, 2010,38(3):38-43.
[21]	马沛生, 夏淑倩, 夏清. 化工物性数据简明手册[M]. 北京: 化学工业出版社, 2013.
	MA Peisheng, XIA Shuqian, XIA Qing. Chemical Property Data Brief Manual [M]. Beijing: Chemical Industry Press, 2013.
[22]	华东化工学院分析化学教研组, 成都科学技术大学分析化学教研组. 分析化学.3版[M]. 北京: 高等教育出版社, 1989.
	Analytical Chemistry Teaching and Research Group of East China University of Chemical Technology, Analytical Chemistry Teaching and Research Group of Chengdu University of Science and Technology. Analytical Chemistry[M]. Beijing: Higher Education Press, 1989.
[23]	贾海洋, 唐克伦, 唐永亮, 等. 搅拌槽内部固-液悬浮流场的数值模拟及实验研究[J]. 机械设计与制造, 2013,(5):170-172.
	JIA Haiyang, TANG Kelun, TANG Yongliang, et al. Numerical Simulation and Experimental Study of Solid-Liquid Internal Flow Field in Stirred Tank[J]. Machinery Desing & Manufacture, 2013,(5):170-172.

项目 Projects	技术指标、参数 Technical indicators and parameters
主控机外形尺寸(长×宽×高) Dimensions (length × width × height) (mm×mm×mm)	1 200×600×800
罐体外形尺寸(直径×高) Dimensions of fertilizer storage tank(diameter ×height)(mm×mm)	2 000×2 200
整机质量 Machine weight(kg)	400

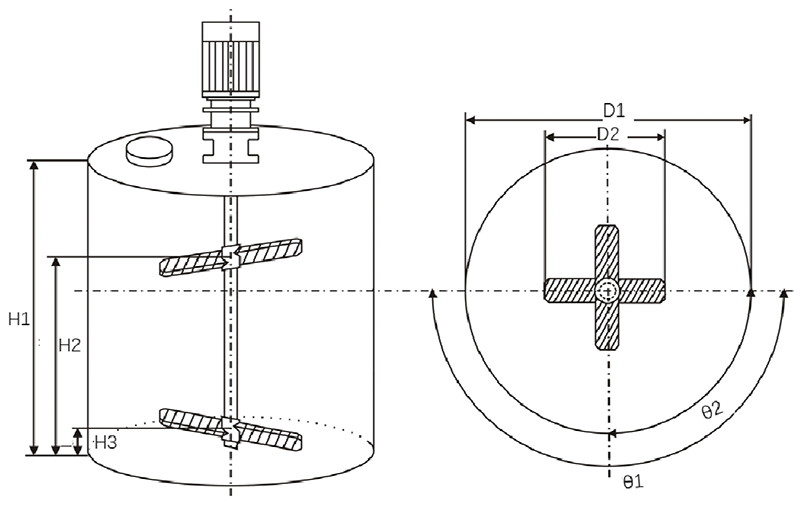

搅拌器直径(d) Agitator diameter(mm)	1 000
贮肥罐容量 Fertilizer tank capacity(m³)	6
允许最大投肥量 Maximum fertilizer dosage allowed(t)	3
注肥方式 Injection fertilizer method	电感脉冲式
注肥口最大压力 Maximum pressure value of injection(MPa)	1.0

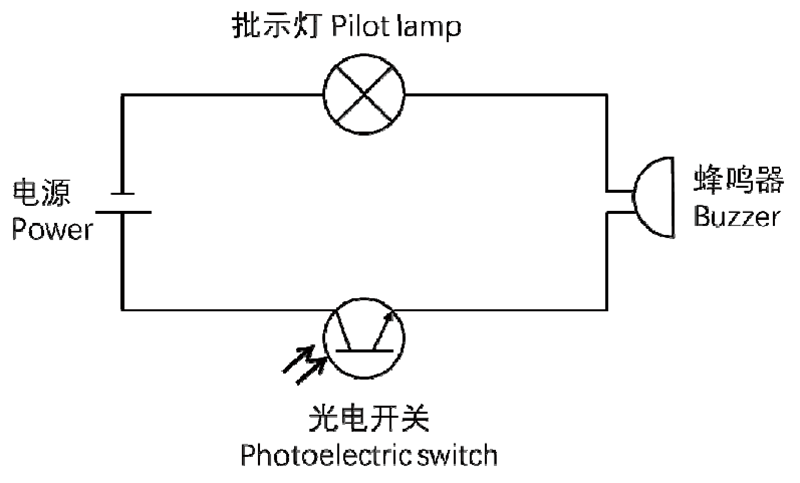

报警最低液位 Alarm of minimum liquid level(mm)	100
施肥量程 Amount range of fertilizer solution injected(L/h)	200~2 000

项目 Projects	技术指标、参数 Technical indicators and parameters
主控机外形尺寸(长×宽×高) Dimensions (length × width × height) (mm×mm×mm)	1 200×600×800
罐体外形尺寸(直径×高) Dimensions of fertilizer storage tank(diameter ×height)(mm×mm)	2 000×2 200
整机质量 Machine weight(kg)	400
搅拌器直径(d) Agitator diameter(mm)	1 000
贮肥罐容量 Fertilizer tank capacity(m³)	6
允许最大投肥量 Maximum fertilizer dosage allowed(t)	3
注肥方式 Injection fertilizer method	电感脉冲式
注肥口最大压力 Maximum pressure value of injection(MPa)	1.0
报警最低液位 Alarm of minimum liquid level(mm)	100
施肥量程 Amount range of fertilizer solution injected(L/h)	200~2 000

计量方法	管道压力 (bar)	设定值 (L)	实际值 Actual value/L				误差 (%)
计量方法	管道压力 (bar)	设定值 (L)	16.7 (L/min)	12.5 (L/min)	10.0 (L/min)	8.3 (L/min)	误差 (%)
电感脉冲计量法	0.0	50	50.12	50.03	49.64	49.94	0.84
	0.5	50	50.23	50.07	49.63	50.25	0.88
	1.0	50	50.09	50.55	49.66	50.47	1.17
	1.5	50	50.17	50.43	49.92	50.39	0.79
	2.0	50	50.07	50.41	49.77	50.39	0.82
	2.5	50	49.86	50.11	49.85	50.36	1.26
电磁流量计量法	0.0	50	50.04	49.92	50.28	49.86	0.71
	0.5	50	50.17	50.11	49.83	50.19	0.69
	1.0	50	50.19	49.87	50.15	50.18	0.59
	1.5	50	50.07	49.99	50.01	50.27	1.01
	2.0	50	50.08	50.14	50.17	50.2	0.79
	2.5	50	50.43	49.98	49.75	50.15	0.98
计时计量法	0.0	50	50.61	50.79	50.93	51.21	2.45
	0.5	50	50.03	50.71	50.88	51.02	2.03
	1.0	50	50.68	50.35	50.84	50.96	1.92
	1.5	50	50.51	50.65	50.78	51.21	2.50
	2.0	50	50.53	50.64	50.93	51.02	2.07
	2.5	50	50.57	50.78	50.89	51.16	2.33

计量方法	管道压力 (bar)	设定值 (L)	实际值 Actual value/L				误差 (%)
计量方法	管道压力 (bar)	设定值 (L)	16.7 (L/min)	12.5 (L/min)	10.0 (L/min)	8.3 (L/min)	误差 (%)
电感脉冲计量法	0.0	50	50.12	50.03	49.64	49.94	0.84
	0.5	50	50.23	50.07	49.63	50.25	0.88
	1.0	50	50.09	50.55	49.66	50.47	1.17
	1.5	50	50.17	50.43	49.92	50.39	0.79
	2.0	50	50.07	50.41	49.77	50.39	0.82
	2.5	50	49.86	50.11	49.85	50.36	1.26
电磁流量计量法	0.0	50	50.04	49.92	50.28	49.86	0.71
	0.5	50	50.17	50.11	49.83	50.19	0.69
	1.0	50	50.19	49.87	50.15	50.18	0.59
	1.5	50	50.07	49.99	50.01	50.27	1.01
	2.0	50	50.08	50.14	50.17	50.2	0.79
	2.5	50	50.43	49.98	49.75	50.15	0.98
计时计量法	0.0	50	50.61	50.79	50.93	51.21	2.45
	0.5	50	50.03	50.71	50.88	51.02	2.03
	1.0	50	50.68	50.35	50.84	50.96	1.92
	1.5	50	50.51	50.65	50.78	51.21	2.50
	2.0	50	50.53	50.64	50.93	51.02	2.07
	2.5	50	50.57	50.78	50.89	51.16	2.33
