Experimental analysis of thermal insulation material of solar greenhouses in Xinjiang

doi:10.6048/j.issn.1001-4330.2025.02.020

Abstract

Abstract:

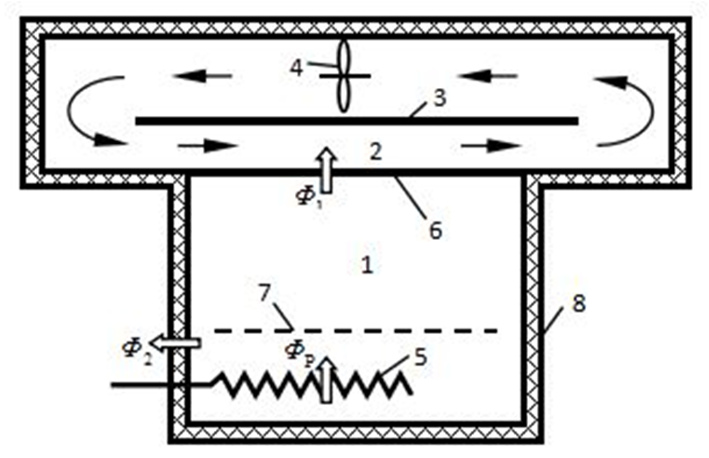

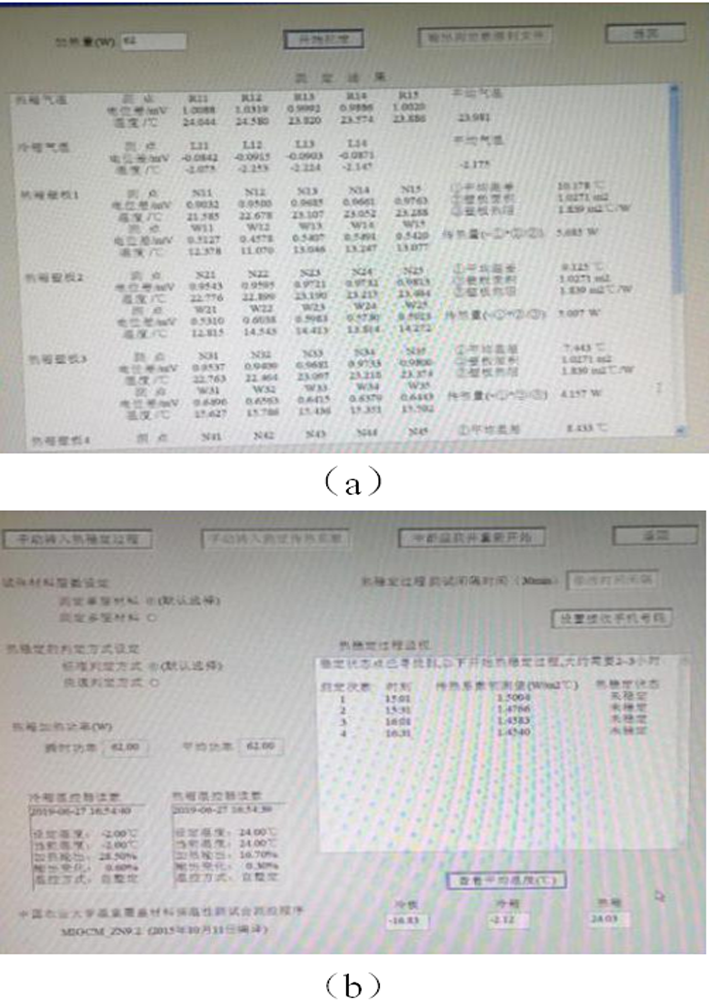

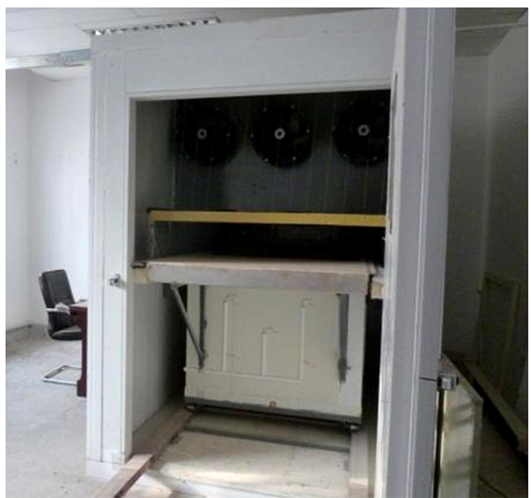

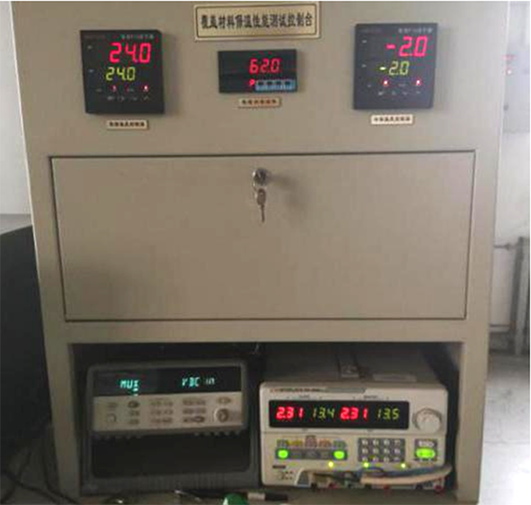

【Objective】This project aims to clarify the basis for selecting the heat-retaining quilt material and choosing the heat-retaining quilt of every layer material suitable for the cost performance and safety of the greenhouse.The finding from research has provided a reasonable basis and reference for the design, selection, operation and maintenance of heat-retaining materials for the greenhouse.【Methods】The heat-retaining characteristics of the heat-retaining quilt were indicated by heat transfer coefficient, which was measured by using a static hot box test method. Under the status of one-dimensional stable heat transfer, the air temperature differences on both sides of the cover material specimen and the heat flow rate through the part were measured, and then the heat transfer coefficient and heat transfer resistance of the cover material and other parameters related to heat-retaining performance were calculated by the heat flow rate.【Results】The more heat-retaining material in front of the greenhouse, the more heat transfer resistance, the smaller the heat transfer coefficient, and the better heat-retaining performance. Generally speaking, the heat transfer resistance was between 0.8 to 2.7 (m²·℃)/W. When selecting heat-retaining quilts, the main considerations were heat transfer resistance. The preferred outer material was waterproof material, the intermediate layer material was insulation cotton insulation quilt. Preferred outer material was non-woven fabric, intermediate layer material was pearl cotton, sandwich cotton insulation quilt. When the outer layer of insulation material was non-woven, the intermediate layer material in the quilt was to choose insulation cotton and wool mesh.【Conclusion】The outer layer material is waterproof material, the intermediate material is thermal insulation cotton insulation is suitable for Xinjiang solar greenhouse because of the good cost performance and safety.

Key words: sunlight greenhouse; insulation material; heat transfer coefficient

摘要：

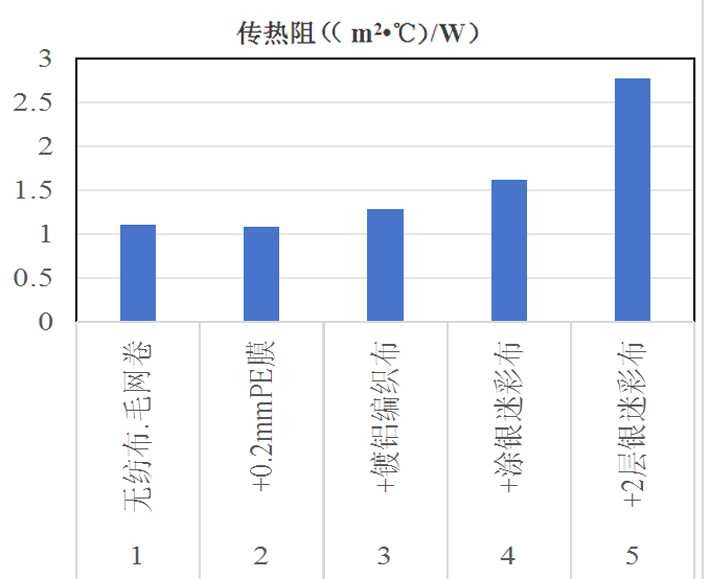

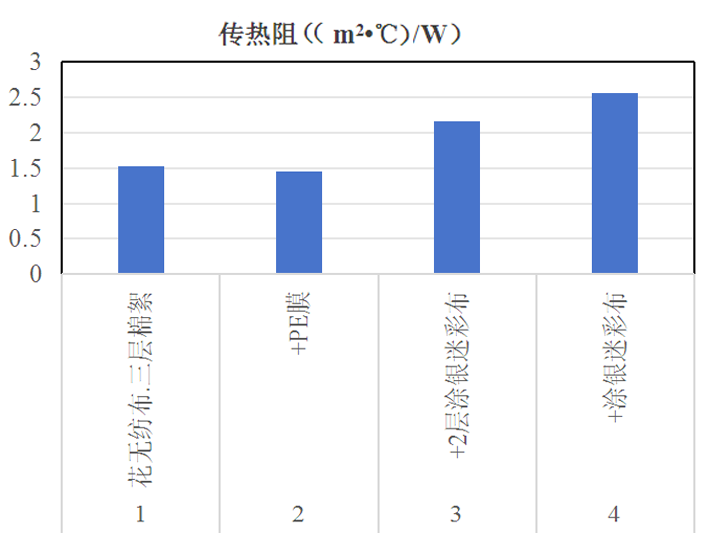

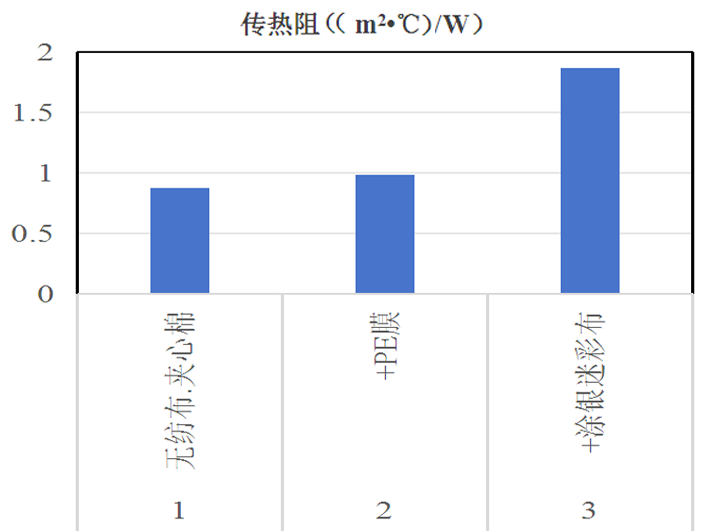

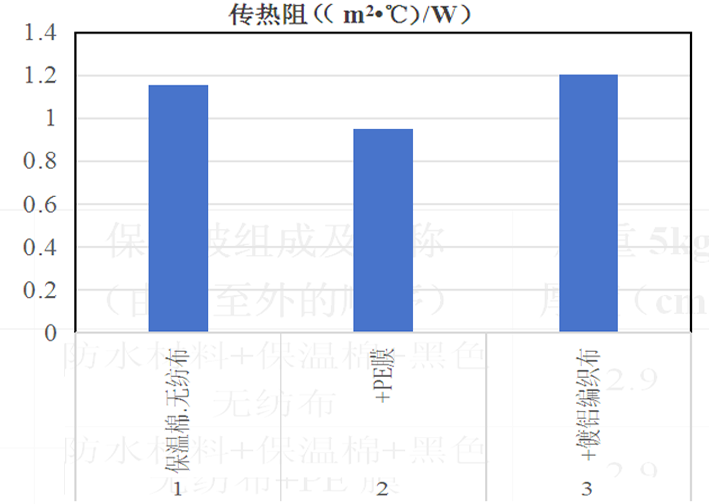

【目的】分析保温被材料选用依据,确定适合日光温室性价比和安全性的保温被各层材料,为日光温室保温材料的设计、选用和使用维护提供合理依据和参考。【方法】保温被的保温特性以传热系数来表征, 保温被的传热系数用静态热箱测试法测量。在一维稳定传热的状态下,测定覆盖材料试件两侧的空气温度差和通过试件的热流量,再根据热流量求得覆盖材料的传热阻等与保温性能有关的参数。【结果】日光温室前屋面保温被材料层数越多,传热阻越大,传热系数变小,保温性能越好。一般保温被传热阻在0.8~2.7 (m²·℃)/W。选择保温被时,主要考虑传热阻。首选外层材料是防水材料、中间材料为保温棉的保温被。优选外层材料无纺布,中间材料珍珠棉、夹心棉的保温被。保温被外层材料均是无纺布时,保温被中间材料选保温棉和毛网卷。【结论】外层材料是防水材料,中间材料是保温棉的保温被适合新疆日光温室,性价比和安全性都好。

关键词: 日光温室, 保温材料, 传热系数

CLC Number:

S625

MA Yuehong, LI Baoming, WANG Pingzhi. Experimental analysis of thermal insulation material of solar greenhouses in Xinjiang[J]. Xinjiang Agricultural Sciences, 2025, 62(2): 426-435.

马月虹, 李保明, 王平智. 新疆日光温室前屋面保温材料保温性能试验分析[J]. 新疆农业科学, 2025, 62(2): 426-435.

Figures/Tables 22

References 23

[1]	Nahar N M, Marshall R H, Brinkworth B J. Investigations of flat plate collectors using transparent insulation materials[J]. International Journal of Solar Energy, 1995, 17(2/3): 117-134.
[2]	张滴滴. 日光温室排管式相变储放热系统的构建与性能[D]. 北京: 中国农业大学, 2019.
	ZHANG Didi. Construction and Application of Tubular Phase-Change Storage and Heat Release System in Solar Greenhouse[D]. Beijing: China Agricultural University, 2019.
[3]	王伟, 张京社, 王引斌. 我国日光温室墙体结构及性能研究进展[J]. 山西农业科学, 2015, 43(4): 496-498, 504.
	WANG Wei, ZHANG Jingshe, WANG Yinbin. The research progress on the structure and the properties of solar greenhouse walls in China[J]. Journal of Shanxi Agricultural Sciences, 2015, 43(4): 496-498, 504.
[4]	马承伟, 苗香雯. 农业生物环境工程[M]. 北京: 中国农业出版社, 2005.
	MA Chengwei, MIAO Xiangwen. Agricultural bio-environmental engineering[M]. Beijing: China Agriculture Press, 2005.
[5]	刘峰. 冬季日光温室的保温性能试验研究[D]. 长春: 吉林大学, 2009.
	LIU Feng. Experimental study on thermal insulation performance of solar greenhouse in winter[D]. Changchun: Jilin University, 2009.
[6]	马承伟, 丁小明, 张义, 王平智, 邓健, 滕光辉. 日光温室覆盖材料保温性能测定方法研究与标准制定[A]. 中国农业科学院、山东省寿光市人民政府.设施园艺研究新进展—2009中国·寿光国际设施园艺高层学术论坛论文集, 2009:8.
	MA Chengwei, DING Xiaoming, ZHANG Yi, Study on the measurement method of thermal insulation performance of solar greenhouse covering materials and formulation of the standard[A]. Chinese Academy of Agricultural Sciences—2009China-houguang International Facility Horticulture Forum, 2009:8.
[7]	杨仁权, 吴松. 新型节能日光温室的设计[J]. 农业机械, 2002,(3): 30-33.
	YANG Renquan, WU Song. A new design of energy-saving sunlight greenhouse[J]. Farm Machinery, 2002,(3): 30-33.
[8]	覃密道, 马承伟, 刘瑞春. 热箱法测定园艺设施覆盖材料传热系数的研究进展[J]. 农业工程学报, 2005, 21(2): 183-186.
	QIN Midao, MA Chengwei, LIU Ruichun. Review of the hot-box methods for measuring the thermal transmittance of greenhouse covering materials[J]. Transactions of the Chinese Society of Agricultural Engineering, 2005, 21(2): 183-186.
[9]	Papadakis G, Briassoulis D, Scarascia Mugnozza G, et al. Review paper (SE—structures and environment)[J]. Journal of Agricultural Engineering Research, 2000, 77(1): 7-38.
[10]	王吉庆, 赵月平, 张百良. 日光温室采用多层内覆盖保温节能效果研究[J]. 农业工程学报, 2005, 21(8):118-121.
	WANG Jiqin, ZHAO Yueping, ZHANG Bailiang. Study on energy-saving effect of multi-layer heat preservation in solar greenhouse[J]. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2005, 21(8):118-121.
[11]	Ozturk H H. Experimental determination of the overall heat loss coefficient for energy requirement of greenhouse heating[J]. International Journal of Energy Research, 2005, 29(10): 937-944.
[12]	Abdel-Ghany A M, Kozai T. On the determination of the overall heat transmission coefficient and soil heat flux for a fog cooled, naturally ventilated greenhouse: analysis of radiation and convection heat transfer[J]. Energy Conversion and Management, 2006, 47(15/16): 2612-2628.
[13]	Geoola F, Kashti Y, Levi A, et al. A study of the overall heat transfer coefficient of greenhouse cladding materials with thermal screens using the hot box method[J]. Polymer Testing, 2009, 28(5): 470-474.
[14]	Teitel M, Barak M, Antler A. Effect of cyclic heating and a thermal screen on the nocturnal heat loss and microclimate of a greenhouse[J]. Biosystems Engineering, 2009, 102(2): 162-170.
[15]	乔正卫, 邹志荣, 张立明, 等. 4种日光温室保温被室内的试验性能测试[J]. 西北农林科技大学学报(自然科学版), 2008, 36(6): 153-158.
	QIAO Zhengwei, ZOU Zhirong, ZHANG Liming, et al. Laboratory test of four kinds of heat preservation quilts for solar greenhouse[J]. Journal of Northwest A & F University (Natural Science Edition), 2008, 36(6): 153-158.
[16]	Feuilloley P, Issanchou G. Greenhouse covering materials measurement and modelling of thermal properties using the hot box method, and condensation effects[J]. Journal of Agricultural Engineering Research, 1996, 65(2): 129-142.
[17]	周景德, 管康雄. 绝热材料及其构件绝热性能测试方法回顾[J]. 房材与应用, 2001, 29(1): 8-11, 24.
	ZHOU Jingde, GUAN Kangxiong. Review of test methods for thermal insulation properties of thermal insulation materials and their components[J]. Housing Materials & Applications, 2001, 29(1): 8-11, 24.
[18]	MA Chengwei, DING Xiaoming, ZHANG Yi, tudy on the measurement method of thermal insulation performance of solar greenhouse covering materials and formulation of the standard, 2016,(6):57-64
[19]	李嘉怡, 马久明, 黎天标, 秦红. 日光温室保温被的研究进展,广东材料发展论坛-战略性新兴产业发展与新材料科技创新研讨会论文集[C]. 2013.
	LI Jiayi, MA Jiuming, LI Tianbiao,. Research progress of thermal insulation quilt in solar greenhouseGuangdong Materials Development Forum-Proceedings of the symposium on the development of strategic emerging industries and scientific and technological innovation of new materials[C]. 2013.
[20]	马承伟, 王平智, 赵淑梅, 等. 日光温室保温被材料及保温性能评价[J]. 农业工程技术, 2018, 38(31): 11-16.
	MA Chengwei, WANG Pingzhi, ZHAO Shumei, et al. Evaluation of thermal insulation materials and thermal insulation performance in solar greenhouse[J]. Agricultural Engineering Technology, 2018, 38(31): 11-16.
[21]	姜鲁艳, 张彩虹, 邹平. 日光温室保温被同层材料的性能对比分析及选型[J]. 农业工程技术, 2021, 41(7): 48-51.
	JIANG Luyan, ZHANG Caihong, ZOU Ping. Performance comparative analysis and selection of insulation quilt materials in solar greenhouse[J]. Agricultural Engineering Technology, 2021, 41(7): 48-51.
[22]	姜鲁艳, 马艳, 吐尔逊娜依·热依木江, 等. 几种温室覆盖材料的保温性能测试与分析[J]. 中国农机化学报, 2015, 36(1): 119-123.
	JIANG Luyan, MA Yan, Tuerxunnayi Reyimujiang, et al. Testing and analysis of several heat preservation property of greenhouse covering materials[J]. Journal of Chinese Agricultural Mechanization, 2015, 36(1): 119-123.
[23]	NY/T 1831—2009. 温室覆盖材料保温性能测定方法[S].
	NY/T 1831—2009. Test method for thermal insulation performance of greenhouse covering materials[S].

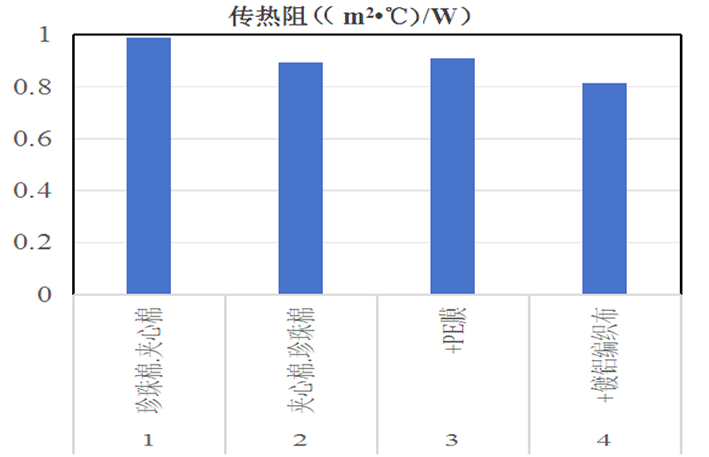

序号 Serial number	保温被组成及名称 (由内至外的顺序) Composition and name of in sulation quilt (Inside-out order)	压重5 kg厚度 Weight 5 kg thickness (cm)	重量 Weight (kg/m²)	传热系数 Heat transfer coefficient (w/(m²·℃))	传热阻 Heat transter resistance ((m²·℃)/W)

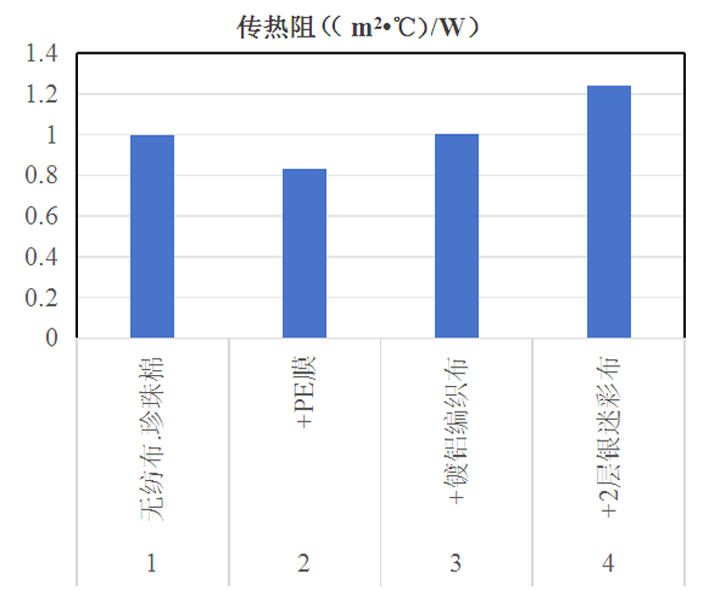

1	黑无纺布+4层珍珠棉+黑无纺布	2.7	1.44	1.004	0.996 1
2	黑无纺布+4层珍珠棉+黑无纺布+0.2 mm PE膜	2.7	1.53	1.199	0.834 3
3	黑无纺布+4层珍珠棉+黑无纺布+镀铝编织布	2.5	1.81	0.998	1.001 8
4	银迷彩布+黑无纺布+4层珍珠棉+黑无纺布+银迷彩布	2.6	1.75	0.807	1.238 9

序号 Serial number	保温被组成及名称 (由内至外的顺序) Composition and name of in sulation quilt (Inside-out order)	压重5 kg厚度 Weight 5 kg thickness (cm)	重量 Weight (kg/m²)	传热系数 Heat transfer coefficient (w/(m²·℃))	传热阻 Heat transter resistance ((m²·℃)/W)
1	黑无纺布+4层珍珠棉+黑无纺布	2.7	1.44	1.004	0.996 1
2	黑无纺布+4层珍珠棉+黑无纺布+0.2 mm PE膜	2.7	1.53	1.199	0.834 3
3	黑无纺布+4层珍珠棉+黑无纺布+镀铝编织布	2.5	1.81	0.998	1.001 8
4	银迷彩布+黑无纺布+4层珍珠棉+黑无纺布+银迷彩布	2.6	1.75	0.807	1.238 9

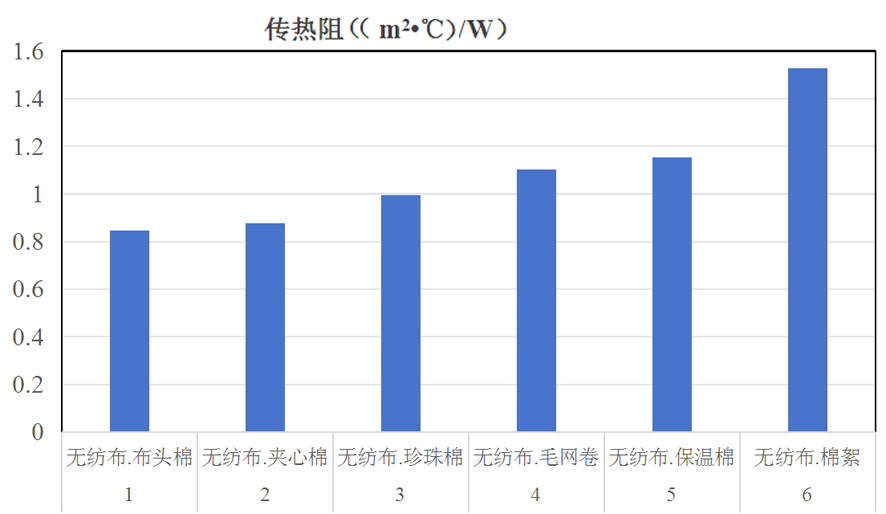

序号 Serial number	保温被组成及名称 (由内至外的顺序) Composition and name of insulation quilt (Inside-out order)	压重5 kg厚度 Weight 5 kg thickness (cm)	重量 Weight (kg/m²)	传热系数 Heat transfer coefficient (w/(m²·℃))	传热阻 Heat transter resistance ((m²·℃)/W)

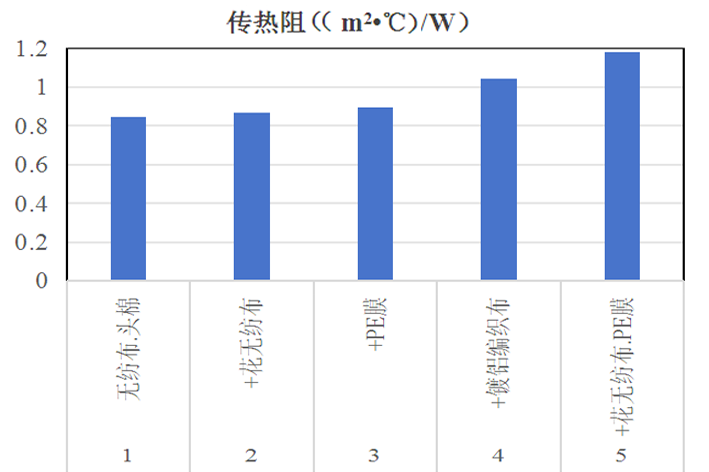

1	无纺布+三层布头棉+无纺布	2.2	2.95	1.182	0.846 3
