Design and experiment of corn precision no-till planter in drip irrigation area

doi:10.6048/j.issn.1001-4330.2024.05.007

Xinjiang Agricultural Sciences ›› 2024, Vol. 61 ›› Issue (5): 1094-1101.DOI: 10.6048/j.issn.1001-4330.2024.05.007

• Crop Genetics and Breeding·Germplasm Resources·Molecular Genetics • Previous Articles Next Articles

Design and experiment of corn precision no-till planter in drip irrigation area

FU Hao¹(), ZHANG Xuejun¹^,²(), SHI Zenglu¹^,², CHENG Jinpeng¹, WU Haifeng¹, YU Yongliang³, RAO Zhiqiang³

1. College of Mechanical and Electrical Engineering, Xinjiang Agricultural University, Urumqi 830052, China
2. Xinjiang Key Laboratory of Intelligent Agricultural Equipment, Urumqi 830052, China
3. Xinjiang Tiancheng Agricultural Equipment Manufacturing Co., Tiemenguan Xinjiang 841007, China

Received:2023-09-22 Online:2024-05-20 Published:2024-07-09
Correspondence author: ZHANG Xuejun
Supported by:
Major Science and Technology Special Project of Xinjiang Uygur Autonomous Region(2022A02003-3);Xinjiang Agricultural Machinery R&D, Manufacturing, Promotion and Application Integration Project(YTHSD2022-14)

滴灌区玉米精量免耕播种机设计与试验

付浩¹(), 张学军¹^,²(), 史增录¹^,², 程金鹏¹, 吴海峰¹, 于永良³, 饶志强³

1.新疆农业大学机电工程学院,乌鲁木齐 830052
2.新疆智能农业装备重点实验室,乌鲁木齐 830052
3.新疆天诚农机具制造有限公司,新疆铁门关 841007

通讯作者: 张学军
作者简介:付浩(1997-),男,山东济宁人,硕士研究生,研究方向为农业机械化与装备工程,(E-mail)foch71@163.com
基金资助:
新疆维吾尔自治区重大科技专项(2022A02003-3);新疆农机研发制造推广应用一体化项目(YTHSD2022-14)

Abstract

Abstract:

【Objective】In the hope of developing no-till seeding machines with reliable operation and adaptable to the cropping pattern in Xinjiang. 【Methods】The no-till planter stubble clearing mechanism, seed rower and drip irrigation belt laying mechanism were designed by means of motion analysis and structural design, and field verification tests were conducted. 【Results】The machine had good trafficability characteristic at the forward velocity of 5 km/h, and the stubble clearing rate reached 79.44%, meeting the requirements of no-till seeding operation; The seeding pass index was 91.33%, the missed seeding index was 3.18%, the reseeding index was 5.49%, and the seeding uniformity met the industry standard. 【Conclusion】The corn precision no-till planter in drip irrigation area meets the design requirements and can effectively carry out stubble clearing, seeding and drip irrigation belt laying operations.

Key words: no-till planter; stubble clearing mechanism; corn seeder; drip irrigation belt laying

摘要：

【目的】研发作业可靠且适应新疆玉米种植模式的免耕播种机具。【方法】采用运动分析及结构设计方法,设计免耕播种机清茬机构、排种器及滴灌带铺设机构,并进行田间试验验证。【结果】机具前进速度在5 km/h时通过性良好,秸秆清理率达到79.44%,满足免耕播种作业要求;播种合格指数为91.33%,漏播指数为3.18%,重播指数为5.49%,播种均匀性满足行业标准。【结论】滴灌区玉米精量免耕播种机满足设计要求,可以有效清茬、播种及铺设滴灌带。

关键词: 免耕播种机, 清茬机构, 玉米排种器, 滴灌带铺设

CLC Number:

S223.2

FU Hao, ZHANG Xuejun, SHI Zenglu, CHENG Jinpeng, WU Haifeng, YU Yongliang, RAO Zhiqiang. Design and experiment of corn precision no-till planter in drip irrigation area[J]. Xinjiang Agricultural Sciences, 2024, 61(5): 1094-1101.

付浩, 张学军, 史增录, 程金鹏, 吴海峰, 于永良, 饶志强. 滴灌区玉米精量免耕播种机设计与试验[J]. 新疆农业科学, 2024, 61(5): 1094-1101.

Figures/Tables 11

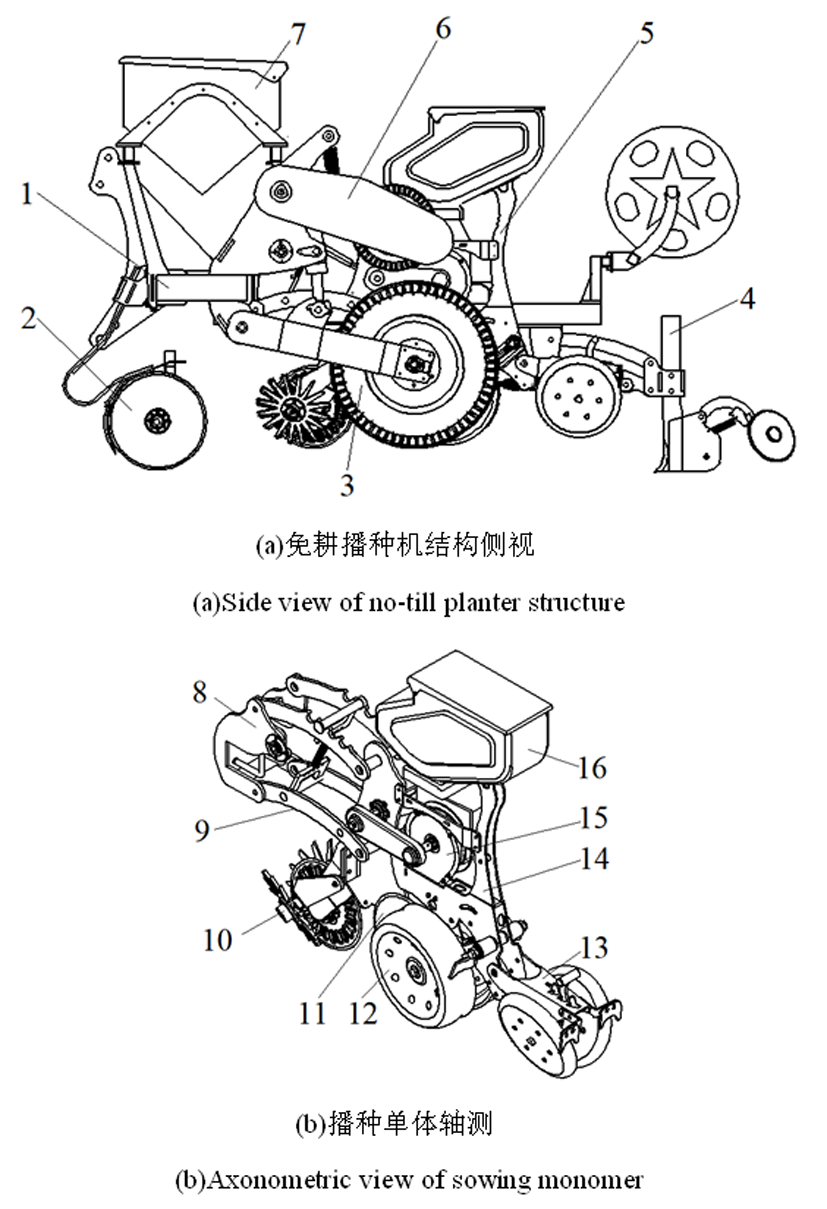

Fig.1 Structure diagram of corn precision no-till planter in drip irrigation area Note:1.Frame; 2.Double disc fertilizer opener; 3.Ground wheel mechanism; 4.Drip irrigation belt laying mechanism; 5.Sowing monomer; 6.Friction wheel transmission mechanism; 7.Fertilizer box; 8.Frame connection seat; 9.Linkage imitation mechanism; 10.Stubble clearing mechanism; 11.Double disc sowing opener; 12.Sowing monomer depth limiting wheel; 13.Mulching suppression mechanism; 14.Sowing monomer frame; 15.Seed-disturbing side-channel-filling disc-type corn precision seed metering device; 16.Seed box

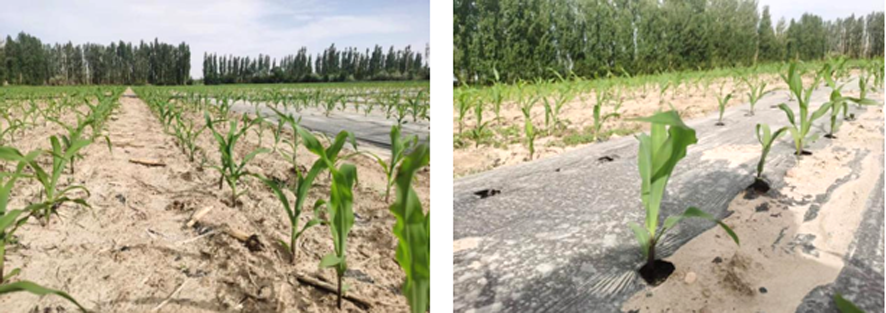

Fig.2 Comparison of the corn growth of no-till sowing and control trial of film sowing

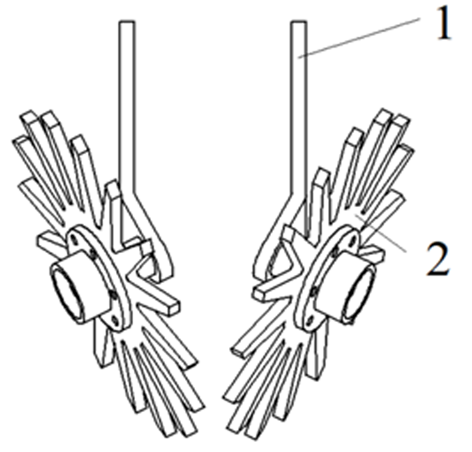

Fig.3 Stubble clearing mechanism structure diagram Note:1.Convergence support frame; 2.Stubble clearing wheel

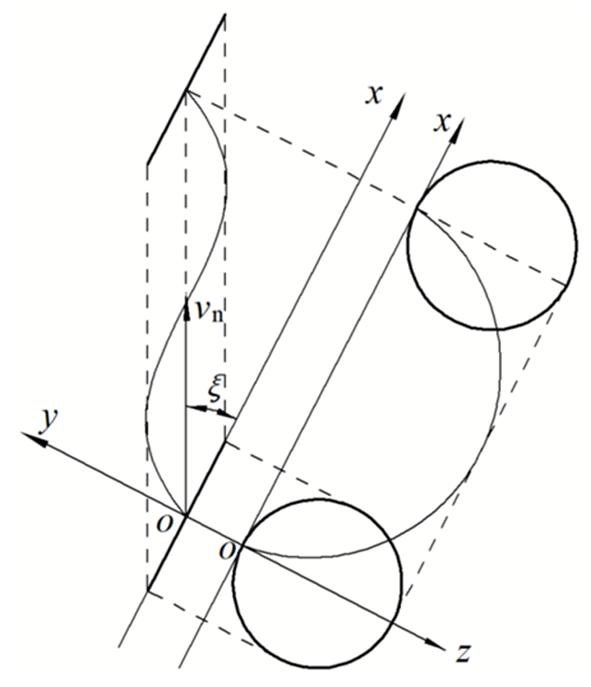

Fig.4 Analysis of the trajectory of the action point of the tooth end of the stubble cleaning wheel

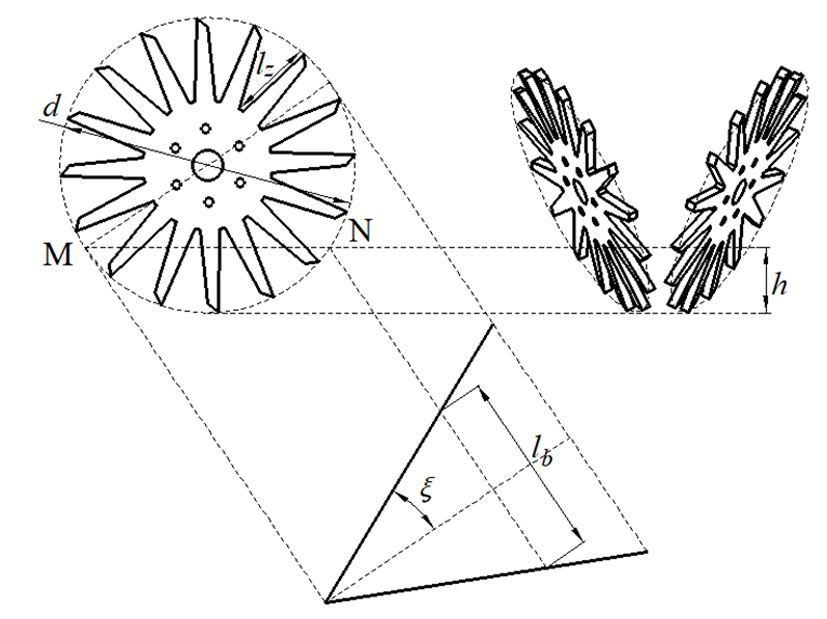

Fig.5 Schematic diagram of stubble clearing wheel structure

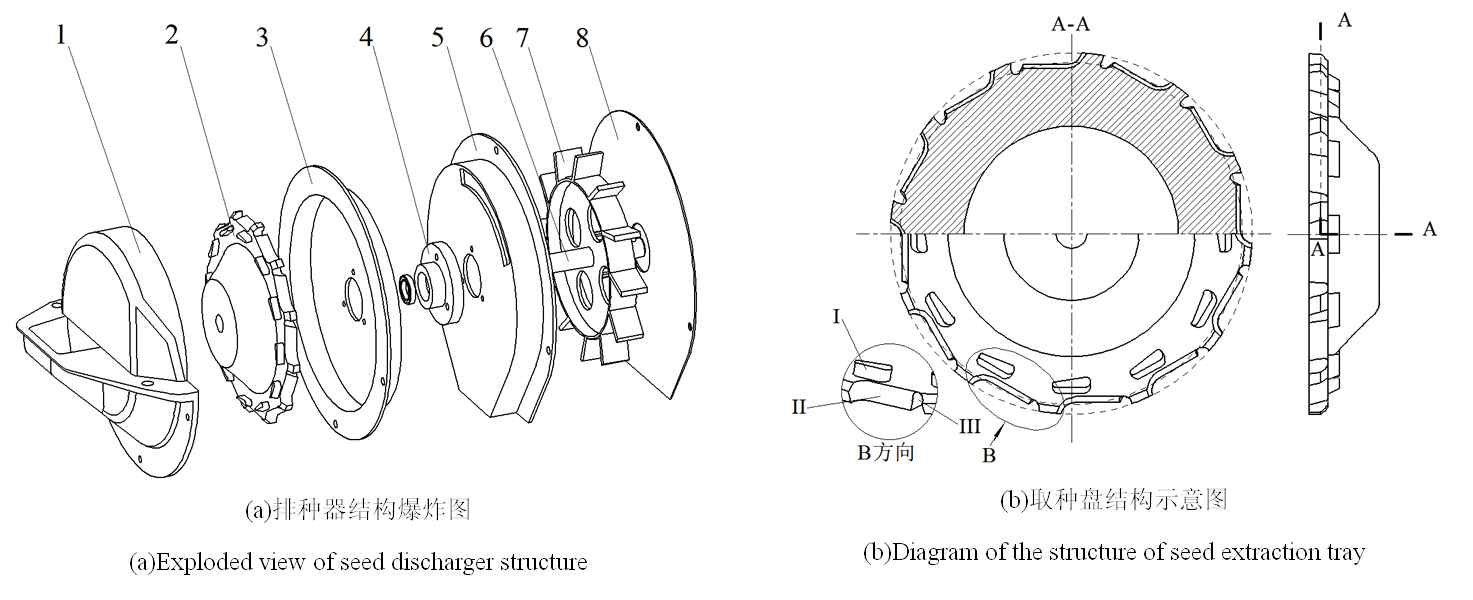

Fig.6 Seed-disturbing side-channel-filling disc-type corn precision seed metering device structure diagram Note:1.Front cover; 2.Seed pickup disc; 3.Seed pickup chamber shell; 4.Flange; 5.Seed row chamber shell; 6.Seed rower shaft; 7.Blade wheel; 8.Rear cover; I.Seed disturbing table; II.Seed guide groove; III.Seed pickup groove

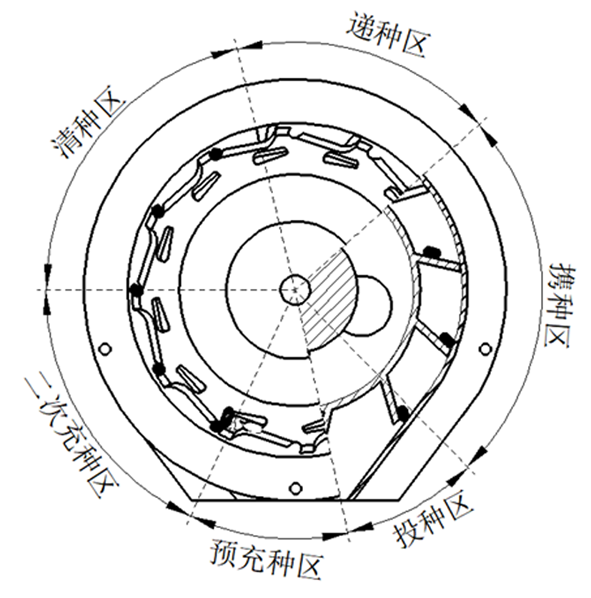

Fig.7 Seed discharger working principle piagram

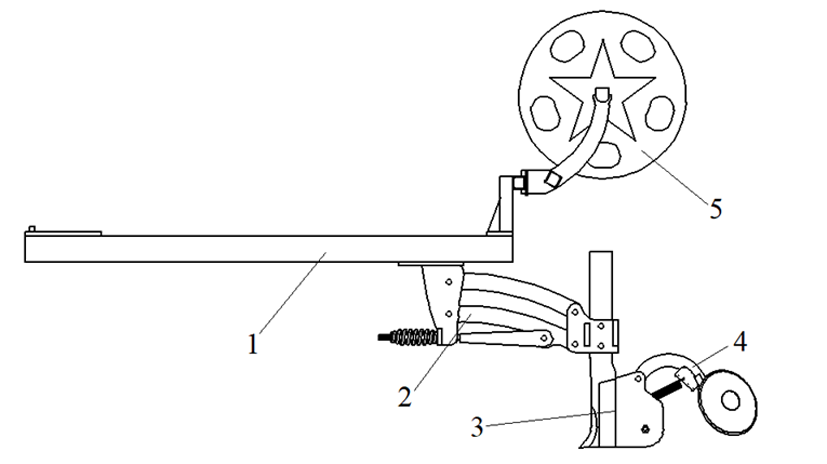

Fig.8 Structure diagram of drip irrigation belt laying mechanism Note:1.Frame connecting rod; 2.Pressure spring four-rod imitation mechanism; 3.Guard plate trencher; 4.Inclined double disc mulching device; 5.Drip irrigation belt suspension disk

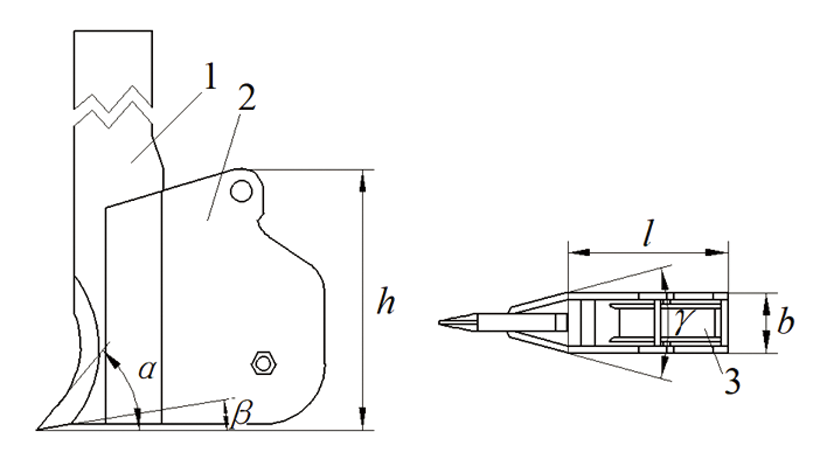

Fig.9 Structure diagram of guard plate trencher Note:1.Furrow opener main body; 2.Guard plate; 3.Drip irrigation belt guide wheel

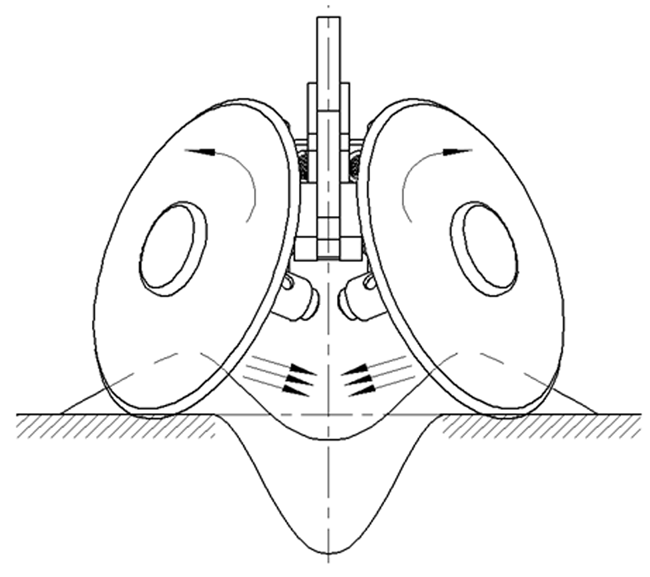

Fig.10 Operating principle diagram of tilting double-disc mulching device

Tab.1 Results of seeding uniformity test

试验指标 Test indexes	1	2	3	试验平均值 Test average	行业标准 Industry standards
合格指数 Qualification index(%)	91.35	92.79	89.86	91.33	≥80
漏播指数 Omission index(%)	3.04	2.95	3.54	3.18	≤8
重播指数 Replay index(%)	5.61	4.26	6.60	5.49	≤15

References 15

[1]	陈永成, 梅卫江, 胡斌. 新疆绿洲灌溉区机械化保护性耕作技术的研究[J]. 石河子大学学报(自然科学版), 2004, 22(5): 435-438.
	CHEN Yongcheng, MEI Weijiang, HU Bin. Studies on the mechanization protective farming technique of oasis irrigation district in Xinjiang[J]. Journal of Shihezi University (Natural Science), 2004, 22(5): 435-438.
[2]	王瑞召. 新疆地区水资源的管理现状及对策分析[J]. 城市建设理论研究(电子版), 2017,(17): 163.
	WANG Ruizhao. Present situation and countermeasure analysis of water resources management in Xinjiang[J]. Theoretical Research in Urban Construction, 2017,(17): 163.
[3]	杨继芳. 新疆兵团保护性耕作技术推广应用的影响因素研究[D]. 石河子大学, 2018.
	YANG Jifang. Study on the influencing factors of the extension and application of conservation tillage technology in Xinjiang Corps[D]. Shihezi: Shihezi University, 2018.
[4]	马华永. 滴灌条件下茬地免耕精量播种机关键部件设计与研究[D]. 石河子: 石河子大学, 2014.
	MA Huayong. Design and Study on Key Components of No-till Precision Planter under the Condition of Drip Irrigation[D]. Shihezi: Shihezi University, 2014.
[5]	李振波. 新疆耕地资源态势与粮食生产研究[D]. 新疆农业大学, 2009.
	LI Zhenbo. Arable land resource situation and grain production in Xinjiang[D]. Urumqi: Xinjiang Agricultural University, 2009.
[6]	何琼. 农哈哈2BGSF-5免耕施肥播种机[J]. 农村百事通, 2014,(21): 55.
	HE Qiong. Nonghaha 2BGSF-5 no-till fertilizer seeder[J]. Nongcun Baishitong, 2014,(21): 55.
[7]	王汉羊, 陈海涛, 纪文义. 2BMFJ-3型麦茬地免耕精播机防堵装置[J]. 农业机械学报, 2013, 44(4): 64-70.
	WANG Hanyang, CHEN Haitao, JI Wenyi. Anti-blocking mechanism of type 2BMFJ-3 No-till precision planter for wheat stubble fields[J]. Transactions of the Chinese Society for Agricultural Machinery, 2013, 44(4): 64-70.
[8]	朱存玺. 秸秆移位防堵式玉米免耕直播机设计与试验[D]. 合肥: 安徽农业大学, 2018.
	ZHU Cunxi. Design and Test of Corn Precision Direct Seeding Machine with Straw Shift and Anti-blocking[D]. Hefei: Anhui Agricultural University, 2018.
[9]	洪洋. 免耕播种机分拨草防堵装置的设计与研究[D]. 昆明: 昆明理工大学, 2021.
	HONG Yang. The Design and Research of Weed Divider Blocking Device in No Tillage Seeder[D]. Kunming: Kunming University of Science and Technology, 2021.
[10]	石林榕, 赵武云, 孙伟. 基于离散元的西北旱区农田土壤颗粒接触模型和参数标定[J]. 农业工程学报, 2017, 33(21): 181-187.
	SHI Linrong, ZHAO Wuyun, SUN Wei. Parameter calibration of soil particles contact model of farmland soil in northwest arid region based on discrete element method[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(21): 181-187.
[11]	朱红区. 免耕施肥播种机开沟工作部件仿真与试验研究[D]. 广州: 华南农业大学, 2016.
	ZHU Hongqu. Research on Simulation and Experiment of No-tillage Fertilizing and Sowing Machine’s Ditching Parts[D]. Guangzhou: South China Agricultural University, 2016.
[12]	范旭辉, 贾洪雷, 张伟汉, 等. 免耕播种机仿形爪式防堵清茬机构参数分析[J]. 农业机械学报, 2011, 42(10): 56-60.
	FAN Xuhui, JIA Honglei, ZHANG Weihan, et al. Parametric analysis of finger-type anti-blocking residue-cleaner for No-till planting[J]. Transactions of the Chinese Society for Agricultural Machinery, 2011, 42(10): 56-60.
[13]	贾洪雷, 马成林, 李慧珍, 等. 基于美国保护性耕作分析的东北黑土区耕地保护[J]. 农业机械学报, 2010, 41(10): 28-34.
	JIA Honglei, MA Chenglin, LI Huizhen, et al. Tillage soil protection of black soil zone in northeast of China based on analysis of conservation tillage in the United States[J]. Transactions of the Chinese Society for Agricultural Machinery, 2010, 41(10): 28-34.
[14]	廖宜涛, 李成良, 廖庆喜, 等. 播种机导种技术与装置研究进展分析[J]. 农业机械学报, 2020, 51(12): 1-14.
	LIAO Yitao, LI Chengliang, LIAO Qingxi, et al. Research progress of seed guiding technology and device of planter[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(12): 1-14.
[15]	张瑞. 一年两熟地区麦茬地玉米免耕播种播深控制机构的研究[D]. 中国农业大学, 2016.
	ZHANG Rui. Research on the control mechanism of no-till seeding depth of corn in wheat stubble land in biannual areas[D]. Beijing: China Agricultural University, 2016.
