Study on the Effects of Different Temperatures on Phenylethanol Glycosides duringthe Preparation of Cistanche deserticola Extractum and the Antioxidant Activities of the Extractum

doi:10.6048/j.issn.1001-4330.2022.08.018

Abstract

Abstract:

【Objective】 To study tle effects of different temperatures on the content of phenylethanoid glycosides, echinacoside and verbascoside in Cistanche deserticola were studied, and the antioxidant capacity of C. deserticola extractum was also studied. 【Method】 UV spectrophotometric method and HPLC were used to determine the content of phenylethanoid glycosides, echinacoside and verbascoside in C. deserticola with different drying temperatures, different extraction temperatures, different concentration temperatures and different water bath steaming temperatures.The antioxidant capacity of C. deserticola extractum was evaluated by DPPH, ABTS, hydroxyl free radical scavenging capacity test and total reducing power test. 【Result】 The content of phenylethanoid glycosides, echinacoside in C. deserticola dried in the shade was higher than that of sundry. Compared to dried in the shade, the content of above three constituents was the hightst when the drying temperature was 60℃. At 80℃, Three constituents was higher than that of other extraction temperatures．Concentration efficiency was obviously increased with the increase of concentration temperature. When the concentration temperature was increased from 35℃ to 60 ℃, the time of concentration of C. deserticola extract was shortened from 7 h to 0.7 h, at this point, Three constituents in concentrated solution was alsohas the highest concentration. When the C. deserticola extract was steamed by water bath, the steaming temperature increased and the time needed for steaming was obviously shortened. When the steaming temperature increased from 40℃ to 85℃, the time of steaming was shortened from 12 h to 1.2 h, and the three constituents in the C. deserticolaextractum was also the highest.In the range of 0.1-0.5 mg/mL, the clearance rate of C. deserticola extractum on DPPH, ABTS, and hydroxyl radicalswas increased with the increase of concentration. The maximum clearance rate on DPPH, ABTS, and hydroxyl radicals reached 92.23%, 83.23%, 91.26%, respectively,and the IC50 value was 0.017 mg/mL, 0.023 mg/mL, 0.248 mg/mL, respectively. The reducing power of C. deserticola extractumwas slightly below vitamin C in the range of 0.1-0.5 mg/mL. 【Conclusion】 Different temperatures has a great influenceon on the content of phenylethanoid glycosides, echinacoside and verbascoside in the process of drying, extraction, concentration and water bath steaming. C. deserticola extractum has strong antioxidant activity.

Key words: Cistanche deserticola; phenylethanoid glycosides; echinacoside; verbascoside; antioxidant activity

摘要：

【目的】研究肉苁蓉浸膏制备过程中不同温度对苯乙醇苷、松果菊苷和毛蕊花糖苷的影响,分析肉苁蓉浸膏的抗氧化活性。【方法】采用紫外分光光度法和HPLC法,测定不同干燥温度、提取温度、浓缩温度、水浴蒸制温度下,肉苁蓉苯乙醇苷、松果菊苷和毛蕊花糖苷的含量;采用DPPH、ABTS、羟基自由基清除能力及总还原力实验评价肉苁蓉浸膏的抗氧化活性。【结果】肉苁蓉阴干时,苯乙醇苷、松果菊苷和毛蕊花糖苷含量比晒干高。相比于阴干,肉苁蓉60℃烘干时,3种成分测得量最高;提取温度升高,3种成分测得量也增加,当提取温度为80℃时,3种成分含量最高;浓缩温度升高,提取液浓缩效率明显提高,当浓缩温度从35℃增加为60℃时,肉苁蓉提取液浓缩至等体积时耗时从7 h缩短至0.7 h,且3种成分在浓缩液中的浓度也最高;水浴蒸制肉苁蓉浸膏时,蒸制温度升高,所需蒸制时间明显缩短,当蒸制温度从40℃增加为85℃时,肉苁蓉浓缩液蒸至相同量的浸膏耗时从12 h缩短至1.2 h,且3种成分在浸膏中的含量也最高。当浓度在0.1 ~ 0.5 mg/mL,肉苁蓉浸膏溶液对DPPH、ABTS、羟基自由基的清除率随着浓度升高而升高,最大清除率分别为92.23%、83.23%和91.26%,其清除DPPH、ABTS、羟基自由基的IC50分别为0.017、0.023、0.248 mg/mL,在0.1 ~ 0.5 mg/mL,肉苁蓉浸膏溶液的还原能力略低于VC。【结论】肉苁蓉在干燥、提取、浓缩、水浴蒸制浸膏过程中,不同温度对苯乙醇苷、松果菊苷和毛蕊花糖苷含量有较大影响。肉苁蓉浸膏具有较强的抗氧化活性。

关键词: 肉苁蓉, 苯乙醇苷, 松果菊苷, 毛蕊花糖苷, 抗氧化

CLC Number:

S567

HAN Haixia, YOU Lin, ZHONG Zhiming, WANG Na, LI Shuang. Study on the Effects of Different Temperatures on Phenylethanol Glycosides duringthe Preparation of Cistanche deserticola Extractum and the Antioxidant Activities of the Extractum[J]. Xinjiang Agricultural Sciences, 2022, 59(8): 1975-1983.

韩海霞, 游林, 钟志明, 何梦梦, 王娜, 李爽. 肉苁蓉浸膏制备中温度对苯乙醇苷类成分的影响及其抗氧化活性分析[J]. 新疆农业科学, 2022, 59(8): 1975-1983.

Figures/Tables 9

Fig. 1 HPLC chromatogram of echinacoside and verbascoside.

Fig. 2 Effects of different drying temperatures on the content of phenylethanoid glycosides, echinacoside and verbascoside（n=3,m=x±SD）

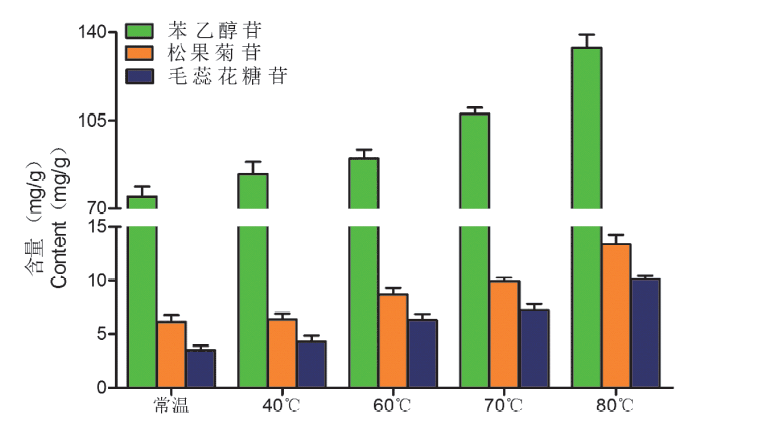

Fig. 3 Effects of different extraction temperatures on the content of phenylethanoid glycosides, echinacoside and verbascoside （n=3,m=x±SD）

Table 1 Effects of different concentrated temperatures on the content of phenylethanoid glycosides, echinacoside and verbascoside.（n=3,m=x±SD）

浓缩温度 Temperature （℃）	浓缩时间 Time （h）	苯乙醇苷 Phenylethanoid glycosides （mg/mL）	松果菊苷 Echinacoside （μg/mL）	毛蕊花糖苷 Verbascoside （μg/mL）
35	7	19.24±0.16	167.3±0.26	98.66±0.19
40	4	19.41±0.38	181.5±0.43	106.6±0.76
50	1.5	22.30±0.31	190.2±0.34	121.1±0.77
60	0.7	28.79±0.33	255.1±0.19	185.3±0.48
70	0.3	27.66±0.64	249.8±0.45	161.2±0.31

Table 2 Effects of different steaming temperature on the content of phenylethanoid glycosides, echinacoside and verbascoside.（n=3,m=x±SD）

蒸制温度 Temperature （℃）	蒸制时间 Time （h）	苯乙醇苷 Phenylethanoid glycosides （mg/mL）	松果菊苷 Echinacoside （μg/mL）	毛蕊花糖苷 Verbascoside （μg/mL）
40	12	69.7±1.8	15.85±0.26	11.87±0.23
55	7	79.4±1.2	18.39±0.93	13.60±0.58
70	3	99.8±1.8	22.89±0.91	18.14±1.2
85	1.2	131.1±1.1	34.44±0.84	26.18±1.1
98	0.4	115.1±2.1	27.05±1.1	23.28±0.93

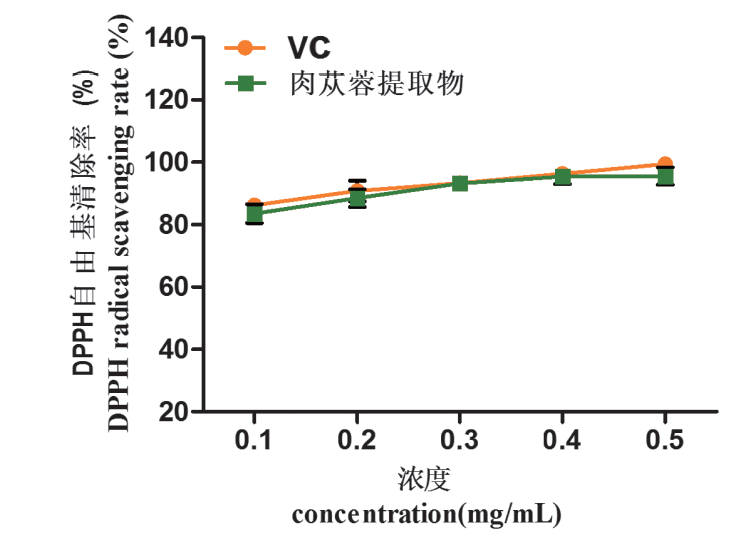

Fig. 4 Scavenging rate of DPPH radical by C. deserticola extractum

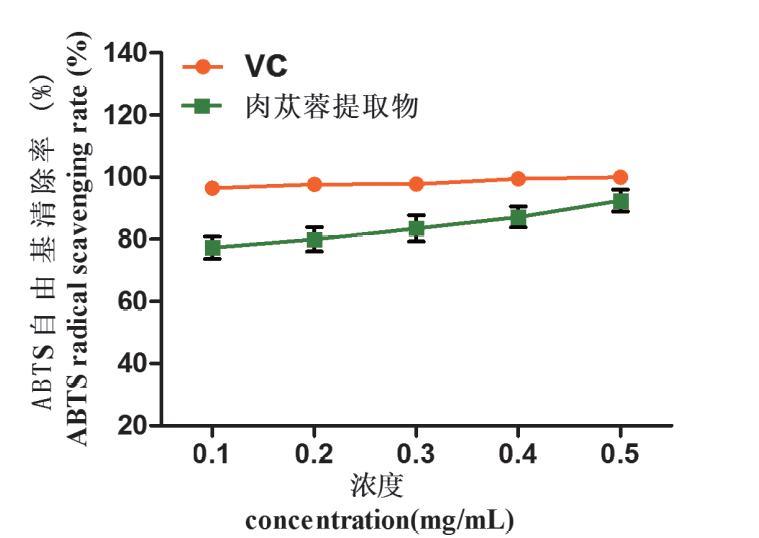

Fig. 5 Scavenging rate of ABTS free radicals by C. deserticola extractum

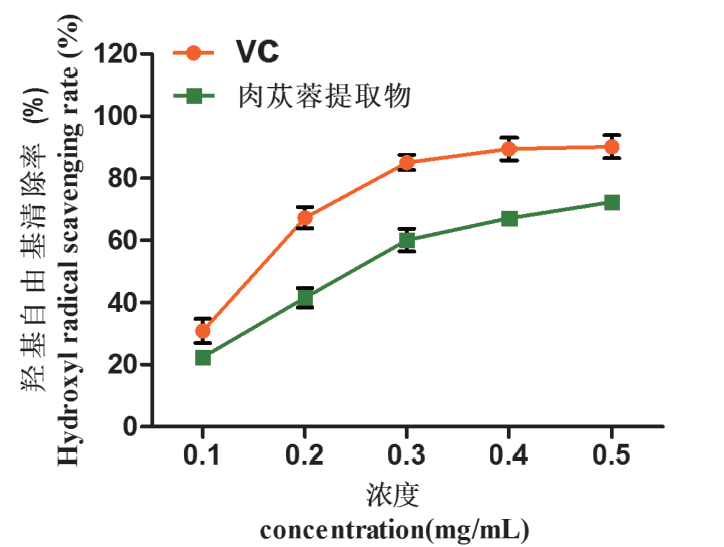

Fig. 6 Scavenging rate of hydroxyl radical by C. deserticola extractum

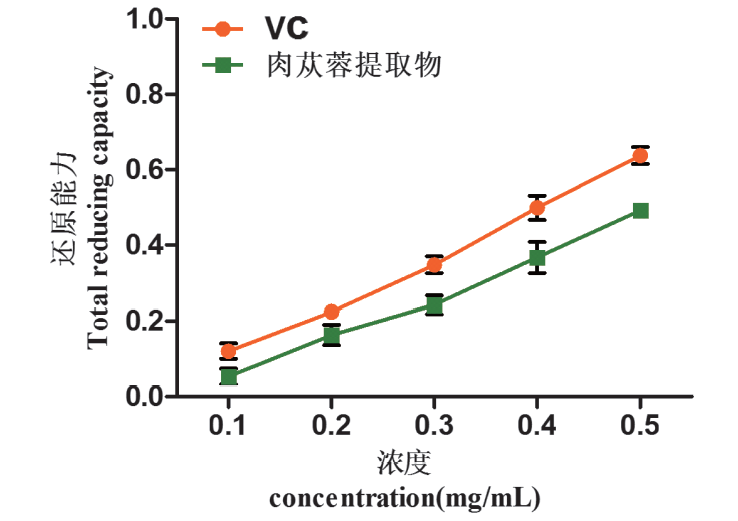

Fig. 7 Extractum reduction capacity of C. deserticola

References 26

[1]	刘鹏, 刘华. 肉苁蓉研究进展[J]. 宁夏农林科技, 2019, 60(11):9-12,56.
	LIU Peng, Liu Hua. Research Progress of Cistanche deserticola Ma[J]. Ningxia Journal of Agriculture and ForestryScience and Technology, 2019, 60(11):9-12,56.
[2]	吴涛, 张娟, 卿德刚, 等. 管花肉苁蓉HPLC指纹图谱研究[J]. 新疆农业科学, 2010, 47(3):499-502.
	WU Tao, ZHANG Juan, Qing Degang, et al. Study On HPLC Fingerprint of Cistanche tubulosa[J]. Xinjiang Agricultural Sciences, 2010, 47(3):499-502.
[3]	毕萃萃, 刘银路, 魏芬芬, 等. 肉苁蓉的主要化学成分及生物活性研究进展[J]. 药物评价研究, 2019, 42(9):1896-1900.
	BI Cuicui, LIU Yinlu, WEI Fenfen, et al. Research progress on main chemical constituents and biological activities ofCistanche deserticola[J]. Drug Evaluation Research, 2019, 42(9):1896-1900.
[4]	余逸凡. 肉苁蓉属植物化学成分及药理活性研究进展[J]. 化工管理, 2019,(13):111-112,116.
	YU Yifan. Advances in Chemical Constituents and Pharmacological Activities of Cistanche[J]. Chemical Enterprise Management, 2019,(13):111-112,116.
[5]	谢峻, 刘燕, 柯江英, 等. 苯乙醇苷合成的研究进展[J]. 中草药, 2019, 50(20):5109-5116
	XIE Jun, LIU Yan, KE Jiangying, et al. Advances in biosynthesis and chemical synthesis of phenylethanoid glycosides[J]. Chinese Traditional and Herbal Drugs, 2019, 50(20):5109-5116.
[6]	罗光明, 黄远亮. 肉苁蓉松果菊苷药理作用研究进展[J]. 亚太传统医药, 2014, 10(17):58-60.
	LUO Guangming, HUANG Yuanliang. Advances in studies on the pharmacological effects of Cistanche deserticola[J]. Asia-Pacific Traditional Medicine, 2014, 10(17):58-60.
[7]	赵微, 潘英妮. 肉苁蓉苯乙醇苷类成分药理作用研究进展[J]. 亚太传统医药, 2013, 9(5):77-79.
	ZHAO Wei, Pan Yingni. Advances in pharmacological action of phenylethanolglycosides in Cistanche deserticola[J]. Asia Pacific Traditional Medicine, 2013, 9(5):77-79.
[8]	梁淑燕, 卢丹逸, 耿宗成, 等. 提高肉苁蓉中苯乙醇苷类成分含量的加工方法研究[J]. 中国现代中药, 2017, 19(7):1026-1029.
	LIANG Shuyan, LU Danyi, GENG Zongcheng, et al. Method for Increasing Contents of Phenylethanoid Glycosides in Cistanche deserticola[J]. Chinese Modern Chinese Medicine, 2017, 19(7):1026-1029.
[9]	杨建华, 胡君萍, 热娜•卡斯木, 等. 不同加工方法对肉苁蓉饮片苯乙醇苷类成分的影响[J]. 中药材, 2010, 33(5):691-693.
	YANG Jianhua, HU Junping, RENA Kasmui, et al. Effects of different processing methods onphenylethanolglycosides in Cistanche deserticolapieces[J]. Journal of Chinese Medicinal Materials, 2010, 33(5):691-693.
[10]	刘丽莎, 张清, 游林, 等. 管花肉苁蓉苯乙醇苷水溶媒提取技术研究[J]. 食品科技, 2019, 44(4):225-229.
	LIU Lisha, ZHANG Qing, YOU Lin, et al. Water solvent extraction technology of phenylethanoid glycosides fromCistanche tubulosa(Schenk) R. Wight[J]. Food Science and Technology, 2019, 44(4):225-229.
[11]	段景峰, 王彦霞, 李小媛, 等. 阿拉尔地区五个红枣品种多糖含量差异及其抗氧化活性的研究[J]. 新疆农业科学, 2014, 51(5):831-838.
	DUAN Jingfeng, WANG Yanxia, LI Xiaoyuan, et al. Diversity of polysaccharide content of five zizphus jujube in AlarArea and their in vitroantioxidative activities[J]. Xinjiang Agricultural Science, 2014, 51(5):831-838.
[12]	刘明川, 钟少达, 杨进平, 等. 肉苁蓉提取工艺优化及其神经保护作用的分析[J]. 中南药学, 2019, 17(12):2020-2026.
	LIU Mingchuan, ZHONG Shaoda, YANG Jinping, et al. Optimization of Cistanche deserticola extraction andits neuroprotective effect[J]. Central South Pharmacy, 2019, 17(12):2020-2026.
[13]	覃文婷, 王小明, 徐荣, 等. 荒漠肉苁蓉中苯乙醇苷类与多糖含量的测定及抗氧化作用研究[J]. 中国现代中药, 2018, 20(4):426-431.
	QIN Wenting, WANG Xiaoming, XU Rong, et al. Content determinating of phenylethanoid glycosides and polysaccharides incistanche deserticola and their antioxidant activity[J]. Chinese Modern Traditional Medicine, 2008, 20(4):426-431.
[14]	肖星辉, 张向前, 李桂芳, 等. 双水相萃取荒漠肉苁蓉总黄酮及其抗氧化活性[J]. 食品研究与开发, 2017, 38(16):5-9.
	XIAO Xinghui, ZHANG Xiangqian, LI Guifang, et al. Aqueous two-phase extraction of total flavonoids from cistanche deserticolaY.C.Ma and the antioxidantactivity of the extracts[J]. Food Research And Development, 2017, 38(16):5-9.
[15]	王雪梅, 吴汉平, 汪晓敏, 等. 16种中草药提取物的抗氧化活性研究[J]. 安徽大学学报(自然科学版), 2015, 39(2):74-80.
	WANG Xuemei, WU Hanping, WANG Xiaomin, et al. Study on antioxidant activity of the extracts from 16 kinds of Chinese herbs[J]. Journal of Anhui University, 2015, 39(2):74-80.
[16]	吴海虹, 玄国东, 刘春泉, 等. 肉苁蓉苯乙醇苷的纯化及其抗氧化活性研究[J]. 食品科学, 2008(6):190-193.
	WU Haihong, XUAN Guodong, LIU Chunquan, et al. Study on purification and antioxidant activity of phenylethanoid glycosides from cistanche salsa[J]. Food Science, 2008(6):190-193.
[17]	艾拉旦•麦麦提艾力, 杨婷, 袁洁, 等. 管花肉苁蓉药渣中多糖提取工艺及体外抗氧化活性研究[J]. 化学与生物工程, 2020, 37(2):36-41.
	ALADAN McMattieri, YANG Ting, Yuan Jie, et al. Extraction process of Polysaccharides fromCistanche tubulosa residue and their antioxidant activityin vitro[J]. Chemistry and Bioengineering, 2020, 37(02):36-41.
[18]	闫圣坤, 肖红伟, 王庆惠. 肉苁蓉烫漂前处理及干燥技术研究进展[J]. 中国果菜, 2020, 40(5):57-60.
	YAN Shengkun, XIAO Hongwei, WANG Qinghui. Research progress of blanching and drying technology for cistanche deserticola[J]. ChinaFruits and Vegetables, 2020, 40(5):57-60.
[19]	王立民, 郭晔红, 贺斌, 等. 干燥方式对肉苁蓉有效成分保留量的影响[J]. 资源开发与市场, 2017, 33(4):477-480.
	WANG Limin, GUO Yehong, HE Bin, et al. Effects of drying methods on content retention of effective components in herba cistanches[J]. Resource Development and Market, 2017, 33(4):477-480.
[20]	谷彩梅, 刘德旺, 王增绘, 等. 肉苁蓉种子质量评价及药材初加工研究[J]. 世界科学技术-中医药现代化, 2017, 19(2):306-312.
	GU Caimei, LIU Dewang, WANG Zenghui, et al. A study on the seed quality and primary processing of the fresh product ofcistanche deserticola[J]. World Science and Technology-modernization of Traditional Chinese Medicine, 2017, 19(2):306-312.
[21]	王丽楠, 陈君, 杨美华, 等. 不同初加工温度对肉苁蓉有效成分含量的影响[J]. 中国药房, 2007,(21):1620-1623.
	WANG Linan, CHEN Jun, YANG Meihua, et al. Influence of different processing temperatures on the contents of the ettective components in Cistanehe deserticola Y. C. Ma[J]. Chinese Pharmacy, 2007,(21):1620-1623.
[22]	孟庆艳, 谢枰飞, 罗锋, 等. 管花肉苁蓉中苯乙醇苷类成分的提取工艺优选[J]. 中国实验方剂学杂志, 2011, 17(2):28-31.
	MENG Qingyan, XIE Pingfei, LUO Feng, et al. To select extraction process of phenylethanoid glycosides incistanche tubulosa by method of orthogonal multi-indexcomprehensive evaluation[J]. Chinese Journal of Experimental Traditional Medical Formulae, 2011, 17(2):28-31.
[23]	李蒙, 付艳秋, 韩静, 等. 响应面法优化肉苁蓉苯乙醇苷回流提取工艺[J]. 中南药学, 2015, 13(8):819-823.
	LI Meng, FU Yanqiu, HAN Jing, et al. Optimization of reflux extraction of phenylethanoid glycoside in cistanchedeserticola Y.C. Ma by response surface[J]. Central South Pharmacy, 2015, 13(8):819-823.
[24]	刘洋, 修效友, 汪维云. 响应面分析法优化肉苁蓉苯乙醇苷提取反应及其抗氧化反应研究[J]. 安徽农业大学学报, 2015, 42(2):294-298.
	LIU Yang, XIU Xiao-you, WANG Wei-yun. Optimization of phenylethyl alcohol glycosides extraction processfrom Cistanche tubulosa by response surface analysis[J]. Journal of Anhui Agricultural University, 2015, 42(2):294-298.
[25]	王毓杰. 管花肉苁蓉中苯乙醇苷的提取和大孔树脂纯化工艺研究[J]. 中草药, 2014, 45(16):2344-2348.
	WANG Yu-jie. Extraction of phenylethanoid glycoside from Cistanche tubulosa and purificationtechnology by macroporous resin[J]. Chinese Traditional and Herbal Drugs, 2014, 45(16):2344-2348.
[26]	刘朋龙, 王亮. 应用大孔树脂分离纯化管花肉苁蓉中苯乙醇苷研究[J]. 农产品加工, 2018(23):11-14.
	LIU Peng-long, WANG Liang. Separation and purification of phenethyl alcohol glycosides fromCistanche tubulosa by macroporous resin[J]. Farm Products Processing, 2018(23):11-14.
