Effects of Different Temperatures on the Fruit Softening of Xizhoumi No. 25 Hami Melon during Storage

doi:10.6048/j.issn.1001-4330.2022.05.012

Xinjiang Agricultural Sciences ›› 2022, Vol. 59 ›› Issue (5): 1135-1143.DOI: 10.6048/j.issn.1001-4330.2022.05.012

• Horticultural Special Local Products • Previous Articles Next Articles

Effects of Different Temperatures on the Fruit Softening of Xizhoumi No. 25 Hami Melon during Storage

XU Bin¹(), Atawula Tiemur¹, ZHANG Ting¹, PAN Yan¹, ZHANG Lianwen²^,³(), XIE Xiaoding²

1. Research Institute of Agro-products Storage and Processing, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
2. Tianjin University of Commerce, Tianjin 300134, China
3. Xinjiang Institute of Engineering, Urumqi 830023, China

Received:2021-12-02 Online:2022-05-20 Published:2022-06-09
Correspondence author: ZHANG Lianwen
Supported by:
National Natural Science Foundation of China "Study on vibration performance test and protection optimization design of Hami melon logistics transportation package stacking"(31960490);Scientific Research Fund of Xinjiang Institute of Engineering " Study on Stacking Vibration Test of Cantaloupe Logistics Transportation Packaging Parts"(2018xgy202105);The National Natural Science Foundation of China " The Relationship between Polyamine (PAs) Metabolism and Transcription Factor CmCBFs during Cold Temperature / Cold Resistance Induction in Yellow Skin Melon"(31860580)

不同贮藏温度对西州密25号哈密瓜果实软化的影响

徐斌¹(), 阿塔吾拉·铁木尔¹, 张婷¹, 潘俨¹, 张连文²^,³(), 谢晓定²

1.新疆农业科学院农产品贮藏加工研究所,乌鲁木齐 830091
2.天津商业大学,天津 300134
3.新疆工程学院,乌鲁木齐 830023

通讯作者: 张连文
作者简介:徐斌(1985-),男,河南南阳人,助理研究员,研究方向为农产品贮藏保鲜,(E-mail) 978142325@qq.com
基金资助:
国家自然科学基金“哈密瓜物流运输包装件堆码振动性能测试与防护优化设计研究”(31960490);新疆工程学院科研基金“哈密瓜物流运输包装件堆码振动测试研究(2018xgy202105);国家自然科学基金“黄皮甜瓜低温/抗冷诱导过程中多胺(PAs)代谢和转录因子CmCBFs之间的关系研究(31860580)

Abstract

Abstract:

【Objective】 To study the effect of different storage temperatures on cell wall degradation enzymes in pulp of Xizhoumi No.25 Hami melon and explore the mechanism of temperature regulation on postharvest softening of the melon in the hope of providing theoretical reference for postharvest storage and preservation of Hami melon. 【Method】 The mature Xizhoumi No.25 Hami melon was taken as test material and stored in different temperatures (0℃,5℃,10℃,15℃), the fruit hardness and respiratory intensity were measured every 5 days. The effects of different storage temperatures on fruit softening were analyzed by analyzing the activity indexes of cell wall degradation enzymes such as β-galact osidase (β-Gal), polygalacturonase (PG), pectinase (PE) and cellulose (Cx). 【Result】 The effects of different storage temperatures on fruit hardness, respiration intensity and cell wall degradation enzyme activity of Xizhoumi No.25 Hami melon were significantly different. The lower the temperature was, the slower the pulp hardness decreased, the lower the peak value of fruit respiration intensity, and the lower the activity of pulp cell wall degradation enzyme. When the temperature was lower than 5℃,the pulp showed obvious symptoms of cold injury. 【Conclusion】 All things considered, 5℃ is the best for Xizhoumi No.25 Hami melon storage. The results of correlation analysis showed that the fruit hardness of Xizhoumi No.25 is negatively correlated with respiratory strength, and significantly negatively correlated with β-Gal, PG, PE and Cx activities.

Key words: Hami melon; storage temperature; soften

摘要：

【目的】分析不同贮藏温度对西州密25号哈密瓜果肉细胞壁降解酶的影响,研究温度调控西州密25号哈密瓜采后软化作用机制,为哈密瓜采后贮藏保鲜提供参考。【方法】以成熟期西州密25号哈密瓜为试材,采后分别置于不同温度(0、5、10和15℃)环境下贮藏,每隔5 d测定果实硬度、呼吸强度,果肉β-半乳糖苷酶(β-Gal)、多聚半乳糖醛酸酶(PG)、果胶酶(PE)、纤维素酶(Cx)等细胞壁降解酶活性指标,分析不同贮藏温度对果实软化的影响。【结果】不同贮藏温度对西州密25号哈密瓜果实硬度、呼吸强度及细胞壁降解酶活性影响具有显著性差异。温度越低,果肉硬度下降越慢,果实呼吸强度峰值越低,果肉细胞壁降解酶活性越低。温度低于5℃时,果肉出现明显冷害症状。【结论】5℃适合西州密25号哈密瓜果实贮藏。西州密25号哈密瓜果实硬度与呼吸强度呈负相关关系,与β-Gal、PG、PE和Cx活性呈极显著负相关关系。

关键词: 哈密瓜, 贮藏温度, 软化

CLC Number:

S652

XU Bin, Atawula Tiemur, ZHANG Ting, PAN Yan, ZHANG Lianwen, XIE Xiaoding. Effects of Different Temperatures on the Fruit Softening of Xizhoumi No. 25 Hami Melon during Storage[J]. Xinjiang Agricultural Sciences, 2022, 59(5): 1135-1143.

徐斌, 阿塔吾拉·铁木尔, 张婷, 潘俨, 张连文, 谢晓定. 不同贮藏温度对西州密25号哈密瓜果实软化的影响[J]. 新疆农业科学, 2022, 59(5): 1135-1143.

Figures/Tables 8

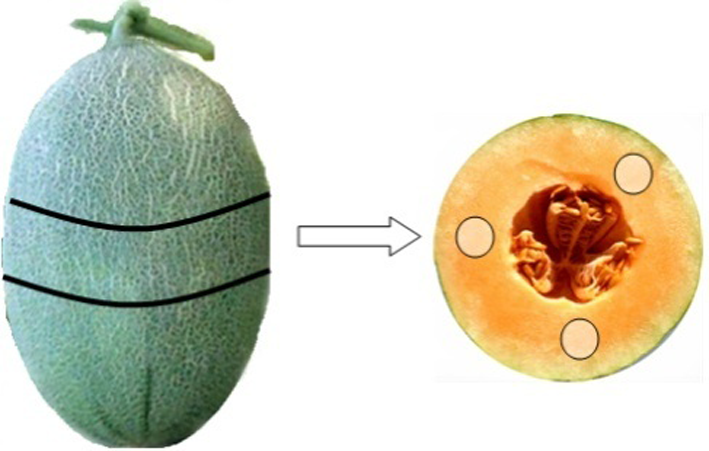

Fig.1 The schematic diagram of sampling

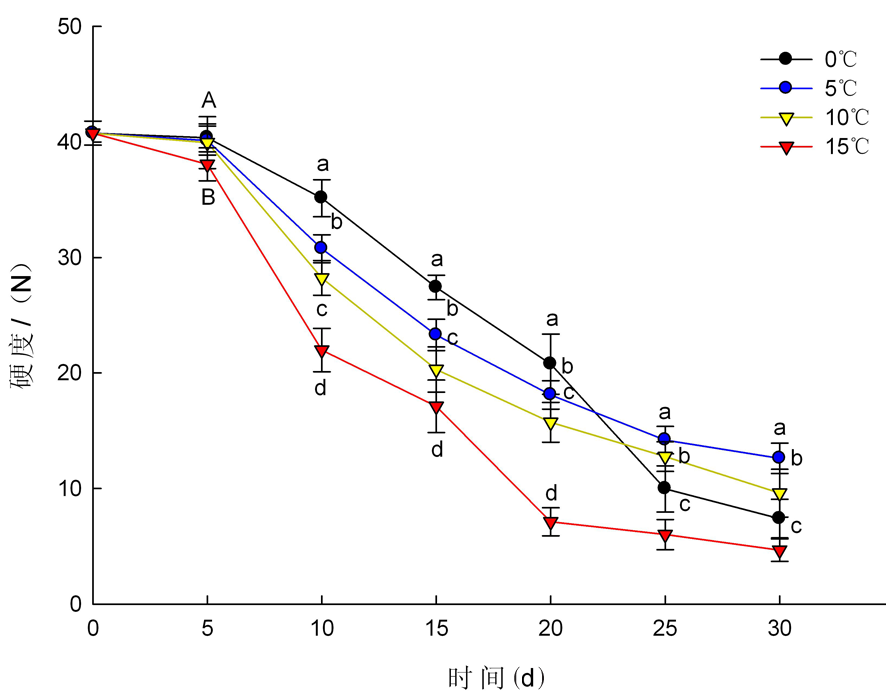

Fig.2 The effect of different temperature on pulp firmness Note:The different majuscule expression the experimental data has significant difference (P<0.05), The different minuscule expression the experimental data has extremely significant difference (P<0.01),the same as below

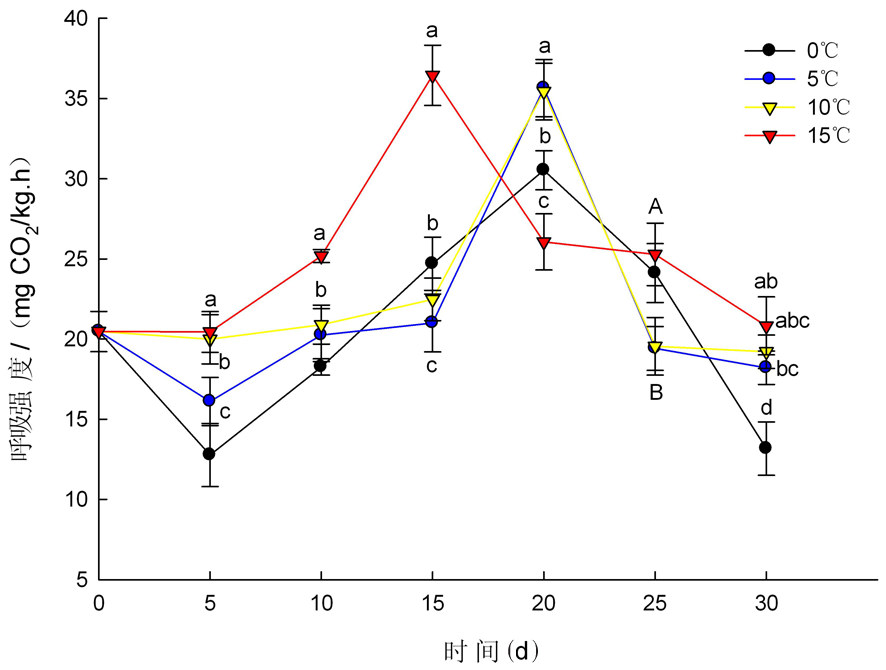

Fig.3 The effect of different temperature on fruit respiration intensity

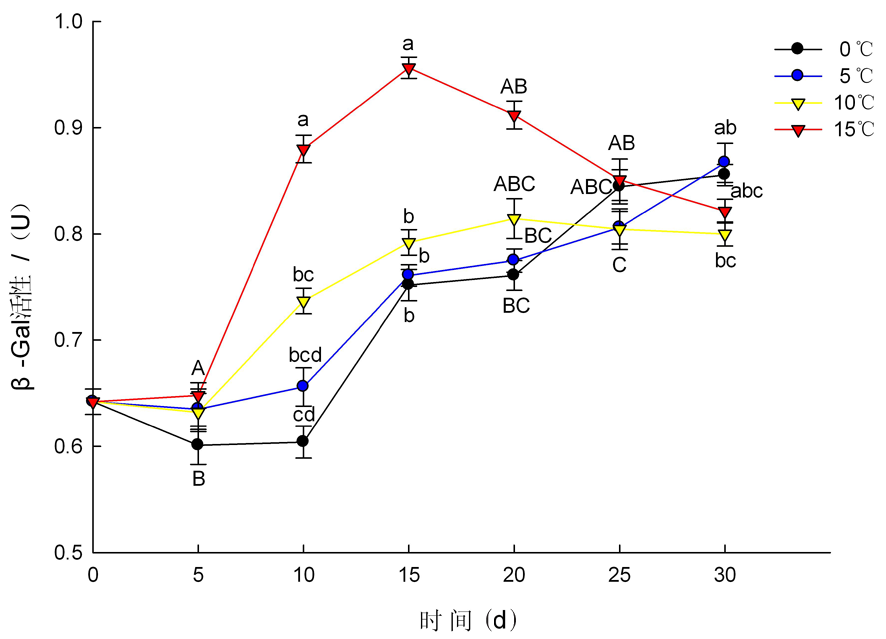

Fig.4 The effect of different temperature on pulp β-Gal activity

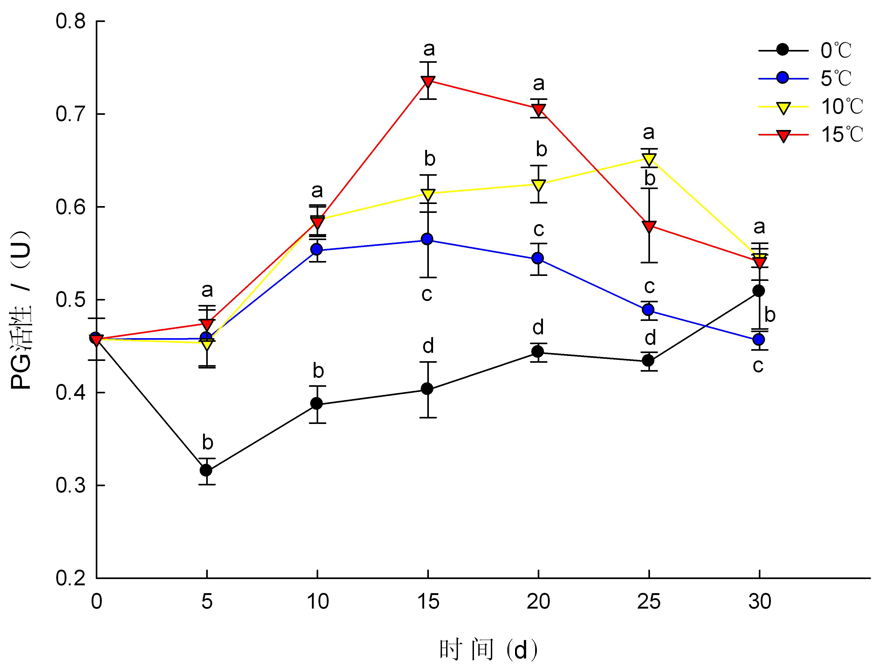

Fig.5 The effect of different temperature on pulp PG activity

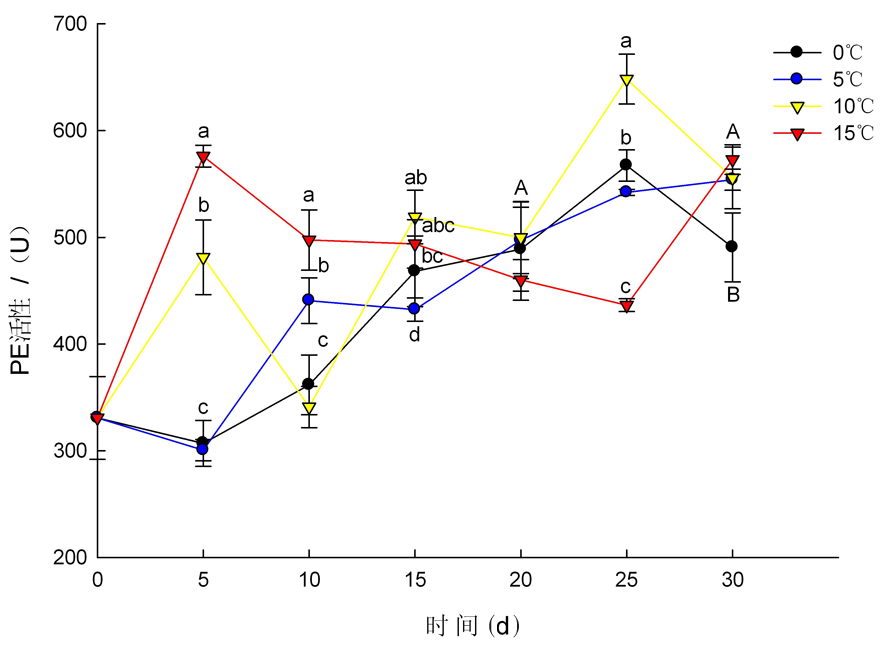

Fig.6 The effect of different temperature on pulp PE activity

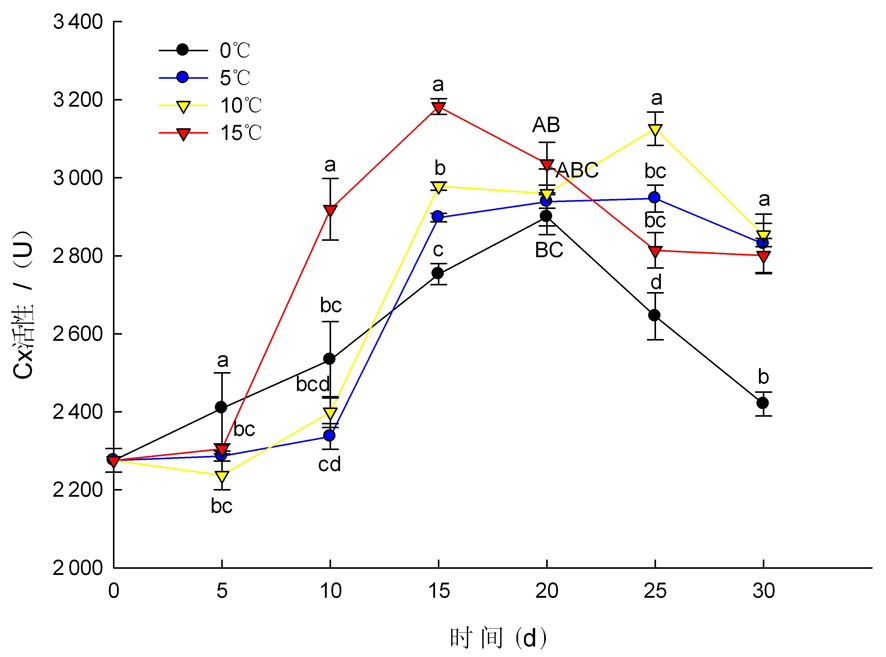

Fig.7 The effect of different temperature on pulp Cx activity

Table 1 Correlation(R) matrix between fruit firmness and respiration intensity, enzymes activities of cell wall

	硬度 Hardness	呼吸强度 Respiration intensity	果胶酶 Pectinase	纤维素酶 Cellulase	β-半乳糖苷酶 β-galactosidase	多聚半乳糖醛酸酶 Polygalacturonase
硬度Hardness	1	-0.352	-0.616^**	-0.820^**	-0.882^**	-0.594^**
呼吸强度Respiration intensity	-0.352	1	0.274	0.574^**	0.470^*	0.519^**
果胶酶Pectinase	-0.616^**	0.274	1	0.621^**	0.600^**	0.379^*
纤维素酶Cellulase	-0.820^**	0.574^**	0.621^**	1	0.809^**	0.632^**
β-半乳糖苷酶β-galactosidase	-0.882^**	0.470^*	0.600^**	0.809^**	1	0.684^**
多聚半乳糖醛酸酶Polygalacturonase	-0.594^**	0.519^**	0.379^*	0.632^**	0.684^**	1

References 30

[1]	张瑞, 廖新福, 杨军, 等. 优质哈密瓜新品种西州密25号的选育[J]. 中国瓜菜, 2012, 25(3):20-23.
	ZHANG Rui, LIAO Xinfu, YANG Jun, et al. Breeding of a New Hami Melon Variety “Xizhoumi No.25”[J]. China Cucurbits and Vegetables, 2012, 25(3):20-23.
[2]	于蓉, 田梅, 董瑞, 等. 网纹甜瓜新品种比较试验[J]. 北方园艺, 2014, (18):60-62.
	YU Rong, TIAN Mei, DONG Rui, et al. Comparative Test of New Netted Melon[J]. Northern Horticulture, 2014(18):60-62.
[3]	刘同业, 张婷, 车凤斌, 等. 不同贮藏温度下西州密25号哈密瓜果实冷害生理的研究[J]. 新疆农业科学, 2015, 52(1):26-32.
	LIU Tongye, ZHAGN Ting, CHE Fengbin, et al. Studies on Chilling Injury Physiology of Xizhoumi No.25 Hami Melon Fruits at Different Storage Temperatures[J]. Xinjiang Agricultural Sciences, 2015, 52(1):26-32.
[4]	石玲, 吴斌, 敬媛媛, 等. 一氧化氮熏蒸处理对甜瓜采后细胞壁代谢及黑斑病控制的影响[J]. 食品科学, 2019, 40(23):239-245.
	SHI Lin, WU Bin, JING Yuanyuan, et al. Effects of nitric oxide fumigation on postharst cell wall metabolism and black spot control of Melon[J]. Food Science, 2019, 40(23):239-245.
[5]	NIkolic M V, Mojovic L. Hydrolysis of apple pectin by the coordinated activity of pecticenzymes[J]. Food Chemistry, 2007, 101:1-9. DOI URL
[6]	杨盛, 白牡丹, 郝国伟, 等. “玉露香梨”果实发育中细胞壁组分和水解酶活性的变化[J]. 中国南方果树, 2019, 48(2):110-115.
	YANG Sheng, BAI Mudan, HAO Guowei, et al. Changes of cell wall components and hydrolase activity during fruit development of “Yulu Fragrant Pear”[J]. South China Fruits, 2019, 48(2):110-115.
[7]	李三培, 华德平, 高星, 等. 不同类型甜瓜成熟过程中果肉质地及其细胞显微结构的变化[J]. 西北植物学报, 2017, 37(6):1118-1125.
	LI Sanpei, HUA Deping, GAO Xing, et al. Variation Characteristics of Flesh Texture and Cell Microstructure of Different Types of Melon during Ripening[J]. Acta Botanica Boreali-Occidentalia Sinica, 2017, 37(6):1118-1125.
[8]	程园, 李灿婴, 侯佳宝, 等. 采后硝普钠处理对南果梨果实贮藏品质和细胞壁降解酶的影响[J]. 食品科学, 2020, 41(1):252-257.
	CHENG Yuan, LI Canying, HOU Jiabao, et al. Effect of Postharvest Sodium Nitroprusside Treatment on the Storage Quality and Cell Wall Degrading Enzymes of Nanguo Pears[J]. Food Science, 2020, 41(1):252-257.
[9]	陈鸥, 吴雪莹, 邓丽莉, 等. 1-甲基环丙烯处理对采后李果实硬度变化的影响机制[J]. 食品科学, 2020, 41(3):185-191.
	CHEN Ou, WU Xueying, DENG Lili, et al. Effect of 1-Methylcyclopropene Treatment on Firmness Change of Postharvest Plum Fruit and Underlying Mechanism[J]. Food Science, 2020, 41(3):185-191.
[10]	张婷, 陈娟, 潘俨, 等. 不同贮藏温度对采后86-1哈密瓜果实冷害及品质的影响[J]. 食品工业科技, 2015, 36(3):345-348.
	ZHANG Ting, CHEN Juan, PAN Yan, et al. Influence on chilling injury and quality of postharvest 86-1 Hami melon (Cucumis melonL.) fruit under different storage temperatures[J]. Science and Technology of Food Industry, 2015, 36(3):345-348.
[11]	张婷, 车凤斌, 潘俨, 等. 哈密瓜果实耐冷性与细胞壁脂肪酸的关系[J]. 园艺学报, 2015, 42(12):2421-2428.
	ZHANG Ting, CHE Fengbin, PAN Yan, et al. Relationship Between Chilling Tolerance and Membrane Fatty Acids of Hami Melon[J]. Acta Horticulturae Sinica, 2015, 42(12):2421-2428.
[12]	刘翔, 张平, 徐伟欣, 等. TPA测试条件对甜瓜质构参数的影响[J]. 中国蔬菜, 2015,(3):38-44.
	LIU Xiang, ZHANG Ping, XU Weixin, et al. Effect of Experimental Conditions in TPA on Melon Textural Property[J]. China Vegetables, 2015,(3):38-44.
[13]	Li X, Bi Y, Wang J J, et al. BTH treatment caused physiological, biochemical and proteomic changes of muskmelon (Cucumis melo L.) fruit during ripening[J]. Journal of Proteomics, 2015, 120:179-193. DOI URL
[14]	张鹏龙, 陈复生, 杨宏顺, 等. 果实成熟软化过程中细胞壁降解研究进展[J]. 食品科技, 2010, 35(11):62-66.
	ZHANG Penglong, CHEN Fusheng, YANG Hongshun, et al. Research advances on cell wall disassembly in fruit ripening and softening[J]. Food Science and Technology, 2010, 35(11):62-66. DOI URL
[15]	何俊瑜, 任艳芳, 陈元有, 等. 一氧化氮对常温贮藏下芒果果实软化和细胞壁代谢酶的影响[J]. 食品工业科技, 2018, 39(17):269-275.
	HE Junyu, REN Yanfang, CHEN Yuanyou, et al. Effect of Nitric Oxide on Softening and Cell Wall Metabolism of Postharvest Mango[J]. Science and Technology of Food Industry, 2018, 39(17):269-275.
[16]	Hou Yuanyuan, Wu Fang, Zhao Yating, et al. Cloning and expression analysis of polygalacturonase and Pectin methylesterase genes during softening in apricot (Pruuns armeniaca L.) fruit[J]. Scientia Horticulturae, 2019, 256:108607. DOI URL
[17]	金昌海, 水野雅史, 阚娟, 等. 不同品种苹果采后后熟软化过程中细胞壁多糖的降解[J]. 植物生理与分子生物学学报, 2006, 32(6):617-626. PMID
	JIN Changhai, MIZUNO Masashi, KAN Juan, et al. Degradation of Cell Wall Polysaccharides during Postharvest Fruit Ripening and Softening of Different Apple Varieties[J]. Journal of Plant Physiology and Molecular Biology, 2006, 32(6):617-626. PMID
[18]	李天来, 吕双双, 许传强, 等. 钙在乙烯促进网纹甜瓜果实软化过程中的作用[J]. 园艺学报, 2009, 36(6):821-828.
	LI Tianlai, LÜ Shuangshuang, XU Chuanqiang, et al. Effects of Calcium on Ethylene promoted Muskmelon Soften[J]. Acta Horticulturae Sinica, 2009, 36(6):821-828.
[19]	Zhou Ran, Wang Xichang, Hu Yunsheng, et al. Reduction in Hami melon(Cucumis melon var.saccharinus) softening caused by transport vibration by using hot water and shellac coating[J]. Postharvest Biology and Technology, 2015, 22(8):214-223.
[20]	Lignou S, Parker J K, Baxter C, et al. Sensory and instrumental analysis of medium and long shelf-life Charentais cantalouPe melons(Cucumis melo L.) harvested at different maturities[J]. Food Chemistry, 2014, 148:218-229. DOI URL
[21]	Dossantos N, A Jiménez Araujo, R Rodríguez Arcos, et al. Cell wall polysacharides of near-isogenic lines of melon (Cucumis melo L.) and their inbred parentals which show differential flesh firmness or physiological behaviuor[J]. Agricultural and Food Chemistry, 2011, 59:7773-7784. DOI URL
[22]	高星. 不同质构甜瓜果实成熟软化分子机制研究[D]. 天津: 天津大学, 2016.
	GAO Xing. Study on Molecular Mechanism during Riping of Melons(Cucumis melo L.)with Different Textural Properties[D]. Tianjin: Tianjin University, 2016.
[23]	张敏, 王爱玲, 杨军, 等. 甜瓜‘黄醉仙’果实采后软化过程中细胞壁水解酶的变化[J]. 西北农林科技大学学报(自然科学版), 2015, 43(4):113-117.
	ZHANG Min, WANG Ailing, YAGN Jun, et al. Changs of cell wall degrading enzymes during post-harvest softening of melon ‘Huangzuixian’[J]. Journal of Northwest A&F University, 2015, 43(4):113-117.
[24]	Chen H J, Cao S F, Fang X J, et al. Changes in fruit firmness, cell wall composition and cell wall degrading enzymes in postharvest blueberries during storage[J]. Scientia Horticulturae, 2015, 188:44-48. DOI URL
[25]	Gomes M H, Fundo J, Obando-Ulloa J M, et al. The genetic background of quality and cell wall changes infresh-cut melons[J]. Acta Horticulturae, 2010, 877:1011-1018.
[26]	Bhadrecha P, Bala M, Khasa Y P, et al. Hippophae rhamnoidesL.rhizobacteria exhibit diversified cellulase and pectinase activities[J]. Physiology and Molecular Biology of Plants, 2020, 26(6):1075-1085. DOI URL
[27]	Lin Y, Lin Y, Lin H, et al. Effects of paper containing 1-MCP postharvest treatment on the disassembly of cell wall polysaccharides and softening in Younai plum fruit during storage[J]. Food Chemistry, 2018, 264:1-8. DOI URL
[28]	Zhang T, Zhang Q, Pan Y, et al. Changes of polyamines and CBFs expressions of two Hami melon (Cucumis melo L.) cultivars during low temperature storage[J]. Scientia Horticulture, 2017,(224):8-16.
[29]	Sallanon, Huguette, Charles, et al. Heat treatment and active packaging to improve the storage of fresh-cut melons (Cucumis melo L.)[J]. Fruits, 2016, 71(1):9-15. DOI URL
[30]	Steiner E M, Lyngs J, Guy J E, et al. The Structure of the N-terminal Module of the Cell Wall Hydrolase RipA and its Role in Regulating Catalytic Activity.[J]. Proteins: Structure, Function, and Bioinformatics, 2018, 86: 912-923.
