Integrated Taxonomy Studies on Cleroclytus (Coleoptera: Cerambycidae) in China

doi:10.6048/j.issn.1001-4330.2022.04.021

Abstract

Abstract:

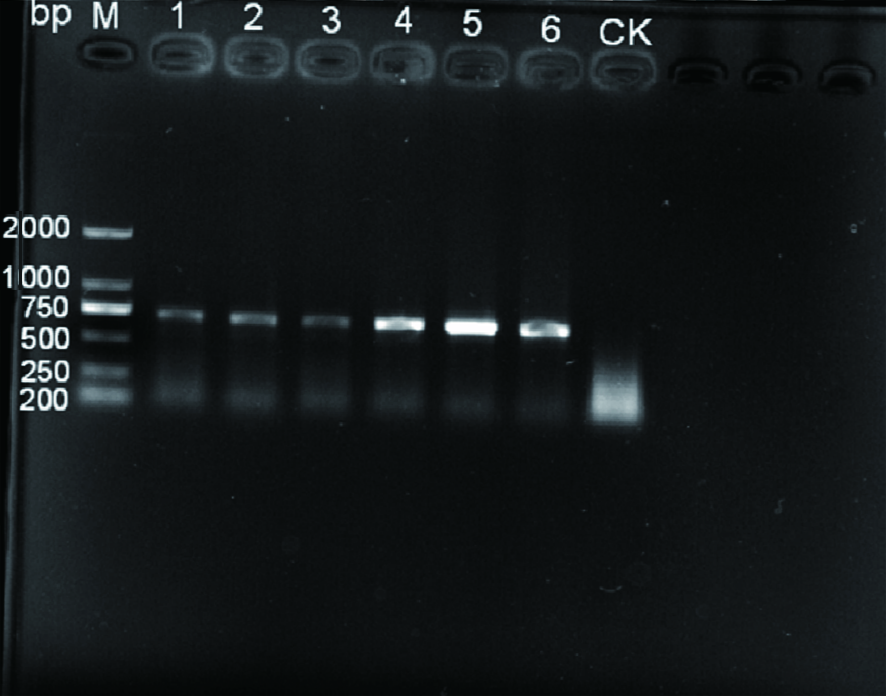

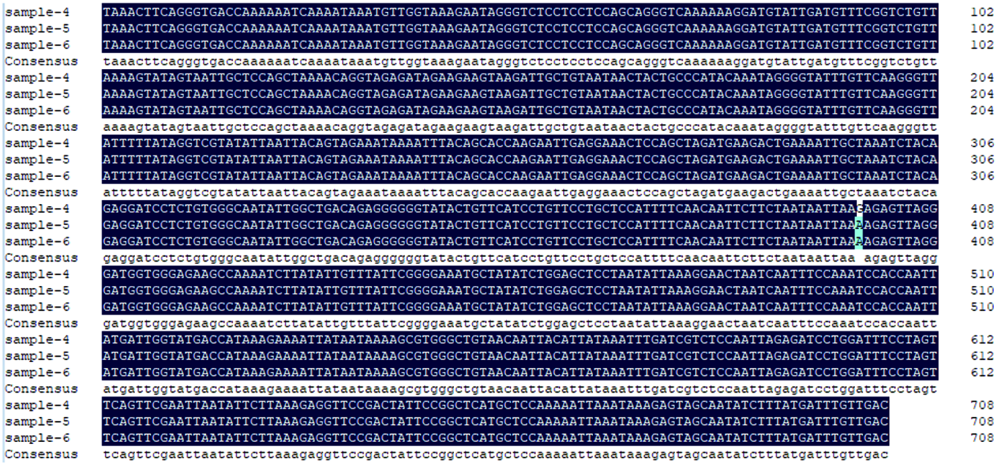

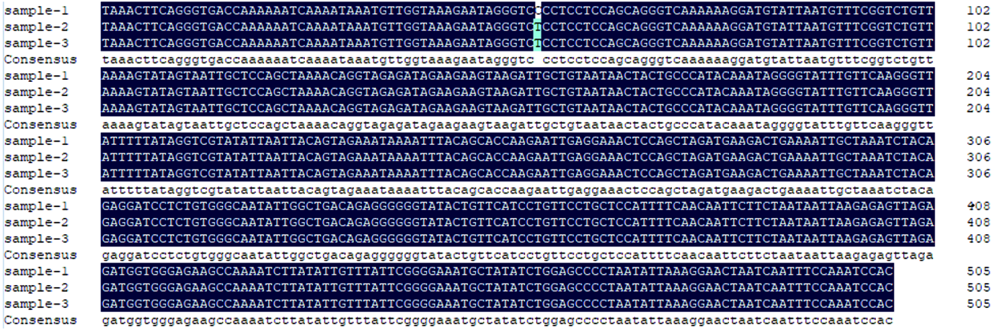

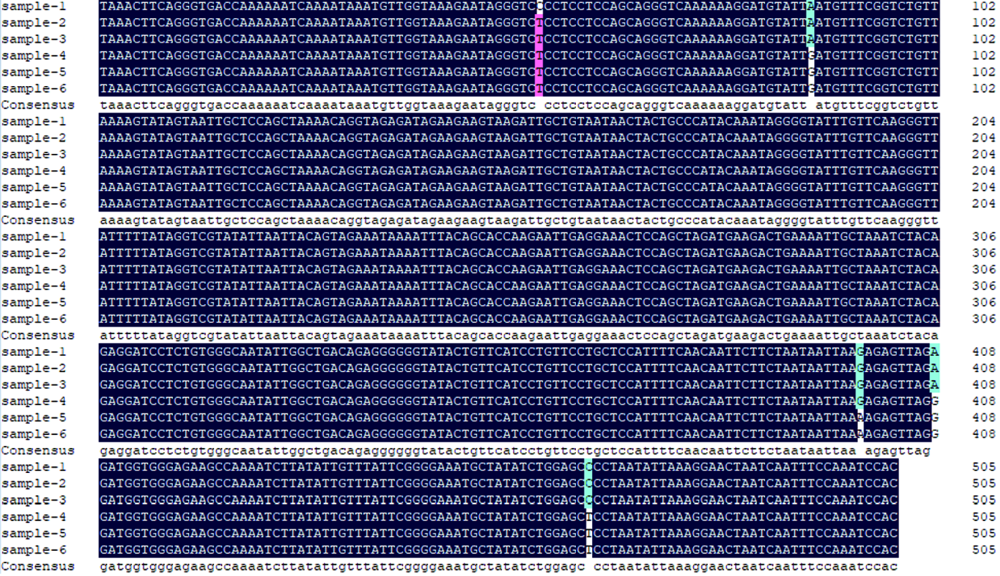

【Objective】 To study the classification of the genus: Cleroclytus collaris Jakovlev,1885 and Cleroclytus strigicollis Jakovlev,1900 by combining DNA barcoding technology and morphological characteristics in the hope of providing a research basis for its accurate identification and a reference for the related identification of this genus in the future.【Methods】 The structure of ovipositor and internal genitalia was described by dissecting the female adult genitalia.Genomic DNA was extracted from the head and throx of the adult, and mitochondrial cytochrome oxidase I (COI) was amplified by PCR with universal primers to construct the DNA barcodes.【Result】 The results of morphology and genitalia structure showed that there was no significant morphological difference between the two species.The results of DNA barcoding showed that the COI gene sequence length was about 670bp.The sequence similarity between Cleroclytus collaris and Cleroclytus strigicollis was 99.60%.The average genetic distance between them was 0.6%, which proved that they were the same species, which was basically consistent with the results of morphological identification.【Conclusion】 DNA barcoding technology and morphological characteristics are combined to determine the classification of two species of Cleroclytus in Xinjiang, confirming that they are synonyms.

Key words: COI gene sequence; female genitalia; species identification; comparative morphology; integrated taxonomy

摘要：

【目的】结合DNA条形码技术与形态学比较,研究并分类克虎天牛属Cleroclytus两近似种新疆克虎天牛Cleroclytus collaris Jakovlev,1885和沟胸克虎天牛Cleroclytus strigicollis Jakovlev,1900,为其准确鉴定提供研究依据。【方法】采用体视显微镜,观察比较克虎天牛的外部形态特征;解剖克虎天牛雌性产卵器和内生殖器,描述其结构特点;从克虎天牛头部和胸部组织中提取基因组DNA,以通用引物进行PCR扩增线粒体细胞色素氧化酶I (Cytochrome Oxidase I, COI),构建DNA条形码。【结果】新疆克虎天牛与沟胸克虎天牛均未发现明显形态差异;克虎天牛的COI基因序列长度约为670 bp,新疆克虎天牛与沟胸克虎天牛序列相似性达到99.60%,二者的平均遗传距离是0.6%。【结论】新疆克虎天牛与沟胸克虎天牛为同一种,与形态学鉴定结果基本相吻合。沟胸克虎天牛是新疆克虎天牛的异名。

关键词: COI基因序列, 雌性外生殖器, 物种鉴定, 比较形态学, 整合分类学

CLC Number:

S763.3

GUO Shuhan, LUO Shungang, ZHONG Wen, KANG Ning, HU Hongying. Integrated Taxonomy Studies on Cleroclytus (Coleoptera: Cerambycidae) in China[J]. Xinjiang Agricultural Sciences, 2022, 59(4): 957-965.

郭书含, 罗顺刚, 钟问, 康宁, 胡红英. 中国克虎天牛属整合分类[J]. 新疆农业科学, 2022, 59(4): 957-965.

Figures/Tables 13

References 25

[1]	陆水田, 康建新, 马新华. 新疆天牛图志[M]. 乌鲁木齐: 新疆科技出版社, 1993: 57-58.
	LU Shutian, KANG Jianxin, MA Xinhua. Monograph of Cerambycidae in Xinjiang[M]. Urumqi: Xinjiang Science and Technology Press: 1993: 57-58.
[2]	嵇宝中. 我国天牛虫灾的成因、现状与对策[J]. 世界林业研究, 2001, 14(4):50-56.
	JI Baozhong. Contributing Factors, present situations and management strategies on the plague of longicorn beetles in China[J]. World Forestry Research, 2001, 14(4):50-56.
[3]	谭春艳, 熊昊洋, 陈斌. 重庆大巴山区天牛总科昆虫的分类和地理区系分析[J]. 重庆师范大学学报(自然科学版), 2020, 37(3):72-73.
	TAN Chunyan, XIONG Haoyang, CHEN Bin. Investigation and fauna analysis of Cerambycoidea in Daba Mountain of Chongqing[J]. Journal of Chongqing Normal University (Natural Science Ed.), 2020, 37(3):72-73.
[4]	梁铁, 张学祖. 沟胸细条虎天牛的初步观察[J]. 昆虫知识, 1988, 25(6):350-351.
	LIANG Tie, ZHANG Xuezu. Preliminary observation of Cleroclytus strigicollis Jakovlev[J]. Kunchong Zhishi, 1988, 25(6):350-351.
[5]	Danilevsky M. Review of the genus Cleroclytus Kraatz, 1884 (Coleoptera:Cerambycidae)[J]. Russian Entomol, 2001, 10(2):153-157.
[6]	杨倩倩, 李志红, 伍祎, 等. 线粒体COI基因在昆虫DNA条形码中的研究与应用[J]. 应用昆虫学报, 2012, 49(6):1687-1695.
	YANG Qianqian, LI Zhihong, WU Li, et al. Advance and application of mtDNA COI barcodes on insects[J]. Chinese Journal of Applied Entomology, 2012, 49(6):1687-1695.
[7]	Stauffer C. A molecular method for differentiating sibling species within the genus Ips[J]. USDA Forest Service General Technical Report, 1997, 236(2):87-91.
[8]	郑斯竹. 天牛科基因条形码构建及分子快速鉴定技术研究[D]. 南京: 南京林业大学硕士论文, 2012.
	ZHENG Sizhu. A study on DNA bar coding and the rapid molecular identification and detection methods of Cerambycidae[D]. Nanjing: Nanjing Forestry University, 2012.
[9]	陈梦义, 钱路, 安榆林, 等. DNA条形码试剂盒检测技术在墨天牛鉴定中的应用[J]. 南京林业大学学报(自然科学版), 2015, 39(6):7-11.
	CHEN Mengyi, QIAN Lu, AN Yulin, et al. The application of DNA barcoding identification kit technology to Monochamus Dejean[J]. Journal of Nanjing Forestry University (Natural Sciences Ed.), 2015, 39(6):7-11.
[10]	林晓佳. 光肩星天牛及其近缘种线粒体DNA COI基因遗传差异及其PCR鉴定试剂盒的研究[D]. 南京:南京林业大学, 2004.
	LIN Xiaojia. Genetic difference of mtDNA COI gene of A.glabripennis and its sibling species and PCR identification kit of A.glabripennis[D]. Nanjing: Nanjing Forestry University, 2004.
[11]	李京. 天牛科线粒体基因特征与形态发育初步研究[D]. 郑州: 河南农业大学, 2013.
	LI Jing. Preliminary study of characters and phylogenies of Cerambycidae based on mitochondrial genes[D]. Zhengzhou: Henan Agricultural University, Zhengzhou.
[12]	Tanner V M. Apreliminary study of the genitalia of female Coleoptera[J]. Transactions of the American Entomological Society, 1927, 53:5-50.
[13]	王文凯. 绿虎天牛属雌雄生殖器的比较研究[J]. 中国森林病虫, 2002, 21(5):3-7.
	WANG Wenkai. A taxonomic study on the male/female genital organs of the genus Chlorophorus Chevrolat (Coleoptera:Cerambycidae: Clytini)[J]. Forest Pest and Disease, 2002, 21(5):3-7.
[14]	任杰群, 陈力. 脊虎天牛属八种雌性生殖器比较研究(鞘翅目,天牛科,天牛亚科,虎天牛族)[J]. 动物分类学报, 2013, 38(3):488-489.
	REN Jiequn, CHEN Li. Morphological study on the female genitalia of eight species in the genus Xylotrechus Chevrolat (Coleoptera, Cerambycidae, Cerambycinae, Clytini)[J]. Acta Zootaxonomica Sinica, 2013, 38(3):488-489.
[15]	王文凯. 天牛总科雌性生殖器解剖结构及标本制作方法[J]. 中国森林病虫, 1999,(5):2-3.
	WANG Wenkai. The anatomical structure and preparation methods of female reproductive organin Cerambycoidea[J]. Forest Pest and Disease, 1999,(5):2-3.
[17]	哈萨克斯坦的天牛[J]. 植物检疫, 2004, 18(B06):44-46.
	Cerambycidae in Kazakhstan[J]. Plant Quarantine, 2004, 18(B06):44-46.
[18]	Liu H, Beckenbach A T. Evolution of the mitochondrial cytochromeoxidase gene among 10 orders of insects[J]. Molecular Phylogenetics and Evolution, 1992,(1):41-52. PMID
[19]	Hebert P D N, Cywinska A, Ball S L. Biological identifications through DNA barcodes[J]. Proceedings of the Royal Society of London B: Biological Sciences, 2003, 270(1512):313-321. DOI URL
[20]	华立中. 中国天牛科昆虫名录[M]. 广州: 中山大学, 1982.
	HUA Lizhong. A list of beetles in China[M]. Guangzhou: Sun Yat-sen University, 1982.
[21]	王直诚, 华立中. 中国天牛名录厘定与汇总[J]. 北华大学学报(自然科学版), 2009, 10(2):166.
	WANG Zhicheng, HUA Lizhong. Collect and revision of name list on longicorn beetles in China[J]. Journal of Beihua University (Natural Science), 2009, 10(2):166.
[22]	Lee W, Lee S. Molecular and morphological characterization of two aphid genera, Acyrthosiphon and Aulacorthum (Hemiptera: Aphididae)[J]. Journal of Asia-Pacific Entomology, 2013, 16(1):29-35.
[23]	曲良建, 王丽娟, 王青华, 等. 松墨天牛成虫标本保存及其DNA提取质量比较[J]. 应用昆虫学报, 2014, 51(3):741-748.
	QU Liangjian, WANG Lijuan, WANG Qinghua, et al. Comparison of the quality of genomic DNA extracted from adult specimens of Monochamus alternatus preserved by different methods[J]. Chinese Journal of Applied Entomology, 2014, 51(3):741-748.
[24]	吴福中, 王徐玫, 李惠萍, 等. 扶桑绵粉蚧及其近似种的DNA条形码鉴定[J]. 植物检疫, 2020, 2(34):45-46.
	WU Fuzhong, WANG Xumei, LI Huiping, et al. Molecular identification of Phenacoccus solenopsis Tinsley and its aillied species through DNA barcoding[J]. Plant Quarantine, 2020, 2(34):45-46.
[25]	闫华超, 贾少波, 王雪梅. 不同方法保存的蜜蜂基因组DNA提取的比较[J]. 生物技术通讯, 2020, 2(34):42-46.
	YANG Huachao, JIA Shaobo, WANG Xuemei, et al. Genomic DNA extraction from Apis cerana ceranap reserved by different methods[J]. Letters in Biotechnology, 2020, 2(34):42-46.

标本编号 Specimen number	种名 Species	采集时间 Collectingdate	采集地点 Collectingsites	保存方法 Preservation methods
1	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
2	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
3	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
4	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏
5	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏
6	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏

标本编号 Specimen number	种名 Species	采集时间 Collectingdate	采集地点 Collectingsites	保存方法 Preservation methods
1	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
2	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
3	新疆克虎天牛 C.collaris	2017.7.19	新疆伊犁哈萨克自治州新源县阿勒玛乡改良场植物园	干标本室温保存
4	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏
5	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏
6	沟胸克虎天牛 C.strigicollis	2020.6.15	新疆乌鲁木齐市新疆大学校内	无水乙醇-20℃冷藏

种名 Species	GenBank登录号 GenBank login number
咖啡脊虎天牛 Xylotrechus grayii	NC 030782
暗褐断眼天牛1 Tetropium Fuscum	AY 389477
暗褐断眼天牛2 Tetropium Fuscum	AY 389478

种名 Species	GenBank登录号 GenBank login number
咖啡脊虎天牛 Xylotrechus grayii	NC 030782
暗褐断眼天牛1 Tetropium Fuscum	AY 389477
暗褐断眼天牛2 Tetropium Fuscum	AY 389478

形态特征 Traditional morphologal characters	新疆克虎天牛 C.collaris	沟胸克虎天牛 C.strigicollis
头部 Head	褐红色,向前倾斜	褐红色,向前倾斜
触角 Antenna	11节,第1节膨大	11节,第1节膨大
触角长与体长比 Ratio of antenna length to body length	达到鞘翅末端	不达鞘翅末端
前胸背板体色 Color of pronotum	深褐色,基部有白色直立细长白毛	褐红色,基部有白色直立细长白毛
前胸背板刻纹 Sculpture of pronotum	纵沟纹和刻点,在基半部刻点比纵沟纹占优势	刻纹明显,刻点少量分布于后部
小盾片 Scutellum	半圆形,覆有白毛,下方和两侧略下凹	半圆形,覆有白毛,下方和两侧略下凹
鞘翅基部 The base of elytron	具白色的短斜脊	具白色的短斜脊
鞘翅前端 The front of elytron	红褐色,前三分之一有一微隆起的呈乳黄色而光滑的斑纹	红褐色,前三分之一有一微隆起的呈乳黄色而光滑的斑纹
鞘翅后端 The back of elytron	深褐色	黑褐色
足 Legs	褐红色	褐红色
