Optimization of Preparation of Conjugated Linoleic Acid by Alkali Isomerization of Pepper Seed Oil by Response Surface Methodology and Its Oxidation Stability

doi:10.6048/j.issn.1001-4330.2022.04.015

Xinjiang Agricultural Sciences ›› 2022, Vol. 59 ›› Issue (4): 908-915.DOI: 10.6048/j.issn.1001-4330.2022.04.015

• Horticultural Special Local Products·Agricultural Product Processing Engineering • Previous Articles Next Articles

Optimization of Preparation of Conjugated Linoleic Acid by Alkali Isomerization of Pepper Seed Oil by Response Surface Methodology and Its Oxidation Stability

MA Yan¹(), XU Mingqiang¹, LI Xidi², MENG Xintao¹, ZOU Shuping¹, ZHANG Ting¹, ZHANG Qian¹()

1. Institute of Farm Product Storage and Processing, Xinjiang Academy of Agricultural Sciences /Research Center of Xinjiang Main Farm Products Processing Engineering, Urumqi 830091,China
2. Xinjiang Xierdan Food Co., Ltd., Urumqi 830091,China

Received:2021-10-05 Online:2022-04-20 Published:2022-04-24
Correspondence author: ZHANG Qian
Supported by:
Special Fund for Public Welfare Industry (Agriculture) Scientific R & D Program of Ministry of Agriculture "Research and Demonstration of Comprehensive Utilization Technology of Vegetable By-Products"(201303079);Open Fund Project of Key Laboratory of Fruit and Vegetable Processing of Ministry of Agriculture "Study on the Characteristics of Modified Pepper Seed Dietary Fiber"(GSKF2016003);Xinjiang Natural Fund Project "Effect of High Pressure on the Properties of Pepper Seed Protein and Its Mechanism "(2016D01B031)

响应面法优化辣椒籽油碱异构化制备共轭亚油酸工艺及其氧化稳定性

马燕¹(), 许铭强¹, 李喜弟², 孟新涛¹, 邹淑萍¹, 张婷¹, 张谦¹()

1.新疆农科院农产品贮藏加工研究所/新疆主要农副产品精深加工工程技术研究中心,乌鲁木齐 830091
2.新疆西尔单食品有限公司,乌鲁木齐 830091

通讯作者: 张谦
作者简介:马燕(1984-),山东济南人,女,副研究员,博士,研究方向为农产品精深加工及副产物综合利用,(E-mail) mayan101314@sina.com
基金资助:
农业部公益性行业科研专项“蔬菜副产物综合利用技术研究与示范”(201303079);农业部果蔬加工重点实验室开放基金项目“不同处理改性辣椒籽膳食纤维的特性研究”(GSKF2016003);新疆维吾尔自治区自然科学青年基金项目“超高压对辣椒籽蛋白特性的影响及其机理研究”(2016D01B031)

Abstract

Abstract:

【Objective】 To study the preparation of conjugated linoleic acid from pepper seed oil by isomerization alkali in order to obtain high conversion of pepper seed oil conjugated linoleic acid.【Method】 The Conversion Rate of Conjugated Linoleic Acid was used as an indicator of investigation, the main influencing factors were reaction time, reaction temperature, alkali oil ratio and dissolved oil ratio, and the effects of different factors on conjugated linoleic acid conversion of pepper seed oil was analyzed by CCD. After that, the preparation process of conjugated linoleic acid from capsicum seed oil was determined, and the oxidation stability of conjugated linoleic acid between pepper seed oil and pepper seed oil was compared by Schaal oven accelerated test.【Result】 The optimal technical conditions are determined as follows by establishing the quadratic response regression model: The reaction temperature was 169℃, the reaction time was 4.4 h, Alkali oil ratio [M(KOH):M (Pepper seed oil)] was 0.2, Dissolved oil ratio [M(polyethylene glycol):M(Pepper seed oil)] was 1.7, and the conjugation conversion could reach 84.60%. Its oxidation stability was better than that of pepper seed oil.【Conclusion】 The process conditions of conjugated linoleic acid in pepper seed oil are optimized by response surface methodology, and the conjugated linoleic acid in pepper seed oil with good stability is obtained.

Key words: pepper seed oil; response surface optimization; alkali isomerization; conjugated linoleic acid; oxidation stability

摘要：

【目的】研究碱异构化法制备辣椒籽油共轭亚油酸工艺,得到高转化率的辣椒籽油共轭亚油酸,为辣椒副产物综合利用及制备共轭亚油酸的新资源开发提供理论依据。【方法】以共轭亚油酸转化率为指标,以反应时间、反应温度、碱油比和溶油比为主要影响因素,运用响应面中心组合设计(CCD),分析不同因素对辣椒籽油共轭亚油酸转化率的影响,研究辣椒籽油共轭亚油酸的制备工艺,采用Schaal加速试验对比辣椒籽油与辣椒籽油共轭亚油酸的氧化稳定性。【结果】辣椒籽油共轭亚油酸最佳工艺参数:反应温度为169℃,反应时间为 4.4 h,碱油比[M_(KOH)∶M_{(辣椒籽油)}]为0.2,溶油比[M_{(聚乙二醇)}∶M_{(辣椒籽油)} ]为1.7时,共轭转化率可达84.60%,其氧化稳定性优于辣椒籽油。【结论】响应面优化法优化碱异构化制备辣椒籽油共轭亚油酸工艺可得到较高转化率、稳定性较好的辣椒籽油共轭亚油酸。

关键词: 辣椒籽油, 碱异构化, 响应面优化, 共轭亚油酸, 氧化稳定性

MA Yan, XU Mingqiang, LI Xidi, MENG Xintao, ZOU Shuping, ZHANG Ting, ZHANG Qian. Optimization of Preparation of Conjugated Linoleic Acid by Alkali Isomerization of Pepper Seed Oil by Response Surface Methodology and Its Oxidation Stability[J]. Xinjiang Agricultural Sciences, 2022, 59(4): 908-915.

马燕, 许铭强, 李喜弟, 孟新涛, 邹淑萍, 张婷, 张谦. 响应面法优化辣椒籽油碱异构化制备共轭亚油酸工艺及其氧化稳定性[J]. 新疆农业科学, 2022, 59(4): 908-915.

Figures/Tables 7

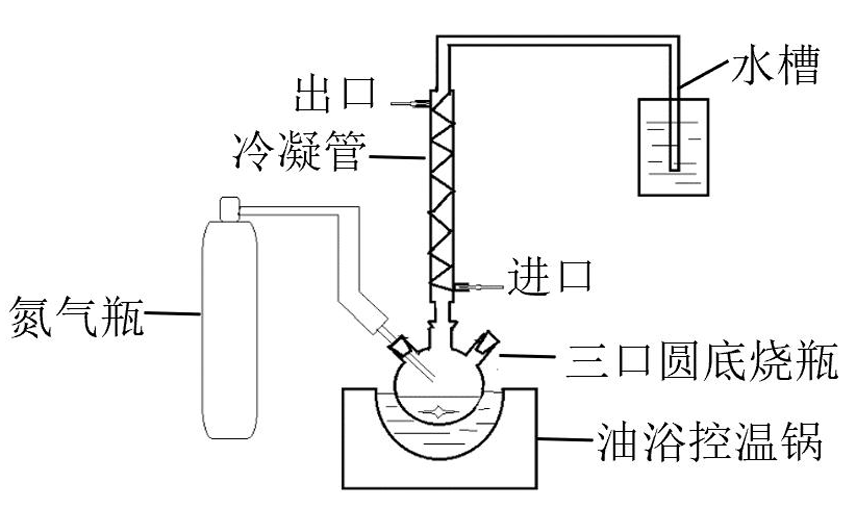

Fig.1 Reaction diagram of conjugated linoleic acid by self-made device

Table 1 Factors and levels of response surface

自变量 Independent variable	编码值 Coded value	编码水平 Coding level
自变量 Independent variable	编码值 Coded value	-1	0	1
反应温度 Reaction temperature(℃)	X₁	160	170	180
反应时间 Reaction time(h)	X₂	3	4	5
碱油比 Alkali oil ratio	X₃	0.5	0.3	0.1
溶油比 Solvent oil ratio	X₄	1	1.5	2

Table 2 Optimize experimental designs and results

处理号 Run seque-nce	反应温度 Reaction temperature(℃)	反应时间 Eaction time(h)	碱油比 Alkali oil ratio	溶油比 Solvent oil ratio	共轭转化率Y₁ Conjugate conversiont rate Y₁(%)
1	0	0	-1	1	84.62
2	0	1	0	1	74.56
3	-1	1	0	0	90.32
4	1	0	1	0	76.34
5	0	-1	1	0	85.42
6	-1	0	1	0	87.43
7	-1	0	-1	0	82.46
8	0	0	0	0	81.4
9	0	-1	-1	0	69.4
10	-1	-1	0	0	65.23
11	-1	0	0	1	78.6
12	1	-1	0	0	82.32
13	0	0	0	0	88.2
14	1	0	0	-1	80.12
15	0	0	1	-1	82.45
16	1	0	0	1	85.32
17	1	0	-1	0	81.5
18	0	-1	0	1	76.51
19	1	1	0	0	87.78
20	0	0	-1	-1	60.08
21	-1	0	0	-1	76.32
22	0	0	0	0	86.65
处理号 Run seque-nce	反应温度 Reaction temperature(℃)	反应时间 Eaction time(h)	碱油比 Alkali oil ratio	溶油比 Solvent oil ratio	共轭转化率Y₁ Conjugate conversiont rate Y₁(%)
23	0	0	1	1	78.96
24	0	1	0	-1	81.34
25	0	1	1	0	79.6
26	0	-1	0	-1	60.4
27	0	0	0	0	87.46
28	0	1	-1	0	83.52
29	0	0	0	0	86.44

Table 3 Regression coefficients and significant test for quadratic polynomial model equation

变异来源 Source	自由度 df	平方和 Sum of Squares	均方 Mean Square	F值 F-value	P P-value
模型Model	14	1 450.24	103.590	5.20	0.002 0^***
X₁	1	14.13	14.13	0.709 3	0.413 8
X₂	1	278.79	278.79	14.00	0.002 ${2^{}}^{}$
X₃	1	68.26	68.26	3.43	0.085 3
X₄	1	119.45	119.45	6.00	0.028 1^*
X₁X₂	1	96.33	96.33	4.84	0.045 2^*
X₁X₃	1	25.65	25.65	1.29	0.275 5
X₁X₄	1	2.13	2.13	0.107 0	0.748 4
X₂X₃	1	99.40	99.40	4.99	0.042 3^*
X₂X₄	1	130.99	130.99	6.58	0.022 5^*
X₃X₄	1	196.42	101.40	9.86	0.007 ${2^{}}^{}$
X₁₂	1	0.034 1	0.034 1	0.001 7	0.967 6
X₂₂	1	145.74	145.74	7.32	0.017 1^*
X₃₂	1	51.49	51.49	2.59	0.130 2
X₄₂	1	307.03	307.03	15.42	0.001 5^***
残差误差Residual	14	278.83	19.92	3.48	0.120 4
失拟Lack of Fit	10	250.09	25.01
纯误差总和 Cor Total	4 28	28.74 1 729.07	7.19
相关系数R²	0.838 7
变异系数CV	0.58

Table 3 Regression coefficients and significant test for quadratic polynomial model equation

变异来源 Source	自由度 df	平方和 Sum of Squares	均方 Mean Square	F值 F-value	P P-value
模型Model	14	1 450.24	103.590	5.20	0.002 0^***
X₁	1	14.13	14.13	0.709 3	0.413 8
X₂	1	278.79	278.79	14.00	0.002 ${2^{}}^{}$
X₃	1	68.26	68.26	3.43	0.085 3
X₄	1	119.45	119.45	6.00	0.028 1^*
X₁X₂	1	96.33	96.33	4.84	0.045 2^*
X₁X₃	1	25.65	25.65	1.29	0.275 5
X₁X₄	1	2.13	2.13	0.107 0	0.748 4
X₂X₃	1	99.40	99.40	4.99	0.042 3^*
X₂X₄	1	130.99	130.99	6.58	0.022 5^*
X₃X₄	1	196.42	101.40	9.86	0.007 ${2^{}}^{}$
X₁₂	1	0.034 1	0.034 1	0.001 7	0.967 6
X₂₂	1	145.74	145.74	7.32	0.017 1^*
X₃₂	1	51.49	51.49	2.59	0.130 2
X₄₂	1	307.03	307.03	15.42	0.001 5^***
残差误差Residual	14	278.83	19.92	3.48	0.120 4
失拟Lack of Fit	10	250.09	25.01
纯误差总和 Cor Total	4 28	28.74 1 729.07	7.19
相关系数R²	0.838 7
变异系数CV	0.58

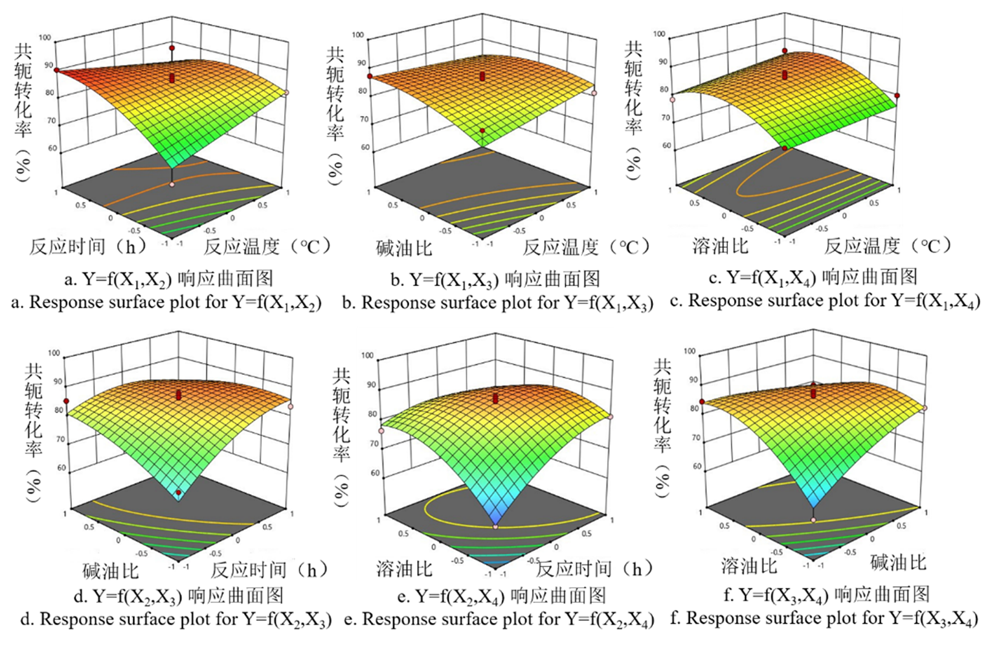

Fig.2 Response surface diagram of factor interaction and conjugate conversion

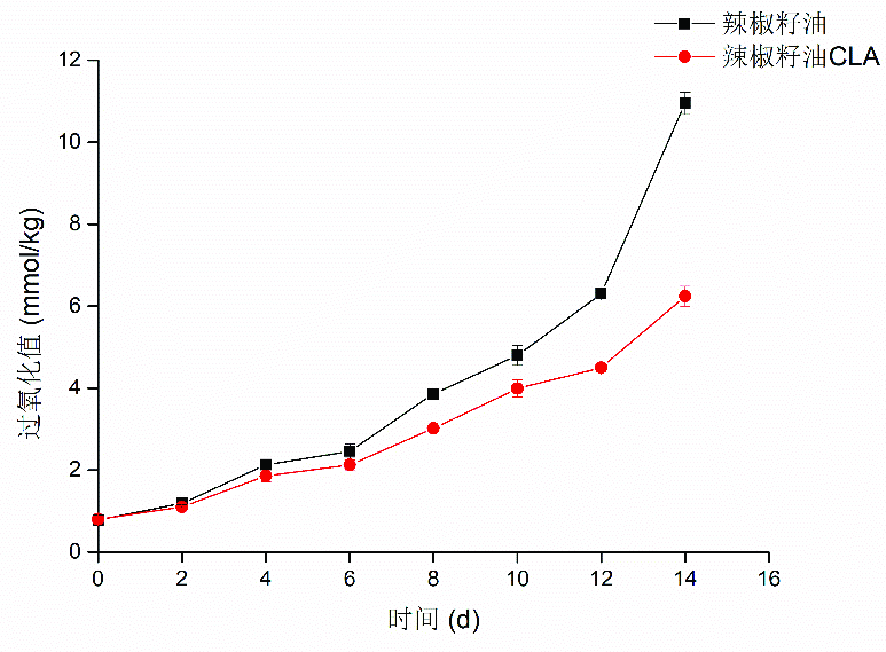

Fig.3 Comparison of peroxide value between pepper seed oil and pepper seed oil CLA

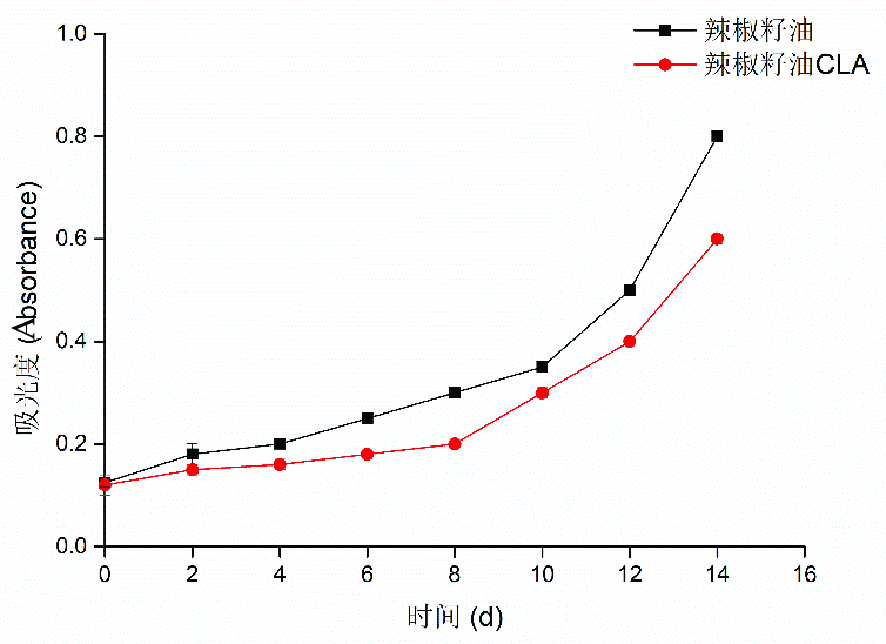

Fig.4 Comparison of TBA reactant between pepper seed oil and pepper seed oil CLA

References 24

[1]	刘佩, 沈生荣, 阮晖. 共轭亚油酸的生理学功能及健康意义[J]. 中国粮油学报, 2009, 24(6):161-165.
	LIU Pei, SHEN Shengrong, RUAN Hui. Physiological function and health significance of conjugated linoleic acid[J]. Journal of the Chinese Cereals and Oils Association, 2009, 24(6):161-165.
[2]	DENHARTIGHLJ. Conjugated linoleic acid effects on cancer, obesity, and atherosclerosis: a review of pre-clinical and human trials with current perspectives[J/OL]. Nutrients, 2019, 11(2):370.
[3]	刘芸, 苏平, 宋思圆. 响应面法优化黄秋葵籽油中亚油酸的共轭转化率[J]. 食品工业科技, 2015, 36(24):273-277.
	LIU Yun, SU Ping, SONG Siyuan. Optimization of conjugation conversion of linoleic acid in Okra Seed Oil by response surface methodology[J]. Science and Technology of Food Industry, 2015, 36(24):273-277.
[4]	新疆青年网. 新疆辣椒种植发展迅速成“红色产业”重要一员[EB/OL].[2018-10-25].
	Xinjiang Youth Network. Pepper planting in Xinjiang has developed rapidly and become an important member of the "red industry"[EB/OL]. [2018-10-25]. http://www.xjqnpx.com.cn/news/society/116896.html.
[5]	马燕, 徐贞贞, 邹辉, 等. 8个品种辣椒籽成分分析与比较[J]. 食品科学, 2017, 38(22):178-183.
	MA Yan, XU Zhenzhen, ZOU Hui, et al. Analysis and comparison of components of 8 varieties of pepper seeds[J]. Food Science, 2017, 38(22):178-183.
[6]	陈丽敏, 郜海燕, 陈杭君, 等. 响应面法优化山核桃亚油酸碱异构化研究[J]. 中国粮油学报, 2014, 29(8):74-79.
	CHEN Limin, GAO Haiyan, CHEN Hangjun, et al. Optimization of acid-base isomerization of Pecan oil by response surface methodology[J]. Journal of the Chinese Cereals and Oils Association, 2014, 29(8):74-79.
[7]	张红玉, 王淑萍, 金天佑, 等. 响应面优化红花籽油碱异构化法制备共轭亚油酸的研究[J]. 中国油脂, 2018, 43(1):99-102,125.
	ZHANG Hongyu, WANG Shuping, JIN Tianyou, et al. Study on the preparation of conjugated linoleic acid by alkali isomerization of safflower seed oil optimized by response surface methodology[J]. China Oils and Fats, 2018, 43(1):99-102,125
[8]	赵俊. 茶油制备共轭亚油酸及其抗氧化活性的研究[D]. 广州:华南理工大学, 2019.
	ZHAN Jun. Preparation of conjugated linoleic acid from tea oil and its antioxidant activity[D]. Guangzhou:South China University of technology, 2019.
[9]	陈科学, 王欣, 夏嘉祎, 等. 以葵花籽油为底物生物转化共轭亚油酸双歧杆菌的筛选[J]. 中国油脂, 2021, 46(1):128-131,145.
	CHEN Kexue, WANG Xin, XIA Jiayi, et al. Screening of bifidobacteria for biotransformation of conjugated linoleic acid with sunflower seed oil as substrate[J]. China Oils and Fats, 2021, 46(1):128-131,145.
[10]	Lian W, Li D, Li Z, et al. Synjournal of conjugated linoleic acid-rich triacylglycerols by immobilized mutant lipase with excellent capability and recyclability[J]. Enzyme and Microbial Technology, 2018, 117:56-63. DOI URL
[11]	Kellersmann C, Steinhart H, Francke W. Syntheses of conjugated octadecadienoic acids[J]. Lipids, 2006, 41(8):777-788. PMID
[12]	曹莹, 杨林, 陈振宇, 等. 共轭亚油酸的合成、分析与氧化稳定性[J]. 化学通报, 2004,(4):257-265.
	CAO Ying, YANG Lin, CHEN Zhenyu, et al. Synjournal, analysis and oxidation stability of conjugated linoleic acid[J]. Chemistry, 2004,(4):257-265.
[13]	邵群, 张慧, 边际. 功能性油脂—共轭亚油酸研究进展[J]. 食品科学, 2002, 23(2):164-166.
	SHAO Qun, ZHANG Hui, BIAN Ji. Marginal Research progress of functional oil conjugated linoleic acid[J]. Food Science, 2002, 23(2):164-166.
[14]	叶凯贞, 周家华, 黎碧娜, 等. 功能性油脂共轭亚油酸的研究进展[J]. 粮油加工与食品机械, 2003,(11):37-39.
	YE Kaizhen, ZHOU Jiahua, LI Bina, et al. Research progress of functional oil conjugated linoleic acid[J]. Grain and Oil Processing and Food Machinery, 2003,(11):37-39.
[15]	陈丽敏. 山核桃亚油酸分离及共轭亚油酸制备技术研究[D]. 合肥:安徽农业大学, 2013.
	CHEN Limin. Study on separation of linoleic acid from Carya cathayensis and preparation of conjugated linoleic acid[D]. Hefei: Anhui Agricultural University, 2013.
[16]	潘群文, 陈美珍, 吴演. 海篷子籽油制备共轭亚油酸及其组分分析[J]. 中国粮油学报, 2012, 27(2):42-46.
	PAN Qunwen, CHEN Meizhen, WU Yan. Preparation of conjugated linoleic acid from Caragana seed oil and its component analysis[J]. Journal of the Chinese Cereals and Oils Association, 2012, 27(2):42-46.
[17]	国家卫生和计划生育委员会, 食品安全国家标准GB/T5009. 227-2016食品中过氧化值的测定[S]. 北京: 中国标准出版社, 2016.
	National Health and Family Planning Commission of ?PRC. National food safety standard GB/T5009. National food safety standard GB/T5009.227-2016 Determination of peroxide value in food[S]. Beijing: China Standards Press, 2016.
[18]	赵俊. 茶油制备共轭亚油酸及其抗氧化活性的研究[D]. 广州:South China University of Technology, 2019.
	ZHAO Jun. Preparation of conjugated linoleic acid from tea oil and its antioxidant activity[D]. Guanzhou: South China University of Technology, 2019.
[19]	Domingos A K, Saad E B, Wilhelm H M, et al. Optimization of the ethanolysis of Raphanus sativus (L. Var.) crude oil applying the response surface methodology[J]. Bioresource Technology, 2008, 99(6):1837-1845. DOI URL
[20]	宋军, 徐焱, 凌利, 等. 棉籽油碱异构化合成共轭亚油酸研究[J]. 粮食与油脂, 2012,(8):13-15.
	SONG Jun, XU Yan, LING Li, et al. Synjournal of conjugated linoleic acid by alkali isomerization of cottonseed oil[J]. Cereals & Oils 2012,(8):13-15.
[21]	徐洪宇. 植物油脂氧化及其氧化稳定性的研究[J]. 食品安全导刊, 2021,(33):177-179.
	XU Hongyu. Study on oxidation and oxidation stability of vegetable oil[J]. China Food Safety Magazine, 2021,(33):177-179.
[22]	Ha Y L, Storkson J M, Pariza M W. Inhibition of Benzo(a)pyrene-induced Mouse Forestomach Neoplasia by Conjugated Dienoic Derivatives of Linoleic Acid[J]. Cancer Research, 1990, 50(4):1097-1101. PMID
[23]	Bouaid A, Martinez M, Aracil J. Production of biodiesel from bioethanol and Brassica carinata oil: Oxidation stability study[J]. Bioresource Technology, 2009, 99(7):2234-2239. DOI URL
[24]	严梅荣, 杨慧萍, 施仰周, 等. 共轭亚油酸氧化稳定性及其抗氧化性的研究[J]. 中国油脂, 2003,(12):59-61.
	YAN Meirong, YANG Huiping, SHI Yangzhou, et al. Study on oxidative stability and antioxidant activity of conjugated linoleic acid[J]. China Oils and Fats, 2003,(12):59-61.
