Height Extraction and Growing Stock Inversion of Picea schrenkiana var. tianshanica in Tianshan Mountain Based on UAV Image

doi:10.6048/j.issn.1001-4330.2021.10.009

Abstract

Abstract:

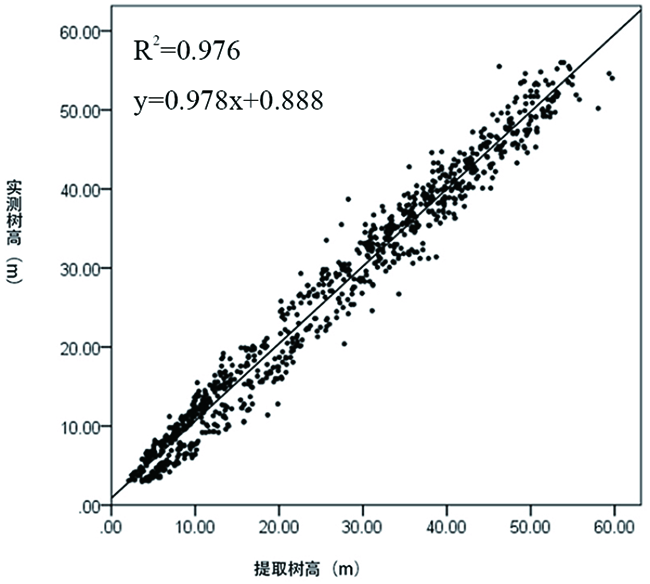

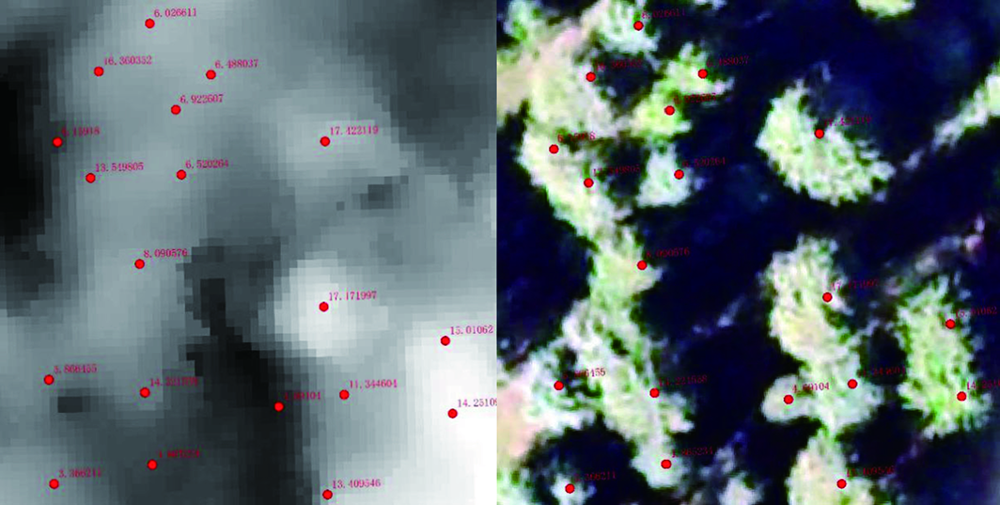

【Objective】 To establish the image elevation data model for inversion of forest growing stock inversion of Picea schrenkiana var. tianshanica based on the trees in Qiaxi Forest Park in Gongliu County, western Tianshan, Xinjiang, UAV aerial image and sample ground per wooden scale as data source in the hope of providing a reference for the ecological restoration and scientific management of natural forest protection project. 【Methods】 Using point cloud classification and Kriging interpolation to extract UAV image elevation data to obtain the height of Picea schrenkiana var. tianshanica, and at the same time, the DBH tree height model was established according to the measured data of the sample land, and the forest volume of Picea schrenkiana var.tianshanica. 【Results】 There was a significant positive correlation between tree height and measured tree height extracted by UAV images. the average extraction accuracy was 88.42%. The correlation coefficient of DBH-crown width model of Picea Schrenkiana var. tianshanica was 0.696, while that of DBH-tree height model was 0.730. Verify the DBH-tree height model, the calculated RMSE value is 12.386, the fitting effect is significant. The accuracy of retrieving stand volume based on DBH-tree height model is 87.66%. Compared with the measured values, most of the residual values fall in the residual range of (- 2,+2). 【Conclusion】 The local maximum algorithm is effective in extracting tree height information of Picea Schrenkiana var. tianshanica forest. The establishment of DBH-tree height model makes up for the defect that UAV can not measure DBH directly, and then inverts the stand volume ofPicea Schrenkiana var. tianshanica forest.

Key words: growing stock; UAV imaging; Picea schrenkiana var. tianshanica; tree height extraction

摘要：

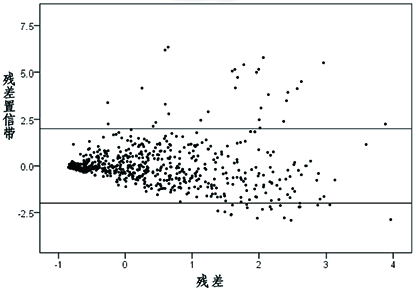

【目的】提取影像高程数据建立模型反演天山云杉林分蓄积量,为天然林保护工程实施后天山云杉生态恢复与科学管理提供参考依据。【方法】以新疆天山西部巩留县恰西森林公园的天山云杉(Picea Schrenkiana var. tianshanica)为研究对象,无人机航拍影像与样地每木检尺为数据源,使用点云分类与克里金插值法提取无人机影像高程数据得到天山云杉树高,根据样地实测数据建立胸径树高模型,最终根据胸径树高模型反演天山云杉林林分蓄积量。【结果】利用无人机影像提取树高与实测树高存在显著正相关关系,提取平均精度为88.42%,建立天山云杉胸径-冠幅模型的相关系数为0.696,而胸径-树高模型的相关系数为0.730;验证胸径-树高模型,计算RMSE值为12.386,拟合效果显著。基于胸径-树高模型反演林分蓄积量精度为87.66%,与实测值比对,残差值大部分落在(-2,+2)残差区间。【结论】采用局部最大值算法对天山云杉林树高信息的提取效果较好,建立胸径-树高模型弥补了无人机不能对胸径直接测量的缺陷,进而反演天山云杉林林分蓄积量。

关键词: 蓄积量, 无人机影像, 天山云杉, 树高提取

CLC Number:

S771

Jincheng LÜ, Zhenxi WANG, Yongqiang YANG, Yanbin QU, Qiyao MA, Siming ZHU. Height Extraction and Growing Stock Inversion of Picea schrenkiana var. tianshanica in Tianshan Mountain Based on UAV Image[J]. Xinjiang Agricultural Sciences, 2021, 58(10): 1838-1845.

吕金城, 王振锡, 杨勇强, 曲延斌, 马琪瑶, 朱思明. 基于无人机影像的天山云杉林树高提取及蓄积量的反演[J]. 新疆农业科学, 2021, 58(10): 1838-1845.

Figures/Tables 12

References 19

[1]	吴霜, 延晓冬, 张丽娟. 中国森林生态系统能值与服务功能价值的关系[J]. 地理学报, 2014, 69(3):334-342. DOI
	WU Shuang, YAN Xiaodong, ZHANG Lijuan. The relationship between forest ecosystem emergy and forest ecosystem service value in China[J]. Acta Geographica Sincia, 2014, 69(3):334-342.
[2]	于生华. 天然林资源共享保护工程在我区经济社会发展中的地位和重要性[J]. 新疆林业, 2015,(1):21-23.
	YU Shenghua. The status and importance of natural forest resource sharing and protection project ineconomic and social development[J]. Forestry of Xinjiang, 2015,(1):21-23.
[3]	李明辉, 何风华, 刘云, 等. 天山云杉种群空间格局与动态[J]. 生态学报, 2005, 25(5):1000-1006.
	LI Minghui, HE Fenghua, LIU Yun, et al. Spatial distribution pattern of tree individuals in the PiceaSchrenkianavartianshanica[J]. Acta Ecologica Sinica, 2005, 25(5):1000-1006.
[4]	王雅佩, 王振锡, 刘梦婷, 等. 基于无人机影像天山云杉林主伐迹地提取研究[J]. 新疆农业科学, 2019, 56(7):1315-1327.
	WANG Yapei, WANG Zhengxi, LIU Mengting, et al. Research on estimation of stand density of regenerate PiceaSchrenkianavartianshanica based on UAV Image[J]. Xinjiang Agricultural Sciences, 2019, 56(7):1315-1327.
[5]	Song C, Dickinson M B, Su L, et al. Estimating average tree crown size using spatial information from Ikonos and QuickBird images: Across-sensor and across-site comparisons[J]. Remote Sensing of Environment, 2010, 114(5):1099-1107. DOI URL
[6]	史洁青, 冯仲科, 刘金成. 基于无人机遥感影像的高精度森林资源调查系统设计与试验[J]. 农业工程学报, 2017, 33(11):82-90.
	SHI Jieqing, FENG Zhongke, LIU Jincheng. Design and experiment of high precision forest resource investigation system based on UAV remote sensing images[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(11):82-90.
[7]	贾嘉辉. 高分遥感森林蓄积量估测算法研究[D]. 西安: 西安科技大学, 2017.
	JIA Jiahui. Study on forest Stock Estimation Algorithm for high resolution remote sensing[D]. Xi’an: Xian Technology University, 2017.
[8]	曹霖. 基于Sentinel-2影像的延庆区森林蓄积量遥感估测研究[D]. 北京: 北京林业大学, 2019.
	CAO Lin. Estimation of Pinuskesiya var. langbianensis Forest Stock Volume based on Sentinel-1A SAR Image Remote sensing Estimation of Forest stock in Yanqing District based on Sentinel-2 image[D]. Beijing: Beijing Forestry University, 2019.
[9]	李赟. 基于UAV高分影像的林木冠幅提取与蓄积量估测研究[D]. 南京: 南京林业大学, 2017.
	LI Yun. Extraction and Volume Estimation of Tree Crown Based on High UAV Image[D]. Nanjing: Nanjing Forestry University, 2017.
[10]	李蕴雅. UAV/RS3D像对森林信息提取方法研究[D]. 北京:北京林业大学, 2016.
	LI Yunya. UAV/RS3D Image Research on Forest Information Extraction Method[D]. Beijing: Beijing Forestry University, 2016.
[11]	周小成, 何艺, 黄洪宇, 等. 基于两期无人机影像的针叶林伐区蓄积量估算[J]. 林业科学, 2019, 55(11):117-125.
	ZHOU Xiaocheng, HE Yi, HUANG Hongyu, et al. Estimation of coniferous forest cutting volume based on two-phase UAV image[J]. Scientia Silvae Sinicae. 2019, 55(11):117-125.
[12]	卢妮妮, 王新杰, 张鹏, 等. 不同林龄杉木胸径树高与冠幅的通径分析[J]. 东北林业大学学报, 2015, 43(4):12-16.
	LU Nini, WANG Xinjie, ZHANG Peng, et al. Path analysis between diameter at breast height, height and crown width of cunnin ghamia lanceolata in different age[J]. Journal of Northeast Forestry University, 2015, 43(4):12-16.
[13]	李亚东, 曹明兰, 李长青, 等. 无人机森林航摄影像三维点云估测林分蓄积量研究[J]. 中南林业科技大学学报, 2019, 39(3):56-60.
	LI Yadong, CAO Minglan, LI Changqin, et al. A research on three-dimensional point cloud estimation of forest stand volume by UAV forest aerial survey images[J]. Journal of Central South University of Forestry & Technology, 2019, 39(3):56-60.
[14]	王伟. 无人机影像森林信息提取与模型研建[D]. 北京: 北京林业大学, 2015.
	WANG Wei. Information extraction and model construction of UAV image forest[D]. Beijing: Beijing Forestry University, 2015.
[15]	Wang L, Gong P, Biging G S. Individual Tree-Crown Delineation and Treetop Detection in High-Spatial-Resolution Aerial Imagery[J]. Photogrammetric Engineering & Remote Sensing, 2004, 70(3):351-358.
[16]	Lun Wu, Yunhai Zhang, Yong Gao, et al. Individual Tree-Crown Delineation and Treetop Detection in High-Spatial-Resolution Aerial Imagery[J]. Remote Sensing of Environment, 2004, 114(5):20-24.
[17]	Culvenor D S, Mikko Vastaranta, Markus Holopainen, et al. TIDA: an algorithm for the delineation of tree crowns in high spatial resolution remotely sensed imagery[J]. Computers & Geosciences, 2002, 28(1):33-44. DOI URL
[18]	李海奎, 法蕾. 基于分级的全国主要树种树高-胸径曲线模型[J]. 林业科学, 2011, 47(10):83-90.
	LI Haikui, Fa Lei. Height-Diameter Model for Major Tree Species in China Using the Classified Height Method[J]. Scientia Silvae Sinicae, 2011, 47(10):83-90.
[19]	Iizuka, Iizuka, K., Yonehara, T., Itoh, M., Kosugi, Y. Estimating Tree Height and Diameter at Breast Height (DBH) from Digital Surface Models and Orthophotos Obtained with an Unmanned Aerial System for a Japanese Cypress (Chamaecyparisobtusa) Forest[J]. Remote Sensing, 2017, 10(1):277-8568. DOI URL

参数类型 Parameter type	参数数据 Parameter data
传感器类型 Sensor type	CMOS
传感器尺寸 Sensor size	全画幅
有效像素 Effective Pixels	4 240万
焦距 Focal length	35 mm
像素大小 Pixel size	4.53×4.53 (μm)

参数类型 Parameter type	参数数据 Parameter data
传感器类型 Sensor type	CMOS
传感器尺寸 Sensor size	全画幅
有效像素 Effective Pixels	4 240万
焦距 Focal length	35 mm
像素大小 Pixel size	4.53×4.53 (μm)

变量 Variable	最大值 Maximum value	最小值 Minimum value	平均值 Average value
胸径 Diameter at breast height(cm)	148.97	5.00	43.49
树高 Tree height(m)	60.40	3.00	25.76
冠幅 Crown breadth (m)	10.2	0.58	3.35

变量 Variable	最大值 Maximum value	最小值 Minimum value	平均值 Average value
胸径 Diameter at breast height(cm)	148.97	5.00	43.49
树高 Tree height(m)	60.40	3.00	25.76
冠幅 Crown breadth (m)	10.2	0.58	3.35

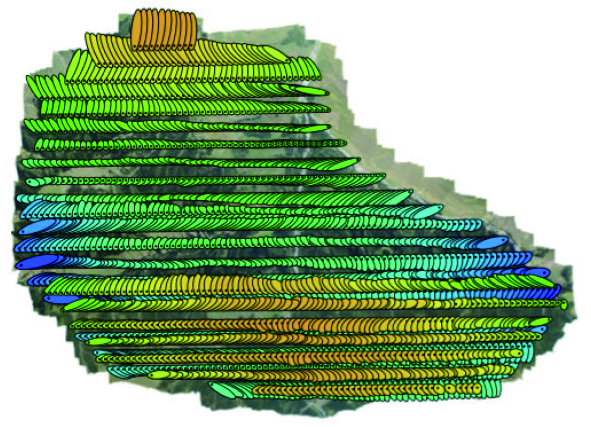

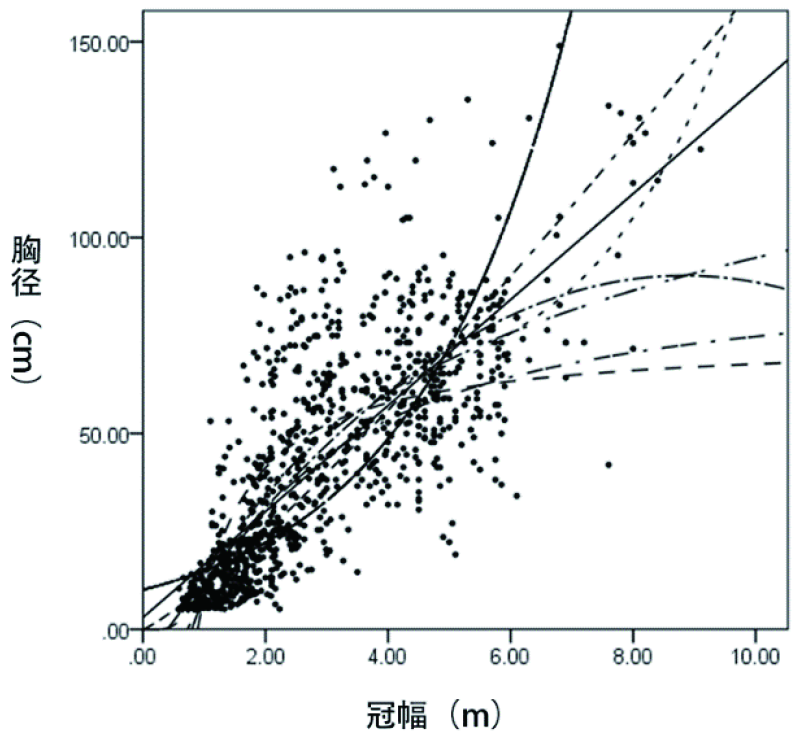

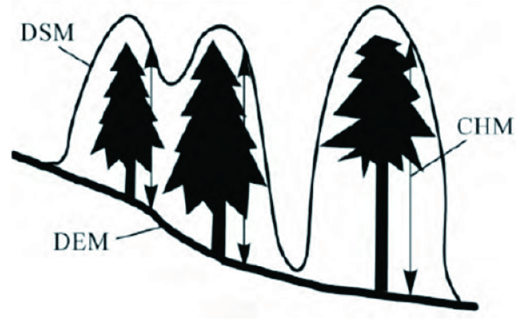

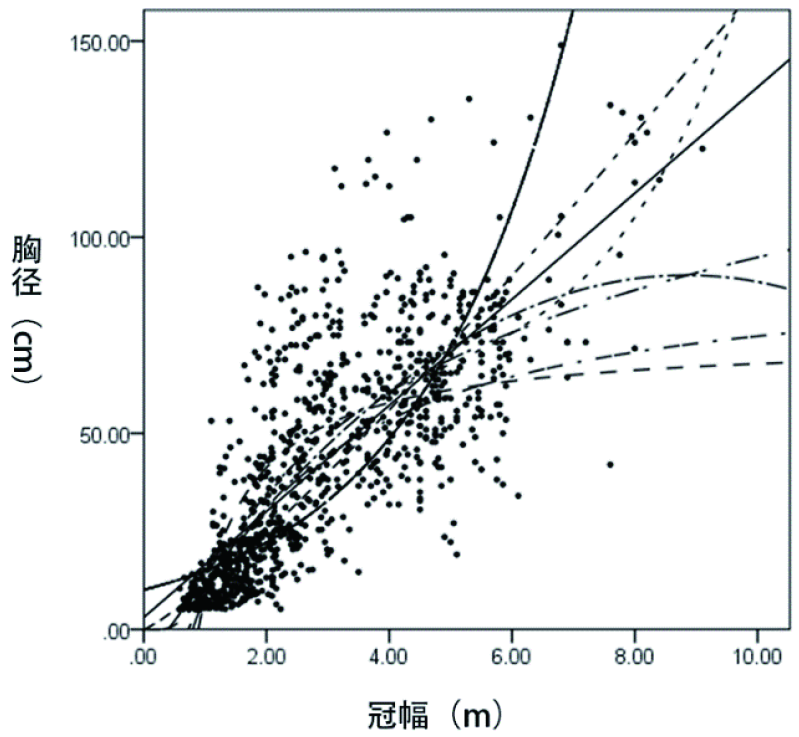

方程 Model	R²	F	df₁	df₂
线性Linear function	0.587	1 435.558	1	1 009
对数Logarithmic function	0.606	1 552.731	1	1 009
倒数Reciprocal function	0.504	1 027.327	1	1 009
二次Quadratic function	0.606	775.227	2	1 008
三次Cubic function	0.623	555.753	3	1 007
复合Function of function	0.580	1 395.627	1	1 009
幂Power function	0.696	2 308.688	1	1 009
S曲线S-curve	0.673	2 074.368	1	1 009
增长Increasing function	0.580	1 395.627	1	1 009
指数Exponential function	0.580	1 395.627	1	1 009
