Photosynthetic Characteristics and Yield Response to Water Content of Apple under Close Planting on Dwarf Rootstocks in Southern Xinjiang

doi:10.6048/j.issn.1001-4330.2022.06.012

Abstract

Abstract:

【Objective】 To explore the influence of irrigation amount on the photosynthetic characteristics, yield and water use efficiency of southern Xinjiang short-stock dense apple.【Method】 5-year-old Royal Gala was taken as the test tree species, conventional irrigation orchard as the control treatment (CK), and the irrigation quota was 5.14 mm, a total of 5 irrigation quotas were set, namely W₁ (13.5 mm), W₂ (18 mm), W₃ (22.5 mm), W₄ (27 mm) and W₅ (31.5 mm) to analyze the response mechanism of apple photosynthetic characteristics, yield and water use efficiency to water.【Result】 The daily changes of net photosynthetic rate, stomatal conductance and transpiration rate of apples under different irrigation amounts all showed a single-peak curve, and reached the peak at 10:00, while the intercellular CO₂ concentration changed in the opposite way, showing an inverted "V" type, at the minimum at 10:00.At the same time, the daily average value of photosynthetic index showed a trend of first increasing and then decreasing with the increase of irrigation amount.The net photosynthetic rate, stomatal conductance, and transpiration rate were all the highest in W₄ treatment, followed by W₃ treatment.Compared with CK, W₃ treatment, and W₄ treatment, the leaf instantaneous water use efficiency increased by 5.06% and 3.37% respectively; the apple yield increased first and then decreased with the increase of irrigation amount, W₄ treatment had the highest yield, but it was not significantly different from W₃ treatment, increased by 17.01% and 14.94%, respectively compared with CK, and the irrigation water use efficiency increased by 7.23% and 26.33% respectively compared with CK.【Conclusion】 Therefore, considering the photosynthetic characteristics, yield and water use efficiency of apples, the irrigation quota is 472.5 mm and the irrigation frequency is 21 times, the yield of apples is higher, which can save 9.06% of irrigation water compared with conventional irrigation orchards, so it can be used as an irrigation guidance scheme for 5a Royal Gala apples in southern Xinjiang.

Key words: close planting of dwarf stock; apple; photosynthetic characteristics; yield; water use efficiency

摘要：

【目的】 研究灌水量对新疆南疆矮砧密苹果光合特性、产量及水分利用效率的影响。【方法】 以5 a生皇家嘎啦(Royal Gala)为试验树种,常规灌溉果园为对照处理(CK),灌水定额为5.14 mm,共设置5个灌水定额,即W₁(13.5 mm)、W₂(18 mm)、W₃(22.5 mm)、W₄(27 mm)及W₅(31.5 mm),分析苹果光合特性、产量及水分利用效率对水分的响应机制。【结果】 不同灌水量下的苹果净光合速率、气孔导度和蒸腾速率日变化均呈单峰曲线,并在10:00达到峰值,而胞间CO₂浓度变化规律则相反,呈倒“V”型,在10:00时处于最小值。光合指标日均值随着灌水量的增加呈先增后减的趋势,且净光合速率、气孔导度及蒸腾速率均以W₄处理最高,W₃处理次之;与CK相比,W₃处理和W₄处理,叶片瞬时水分利用效率分别提高了5.06%和3.37%;苹果产量则随着灌水量的增加呈先增加后降低的趋势,W₄处理产量最高,但与W₃处理差异不显著,分别较CK增加了17.01%和14.94%,且灌溉水利用效率较CK分别提高7.23%和26.33%。【结论】 新疆南疆矮砧密植5 a生皇家嘎啦苹果灌溉定额为472.5 mm,灌水次数21次时,苹果产量较高,较常规灌溉果园节约灌水9.06%的灌溉。

关键词: 矮砧密植, 苹果, 光合特性, 产量, 水分利用效率

CLC Number:

CAO Hui, WANG Hongbo, ZHANG Nan, WANG Xingpeng. Photosynthetic Characteristics and Yield Response to Water Content of Apple under Close Planting on Dwarf Rootstocks in Southern Xinjiang[J]. Xinjiang Agricultural Sciences, 2022, 59(6): 1409-1417.

曹辉, 王洪博, 张楠, 王兴鹏. 矮砧密植苹果光合特性及产量对水分的响应[J]. 新疆农业科学, 2022, 59(6): 1409-1417.

Figures/Tables 6

References 38

[1]	李生平, 武雪萍, 高丽丽, 等. 黄瓜光合特征及水分利用效率对土壤含水量的响应[J]. 中国农业科学, 2017, 50(15):2993-3005.
	LI Shengping, WU Xueping, GAO Lili, et al. Response of Photosynthetic Characteristics and Water Use Efficiency of Cucumber to Soil Water Content[J]. Scientia Agricultura Sinica, 2017, 50(15):2993-3005.
[2]	周罕觅, 张富仓, Roger Kjelgren, 等. 苹果幼树生理特性和水分生产率对水肥的响应研究[J]. 农业机械学报, 2015, 46(4):77-87.
	ZHOU Hanmi, ZHANG Fucang, Roger Kjelgren, et al. Response of Physiological Properties and Crop Water Productivity of Young Apple Tree to Water and Fertilizer[J]. Transactions of the Chinese Society for Agricultural Machinery, 2015, 46(4):77-87.
[3]	程甜甜, 张光灿, 张淑勇, 等. 不同土壤水分条件下文冠果的光合作用日变化[J]. 西北植物学报, 2016, 36(9):1828-1835.
	CHENG Tiantian, ZHANG Guangcan, ZHANG Shuyong, et al. Photosynthesis Diurnal Variation of Xanthocerassorbifolia Bunge under Different Soil Water Condition[J]. Acta Botanica Boreali-Occidentalia Sinica, 2016, 36(9):1828-1835.
[4]	魏钦平, 刘松忠, 王小伟, 等. 分根交替不同灌水量对苹果生长和叶片生理特性的影响[J]. 中国农业科学, 2009, 42(8):2844-2851.
	WEI Qinping, LIU Songzhong, WANG Xiaowei, et al. Effects of Partial Root Zone Alternative Irrigation on Growth and Leaf Physiological Characteristics of Apple Trees[J]. Scientia Agricultura Sinica, 2009, 42(8):2844-2851.
[5]	耿生莲. 不同土壤水分下黑果枸杞生理特点分析[J]. 西北林学院学报, 2012, 27(1):6-10.
	GENG Shenglian. Physio Characteristics of Lyciumruthenicum under Different Soil Water Conditions[J]. Journal of Northwest Forestry University, 2012, 27(1):6-10.
[6]	程来亮, 罗新书. 短期土壤干旱对苹果叶片光合速率日变化的影响[J]. 果树科学, 1990,(4):193-200.
	CHENG Lailiang, LUO Xinshu. Effects of Short-Term Soil Drought on Diurnal Changes of Photosynthetic Rate in Apple Leaves[J]. Journal of Fruit Science, 1990,(4):193-200.
[7]	严巧娣, 苏培玺. 不同土壤水分条件下葡萄叶片光合特性的比较[J]. 西北植物学报, 2005,(8):1601-1606.
	YAN Qiaodi, SU Peixi. Photosynthetic Characteristics of Grapevine Leaves Under Different Soil Moistures[J]. Acta Botanica Boreali-Occidentalia Sinica, 2005,(8):1601-1606.
[8]	张效星, 樊毅, 崔宁博, 等. 不同灌水量对滴灌猕猴桃光合、产量与水分利用效率的影响[J]. 灌溉排水学报, 2019, 38(1):1-7.
	ZHANG Xiaoxing, FAN Yi, CUI Ningbo, et al. The Effects of Dripirrigation Amount on Photosynthesis, Yield and Water Use Efficiency of Kiwi fruit[J]. Journal of Irrigation and Drainage, 2019, 38(1):1-7.
[9]	邓恒芳, 王克勤. 土壤水分对石榴光合速率的影响[J]. 浙江林学院学报, 2005,(3):277-281.
	DENG Hengfang, WANG Keqin. Effect of soil water content on net photosynthetic rate of Punicagranatum[J]. Journal of Zhejiang Forestry College, 2005,(3):277-281.
[10]	程来亮, 罗新书, 杨兴洪. 田间苹果叶片光合速率日变化的研究[J]. 园艺学报, 1992,(2):111-116.
	CHENG Lailiang, LUO Xinshu, YANG Xinghong. A Study on Diurnal Changes of Photosynthetic Rate in Leaves of Apple Trees in the Field[J]. Acta Horticulturae Sinica, 1992,(2):111-116.
[11]	杨莹, 王磊, 刘永辉, 等. 红核桃和绿核桃叶片性状及光合日变化比较[J]. 果树学报, 2020,(8):1175-1183.
	YANG Ying, WANG Lei, LIU Yonghui, et al. Comparison of leaf traits and diurnal variation of photosynthetic rates between red-and green-leafed walnuts[J]. Journal of Fruit Science, 2020,(8): 1175-1183.
[12]	孙霞, 柴仲平, 蒋平安, 等. 水氮耦合对苹果光合特性和果实品质的影响[J]. 水土保持研究, 2010, 17(6):271-274.
	SUN Xia, CHAI Zhongping, JIANG Pingan, et al. Effects on the Photosynthetic Characteristics and the Quality of the Apple under the Water and Nitrogen Coupling[J]. Research of Soil and Water Conservation, 2010, 17(6):271-274.
[13]	张效星, 樊毅, 贾悦, 等. 水分亏缺对滴灌柑橘光合和产量及水分利用效率的影响[J]. 农业工程学报, 2018, 34(3):143-150.
	ZHANG Xiaoxing, FAN Yi, JIA Yue, et al. Effect of water deficit on photosynthetic characteristics, yield and water use efficiency in Shiranui citrus under drip irrigation[J]. Transactions of the Chinese Society of Agricultural Engineering, 2018, 34(3):143-150.
[14]	刘忠霞. 干旱胁迫下苹果树苗光合、耗水特性及抗旱性研究[D]. 杨凌: 西北农林科技大学, 2011.
	LIU Zhongxia. Study on Drought Stress to photosynthetic, Water Consumption Charactteristics and Drought Resistance of MaulusDomestica Borky.CV.RedFUJI[D]. Yangling: Northwest A&F University, 2011.
[15]	程福厚, 李绍华, 孟昭清. 调亏灌溉条件下鸭梨营养生长、产量和果实品质反应的研究[J]. 果树学报, 2003,(1):22-26.
	CHENG Fuhou, LI Shaohua, MENG Zhaoqing. Study on the Effect of Regulated Deficit Irrigation on the Vegetative Growth, Cropping and Fruit Quality of Yali Pear Variety[J]. Journal of Fruit Science, 2003,(1):22-26.
[16]	艾鹏睿, 马英杰. 调亏灌溉对干旱区枣树生理特性和果实产量的影响[J]. 灌溉排水学报, 2018, 37(9):9-15.
	AI Pengrui, MA Yingjie. Effects of Regulated Deficit Irrigation on Physiological Characteristics and Water Consumption of Jujube in Arid Area[J]. Journal of Irrigation and Drainage, 2018, 37(9): 9-15.
[17]	依提卡尔·阿不都沙拉木, 朱成立, 柳智鹏, 等. 调亏灌溉对枣树生长与果实品质和产量的影响[J]. 排灌机械工程学报, 2018, 36(10):948-951,957.
	Yitikaer Abudushalamu, ZHU Chengli, LIU Zhipeng, et al. Effects of regulated deficit irrigation on growth,fruit quality and yield of jujube tree[J]. Journal of Drainage and Irrigation Machinery Engineering, 2018, 36(10):948-951,957.
[18]	房玉林, 孙伟, 万力, 等. 调亏灌溉对酿酒葡萄生长及果实品质的影响[J]. 中国农业科学, 2013, 46(13):2730-2738.
	FANG Yulin, SUN Wei, WAN Li, et al. Effects of Regulated Deficit Irrigation (RDI) on Wine Grape Growth and Fruit Quality[J]. Scientia Agricultura Sinica, 2013, 46(13): 2730-2738.
[19]	Gasque María, Martí Pau, GRANERO Beatriz, et al. Effects of long-term summer deﬁcit irrigation on ‘Navelina’ citrus trees[J]. Agricultural Water Management, 2016, 169: 140-147. DOI URL
[20]	KÜçÜkyumuk C, Emel K, Halit Y. Effects of different deficit irrigation strategies on yield, fruit quality and some parameters: 'Braeburn' apple cultivar[J]. Notulae Botanicae Horti Agrobotanici Cluj-Napoca, 2013, 41(2):510-517.
[21]	陈瑛, 邹颖, 杨文, 等. 不同调亏处理对脐橙果实生长和品质的影响[J]. 节水灌溉, 2017,(9):38-42.
	CHEN Ying, ZOU Ying, YANG Wen, et al. Effect of Regulated Deficit Irrigation on Navel Oranges Growth and Quality[J]. Water Saving Irrigation, 2017,(9): 38-42.
[22]	康敏. 石羊河流域苹果树耗水规律及节水调质试验研究[D]. 杨凌: 西北农林科技大学, 2009.
	KANG Min. Experimental Research on Water Consumption and Quality Control of Apple Tree in the Shi Yang He River Basin[D]. Yangling: Northwest A&F University, 2009.
[23]	黄超, 刘战东, 赵犇, 等. 不同产量水平下夏玉米光合及耗水特性研究[J]. 灌溉排水学报, 2019, 38(12):19-28.
	HUANG Chao, LIU Zhandong, ZHAO Ben, et al. Study on Photosynthesis and Water Consumption Characteristics of Summer Maize under Different Yield Levels[J]. Journal of Irrigation and Drainage, 2019, 38(12): 19-28.
[24]	Meianied J, Thomasc H. Nickel toxicity in mycorrhizal birch seedlings infected with Lactariusrufus or Scleroderma flavidum I.Effects on growth photosynthesis respiration and transpiration[J]. New Phytologist, 1988, 108(4): 451-459. DOI URL
[25]	Silvia A, Marta C, Monica G, et al. Estimation of Mediterranean forest transpiration and photosynthesis through the use of anecosystem simulation model driven by remotely sensed data[J]. Global Ecology and Biogeography, 2004, 13(4): 371-380. DOI URL
[26]	孙东宝, 王庆锁. 水分对苜蓿叶片光合特性的影响[J]. 植物生态学报, 2012, 36(1):72-80.
	SUN Dongbao, WANG Qingsuo. Effects of water on the photosynthetic characteristics of alfalfa (Medicago sativa)[J]. Chinese Journal of Plant Ecology, 2012, 36(1): 72-80. DOI URL
[27]	云文丽, 侯琼, 王海梅, 等. 不同土壤水分对向日葵光合光响应的影响[J]. 应用气象学报, 2014, 25(4):476-482.
	YUN Wenli, HOU Qiong, WANG Haimei, et al. Effects of Different Soil Moistures on Photosynthetic Characteristics of Sunflower[J]. Journal of Applied Meteorological Science, 2014, 25(4): 476-482.
[28]	李新, 冯玉龙. 砂仁光合作用的CO₂扩散限制与气孔限制分析[J]. 植物生态学报, 2005,(4):584-590. DOI
	LI Xin, FENG Yulong. CO₂ Diffusional and Stomatal Limitations of Photosynthesis in Amomum Villosum[J]. Acta Phytoecologica Sinica, 2005,(4): 584-590.
[29]	刘明, 齐华, 孙世贤, 等. 水分胁迫对玉米光合特性的影响[J]. 玉米科学, 2008,l6(4):86-90.
	LIU Ming, QI Hua, SUN Shixian, et al. Effect of Water Stress on Maize Photosynthetic Characteristics[J]. Journal of Maize Sciences, 2008, l6(4): 86-90.
[30]	张仁和, 郑友军, 马国胜, 等. 干旱胁迫对玉米苗期叶片光合作用和保护酶的影响[J]. 生态学报, 2011, 31(5):1303-1311.
	ZHANG Renhe, ZHENG Youjun, MA Guosheng, et al. Effects of Drought stress on photosynthetic traits and protective enzyme activity in maize seedling[J]. Acta Ecologica Sinica, 2011, 31(5): 1303-1311.
[31]	陈建军, 韩锦峰, 王瑞新, 等. 水分胁迫下烟草光合作用的气孔与非气孔限制[J]. 植物生理学通讯, 1991,(6):415-418.
	CHEN Jianjun, HAN Jinfeng, WANG Ruixin, et al. Study on photosynthesis stomatal and nonstomatal factors in tobacco leaves under water stress[J]. Plant Physiology Communications, 1991,(6):415-418.
[32]	韩国君, 陈年来, 黄海霞, 等. 番茄叶片光合作用对快速水分胁迫的响应[J]. 应用生态学报, 2013, 24(4):1017-1022. PMID
	HAN Guojun, CHEN Nianlai, HUANG Haixia, et al. Responses of tomato leaf photosynthesis to rapid water stress[J]. Chinese Journal of Applied Ecology, 2013, 24(4): 1017-1022. PMID
[33]	付优, 马英杰. 不同土壤水分对枣树幼果期光合特性的影响研究[J]. 节水灌溉, 2019,(8):54-58,63.
	FU You, MA Yingjie. Effects of Different Soil Moisture on Photosynthetic Characteristics of Jujube at Young Fruit Stage[J]. Water Saving Irrigation, 2019,(8): 54-58,63.
[34]	Gao Z, Li Z, Chen C. Dynamic simulation of photosynthetic rates in potted apple trees under drought stress[J]. Bangl J bot, 2015, 44(5):759-767.
[35]	Pieruschka R, Huber G, Berry J A. Control of transpiration by radiation[J]. Proceedings of the National Academy of Sciences, 2010, 107(30):13372-13377. DOI URL
[36]	万梦丹, 刘小刚, 徐航, 等. 不同灌水和光强条件下小粒咖啡叶片光响应及光合生理特征[J]. 排灌机械工程学报, 2016, 34(9):795-803.
	WAN Mengdan, LIU Xiaogang, XU Hang, et al. Light response and photosynthetic physiology characteristics of coffea arabica L.leaf at different irrigation and light intensity levels[J]. Journal of Drainage and Irrigation Machinery Engineering, 2016, 34(9): 795-803.
[37]	潘澜, 薛立. 植物淹水胁迫的生理学机制研究进展[J]. 生态学杂志, 2012, 31(10):2662-2672.
	PAN Lan, XUE Li. Plant physiological mechanisms in adapting to water logging stress: A review[J]. Chinese Journal of Ecology, 2012, 31(10): 2662-2672.
[38]	郑艳军, 尹娟, 尹亮, 等. 不同灌水处理对枸杞产量和品质的影响[J]. 节水灌溉, 2017,(9):28-32.
	ZHENG Yanjun, YIN Juan, YIN Liang, et al. Effects of Different Irrigation Treatments on Yield and Quality of Lycium Barbarum[J]. Water Saving Irrigation, 2017,(9): 28-32.

处理 Treatment	灌水定额 Irrigation quota(mm)	灌水频率 Irrigation frequency	灌溉定额 Irrigation quota(mm)
CK	5.14	101	519.55
W₁	13.50	21	283.50
W₂	18.00	21	378.00
W₃	22.50	21	472.50
W₄	27.00	21	567.00
W₅	31.50	21	661.50

处理 Treatment	灌水定额 Irrigation quota(mm)	灌水频率 Irrigation frequency	灌溉定额 Irrigation quota(mm)
CK	5.14	101	519.55
W₁	13.50	21	283.50
W₂	18.00	21	378.00
W₃	22.50	21	472.50
W₄	27.00	21	567.00
W₅	31.50	21	661.50

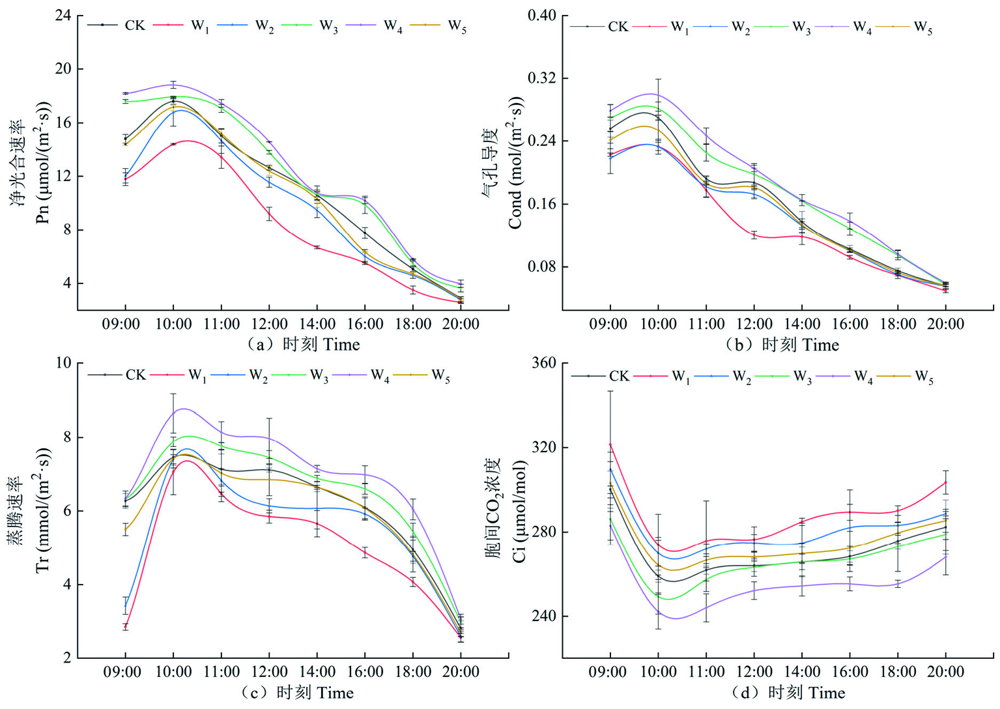

处理 Treatments	Pn μmol/(m²·s)	Cond mol/(m²·s)	Tr mmol/(m²·s)	Ci μmol/mol	LWUE (μmol/mmol)
CK	10.80^c	0.16^c	6.06^c	272.14^c	1.78^abc
W₁	8.39^f	0.14^f	4.92^e	289.45^a	1.70^c
W₂	9.73^e	0.15^e	5.39^d	281.93^b	1.81^ab
W₃	12.00^b	0.18^b	6.41^b	267.60^d	1.87^a
W₄	12.47^a	0.19^a	6.79^a	256.82^e	1.84^ab
W₅	10.41^d	0.15^d	5.88^c	276.19^c	1.77^bc

处理 Treatments	Pn μmol/(m²·s)	Cond mol/(m²·s)	Tr mmol/(m²·s)	Ci μmol/mol	LWUE (μmol/mmol)
CK	10.80^c	0.16^c	6.06^c	272.14^c	1.78^abc
W₁	8.39^f	0.14^f	4.92^e	289.45^a	1.70^c
W₂	9.73^e	0.15^e	5.39^d	281.93^b	1.81^ab
W₃	12.00^b	0.18^b	6.41^b	267.60^d	1.87^a
W₄	12.47^a	0.19^a	6.79^a	256.82^e	1.84^ab
W₅	10.41^d	0.15^d	5.88^c	276.19^c	1.77^bc

处理 Treatments	灌水量 Irrigation amount (mm)	单株果数 Number of fruits per plant (个)	单株产量 Yield per plant (kg)	产量 Yield (kg/hm²)	WUEI (kg/m³)
CK	519.55	98.67^a	10.48^b	30 192^b	5.81
W₁	283.50	70.67^b	7.24^c	20 856^c	7.36
W₂	378.00	72.5^b	7.69^c	22 152^c	5.86
W₃	472.50	101.00^a	12.05^a	34 704^a	7.34
W₄	567.00	98.83^a	12.27^a	35 328^a	6.23
W₅	661.50	94.17^a	9.82^b	28 272^b	4.27
